TriangleTube AIO C User manual

Mode d’emploi & Garantie
Owner’s manual & Warranty
TRIANGLE DISTRIBUTION FRANCE
44 rue Barreyre - CS40099 - 33300 Bordeaux
FRANCE

23
EN
USER MANUAL
ENGLISH

24
EN
UNPACKING
Open the box and take out the device.
If you notice any defects in one of the elements as you unpack, please get in touch with your
reseller. Your device is fragile and it is recommended to handle it carefully.
Before disposing of the packaging, make sure there is nothing left inside.
EACH BOX CONTAINS:
ÎAn AIO C and its antenna
ÎUser manual
Î1x USB Cable
Î1x USB Power Adapter
Î1x Mini Jack - Mini Jack stereo cable
Î1x RCA - Mini Jack stereo cable
INSTALLATION PRECAUTIONS
Before the installation
Before connecting your AIO C, check the stability of the surface you want to install it on and reduce
the distance between the speaker and your router as much as possible.
Moving the device
Always remove the power cord and disconnect the cables between all audio components when
moving the device. This will prevent a short-circuit or the damage to the plugs or connection cables.
Locations to avoid
Avoid humid locations or direct sunlight. It is preferable to install your speaker in a temperate place.
Recycling
Protection of the environment: your products contain valuable materials which can be recovered or
recycled. Take them to the appropriate collection points.
Mode d’emploi & Garantie
Owner’s manual & Warranty
TRIANGLE DISTRIBUTION FRANCE
44 rue Barreyre - CS40099 - 33300 Bordeaux
FRANCE

25
EN
DEVICE DESCRIPTION
1. Control LED
2. Power switch
3. Network pairing
4. Wi antenna
5. AC outlet
6. Optical input
7. Stereo Jack input
8. Ethernet cable input
1 2 3
5
4
6 7 8

26
EN
INTERNET
WIFI
Appareil iOS
Appareil Android
BOX - ROUTEUR
NAS
Service de streaming
NETWORK SETUP GUIDE
Network: You must have a router connected to broadband Internet to make the most of the
streaming services.
Remember to check the reception quality of your WiFi network when setting up your product.
A poor reception can affect the smoothness and the quality of your sound (see p.32 “Details of the
device”).
Your mobile device must be connected to the same WiFi network as your AIO system.
Note : the Ethernet cable is not provided.
Streaming services
iOs device
Android device
ROUTER

27
EN
AUDIO CONNECTIONS
There are 2 types of connection possible:
• JACK 3.5MM :
Connect a 3.5mm/2xRCA Jack or 3.5mm/3.5mm Jack cable (depending on the type of input
available on your amplier), then select the source on your amplier to enjoy your AIO C.
• OPTIQUE :
Connect an optical cable between your AIO C and your amplier; the optical cable allows a better
quality of listening if this input is available on your amplier. Then select the optical source on your
amplier.
NETWORK INSTALLATION
ÎPlug your AIO’s power cord into a power outlet.
ÎConnection by WiFi :
ÎPress the Power button.
ÎPress the Connect button on your AIO C.
ÎConnexion with an Ethernet cable :
ÎConnect the Ethernet cable. In this case, your AIO C will automatically be recognized on
your network without any necessary conguration.

28
EN

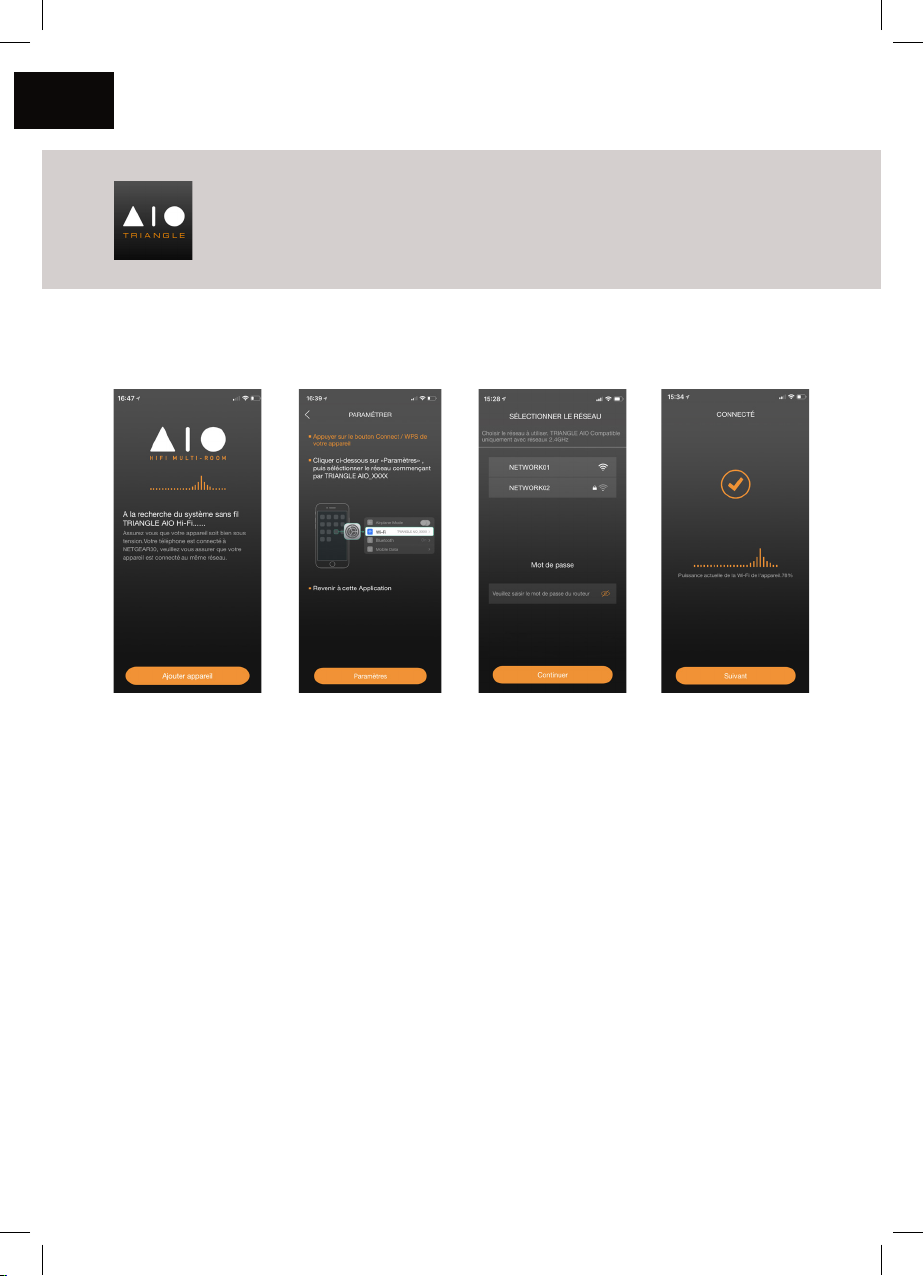

1. Press «Add device». 2. The app opens your
conguration tool to
nd the WiFi network
«TRIANGLE AIOC-
XXX».
3. Once you are
connected to the WiFi
of your AIO, go back
to the app. Select your
WiFi network and enter
the password.
Launch the app and follow the instructions.
4. Your AIO C is ready
to operate.
Download the app
Go to your store (App Store or Google Play) and download the app
TRIANGLE AIO.

29
EN
Sources Playback Screen AIO devices
The navigation is in 3 panels.
Just swipe the screen from left to right
to make them appear.
APP OVERVIEW

30
EN
1. Playback screen
Go back to the
previous screen
Audio source
Device on which the
music is played
Album cover
Repeat all
Repeat one
Shufe play
Previous
track
Next
track
Play / Pause
Track progress bar
Playlist by title
Caution: If you change the
volume using the buttons on
your mobile device, there may
be some latency and large
increments. For ne adjustments,
use the screen of the app.
Track
progress bar

31
EN
2. List of connected AIO
Add an AIO device to the
network (p.27)
Grouping AIO devices
The “Party Mode” allows to
connect up to 5 devices using
one WiFi connection and up to
10 devices using an Ethernet
connection.
It is possible to designate the
speaker as a Left speaker (L) or
a Right speaker (R).
The default setting is in mixed
mode (left and right - LR).
The default setting is
in stereo (LR).
It is possible to assign
a speaker only to the
right channel or to the
left one by pressing
this function.
Album cover of the
track being played
Each speaker can
play a different song.
Speaker volume
Settings

32
EN
Renaming the speaker
3. Settings
Setting the Auto
Power-Down (the
sound stops but
the device remains
connected)
Setting the alarm
In order to ensure
that the alarm works,
leave your device
turned on.
Details of the AIO
Favorites
Quality of the
WiFi signal

33
EN
4. Sources
Deezer - Qobuz - Tidal
You need a
subscription to
access these services.
TuneIn gives you
access to all the
digital radios.
My music : The AIO speaker lets you play music you downloaded on your phone and access the
music stored on a NAS drive on your network or on your connected USB drive.
You must allow the app to read the musical content on your mobile device (see Settings of the
TRIANGLE AIO app in the general menu on your mobile device depending on your iOS or
Android system).
To be able to access your songs, they must be saved directly on your phone. Some tunes might
be protected by DRM technology which will prevent you from playing them.
Adding or removing
services from the menu
Source selection
Favorites : To quickly
access your favorite
track on your mobile
device.
Search : to quickly
access the music saved
on your mobile device.
Spotify : see next
page.
My playlists :
Create a playlist
from the songs
saved on your
mobile device.

34
EN
Spotify:
ÎYou need a Spotify Premium subscription. Once selected, the Spotify app will start.
ÎChoose a song.
ÎSelect your speaker.
ÎThen go back to the app if necessary.
ÎYour AIO C is now a Spotify Connect speaker. You can play your music directly from the Spotify
app, without using the TRIANGLE AIO app.
Listening yo music in high denition:
To listen to music in high denition, you
must have a subscription with a provider
and set up the dedicated app.
Example on the Qobuz app >>
Choosing your speaker

35
EN
TROUBLESHOOTING
If the device does not work correctly, check the points listed below. If the problem persists, the
device may not operate normally. Unplug the power cord immediately and get in touch with your
reseller.
OBSERVATION SOLUTION
My AIO does not connect
to the network.
Check that your mobile device is connected to the network
on which you are trying to connect your AIO.
Place your AIO closer to the router.
Connect an Ethernet cable between your router and the AIO.
Check that your app is up to date, or reinstall it.
Restart your mobile phone and your network.
The music is cutting out or
jerky.
Check the Internet connection.
Make sure your network or another device is not using a
large part of your bandwidth.
Check the quality of the WiFi signal (see p.29)
Check that your app is up to date, or reinstall it.
Restart your mobile phone and your network.

36
EN
FREQUENTLY ASKED QUESTIONS
How many speakers can I
group?
AIO can group up to 5 speakers in WiFi, 10 via Ethernet, if
the quality of the connection is good enough.
What happens when I get
a call on my mobile phone
while I use the app?
The music continues to play on your speaker without
interruption.
Can the AIO play songs in
high resolution (High Res)?
The AIO can play songs up to 24 bit/192 kHz, but be
careful, you must have a good Internet connection and
your streaming app must be set-up correctly.

37
EN
CAUTION
To avoid the risk of electric shock, do not open the device.

38
AIO CONNECT
Spécications techniques
Technical specications AIO C
Connectivité / Connectivity
Réseau sans l
Wireless network IEEE 8.2.11b/g/n 2.4GHz Ethernet
Branchement
Wired connectivity Single 10/100M RJ45 Jack
Fréquence
Frequency Response 20Hz - 20KHz
Alimentation
Power input 5V-1A
Entrée audio
Audio input USB 2.0
Formats audio
Music le formats MP3 - AAC+ALAC - FLAC - AOE - WAV
Dimensions L80 x P80 x H20 mm
L3.15 x W3.15 x H0.79"
Poids
Weight
160g
0.35 lbs

39
AIO C

- DESIGN BY TRIANGLE IN FRANCE - ASSEMBLED IN CHINA
