Academy Dragster ADSP 8 User manual

8 CHANNEL DSP EQ OUTPUT (31 BAND)
ADSP 8
DIGITAL SOUND PROCESSOR
INSTRUCTIONS MANUAL

ADSP 8
2

2
1. CONTENT
2. WELCOME TO THE ADSP 8
3. ADSP 8 PACKAGE CONTENTS
6. ADSP 8 INSTALLATION PROCEDURE
4. PRODUCT FEATURES
4.1. Audio speciality
4.2. Audio decoder
4.3. Wireless connection
4.4. Unit interface connection
4.5. DSP controller introduction
4.6. Software introduction
5. TECHNICAL PARAMETERS
5.1. Specifications
5.2. Functions
6. ADSP 8 INSTALLATION PROCEDURE
7. INPUT PANEL CONNECTION FEATURES
7.1. Power Supply, REM, High-Level Pin
7.1.1. Power
7.1.2. REM IN
7.1.3. REM OUT
7.1.4. High-level input
7.2. AUX Low-level RCA Input Interface Connection
7.2.1. 3 Groups Stereo Input
7.2.2. 1 Group Stereo, 4 channels Input Mode
7.2.3. 5.1 Channel (6 Channels) Input Mode
7.3.S/PDIF Digital Interface Input
7.3.1. Optical
7.3.2. Coaxial
8. OUTPUT PANEL CONNECTION FEATURES
8.1. RCA Input Interface
8.2. Input, Output, Routing Connection Rules
8.3. USB 3.0 Interface
8.3.1. Connecting to Computer
8.3.2. Connecting to Controller DSP
8.4. Phone Interface
9. DSP CONTROLLER OPERATION
9.1. DSP Controller Image
9.2. DSP Controller Operation

ADSP 8
3

3
10. SOFTWARE OPERATIVE INSTRUCTIONS
10.1. How to Get the Software
10.2. Software Installation
10.3. Software Operation
10.4. Software Online
10.4.1. UBS Interface Connection
10.4.2. WiFi Connection
10.5. Software Input Signal Interface
10.5.1. Setting Area Input Signal
10.5.2. Graphic Input Signal
10.5.3. Equalizer Frequency Dragging Area Input
10.5.4. Equalizer Parameters Area Input
10.5.5. Status Bar Signal Input
10.6. Signal Output GUI
10.6.1. Output Channels’ Correspondence with the Positions
on the Chart Area
10.6.2. Output Channel Setting Area
10.6.3. Output Volume
10.6.4. Crossing Setting Area
10.6.5. Output Phase Area
10.6.6. Space and Time Delay Area
10.7. Volume Interface
10.7.1. Master Volume Setting Area
10.7.2. Signal Input Level Setting Area
10.7.3. Time Delay and Distance Setting Area
10.7.4. Signal Output Level Setting Area
10.8. Main Menu
10.8.1. Memory Menu
10.8.2. Options Menu
11. BLUETOOTH CONNECTION
11.1. Bluetooth Connection
12. APPLICATION FOR ANDROID
12.1. How to get the Application
12.2. Application Installation
12.3. Android Connection
12.4. Application Operating
12.5. Application Screenshot
12.6. Application Operation
13. TROUBLE SHOOTING GUIDE
14. ASSEMBLY DIMENSIONS
15. ASSEMBLY DIMENSIONS FOR THE REMOTE CONTROL

ADSP 8
4

4
2. WELCOME TO THE ADSP 8
Thank you for your purchase of the Academy-Dragster ADSP 8 Car Audio
-Digital Sound Processor - and welcome to the Academy-Dragster family of
Sound Quality for car audio.
The ADSP 8 is the best combination of the highest quality analog and
digital components available giving all levels of enthusiast the finest product
available.
This user manual will help you to be confident with the most advanced car
audio processor on the market having focused its entire development on placing
the power of tuning back into the possibilities of installer, user and listener.
3. ADSP 8 PACKAGE CONTENTS
�ADSP 8 digital car audio processor
�Connector to Processor
�DSP Controller
�USP 3.0 Interface cable (4m)
�Bluetooth antenna
�WiFi Antenna
4. PRODUCT FEATURES
Main functions and characteristics are described in the following
paragraphs.
4.1 Audio Speciality
This unit adopts 192kHz High Sampling rate, and the resolution is 32-bit
which is the industry outstanding DA/AD conversion technology. The core
processor is a high-performance 48 double-precision floating point digital
processor (DSP). Digital audio processing includes gain control, signal phase, 31-
band parametric equalizer or graphic equalizer, time delay and frequency divider
(low cut and high cut filter, frequency division professional types include:
Butterworth/Bessel/NingKe, 6 kinds of slope, noise and limiter device and so on.
4.2. Audio Decoder
This unit includes 5.1 acoustic space decoding function, access digital
audio output of the digital signal (fiber optic or coaxial), decoding in US digital
professional audio decoder chip and resolving power extremely strong.
4.3. Wireless Connection
Bluetooth: built-in version 4.0 Bluetooth, hand-free call with functions of
automatic switch telephone. Can be reached directly with Bluetooth transmission
during audio playback of music files.
WiFi: built-in module, realizes wireless connection and debugs the music
sound effect in the car.

ADSP 8
5

5
4.4. Unit Interface Connection
Input Connections:
o2 digital input: Coaxial input or Optical input
o6 channel low-level signal RCA input, which can be set up in 3 input
modes.
oa double row 10 feet socket: including 1 set of power supply, 2
REMIN groupes, 4 REMOUT sets, 4 high level sets.
oa 3.5mm microphone interface; the mic (not included), signal via
Bluetooth hand-free calls.
ooutput connections: 8 channels RCA output terminals
oexternal Control Interface: 1 pc USB3.0 interface (compatible with
USB1.1/2.0 interface), computer connection, wire control device or
external WiFi
opower indicator:

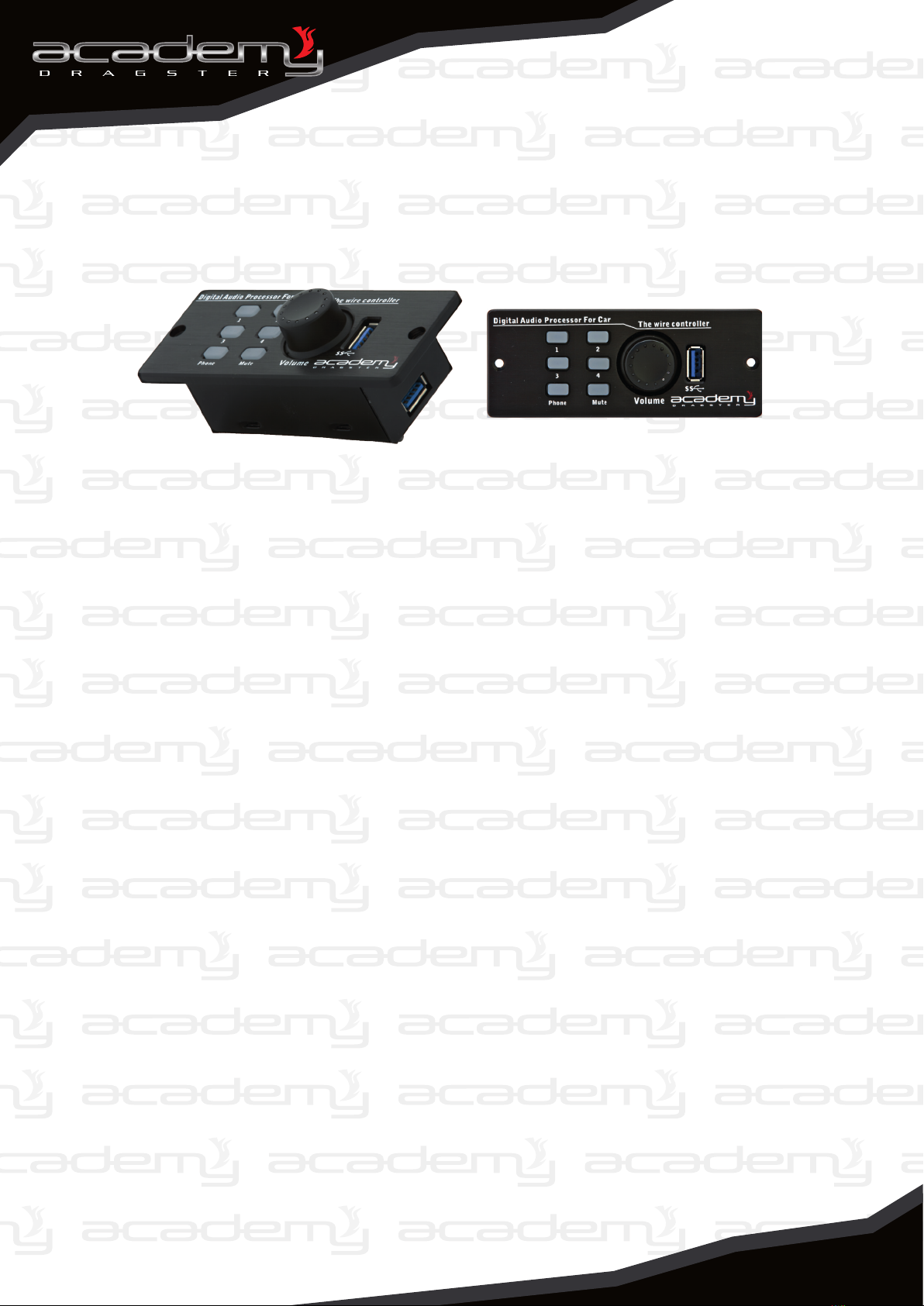

4.5. DSP Controller Introduction
2 USB3.0 interface: one used to connect the unit (side), the other one used
to connect to computer (front panel)
1 knob: adjusts the volume function
6 pcs buttons with light: switches the EQ mode and function, status display
4.6. DSP Software Introduction
ADSP 8: Exe control software: the PC control software can connect to the
unit by USB, WiFi, etc, which can configure the unit with flexibility and
conveniently, download the configuration already set to the machine or to save
the existing configuration from the device to the computer.
Computer configuration requirements: minimum 1.5 GHz processor having
at least 1 GB of RAM memory; suitable for Windows XP, Windows Vista,
Windows 7, Windows 8 operation system.

ADSP 8
6

6
5. TECHNICAL PARAMETERS
5.1 Specifications
Dynamic Range ≥126dB
S/N ≥110dB
TDH+N ≤0.004%
IMD ≤0.02%
Frequency Responce 10Hz-20kHz
Input Impedance 20k Ohm
Output Impedance 100 Ohm
Channel Gain Margin ≤0.1dB
CMRR ≥80dB (1kHz)
Input Range RCA low level: 6.5V peak value
high level: 14.4V peak
Output Range RCA output level: 6.5V peak value
Temperaturae Range -40°C~85°C
Power Supply 9DVC~15DVC
Start REM1-REM2 (9~14.4 DVC) /
High-level input signal
Start Output +12DVC start voltage input (0.1A)
Power Consumption ≤10W
Nett Weight 2.2kgs
Gross Weight 2.8kgs
Dimensions 233(L) x 135(W) x 33(H)
5.2 Functions
Input Signal Type: this processor can be applied to many input devices, as below:
1. High level: 4 channel input
2. Low level: 6 channel RCA input
3. Digital input: Coaxial abd Optical
4. Bluetooth
AUX Low-level Input mode
Provided 3 types of low-level input mode:
1. 3 groups of stereo input mode
2. 1 group of stereo input mode add 4-channel
input mode
3. 5.1 (6 channel) input mode
Input Signal Volume
Each input channel set up separate volume, adjustment range
59.9dB~0dB, shut off.
Input Equalizer Each Input Channel set up with 31-band
equalizers, parameter range:
1. Centre Frequency point:: 20Hz~20kHz,
Accuracy: 1kHz.
2. Q (quality factor): 0.404~44.852, precision is
0.001.
3. Gain. 12.0dB~+ 12.0dB, accuracy of 0.1dB

ADSP 8
7

7
Crossover: low-pass Parameters:
1. Professional filter types: Butterworth
(Butterworth), NingKe (Linkwitz –Riley),
queque (Bessel).
2. Filter frequency division point: 20Hz~
20kHz.
3. Filter slope setting: 12dB/Oct~
48dB/Oct (step by 6dB/Oct).
Crossover: high-pass Parameters:
1. Professional filter types: Butterworth
(Butterworth), NingKe (Linkwitz –Riley),
queque (Bessel).
2. Filter frequency division point: 20Hz~
20kHz.
3. Filter slope setting: 12dB/Oct~
48dB/Oct (step by 6dB/Oct).
Input Signal Phase Each input channel phase can be adjusted,
range of parameters:
in phase or reverse phase (0°/180°).
Output Master Volume Adjustment range: 60dB~6dB, shut down.
Output Signal Phase Each output channel phase can be adjusted in
phase or reverse phase (0°/180°)
Output Level Limiting It is possible to set up the limit of output signals
for each channel protecting the amplifier.
Range of parameters:
1. Clipping level (Parameter range: da -30dBu
~+11.0dBu)
2. Response Time (parameters
0.3ms~200ms).
3. Release Time (parameters: 50ms~5000ms)
Output Equalizer Each channel with 31-band equalizer engine,
parameters range:
1. Central Frequency point: 20Hz~20kHz,
accuracy of 1Hz.
2. Q value (quality factor): 0.404~44.852,
precision is 0.001.
3. Gain: -12.0dB ~+12.0dB, accuracy of 0.1dB.
Time Delay and Space Each output channel has separated delay to
adjust sound field spatial orientation.
Parameters range:
1. Milliseconds (0.000 to 20)
2. CM (0.00 to 692.00)
3. Inches (0.00 to 272.75)

ADSP 8
8

8
Input Noise Threshold Adjustment Range: -20dBu~-119dBu, shut
down.
Mute Each channel sets up with separated mute
control.
Volume Output Each channel sets up with separated volume
control, adjustment range -59.9dB~0dB,
shut down.
Configuration Load, delete, save. It can support 6
scenarios depending on the personal
preferences and size of the car.

ADSP 8
9

9
6. ADSP 8 INSTALLATION PROCEDURE
The ADSP 8 has been designed for easy installation into your vehicle.
Please follow the indications below to ensure good operation and long term
reliability.
1. The ADSP 8 digital sound processor needs to be installed in the
signal path between your signal source and your external amplifier(s).
2. The ADSP 8 digital sound processor must be installed to a
solid surface. Please select a dry clean location in the trunk or passenger
compartment only. Do not install the ADSP 8 to any area that may experience
excessive vibrations. Position the ADSP 8 processor in a location that will allow
for sufficient airflow with taking into mind an ease of service for subsequent
accesses.
Notes:
We suggest to check the suitability of the installation before you
begin. Do not cut any of the car’s structure, take heed to what could be
beyond the panel or carpet where you intend to operate. The manufacturer
will hide wires, computers or other electronic devices in the exact areas you
wish to install your product.
When installing your ADSP 8 to the floor of the vehicle, be sure to
inspect underneath the vehicle to prevent damage to the vehicle’s fuel
delivery system or factory wiring, so as to prevent serious damages or
hazardous conditions to your vehicle.
If you don’t have experience with automotive electrical and
mechanical systems, contact a professional installer. Paying a qualified
installer is almost always cheaper than paying a dealership to repair your
car.

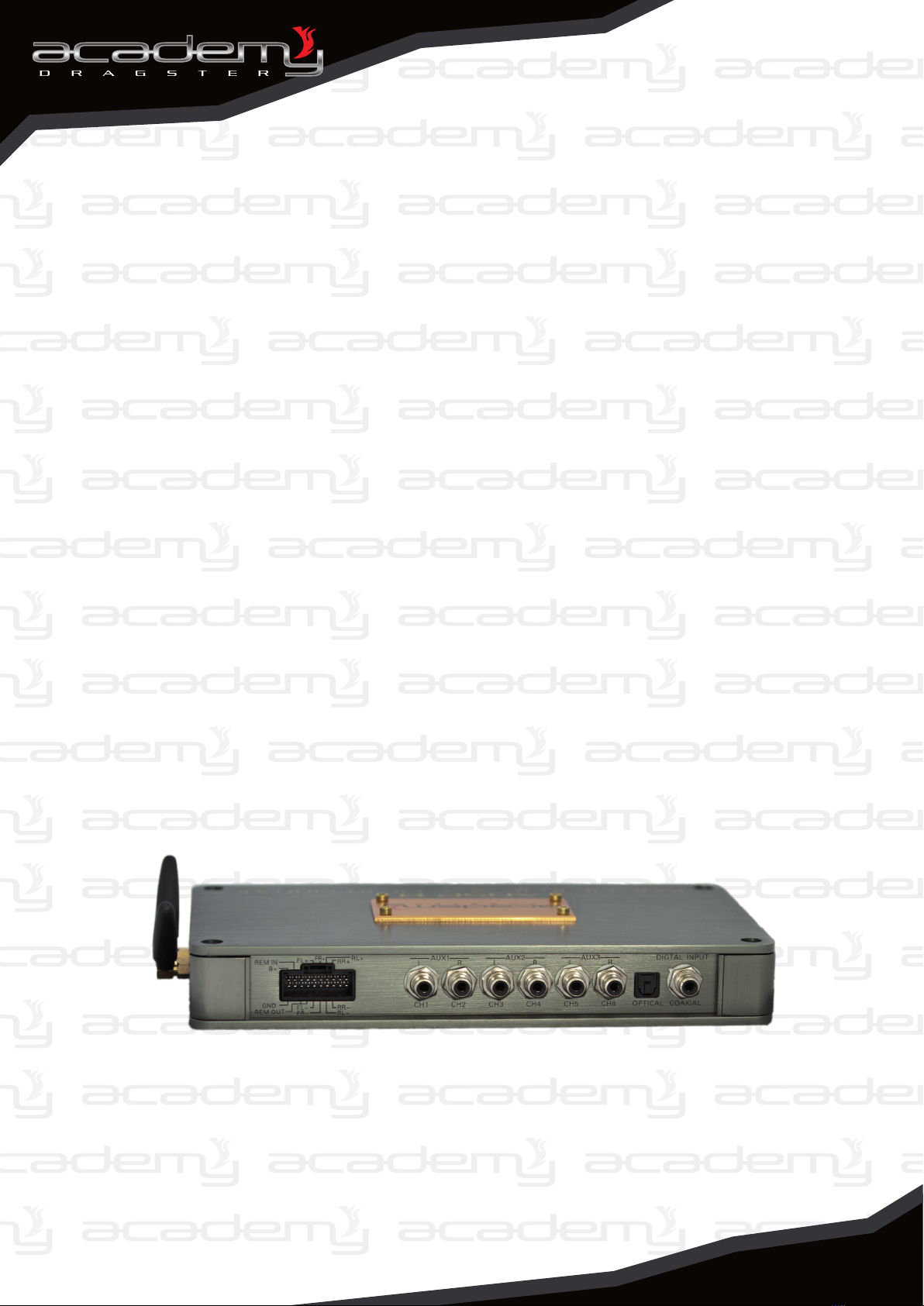

7. INPUT PANEL CONNECTION FEATURES
Input Panel:
Input Panel: Input Pin (Power Supply, REMIN, REMOUT, High-level), 5.1-
channel, AUX Input, Digital InInput (coaxial and optical Input).

ADSP 8
10

10
7.1 Power Supply, REM, High-Level Pin
B+ REM IN1 REM IN2 REM OUT4 FL+ FR+ RL+ RR+ -- --
GND REM IN2 REM OUT1 REM OUT3 FL-FR-RL-RR--- --
PWR REM REM REM Front Front Rear Rear -- --
Input Input Output Output Left Right Left Right
Input Input Input Input
Note:
“-“ is negative or inverse (ground)
“+” is positive or positive phase
7.1.1. Power
B+: Connect to car Power Supply positive +12V.
(It is recommended the installation of a fuse by max. 15Ah)
GND: Car Power Supply Negative
Note:
Make sure that the power connection is closely compatible with the power of
this unit. Otherwise the uni twill be damaged procuring risk of a short circuit,
fire, etc.
7.1.2. REM IN
Provided 2 sets of processor switches and control signal input interface REM IN1
and REM IN2, by other devices (such as : source device vehicle, DVD, etc.) though
the signal input to control the processor.
Note:
The REM IN input can be connected in parallel.
7.1.3. REM OUT
Provided 4 pcs “same time same voltage” output control interface REM OUT1 -
REM OUT4 to control the car amplifier. You can also use only 1 pc and join-up in
parallel of all the external car amplifier, then others as spare.
Note:
over 4 amplificators it is recommented the installation of a switch relais.
7.1.4. High-level Input
Provided left-front (FL+/FL-), righ-front (FR+/FR-), left-rear (RL+/RL-), right-rear
(RR+/RR-), 4 groups.
This high-level analog signal input cannot exceed a voltage input of 14.4 VDC.
Note:
switching on the built-in source, you will have automatically +12V from
REM OUT.

ADSP 8
11

11

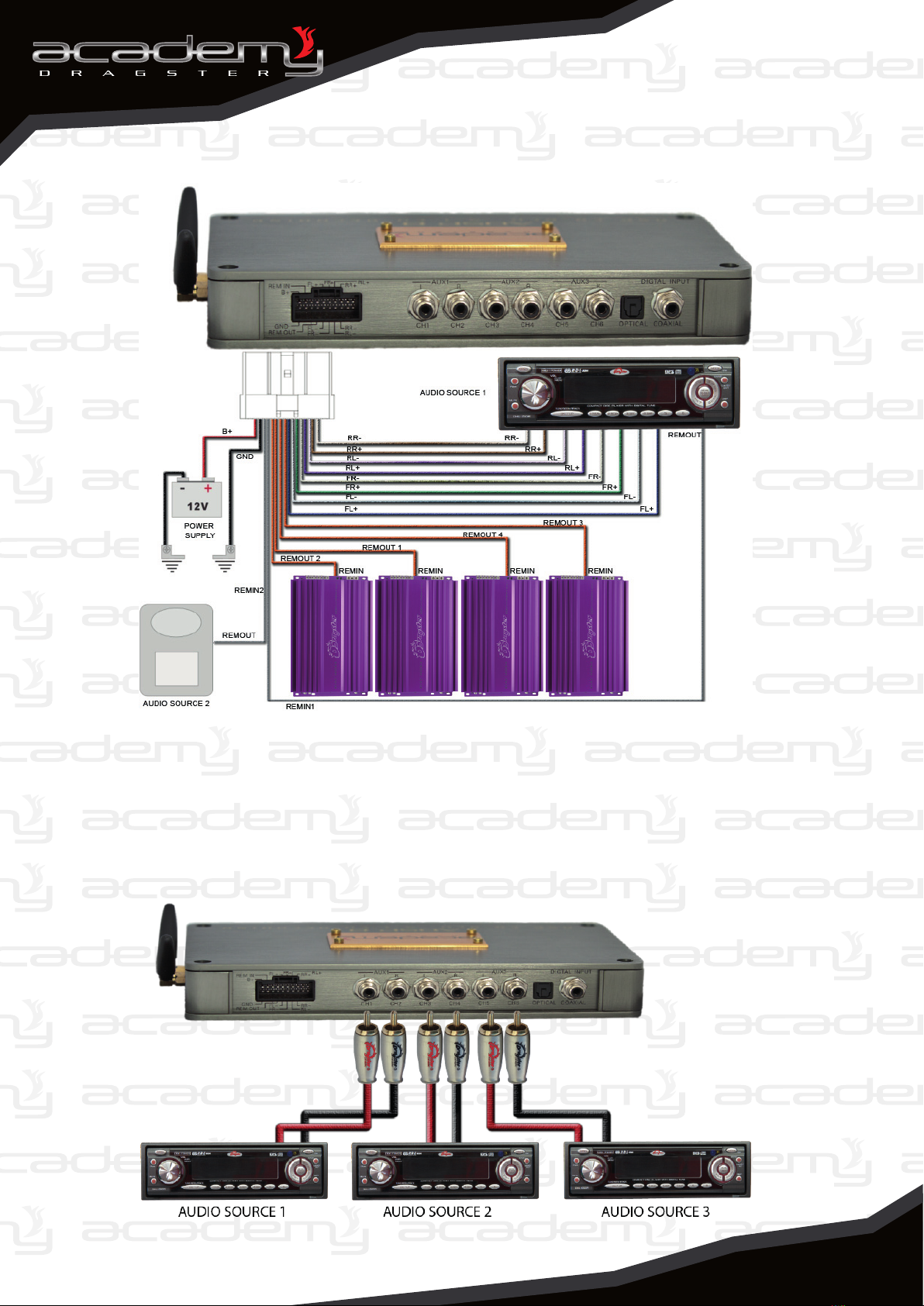

PIN connection:
7.2.AUX Low-level RCA Input Interface Connection
CH1 –CH2 –CH3 –CH4 –CH5 –CH6
RCA cable connects to the low-level analog signal input. There are 3 different input
modes according to the software operation setting.
7.2.1. 3 Groups Stereo Input Mode

ADSP 8
12

12
7.2.2. 1 group Stereo, 4 Channels input Mode
7.2.3. 5.1 Channels (6-channel) Input Mode

ADSP 8
13

13
7.3. S/PDIF Digital Interface input
Digital signal input support stereo PCM format signal and 5.1 original signal
source.

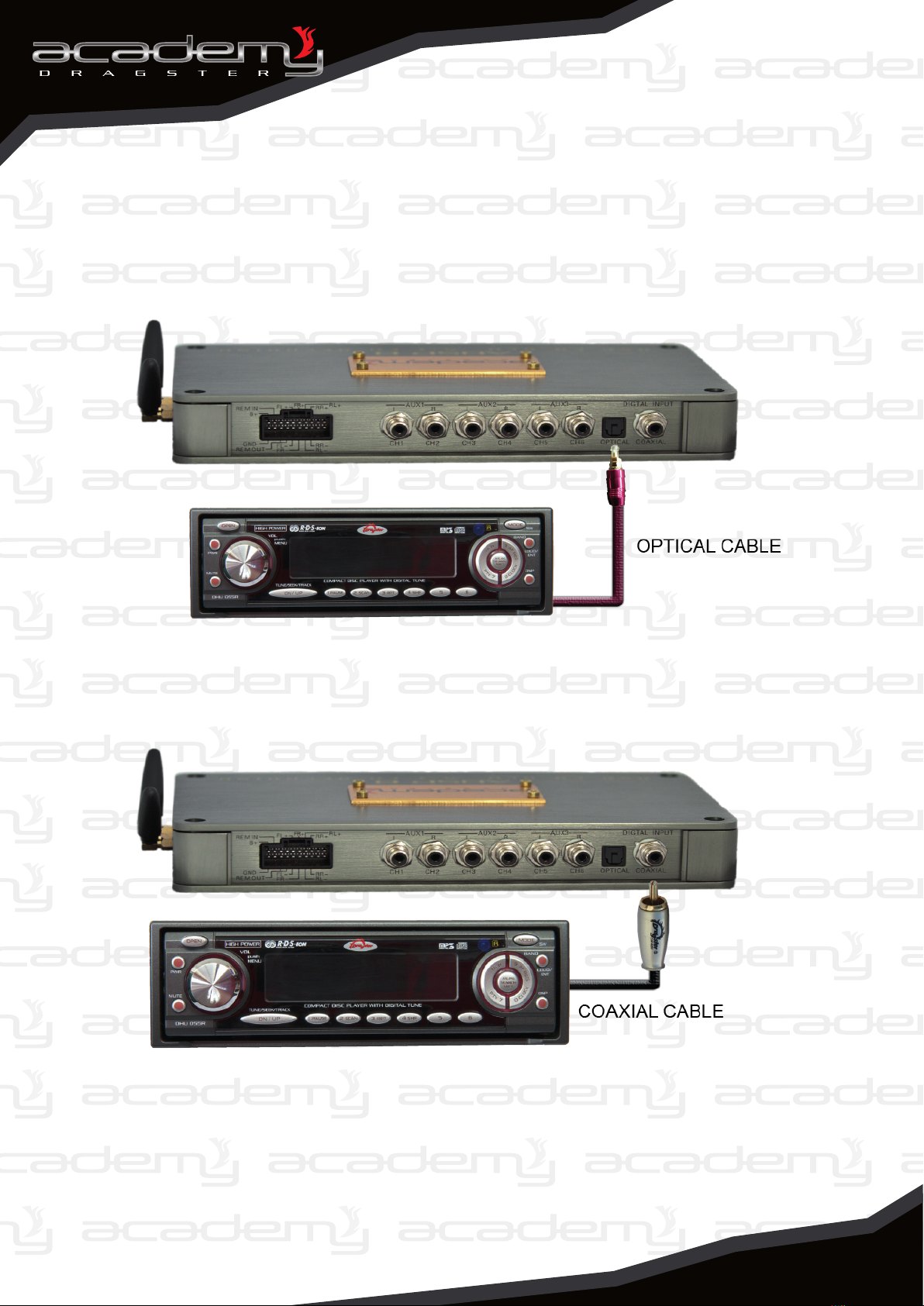

7.3.1. Optical
7.3.2. Coaxial
Note:
There is an optional input for optical input and coaxial input. The
processor will give preference to optical input when the optical input and
coaxial input are both plugged. If there is no optical input, it will be switched
to coaxial input.

ADSP 8
14

14
8. OUTPUT PANEL CONNECTION FEATURE
Output signal panel:
Output Signal Panel: 8ch output interface.
USB3.0 Interface. Power indicating light. Microphone.
8.1 RCA Output Interface
CH1 –CH2 –CH3 –CH4 –CH5 –CH6 –CH7 –CH8
Low-level analog output by RCA cable to be connected to car amplifier input.

ADSP 8
15

15
8.2. Input, Output, Routing Connection Rules
Power amplifier output to the corresponding speakers, we define the six
sound field locations: left-front, right-front, left-rear, right-rear, center and subwoofer.
Specific output signal corresponds to the input of the routing rules defined as
follows: (general rules: the left input signal is sent to the left speaker sound field, the
right input signal is sent to the right speaker sound field, front input signal is sent to
the front speaker sound field, front input signal is sent to the front speaker sound
field, rear input signal is sent to the back speaker sound field.
(1) AUX, High-level, Bluetooth:
______________________________________________________________
Signal Input Send to output location
AUX Left input (stereo input mode) Left-front speaker sound field
and left subwoofer sound field
----------------------------------------------------------
AUX Left-front
(4 channel or 5.1 channel input mode)
----------------------------------------------------------
High-level left-front input
----------------------------------------------------------
Bluetooth left input
AUX right input (stereo input mode) Right-front speaker sound field
and right subwoofer sound field
----------------------------------------------------------
AUX right-front input
(4 channel or 5.1 channel input mode)
----------------------------------------------------------
High-level right-front input
----------------------------------------------------------
Bluetooth left input
AUX left input (stereo input mode) Left-rear speaker sound field
----------------------------------------------------------
AUX left-rear input (4 channel or 5.1 channel
Input mode)
----------------------------------------------------------
High-level right-rear input
----------------------------------------------------------
Bluetooth right input
AUX right input (stereo input mode) Right-rear speaker sound field
----------------------------------------------------------
AUX right-rear input (4 channel or 5.1 channel
Input mode)
----------------------------------------------------------
High-level right-rear input
----------------------------------------------------------
Bluetooth right input

ADSP 8
16

16
__________________________________________________________________
AUX center input (6 channel or 5.1 channel Center sound field speaker
Input mode)
----------------------------------------------------------
AUX left input and right input
(4 channel input or stereo input mode)
----------------------------------------------------------
High level left-front and right-front input
----------------------------------------------------------
Bluetooth left input and right input
AUX subwoofer input Subwoofer sound field
(6 channel or 5.1 channel input mode)
----------------------------------------------------------
AUX left input and right input
(4 channel or stereo input mode)
----------------------------------------------------------
High level left-front input and right-front
input
----------------------------------------------------------
Bluetooth left input and right input
(2) Digital signal Input:
5.1 channel audio input Send tp 5.1 channel sound field output automatically
Stereo audio input Left signal input to left-front, left-rear and left-subwoofer
sound field speaker
_____________________________________________
Right signal input to right-front, right-rear and right-
subwoofer sound field speaker
Left + right signal send to: center and subwoofer sound
field speaker
__________________________________________________________________

ADSP 8
17

17
8.3. USB3.0 interface
Interface compatible with standard USB1.1/2.0. Functions below:
8.3.1. Connecting to Computer
Connect devices to PC and configures the user processor program by PC software.
8.3.2. Connecting to Controller
Processors can be easily and conveniently controlled by wired DSP
Controller.

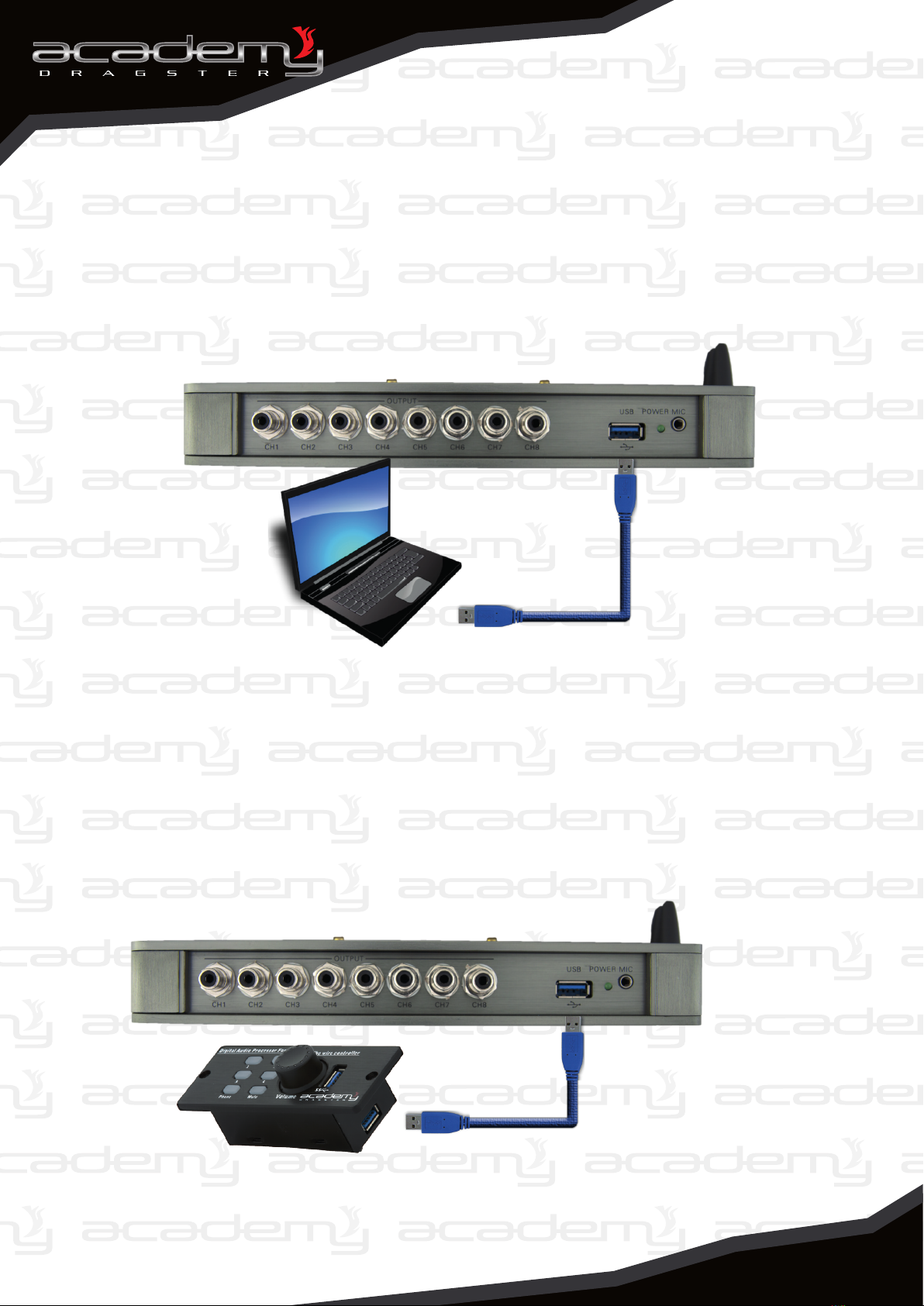

(1) Connect the processor to USB interface controller, wire connection as
below photos.

ADSP 8
18

18
(2) Connect computer to USB interface controller and configurate the
scenario by computer software. (The wired USB interface controller must be
connected to the processor), see wire connection here below:
8.4 Phone Interface
Insert the receiver phone inteface and realize hand.free phone calls as seen
below:

ADSP 8
19

19
9. DSP CONTROLLER OPERATION INSTRUCTIONS
9.1 Controller Image:
9.2. Controller Operation Instructions
(1) Buttons (6 pcs)
“1” Button: call the preset scenario 1 saved in the processor, when the
button light is selected.
“2” Button: call the preset scenario 1 saved in the processor, when the
button light is selected..
“3” Button: call the preset scenario 1 saved in the processor, when the
button light is selected.
“4” Button: call the preset scenario 1 saved in the processor, when the
button light is selected.
“Phone” Button: set the output channel as phone, when the button light is
selected.
“Mute” Button: set the output channel as mute, when the button light is
selected.
(2) Volume button (1)
Volume knob: clockwise to increase the volume, anticlockwise to decrease
volume.
(3) USB3.0 Inteface (2 pcs)2 pcs USB3.0 Interface (one in the face-panel,
one in the right side of panel 1). Compatible USB1.1/2.0 Interface, the right side
panel USB interface used to connect the processor, and the face-panel USB
interface used to connect to the computer.

ADSP 8
20

20
10. SOFTWARE OPERATIVE INSTRUCTIONS
10.1 How to Get the Software
You can download the software from our website www.dragster.audio. At the
same time you can download the latest version of the software, the most optimizing
configuration file and the practical application cases.
10.2 Software Installation
Operating environement: suitable for Windows XP Vista / Windows 7/
Windows 8 operating systems. Our software is a standard WIN32 executable file-
DCP680. Exe can run directly under any drive and path. Should you lose any data,
please check the integrity of the operating system, download and install the relevant
system’s missing files.
10.3 Software Operation
Download the file “DCP680.exe” from our website, then copy to your
computer (it is strongly suggested to create a new folder for exclusive use), then
double-click on this file to open it (a file named “data file” will automatically be
created at the software directory once you run this file to save user program files).
Open the software and the Main GUI as below:
