Access Tubs 3060SI HYDRO Manual

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 25
Access Tubs
INSTALLATION & OPERATING INSTRUCTIONS
INSTALLATION & OPERATING INSTRUCTIONS
ACCESS TUBS
5701 NW 35 Avenue
Miami, FL 33142
Phone [phone]
Fax [phone]
[email protected]
http://www.accesstub.com
MODEL
3060SI HYDRO
COSTCO MODEL # 391186/394862 - RIGHT
COSTCO MODEL # 391197/394842 - LEFT

Access Tubs
Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
3060 HYDRO STEP-IN TUB
INSTALLATION: It is important that all leveling
feet are completely touching the floor
and level for the door system to work properly.
3060SI
30" x 59
5
8
" x 22"
• Before ordering or installing, please consider future access to
equipment.
• Please measure tub on-site before building tub surrounding.
•Jet, pump & blower locations are predetermined and cannot be
changed.
•Tub door must remain close when not in uses.
•Please note that installer(s) must be certify or warranty will be
voided.
• Specifications and configurations are subject to change
without notice.
• Measurements are +1/2" and are subject to change without
notice.
• Measurements herein supersede all others published prior to
publication date shown below.
OPTIONS
Colors Available - White
Quick Ship - reduces lead time - call for availability
Inline Heater with Pump - Whirlpool or Whirlpool and Air Bath
Lift & Turn Drain Kit -Chrome,Brushed Nickel, White
Color Match Jets.
Built in tile flange.
Air jets, Air blower, Textured bottom
IMPORTANT INFORMATION
Whirlpool and Air
Air jets,
Air blower, textured bottom
ELECTRICAL SPECIFICATIONS:
Required Electrical Service 110 Volt
Air Bath or Whirlpool 1-15 amp GFCI
Whirlpool with Inline Heater 1-20 amp GFCI
Whirlpool and Air 1-20 amp GFCI
Soaker
GENERAL SPECIFICATIONS:
Material Acrylic
Plumbed Weight : 145lbs / 66kg
Soaker Weight :115lbs / 52kg
Average Fill: 40 gal to above jet level
©2013 by SPA WORLD CORP Modification Rights Reserved.
INSTALLATION: It is important that all leveling
feet are completely touching the floor
and level for the door system to work properly.
3060SI
30" x 595
8" x 22"
• Before ordering or installing, please consider future access to
equipment.
• Please measure tub on-site before building tub surrounding.
•Jet, pump & blower locations are predetermined and cannot be
changed.
•Tub door must remain close when not in uses.
•Please note that installer(s) must be certify or warranty will be
voided.
• Specifications and configurations are subject to change
without notice.
• Measurements are +1/2" and are subject to change without
notice.
• Measurements herein supersede all others published prior to
publication date shown below.
 OPTIONS
 Colors Available - White
 Quick Ship - reduces lead time - call for availability
 Inline Heater with Pump - Whirlpool or Whirlpool and Air Bath
 Lift & Turn Drain Kit -Chrome,Brushed Nickel, White
 Color Match Jets.
 Built in tile flange.
Air jets, Air blower, Textured bottom
IMPORTANT INFORMATION
Whirlpool and Air
Air jets,
Air blower, textured bottom
ELECTRICAL SPECIFICATIONS:
Required Electrical Service 110 Volt
Air Bath or Whirlpool 1-15 amp GFCI
Whirlpool with Inline Heater 1-20 amp GFCI
Whirlpool and Air 1-20 amp GFCI
Soaker
GENERAL SPECIFICATIONS:
Material Acrylic
Plumbed Weight : 145lbs / 66kg
Soaker Weight :115lbs / 52kg
Average Fill: 40 gal to above jet level
©2013 by SPA WORLD CORP Modification Rights Reserved.
DESCRIPTION:
Access Tubs Step-In Hydro Bath Tub will again allow you to enjoy the pleasures of independent bathing, at a very comfortable price.
The Walk-in Hydro bath is designed to fit conveniently into your shower stall or previous bathtub area. Our tubs are designed around
your convenience and comfort for you to be able to bathe easily. Our Walk-in bathtubs allow you to enjoy a comfortable soak without
struggling to get in or out. Available in a left or a right drain model.
FEATURES:
• Color: White
• Revolutionary watertight, walk-in tub door system
• Deep soak.
• 6 fully adjustable and directional Hydro Therapy Jets
• Slip-resistant floor
• Six (6) adjustable leveling feet
• 7.5AMP Hydro pump
• Inline Water Heater – designed to maintain a consistent & comfortable water temperature
• Faucet not included.
AUTO DRAIN
• Efficiently drains tub in under 60 secs
• 1 dedicated 20 Amp GFCI protected electrical circuit required for bathtub installation.
• Auto Drain system included (Waste and overflow not included)
SPECIFICATIONS:
• Size: 30x60x22
• 50 Gallons (unoccupied).
• Weight 175 lb
• All components are ETL,CSA and Mass. approved
WARRANTY:
• Seals: For as long as the original purchaser owns the product.
• Limited 10 years on tub.

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 1
Access Tubs
TABLE OF CONTENTS
THANK YOU FOR CHOOSING ACCESS TUBS ®................................................................ 2
CONTACT INFORMATION........................................................................................... 2
PRODUCT REGISTRATION* ....................................................................................... 3
SAVE THIS MANUAL! ............................................................................................... 4
UNPACKING THE UNIT.............................................................................................. 5
PRE-INSTALLATION*................................................................................................ 6
INSTALLATION PREPARATION .................................................................................... 7
ELECTRICAL PREPARATION ....................................................................................... 8
INSTALLATION PROCEDURES .................................................................................... 9
DRAIN CONNECTION................................................................................................ 10
CONNECTING THE AUTO DRAINTM ................................................................................ 11
INSTALLATION AND EXTENSION PANELS ...................................................................... 12
FAUCET INSTALLATION............................................................................................. 13
OPERATING SAFETY INSTRUCTIONS............................................................................ 14
OPERATING INSTRUCTIONS ...................................................................................... 16
TUB CONTROLS...................................................................................................... 18
CLEANING AND MAINTENANCE .................................................................................. 19
WARRANTY........................................................................................................... 20
RETURN POLICY ..................................................................................................... 22
PRODUCT REGISTRATION CARD................................................................................. 23
TABLE OF CONTENTS
TABLE OF CONTENTS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 2
Access Tubs
THANK YOU & CONTACT INFORMATION
THANK YOU FOR CHOOSING ACCESS TUBS ®
Our mission is to help you maintain independence over essential bathing needs and improve the quality of life! Access Tubs®has
designed the most accessible, most comfortable step-in bathtub on the market today! Until recently, if you have difficulty getting
in and out of a bathtub, it was almost impossible for you to take a bath. Access Tubs® specializes in accessibility and security. Safe
transfers in and out of the bathtub are the most critical part of bathing safely. Access Tubs®is committed to providing a complete
bathing experience for the elderly and mobility-impaired.
THANK YOU FOR YOUR PURCHASE!
CONTACT INFORMATION
ACCESS TUBS
5701 NW 35 Avenue
Miami, FL 33142
Phone [phone]
Fax [phone]
[email protected]
http://www.accesstub.com
THANK YOU / CONTACT

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 3
Access Tubs
PRODUCT REGISTRATION
PRODUCT REGISTRATION
PRODUCT REGISTRATION*
* To ensure that your warranty is registered with Access Tubs™, complete, sign and return this registration card within 30 days of the purchase. NOTE:Your warranty will not be recognized by Access
Tubs™ unless this card is fully completed and returned to: Access Tubs™ – 5701 NW 35th Ave, Miami, FL 33142
IMPORTANT
To ensure that your warranty is registered and confirmed with the manufacturer, please take a few moments to complete, sign and
return the Product Registration Card (below) within 30 days.
WARRANTY CONFIRMATION
By returning this Product Registration Card we confirm the date of purchase for your new product. This confirmation will allow
Access Tubs™ to process any warranty claims.
PURCHASE REGISTRATION
The information provided on Product Registration Card (found on page 23) will be kept on file with Access Tubs™ as an official
Purchase Registration. The completed card should be mailed to :
ACCESS TUBS
5701 NW 35 Avenue
Miami, FL 33142
Phone [phone]
Fax [phone]
[email protected]
http://www.accesstub.com

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 4
Access Tubs
SAVE THIS MANUAL
SAVE THIS MANUAL!
GENERAL INFORMATION
READ THESE INSTRUCTIONS COMPLETELY BEFORE INSTALLING THE PRODUCTS. FAILURE TO DO SO COULD RESULT IN AN
IMPROPER INSTALLATION AND COULD VOID THE WARRANTY.
RESPONSIBILITY OF THE INSTALLER
THE INSTALLER MUST INSPECT AND WATER-TEST THE PRODUCT PRIOR TO INSTALLATION TO ENSURE THE UNIT IS FREE
OF DEFECT OR DAMAGE. IN THE EVENT OF A PROBLEM, THE UNIT MUST NOT BE INSTALLED. IF THE CRATE OR THE PRODUCT
HAS BEEN DAMAGED DURING SHIPPING, PLEASE CALL US IMMEDIATELY.
THIS PRODUCT MUST BE INSTALLED BY A LICENSED/CERTIFIED CONTRACTOR
LICENSED PLUMBERS AND ELECTRICIANS SHOULD BE EMPLOYED TO INSURE PROPER INSTALLATION. INSTALLERS
ASSUME ALL LIABILITY FOR THE CORRECT INSTALLATION PROCEDURES. ONLY ACCESSORIES AUTHORIZED BY THE
MANUFACTURER SHOULD BE USED WITH THIS PRODUCT.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! WHEN USING THIS PRODUCT, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
READ AND FOLLOW ALL INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRICAL SHOCK, AND/
OR OTHER INJURIES.
SAVE THIS MANUAL

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 5
Access Tubs
UNPACKING
UNPACKING
UNPACKING THE UNIT
INSPECTING THE PACKAGING
Inspect the carton. If any damages are noted, photograph the damaged area(s) and notify the deliverer/carrier.
LIFTING / TRANSPORTING
Never lift the step-in bathtub by the plumbing. Doing so may result in damaging the plumbing and causing a leak.
INSPECTING THE UNIT
Immediately inspect the unit for damage even if there is no carton damage. Once the unit is installed surface damages will be
assumed to be installation related if not reported at this point.
PLACING THE UNIT
Please note that an installer(s) assumes full liability for damages to the step-in bathtub after the unit is installed in the “cradle”/ niche.
WHATS INSIDE THE PACKING
Inside the package you will find:
• 3060SI Hydro Access Step-In Tub
• Waste & Overflow Kit
• Sanitary Tee
• Door Drain Adaptor Pipe with 3/8” Barb
• Access Tubs Owners Manual
• Faucet Set
• Suction Cup Handle

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 6
Access Tubs
SAFETY
SAFETY
PRE-INSTALLATION*
* All Step-in Bath Tubs are 100% water tested at the factory certified to be free of leaks.Transportation and mishandling may cause leaks. It is necessary to test the bathtub while there is access to
all sides of the bathtub.
READ AND FOLLOW ALL INSTRUCTIONS
• Place the tub on a completely flat surface in an area where it may be drained after testing.
• Close the drain and fill the tub until it is above the highest jet. If it’s a soaker fill up to normal water height level.
• Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for leaks.
• If tub is jetted, supply electric to unit and run for 10 minutes and inspect for leaks. Inspect the unions around the pump; if leaks
persist from the unions after tightening; loosen the unions and insure the O-ring is seated properly.
NOTE: IF THE PUMPS DO NOT OPERATE, CHECK THE BREAKER TO ENSURE POWER IS ON AND THE CABLE CONNECTING THE
CONTROLS TO THE PUMP IS ATTACHED.
WARNING! DO NOT RUN ANY PUMPS UNLESS THE TUB IS FILLED WITH WATER TO PROPER
LEVEL. DAMAGE DUE TO DRY RUNNING PUMPS IS NOT COVERED UNDER WARRANTY. FAILURE TO
PERFORM THESE TESTS BEFORE INSTALLATION WILL MAKE THE INSTALLER LIABLE FOR FUTURE
REPAIR COSTS.

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 7
Access Tubs
INSTALLATION PREPARATION
1. Check the floor area where the tub is to be installed.
• a. Clean area of any debris or trash.

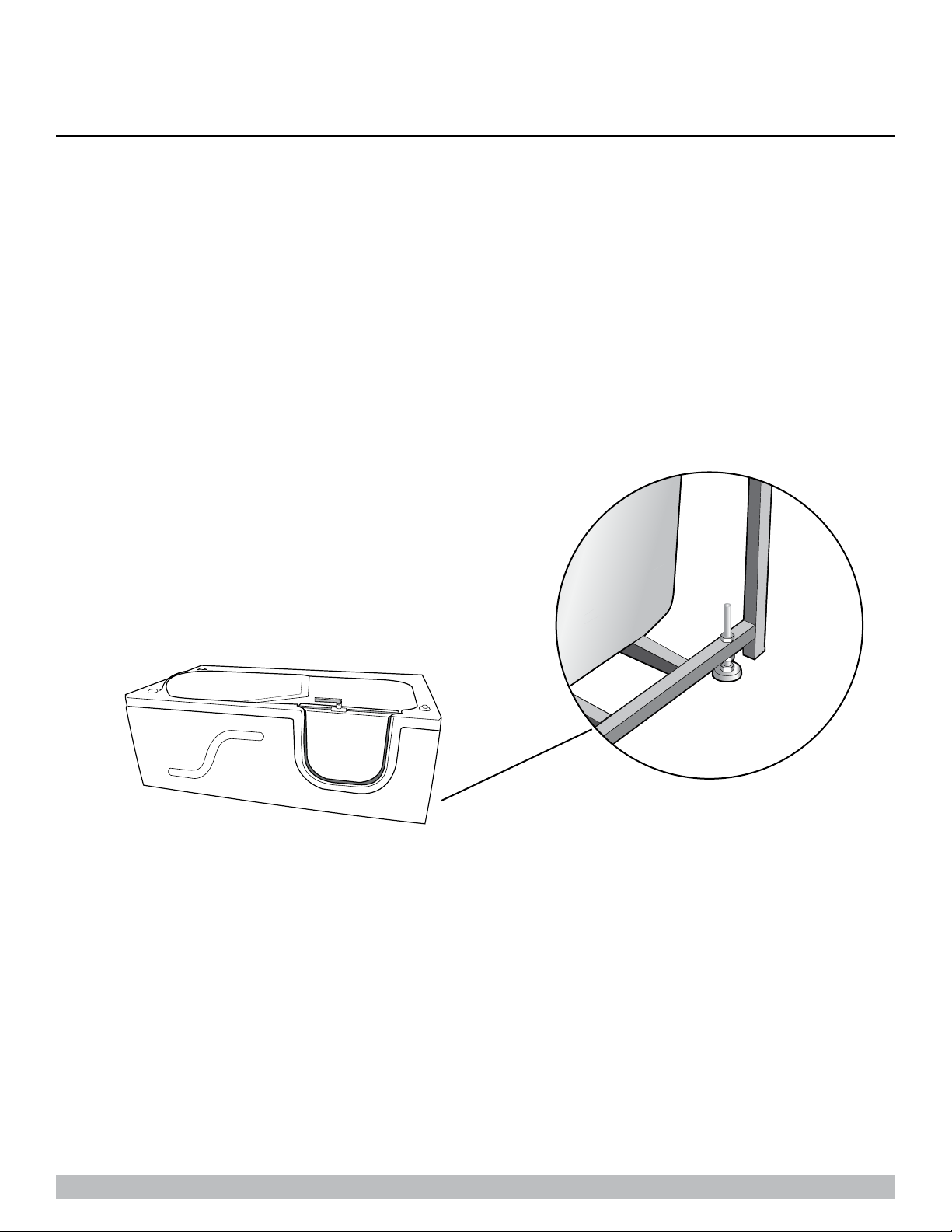

• b. Use a 5 or 6-foot level and determine if the floor is level. If the floor is not level, adjust all 6 leveling feet to perfectly level the tub.
• NOTE: IT IS IMPORTANT THAT ALL LEVELING FEET ARE COMPLETELY TOUCHING THE FLOOR
AND LEVEL FOR THE DOOR SYSTEM TO WORK PROPERLY.
2. Check to ensure that the drain piping has been “roughed-in” at the proper location.
3. Ensure that the proper electrical service has been installed at the pump location. See electrical requirements in the manual (on
following page).
Model 30x53
Installation Instructions
P: 1-866-633-4882 www.meditub.com
100 East Mineola Avenue, Valley Strem NY 11580
MediTub
Where Safety Meets Luxury
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 8
Access Tubs
ELECTRICAL PREPARATION
ELECTRICAL PREPARATION
All electrical wiring must be installed in accordance with the National Electrical Code and with all local codes. All wiring shall be done
by a qualified electrician. Run one, two or three branch circuits (as required) from the main electrical service panel to the pump area
of the framing structure to provide power to the unit.
Electrical components have specific wiring requirements. Refer to the matrix below for the electrical supply requirements for the jet
massage bathtub and factory installed components.
Branch circuits must be rated for 110 – 120 volts. Use 12 Gauge, 3 conductor cable for the circuits. If the length run exceeds 100
feet check with local codes for requirements. Install moisture proof junction box(s) 6” above the floor at the pump end of the framing
for each circuit.
NOTE: DO NOT INSTALL THE JUNCTION BOX(S) WHERE IT CAN BE REACHED WHILE SITTING OR STANDING IN THE TUB OR
TOUCHING THE FAUCETS.
AUTO DRAIN™, WHIRLPOOL, REQUIREMENTS
This section lists the factory installed components of the Jet Massage Systems.
Systems Electrical Rang
Circuit 1
Dedicated
Circuit
Jet Massage w/ Auto Drain
TM
15 Amp GFCI
Inline Heater
15 Amp GFCI
All electrical connections must be carried out b y a certified electrician in accordance with local electrical requirements and codes.
ELECTRICAL PREPARATION

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 9
Access Tubs
INSTALLATION PROCEDURES
INSTALLATION PROCEDURES
INSTALLATION PROCEDURES
WARNING! WHEN INSTALLING JET MASSAGE BATH, THE FOLLOWING BASIC PRECAUTIONS
SHOULD BE FOLLOWED.
DANGER! RISK OF ELECTRIC SHOCK. CONNECT ONLY TO SEPARATE CIRCUIT PROTECTED BY A
GROUND FAULT CIRCUIT INTERRUPTER (GFCI) ON PLUG IN UNITS.
NOTE: INSTALLATION MUST PROVIDE ACCESS FOR SERVICING PUMP/MOTOR (ALL TUBS COME WITH AN ACCESS PANEL
FOR THE PUMP/MOTOR).
GENERAL GUIDE-THROUGH
• Standard installation - After framing is a complete (see attached diagrams), set product in place to make certain that the tub can
be properly leveled. (Caution: If a step-in bathtub is not resting on all leveling feet, water will not drain properly and may cause
the door to leak) (see page 7).
• Verify the product’s level by checking tub’s deck surface and ensure all leveling feet are touching the ground (see page 7).
• Electrical connection is made pre-instruction on specified models.
• After plumbing and electrical connections have been made, the tub should be cleaned of dirt and debris.
• Installation is not complete until the tub has been tested in place.

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 10
Access Tubs
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 11
Access Tubs
CONNECTING THE AUTO DRAINTM
HIGH-SPEED AUTO DRAINTM FOR HYDRO TUB
• Drain System requires the connection to a minimum 1 ½ sanitary drain line.
• Use UPC Approved PVC Glue, primer, and Schedule 40 1 ½ ’ pipe.
• Do not change or modify the location and or piping of the Back Flow Preventer.
• The sanitary tee is installed directly above the drain tee with clearance not greater than 1’’.
• Dry fit the drain overflow assembly to the sanitary drainage pipe and check for proper fit.
• Glue the High-Speed Auto drainTM Fittings, pipe and drain overflow assembly to the sanitary drainage pipe.
NOTE: WATER TIGHT INSTALLATION OF THE WASTE/ OVERFLOW IS THE INSTALLER’S RESPONSIBILITY. DRAIN LEAKAGE IS
EXCLUDED FROM THE ACCESS TUBS WARRANTY OF THIS PRODUCT.
NOTE: WE HAVE TAKEN RESPONSIBLE PRECAUTIONS TO ENSURE THE HIGH-SPEED AUTO DRAINTM IS SUITABLE FOR
RESIDENTIAL PLUMBING. IT IS RESPONSIBILITY OF THE INSTALLER TO INSURE THE SANITARY SYSTEM IS ACCEPTABLE
FOR THE USE OF THE HIGH-SPEED AUTO DRAINTM. WE DO NOT ACCEPT RESPONSIBILITY FOR DAMAGE ARISING FROM THE
USE OF THE HIGH- SPEED AUTO DRAINTM.*
*-Ensure compliance with local plumbing codes.
Connection of the Auto Drain for hydro units
• Drain System requires the connection to a minimum 1 ½ sanitary drain line.
• Use UPC Approved PVC Glue, primer, and Schedule 40 1 ½ ’’ pipe.
• Do not change or modify the location and or piping of the Back Flow Preventer.
• The sanitary tee is installed directly above the drain tee with clearance not greater than 1’’.
• Dry fit the drain overflow assembly to the sanitary drainage pipe and check for proper fit.
• Glue the Auto Drain, pipe and drain overflow assembly to the sanitary drainage pipe.
• NOTE: Water tight installation of the waste/ overflow is the installer’s responsibility. Drain leakage is excluded from Access Tubs warranty of
this product.
We have taken responsible precautions to ensure the Auto Drain is suitable for residential plumbing. It is
the responsibility of the installer to insure the sanitary system is acceptable for the use of the Auto Drain.
We do not accept responsibility for damage arising from the use of the Auto Drain.*
*-ensure compliance with local plumbing codes and requirements.
ACCESS TUBS AUTO DRAIN SPECIFICATIONS
button (on/off)
diverter valve
jets
overflow
drain cable
drain cable drain
drain shoe
sanitary tee
drain tee
90° Elbow
reducer 1 1/2-1”
back flow preventer
110V-60hz pump (15 Amp Circuit)
Pumps & Amperage
*Two dedicated electrical circuits required
for bathtub installation
• Hydro Models: 15 Amp Circuit
(Hydro) & 15 Amp Circuit (Heater)
*Two dedicated electrical circuits required for bathtub installation
HYDRO AUTO DRAINTM CONNECTION
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 12
Access Tubs
Wall
Bathroom (Waterproof) Sheetrock
Mortar
Tile
Silicone
6”x1/2”Screw
Custom-built wall section(s) for open ends or install against corners of
full wall. No included with tub. Contact your installer.
ASSEMBLY & PLACEMENT
Verify access to unit’s system from one of the side enclosures
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 13
Access Tubs
FAUCET INSTALLATION
The 30x60 Step-In models is not equipped with a faucet deck. Third party wall or floor-mounted faucet sets must be purchased
separately.
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 14
Access Tubs
OPERATING SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRICAL SHOCK OR INJURY
TO PERSONS
WARNING! RISK OF PERSONAL INJURY:
• Use this unit for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.
• To avoid injury, exercise caution when entering or exiting your step-in tub.
• To reduce the risk of injury, do not permit children or persons with infirmities to use this product unless they are closely
supervised at all times.
• The maximum recommended temperature is 102 F° (38.8 C °). Fifteen minutes per soak is the recommended maximum time at
102 F°, which may induce Hyperthermia which is an increase in body temperature. This can be a serious medical condition and
all bath users are cautioned against lengthy immersion at high water temperatures. Should you become light-headed, dizzy, or
nauseous, immediately get out of the bath and cool off.
• Risk of electric shock; do not permit electric appliances (such as a hair dryer, lamp, telephone, radio or television) within four
feet of this bathtub.
• Never drop or insert any objects into any openings.
• Do not operate this unit without the guard over the suction fittings.
WARNING! RISK OF HYPERTHERMIA AND POSSIBLE DROWNING. People using medications, herbal remedies, sleep aids,
and /or having adverse medical history should consult a physician before using this product.
WARNING! NO FOOD OR ALCOHOLIC BEVERAGES. Use of your bathtub immediately after meals is not recommended. Avoid
alcohol consumption before or during the bathing. Alcoholic beverages can cause drowsiness or hyperthermia resulting in loss of
consciousness or even drowning.
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 15
Access Tubs
The unit must be connected only to a supply circuit that is protected by a ground-fault circuit-interrupter (GFCI). Such a GFCI should
be provided by the installer and should be tested on a routine basis. To test the GFCI, push the test button. The GFCI should interrupt
power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner, there may be a ground current
flowing, indicating the possibility of an electric shock. Do not use this massage bathtub. Disconnect the jet massage bathtub and
have the problem corrected by a qualified service representative before using.
To reduce the risk of electrical shock, the dedicated electrical supply circuit(s) must be grounded. To do this, connect the third leg of
the 3-conductor wiring cable to the grounding terminal of the electrical service panel and run continuously to the green grounding
screw on the GFCI or electrical receptacle in the wiring compartment.
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 16
Access Tubs
OPERATING INSTRUCTIONS
When entering an Access step-in tub, be sure to close the door, placing the
handle in the down position. Before activating any of the jetting controls, you
must first fill the bath to a water level at least 2 inches above the highest jet
placement. Do not put weight on the door when entering and exiting the tub.
It is recommended to leave the door in the open position when the tub is not
in use.
The pump is operated by the hydro control button, which starts the water flow.
(see page 18).
Adjust the direction and rate of flow of the jets by moving the nozzle for direction. Turn either the outside ring or the nozzle clockwise
or counterclockwise for flow (some jets adjust the flow with the outside ring and some with the nozzle). Adjust the air pressure flow
of all water jets by using the air volume control (see page 18), which controls air-water mixture.
WARNING: DO NOT PUSH THE BUTTON ONCE THE CYCLE BEGINS. DOING SO WILL CAUSE
THE BLOWER TO RESTART ONCE THE PURGE CYCLE ENDS.
TUB DOOR HANDLE
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 17
Access Tubs
IN-LINE HEATERS
If your bathtub is equipped with an in-line heater, it will operate only when the pump is on.
NOTE: THE IN-LINE HEATER IS DESIGNED TO KEEP YOUR WATER WARMER LONGER, BUT IS NOT DESIGNED TO INCREASE
THE WATER TEMPERATURE. HEAT SETTINGS ARE NOT ADJUSTABLE.
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 18
Access Tubs
TUB CONTROLS
HYDRO CONTROL (PUMP)
Used to turn the water jets ON and OFF.
AIR PRESSURE CONTROL
Used to increase or decrease air pressure flowing through
the water jets.
AUTO DRAINTM
Efficiently drains the water in under 60 seconds.
1
2
3
123
OPERATING INSTRUCTIONS
