Access Tubs 3060WCA AIR Manual

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 25
Access Tubs
INSTALLATION & OPERATING INSTRUCTIONS
INSTALLATION & OPERATING INSTRUCTIONS
3060WCA AIR
ACCESS TUBS
5701 NW 35 Avenue
Miami, FL 33142
Phone [phone]
Fax [phone]
[email protected]
http://www.accesstub.com
MODEL
Costco Item # 558600/580183 Right
Costco Item # 558596/580185 Left

Access Tubs
Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
3060WCA AIR WALK-IN TUB
DESCRIPTION:
Access Tubs is pleased to introduce our new Slide-In Wheelchair Accessible Air Bubble Massage Bathtub. This exceptional walk in
bathtub is equipped with 16 air jets and aromatherapy. The gentle massage induces optimal relaxation by soothing your joints &
muscles while revitalizing your mind & body. Our aromatherapy feature releases invigorating and sensual scents into your bath, as
you pamper yourself in the privacy & convenience of your own home.
This tub is perfect for any new construction or retro fitting because of its industry standard size. The Slide-In tub is 30”(W) x 60”(L)
x 42”(H). The outward swinging door is essential for the transfer from a wheelchair to the bathtub.
Enjoy the peace and serenity of bathing again without any struggle or discomfort. Take pleasure in bathing with independence and
safety, while luxuriating in the comfort of your own home.
FEATURES:
• Available in white only
• 16 massaging air jets
• Aromatherapy fragrance release system included
• 1-HP electric air pump motor
• Faucet included w/ handshower
• Double latch door system (bottom latch & side latch)
• Tub leveling system consisting of six (6) adjustable leveling feet
• Built in safety grab bar
• Slip resistant floor and slip resistant seat
• Triple gel coat/strengthened with a fiberglass backing
AUTO DRAIN:
• Efficiently drains tub in under 60 seconds.
• 1 dedicated 20 Amp GFCI protected electrical circuit required
• Auto Drain factory installed.
SPECIFICATIONS:
• Size: 30”W x 60”L x 42”H
• 34” door width
• Water capacity 80 gallons
• Enclosed on three sides
• Left door or right door available
• 21” built-in contoured chair-height seat for easy up and down
• Assembled in USA
• ADA compliant seat.
• All components are ETL, CSA and Mass. approved.
WARRANTY:
• Professional installation recommended
• Seals: For as long as the original purchaser owns the product.
• Limited 10 years on tub
DESIGN NUMBER
WEIGHT:
MATERIAL:
TITLE:
SCALE:
PROCESS:
LENGTH:
AREA:
COLOR(S):
CARTON:
CASE PACK:
INNER PACK: DESIGNED BY:
SIGNATURES
APPROVALS
ENGINEERING:
DRAWN BY:
QUALITY:
MANFG:
DATE
DESCRIPTION
REV.
Patent(s) May Apply
SHEET:
TOLERANCES
DATE
REVISION
ECR NO. BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY
TO SPA WORLD CORP. IT IS SUBMITTED IN CONFIDENCE
AND IS TO BE USED SOLELY FOR THE PURPOSE FOR
WHICH IT IS FURNISHED AND RETURNED UPON REQUEST.
THIS DRAWING AND SUCH INFORMATION IS NOT TO BE
REPRODUCED, TRANSMITTED, DISCLOSED, OR USED
OTHERWISE IN WHOLE OR IN PART WITHOUT WRITTEN
AUTHORIZATION OF SPA WORLD CORP.
ALL DIMENSIONS ARE PLUS OR MINUS
14
"
( MAXIMUM TOLERANCE )
THERMOFORMING SPA WORLD
SPA WORLD
CRATE
1
1
245 LBS.
N/A
WHITE, BISCUIT
30"x60"
GEL COAT
N.T.S.
FIRST ISSUEA
1 of 1
MODEL: 3060WCA
SIZE: 30"x60"x4212"
EST. TUB WEIGHT: 245 LBS.
EST. SHIPPING WEIGHT: 295 LBS.
EST. BOXED SIZE: 40"x70"x52"
AVERAGE FILL (GALLONS) : 65
PUMP SIZE: 1.5 HP
BLOWER: 1.0 HP
ELECTRICAL: 110V 20 AMP CIRCUIT
MATERIAL: GLOSS FIBERGLASS
WITH TRIPLE GEL COAT.
STANDARD COLORS: WHITE,
BISCUIT
OPTIONAL FEATURES
JETS: 6
SUCTION FITTINGS: 1
AIR INJECTORS: 16
AROMATHERAPY: 1
CHROMATHERAPY: 1
MT3060WCALWS
MT3060WCARWS
MT3060WCALBS
MT3060WCARBS
MT3060WCALWH MT3060WCARWH MT3060WCALBH MT3060WCARBH
MT3060WCALWA MT3060WCARWA
MT3060WCALBA MT3060WCARBA
MT3060WCALWD
MT3060WCARWD MT3060WCALBD MT3060WCARBD
DESIGN NUMBER
WEIGHT:
MATERIAL:
TITLE:
SCALE:
PROCESS:
LENGTH:
AREA:
COLOR(S):
CARTON:
CASE PACK:
INNER PACK: DESIGNED BY:
SIGNATURES
APPROVALS
ENGINEERING:
DRAWN BY:
QUALITY:
MANFG:
DATE
DESCRIPTION
REV.
Patent(s) May Apply
SHEET:
TOLERANCES
DATE
REVISION
ECR NO. BY
THIS DRAWING CONTAINS INFORMATION PROPRIETARY
TO SPA WORLD CORP. IT IS SUBMITTED IN CONFIDENCE
AND IS TO BE USED SOLELY FOR THE PURPOSE FOR
WHICH IT IS FURNISHED AND RETURNED UPON REQUEST.
THIS DRAWING AND SUCH INFORMATION IS NOT TO BE
REPRODUCED, TRANSMITTED, DISCLOSED, OR USED
OTHERWISE IN WHOLE OR IN PART WITHOUT WRITTEN
AUTHORIZATION OF SPA WORLD CORP.
ALL DIMENSIONS ARE PLUS OR MINUS
14
"
( MAXIMUM TOLERANCE )
THERMOFORMING SPA WORLD
SPA WORLD
CRATE
1
1
245 LBS.
N/A
WHITE, BISCUIT
30"x60"
GEL COAT
N.T.S.
FIRST ISSUEA
1 of 1
MODEL: 3060WCA
SIZE: 30"x60"x42
12
"
EST. TUB WEIGHT: 245 LBS.
EST. SHIPPING WEIGHT: 295 LBS.
EST. BOXED SIZE: 40"x70"x52"
AVERAGE FILL (GALLONS) : 65
PUMP SIZE: 1.5 HP
BLOWER: 1.0 HP
ELECTRICAL: 110V 20 AMP CIRCUIT
MATERIAL: GLOSS FIBERGLASS
WITH TRIPLE GEL COAT.
STANDARD COLORS: WHITE,
BISCUIT
OPTIONAL FEATURES
JETS: 6
SUCTION FITTINGS: 1
AIR INJECTORS: 16
AROMATHERAPY: 1
CHROMATHERAPY: 1
MT3060WCALWS
MT3060WCARWS
MT3060WCALBS
MT3060WCARBS
MT3060WCALWH MT3060WCARWH MT3060WCALBH MT3060WCARBH
MT3060WCALWA MT3060WCARWA
MT3060WCALBA MT3060WCARBA
MT3060WCALWD
MT3060WCARWD MT3060WCALBD MT3060WCARBD

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 1
Access Tubs
TABLE OF CONTENTS
THANK YOU FOR CHOOSING ACCESS TUBS ®................................................................ 2
CONTACT INFORMATION........................................................................................... 2
PRODUCT REGISTRATION* ....................................................................................... 3
SAVE THIS MANUAL! ............................................................................................... 4
UNPACKING THE UNIT.............................................................................................. 5
PRE-INSTALLATION*................................................................................................ 6
INSTALLATION PREPARATION .................................................................................... 7
ELECTRICAL PREPARATION ....................................................................................... 8
INSTALLATION PROCEDURES .................................................................................... 9
DRAIN CONNECTION................................................................................................ 10
CONNECTING THE AUTO DRAINTM ................................................................................ 11
INSTALLATION AND EXTENSION PANELS ...................................................................... 12
FAUCET INSTALLATION............................................................................................. 13
OPERATING SAFETY INSTRUCTIONS............................................................................ 14
OPERATING INSTRUCTIONS ...................................................................................... 16
TUB CONTROLS...................................................................................................... 18
CLEANING AND MAINTENANCE .................................................................................. 19
WARRANTY........................................................................................................... 20
RETURN POLICY ..................................................................................................... 22
PRODUCT REGISTRATION CARD................................................................................. 23
TABLE OF CONTENTS
TABLE OF CONTENTS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 2
Access Tubs
THANK YOU & CONTACT INFORMATION
THANK YOU FOR CHOOSING ACCESS TUBS ®
Our mission is to help you maintain independence over essential bathing needs and improve the quality of life! Access Tubs®has
designed the most accessible, most comfortable walk-in bathtub on the market today! Until recently, if you have difficulty getting
in and out of a bathtub, it was almost impossible for you to take a bath. Access Tubs® specializes in accessibility and security. Safe
transfers in and out of the bathtub are the most critical part of bathing safely. Access Tubs®is committed to providing a complete
bathing experience for the elderly and mobility-impaired.
THANK YOU FOR YOUR PURCHASE!
CONTACT INFORMATION
ACCESS TUBS
5701 NW 35 Avenue
Miami, FL 33142
Phone [phone]
Fax [phone]
[email protected]
http://www.accesstub.com
THANK YOU / CONTACT

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 3
Access Tubs
PRODUCT REGISTRATION
PRODUCT REGISTRATION
PRODUCT REGISTRATION*
* To ensure that your warranty is registered with Access Tubs™, complete, sign and return this registration card within 30 days of the purchase. NOTE:Your warranty will not be recognized by Access
Tubs™ unless this card is fully completed and returned to: Access Tubs™ – 5701 NW 35th Ave, Miami, FL 33142
IMPORTANT
To ensure that your warranty is registered and confirmed with the manufacturer, please take a few moments to complete, sign and
return the Product Registration Card (below) within 30 days.
WARRANTY CONFIRMATION
By returning this Product Registration Card we confirm the date of purchase for your new product. This confirmation will allow
Access Tubs™ to process any warranty claims.
PURCHASE REGISTRATION
The information provided on Product Registration Card (found on page 23) will be kept on file with Access Tubs™ as an official
Purchase Registration. The completed card should be mailed to :
ACCESS TUBS
5701 NW 35 Avenue
Miami, FL 33142
Phone [phone]
Fax [phone]
[email protected]
http://www.accesstub.com

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 4
Access Tubs
SAVE THIS MANUAL
SAVE THIS MANUAL!
GENERAL INFORMATION
READ THESE INSTRUCTIONS COMPLETELY BEFORE INSTALLING THE PRODUCTS. FAILURE TO DO SO COULD RESULT IN AN
IMPROPER INSTALLATION AND COULD VOID THE WARRANTY.
RESPONSIBILITY OF THE INSTALLER
THE INSTALLER MUST INSPECT AND WATER-TEST THE PRODUCT PRIOR TO INSTALLATION TO ENSURE THE UNIT IS FREE
OF DEFECT OR DAMAGE. IN THE EVENT OF A PROBLEM, THE UNIT MUST NOT BE INSTALLED. IF THE CRATE OR THE PRODUCT
HAS BEEN DAMAGED DURING SHIPPING, PLEASE CALL US IMMEDIATELY.
THIS PRODUCT MUST BE INSTALLED BY A LICENSED/CERTIFIED CONTRACTOR
LICENSED PLUMBERS AND ELECTRICIANS SHOULD BE EMPLOYED TO INSURE PROPER INSTALLATION. INSTALLERS
ASSUME ALL LIABILITY FOR THE CORRECT INSTALLATION PROCEDURES. ONLY ACCESSORIES AUTHORIZED BY THE
MANUFACTURER SHOULD BE USED WITH THIS PRODUCT.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! WHEN USING THIS PRODUCT, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
READ AND FOLLOW ALL INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRICAL SHOCK, AND/
OR OTHER INJURIES.
SAVE THIS MANUAL

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 5
Access Tubs
UNPACKING
UNPACKING
UNPACKING THE UNIT
INSPECTING THE PACKAGING
Inspect the carton. If any damages are noted, photograph the damaged area(s) and notify the deliverer/carrier.
LIFTING / TRANSPORTING
Never lift the walk-in bathtub by the plumbing. Doing so may result in damaging the plumbing and causing a leak.
INSPECTING THE UNIT
Immediately inspect the unit for damage even if there is no carton damage. Once the unit is installed surface damages will be
assumed to be installation related if not reported at this point.
PLACING THE UNIT
Please note that an installer(s) assumes full liability for damages to the walk-in bathtub after the unit is installed in the “cradle”/ niche.
WHATS INSIDE THE PACKING
Inside the package you will find:
• 3060WCA Air Access Wheelchair Accessible Tub
• Waste & Overflow Kit
• Sanitary Tee
• Door Drain Adaptor Pipe with 3/8” Barb
• Access Tubs Owners Manual
• Faucet Set
• Suction Cup Handle

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 6
Access Tubs
SAFETY
SAFETY
PRE-INSTALLATION*
* All Walk-In Bath Tubs are 100% water tested at the factory certified to be free of leaks.Transportation and mishandling may cause leaks.It is necessary to test the bathtub while there is access to
all sides of the bathtub.
READ AND FOLLOW ALL INSTRUCTIONS
• Place the tub on a completely flat surface in an area where it may be drained after testing.
• Close the drain and fill the tub until it is above the highest jet. If it’s a soaker fill up to normal water height level.
• Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for leaks.
• If tub is jetted, supply electric to unit and run for 10 minutes and inspect for leaks. Inspect the unions around the pump; if leaks
persist from the unions after tightening; loosen the unions and insure the O-ring is seated properly.
NOTE: IF THE PUMPS DO NOT OPERATE, CHECK THE BREAKER TO ENSURE POWER IS ON AND THE CABLE CONNECTING THE
CONTROLS TO THE PUMP IS ATTACHED.
WARNING! DO NOT RUN ANY PUMPS UNLESS THE TUB IS FILLED WITH WATER TO PROPER
LEVEL. DAMAGE DUE TO DRY RUNNING PUMPS IS NOT COVERED UNDER WARRANTY. FAILURE TO
PERFORM THESE TESTS BEFORE INSTALLATION WILL MAKE THE INSTALLER LIABLE FOR FUTURE
REPAIR COSTS.

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 7
Access Tubs
INSTALLATION PREPARATION

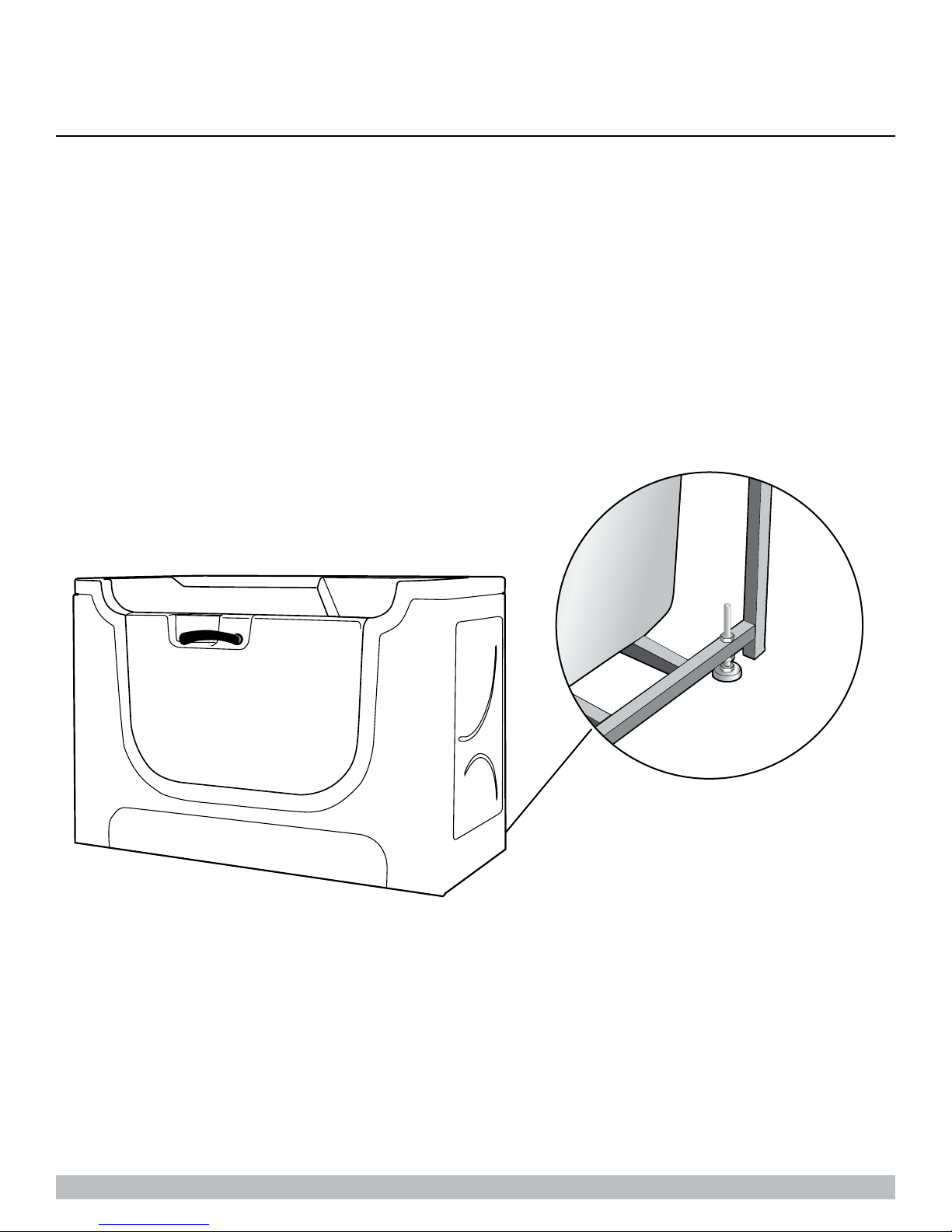

1. Check the floor area where the tub is to be installed.
• a. Clean area of any debris or trash.
• b. Use a 5 or 6-foot level and determine if the floor is level. If the floor is not level, adjust all 6 leveling feet to perfectly level the tub.
• NOTE: IT IS IMPORTANT THAT ALL LEVELING FEET ARE COMPLETELY TOUCHING THE FLOOR
AND LEVEL FOR THE DOOR SYSTEM TO WORK PROPERLY.
2. Check to ensure that the drain piping has been “roughed-in” at the proper location.
3. Ensure that the proper electrical service has been installed at the pump location. See electrical requirements in the manual (on
following page).
Model 30x53
Installation Instructions
P: 1-866-633-4882 www.meditub.com
100 East Mineola Avenue, Valley Strem NY 11580
MediTub
Where Safety Meets Luxury
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 8
Access Tubs
ELECTRICAL PREPARATION
ELECTRICAL PREPARATION
All electrical wiring must be installed in accordance with the National Electrical Code and with all local codes. All wiring shall be done
by a qualified electrician. Run one, two or three branch circuits (as required) from the main electrical service panel to the pump area
of the framing structure to provide power to the unit.
Electrical components have specific wiring requirements. Refer to the matrix below for the electrical supply requirements for the air
massage bathtub and factory installed components.
Branch circuits must be rated for 110 – 120 volts. Use 12 Gauge, 3 conductor cable for the circuits. If the length run exceeds 100
feet check with local codes for requirements. Install moisture proof junction box(s) 6” above the floor at the pump end of the framing
for each circuit.
NOTE: DO NOT INSTALL THE JUNCTION BOX(S) WHERE IT CAN BE REACHED WHILE SITTING OR STANDING IN THE TUB OR
TOUCHING THE FAUCETS.
AUTO DRAIN™, AROMATHERAPY, AIR REQUIREMENTS
This section lists the factory installed components of the Air Massage Systems.
Systems Electrical Rang
Circuit 1
Dedicated
Circuit
Air Massage w/ Auto Drain™ & Aromatherapy
20 Amp GFCI
All electrical connections must be carried out b y a certified electrician in accordance with local electrical requirements and codes.
ELECTRICAL PREPARATION

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 9
Access Tubs
INSTALLATION PROCEDURES
INSTALLATION PROCEDURES
INSTALLATION PROCEDURES
WARNING! WHEN INSTALLING THE AIR MASSAGE BATH, THE FOLLOWING BASIC PRECAUTIONS
SHOULD BE FOLLOWED.
DANGER! RISK OF ELECTRIC SHOCK. CONNECT ONLY TO SEPARATE CIRCUIT PROTECTED BY A
GROUND FAULT CIRCUIT INTERRUPTER (GFCI) ON PLUG IN UNITS.
NOTE: INSTALLATION MUST PROVIDE ACCESS FOR SERVICING PUMP/MOTOR (ALL TUBS COME WITH AN ACCESS PANEL
FOR THE PUMP/MOTOR).
GENERAL GUIDE-THROUGH
• Install tub waste/overflow according to instructions (see page 10).
• Standard installation - After framing is a complete (see attached diagrams), set product in place to make certain that the tub can
be properly leveled. (Caution: If a walk-in bathtub is not resting on all leveling feet, water will not drain properly and may cause
the door to leak) (see page 7).
• Verify the product’s level by checking tub’s deck surface and ensure all leveling feet are touching the ground (see page 7).
• Electrical connection is made pre-instruction on specified models.
• After plumbing and electrical connections have been made, the tub should be cleaned of dirt and debris.
• Installation is not complete until the tub has been tested in place.

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 10
Access Tubs
DRAIN CONNECTION
To ensure safe transit for your walk-in tub, the overflow drain components are
not connected to the unit during the process of production. The following in-
structions are provided for installation purposes: Your walk-in tub is supplied
with a 1 ½” drain pipe overflow. The open and close valve with the turn knob
should be attached to the unit at the 1 ½” pre-drilled opening in the wall of the
unit from the outside. The opposite end of the overflow should be attached to
the 1 ½” pre-drilled opening in the foot well of the unit from the underside. The
chrome turn knob and the drain cover should be attached to the appropriate ends
of the overflow drain from the inside of the unit. Place the chrome cap with stem into
thefloordraintocloseofftheopening.Thecableattachedtotheturnknoboftheoverflowisalsoconnectedtoaleverinsidethefloordrain
whichallowsthedraintobeopenedorclosed.Oncethecomponentsoftheoverflowaresecuredintoplace,turntheoverflowknobtothe
openandclosedpositiontoensureproperfunction.Thecapandstemwillmoveupanddown,openingandclosingthedrain (Figure 1).
Your walk-in tub also has a door drain to remove excess water from the door after
each use. From the underside of the unit, a hose is connected to the door drain with
a check valve. This hose and valve is to provide a one-way flow from the door drain
to the main drain pipe. The check valve will constrict the water flow away from the
door. Insert the opposite end of the hose into the port on the main drain. Be sure the
port is open before attaching the hose. Secure the hose with clamps or ties. Once
the hose is in place, close the door on the unit, place the handle in the locked posi-
tion, and fill tub with at least 12” of water to test the connection. Once the completion
of the drain components are installed and have been tested for proper function, the unit can be leveled and give a final water test
before installation of unit (Figure 2).

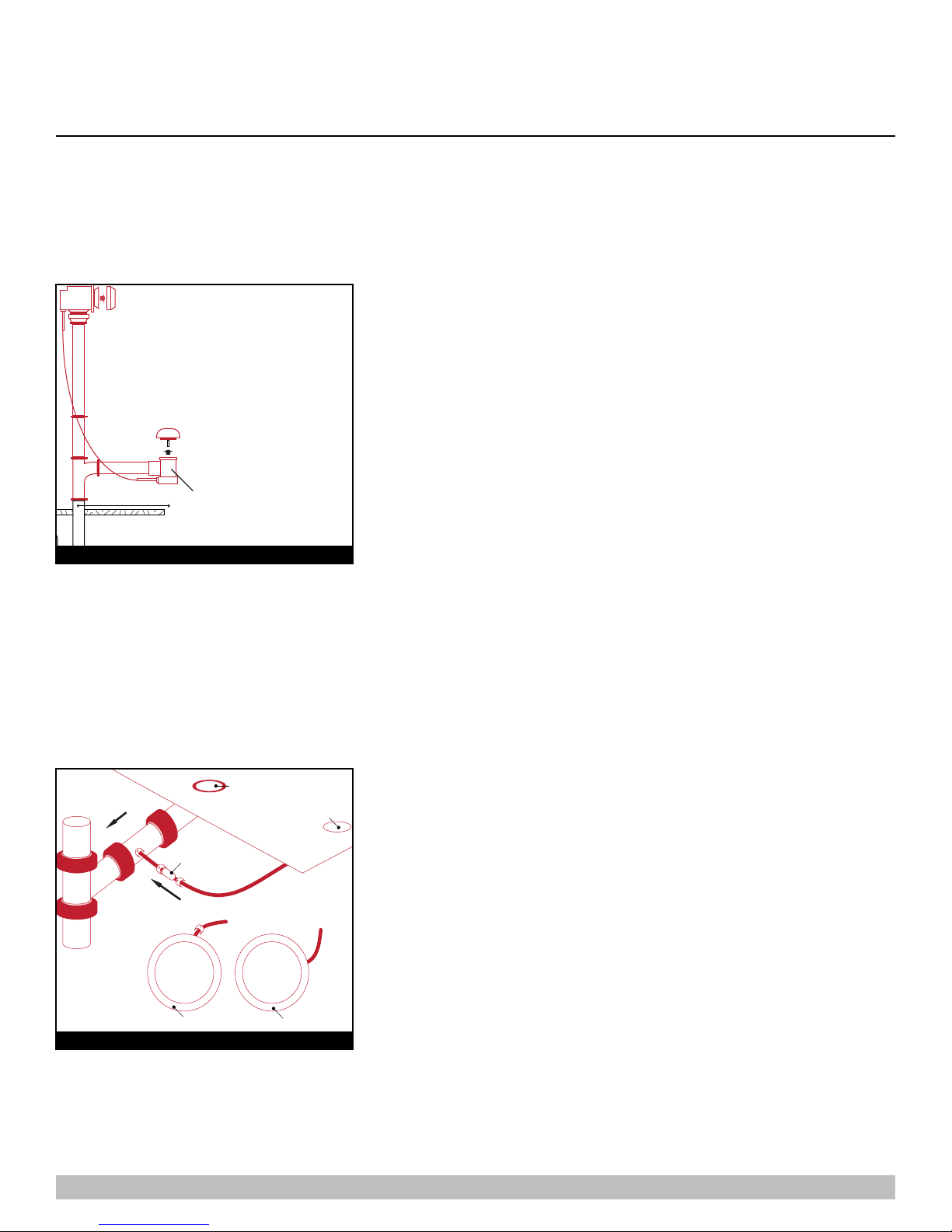

1 1/2” Door Drain Pipe supplied7 1/2”
FIGURE 1
Floor Drain
Incorrect
Flow
Door Drain
Correct
Check Valve
Flow
FIGURE 2
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 11
Access Tubs
CONNECTING THE AUTO DRAINTM
HIGH-SPEED AUTO DRAINTM FOR AIR SYSTEM
• Drain System requires the connection to a minimum 1 ½ sanitary drain line.
• Use UPC Approved PVC Glue, primer, and Schedule 40 1 ½ ’ pipe.
• Do not change or modify the location and or piping of the Back Flow Preventer.
• The sanitary tee is installed directly above the drain tee with clearance not greater than 1’’.
• Dry fit the drain overflow assembly to the sanitary drainage pipe and check for proper fit.
• Glue the High-Speed Auto DrainTM Fittings, pipe and drain overflow assembly to the sanitary drainage pipe.
NOTE: WATER TIGHT INSTALLATION OF THE WASTE/ OVERFLOW IS THE INSTALLER’S RESPONSIBILITY. DRAIN LEAKAGE IS
EXCLUDED FROM THE ACCESS TUBS WARRANTY OF THIS PRODUCT.
NOTE: WE HAVE TAKEN RESPONSIBLE PRECAUTIONS TO ENSURE THE HIGH-SPEED AUTO DRAINTM IS SUITABLE FOR
RESIDENTIAL PLUMBING. IT IS RESPONSIBILITY OF THE INSTALLER TO INSURE THE SANITARY SYSTEM IS ACCEPTABLE
FOR THE USE OF THE HIGH-SPEED AUTO DRAINTM. WE DO NOT ACCEPT RESPONSIBILITY FOR DAMAGE ARISING FROM THE
USE OF THE HIGH- SPEED AUTO DRAINTM.*
*-Ensure compliance with local plumbing codes.
Connection of the Auto Drain for air units
• Drain System requires the connection to a minimum 1 ½ sanitary drain line.
• Use UPC Approved PVC Glue, primer, and Schedule 40 1 ½ ’’ pipe.
• Do not change or modify the location and or piping of the Back Flow Preventer.
• The sanitary tee is installed directly above the drain tee with clearance not greater than 1’’.
• Dry fit the drain overflow assembly to the sanitary drainage pipe and check for proper fit.
• Glue the Auto Drain, pipe and drain overflow assembly to the sanitary drainage pipe.
• NOTE: Water tight installation of the waste/ overflow is the installer’s responsibility. Drain leakage is excluded from Access Tubs warranty of
this product.
Pumps & Amperage
*One dedicated electrical circuit
required for bathtub installation
• Air Models: 20 Amp Circuit
We have taken responsible precautions to ensure the Auto Drain is suitable for residential plumbing. It is
the responsibility of the installer to insure the sanitary system is acceptable for the use of the Auto Drain.
We do not accept responsibility for damage arising from the use of the Auto Drain.*
*-ensure compliance with local plumbing codes and requirements.
ACCESS TUBS AUTO DRAIN SPECIFICATIONS
110V/60hz pump (20 Amp Circuit)
overflow
drain cable
drain cable drain
drain shoe
sanitary tee
drain tee
90° Elbow
reducer 1 1/2-1”
back flow preventer
*
One dedicated electrical circuit required for bathtub installation
button (on/off)
AIR AUTO DRAINTM CONNECTION
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 12
Access Tubs
SIDE ACCESS PANELS FOR 3-SIDE
ENCLOSURE
ASSEMBLY & PLACEMENT
Verify access to unit’s system from one of the side enclosures
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 13
Access Tubs
FAUCET INSTALLATION
fixing nut fixing nut
fixing nut
hot control handle cold control handle spout shower head
diverter
rubber washer
fiber washer
valve body
gasket
steel braded 19” hose
steel braded 19” hose
72” shower hose
local water line
hot water
cold water
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 14
Access Tubs
OPERATING SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRICAL SHOCK OR INJURY
TO PERSONS
WARNING! RISK OF PERSONAL INJURY:
• Use this unit for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.
• To avoid injury, exercise caution when entering or exiting your walk-in tub.
• To reduce the risk of injury, do not permit children or persons with infirmities to use this product unless they are closely
supervised at all times.
• The maximum recommended temperature is 102 F° (38.8 C °). Fifteen minutes per soak is the recommended maximum time at
102 F°, which may induce Hyperthermia which is an increase in body temperature. This can be a serious medical condition and
all bath users are cautioned against lengthy immersion at high water temperatures. Should you become light-headed, dizzy, or
nauseous, immediately get out of the bath and cool off.
• Risk of electric shock; do not permit electric appliances (such as a hair dryer, lamp, telephone, radio or television) within four
feet of this bathtub.
• Never drop or insert any objects into any openings.
• Do not operate this unit without the guard over the suction fittings.
WARNING! RISK OF HYPERTHERMIA AND POSSIBLE DROWNING. People using medications, herbal remedies, sleep aids,
and /or having adverse medical history should consult a physician before using this product.
WARNING! NO FOOD OR ALCOHOLIC BEVERAGES. Use of your bathtub immediately after meals is not recommended. Avoid
alcohol consumption before or during the bathing. Alcoholic beverages can cause drowsiness or hyperthermia resulting in loss of
consciousness or even drowning.
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 15
Access Tubs
The unit must be connected only to a supply circuit that is protected by a ground-fault circuit-interrupter (GFCI). Such a GFCI should
be provided by the installer and should be tested on a routine basis. To test the GFCI, push the test button. The GFCI should interrupt
power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner, there may be a ground current
flowing, indicating the possibility of an electric shock. Do not use this massage bathtub. Disconnect the jet massage bathtub and
have the problem corrected by a qualified service representative before using.
To reduce the risk of electrical shock, the dedicated electrical supply circuit(s) must be grounded. To do this, connect the third leg of
the 3-conductor wiring cable to the grounding terminal of the electrical service panel and run continuously to the green grounding
screw on the GFCI or electrical receptacle in the wiring compartment.
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 16
Access Tubs
OPERATING INSTRUCTIONS
When entering an Access walk-in tub, be sure to close the door, placing the
handle in the down position. Before activating any of the jetting controls, you
must first fill the bath to a water level at least 2 inches above the highest jet
placement. Do not put weight on the door when entering and exiting the tub.
It is recommended to leave the door in the open position when the tub is not
in use.
The blower is operated by the air control button which starts the air flow (see
page 18).
PURGE CYCLE
All air blowers are equipped with a purge cycle to remove residual water from the lines. The cycle will begin approximately 30
minutes after the unit is turned off and will continue for 1 - 2 minutes.
WARNING: DO NOT PUSH THE BUTTON ONCE THE CYCLE BEGINS. DOING SO WILL CAUSE
THE BLOWER TO RESTART ONCE THE PURGE CYCLE ENDS.
AIR HEATER
The air blower includes a built-in heater which heats the circulating air.
TUB DOOR HANDLE
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 17
Access Tubs
NOTE: THE AIR HEATER IS DESIGNED TO HEAT THE JETTED AIR AND BUBBLES, BUT IS NOT DESIGNED TO INCREASE THE
WATER TEMPERATURE. HEAT SETTINGS ARE NOT ADJUSTABLE.
OPERATING INSTRUCTIONS

Access Tubs 5701 NW 35 Avenue Miami, FL 33142 PHONE: [phone] FAX: [phone] www.accesstub.com
Page 18
Access Tubs

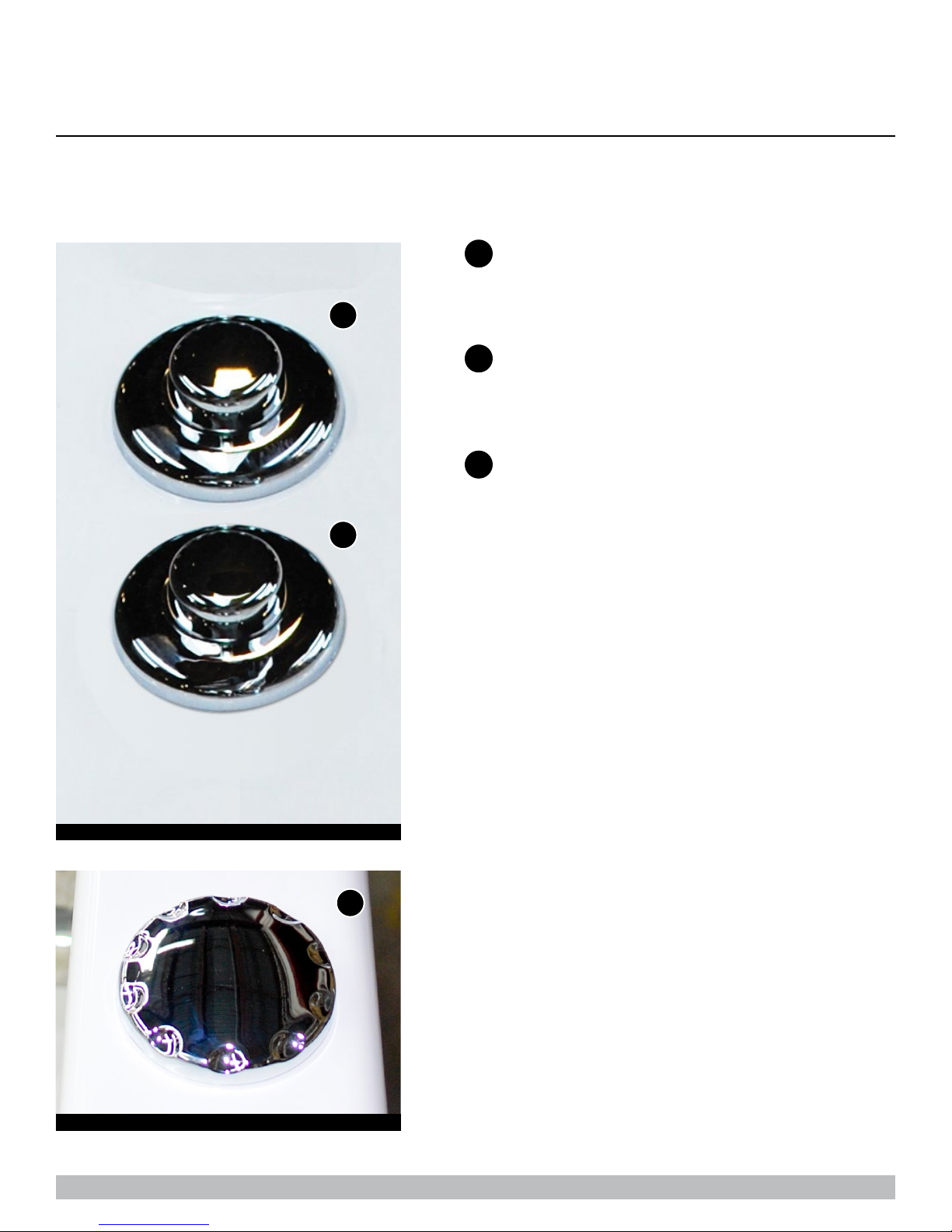

TUB CONTROLS
TUB CONTROLS
1
2
AIR CONTROL (BLOWER)
Used to turn the air jets ON or OFF.
AUTO DRAINTM
Efficiently drains the water in under 60 seconds.
AROMATHERAPY
Twist off the cap and insert your choice of Aromatherapy
beads. When the air blower is actived the circulating air will
release the fragrance through the bubbles.
1
2
3
OPERATING INSTRUCTIONS
AROMATHERAPY
3
