ACCO Brands NOBO User manual

1... English
Table of Contents ......................................................................................... 1
Usage Notice................................................................................................ 2
Precautions ..........................................................................................................2
Introduction .................................................................................................. 4

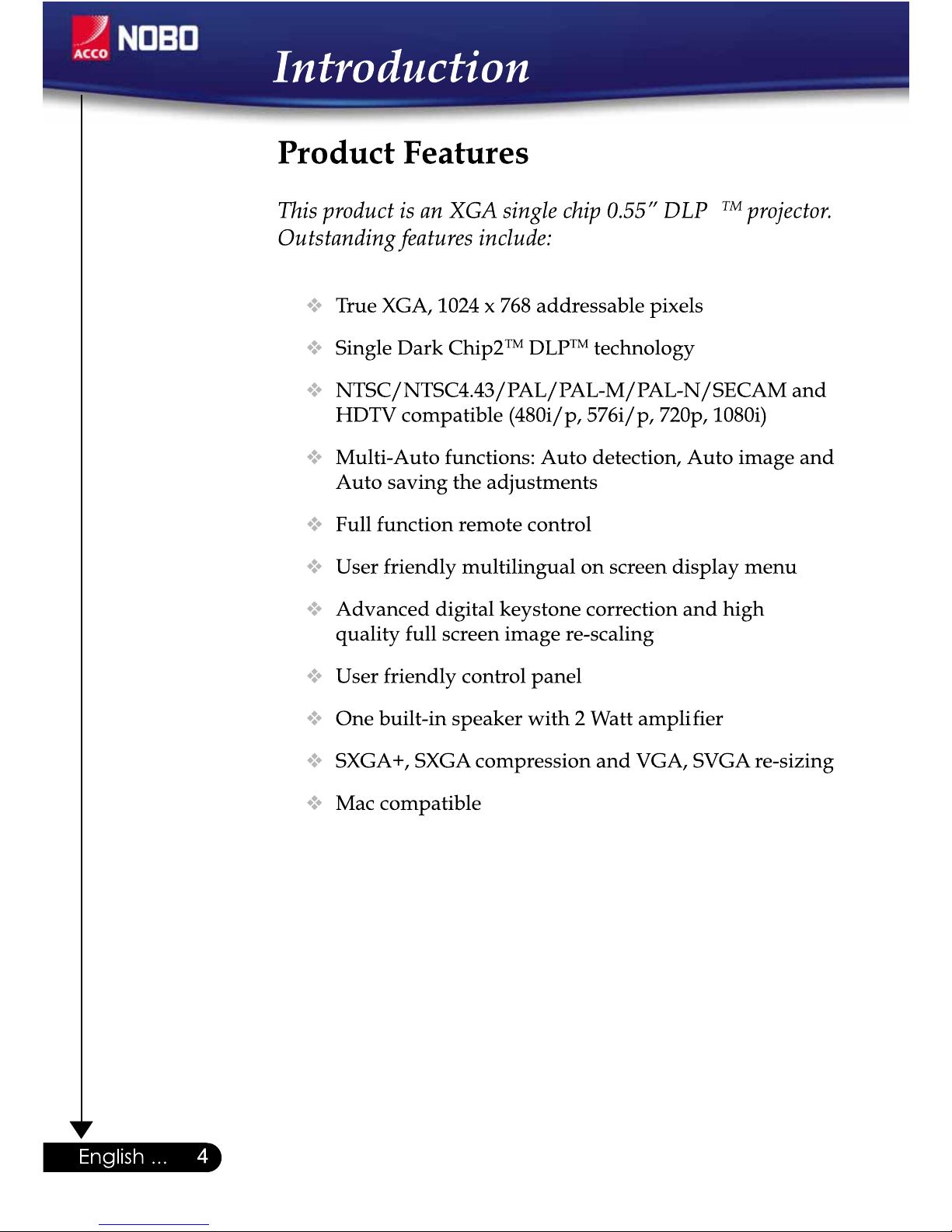

Product Features..................................................................................................4

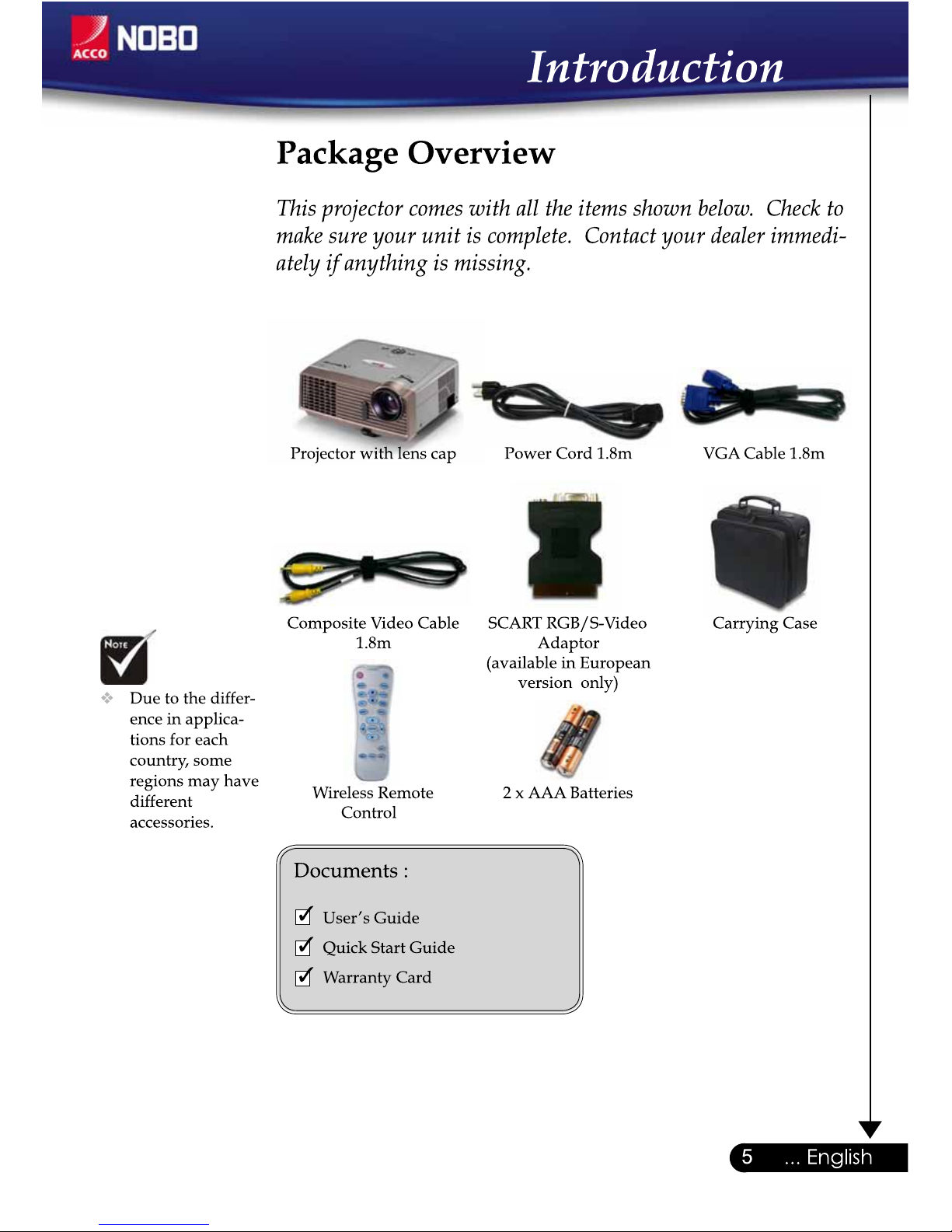

Package Overview ...............................................................................................5
Product Overview .................................................................................................6
Main Unit........................................................................................................................6
Control Panel .................................................................................................................7
Connection Ports ...........................................................................................................8
Wireless Remote Control ...............................................................................................9
Installation .................................................................................................. 10
Connecting the Projector....................................................................................10
Powering On/Off the Projector ...........................................................................11

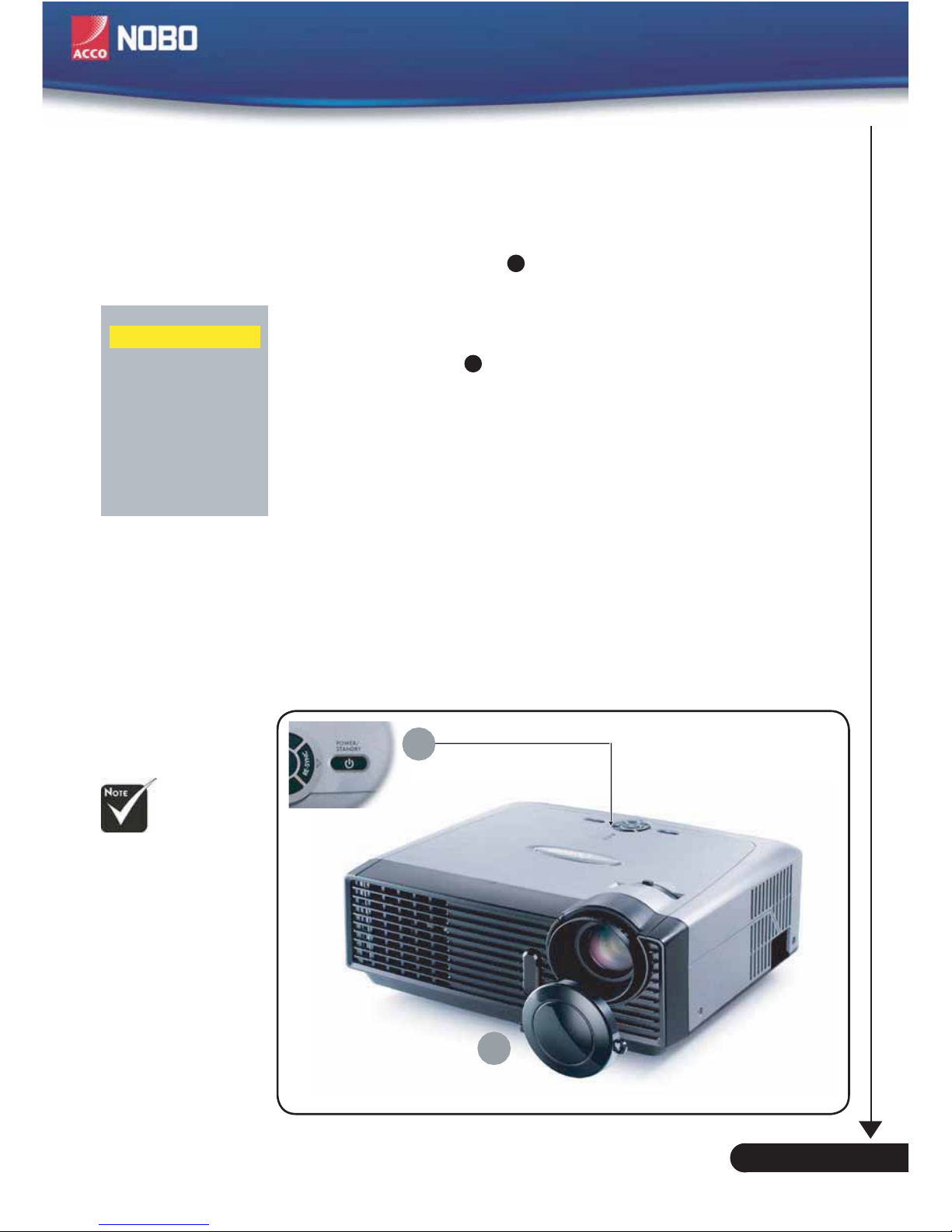

Powering On the Projector........................................................................................... 11
Powering Off the Projector...........................................................................................12
Warning Indicator.........................................................................................................12
Adjusting the Projected Image ...........................................................................13
Adjusting the Projector Image Height ..........................................................................13
Adjusting the Projector Zoom / Focus..........................................................................14
Adjusting Projected Image Size ...................................................................................14
User Controls ............................................................................................. 15

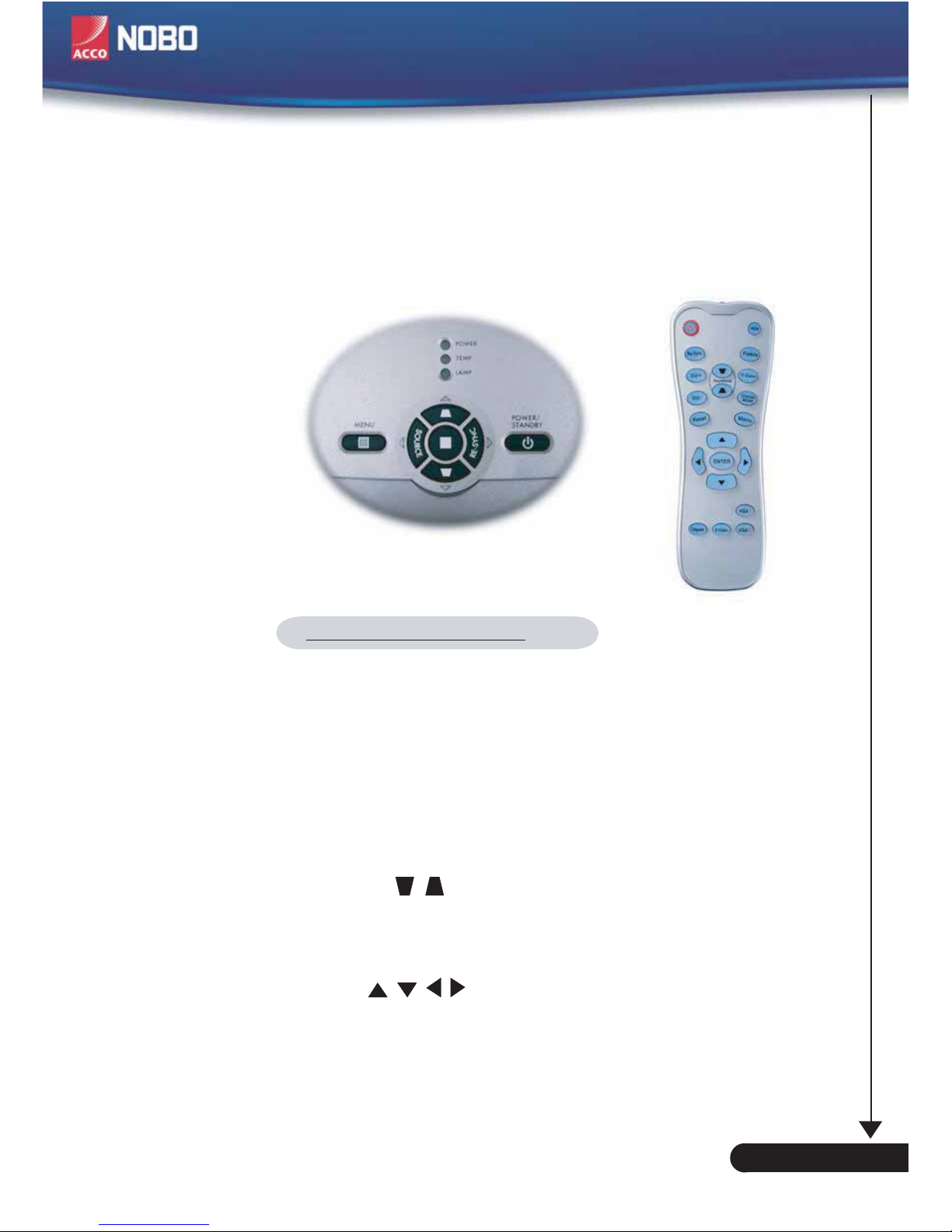

Control Panel & Remote Control ........................................................................15
On-Screen Display Menus .................................................................................17
How to Operate............................................................................................................17

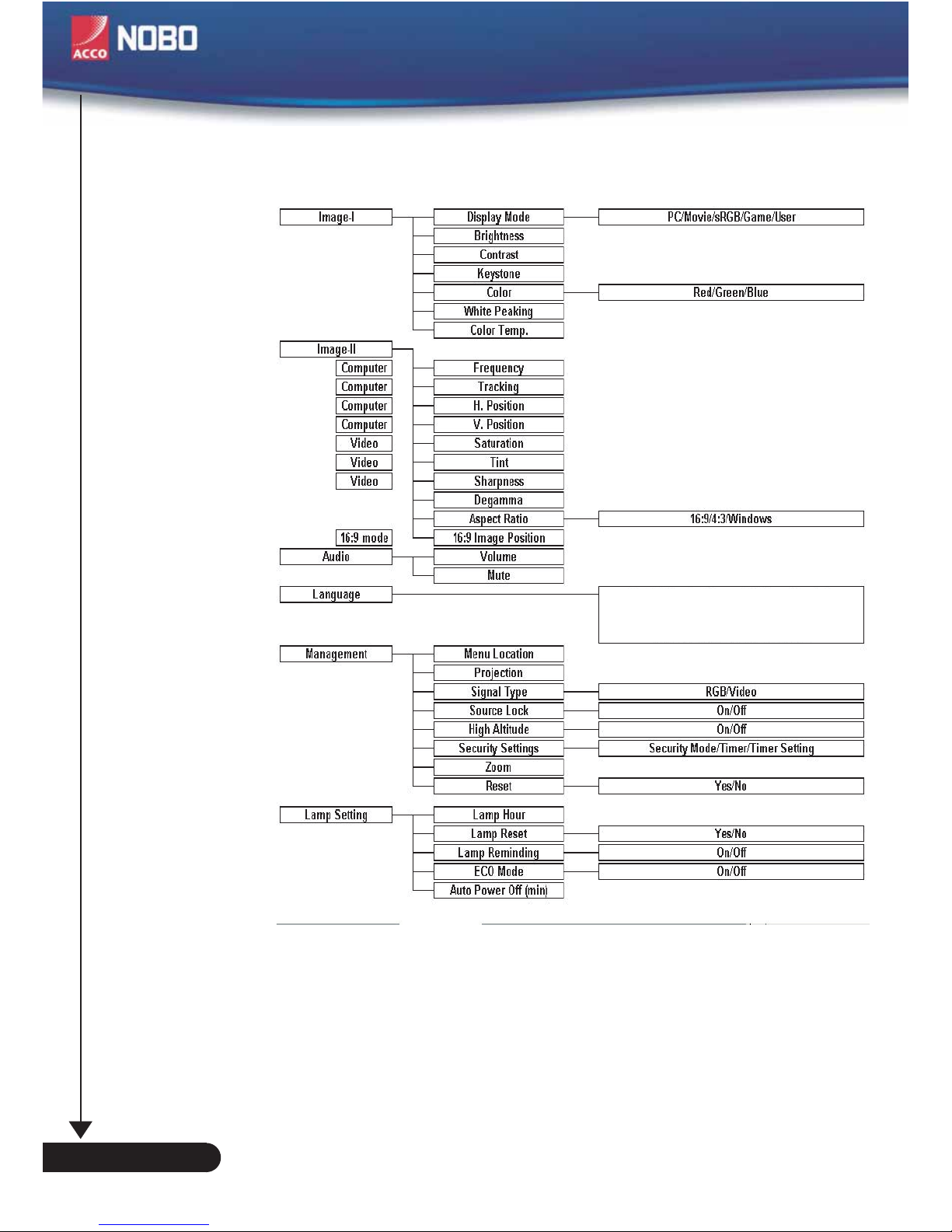

Menu Tree....................................................................................................................18
Language .....................................................................................................................19

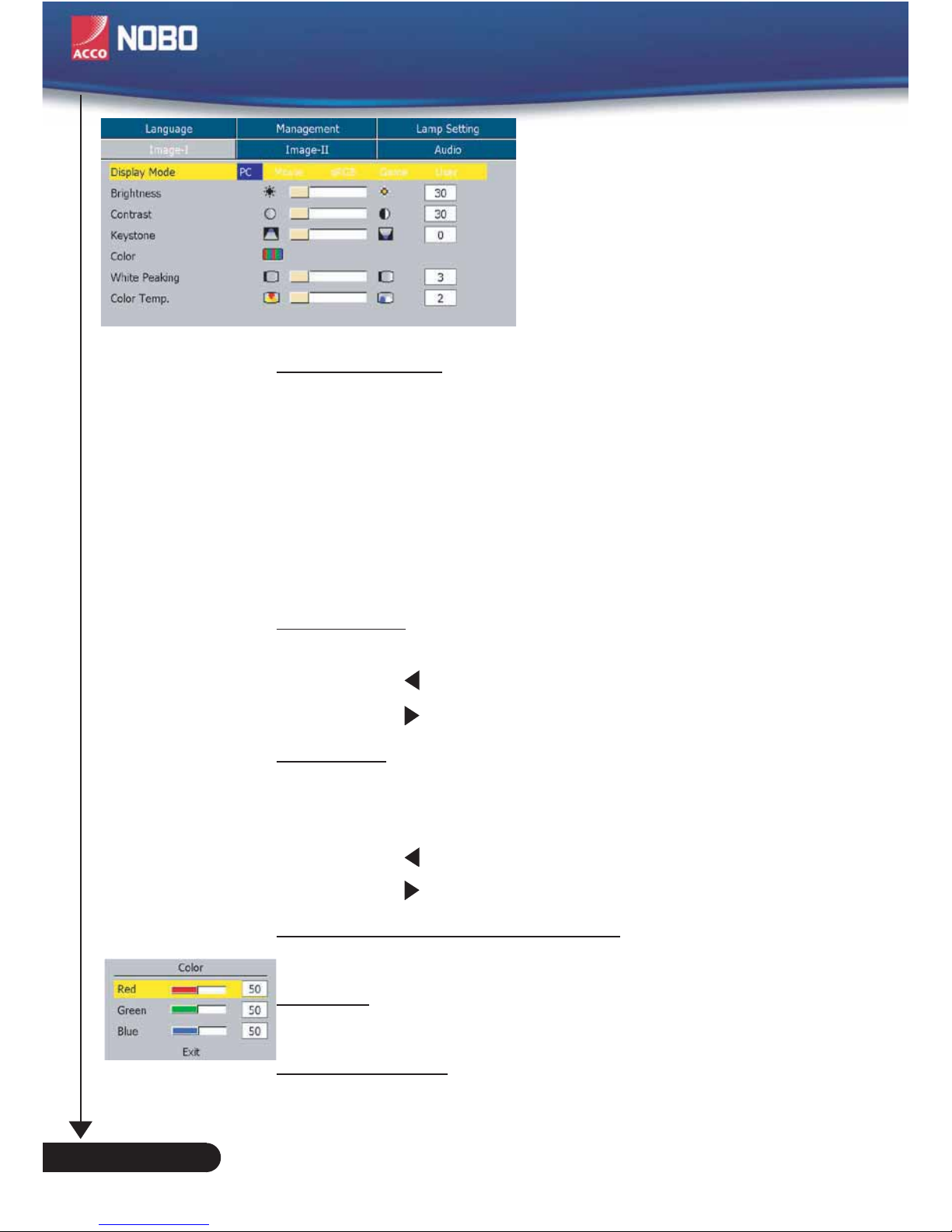

Image-I ........................................................................................................................20
Image-II (Computer Mode)...........................................................................................22
Image-II (Video Mode) .................................................................................................24
Audio............................................................................................................................26
Management ................................................................................................................27
Lamp Setting ...............................................................................................................30
Appendices ................................................................................................ 31
Troubleshooting ..................................................................................................31
Replacing the Lamp.............................................................................................35
Compatibility Modes ...........................................................................................36
Ceiling Mount Installation ...................................................................................37
Table of Contents

2
English ...
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recom-
mended in this user’s guide to maximize the life of your unit.
Excessive use of your unit may invalidate your warranty
(normal use defined as 8 hours a day 5 days a week).
Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt your eyes.
Warning- Children should be supervised at all times when
projector is in use.
Warning- To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
Warning- Please do not open or disassemble the product as this
may cause electric shock.
Warning- When changing the lamp, please allow unit to cool
down, and follow all changing instructions.
Warning- This product will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
Warning- Reset the “Lamp Reset” function from the On Screen
Display “Lamp Setting” menu after replacing the lamp
module (refer to page 30).
Warning- When switching the projector off, please ensure the
projector completes its cooling cycle before
disconnecting power.
Warning- Turn on the projector first and then the signal sources.
Warning- Do not use lens cap when projector is in operation.
Warning- When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this
happens, the projector will not turn back on until the
lamp module has been replaced. To replace the lamp,
follow the procedures listed under “Replacing the
Lamp” (refer to page 35).

3... English
Usage Notice
Do:
Turn off the product before cleaning.
Use a soft cloth moistened with mild detergent to clean the
display housing.
Disconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Don’t:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic field.
- Place in direct sunlight.

7... English
Introduction

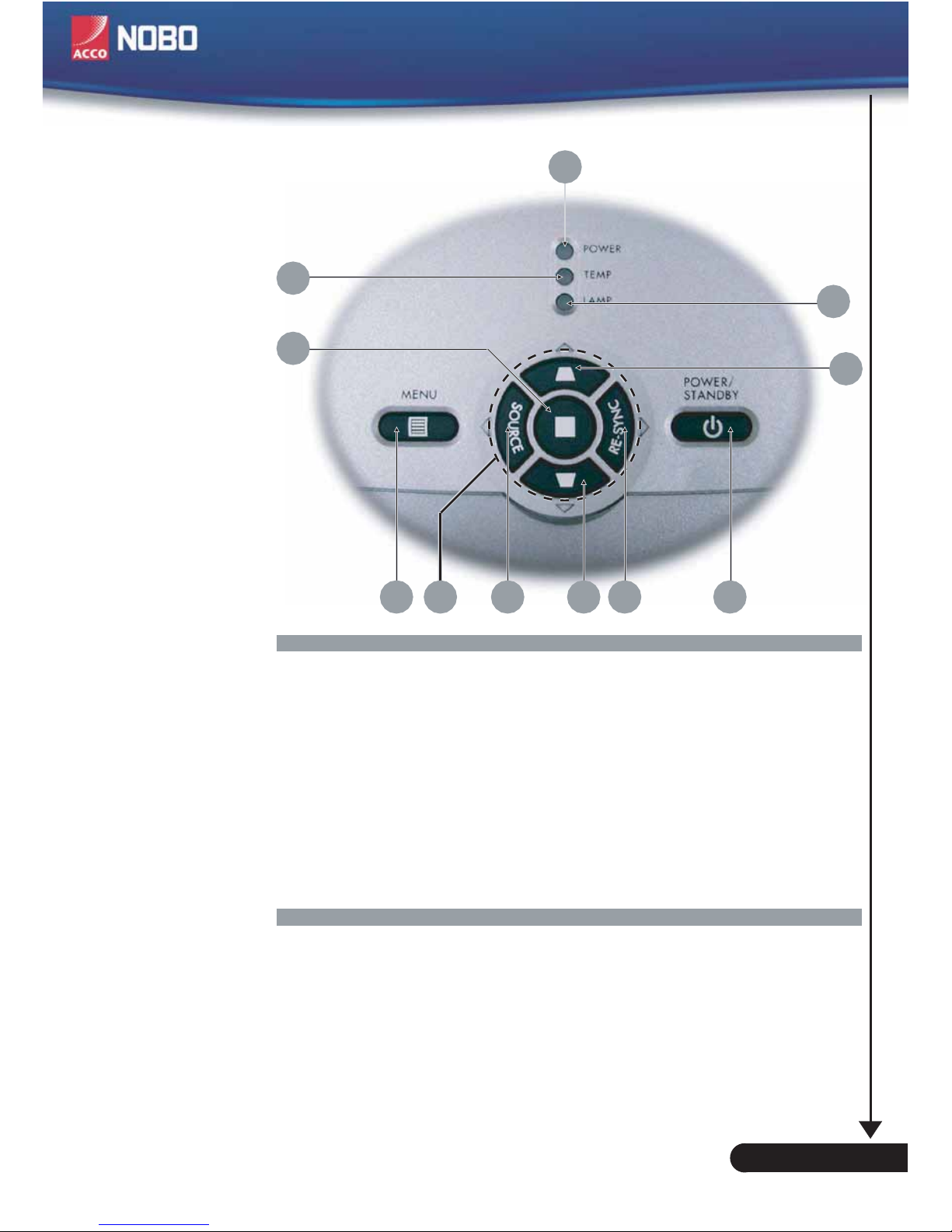

Control Panel
1. Power Indicator LED
2. Temp Indicator LED
3. Lamp Indicator LED
4. Keystone Correction
5. Power/Standby
6. Re-Sync
7. Source
8. Four Directional Select Keys
9. Menu (On/Off)
10. Enter
4
4
59 67
2
3
1
10
8

8
English ...
Introduction
Connection Ports
1. IR Receiver
2. USB Connector
3. Monitor Loop-through Output Connector
4. Composite Video Input Connector
5. S-Video Input Connector
6. Audio Input Connector
7. PC Analog signal/SCART RGB/HDTV/Component Video
Input Connector
8. PC Analog signal/HDTV/Component Video Input
Connector
9. KensingtonTM Lock Port
8
7 123456
9

9... English
Introduction
Wireless Remote Control
1. Power
2. IR LED
3. Hide
4. Freeze
5. D-Zoom
6. Display Mode
7. Menu
8. Keystone Correction
9. Re-Sync
10. Volume +
11. Volume -
12. Reset
13. Enter
14. Four Directional
Select Keys
15. VGA1 Source
16. VGA2 Source
17. Composite Video
Source
18. S-Video Source
4
5
6
15
9
10
11
13
2
712
17 16
18
14
83
1
