Accupipe Wicks CM-100 User manual

CM-100
CM-100
QUICK REFERENCE GUIDE
QUICK REFERENCE GUIDE
O R G A N C O M P A N Y
by viscount

This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
TO REDUCE THE DANGER OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
“INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS”
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prong are provided for your safety. If the provided plug does not fit in to your outlet, consult an electrician for replacement
of the obsolete outlet.
10) Protect the power cord from being walked on on pinhead, particularly at plugs, convenience receptacles,
and the point where they exit form the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold, with the apparatus.
When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such ad power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
SAVE THESE INSTRUCTIONS
WARNING: READ THIS FIRST!
WARNING
AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR

INDEX
INDEX
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1. Controls and connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.1 Description of the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.2 Description of the rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

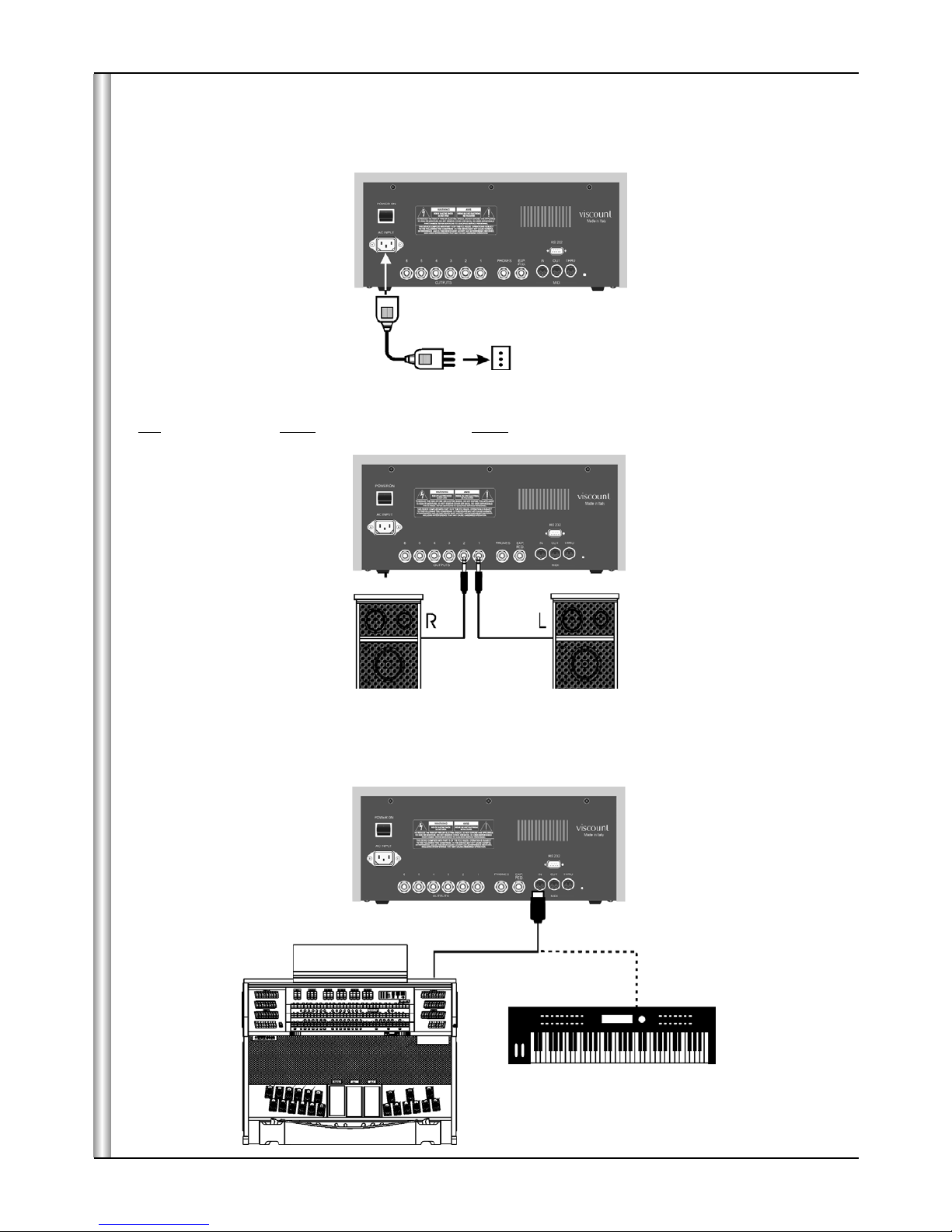

1.3 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

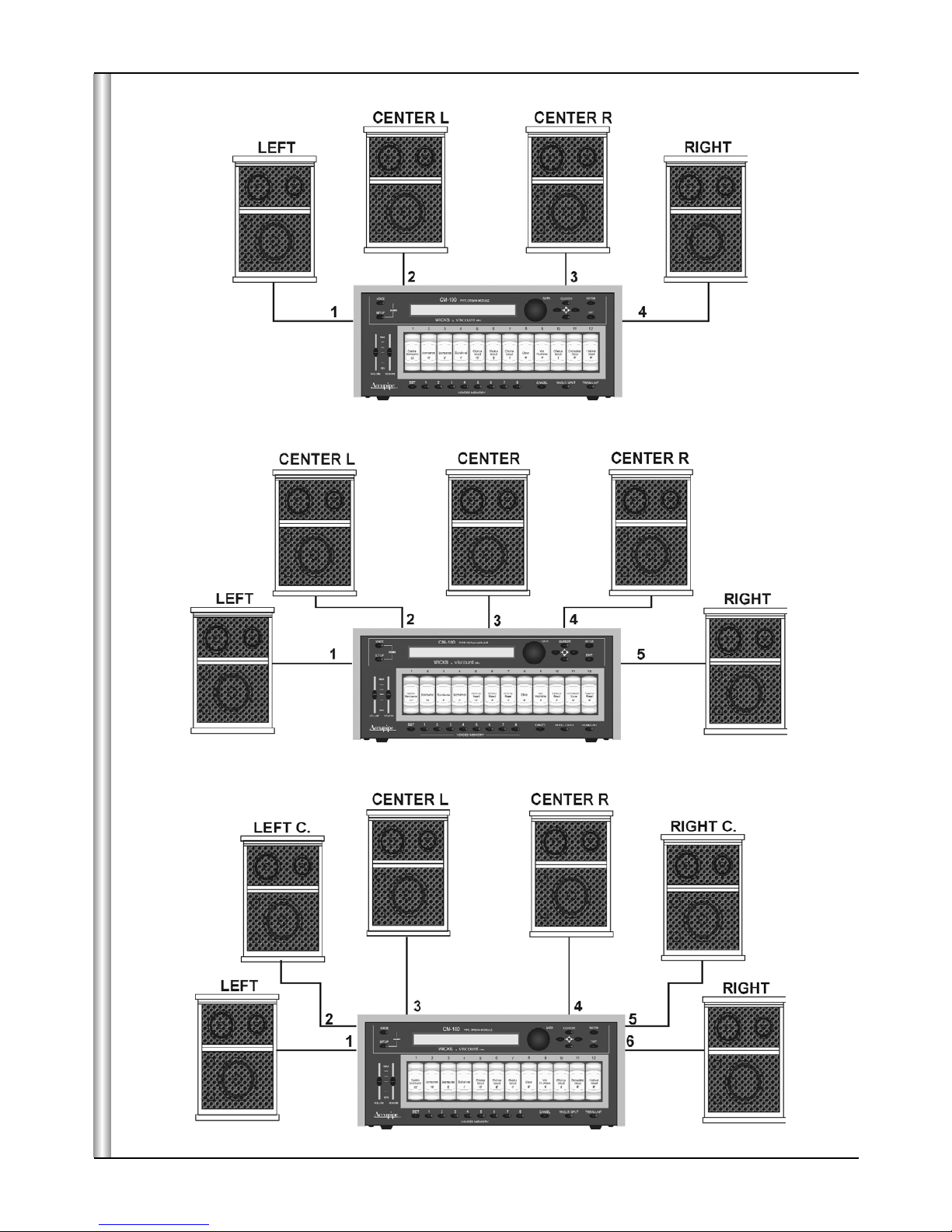

1.4 Positioning the loudspeaker boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2. Main Page and Demo mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.1 Main Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.2 Display messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.3 Listening the demo songs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3. Setting the MIDI channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3.2 The whole and split modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.3 Setting the MIDI channel in whole mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.4 Setting the MIDI channel in split mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.5 Additional notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4. Using the Voices Memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4.1 Procedure for saving and recalling voices memories . . . . . . . . . . . . . . . . . . . .15
4.2 Using the Memory Banks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5. Setting the Reverb and Tremulant effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5.1 The reverb effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5.2 Reverb effect settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5.3 The tremulant effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5.4 Tremulant effect settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6. Voice change
6.1 Voice change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6.2 Changing Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7. Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
- Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Index

Page 1
WICKS CM-100 Pipe Organ Module
ENGLISH
Dear Customer,
Thank you for choosing the WICKS CM 100 sound module. The Company, a world leader in the con-
struction of fine classical organs, has installed in the CM 100 the latest and most sophisticated techno-
logy dedicated to the high fidelity reproduction of pipe organ sounds, with impressive flexibility and rema-
kable quality of timbre.
After years of research exploring musical synthesis techniques, The Viscount’s Research and
Development unit is the FIRST in the world to create the sounds of a pipe organ by using the "physical
modeling technology" upon which the ACCUPIPE is based.
Instead of using "sound samples" from pipe organs (previously the standard method) this revolutionary
sound generation system involves the real-time calculation of the waveform generated by a precise
mathematical model based on the sound emission physics of
a pipe organ, incorporating the principal physical parameters
ie. construction geometry, materials used, and pertaining air
pressure, etc.
The fact that the simple reproduction of memorized "sound"
has been disregarded, permits the achievement of unimagi-
nable realism, with the level of detail previously only created
by a traditional pipe organ.
For example, the mathematical model allows the production
of a different sound for each key since it provides the virtual
reproduction of the original instrument by assigning a different
pipe to each note, similar to a pipe organ.
Furthermore, it will generate a different sound for each conse-
cutive pressure of the same note, thus simulating the precise
condition of the air volume inside the pipe as it is pressed.
The CM 100 also permits the "physical" editing of the sounds produced, by adjusting the parameters just
as the organ builder constructs the pipes. If however, "editing" is not your forte, you may choose your
sound from a library of 176 different pre-programmed pipe organ voices already in the module's
memory.
INTRODUCTION
INTRODUCTION
