AceProAV AcePro-CE33-1 User manual

AcePro-CE33-1
4-Port HDMI 2.0 Mini Splitter with EDID Management
Quick Installation Guide
www.avlab.com.tw
[email protected]
Made in Taiwan
AP4-0101A

-1-
TABLE OF CONTENTS
INTRODUCTION................................................................................................................2
FEATURES ........................................................................................................................2
PACKAGE CONTENTS......................................................................................................2
SPECIFICATIONS..............................................................................................................3
HARDWARE INSTALLATION.............................................................................................3
PANEL DESCRIPTIONS....................................................................................................4
CONNECTION DIAGRAM..................................................................................................4
NOTICE..............................................................................................................................5
WARRANTY.......................................................................................................................6

-2-
INTRODUCTION
The AcePro-CE33-1 4-Port HDMI 2.0 Mini Splitter with EDID Management provides the most
cost effective and advanced HDMI splitter solution in the market, by which the high definition video
and high quality audio can be transmitted to 4 different locations without losing any quality. AcePro-
CE33-1 also supports HDR and the true 4K2K video!
With built-in USB firmware update mechanism, the compatibility among countless HDMI
sources and receivers can be further guaranteed. With the upmost HDR/4K2K@60 4:4:4 8bits and
high definition audio support, AcePro-CE33-1 is suitable for high quality HDMI broadcasting, digital
signage and education applications!
FEATURES
HDCP 2.2 and 1.4 compliant
Wide frequency range: 25MHz~600MHz
Video bandwidth: 18Gbps
Supports resolution downscaling from 4K2K to 1080P!
Supports default EDID and EDID learning from display
Supports xvYCC, x.v.Color & Deep Color
Micro-USB firmware update for expanding compatibility
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Easy installation
HDMI2.0a compliant
Supports 4K2K@60 4:4:4 8bits
Supports HDR1, which is 4K2K@60 4:2:0 10bits2
PACKAGE CONTENTS
1x 4-Port HDMI 2.0 Mini Splitter (AcePro-CE33-1)
1x Mirco USB Cable
4x Rubber Pad
1x User Manual

1. HDR = High Dynamic Range.
2. The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the 4K2K@60 4:4:4
8bits is 594MHz.
!
1. NOT supports
2. AcePro-CE33-1 can bypass 4K HDR data content, but can NOT process it and make HDR
content 100% it into 1080p
(1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P
(2) Frame rate conversion
(3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0

-3-
SPECIFICATIONS
Model Name
AcePro-CE33-1
Technical
Role of usage
1x4 Distribution Amplifier (Splitter)
HDMI compliance
HDMI 2.0a
HDCP compliance
HDCP 2.2 / 1.4
Video bandwidth
Single-link 600MHz [18Gbps]
Video support
HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
Audio support
DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, LPCM
ESD protection
Human body model ± 15kV [air-gap discharge] & ± 8kV [contact discharge]
Firmware update
Feasible via Micro-USB port
Input
1x HDMI
Output
4x HDMI
HDMI connector
Type A [19-pin female]
Dip switch
EDID Mode selection
Mechanical
Housing
Metal enclosure
Dimensions
112 x 62 x 18mm[4.4" x 2.4" x 0.7" ]
Weight
170g[6 oz]
Power supply
Mirco USB Cable
Power consumption
4 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
HARDWARE INSTALLATION
Broadcasts HDMI signal to 4 HDMI displays!
1. Switch off all devices, including monitors.
2. Connect to the displays.
3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In.
4. Plug in 5V DC power supply.
5. Power on the HDMI monitors.
6. Power on the HDMI source.

-4-
!
Signal LED light on when device is connect to source and display.

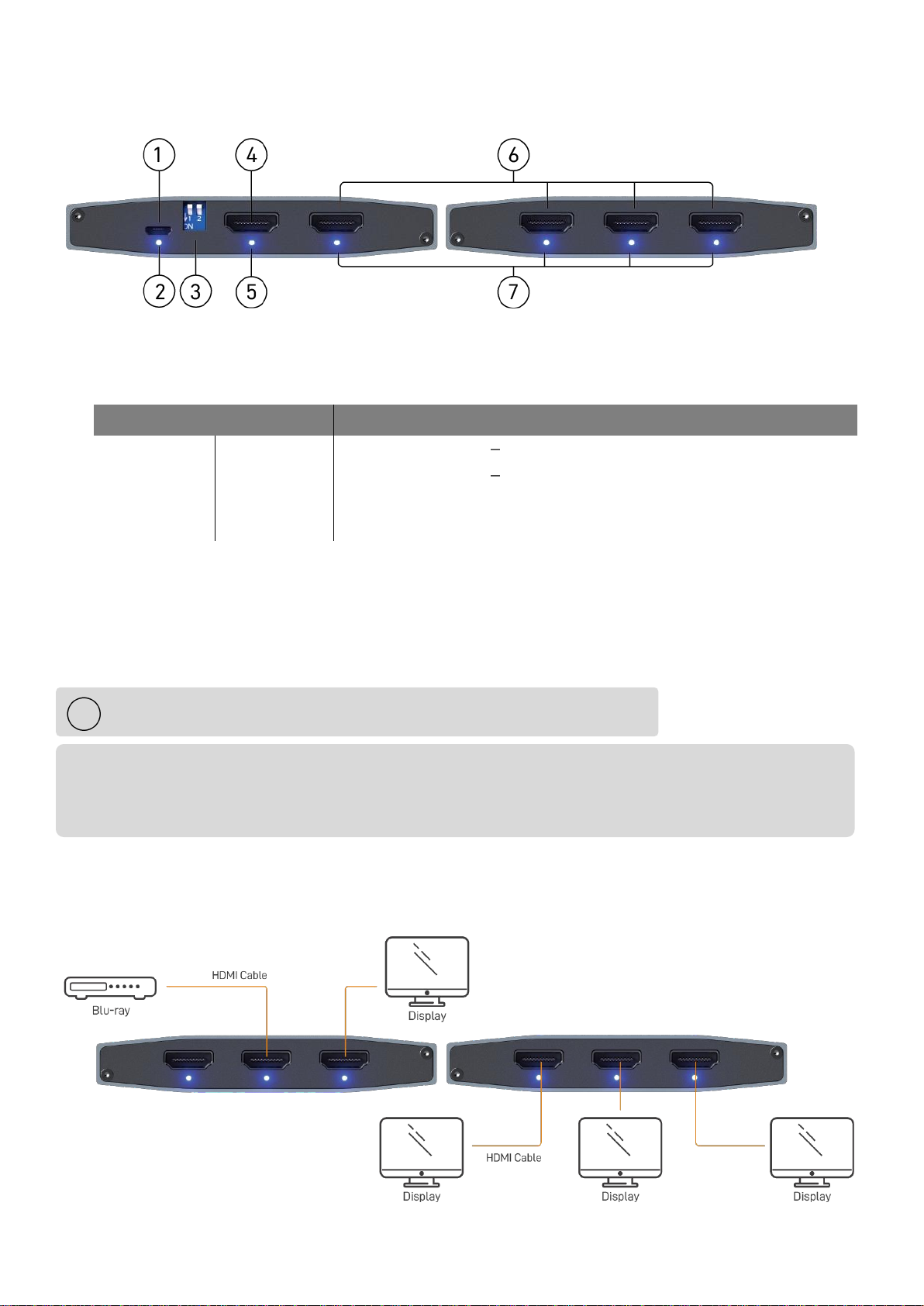

PANEL DESCRIPTIONS
1. Micro-USB Port: Connect to 5V DC power supply unit
2. Power LED: Lights on when device is ready
3. EDID MODE:
DIP Switch Position
Description
Off []
Off []
Ultra HD(4K2K@60) 8/10/12bit 3D HDR video & 7.1ch audio
On []
Off []
Ultra HD(4K2K@60) 8/10/12bit 3D HDR video & 2ch audio
Off []
On []
AVR MODE
On []
On []
Learning EDID from output 1
4. HDMI IN: Connect to a HDMI input source
5. Signal LED: Input signal LED indicator
6. HDMI OUT 1-4: HDMI outputs to HDMI displays [HDMI OUT1: EDID Learn Default]
7. Signal LED: Output 1-4 signal LED indicator
CONNECTION DIAGRAM
Automatic EDID learning will detect all the connected HDMI equipped monitors and analyze
all the content of EDID. The EDID with maximal resolution support will be the reference EDID
for incoming HDMI source players.


-5-
NOTICE
1. If somehow you cannot get video output, please try to adjust EDID dip switch to “[pin1,
pin2]=[↓-↑-]”for trouble shooting. If “[pin1, pin2]=[↓-↑-]”still cannot work, please
switch to “[pin1, pin2]=[↓-↓]”to learn the EDID from output 1 to customize the EDID
information.
(Please note that the display with lowest resolution must be connected to output 1)
Select to [pin1, pin2]=[↓-↓] - Learning EDID from output 1
(1) Set the rotary switch to ↓-↓]
(2) Power on the device
(3) It will automatically learn EDID from output 1
If you would like to keep Ultra HD video on display and go with the legacy HDMI Amplifiers (Full HD) in
the environment, please ↑-↓
Select to [pin1, pin2]=[↑-↓] AVR MODE
(1) [pin1, pin2]=[↑-↓]”
(2) Power on the device
[NOTE] Please power cycle the device after re-setting dip switch.
2. Firmware update is proceeded through Micro-USB.
(1) Save the firmware file (.bin) & software in the same folder.
(2) Connect the Micro-USB cable between PC and device
(3) Open firmware update software and then device will start to update firmware automatically.
(4) After
automatically.
(5) Power cycle the device

-6-
WARRANTY
The AceProAV warrants the AcePro-CE33-1 4-Port HDMI 2.0 Mini Splitter with EDID
Management free from defects in the material and workmanship for 1 year from the date of purchase
from the AceProAV or an authorized dealer. Should this product fail to be in good working order
within 1 year warranty period, The AceProAV, at its option, repair or replace the unit, provided that
the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications
including static discharge and power surge. This warranty is offered by the AceProAV for its BUYER
with direct transaction only. This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day
of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without
a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations,
any other implied warranty or fitness or merchantability for any particular purpose, all of which are
expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the AceProAV. Cables and power adapters are limited
to a 30 day warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believedto be accurate. However,
The AceProAV assumes no responsibility for any inaccuracies that may be contained in this manual.
The AceProAV will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such
damages. Also, the technical information contained herein regarding the AcePro-CE33-1 features
and specifications is subject to change without further notice.

Feb, 2020 Ver. A
Copyright ©by AceProAV, LLC. All rights reserved.
