AceProAV AcePro-CE90-1 User manual

Firmware update is proceeded through Micro-USB.

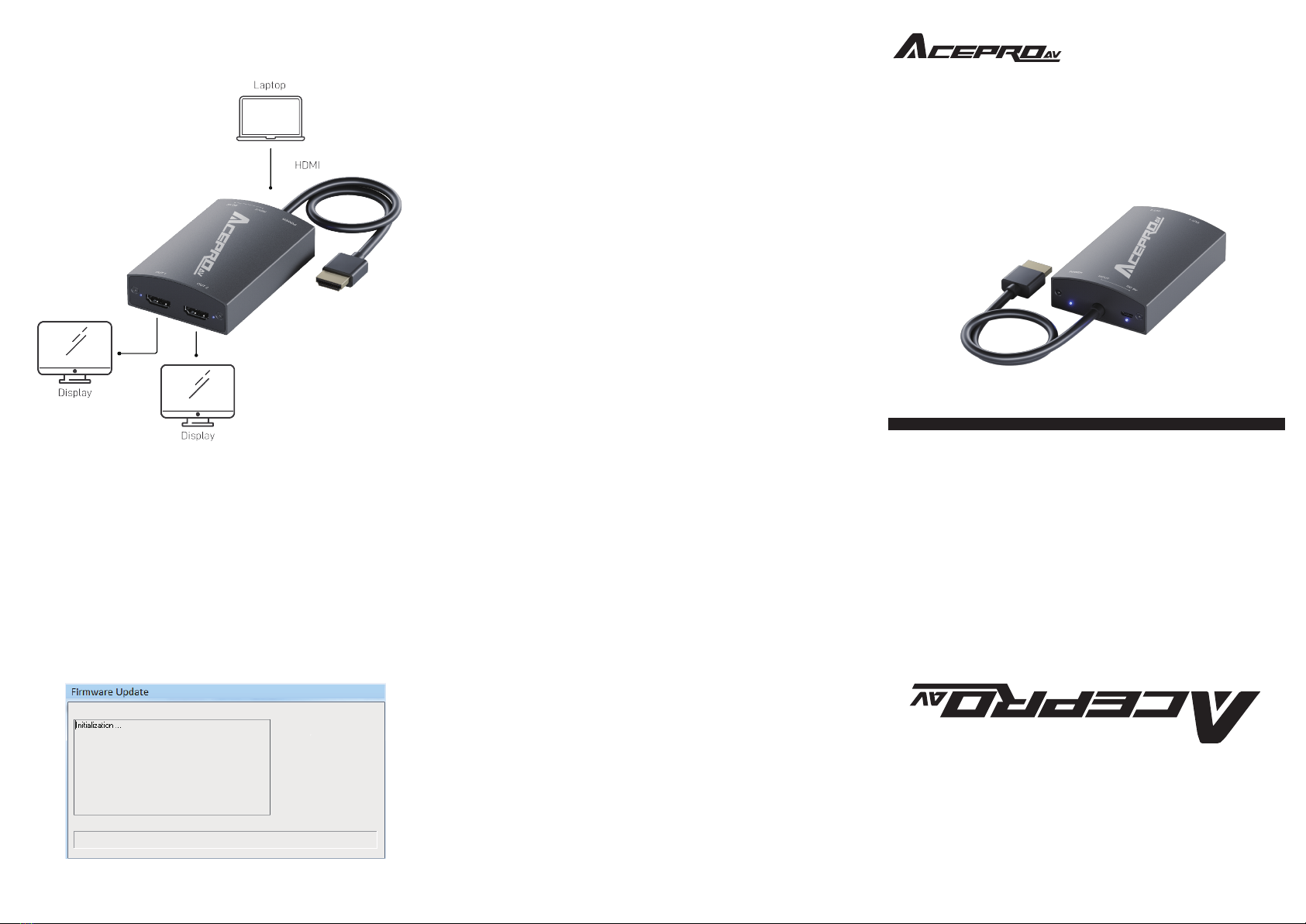

Connection Diagram
Notice
Save the firmware file (.bin) & software in the same folder.
Connect the Micro-USB cable between PC and device
Open firmware update software and then device will start
to update firmware automatically.
After update process is done, software will show
“Success” message and then be closed automatically.
Power cycle the device
(1)
(2)
(3)
(4)
(5)
AP4-0102A
May, 2020 Ver. A
Copyright © by AceProAV, LLC. All rights reserved.
Made in Taiwan
Warranty
The AceProAV warrants the AcePro-CE90-1
Compact 2-Port HDMI 2.0 Splitter with Auto Scaling free
from defects in the material and workmanship for 1 year
from the date of purchase from the AceProAV or an
authorized dealer. Should this product fail to be in good
working order within 1 year warranty period, The
AceProAV, at its option, repair or replace the unit,
provided that the unit has not been subjected to accident,
disaster, abuse or any unauthorized modifications
including static discharge and power surge. This warranty
is offered by the AceProAV for its BUYER with direct
transaction only. This warranty is void if the warranty seal
on the metal housing is broken.
Unit that fails under conditions other than those
covered will be repaired at the current price of parts and
labor in effect at the time of repair. Such repairs are
warranted for 90 days from the day of reshipment to the
BUYER. If the unit is delivered by mail, customers agree to
insure the unit or assume the risk of loss or damage in
transit. Under no circumstances will a unit be accepted
without a return authorization number.
The warranty is in lieu of all other warranties
expressed or implied, including without limitations, any
other implied warranty or fitness or merchantability for any
particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim
warranty. Customers outside Taiwan are responsible for
shipping charges to and from the AceProAV. Cables and
power adapters are limited to a 30 day warranty and must
be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully
checked and is believed to be accurate. However, The
AceProAV assumes no responsibility for any inaccuracies
that may be contained in this manual. The AceProAV will
NOT be liable for direct, indirect, incidental, special, or
consequential damages resulting from any defect or
omission in this manual, even if advised of the possibility of
such damages. Also, the technical information contained
herein regarding the AcePro-CE90-1 features and
specifications is subject to change without further notice.
AcePro-CE90-1
Compact 2-Port HDMI 2.0 Splitter with Auto Scaling
Quick Start Guide
www.avlab.com.tw
[email protected]

The AcePro-CE90-1 Compact 2-Port HDMI 2.0
Splitter with Auto Scaling provides the most cost
effective and advanced HDMI splitter solution in the
market, by which the high definition video and high
quality audio can be transmitted to 2 different
locations without losing any quality.AcePro-CE90-1
also supports HDR and the true 4K2K video!
With built-in USB firmware update mechanism,
the compatibility among countless HDMI sources
and receivers can be further guaranteed. With the
upmost HDR/4K2K@60 4:4:4 8bits and high
definition audio support, AcePro-CE90-1 is suitable
for high quality HDMI broadcasting, gaming and
meeting applications!
HDMI2.0a compliant
Supports 4K2K@60 4:4:4 8bits
Supports HDR , which is 4K2K@60 4:2:0 10bits
HDCP 2.2 and 1.4 compliant
Wide frequency range: 25MHz~600MHz
Video bandwidth: 18Gbps
Supports resolution downscaling from 4K2K to 1080P
Supports default EDID and EDID learning from display
Supports xvYCC, x.v.Color& Deep Color
Micro-USB firmware update for expanding
compatibility
Supports Dolby Digital, DTS-HD and Dolby TrueHD
audio
Easy installation
1x Compact 2-Port HDMI 2.0 Splitter (AcePro-CE90-1)
1x Micro-USB to USB cable
1x User Manual
Introduction
Features
Panel Descriptions
NOT supports
AcePro-CE90-1 can bypass 4K HDR data content, but
can NOT process it and make HDR content 100% fit
into 1080p
(1) Resolution downscaling from 4K2K@60 4:2:2 to 1080P
(2) Frame rate conversion
(3) 4K2K@60 4:2:2 to 4K2K@60 4:2:0
HDR = High Dynamic Range.
The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is
384 MHz, and the 4K2K@60 4:4:4 8bits is 594MHz.
Signal LED: Output 1-2 signal LED indicator
HDMI OUT 1-2: HDMI outputs to HDMI displays
[HDMI OUT1: EDID Learning Port]*
HDMI IN: Connect to a HDMI input source
Power LED: Lights on when device is ready
Signal LED: Input signal LED indicator
Micro-USB Port: Connect to 5V DC power supply
unit / FW update
1.
2.
3.
4.
5.
6.
1.
2.
1.
2.
Signal LED light on when device is connect to source
and display.
The device will learn EDID via output 1 when output 1
connects to display
*

○
!

○
!
Package Contents
Specifications
FRONT VIEW
BACK VIEW
2
1
3
5
AcePro-CE90-1Model Name
Role of usage
HDMI compliance
HDCP compliance
Video bandwidth
Video support
Audio support
ESD protection
Firmware update
Input
Output
HDMI connector
Housing
Dimensions
Weight
Fixedness
Power supply
Power consumption
Operation temperature
Storage temperature
Relative humidity
1x2 Distribution Amplifier (Splitter)
HDMI 2.0a
HDCP 2.2 / 1.4
Single-link 600MHz [18Gbps]
HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
DTS-HD Master Audio, Dolby TrueHD Dolby
Digital, DTS, LPCM
Human body model — ±15kV [air-gap discharge] &
±8kV [contact discharge]
Feasible via Micro-USB port
1x HDMI
2x HDMI
Type A [19-pin female]
Metal enclosure
112 x 67 x 21mm[3.2" x 2.4" x 0.7" ]
190g[6.7 oz]
Wall-mounting case
5V 1A DC
3 Watts [max]
0~40°C [32~104°F]
-20~60°C [-4~140°F]
20~90% RH [no condensation]
Technical
Mechanical
1 2
