Acer Aspire T300 User manual

Aspire T300/Power ST
Service Guide
PRINTED IN TAIWAN
Service guide files and updates are available
on the AIPG/CSD web; for more information,
please refer to http://csd.acer.com.tw

II
Revision History
Please refer to the table below for the updates made on Aspire T300/Power ST service guide.
Date Chapter Updates

III
Copyright
Copyright © 2002 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

IV
Conventions
The following conventions are used in this manual:
Screen messages Denotes actual messages that appear
on screen.
NOTE Gives bits and pieces of additional
information related to the current
topic.
WARNING Alerts you to any damage that might
result from doing or not doing specific
actions.
CAUTION Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions
relevant to the accomplishment of
procedures.

V
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.

VI

Chapter 1 1
Overview
The Aspire T300/Power ST supports Intel Pentium 4 Northwood based micro-ATX, IBM PC/AT compatible
system with PCI/AGP bus.
NOTE: Aspire T300/Power ST supports Intel’s HT (Hyper-Threading) Technology.
System Specifications
Chapter 1

2Chapter 1
Features & Specifications
CPU
TSupport Intel P4 Northwood (Socket 478) processor.
TSupport 533MHz or 400MHz FSB.
TSupport up to 3.06GHz+ P4 processor.
TSupport Intel Hyper Threading Technology.
Chipset
TSiS 651, SiS 962L
Memory
TSocket Type: DDR-SDRAM PC2700/PC2100 184-pin socket.
TSupport 64Mb, 128Mb, 256Mb and 512 Mb technologies.
TCapacity: 128MB ~ 1GB (please refer to the AVL list for compatibility).
Graphics
TOn-die VGA
T1 VGA port
AGP/PCI
TOne AGP 4X 1.5V slot
TThree PCI 2.2 5V slots
FDD
TOne FDD slot supports 1.44MB/3 mode 3.5” devices
IDE
TSlot Type: 40 pin IDE slot
TSlot Quantity: 2
TTransfer rate support:
TPIO Mode: 0/1/2/3/4
TUltra DMA 66/100/133
TStorage Type support:
THDD/CD-ROM/CD-RW/DVD
TZip 250
TATA-100 transfer rate
Audio
TEmbedded RealTek 201A audio codec with 16-bit Sound Blaster compatibility
TChip (Additional): AC97 Codec, 20 bit with amplifier
TInterface: AC Link
TChannel: 4
TConnectors support:
TLine-in/Line-out (rear)

Chapter 1 3
TMicrophone-in (rear)/Microphone-in (front) (Default)
THeadphone Out (front) (Default)
LAN
TSupports 10/100MB ethernet environment
USB
TConnectors Quantity:
TOn-board: 4 (rear)
TConnector Pin: 2 (front)
TTransfer Rate:
TUSB 2.0/1.1
BIOS
T4MB Award BIOS with Plug and Play BIOS
TACPI, SMBIOS 2.3, Green and Boot Block.
TProvides DMI 2.0, WFM 2.0, WOL, WOR, chassis intrusion and SM Bus for system management.
Others
TSuspend to RAM/Disk
TPC2001 Compliant
TSupport PS2 Keyboard/Mouse and USB Keyboard/Mouse wake up function

4Chapter 1

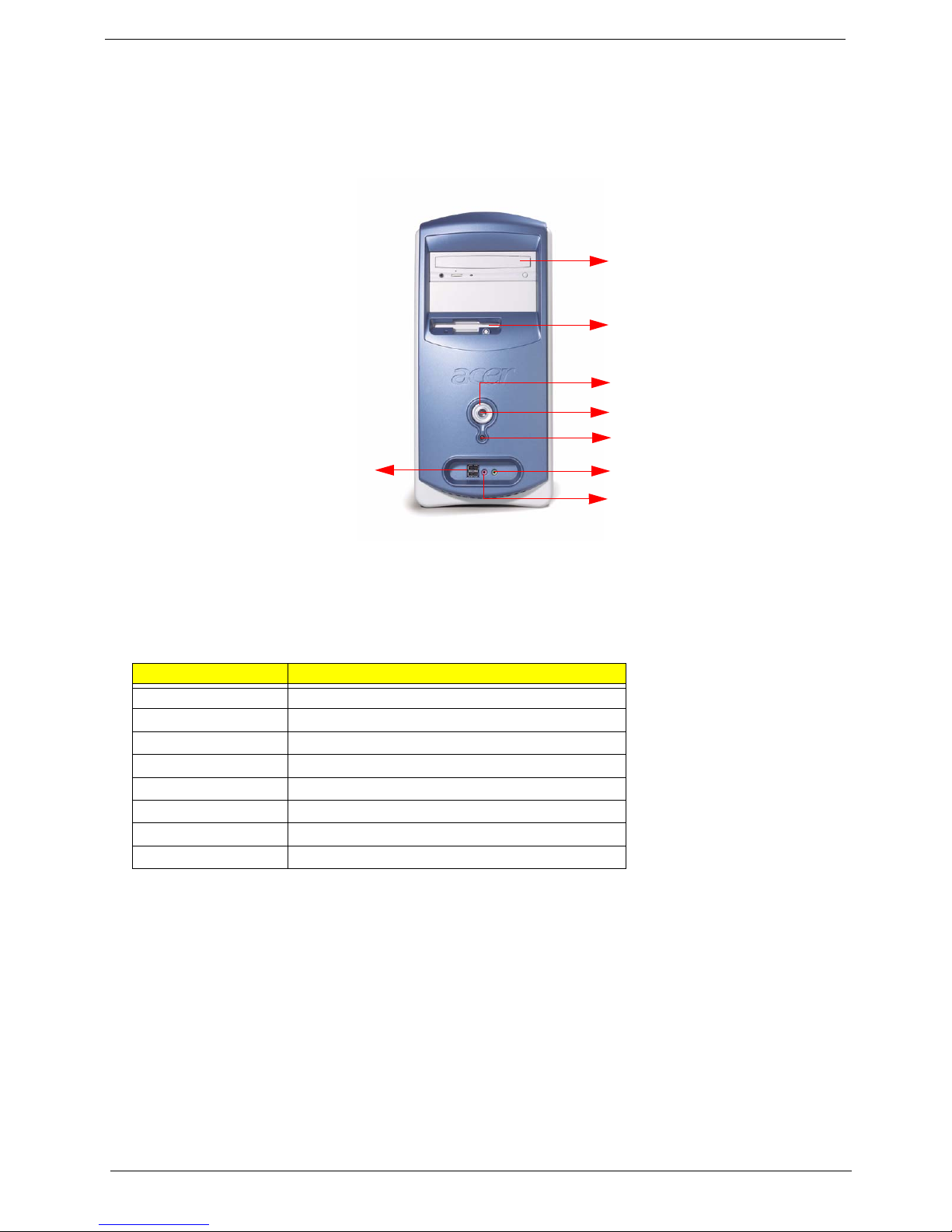

Front Panel
The computer’s front panel consists of the following:
Label Description
1 CD-ROM/DVD-ROM/CD-RW Drive
2 FDD Drive
3 Power Button
4 Power LED
5HDDLED
6 Speaker/Headphone jack
7 Microphone-in jack
8 USB ports
1
2
3
4
5
6
7
8

Chapter 1 5
Label Description
1 CD-ROM/DVD-ROM/CD-RW Drive
2 FDD Drive
3 Power Button
4 Power LED
5HDDLED
6 Speaker/Headphone jack
7 Microphone-in jack
8 USB ports
1
2
3
4
5
6
7
8

6Chapter 1
Rear Panel
The computer’s rear panel (both Aspire T300 & Power ST) consists of the following:
Label Description
1 Power Socket
2 Voltage Setting Switch (only available in some area)
3 PS/2 Keyboard Port
4 COM1/Serial Port
5VGAPort
6 Speaker / Headphone Jack
7 Line-in Jack
8 Microphone-in Jack
9 USB Ports
10 Extension Card Slots
11 Ventilation Slot
12 PS/2 Mouse Port
13 Printer Port
14 Game Port
15 LAN Port

Chapter 1 7

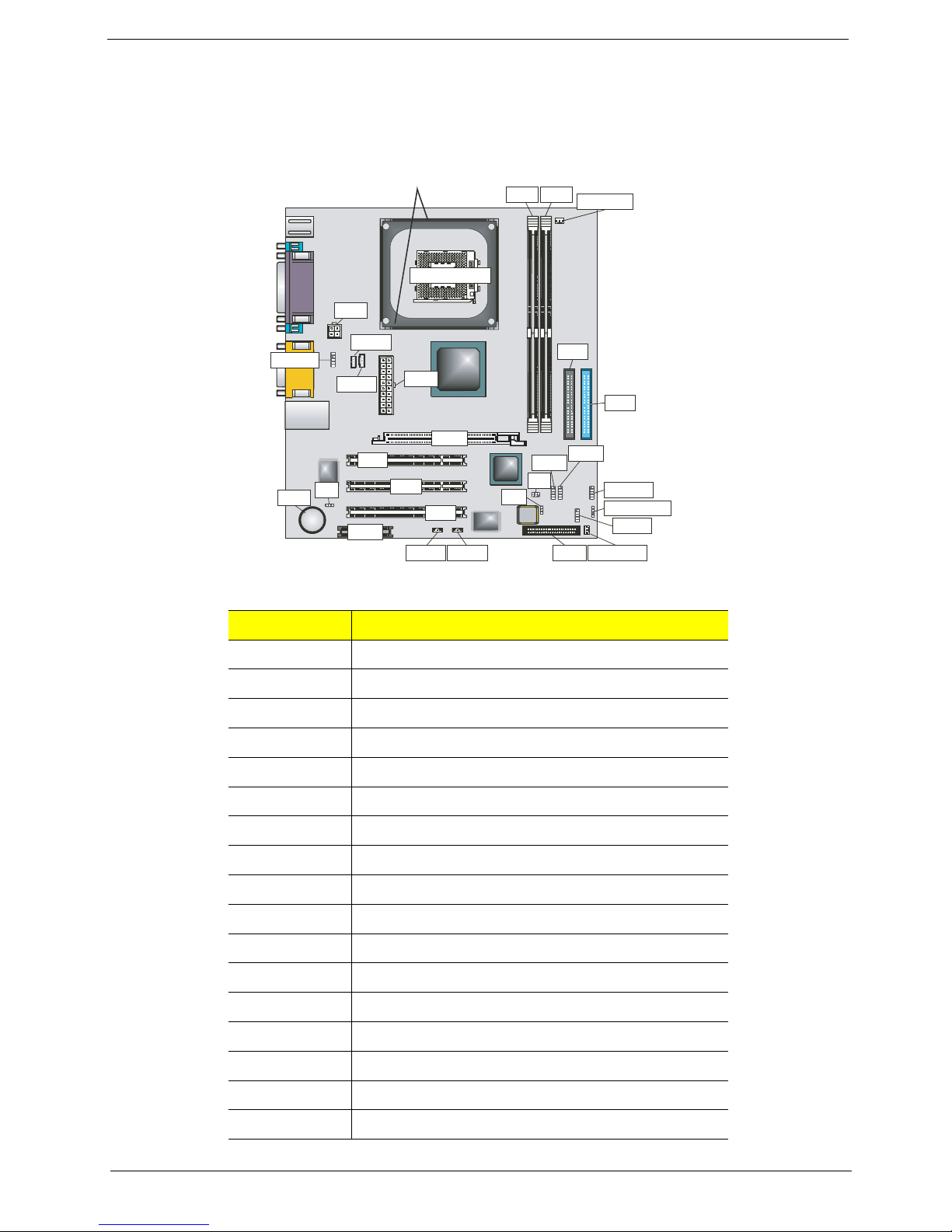

Aspire T300/Power ST Main Board Layout
Label Description
AGP1 Accelerated Graphic Port
ATX2 Power Connector
AUDIO1 Front audio connector
BAT1 Three volt realtime clock battery
CASFAN1 Case fan connector 1
CDIN1 Primary CD-in connector
CDIN2 Secondary CD-in connector
CNR1 Communications Networking Riser slot
CPU SOCKET Micro PGA 478-pin socket for Pentium 4 CPUs
CPUFAN1 Cooling fan for CPU
DIM1, DIM2 Two 184-pin DDR SDRAM
FDD1 Floppy disk drive connector
IDE1 Primary IDE channel
IDE2 Secondary IDE channel
IR1 Infrared cable header
J5 SPIDF-out header
JP1 Clear CMOS jumper
Mainboard Components
CDIN2 CDIN1
AUDIO1
WOM1 WOL1
CNR1
PCI3
PCI2
PCI1
SPEAKER1
IR1
PANEL1
JP1
BAT1
JP3
USB3USB2
CASFAN1
FDD1
IDE2 IDE1
ATX2
CPUFAN1
DDR1 DDR2
DIM1
WOM1 WOL1 CASFAN1
JP3
IR1
USB2
USB3
SPEAKER1
PANEL1
FDD1
DIM2 CPUFAN1
IDE2
IDE1
AUDIO1
CDIN2
ATX1
CDIN1
JP1
BAT1
ATX2
PCI1
CNR1
PCI3
PCI2
RETENTION MODULE
CPU SOCKET
ATX 1
AGP1
AGP1
COM2
COM2

8Chapter 1
JP3 BIOS protection jumper
LED1 Memory module LED
PANEL1 Connector for case front panel awitches and LED indicators
PCI1~PCI3 Three 32-bit add-on card slots
PWRFAN1 Case fan connector 2
SPEAKER1 Speaker connector
USB2 Front panel USB headers
USB3 Front panel USB headers
WOL1 Wake On LAN wakeup connector
WOM1 Wake On Modem wakeup connector
Label Description

Chapter 1 9
Hardware Specifications and Configurations
NOTE: The BIOS can be overwritten/upgraded by using the flash utility.
Processor
Item Specification
Type Pentium 4
Socket 478
Speed 1.8G~3.06G
Minimum operating speed 0 MHz (If Stop CPU Clock in Sleep State in BIOS Setup is set to
Enabled.)
Voltage Processor voltage can be detected by the system without setting any
jumper.
BIOS
Item Specification
BIOS code programmer Award
BIOS version v6.0
BIOS ROM type Flash ROM
BIOS ROM size 2MB
BIOS ROM package 32-pin DIP package
Support protocol PCI 2.2, APM1.2, DMI 2.00.1, E-IDE, ACPI 1.0, ESCD 1.03, ANSI
ATA 3.0, PnP 1a, Bootable CD-ROM 1.0, ATAPI
Boot from CD-ROM feature Yes
Support to LS-120 drive No
Support to BIOS boot block feature No
BIOS Hotkey List
Hotkey Function Description
cEnter BIOS Setup Utility Press while the system is booting to enter
BIOS Setup Utility.

10 Chapter 1
This section has two table lists, system memory specification and the possible combinations of memory
module.
This section has two table lists, the video interface specification and its supported display modes.
System Memory
Item Specification
Memory socket number 2 sockets (4 banks)
Support memory size per socket 64MB / 128MB / 256MB/ 512MB
Support maximum memory size 1G x2
Support memory type DDR SDRAM
Support memory speed 133MHz (PC133) (for Local Bus speed 133MHz, 100MHz
Support memory voltage 2.5 V
Support memory module package 184-pin DIMM
Support to parity check feature Yes
Support to Error Correction Code (ECC) feature Yes
Memory module combinations You can install memory modules in any combination as long as
they match the above specifications.
Memory Combinations
Slot Memory Module Total Memory
Slot 1 64, 128, 256, 512MB, 1G 64MB~1G
Slot 2 64, 128, 256, 512MB, 1G 64MB~1G
Maximum System Memory Supported 64MB~2G
Cache Memory
Item Specification
First-Level Cache Configurations
Cache function control Enable/Disable by BIOS Setup
Second-Level Cache Configurations
L2 Cache RAM type PBSRAM
L2 Cache RAM size 512-KB
L2 Cache RAM speed One-half the processor core clock frequency
L2 Cache RAM voltage
L2 Cache function control Enable/Disable by BIOS Setup
L2 Cache scheme Fixed in write-back
Video Memory
Item Specification
Memory size 8 MB or above
Video Interface
Item Specification
Video controller SiS 651
Video controller resident bus AGP bus

Chapter 1 11
Video interface support Video YUV texture in all texture formats
H/W DVD accelerator
Display Screen Resolution Refresh Rate (Hz) Hor. Scan (KHz) Pixel Clock (MHz)
640x480 60 31.5 25.2
640x480 72 37.4 32.0
640x480 75 37.5 31.5
640x480 85 43.3 36.0
640x480 120 63.7 55.0
800x600 56 35.2 36.0
800x600 60 37.8 39.9
800x600 72 48.0 50.0
800x600 75 46.9 49.5
800x600 85 53.7 56.2
800x600 100 62.5 67.5
800x600 120 76.1 81.0
800x600 160 101.9 110.0
1024x768 70 56.5 75.0
1024x768 75 60.0 78.8
1024x768 100 79.0 110.0
1280x1024 43 50.0 80.0
1280x1024 60 64.0 110.0
1280x1024 85 91.2 157.5
1600x1200 60 76.2 156.0
1600x1200 85 106.2 229.5
Audio Interface
Item Specification
Audio controller SiS 651
Audio controller resident bus AC’97
Audio function control Enable/disable by BIOS Setup
Mono or stereo Stereo
Resolution 20 bits
Compatibility Sound Blaster Pro/16 compatible
Mixed digital and analog high performance chip
Enhanced stereo full duplex operation
High performance audio accelerator and AC’97 support
Full native DOS games compatibility
Virtual FM enhances audio experience through real-time FM-to-Wavetable
conversion
MPU-401(UART mode) interface for wavetable synthesizers and MIDI
devices
Integrated dual game port
Meets AC’97and WHQL specifications
Music synthesizer Yes, internal FM synthesizer
Video Interface
Item Specification

12 Chapter 1
Sampling rate 48 KHz (max.)
MPU-401 UART support Yes
Microphone jack Supported
Headphone jack Supported
IDE Interface
Item Specification
IDE controller SiS 651
IDE controller resident bus PCI bus
Number of IDE channel 2
Support IDE interface E-IDE (up to PIO mode-4 and Ultra DMA 33/66), ANSIS ATA rev.3.0 ATAPI
Support bootable CD-ROM Yes
Floppy disk drive Interface
Item Specification
Floppy disk drive controller SiS 962
Floppy disk drive controller resident bus ISA bus
Support FDD format 360KB, 720KB, 1.2MB, 1.44MB, 2.88MB
Parallel Port
Item Specification
Parallel port controller SiS 962
Parallel port controller resident bus ISA bus
Number of parallel ports 1
Support ECP/EPP SPP / Bi-directional / ECP / EPP
Connector type 25-pin D-type female connector
Parallel port function control Enable/disable by BIOS Setup
Optional ECP DMA channel
(in BIOS Setup)
DMA channel 1
DMA channel 3
Optional parallel port I/O address
(via BIOS Setup)
378h
278h
Optional parallel port IRQ
(via BIOS Setup)
IRQ5
IRQ7
Serial Port
Item Specification
Serial port controller SiS 962
Serial port controller resident bus ISA bus
Number of serial port 2
16550 UART support Yes
Connector type 9-pin D-type female connector
Optional serial port I/O address
(via BIOS Setup)
COM1: 2F8h, 3E8h, 2E8h
COM2: 3E8h, 3F8h, 2F8h
Audio Interface
Item Specification

Chapter 1 13
Optional serial port IRQ
(via BIOS Setup)
COM1: IRQ 3, and 4
COM2: IRQ 4, and 3
Modem
Item Specification
Fax modem data baud rate (bps) V.17 12K/1.44K
Data modem data baud rate (bps) V.90 32K to 56K (received only)
Voice modem V.253
Modem connector type RJ11
Full duplex Yes
USB Port
Item Specification
Universal HCI USB 2.0
USB Class Support legacy keyboard for legacy mode
Memory Address Map
Address Size Function
000000 - 07FFFF 512KBytes Host Memory
080000 - 09FFFF 128KBytes Host/PCI Memory
0A0000 - 0BFFFF 128KBytes PCI/ISA Video Buffer Memory
0C0000 - 0C7FFF 32KBytes Video BIOS Memory
0C8000 - 0DFFFF 96Kbytes ISA Card BIOS & Buffer Memory
0E0000 - 0EFFFF 64Kbytes BIOS Extension Memory
Setup and Post Memory
PCI Development BIOS
0F0000 - 0FFFFF 64Kbytes System BIOS Memory
100000 - UPPER LIMIT Main Memory
UPPER LIMIT - 4GBytes PCI Memory
PCI INTx# and IDSEL Assignment Map
PCI INTx # PCI Devices Device IDSEL: ADxx
INTA# ADIMM-slot N
INTB# PCI-Slot1 AD20
INTC# PCI-Slot2 AD22
INTD# PCI-Slot3 AD24
PCI Slot IRQ Routing Map
PCI INTX# INTA INTB INTC INTD Bus Mastering
PCI slot 1 Route 4 Route 1 Route 2 Route 3 Enabled
PCI slot 2 Route 3 Route 4 Route 1 Route 2 Enabled
PCI slot 3 Route 2 Route 3 Route 4 Route 1 Enabled
Serial Port
Item Specification

14 Chapter 1
NOTE: N - Not be used
I/O Address Map
Hex Range Devices
000-01F
020-021
040-043
060-060
061-061
070-071
080-08F
0A0-0A1
0C0-0DF
0F0-0FF
170-177
1F0-1F7
278-27F
2F8-2FF
378-37F
3F0-3F5
3F6-3F6
3F7-3F7
3F8-3FF
0CF8
0CFC
778-77A
DMA Controller-1
Interrupt Controller-1
System Timer
Keyboard Controller 8742
System Speaker
CMOS RAM Address and Real Time Clock
DMA Page Register
Interrupt Controller-2
DMA Controller-2
Math Co-Processor
Secondary IDE
Primary IDE
Parallel Printer Port 2
Serial Asynchronous Port 2
Parallel Printer Port 1
Floppy Disk Controller
Secondary IDE
Primary IDE
Serial Asynchronous Port 1
Configuration Address Register
Configuration Data Register
Parallel Printer Port 1
IRQ Assignment Map
IRQx System Devices Add-On-Card Devices
IRQ0 Timer N
IRQ1 Keyboard N
IRQ2 Cascade Interrupt Control N
IRQ3 Serial Alternate Reserved
IRQ4 Serial Primary Reserved
IRQ5 MPU-401(Alternate) Reserved
IRQ6 Floppy Disk Reserved
IRQ7 Parallel Port Reserved
IRQ8 Real Time Clock N
IRQ9 N Reserved
IRQ10 N Reserved
IRQ11 N Reserved
IRQ12 PS/2 Mouse Reserved
IRQ13 Math Coprocessor Exception N
IRQ14 Primary IDE Reserved
IRQ15 Secondary IDE Reserved
