Acer Veriton X4620G User manual

Acer
Veriton X6620G
Service Guide
PRINTED IN TAIWAN

ii
Revision History
Please refer to the table below for the updates made on this service guide.
Date Version Remark
4/19/2012 V1.0 First Release

iii
Copyright
Copyright © 2012 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.

iv
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

v
Conventions
The following conventions are used in this manual:
SCREEN
MESSAGES Denotes actual messages that appear on screen.
NOTE Gives additional information related to the current topic.
WARNING Alerts you to any physical risk or system damage that might result from doing
or not doing specific actions.
CAUTION Gives precautionary measures to avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions relevant to the accomplishment of
procedures.

vi
Service Guide Coverage
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on
card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic
service guide. In such cases, please contact your regional offices or the responsible personnel/channel to
provide you with further technical details.
FRU Information
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available
on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in
the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the
list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

vii
System Tour 1
Features 1
Block Diagram 6
System Components 7
Front Panel 7
Rear Panel 8
Hardware Specifications and Configurations 9
Power Management Function(ACPI support function) 12
System Utilities 13
CMOS Setup Utility 13
Entering CMOS setup 14
Navigating Through the Setup Utility 14
Main 15
System Disassembly and Assembly 28
Disassembly Requirements 28
Pre-disassembly Procedure 29
Removing the Side Panel 30
Removing the Front Bezel 31
Removing the Heat Sink Fan Assembly 32
Removing the Processor 34
Removing the Optical Drive 36
Removing the Hard Disk Drive 38
Removing the HDD-ODD Bracket 40
Removing the COM Port Cable and Printer Port Cable 42
Removing the Wireless LAN Card 44
Removing the VGA Card 46
Removing the Memory Modules 47
Removing the Power Supply 48
Removing the System Fan 50
Removing the Mainboard 52
Removing the Internal Speaker 56
Removing the Power Switch,OBR and LED Cable Assembly 57
Removing the USB/Front I/O Assembly and Card Reader Board 59
Removing the Intrusion Alarm Cable Assembly 62
Assembly Requirements 63
Assembly Procedure 64
Romoving the Side Panel 65
Romoving the Front Bezel and the ODD Bracket 66
Romoving the Outside Connector Slice 67
Reinstalling the Internal Speaker 67
Reinstalling the I/O Shielding 68
Reinstalling the MainBoard 69
Reinstalling the System Fan 72
Reinstalling the Power Supply 74
Reinstalling the Memory 76
Reinstalling the VGA Card 78
Reinstalling the Wireless LAN Card 80
Reinstalling the Printer Port Cable and COM2 Port Cable 82
Reinstalling the HDD-ODD Bracket 84
Reinstalling the Hard Disk Drive 86
Table of Contents

viii
Reinstalling the Optical Drive 88
Reinstalling the Processor 90
Reinstalling the Heat Sink Fan Assembly 93
Reinstalling the Front Bezel 95
Reinstalling the Side Panel 96
System Troubleshooting 97
Hardware Diagnostic Procedure 97
System Check Procedures 98
Power System Check 98
System External Inspection 98
System Internal Inspection 98
Beep Codes 99
Checkpoints 100
BIOS Recovery 103
Jumper and Connector Information 104
M/B Placement 104
Jumper Setting 106
Setting Jumper 107
Checking Connector 108
Connecting Case Components 112
FRU (Field Replaceable Unit) List 115
Veriton X6620G Exploded Diagram 116
Veriton X6620G FRU List 117

Chapter 1 1
Features
Below is a brief summary of the computer’s many feature:
NOTE: The features listed in this section is for your reference only. The exact configuration of the system
depends on the model purchased.
Operating System
•Microsoft Windows 7 Professional 64-bit
•Microsoft Windows 7 Home Premium 64-bit
•Microsoft Windows 7 Home Basic 32-bit
•Linpux Linux X windows mode
•FreeDos
Processor
•Socket Type: LGA 1155 pin
•Socket Quantity: 1
•Processor Type:
•Intel Ivy Bridge/ Sandy Bridge Processor.
•32 nm, 2nd Generation Hi-K+metal gate process processor core.
•32nm, Hi-K+metal gate process, Intel® HD Graphics & Integrated Memory Controller.
Chipset
•PCH: Intel Q77
•Design Criteria:
•Should meet Intel Cougar Point platform design guide.
•Super I/O:
•Should support Intel PECI 3.0.
•Please follow Intel design guide.
PCB
•Max. 244 mm x 244 mm, MicroATX
Memory subsystem
•Socket Type: DDR III connector
•Socket Quantity: 4
•Channel A: slot 4, 2; Channel B: slot 3, 1.
•Different colors for slot 4/2 and slot 1/3.
•Dual channel support.
•Support Intel Flex Memory Mode.
•Capacity support:
•1GB/2GB/4GB DDR3 1.5V 1333/1600 Un-buffered Non-ECC DIMM support.
System Tour
Chapter 1

2Chapter 1
•1 GB to 16GB Max memory support(using 4Gb tech).
•DDR3 1.5V 1333/1600.
•Design Criteria:
•Should meet Intel Ivy Bridge/ Sandy Bridge Family design guide.
•Support 1.5V DIMM.
•Dual channel should be enabled always when plug-in 2 same memory size DDRIII memory
module.
Hard disk drive
•Support SATA interface.
•3.5”, 25.4mm, 80/160/320/500/640/1TB/2TB G or higher capacity.
•5400/7200 rpm or higher".
•Capacity and models are listed on AVL.
Optical disk drive
•Support SATA 5.25” standard ODD.
•Support DVD-ROM, DVD-SuperMulti (Label Flash), BD-DVD, BD-Combo. BD-RW.
•Capacity and model is listed on AVL.
Graphics
•Intel® HD Graphics Support
•Dual independent display.
•Digital display (HDMI/DVI/DP/eDP) and VGA.
•DVMT 5.0 technology support.
•Enhanced 3D and Clear Video technology support.
•1 DVI-I port at rear side.
•2 DP port on rear.
•3 Independent Digit Display support.
•Need to measure VGA follow Acer VGA SOP.
•Monitor compatible is requested to the monitor AVL and DQM recommended list.
Graphics card support
•Support Normal length graphics cards in the single PCIe X16 slot.
Serial ATA controller
•Connector Type: SATAII connector and SATAIII connector.
•Connector Quantity: 4(6Gb/s*2 ports, must use different color to define, other are 3Gb/s).
•Storage Type support:
•3.5” SATAII/SATAIII HDD.
•Combo/ DVD supermulti/Blue-ray DVD ODD.
•RAID/AHCI/IDE mode option.
•Default RAID mode.

Chapter 1 3
LAN
•Controller: Q77: Intel 82579LM Gbt LAN controller/PHY for VX6 series.
•RJ-45 Back panel port with Link/Activity LEDs.
•Support Wake up on LAN function, including from S3,S4,S5,G3->S5, power button off (non-ACPI OS).
•Can support 4KV surge for China (option, default not).
Audio
•Chip : HD audio codec ALC662-VD HD codec 5.1
•Connectors support:
•Rear 3 jack follow HD audio definition (ALC662-VD).
•Audio jacks color coding: should meet Microsoft Windows Logo Program Device Requirements:
Audio-0002.
•1 front panel audio header (2*5).
•1 internal speaker header (2*4).
•S/N ration: 90dB at rear output jack.
•Audio jacks color coding: should meet Microsoft Windows Logo Program Device Requirements:
Audio-0002.
•1 front panel audio header (2*5).
•One earphone and one microphone jack is required on front bezel.
•1 4*1 SPDIF internal header closed to PCIEx16 slot.
•Auto detection and re-tasking behavior is following Acer Audio Jack spec.
USB ports
•Controller: 7 Series Express Chipset(Pather Point).
•Ports Quantity: Q77: 14.
•4 back rear ports(USB2.0 * 2 ports, USB 3.0*2).
•4 ports for front daughter board(2*USB3.0 , 2*USB 2.0).
•3 x USB 2.0 headers support additional six USB 2.0 ports.
•Connector Pin: standard Intel FPIO pin definition.
•Data transfer rate support:
•USB 3.0/2.0/1.1
•All USB ports must be boot-capable includes USB-ODD, USB-HDD, USB-FDD, and etc…
•All USB ports must provide the over current protection.
•The pin connector should be located on upper if placed on horizontal.
•Support disable function by each USB port in BIOS.
•Enable the USB EHCI Debug Ports.
•All ports should meet USB IF spec.
Extension slot
•1 * PCIE x16 (PCIE V3.0)
•1 * PCIE x1 (PCIE V2.0)
Buzzer
•1 on board buzzer

4Chapter 1
Rear I/O connectors
•1 x PS2 Keyboard connector
•1 x PS2 Mouse connector
•1 x DVI-I port
•2 x Display ports
•1 x COM port
•1 x RJ45 LAN connector + Dual USB2.0
•1 x Dual USB 3.0 connector (2 ports)
•1 x 3 ports Audio jack(Line in, line out and microphone)
On-board connectors
•1 x LGA 1155 CPU socket.
•4 x DDR3 DIMM memory sockets.
•1 x PCI Express x16 slot.
•1 x PCI Express x 1 slot.
•4 x SATA connectors(6Gb/s*2 and 3Gb/s*2 for Q77,Must use different color to define SATAII and
SATAIII).
•3 x 2*5 pin Intel FPIO specification USB pin connectors (follow Intel FPIO standard Specification) (B75
with 2connectors)
•1 x 2*10 pin Intel FPIO specification USB3.0 pin connectors (follow Intel FPIO standard Specification)
•1 x 2*5 pin Intel FPIO spec. Microphone In/ Headphone Out pin connectors
•1 x 4 pin CPU Fan connector
•1 x 4 pin System Fan connector with linear circuit
•1 x 4 pin SPDIF out heade
•1 x 24 pin ATX connector
•1 x 2*7 pin front panel IO header
•1 x Jumper for clear CMOS
•1 x BIOS write protect header
•1 x on board buzzer
•1 x 2pin OBR header
•2 x reserved 2pin GPIO connector
•1 x Serial port header (COM2) (near rear IO)
•1 x TPM DB header (2x10)(*check Acer’s TPM DB spec)
•1 x 2pin Intrusion Alarm connector
•1 x LPT 2*13pin header (near rear IO)
•1 x 2*4 pin internal speaker header
•1 x 3pin ME enable/disable connector (with 1 jumper)
System BIOS
•Kernel: AMI Kernel with Acer skin.
•Type:
•Use SPI Flash
•ME Size : 5MBytes
•System: 8MBytes

Chapter 1 5
Power supply
•Maximum power rating should satisfy the minimal requirement of system spec.
•Protection circuits are required on over voltage, short circuit, over current,and over power protection.
•Safety and EMI certification is required as system certification.
•Quotation required on non-PFC 110/220V manual switch, PFC 220V, full range, and Energy Start 5.0
compliance.

6Chapter 1

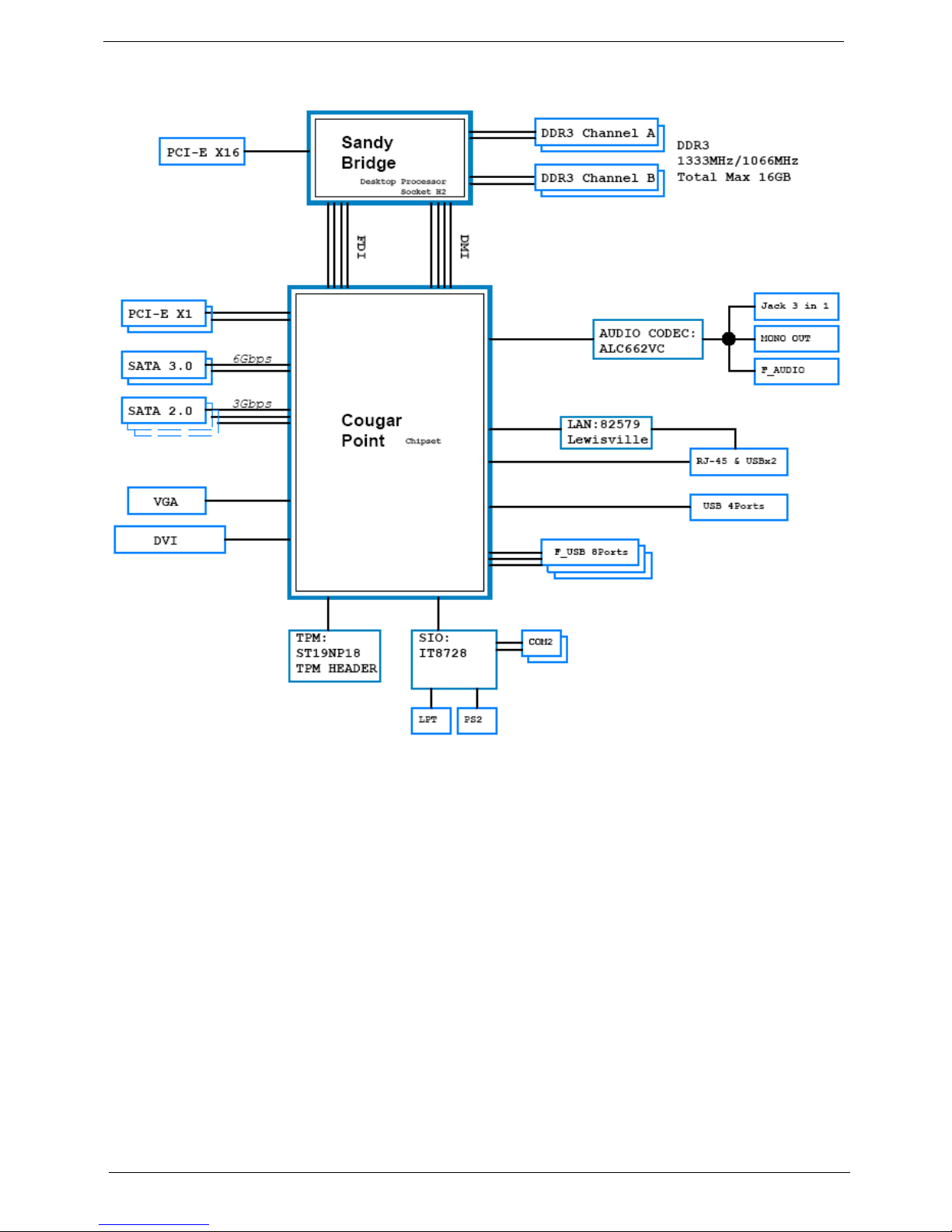

Block Diagram

Chapter 1 7
System Components
This section is a virtual tour of the system’s interior and exterior components.

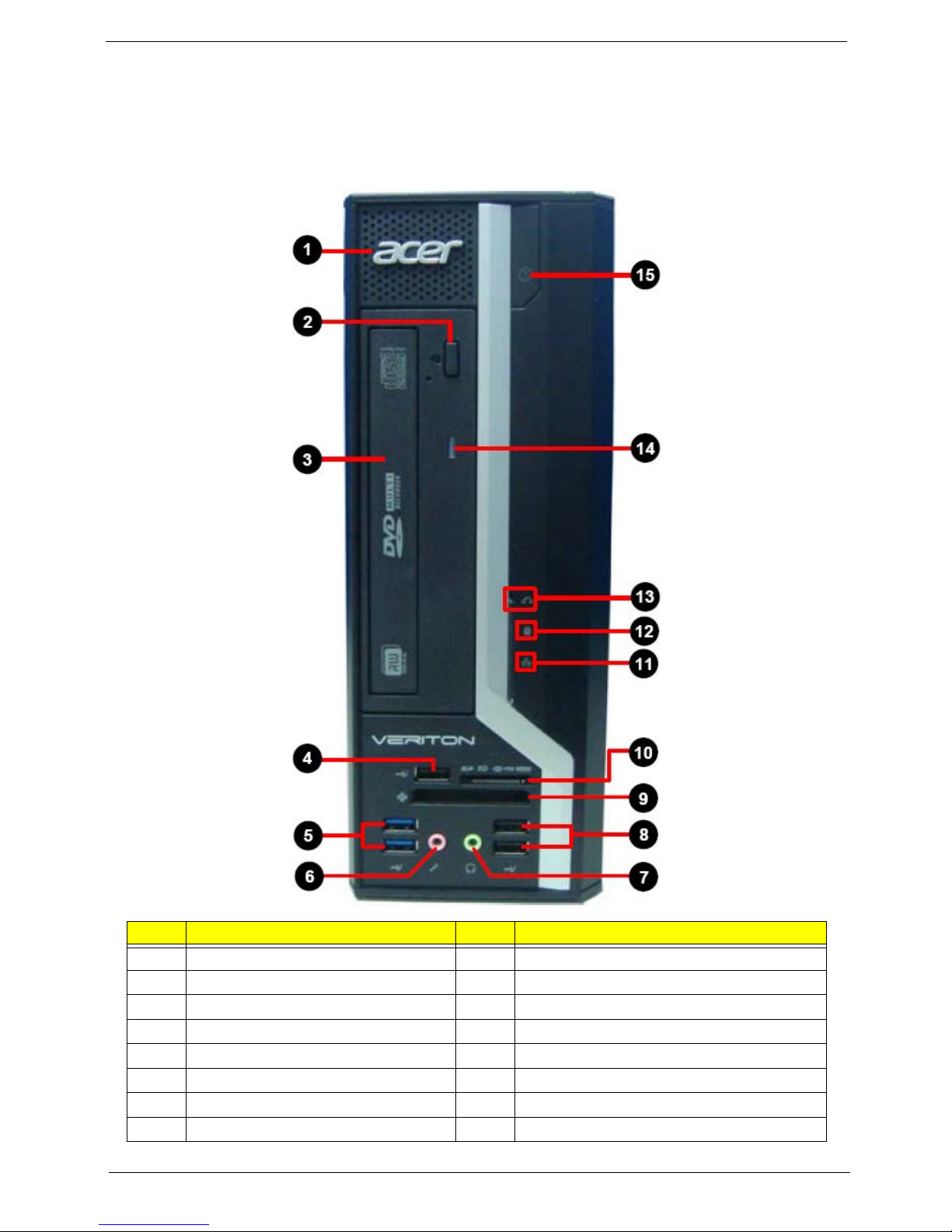

Front Panel
No. Component No. Component
1 Acer logo 9 CF I/II (CompactFlash Type I/II) slot
2 Optical drive button 10 XD(XD-Picture)/SD(Secure Digital)/PRO slot
3 Optical drive 11 LAN activity indicator
4 USB 2.0 ports 12 HDD activity indicator
5 USB 3.0 ports 13 Recover jack and indicator
6 Microphone-in jack 14 ODD activity indicator
7 Headphone/Speaker-out/line-out jack 15 Power button
8 USB 2.0 ports

8Chapter 1
Rear Panel
No. Component No. Component
1 Fan aperture 9 Expansion slot(graphics card ect.)
2 PS2 keyboard connector 10 line-in jack
3 DVI-D port 11 Serial port
4 DP port 12 Parallel port
5 USB 3.0 ports 13 RJ45 LAN port
6 USB 2.0 ports 14 Serial port
7 Line-out jack 15 PS2 mouse connector
8 Microphone jack 16 Power connector

Chapter 1 9
Hardware Specifications and Configurations
Processor
BIOS
BIOS Hotkey List
Main Board Major Chips
Item Specification
Processor Type Intel Ivy Bridge/ Sandy Bridge Processor
Socket Type Intel Socket LGA 1155 pin
FSB 1333 MHz
Minimum operating speed 0 MHz (If Stop CPU Clock in Sleep State in BIOS Setup is set to Enabled.)
Item Specification
BIOS code programer AMI Kernel with Acer skin
BIOS version P01-A0
BIOS ROM type SPI Flash
BIOS ROM size 8MBytes
Support protocol SMBIOS(DMI)2.7
Device Boot Support 1st priority: EFI device
2nd priority: SATA HDD
3rd priority: CD-ROM
4th priority: Removable Device
5th priority: LAN
Support to LS-120 drive Not quite sure LS-120
Support to BIOS boot block feature YES
Hotkey Function Description
Del Enter BIOS Setup Utility Press while the system is booting to enter BIOS Setup Utility.
Item Specification
North Bridge Intel Q77
Audio controller Intel Q77+Realtek ALC662-VD
LAN controller Intel 82579LM
USB controller Intel Q77
HDD controller Intel Q77

10 Chapter 1
Memory Combinations
System Memory
Audio Interface
Slot Memory Total Memory
Slot 1 1GB/2GB/4GB 1G ~4GB
Slot 2 1GB/2GB/4GB 1G ~4GB
Slot 3 1GB/2GB/4GB 1G ~4GB
Slot 4 1GB/2GB/4GB 1G ~4GB
Maximum System Memory Supported 1G~16GB
Item Specification
Memory slot number 4 slot
Support Memory size per socket 1GB/2GB/4GB
Support memory type DDRIII
Support memory interface DDR III 1333/1066 MHz
Support memory voltage 1.5V
Support memory module package 240-pin DDRIII
Support to parity check feature Yes
Support to error correction code (ECC) feature No
Memory module combinations You can install memory modules in any combination as long as
they match the above specifications.
Item Specification
Audio controller Intel PCH
Audio controller type ALC662-VD
Audio channel codec 5.1CH
Audio function control Stereo
Mono or stereo Stereo
Compatibility EAX™ 1.0 & 2.0/ Direct Sound 3D™/ I3DL2 compatible (Windows XP only)/ 3D
Positional Audio/
Music synthesizer No
Sampling rate 44.1k/48k/96k/192kHz sample rate
MPU-401 UART support No
Microphone/Headphone jack Supported

Chapter 1 11
SATA Interface
USB Port
Environmental Requirements
Power Management
•Devices wake up from S3 should be less than.
•Devices wake up from S5 should be less than 10 seconds.
Item Specification
SATA controller Intel Q77
Number of SATA channel SATA X4(6Gb/s*2SATAIII and 3Gb/s*2SATAII)
Support mode RAID/AHCI/IDE mode option
Item Specification
Universal HCI USB 3.0/2.0/1.1
USB Class Support legacy keyboard for legacy mode
USB Connectors Quantity Ports Quantity: 14
• 4 back rear ports(USB2.0 * 2 ports, USB 3.0*2).
• 4 ports for front daughter board(2*USB3.0 , 2*USB 2.0).
• 3 x USB 2.0 headers support additional six USB 2.0 ports.
Item Specification
Temperature
Operating +5°C ~ +35°C
Non-operating -20 ~ +60°C (Storage package)
Humidity
Operating 15% to 80% RH
Non-operating 10% to 90% RH
Vibration
Operating (unpacked) 5 ~ 500 Hz: 2.20g RMS random, 10 minutes per axis in all 3 axes.
5 ~500 Hz: 1.09g RMS random, 1 hour per axis in all 3 axes.
Devices S1 S3 S4 S5
PowerButtonVVVV
USB Keyboard/Mouse V V N/A N/A
PME Disabled Disabled Disabled Disabled
RCT Disabled Disabled Disabled Disabled
WOR Disabled Disabled Disabled Disabled

12 Chapter 1
Power Management Function(ACPI support function)
Device Standby Mode
•Independent power management timer for hard disk drive devices(0-15 minutes,time step=1minute).
•Hard Disk drive goes into Standby mode(for ATA standard interface).
•Disable V-sync to control the VESA DPMS monitor.
•Resume method:device activated (keyboard for DOS, keyboard &mouse for Windows.
•Resume recovery time 3-5sec
Global Standby Mode
•Global power management timer(2-120minutes,time step=10minute).
•Hard disk drive goes into Standby mode(for ATA standard interface).
•Disable H-sync and V-sync signals to control the VESA DPMS monitor.
•Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode.
•Resume recovery time :7-10sec
Suspend Mode
•Independent power management timer(2-120minutes,time step=10minute)or pushing extern switch
button.
•CPU goes into SMM
•CPU asserts STPCLK# and goes into the Stop Grant State.
•LED on panel turns amber colour.
•Hard disk drive goes into SLEEP mode (for ATA standard interface).
•Disable H-sync and V-sync signals to control the VESA DPMS monitor.
•Ultra I/O and VGA chip go into power saving mode.
•Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode
•Return to original state by pushing external switch button,modem ring in and USB keyboard for ACPI
mode.
ACPI
•ACPI specification 1.0b
•S0,S1,S2 and S5 sleep state support.
•On board device power management support.
•On board device configuration support.
