Acer VT7200D User manual

CE MARK TECHNICAL FILE
AUSTRALIA EMC CONSTRUCTION
FILE
of
Personal Computer
Model/ Type/ Machine Type
VT7200D
Contains:
1. Declaration of Conformity
2. EN55022/CISPR 22, AS/NZS 3548 Class B EMI test report
3. EN55024, AS/NZS 4252.1, EN61000-3-2, and EN61000-3-3
test report
4. Certificate of EN60950
5. Block Diagram and Schematics
6. User`s manual
Date: 2001/11/20
ISL-01A105E

Acer Incorporated
7 Hsin Ann Road
Science-Based Industrial Park
Hsinchu 300, Taiwan
R.O.C.
Telephone: [phone]
Facsimile: [phone]
Declaration of Conformity
Name of Manufacturer: Acer Inc.
Address of Manufacturer: 7 Hsin Ann Rd., Science-Based
Industrial Park
Hsinchu 30077
Taiwan, R. O. C.
Declares that product: Personal Computer
Model/ Type/ Machine Type: VT7200D
Assembled by: Same as above
Address: Same as above
Conforms to the EMC Directive 89/336/EEC as attested by conformity with the
following harmonized standards:
EN55022:1994 /A1:1995 /A2: 1997: Limits and Methods of Measurement of
Radio Interference characteristics of Information Technology Equipment
EN55024: 1998: Information technology equipment--Immunity characteristics
--Limits and methods of measurement
EN61000-3-2: 1995: A1:1998/A2:1998//A14: 2000: Limits for harmonics current
emissions
EN61000-3-3: 1995: Limits for voltage fluctuations and flicker in low-voltage
supply systems
Conforms to the Low Voltage Directive 73/23/EEC as attested by conformity with the
following harmonized standard:
EN60950:1992 /A1:1993, A2:1993 /A3:1995 /A4:1997 /A11:1997: Safety of
Information Technology Equipment Including electrical business equipment
Conforms to the C-Tick Mark requirement as attested by conformity with the following
standards:
AS/NZS 3548: 1995 /A1:1997 /A2:1997: Information technology equipment
AS/NZS 4252.1:1994: Generic Immunity
2001/11/19
--------------------------- ------------------
Angus Hsieh / Sr. Director Date
Acer Inc. ISL-01A105E

Report Number: ISL-01A105E Test Date: 2001/11/20
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
EN55024 / AS/NZS 4252.1 / IMMUNITY
EN61000-3-2 / HARMONICS
EN61000-3-3 / VOLTAGE FLUCTUATIONS
TEST REPORT
of
Personal Computer
Model/ Type/ Machine Type
VT7200D
Applied by:
Acer Inc.
7 Hsin Ann Rd., Science-Based Industrial Park
Hsinchu 30077
Taiwan, R. O. C.
Test Performed by:
(NVLAP Lab. Code: 200234-0)
International Standards Laboratory
No. 21, Alley 37, Lane 122, Sec. 2
Hsiwan Rd. Hsichih
Taipei Hsien 22117
Taiwan, R.O.C.
Tel:[phone]
Fax:[phone]

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-i-
Contents of Report
1. General....................................................................................................................... 1
1.1 Certification of Accuracy of Test Data ........................................................................ 1
2. Summary.................................................................................................................. 2
2.2 Description of Equipment Under Test.......................................................................... 2
2.3 Description of Equipment Under Test.......................................................................... 9
3. Electrostatic discharge (ESD) immunity ....................................... 11
3.1 Electrostatic discharge (ESD) immunity test.................................................. 11
4. Radio-Frequency, Electromagnetic Field immunity............. 12
4.1 Radio-Frequency, Electromagnetic Field immunity test ............................. 12
5. Electrical Fast transients/burst immunity...................................... 13
5.1 Electrical Fast transient/burst immunity test................................................... 13
5.2 Electrical Fast transient/burst immunity test for I/O cable.......................... 15
6. Surge Immunity ................................................................................................ 16
6.1 Surge immunity test .............................................................................................. 16
7. Immunity to Conductive Disturbance.............................................. 17
7.1 Immunity to Conductive Disturbance............................................................... 17
8. Power Frequency Magnetic Field immunity............................... 18
8.1 Power Frequency Magnetic field immunity test............................................ 18
9. Voltage Dips, Short Interruption and Voltage Variation
immunity .......................................................................................................................... 19
9.1 Voltage Dips, Short Interruption and Voltage Variation immunity test.. 19
10. Harmonics ............................................................................................................. 20
10.1 Harmonics test..................................................................................................... 20
10.2 Voltage Fluctuations test .................................................................................. 23
11. Test Equipment List....................................................................................... 25
11.1 Software for Controlling Spectrum/Receiver and Calculating Test Data............... 26
12. Photographs.......................................................................................................... 27
12.1 Photos of ESD measurement ........................................................................... 27
12.2 Photos of RF Field Strength Susceptibility Measurement ....................... 27
12.3 Photos of Electrical Fast Transient/Burst measurement........................... 28
12.4 Photos of Surge measurement......................................................................... 28
12.5 Photo of Conductive Measurement................................................................ 29
12.6 Photo of Magnetic field measurement .......................................................... 29
12.7 Photos of Voltage Dips measurement ........................................................... 30
12.8 Photos of Harmonics and Voltage Fluctuations ......................................... 30
12.9 Appendix: Photographs of EUT ..................................................................... 31
註解: 請記得COPY TEST
DATA FILES 到
C:\EMI\MODE?*.PRN

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-1-
1. General
1.1 Certification of Accuracy of Test Data
The immunity tests which this report describes were conducted by an independent
electromagnetic compatibility consultant, International Standards Laboratory in accordance with
the EN55024:1998 / AS/NZS 4252.1:1994 which include EN61000-4 series regulations, Harmonic
Current Emissions EN61000-3-2: 1995: A1:1998/A2:1998/A14: 2000, and Voltage Fluctuations
EN61000-3-3: 1995.
Equipment Tested: Personal Computer
Model/ Type/ Machine Type: VT7200D
Applied by Acer Inc.
Date of test: 2001/11/20
Test Engineer: W.H. Chang
Standard Comment Test Results
EN61000-3-2: 1995
A1:1998/A2:1998
/A14: 2000
Harmonic Current Emissions Complies
EN61000-3-3: 1995 Voltage Fluctuations Complies
EN61000-4-2: 1995 Electrostatic Discharge Complies
EN61000-4-3: 1996 Radio-Frequency, Electromagnetic Field Complies
EN61000-4-4: 1995 Electrical Fast Transient/Burst Complies
EN61000-4-5: 1995 Surge Complies
EN61000-4-6: 1996 Conductive Disturbance Complies
EN61000-4-8: 1993 Power Frequency Magnetic Field Complies
EN61000-4-11: 1994 Voltage Dips / Short Interruption and
Voltage Variation
Complies
Approve & Signature
---------------------------------------------
L. Y. Soong/Director
This test report accurately contains the test results of the above standards at the time of the test.
The results in this report apply only to the sample(s) tested.
This test report shall not be reproduced except in full, without the written approval of International
Standards Laboratory.

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-2-
2. Summary
2.1.1 Applicant Information
Applicant: Acer Inc.
7 Hsin Ann Rd., Science-Based Industrial Park
Hsinchu 30077
Taiwan, R. O. C.
2.1.2 Operation Environment
Power supply : 230 Vac / 50 Hz
2.2 Description of Equipment Under Test
2.2.1 Description of Support Equipment
Support Unit 1.
Description: Acer Digital Camera
Model: DVC-VII
Serial Number: N/A
Power Supply Type: From PC USB Port
Power Cord: N/A
FCC ID: (Comply with FCC DOC)
Support Unit 2.
Description: Microsoft Joy Stick
Model Number: 90873
Serial Number: 01151545
Power Supply Type: N/A
Power Cord: N/A
FCC ID: C3KMGP1
Support Unit 3.
Description: Andrea Headphone
Model Number: NC-80
Serial Number: N/A
Power Supply Type: N/A
Power Cord: N/A
FCC ID: N/A

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-3-
Support Unit 4.
Description: Koka Headphone
Model Number: ST-8
Serial Number: N/A
Power Supply Type: N/A
Power Cord: N/A
FCC ID: N/A
Support Unit 5.
Description: KOKA Microphone
Model Number: DM-510
Serial Number: N/A
Power Supply Type: N/A
Power Cord: N/A
FCC ID: N/A
Support Unit 6.
Description: KOKA Microphone
Model Number: DM-510
Serial Number: N/A
Power Supply Type: N/A
Power Cord: N/A
FCC ID: N/A
Support Unit 7.
Description: SONY radio cassette player
Model Number: WM-FX50
Serial Number: N/A
Power Supply Type: N/A
Power Cord: N/A
Support Unit 8.
Description: HP Printer
(for parallel interface port)
Model Number: 2225C
Serial Number: N/A
Power Supply Type: Switching
(AC to AC Xfmr, Wall Mounted Type)
Power Cord: Nonshielded, Detachable
With Grounding Pin
FCC ID: DSI6XU2225

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-4-
Support Unit 9.
Description: Logitech Mouse
Model Number: M-SAH
Serial Number: LZB81251703
Power Supply Type: N/A
Power Cord: N/A
FCC ID: DZL211029
Support Unit 10.
Description: Aceex Modem
(for serial interface port 1)
Model Number: DM1414
Serial Number: 960063772
Power Supply Type: Linear, Power Adapter
( AC to AC Xfmr, Wall Mounted Type )
Power Cord: Nonshielded, Without Grounding Pin
FCC ID: IFAXDM1414
Support Unit 11.
Description: Aceex Modem
(for serial interface port 2)
Model Number: DM1414
Serial Number: 960063771
Power Supply Type: Linear, Power Adapter
( AC to AC Xfmr, Wall Mounted Type )
Power Cord: Nonshielded, Without Grounding Pin
FCC ID: IFAXDM1414
Support Unit 12.
Description: Acer Monitor
Model: 7377xe
Serial Number: 999027100501700055P644E1 P
Power Supply Type: Switching
Power Cord: Nonshielded, Detachable
FCC ID: (Comply with FCC DOC)
Support Unit 13.
Description: Acer Keyboard
Model Number: 6511-TW4C
Serial Number: 916600704C83D11076S00000
Power Supply Type: N/A
Power Cord: N/A
FCC ID: JVPKBS-WIN

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-5-
Support Unit 14.
Description: Personal Computer
Model: IBM 2170
Serial No.: N/A
Power Supply Type : Switching
Delta (Model: DPS-145PB-80A)
Hard Disk Drive: Maxtor (Model: 91303D6) 13.3GB
Floppy Driver: Panasonic (Model: JU256A276P )
CD-ROM Drive: AOpen (Model: CD-940E/TKU PRO)
ZIP Driver: Iomega (Model:Z100ATAPI)
LAN Card Accton (Model: EN1207D-TX1)
FDD/HDD Controller and
VGA port/ Parallel/
Serial port: Built on Motherboard
VGA port: one 15-pin
Parallel Port: one 25-pin
Serial Port: one 9-pin
Keyboard Connector: 6-pin
Mouse Connector: 6-pin
USB Connector: two 4-pin
Game Port: one 15-pin
Speaker Port: one
Microphone Port: one
Line In Port: one
Power Cord: Nonshielded, Detachable
FCC ID: N/A (comply witch FCC DOC)
Support Unit 15.
Description: Acer USB Keyboard
Model Number: 6511-UV
Serial Number: N/A
Power Supply Type: N/A
Power Cord: N/A
FCC ID: N/A (comply with FCC DOC)
Support Unit 16.
Description: Acer USB Mouse
Model Number: M-U48a
Serial Number: LZE01267035
Power Supply Type: N/A
Power Cord: N/A
FCC ID: JNZ211360
Support Unit 17.
Description: Acer USB Speaker
Model Number: V-1
Serial Number: N/A
Power Supply Type: N/A
Power Cord: N/A
FCC ID: (Comply with FCC DOC)

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-6-
2.2.2 Software for Controlling Support Unit
A test program which generates a complete line of continuously repeating "H" pattern is
used as the software test program. The program was executed as follows:
A. Read and write to the disk drives.
B. Send signal form EUT to server through Telephone port.
C. Send audio signal to the speaker.
D. Capture Video image from digital camera than playback to display.
E. Send audio signal to the headphone.
F. Send audio signal to the headphone.
G. Receive audio signal from the microphone.
H. Receive audio signal from the microphone.
I. Receive audio signal from walkman.
J. Send H pattern to the parallel port device (Printer).
K. Send H pattern to the serial port device (Modem 1).
L. Send H pattern to the serial port device (Modem 2).
M.Send H pattern to the video port device (Monitor).
N. Send signal form EUT to server through LAN port.
O. Repeat the above steps.
Filename Issued Date
LAN EMC.exe 11/22/1996
Monitor HH.bat 8/20/1991
Modem 1 Hm.bat 8/20/1991
Modem 2 Hm.bat 8/20/1991
Printer1 Wordpad.exe 11/11/1999
Digital Camera Acer Cap.exe 8/10/1998
Telephone Hypertrm.exe 06/08/200

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-7-
2.2.3 I/O Cable Condition of EUT and Support Units
Description Path Cable Length Cable Type Connector Type
AC Power Cord 110V (~240V) to
AC Power Cord
Inlet (3-pin)
1.8M Nonshielded, Detachable Plastic Head
Plastic Hood
Server Data Cable Server to EUT
LAN port
33 feet Shielded, Detachable RJ-45, with Metal
Head, Metal Hood
Keyboard Data
Cable
Keyboard to PC
Keyboard port
1.8M Shielded, Undetachable Metal Head
Plastic Hood
Monitor Data
Cable
Monitor to PC
VGA port
1.6M Shielded, Detachable Metal Head
Plastic Hood
Modem Data Cable Modem to PC
COM 1 port
1.5M Shielded, Detachable Metal Head
Metal Hood
Modem Data Cable Modem to PC
COM 2 port
1.5M Shielded, Detachable Metal Head
Metal Hood
Mouse Data Cable Mouse to PC
Mouse port
1.8M Shielded, Undetachable Metal Head
without Hood
Printer Data Cable Printer to PC
Parallel port
1.5M Shielded, Detachable Metal Head
Plastic Hood
Audio-in Data
Cable
Walkman to PC
Audio-In Port
1.5M Nonshielded, Detachable
to PC
Metal Head
Plastic Hood
Microphone Data
Cable
Microphone to
Mic Jack of PC
1.5M Nonshielded,
Undetachable
Metal Head
Plastic Hood
Microphone Data
Cable
Microphone to
Mic Jack of PC
1.5M Nonshielded,
Undetachable
Metal Head
Plastic Hood
Headphone Data
Cable
Headphone to
Line-out jack of
PC
1.5M Nonshielded,
Undetachable
Metal Head
without Hood
Headphone Data
Cable
Headphone to
Line-out jack of
PC
1.5M Nonshielded,
Undetachable
Metal Head
without Hood
Joy Stick Data
Cable
Joystick to PC
Joystick port
1.2M Shielded, Undetachable Metal Head
without Hood

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-8-
Description Path Cable Length Cable Type Connector Type
USB CCD Data
Cable
Digital camera to
PC USB port
1.6M Shielded, Detachable Metal Head
Plastic Hood
USB Keyboard
Data Cable
USB Keyboard to
PC USB port
1.8M Shielded, Undetachable Metal Head
Plastic Hood
USB Mouse Data
Cable
USB Mouse to PC
USB port
1.8M Shielded, Undetachable Metal Head
without Hood
USB Speaker Data
Cable
USB Speaker to
PC USB port
1.5M Nonshielded,
Undetachable
Metal Head
without Hood
USB Speaker Data
Cable
USB Speaker to
PC line-out port
1.5M Nonshielded,
Undetachable
Metal Head
without Hood
Telephone Line Server to EUT
RJ 11 Connector
1.2M Nonshielded,
Detachable to PC
Plastic Head
Plastic Hood
Telephone Line with 600 Ω
dummy load
1.2M Nonshielded,
Detachable to PC
Plastic Head
Plastic Hood

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-9-
2.3 Description of Equipment Under Test
EUT
Description: Personal Computer
Condition: Pre-Production
Model: VT7200D
Serial Number: N/A
Power Supply Type: Switching
High Power (Model: SI-X200P3) 200W or
Delta (Model: DPS-200PB-112 A) 200W
Hard Disk Driver: Seagate (Model: ST340810A) 40GB
Floppy Driver: Panasonic (Model: JU-256A046P)
DVD-ROM Driver: Pioneer (Model: DVD-116)
VGA Card: LEADTEK (Model: Winfast Geforce 2 MX)
Modem Card: ASKEY (Model: 1456VQH20E)
FDD/HDD Controller and
Parallel/Serial ports: Built on Motherboard
Parallel Port: one 25-pin
Serial Port: two 9-pin
LAN Port: one 8-pin
Keyboard Connector: one 6-pin
Mouse Connector: one 6-pin
USB Connector: four 4-pin
Game Port: one 15-pin
Speaker Port: two
Microphone Port: two
Line In Port: one
Power Cord: Non-shielded, Detachable
Display: CRT
Maximum Resolution: 1280X1024

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-10-
Speed and CPU
100MHz Pentium 4 1.4, 1.5, 1.7,1.8, 1.9, 2.0 2.2 GHz
All types of CPU and switching power supplies, above have been tested, we only present the
worst case test data in the report. The test configuration is listed below:
CPU: Pentium 4 2.2 GHz
Power supply: High Power (Model: SI-X200P3) 200W
Hard disk driver: Seagate (Model: ST340810A) 40GB
VGA Card: LEADTEK (Model: Winfast Geforce 2 MX)
Maximum Resolution: 1280X1024
EMI Noise Source:
Crystal: 25 MHz (X1), 14.318 MHz (X2), 32.768 KHz (X3), 24.576 MHz (X4)
Clock Generator: U8
EMI Solution:
1. Eight spring fingers were added between add-on card bracket and metal enclosure

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-11-
3. Electrostatic discharge (ESD) immunity
3.1 Electrostatic discharge (ESD) immunity test
Port: Enclosure
Basic Standard: EN61000-4-2
Requirements: Air +/- 8 kV
Contact +/- 4 kV
Criteria: B
Temperature: 17 degree C
Humidity: 60%

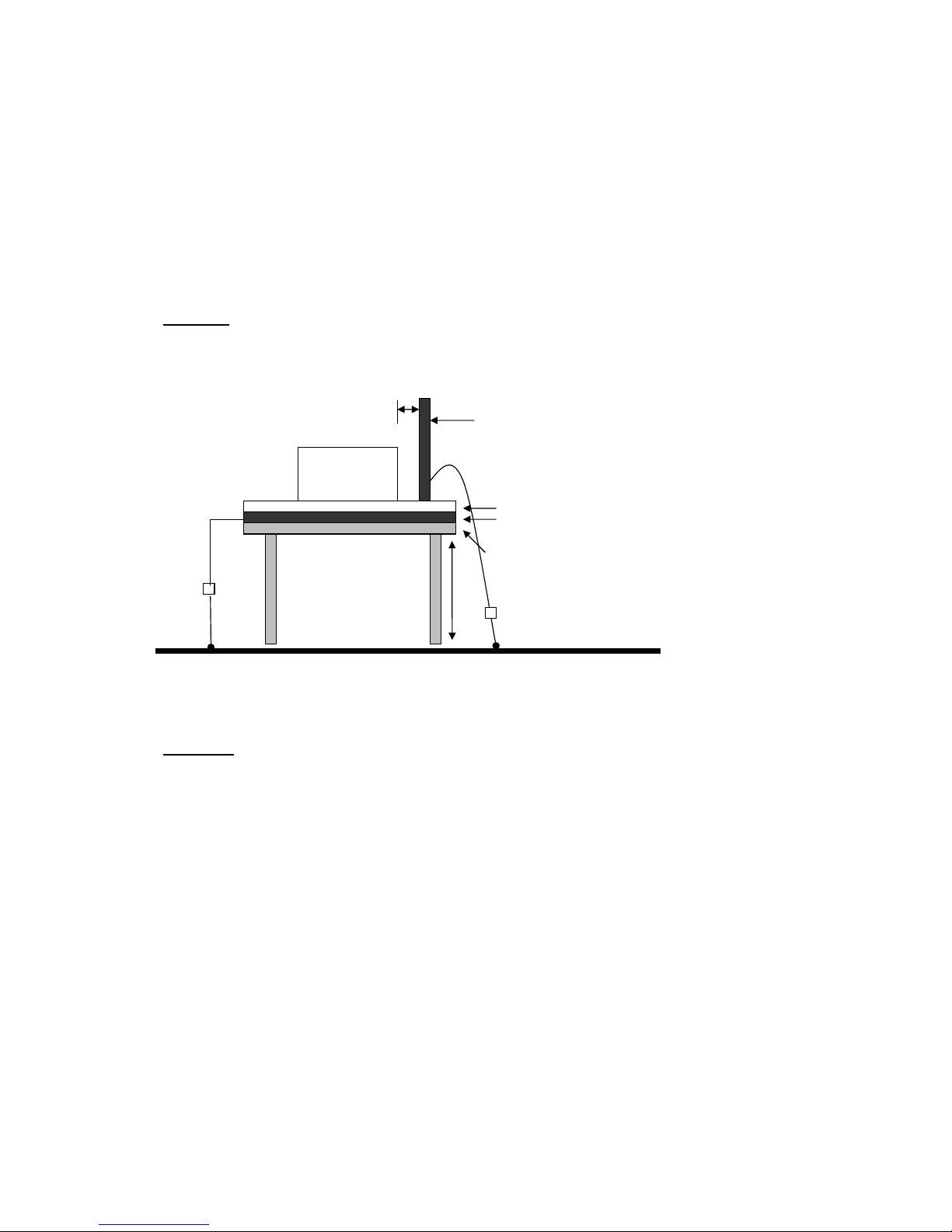

Test Setup
EUT is 1m from the wall and other metallic structure.
10cm
0.5m x 0.5m metal plane
0.5mm insulation
1.6m x 0.8m metal plane
Non-Metallic /
Non-Conducted Table
470KΩ80 cm
470KΩ
Metal Full Soldered Ground Plane
Test Result
Performance of EUT complies with the given specification.
EUT

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-12-
4. Radio-Frequency, Electromagnetic Field immunity
4.1 Radio-Frequency, Electromagnetic Field immunity test
Port: Enclosure
Basic Standard: EN61000-4-3
Modulation AM 1KHz 80%
Requirements: 3 V/m
Frequency range: 80 MHz~1 GHz
Step: 1% of last step frequency
Step time: 800 ms
Polarization: Vertical and Horizontal
Criteria: A
Temperature: 22 degree C
Humidity: 41%
Test Setup
The field sensor is placed at one calibration grid point to check the intensity of the established
fields on both polarizations. EUT is adjust to have each side of EUT face coincident with the
calibration plane. A CCD camera is used to monitor the condition of EUT for the performance
judgment.
1 m
Anechoic Chamber
Non-Conducted
Table
To Amplifier output
80 cm 1.55m
To Remote Controller
Metal Full Soldered Ground Plane
To Antenna
Test Result
Performance of EUT complies with the given specification.
EUT
Amplifier
Signal Generator

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-13-
5. Electrical Fast transients/burst immunity
5.1 Electrical Fast transient/burst immunity test
Port: AC mains
Basic Standard: EN61000-4-4
Requirements: 1 KV
Criteria: B
Rise Time: 5ns
Hold Time: 50ns
Repetition Frequency: 5KHz
Temperature: 17 degree C
Humidity: 60%
Test Procedure
The EUT was setup on a nonconductive table 0.8 m above a reference ground plane.
Voltage 1 KV
Test Points Polarity Result Comment
Line + N 60 sec
- N 60 sec
Neutral + N 60 sec
- N 60 sec
Ground + N 60 sec
- N 60 sec
Line to + N 60 sec
Neutral - N 60 sec
Line to + N 60 sec
Ground - N 60 sec
Neutral to + N 60 sec
Ground - N 60 sec
Line to Neutral + N 60 sec
to Ground - N 60 sec
Note: ’N’ means normal, the EUT function is correct during the test.

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-14-
Test Setup
EUT is at least 50cm from the conductive structure .
AC main
10cm insulation support
Non-Metallic /
Capacitive coupling Non-Conducted Table
80 cm clamp
10cm
Metal Full Soldered Ground Plane insulation support
Test Result
Performance of EUT complies with the given specification.
test
generator
EUT
AE

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-15-
5.2 Electrical Fast transient/burst immunity test for I/O cable
Port: phone, twisted pairs LAN port
Basic Standard: EN61000-4-4
Requirements: 0.5 kV
Criteria: B
Rise Time: 5ns
Hold Time: 50ns
Repetition Frequency: 5KHz
Temperature: 17 degree C
Humidity: 60%
Test Result
Performance of EUT complies with the given specification.

International Standards Laboratory Report Number: ISL-01A105E
NVLAP Lab. Code: 200234-0; VCCI: R-341, C-354; NEMKO Aut. No: ELA 113; BSMI Lab. Code: SL2-IN-E-0013
-16-
6. Surge Immunity
6.1 Surge immunity test
Port: AC mains and Telephone Line
Basic Standard: EN61000-4-5
Criteria: B
Rise Time: 1.2us
Hold Time: 50us
Temperature: 17 degree C
Humidity: 60%
Test Level: AC Power Port: 1 kV (line to line), 2kV (line to earth)
Telephone Line: 1kV (line to ground)
Repetition Rate: ;30 second
Angle: ;0°
;90°
;270°
Polarity: ;positive ;negative°
Test Setup
AC power supply and
Voltage Supply to EUT
To the Peripherals
To AC main Supply Non-Metallic /
Non-Conducted Table
80 cm
Metal Full Soldered Ground Plane
Test Result
Performance of EUT complies with the given specification.
Transient-1000
EUT
