Acer EK220Q Abi User manual

Acer LCD Monitor
User's Guide

English
Copyright © 2017. Acer Incorporated.
All Rights Reserved.
Acer LCD Monitor User Guide
Original Issue: 10/2017
Changes may be made periodically to the information in this publication without obligation
to notify any person of such revisions or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications. This company makes
no representations or warranties, either expressed or implied, with respect to the contents
hereof and specically disclaims the implied warranties of merchantability or tness for a
particular purpose.
Record the model number, serial number, purchase date and place of purchase information
in the space provided below. The serial number and model number are recorded on the
label afxed to your computer. All correspondence concerning your unit should include the
serial number, model number and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted,
in any form or by any means, electronically, mechanically, by photocopy, recording or
otherwise, without the prior written permission of Acer Incorporated.
Acer LCD Monitor User Guide
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies’
product names or trademarks are used herein for identication purposes only and belong to
their respective companies.

iii
Special notes on LCD monitors
The following are normal with the LCD monitor and do not indicate a problem.
•Due to the nature of the fluorescent light, the screen may flicker during
initial use. Turn off the power switch and then turn it on again to make
sure the flicker disappears.
•You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
•The LCD screen has 99.99% or more effective pixels. It may include
blemishes of 0.01% or less such as a missing pixel or a pixel lit all the time.
•Due to the nature of the LCD screen, an afterimage of the previous screen
may remain after switching the image, when the same image is displayed
for hours. In this case, the screen is recovered slowly by changing the image
or turning off the power switch for a few hours.
Information for your safety and
comfort
Safety instructions
Read these instructions carefully. Keep this document for future reference.
Follow all warnings and instructions marked on the product.
Cleaning your monitor
Please carefully follow these guidelines when cleaning the monitor:
•Always unplug the monitor before cleaning.
•Use a soft cloth to wipe the screen and cabinet front and sides.

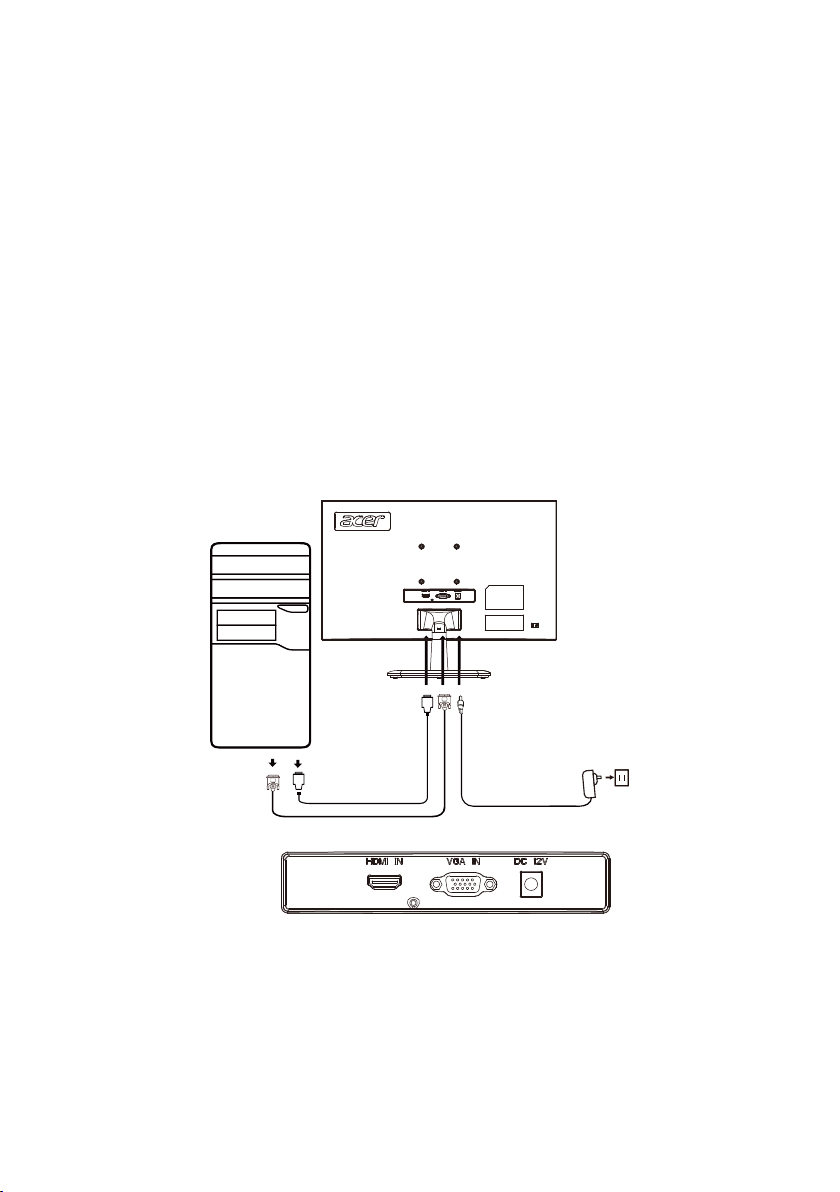

Connecting/disconnecting the device
Observe the following guidelines when connecting and disconnecting power
from the LCD monitor:
•Make sure the monitor is attached to its base before connecting the power
cord to the AC power outlet.
•Make sure both the LCD monitor and the computer are turned off before
connecting any cable or unplugging the power cord.
•If the system has multiple sources of power, disconnect power from the
system by unplugging all power cords from the power supplies.
•Acer monitor is purposed for video and visual display of information
obtained from electronic devices.
Connecting/disconnecting the device
Observe the following guidelines when connecting and disconnecting power adapter from
the LCD monitor:
• Make sure the monitor is attached to its base before connecting the power adapter to
the AC power outlet.
• Make sure both the LCD monitor and the computer are turned off before connecting
any cable or unplugging the power adapter.
• If the system has multiple sources of power, disconnect power from the system by
unplugging all power adapters from the power supplies.

iv
Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible
and located as close to the equipment operator as possible. When you need to
disconnect power from the equipment, be sure to unplug the power cord from
the electrical outlet.
Safe listening
To protect your hearing, follow these instructions.
•Gradually increase the volume until you can hear it clearly and comfortably
and without distortion.
•After setting the volume level, do not increase it after your ears have
adjusted.
•Limit the amount of time listening to music at high volume.
•Avoid turning up the volume to block out noisy surroundings.
•Turn the volume down if you can't hear people speaking near you.
Warnings
•Do not use this product near water.
•Do not place this product on an unstable cart, stand or table. If the product
falls, it could be seriously damaged.
•Slots and openings are provided for ventilation to ensure reliable
operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should never be placed near or over a radiator or heat
register, or in a built-in installation unless proper ventilation is provided.
•Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into
the product.
•To avoid damage of internal components and to prevent battery leakage,
do not place the product on a vibrating surface.
•Never use it under sporting, exercising, or any vibrating environment
which will probably cause unexpected short current or damage internal
devices.
Using electrical power
•This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
•Do not allow anything to rest on the power cord. Do not locate this
product where people will walk on the cord.
•If an extension cord is used with this product, make sure that the total

v
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
•Do not overload a power outlet, strip or receptacle by plugging in too
many devices. The overall system load must not exceed 80% of the branch
circuit rating. If power strips are used, the load should not exceed 80% of
the power strip's input rating.
•This product's power cord is equipped with a three-wire grounded plug.
The plug only fits in a grounded power outlet. Make sure the power outlet
is properly grounded before inserting the power cord plug. Do not insert
the plug into a non-grounded power outlet. Contact your electrician for
details.
Warning! The grounding pin is a safety feature. Using a power
outlet that is not properly grounded may result in electric shock
and/or injury.
Note: The grounding pin also provides good protection from
unexpected noise produced by other nearby electrical devices that
may interfere with the performance of this product.
•Use the product only with the supplied power supply cord set. If you need
to replace the power cord set, make sure that the new power cord meets
the following requirements: detachable type, UL listed/CSA certified, type
SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.5
meters (15 feet) maximum length.
Product servicing
Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:
•the power cord or plug is damaged, cut or frayed
•liquid was spilled into the product
•the product was exposed to rain or water
•the product has been dropped or the case has been damaged
•the product exhibits a distinct change in performance, indicating a need
for service
•the product does not operate normally after following the operating
instructions
v
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
•Do not overload a power outlet, strip or receptacle by plugging in too
many devices. The overall system load must not exceed 80% of the branch
circuit rating. If power strips are used, the load should not exceed 80% of
the power strip's input rating.
•This product's power cord is equipped with a three-wire grounded plug.
The plug only fits in a grounded power outlet. Make sure the power outlet
is properly grounded before inserting the power cord plug. Do not insert
the plug into a non-grounded power outlet. Contact your electrician for
details.
Warning! The grounding pin is a safety feature. Using a power
outlet that is not properly grounded may result in electric shock
and/or injury.
Note: The grounding pin also provides good protection from
unexpected noise produced by other nearby electrical devices that
may interfere with the performance of this product.
•Use the product only with the supplied power supply cord set. If you need
to replace the power cord set, make sure that the new power cord meets
the following requirements: detachable type, UL listed/CSA certified, type
SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.5
meters (15 feet) maximum length.
Product servicing
Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:
•the power cord or plug is damaged, cut or frayed
•liquid was spilled into the product
•the product was exposed to rain or water
•the product has been dropped or the case has been damaged
•the product exhibits a distinct change in performance, indicating a need
for service
•the product does not operate normally after following the operating
instructions
v
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
•Do not overload a power outlet, strip or receptacle by plugging in too
many devices. The overall system load must not exceed 80% of the branch
circuit rating. If power strips are used, the load should not exceed 80% of
the power strip's input rating.
•This product's power cord is equipped with a three-wire grounded plug.
The plug only fits in a grounded power outlet. Make sure the power outlet
is properly grounded before inserting the power cord plug. Do not insert
the plug into a non-grounded power outlet. Contact your electrician for
details.
Warning! The grounding pin is a safety feature. Using a power
outlet that is not properly grounded may result in electric shock
and/or injury.
Note: The grounding pin also provides good protection from
unexpected noise produced by other nearby electrical devices that
may interfere with the performance of this product.
•Use the product only with the supplied power supply cord set. If you need
to replace the power cord set, make sure that the new power cord meets
the following requirements: detachable type, UL listed/CSA certified, type
SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.5
meters (15 feet) maximum length.
Product servicing
Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:
•the power cord or plug is damaged, cut or frayed
•liquid was spilled into the product
•the product was exposed to rain or water
•the product has been dropped or the case has been damaged
•the product exhibits a distinct change in performance, indicating a need
for service
•the product does not operate normally after following the operating
instructions

vi
Note: Adjust only those controls that are covered by the operating
instructions, since improper adjustment of other controls may
result in damage and will often require extensive work by a
qualified technician to restore the product to normal condition.
Potentially explosive environments
Switch off your device in any area with a potentially explosive atmosphere and
obey all signs and instructions. Potentially explosive atmospheres include areas
where you would normally be advised to turn off your vehicle engine. Sparks in
such areas could cause an explosion or fire resulting in bodily injury or even
death. Switch off the device near gas pumps at service stations. Observe
restrictions on the use of radio equipment in fuel depots, storage and
distribution areas; chemical plants; or where blasting operations are in progress.
Areas with a potentially explosive atmosphere are often, but not always,
marked. They include below deck on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas (such as propane or butane),
and areas where the air contains chemicals or particles such as grain, dust or
metal powders.
Additional safety information
Your device and its enhancements may contain small parts. Keep them out of
the reach of small children.
IT Equipment Recycling Information
Acer is strongly committed to environmental protection and views recycling, in
the form of salvaging and disposal of used equipment, as one of the company's
top priorities in minimizing the burden placed on the environment.
We at Acer are very conscious of the environmental effects of our business and
strive to identify and provide the best working procedures to reduce the
environmental impact of our products.
For more information and help when recycling, please go to this website:
Visit www. .com for further information on the features and benefits
of our other products.
http://www.acer-group.com/public/Sustainability/
acer-group

vii
Disposal instructions
Do not throw this electronic device into the trash when discarding.
To minimize pollution and ensure utmost protection of the global environment,
please recycle. For more information on the Waste from Electrical and
Electronics Equipment (WEEE) regulations, visit
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques.
Nevertheless, some pixels may occasionally misfire or appear as black or
red dots. This has no effect on the recorded image and does not constitute
a malfunction.
http://www.acer‐group.com/public/Sustainability

viii
This product has been shipped enabled for power management:
•Activate display’s Sleep mode within 15 minutes of user inactivity.
•Activate computer’s Sleep mode within 30 minutes of user inactivity.
•Wake the computer from Sleep mode by pushing the power button.
Tips and information for comfortable use
Computer users may complain of eyestrain and headaches after prolonged use.
Users are also at risk of physical injury after long hours of working in front of a
computer. Long work periods, bad posture, poor work habits, stress,
inadequate working conditions, personal health and other factors greatly
increase the risk of physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis,
tenosynovitis or other musculoskeletal disorders. The following symptoms may
appear in the hands, wrists, arms, shoulders, neck or back:
•numbness, or a burning or tingling sensation
•aching, soreness or tenderness
•pain, swelling or throbbing
•stiffness or tightness
•coldness or weakness
If you have these symptoms, or any other recurring or persistent discomfort
and/or pain related to computer use, consult a physician immediately and
inform your company's health and safety department.
The following section provides tips for more comfortable computer use.
Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a
footrest, or raising your sitting height to achieve maximum comfort. Observe
the following tips:
•refrain from staying too long in one fixed posture
•avoid slouching forward and/or leaning backward
•stand up and walk around regularly to remove the strain on your leg
muscles
viii
This product has been shipped enabled for power management:
•Activate display’s Sleep mode within 15 minutes of user inactivity.
•Activate computer’s Sleep mode within 30 minutes of user inactivity.
•Wake the computer from Sleep mode by pushing the power button.
Tips and information for comfortable use
Computer users may complain of eyestrain and headaches after prolonged use.
Users are also at risk of physical injury after long hours of working in front of a
computer. Long work periods, bad posture, poor work habits, stress,
inadequate working conditions, personal health and other factors greatly
increase the risk of physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis,
tenosynovitis or other musculoskeletal disorders. The following symptoms may
appear in the hands, wrists, arms, shoulders, neck or back:
•numbness, or a burning or tingling sensation
•aching, soreness or tenderness
•pain, swelling or throbbing
•stiffness or tightness
•coldness or weakness
If you have these symptoms, or any other recurring or persistent discomfort
and/or pain related to computer use, consult a physician immediately and
inform your company's health and safety department.
The following section provides tips for more comfortable computer use.
Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a
footrest, or raising your sitting height to achieve maximum comfort. Observe
the following tips:
•refrain from staying too long in one fixed posture
•avoid slouching forward and/or leaning backward
•stand up and walk around regularly to remove the strain on your leg
muscles

ix
Taking care of your vision
Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive
room lighting, poorly focused screens, very small typefaces and low-contrast
displays could stress your eyes. The following sections provide suggestions on
how to reduce eyestrain.
Eyes
•Rest your eyes frequently.
•Give your eyes regular breaks by looking away from the monitor and
focusing on a distant point.
•Blink frequently to keep your eyes from drying out.
Display
•Keep your display clean.
•Keep your head at a higher level than the top edge of the display so your
eyes point downward when looking at the middle of the display.
•Adjust the display brightness and/or contrast to a comfortable level for
enhanced text readability and graphics clarity.
•Eliminate glare and reflections by:
•placing your display in such a way that the side faces the window or
any light source
•minimizing room light by using drapes, shades or blinds
•using a task light
•changing the display's viewing angle
•using a glare-reduction filter
•using a display visor, such as a piece of cardboard extended from the
display's top front edge
•Avoid adjusting your display to an awkward viewing angle.
•Avoid looking at brightlightsources, suchas open windows, for extended
periods of time.
Developing good work habits
Develop the following work habits to make your computer use more relaxing
and productive:
•Take short breaks regularly and often.
•Perform some stretching exercises.
•Breathe fresh air as often as possible.
•Exercise regularly and maintain a healthy body.

Contents
Unpacking................................................................................................... 1
Installing/removing base............................................................................. 2
Adjusting screen position............................................................................ 4
Connecting the power cord......................................................................... 5
Safety precautions...................................................................................... 5
Cleaning the display ................................................................................... 6
Connector pin assignment.......................................................................... 7
Standard timing table.................................................................................. 8
Installation .................................................................................................. 9
User control .............................................................................................. 10
Troubleshooting........................................................................................ 19

1
Unpacking
When you unpack the box, ensure that the following items are present, and retain
the packing materials for future shipment.
• LCD monitor • Quick start guide • Power adapter
USER GUIDE
LCD Monitor
• HDMI cable (optional) • D-Sub cable (optional)

2
Installing/removing base
Note: Unpack the monitor and base rst. Carefully place the monitor face
down on a stable surface - use a cloth pad to prevent scratching the screen.
1. Attach the monitor stand arm to
the base.
2. Secure the base to the arm of the
monitor stand base.
Note: If using a wall-mounting kit, we recommend using a VESA mounting
kit (75 mm × 75 mm) and M4 × 10 (L) mm screws to secure the monitor to
the wall.

3
Follow these instructions to remove the base from the monitor.
Note: Carefully place the monitor face down on a at surface - use a cloth
pad to prevent scratching the screen.
1. Press the release latch with
a screwdriver.
2. After pressing the release latch,
remove the base from the monitor.

4
Adjusting screen position
For the best viewing position, adjust the display tilt.
• Tilt
See the illustration below for an illustration of the tilt range.
20°
-5°

5
Connecting the power cord
(I) AC power
• Please rst ensure the power cord you are using is the correct type required in
your area.
• This monitor uses universal power and can run on 100/120 volts or
220/240 volts AC. The user does not need to make any adjustments.
• Plug one end of the power cord into the AC power input, and plug the other
end into an AC power outlet.
• Areas where 120 volts are used:
Use a UL-compliant power cord kit, including SVT-type leads and a 10-amp/125-
volt plug.
• Areas using 220/240 volts (outside the United States):
Use a power cord kit consisting of an H05VV-F cord and a 10 amp, 250 volt
plug. This power cord kit must meet the safety standards for the country where
you are installing the device.
(II) DC power supply
• Use the power adapter provided by the manufacturer, the specications are:
22 inch/24 inch Input: 100-240 V Output: 12 V 2.0 A
27 inch/32 inch Input: 100-240 V Output: 12 V 3.5 A
Safety precautions
• Avoid placing the monitor or any other heavy objects on the power adapter, as
this may cause re or electric shock.
• Do not expose the monitor to rain, excessive humidity or dust, as this may
cause re or electric shock.
• Do not cover slots or openings on the monitor to facilitate normal heat
dissipation. Place the monitor in a well-ventilated location.
• Avoid placing the display in front of an overly bright background, or where
direct sunlight or other light sources may shine on the display surface. Place
the monitor directly below your line of sight when staring straight ahead.
• Use extreme caution when handling the monitor.
• Please avoid hitting the display, and do not scratch the screen surface. The
screen is fragile.
• To prevent damage to the monitor, do not lift the monitor using the stand.
Cleaning the display
When you clean the monitor, follow the instructions carefully.
• Before cleaning, unplug the monitor's power adapter.
• Use a soft cloth to gently wipe the screen and the front and sides of the case.
• Never spill any liquid directly onto or into the screen or its case.

6
• Do not use any ammonia- or alcohol-based cleaners on the LCD monitor
screen or case.
• Acer is not responsible for damage caused by the use of any ammonia or
alcohol based cleaners.

7
Connector pin assignment
15-pin color display signal cable
Threading Explanations Threading Explanations
1. Red 9. +5 V
2. Green 10. Logic ground
3. Blue 11. Monitor ground
4. Monitor ground 12. DDC-continuous data
5. DDC return 13. Line sync signal
6. Red-ground 14. Field sync signal
7. Green-ground 15. DDC-continuous clock
8. Blue-ground
19-pin color display signal cable*
Threading Use Threading Use
1. TMDS data 2 + 10. TMDS clock +
2. TMDS data 2 mask 11. TMDS clock mask
3. TMDS data 2 - 12. TMDS clock -
4. TMDS data 1 + 13. CEC
5. TMDS data 1 mask 14. Reserved
(not connected on the device)
6. TMDS data 1 - 15. SCL
7. TMDS data 0 + 16. SDA
8. TMDS data 0 mask 17. DDC/CEC ground
9. TMDS data 0 - 18. +5 V power supply
19. Hot plug detection
* Limited to specic models

8
Standard timing table
Mode Resolution Remarks
IBM VGA 640 × 480p 60 Hz
Apple Mac II 640 × 480p 67 Hz
VESA 640 × 480p 75 Hz
IBM VGA 720 × 400p 70 Hz
SVGA 800 × 600p 56 Hz
VESA 800 × 600p 60 Hz
SVGA 800 × 600p 72 Hz
VESA 800 × 600p 75 Hz
Apple Mac II 832 × 624p 75 Hz
VESA 1024 × 768p 60 Hz
XGA 1024 × 768p 70 Hz
VESA 1024 × 768p 75 Hz
VESA STD 1152 × 864p 75 Hz
VESA STD 1280 × 720p 60 Hz
VESA STD 1280 × 960p 60 Hz
VESA STD 1280 × 1024p 60 Hz
VESA 1280 × 1024p 75 Hz
WXGA+ 1440 × 900p 60 Hz
VESA STD 1600 × 1200p 60 Hz
WSXGA+ 1680 × 1050p 60 Hz
VESA STD 1920 × 1080p 60 Hz
VESA STD 1920 × 1080p 75 Hz Only available on certain models

9
Installation
Follow these steps to install the monitor on your host system:
Steps
1. Turn off your computer and unplug the power cord.
2. 2-1 Connect the signal cable (VGA cable)
a. Make sure the monitor and computer are powered off.
b. Connect the signal cable to the computer's graphics card port.
2-2 Connect digital cable (Dual input models only)
a. Make sure the monitor and computer are powered off.
b. Connect one end of the HDMI cable to the back of the monitor and the
other end to the HDMI port on your computer.
3. Connect the audio cable (only Audio input model) (optional)
4. Plug the monitor power adapter into the power port on the back of the monitor.
5. Plug the computer power cable and monitor power adapter into the nearby
power outlet.
HDMI
VGA
HDMI
VGA

10
User control
Basic controls
12
3
4
5
Number Icon Description
1 Go to the main menu.
2 Enter the source mode.
3 Enter contrast adjustment.
4 Enter brightness adjustment.
5 In the powered-off state, pressing the button powers on
the device; in the powered-on state, pressing the button
normally enters the mode switching menu, and long-
pressing for 3 seconds powers off the device.
