AN1600 F1 Network Storage System Quick Specification
Product Overview
Acer AN1600 F1 storage system is a cost-effective storage solution, powered by Microsoft Windows Storage
Server offering an easy way for storage centralization, file sharing, data protection, and remote access.
Processors and chipset
2 x Intel®Xeon®E5620 processors (2.4 GHz, 12 MB L3 cache, 5.86 GT/s, DDR3-1066, 80 W, HT)
Intel®5520 Chipset
Memory
Type DDR3-1333 Registered (RDIMM) with ECC capabilities
Maximum memory by O/S
32 GB
# of DIMM sockets
12
Minimum (standard) memory on
system
6 GB (2 GB x 3)
Network controller
Integrated Intel®82576EB dual-port Gigabit Ethernet controller
Storage1
Maximum capacity
1)
Up to 12 x 3.5" Hot pluggable SAS/SATA HDD capacity
2) Up to 24 TB raw internal SATA
3) Up to 7.2 TB raw internal SAS
Minimum capacity
External storage
600 GB (300 GB x 2) internal SAS HDD
Optional2
Storage controller3
LSI SAS MegaRAID SAS PCIe 2.0 x16 9260-16i with 16-internal ports, 512 MB, supporting RAID 0/1/10/5/50/6/60
(default bundle in system)
Expansion slots
Seven PCI-Express slots
•Two PCI-Express Gen 2.0 x8 slots (in x4 connector; left)
•One PCI-Express Gen 2.0 x16 slot (in x8 connector left)
•Three PCI-Express Gen 2.0 x8 slots (in x4 connector; right*)
•One Acer Flex I/O (PCIe Generation 2.0 x8 connector (left)
*Right hand side PCI-Express space has limitation for low-profile card, length within 5.6”
Operating System
Microsoft®Windows®Storage Server 2008 R2, Standard x64 edition
Management
•Acer Smart Console
•Acer Smart Server Manager
•iBMC management controller, supporting base board management and KVM-over-IP
•LSI MSM (MegaRAID Storage Manager) on-line utility is the OS level utility for data volume RAID configuration
•LSI WebConsole utility is a ROM-based utility provided by HBA FW for data volume RAID configuration
•Windows Disk Management is OS built-in feature on Windows Storage Server 2008 R2
•Microsoft Windows Storage Server Administration Tools
Deployment/serviceability
•
BIOS Update Tool
•
IPMI Firmware Update Tool
Input/output interface
Front
•
Power button
•HDD activity indicator LED
•PSU failure LED
•
Power indicator LED
•Two LAN activity LEDs (LAN1, LAN2)
•System status/fault indicator LED
1. Storage capacity
2External storage is available through fiber channel connection for additional storage devices
3. 16 ports RAID card is now available starting from January, 2011

2
AN1600 F1 Network Storage System Quick Specification
Rear
•
PS/2 Mouse port
•
Two USB 2.0 ports
•
Serial port
•
Video port
•
Two Gigabit LAN ports (RJ-45)
•
ID LED button
•
Management port (RJ-45) (dedicate management NIC)
Chassis/form factor
2U rack optimized up to 12 hot-pluggable 3.5" SAS/SATA HDDs
Power supply
2 x 720 W 80 PLUS Gold level efficiency power supply (redundant/ hot-plug)
Regulatory compliance standards
EMC
CE (Class A)
Safety
CB GS
Dimensions
438.4(w) x 705 (D) x 88.1 (H) mm (17.26 x 27.76 x 3.47 inches)
Form factor
2U rack optimized
Product Overview

3
AN1600 F1 Network Storage System Quick Specification

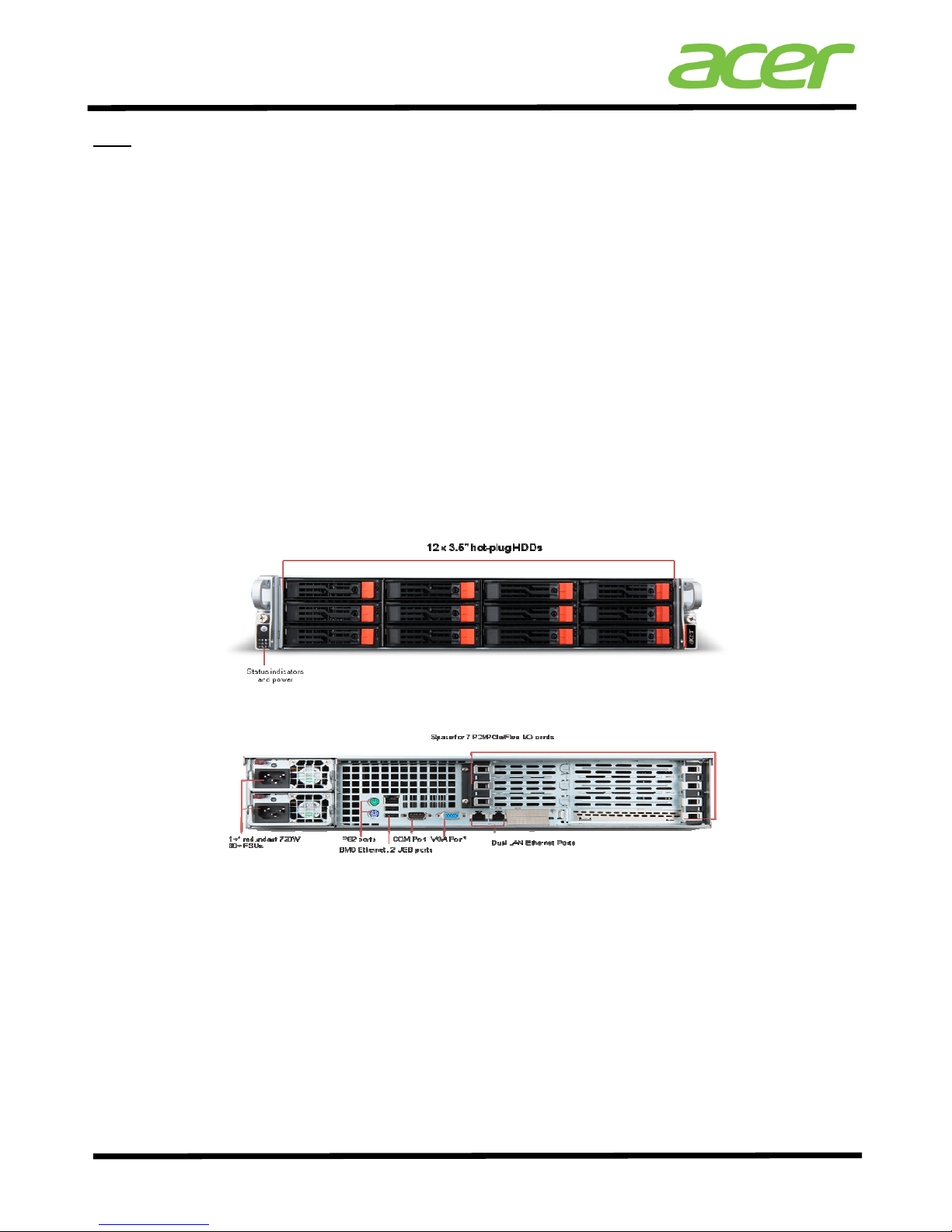

1. PCIe/Flex I/O expansion – 7 slots in total
2. Riser card supporting PCIe, PCI (LAN card), and Flex I/O expansion
3. Intel®Xeon®processor 5600 series
4. 12 DDR3 dual-channel DIMMs (6 per CPU), ECC support4
5. 2 x 720W 80 PLUS Gold level efficient PSU (1+1 redundant/hot pluggable)
6. 3+1 redundant system fans
7. SAS/SATA backplane
8. Front status indicators and power button

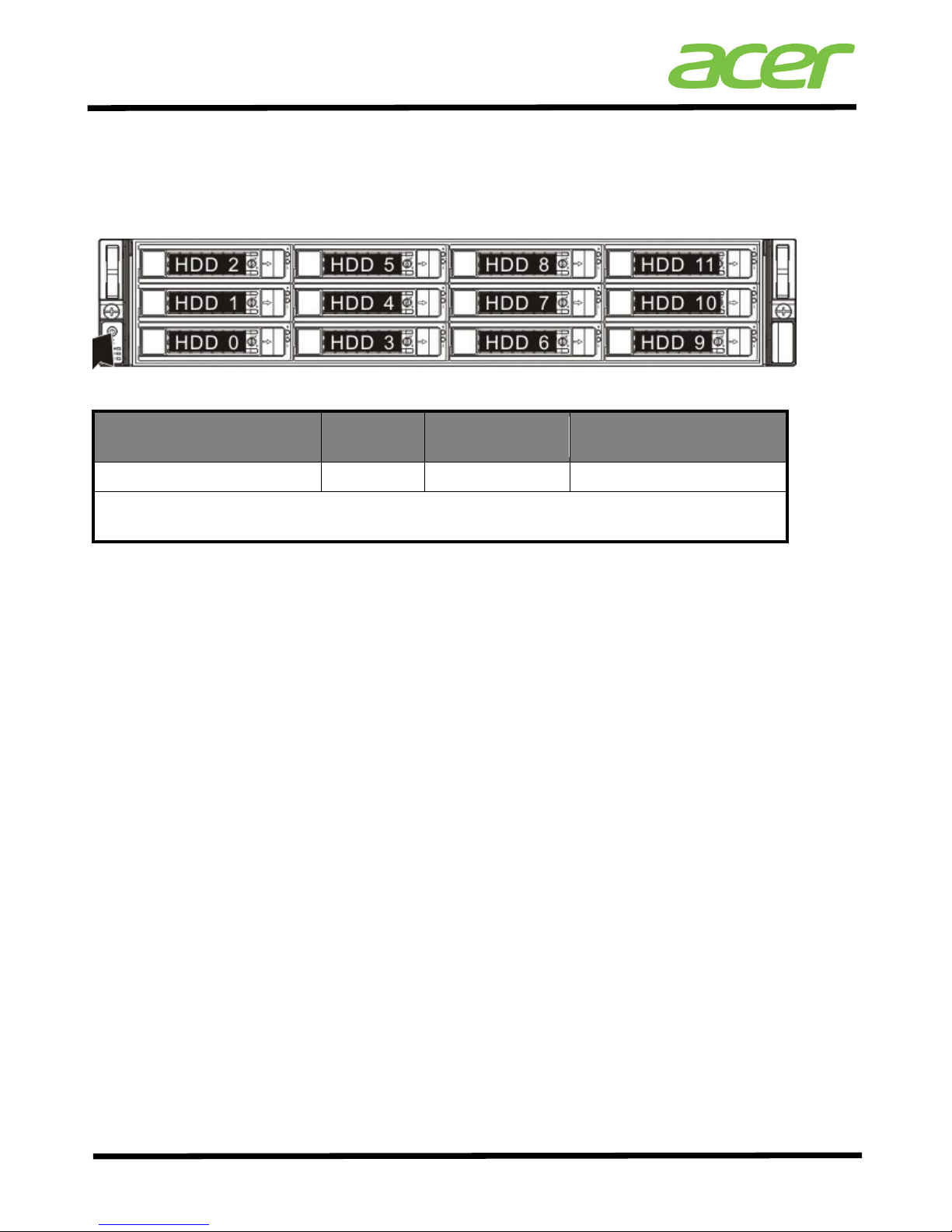

9. 12 hot-pluggable 3.5” SAS/SATA HDDs
4Maximum memory capacity is 32 GB per system by Operating System.

4
AN1600 F1 Network Storage System Quick Specification
What’s New
1. Windows Storage Server 2008 R2
Friendly User Interface Customization
Standard-alone NAS OOBE
Single Instance Storage
Performance improvement
SCOM management pack support
iSCI software version 3.3
Performance improvement
SCOM management pack support
Bitlocker
BranchCache-Hosted Cache support
Additional language support
2. 16 port RAID card support
Pre-configured skus1
Processor
Memory Type HDD RAID HBA
4
1
E5620 6 GB Stand-along storage 2x 300 GB
SAS LSI MegaRAID 9260-16ix1
2
E5620 6 GB Stand-along storage 2x 600 GB
SAS LSI MegaRAID 9260-16ix1
3
E5620 6 GB Stand-along storage 2x 1 TB SATA LSI MegaRAID 9260-16ix1
4
E5620 6 GB Stand-along storage 2x 2 TB
SATA LSI MegaRAID 9260-16ix1
1.16-port 6 Gb/s SAS RAID adapter is now available for FG SKU starting from January, 2011
Features and Benefits
Unified storage acting as file server
Centralized information keeper in network with Microsoft based storage
operating system to manage, protect, and expand.
Efficient operations
Works together with Acer Smart Setup and Acer Smart Manager for
faster installation and setup. Microsoft Management Console user
interface from Windows storage operating system enable you to use
existing features such as iSCSI and SIS5allowing less maintenance and
faster backup.
Expansion as needed and stay in
storage industry standards
Leveraging industry HDD standards SAS/SATA standards and extend to
external storage through fibre channel connections. Powered by latest
Intel processors and DDR3 memory protecting your investment and
resources years to come.
SME budget with enterprise
storage level features
Designing from server infrastructure by using server processors, industry
standard HDDs, interconnections, DDR3 memory, and hot-plug
redundant power supply, AN1600 F1 is equipped with enterprise level
features such as file de-duplication, snapshots, and distributed file
system replication.
5SIS: Single Instance Storage can recover up to 35% of disk capacity by reducing the number of redundant files.

5
AN1600 F1 Network Storage System Quick Specification
Standard Features
Acer
Smart Server Manager
•Offers 24-7 monitoring for system health and performance.
•Delivering proactive event management features including system event logging, event handling from e-
mail and SNMP Trap (PET) alerting.
•Allowing remote control from KVM and Power control.
•Satisfying management in web-based UI, role-based administration, and automated management scripts.
Acer
Smart Console
•Web-based management utility to simplify system management with embedded iBMC
•System monitoring and alerting, event handling, remote power control and KVM-over-IP.
•Acer Smart Console is OS independent, and offers virtual media through floppy, ODD, and removable
disk.
•Out-of-band (OOB) management regardless OS status.
Acer
Recovery Utility
•A friendly and an intuitive system recovery utility to return to its original factory state.
•Supports over twenty some different languages.
•Wizard step by step guiding through the complete recovery processes.
Acer Resource Kit
Comprehensive system information in one single disk including System drivers, LAN, RAID, and iSCSI
Target Client utilities, and User Guide.
GN1600 F1 features Windows Storage Server R2 Operating System
Microsoft®Windows®Storage Server 2008 R2 operating system provides file storage and print server
capabilities for client and server computers in your network environment. Storage appliances running Windows
Storage Server 2008 R2 can be used in failover clusters, providing high availability storage for application
servers and file storage.
Single Instance Storage (SIS) v2
SIS reduces the amount of storage used by data by replacing
multiple identical copies with logical links to a single source copy.
File Server Optimization
Windows Storage Server 2008 R2 is tuned to provide better
performance in a file server role, realizing as much as an 8%
performance gain in file system operations.
Remote Administra
tion in
Heterogeneous Environments
Remote administration of Windows Storage Server 2008 R2
appliances can be done from Internet Explorer using an ActiveX
control, and from non-Microsoft browsers using a Java control.
Print Services
Windows Storage Server 2008 R2 offers performance
enhancements for the Print Services role.
Distributed File System (DFS)
Namespace and Replication
Windows Storage Server 2008 R2
can provide DFS support for file
sharing for WANs and satellite offices
Microsoft iSCSI Software Target
Microsoft iSCSI Software Target provides centralized, software-based and hardware-independent iSCSI disk
subsystems in storage area networks (SANs). You can use iSCSI Software Target, which includes a Microsoft
Management Console (MMC) snap-in, to create iSCSI targets and iSCSI virtual disks. You can then use the
Microsoft iSCSI Software Target console to manage all iSCSI targets and virtual disks created using iSCSI
Software Target.
Microsoft iSCSI Software Target 3.2 provides the following features:

6
AN1600 F1 Network Storage System Quick Specification
Server Manager
Integration
Manage your Microsoft iSCSI Software Target from Server
Manager.
Improved CHAP Secret
Storage
Microsoft iSCSI Software Target 3.2 uses a more secure and
customizable storage method for CHAP secrets.
ERL0 Compliant
Connection and session reinstatement is now fully ERL0
compliant.
Microsoft Management Console
Microsoft®Management Console (MMC) is an extensible common presentation service for management
applications. MMC unifies and simplifies day-to-day system management tasks. It hosts tools and displays them
as consoles. These tools, consisting of one or more applications, are built with modules called snap-ins. The
snap-ins also can include additional extension snap-ins. Microsoft Management Console enables system
administrators to create special tools to delegate specific administrative tasks to users or groups. Microsoft
provides standard tools with the operating system that perform everyday administrative tasks that users need to
accomplish.
Task Orientation
The tools being defined to work with MMC are task oriented in
nature—they cater to the task being performed rather than merely
displaying the raw objects that can be manipulated. Also, because
administrators can customize their own tools, using pieces from
various v
endors, they can create tools that contain only the UI they
need to complete their tasks.
Integration
The UI for all the management tasks an administrator must
perform are collected into a single console. As new applications
are added to a computer or network, their administration is
integrated into the existing administration common console.
Customization of Consoles
Administrators can create custom consoles tailored to their
particular management needs. This is useful in enterprise
environments that divide administrator groups according to duties.
For example, you can create a custom console for software
installation and maintenance, another one for scripts
administrators, another one for security Group Policy, and so on.
Delegation
Administrators can easily modify existing tools to create new tools
with reduced functionality and less complex views of the tool
namespace, and then give these tools to others. A person who
receives such a tool is presented with a simpler, more manageable
view of the tasks they are being asked to perform.
Overall Interface
Simplification
All tools built for MMC, from Microsoft or third-party software
vendors, will have a similar appearance, making it easier for users
to use all tools after learning one. Because you can mix a
nd match
tools from any vendor, you can use the best tool from each
management product category. MMC also enables a single piece
of software to provide functionality across the interface in a
consistent manner.
Extensibility
Developers can extend the base functionality of MMC snap-ins by
creating extension snap-
ins. This allows software vendors to reuse
Microsoft tools without writing a lot of code. Various mechanisms
are available for extending snap-ins, including extending the
namespace, context menus, toolbars, Property pages, and
creating Wizard 97-style pages.
System Specifications

7
AN1600 F1 Network Storage System Quick Specification
Processor
Type
Two Intel
®
Xeon
®
E5620 DP Quad-Core (2.4 GHz, 12
MB L3 cache, 5.86 GT/s, DDR3-1066, 80 W, HT)
Features
Intel
®
QuickPath Interconnect up to 5.86 GT/s, each
direction. Per link
Support Intel®64 Technology, Enhanced Intel®
SpeedStep Technology, Intel®Simultaneous Multi
Threading, Intel®Virtualization Technology
Support Registered LV DDR3
Socket
Two LGA1366 sockets
NOTE:
For optimum performance, when two processors are installed, both
must be of identical revision, core voltage, and QPI/core speed.
When only one processor is installed, it must be in the Processor
Socket 1. The other socket must be empty. Processors must be
populated in sequential order. Processor Socket 1 must be populated
before Processor Socket 2.
System thermal solution is capable of supporting up to TDP 95W Intel
Xeon 5600 EP processors. (include standard, HE)
Cache Memory
12MB Shared L3 cache
Chipset
North Bridge
Intel
®
5520 Chipset
South Bridge
ICH10R
Memory
Type
DDR3 1066/1333MHz Registered memory
DIMM sockets
Twelve DIMM slots
Capacity
Registered DIMM: 2 GB, 4 GB
Maximum
memory
Registered memory: 32 GB
Minimum
memory
Registered meory: 6 GB
Memory
Protection
ECC, Mirroring, Lockstep Mode, x8 SDDC, Sparing
NOTE:
1. Support ECC, Independent channel ode, mirroring, sparing, sparing
mode, lockstep mode, x4/x8 SDDC
2. Support memory scrubbing
3. Support Error reduction (BIOS will isolate the faulty DIMM and does
not enable it when system detects the faulty DIMM
4. Event log/monitoring: Single/multi-bit ECC error
5. Mixing of Registered memory and Unbuffered ECC memory is NOT
supported.
Networking
Controller
Integrated single dual-port Intel
®
82576EB Gigabit
Ethernet Controllers (Dual Port 10/100/1000)
Ports
2 ports

8
AN1600 F1 Network Storage System Quick Specification
Network
interface
10Base-T / 100Base-TX / 1000Base-TX
Compatibility
IEEE 802.3 Ethernet interface for 10BASE-T,
IEEE 802.3ab Ethernet interface for 1000BASE-T,
IEEE 802.3u Ethernet interface for 100BASE-TX,
Virt
ualization
acceleration
Intel
®
I/O Acceleration Technology
Manageability
NC-SI, SMBus
PXE, iSCSI Boot
Connector
RJ-45
Cable support
CAT 5e wire
Data transfer
method
One lane (x1)
Network
transfer rate
•
10Base-T (half-duplex) 10 Mb/s
•10Base-T (full-duplex) 20 Mb/s
•100Base-TX (half-duplex) 100 Mb/s
•100Base-TX (full-duplex) 200 Mb/s
•1000Base-TX (half- and full-duplex) 2000 Mb/s
Graphics
Controller
•
Integrated Matrox G200 graphics
•Embedded graphics controller (iBMC)
Video memory
8MB
Supported
resolution
1440x900 32b@ 60Hz 8:5 aspect ratio
1280x1024 32b@ 60Hz 5:4 aspect ratio
Storage
Controllers
Six on-board 3Gb/s SATA ports, 7-pin with RAID 0, 1, 5, 10 support
Expansion slots
Left-side Riser:
- 1 Flex I/O
- 1 PCI-E x16 connector (w/ Gen2 x8 link)
- 2 PCI-E x8 connector (w/ Gen2 x4 link)
Right-side Riser:
- 3 PCI-E x8 connectors (w/ Gen2 x4 link)
NOTE:
1. The signaling bit rate of PCI Express is 2.5Gbit/s one direction per
lane for Gen 1 and 5.0 Gbit/s one direction per lane for Gen 2.
2. Indicates the number of physical electrical lanes running to a PCIe®
connector
3. Default bus assignment (in decimal). Inserting cards with PCI™
bridges may alter the actual bus assignment number.
4. Slots are enumerated differently based on the operating system.
Microsoft®operating systems enumerate Device ID by bus starting
from the lowest bus to the highest.

9
AN1600 F1 Network Storage System Quick Specification
Back I/O Panel
Two PS2 ports
Two USB 2.0 ports
Two RJ45 connectors (Dual Gigabit NIC) with Activity and Link
indicators
One RJ45 (dedicate management NIC) with Activity and Link indicators
One Serial port (DB-9)
One SVGA Video port (DB-15)
System ID LED/Button
NOTE: Parallel port is NOT supported
Language Support
English Yes
German Yes
French Yes
Italian Yes
Spanish Yes
Chinese (traditional) Yes

10
AN1600 F1 Network Storage System Quick Specification
Technical Specifications
Form Factor
2U rack-optimized
Dimensions
(W x D x H)
Metric Units (mm) 438.4 x 705 x 88.1 mm
Imperial Units (inch) 17.26 x 27.76 x 3.47 inches
Weight
Maximum
(all processors, memory, hard
disk drives, power supplies
installed)
38.0 kg (84 lb)
Minimum
(Two processors, two PSU,
single memory, no hard disk
drive installed)
27.5 kg (60.62 lb)
Front Control Panel
Power button
Power indicator LED
HDD activity indicator LED
Two LAN activity LEDs (LAN1, LAN2)
PSU failure LED
System status/fault indicator LED
Rear I/O bracket
2 x PS2 ports
2 x USB 2.0 ports
1 x Serial port
2 x RJ45 connectors (Dual Gigabit NIC) with Activity and Link indicators
1 x RJ45 (dedicate management NIC) with Activity and link indicators
1 x SVGA Video port (DB-15)
1 x ID LED button
Storage
On
-
board SATA
Controller
Intel
®
82801JR (ICH10R) I/O Controller
Hard disk drive
Form factor 3.5”
Type SATA/SAS
Hot-plug Hot-plug
FDD
Not support
3.5” SATA hard disk drive
•
Maximum 24TB (12x 2TB 3.5” SATA
HDD)
•Full Function / dummy carrier
Simulaneous drive
transfer channels
6 channels
Transfer rate
synchronous (maximum
theoretical)
3Gb/s per channel
Data transfer method
•
Non RAID mode
•RAID mode
Drive support
SAS/SATA

11
AN1600 F1 Network Storage System Quick Specification
Data transfer modes
•
Legacy model
•Combined mode
Protocol
SAS/SATA
Feature
•
NCQ (Native Command Queuing)
•AHCI (Advanced Host Controller
Interface)
•RAID (Redundant Array of Independent
Disks)
RAID level supported
0, 1, 5, 6, 10, 50,and 60 with hardware RAID
adapter
RAID feature
•
Supports multiple logical volumes
•Setup through ROM based Array
Configuration Utility Installation scripting
support
RAID OS support
Windows
®
Storage Server 2008 R2
Hard disk drive
bays
3.5” hard disk drive
•
Maximum: 12 bays
•Hot plug
Interface
PS2 Keyboard
1
PS2 Mouse
1
Parallel
N/A
Serial port
1 rear side
1 on-board (9-pin connector)
USB 2.0 ports
Front USB N/A
Rear USB 2
Internal USB
•
One Type A USB
connector
•Three 2x5 pin Intel®
FPIO USB pin headers
(total 5 ports)
Input Requirements
(per power supply)
Range line voltage 100~240 VAC
Rated input current 9 A~4A
Rated input frequency 50 to 60 Hz
Rated input power 720W
Power supply
•
Supplier to propose power budget for PSU spec setting
•720W (100V-240V) gold level 90% high-efficiency power supply.
•Hot plug power supply module (Gold level)
BTU (Maximum)
3276 BTU/hr
Server Power cord
6’ highline (IEC-IEC) power cord

12
AN1600 F1 Network Storage System Quick Specification
System Cooling
•
Support 10°to 35°C (50°to 95°F) environment
•Two CPU heat-sink (2U height) supporting Intel Xeon processors up
to TDP 95W
•Support memory full-populated configuration
•Support up to 12*SAS/SATA HDDs
•3+1 hot plug, redundant system fans with PWM controlled MB
Thermal Feature
•
System fans support PWM fan speed control with SMART FAN
feature
•Common used for Acer 2U server platforms
Compliance
•
Windows Hardware Logo Program Requirements
•ACPI 3.0b
•PCI-E 2.0 for Gen2
•PXE 2.1
•WOL
•SMBIOS 2.6.1
•IPMI 2.0
System inlet
temperature
Operating 10° to 35°C (50°to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft)
Non-operating -40°to 70°C (-40°to 158°F).
Relative humidity
(non-condensing)
Operating 8 to 90% relative humidity (Rh), 28°C
(82.4°F) maximum wet bulb temperature,
non-condensing
Non-operating 5 to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature,
non-condensing
Acoustic noise
Listed are the declared A-Weighted sound power levels (LWAd) and
declared average bystander position A-Weighted sound pressure levels
(LpAm) when the product is operating in a 23°C ambient environment.
Noise emissions were measured in accordance with ISO 7779
Idle
LWAd 5.1BA
LpAm 40dBA
Operating
LWAd 5.7BA
LpAm 44dBA
EMI Considerations
Adequate EMC shielding to meet Class A of EMC requirements (FCC,
CE, BSMI)
Chassis seams have features to enhance grounding
Motherboard mounting features provides grounding
Normative standards : CISPR 22; EN55022; EN55024; FCC CFR 47,
Pt 15; ICES-003; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
Emissions
FCC rating Class A

13
AN1600 F1 Network Storage System Quick Specification
Classification
(EMC)
Normative standards EN 55022 Class A, EN 61000-3-2/-
3-3, CISPR 22 Class A
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and
statements
Regulatory
Compliant Standard
EMC
6
CE (Class A)
Safety
6
CB and GS
6Compliance availability varies by region and country.

14
AN1600 F1 Network Storage System Quick Specification
RAID Volume and Setup Layout
Default 2 HDDs RAID Volume and system partition
Default 8 HDDs RAID Volume and system partition
Default 12 HDDs RAID Volume and system partition

15
AN1600 F1 Network Storage System Quick Specification
Memory Specifications
Each processor has three memory channels (1, 2 and 3) and each channel has two slots - A (PxDIMM1A, 2A, 3A
in blue) and B (PxDIMM1B, 2B, 3B in black). So, the system has a total of twelve memory slots. The memory
slots support DDR3-1333 registered/unbuffered ECC memory modules, but it’s not allowed to mix RDIMM and
UDIMM in a system. For all memory modes, the slot A in each channel should be populated first. If slot A is
empty, slot B can’t be used.
NOTE:
When you are using a single-processor server, you should install the memory module into P1DIMM1A to P1DIMM3B slots when CPU is
installed in CPU1 socket.
The P2DIMM1A to P2DIMM3B slots are enabled when a second CPU is installed on the CPU2 socket.
For the system to function, DIMM modules must be installed following the slot sequence listed below. DIMM
module of the same type, size and manufacturer must be installed in the same colored DIMM slots.
Independent mode:
Single processor configuration (subjected to change if any update)
Total
Physical
Memory
DIMM
1B
DIMM
1A
DIMM
2B
DIMM
2A
DIMM
3B
DIMM
3A
2GB 2GB
4GB 2GB 2GB
6GB 2GB 2GB 2GB
8GB 2GB 2GB 2GB 2GB
12GB 2GB 2GB 2GB 2GB 2GB 2GB
4GB 4GB
8GB 4GB 4GB
12GB 4GB 4GB 4GB
16GB 4GB 4GB 4GB 4GB
24GB 4GB 4GB 4GB 4GB 4GB 4GB
8GB*
7
8GB
16GB 8GB 8GB
24GB 8GB 8GB 8GB
32GB 8GB 8GB 8GB 8GB
78 GB memory availability varies by region and country.

16
AN1600 F1 Network Storage System Quick Specification
Dual processor configuration (subjected to change if any update)
Total
Physical
Memory
P1DIMM
P2DIMM
1B
1A
2B
2A
3B
3A
1B
1A
2B
2A
3B
3A
4GB 2GB 2GB
6GB 2GB 2GB 2GB
8GB 2GB 2GB 2GB 2GB
12GB 2GB 2GB 2GB 2GB 2GB 2GB
16GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB
18GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB
24GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB
8GB 4GB 4GB
12GB 4GB 4GB 4GB
16GB 4GB 4GB 4GB 4GB
24GB 4GB 4GB 4GB 4GB 4GB 4GB
32GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB

17
AN1600 F1 Network Storage System Quick Specification
Mirroring or Lockstep mode:
Mirroring mode & Lockstep mode need the channel 1 & channel 2 with identical DIMMs. 1A and 2A should
be the same type, size and manufacturer. 1B and 2B memory should be the same type, size and
manufacturer.
Channel 3 is no function in this mode.
Same rule is applied to the CPU2 memory channel 1, 2, 3.
For mirroring mode, the memory contains a primary image and a copy of the primary image. Therefore, the
effective size of memory is reduced by at least one-half.
Single processor configuration
Total
Physical
Memory
DIMM
1B
DIMM
1A
DIMM
2B
DIMM
2A
DIMM
3B
DIMM
3A
4GB 2GB 2GB
8GB 2GB 2GB 2GB 2GB
8GB 4GB 4GB
16GB 4GB 4GB 4GB 4GB
16GB
8
8GB 8GB
32GB 8GB 8GB 8GB 8GB
Dual processor configuration
Sparing mode
In this mode, if the system detects degrading memory and did not crash, the data in the failed channel will be
copied to the spare channel. The failed channel is then isolated and the spare channel becomes active.
However, any uncorrectable error that happens before the isolation will still cause the system to stop normal
operation.
Channel 3 is the spare channel. Therefore, the effective size will be reduced by one-third.
Follow the population rules described in the independent mode.
Sparing mode requires that all three channels use identical DIMMs. 1A, 2A and 3A should be the same type,
size and manufacturer, likewise for 1B, 2B and 3B. The same rule applies to processor 2.
Single processor configuration
Total
Physical
Memory
DIMM
1B
DIMM
1A
DIMM
2B
DIMM
2A
DIMM
3B
DIMM
3A
6GB 2GB 2GB 2GB
12GB 2GB 2GB 2GB 2GB 2GB 2GB
888 GB memory availability varies by region and country.
998 GB memory availability varies by region and country.
Total
Physical
Memory
P1DIMM
P2DIMM
1B
1A
2B
2A
3B
3A
1B
1A
2B
2A
3B
3A
4GB 2GB 2GB
8GB 2GB 2GB 2GB 2GB
12GB 2GB 2GB 2GB 2GB 2GB 2GB
16GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB
8GB 4GB 4GB
16GB 4GB 4GB 4GB 4GB
24GB 4GB 4GB 4GB 4GB 4GB 4GB
32GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB
16GB
9
8GB 8GB
32GB 8GB 8GB 8GB 8GB

18
AN1600 F1 Network Storage System Quick Specification
Total
Physical
Memory
DIMM
1B
DIMM
1A
DIMM
2B
DIMM
2A
DIMM
3B
DIMM
3A
12GB 4GB 4GB 4GB
24GB 4GB 4GB 4GB 4GB 4GB 4GB
24GB* 8GB 8GB 8GB
Dual processor configuration
Total
Physical
Memory
P1DIMM
P2DIMM
1B
1A
2B
2A
3B
3A
1B
1A
2B
2A
3B
3A
6GB 2GB 2GB 2GB
12GB 2GB 2GB 2GB 2GB 2GB 2GB
18GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB
24GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB 2GB
12GB 4GB 4GB 4GB
24GB 4GB 4GB 4GB 4GB 4GB 4GB
36GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB 4GB

19
AN1600 F1 Network Storage System Quick Specification
Storage
The AN1600 F1 chassis was designed to support twelve 3.5" SAS/SATA hot-swappable hard drives. As a system, ach
server board supports the use of three SATA drives. A single SATA backplane works to apply system-based control
for power and fan speed functions. RAID setup is limited to a three-drive scheme (RAID cannot be spread across all
twelve drives).
Hard Disk Drive Support
Drive
Quantity
Supported
Bay Supported
Required Controller
3.5” SATA/SAS hard drive Up to 12 0 – 11 1*16-port SAS RAID card
NOTE:
Transfer rates of drives are dependent on the maximum transfer rate supported
by the host bus adapter (HBA) or controller.

20
AN1600 F1 Network Storage System Quick Specification
Power Specifications
720W Power Supply
Operational Input
Voltage Range (Vrms)
100 to 240
Frequency Range
(Nominal) (Hz)
60/50
Nominal Input Voltage
(Vrms)
100
120
208
200
220
230
240
Max. Rated Output
Wattage
720 720 720 720 720 720 720
Nominal Input Current
(A rms)
8.46 6.97 3.80 3.87 3.74 3.5 3.29
Max. Rated Input
Wattage Rating (Watts)
846.0 836.4 790.4 774.0 822.8 805.0 789.6
Max. Rated VA (Volt-
Amp)
837.54 828.03 774.59 758.52 806.34 788.9 773.81
Efficiency (%) at Max.
Rated Output Wattage
88.12 89.49 90.95 90.74 91.51 91.92 92.27
Power Factor 0.99 0.99 0.98 0.98 0.98 0.98 0.98
Leakage Current (mA) 0.17 0.19 0.29 0.31 0.35 0.37 0.41
Max. Inrush Current (A
peak)
17.24 19.41 18.52 16.88 16.48 20.47 22.54
Max. Inrush Current
Duration (mS)
4.62 4.58 4.61 4.62 4.64 4.63 4.64
Max. British Thermal
Unit Rating (BTU/hr)
2456.64 2456.64
2456.64 2456.64 2456.64 2456.64 2456.64
