Service Guide Coverage
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on
card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic
service guide. In such cases, please contact your regional offices or the responsible personnel/channel to
provide you with further technical details.
FRU Information
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available
on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in
the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the
list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

vii
System Tour 1
Features 1
System Tour 2
Front Panel 2
Rear Panel 3
Internal Components 4
System LED Indicators 5
System Utilities 9
Phoenix BIOS Setup Utility 9
Entering BIOS setup 10
Navigating Through the Setup Utility 11
Setup Utility Menus 12
System Disassembly 21
Disassembly Requirements 21
Pre-disassembly Procedure 22
Main Unit Disassembly 23
Removing the Hard Disk 24
Removing the System Cover 27
Removing the Front Bezel 28
Removing the Front I/O Board 30
Removing the Backplane Board 32
Removing the Power Supply 35
Removing the System Fan 38
Removing the Memory Module 39
Removing the Mainboard 41
Removing the HDD Access LED cables 42
System Troubleshooting 43
Hardware Diagnostic Procedure 43
H340 Diagnostics 44
System Check Procedures 46
Power System Check 46
System External Inspection 46
System Internal Inspection 46
Error Codes 47
Online Support Information 48
System Block Diagram and Board Layout 49
System Block Diagram 49
Board Layout 50
Mainboard 50
System Jumpers 51
FRU (Field Replaceable Unit) List 53
Exploded Diagram 54
FRU List 56
Technical Specifications 59
Table of Contents

viii

Chapter 1 1
Features
Below is a brief summary of the home server’s many feature:
NOTE: The features listed in this section is for your reference only. The exact configuration of the server
depends on the model purchased.
Processor
Intel Atom processor
Chipset
Intel 945GC Express Chipset and ICH7R
Memory subsystem
Supports DDR2 unbuffered SDRAM
Media storage
Up to four 3.5-inch hot-swappable SATA hard disk drives
Networking
One Gigabit Ethernet LAN port (RJ-45)
I/O ports
USB 2.0 ports (1 front and 4 rear)
Gigabit LAN port
eSATA port
Power supply
200-watts (100/240 Vac) power supply
Operating system and software
Operating system:
Windows Home Server
Applications
Windows Home Server Connector
Lights Out Client
Software Update
Server Recovery
PC Recovery
Physical dimensions
WxHxD: 200 x 180 x 212 mm
Weight (without HDD): 4.5 kg (with 1 HDD): 5.1 kg
System Tour
Chapter 1

2Chapter 1
System Tour
This section is a virtual tour of the system’s interior and exterior components.

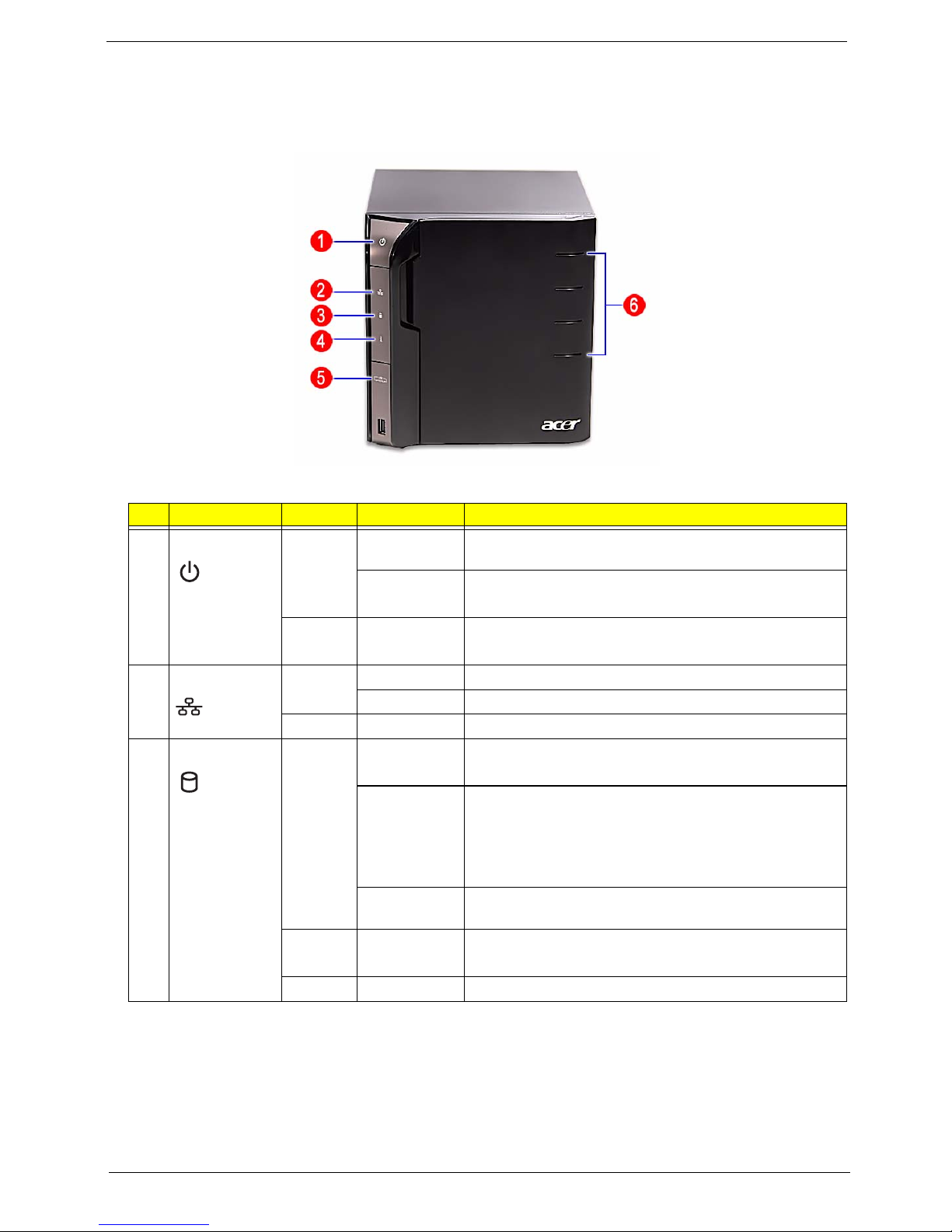

Front Panel
No. Icon Component
1 Power button/power indicator
2 Network indicator
3 Hard disk drive (HDD) status indicator
4 System status indicator
5 USB backup button/USB backup indicator
6 USB 2.0 port
7 Front door
Open the door to access the hot-swappable HDDs.
8 HDD access indicators

Chapter 1 3
Rear Panel
No. Icon Component
1 Recovery/reset button
2eSATAport
3 Gigabit Ethernet port
4 USB ports
5 Power connector
6 System fan

4Chapter 1

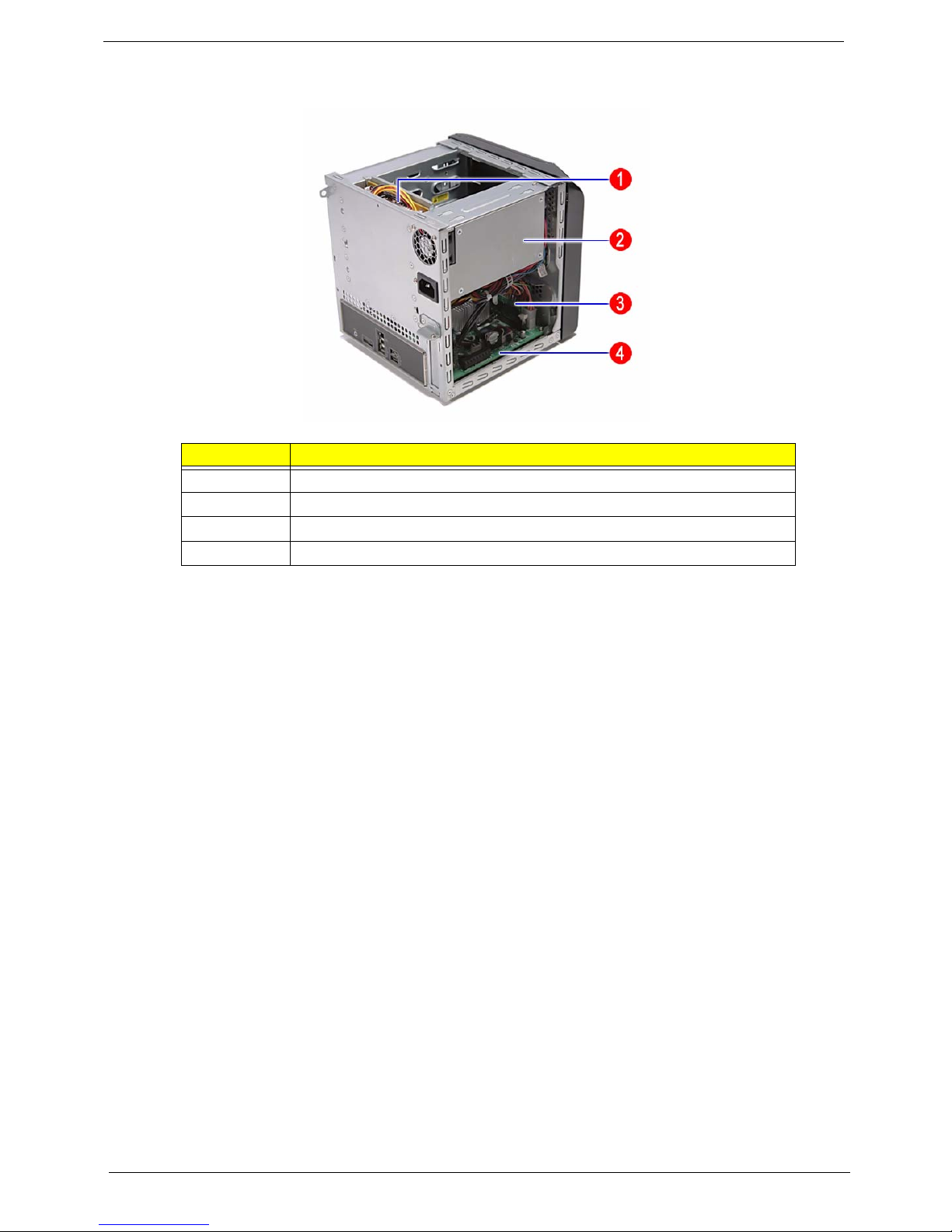

Internal Components
No. Component
1 Backplane board
2 Power supply
3 Memory module
4 Mainboard

Chapter 1 5
System LED Indicators
Front panel
This section describes the different system LED indicators.
No. LED indicator Color LED status Description
1 Power Blue On System is connected to the power supply and turned on
and ready for use.
Random blink • System is booting
• System is in S3 sleep state (suspend to memory)
None Off • System is not powered on
• System initialize operation in progress
2 Network Blue On Link between system and network
Random blink Network access
Red Off Network disconnected
3 HDD status Purple On • System not initialized
• HDD is not mounted into the drive bay
Random blink • HDD is mounted into the drive bay and is in the
process of being manually added into the server
storage
• HDD is in the process of being removed from the
server storage.
HDD is mounted into the drive bay and added into the
server storage
Red Random blink • HDD failure
• Windows Home Server cannot find HDD
None Off No HDD mounted in the drive bay

6Chapter 1

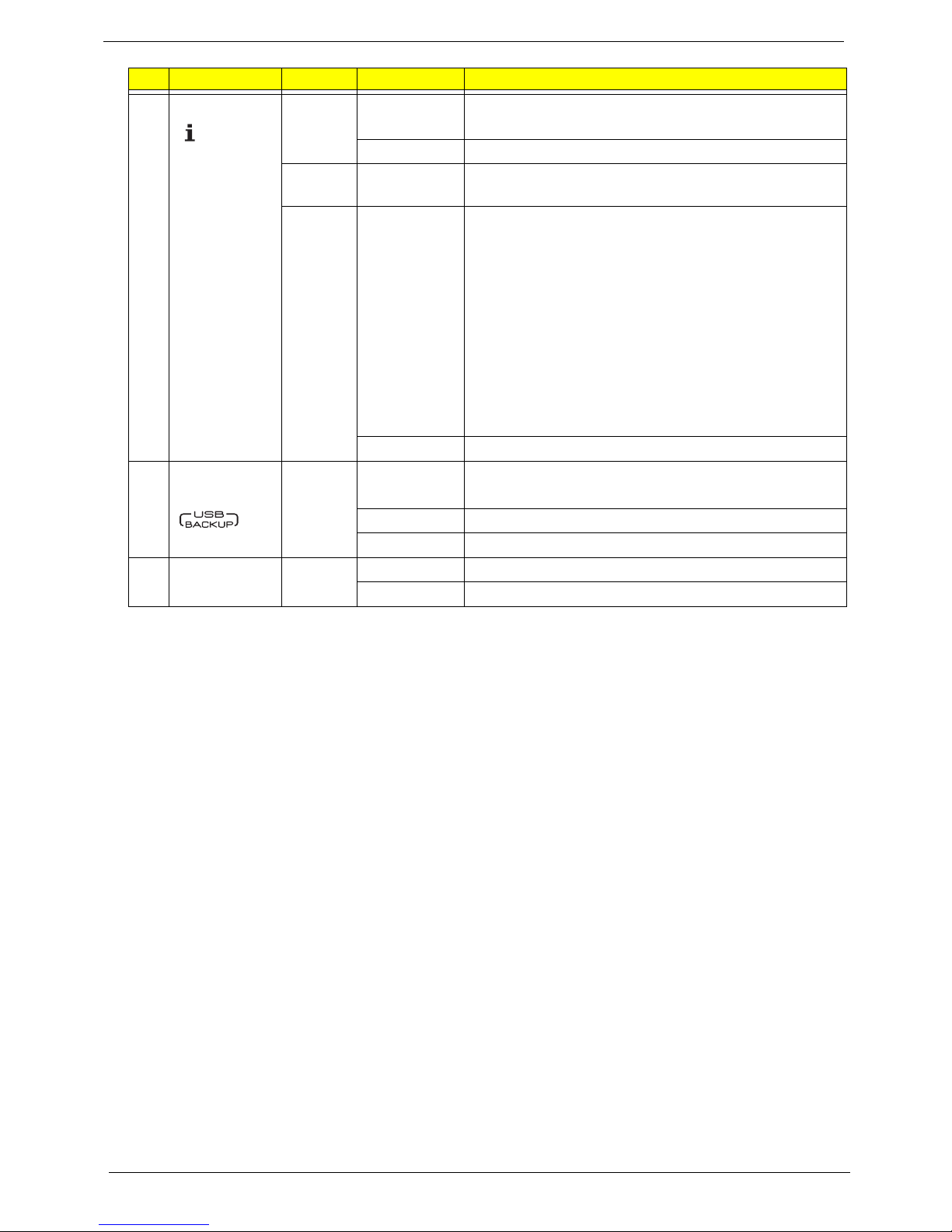

4 System status Blue Random blink • System is booting
• System is shutting down
On System initialize operation completed.
Blue and
purple Random blink System is booting from a USB device (Reserved for BIOS update while boot block has been active)
Red On May indicate the following states:
• System failure
• HDD failure
• SATA controller failure
• USB controller failure
• LAN controller failure
• FAN failure
• Memory failure
• Boot device not found
Refer to “Error Codes” on page 47 for more information.
Random blink System recovery or reset is in progress
5 USB device
backup Blue On • USB storage device is connected to the USB port
• Backup completed
Random blink System is backing up files from a USB storage device
Off USB storage device unmounted
6 HDD access Blue Blink HDD is in use
Off No HDD activity
No. LED indicator Color LED status Description

Chapter 1 7
Rear panel
No. LED indicator Color LED status Description
1LANport
network speed
LED
Amber On 1000 Mbps network access
Green On 100 Mbps link network access
None Off 10 Mbps link network access
2LANport
activity LED Green On Active network link
Random blink Transmit or receive activity
None Off No network connection

8Chapter 1

Chapter 2 9
Phoenix BIOS Setup Utility
BIOS setup is a hardware configuration program built into the system's Basic Input/Output System (BIOS).
Since most systems are already properly configured and optimized, there is no need to run this utility. You will
need to run this utility under the following conditions.
When changing the system configuration settings
When redefining the communication ports to prevent any conflicts
When modifying the power management configuration
When changing the password or making other changes to the security setup
When a configuration error is detected by the system and you are prompted ("Run Setup"
message) to make changes to the BIOS setup
NOTE: If you repeatedly receive Run Setup messages, the battery may be bad. In this case, the system
cannot retain configuration values in CMOS. Ask a qualified technician for assistance.
BIOS setup loads the configuration values in a battery-backed nonvolatile memory called CMOS RAM. This
memory area is not part of the system RAM which allows configuration data to be retained when power is
turned off.
Before you run the PhoenixBIOS Setup Utility, make sure that you have saved all open files. The system
reboots immediately after you close the Setup.
NOTE: PhoenixBIOS Setup Utility will be simply referred to as "Setup" or "Setup utility" in this guide.
The screenshots used in this guide display default system values. These values may not be the same
those found in your system.
System Utilities
Chapter 2

10 Chapter 2
Entering BIOS setup
IMPORTANT:To enter the BIOS setup, you need a debug board.
1. Turn off the computer and all attached devices.
2. Remove the cover. See “Removing the System Cover” on page 27.
3. Connect the debug board cable to the debug board connector on the mainboard.
4. Locate the JP3 Debug/User mode jumper on the mainboard.
5. Close the jumper to enable system for debug mode.
6. Connect the power cable to the rear panel.
7. Connect a USB keyboard to the debug board.
8. Connect a monitor to the debug board.
9. Restart the system.
10. Turn on the monitor.
11. During POST, press F2.
If you fail to press F2 before POST is completed, you will need to restart the server.
The Setup Main menu will be displayed showing the Setup’s menu bar. Use the left and right arrow keys
to move between selections on the menu bar.

Chapter 2 11
Navigating Through the Setup Utility
Use the following keys to move around the Setup utility.
Left and Right arrow keys – Move between selections on the menu bar.
Up and Down arrow keys – Move the cursor to the field you want.
PgUp and PgDn keys – Move the cursor to the previous and next page of a multiple page menu.
Home – Move the cursor to the first page of a multiple page menu.
End – Move the cursor to the last page of a multiple page menu.
+and -keys – Select a value for the currently selected field (only if it is user-configurable). Press
these keys repeatedly to display each possible entry, or the Enter key to choose from a pop-up
menu.
NOTE: Grayed-out fields are not user-configurable.
Enter key – Display a submenu screen.
NOTE: Availability of submenu screen is indicated by a (>).
Esc – If you press this key:
On one of the primary menu screens, the Exit menu displays.
On a submenu screen, the previous screen displays.
When you are making selections from a pop-up menu, closes the pop-up without making a
selection.
F1 – Display the BIOS setup General Help panel.
F5 – Press to load previous default system values.
F6 – Press to load fail-safe default system values.
F7 – Press to load optimized default system values.
F10 – Save changes made the Setup and close the utility.

12 Chapter 2
Setup Utility Menus
The Setup Main menu includes the following main setup categories.
Information
Main
Advanced
Boot
Exit
In the descriptive table following each of the menu screenshots, settings in boldface are the default and
suggested settings.
PhoenixBIOS Setup Utility
Item Specific Help
<Tab>, <Shift-Tab>, or
<Enter> selects field.
CPU Type: Genuine Intel ® CPU 230 @ 1.60 GHz
CPU Speed: 1.60 GHz
BIOS Version:
BIOS Release Date: mm/dd/yyyy
Product Name: Aspire easyStore H340
Product Serial Number: N/A
Asset Tag Number: N/A
F1
Esc Help
Exit Select Item Select Menu Change Values
Select Sub-Menu
-/+
Enter
F9
F10 Setup Defaults
Save and Exit
Boot ExitMainInformation Advanced
