Acesonic AM-145 User manual

www.acesonic.com
USER’S MANUAL
NOTE:
To ensure this component will work safely and to
its fullest potential, please read this user’s manual
carefully before operation and keep for future
reference.
Acesonic AM-145
Watts Karaoke Mixing Amplifier
80-

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
CAUTION
To reduce the risk of electrical shocks, fire, etc:
1.Do not remove screws, screws, covers or cabinet.
2.Do not expose this appliance to rain or moisture.
Warnings, Cautions and Others
Mises en garde, precautions et indications diverses
For Canada/Pour le Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED
THE CLASS B LIMITS FOR RADIO NOISE
EMISSIONS FORM DIGITAL APPARATUS AS SET
OUT IN THE INTERFERENCE-CAUSING
EQUIPMENT STANDARD ENTITLED DIGITAL
APPARATUS, ICES-003 OF THE DEPARTMENT OF
COMMUNICATIONS. CET APPAREIL NUMERIQUE
RESPECTE LES LIMITES DE BRUITS RADIO
ELECTRIQUES APPLICABLES AUX APPAREILS
NUMERIQUES DE CLASSE B PRESCRITES DANS
LA NORMESUR LE MATERIEL BROUILLEUR:
APPAREILS NUMERIQUES , NMB-003 EDICTEE
PAR LE MINISTRE DES COMMUNICATIONS.
" "
" "
Caution
Disconnect the electrical plug to shut off power
completely. The POWER on the unit is not off from the
electrical plug when the POWER button on the front
panel is not pressed in.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
1.This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
This equipment generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected. Consult the dealer or an experienced
radio/TV technician for help.
2.IMPORTANT: When connecting this product to
accessories and/or another product use only high
quality shielded cables. Cable(s) supplied with this
product MUST be used. Follow all installation
instructions. Failure to follow instructions could
void your FCC authorization to use product in the
U. S. A.
FCC INFORMATION (U.S.A.)
For Canada/Pour le Canada
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,AND
FULLY INSERT.
ATTENTION: POUR EVITER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQUAU FOND.
2

15. This product should be operated only from the type of
power source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult your
product dealer or local power company. For products
intended to operate from battery power, or other sources,
refer to the operating instructions.
8. Do not install near any heat sources such as radiators, heat
register, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments and accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart.
13. Unplug this apparatus during lightning storms or if
unused for a long period of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as when the power-supply
cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or
20. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
21. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating
condition.
22.Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer. Any mounting of the
product should follow the manufacturer instructions, and
should use a mounting accessory recommended by the
manufacturer.
23. Wet location marking
Apparatus shall not be exposed to dripping or splashing
and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
1. Read These Instructions.
2. Keep These Instructions.
3. Heed All Warnings.
4. Follow All Instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.
Important Safety instructions
16. Protective Attachment Plug
The product is equipped with an attachment plug having
overload protection. This is a safety feature. See
Instruction Manual for replacement or resetting of the
protective device. If replacement of the plug is required, be
sure the service technician has used a replacement plug
specified by the manufacturer that has the same overload
protection as the original plug.
17. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such
power lines or circuits as contact with them might be fatal.
19. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.

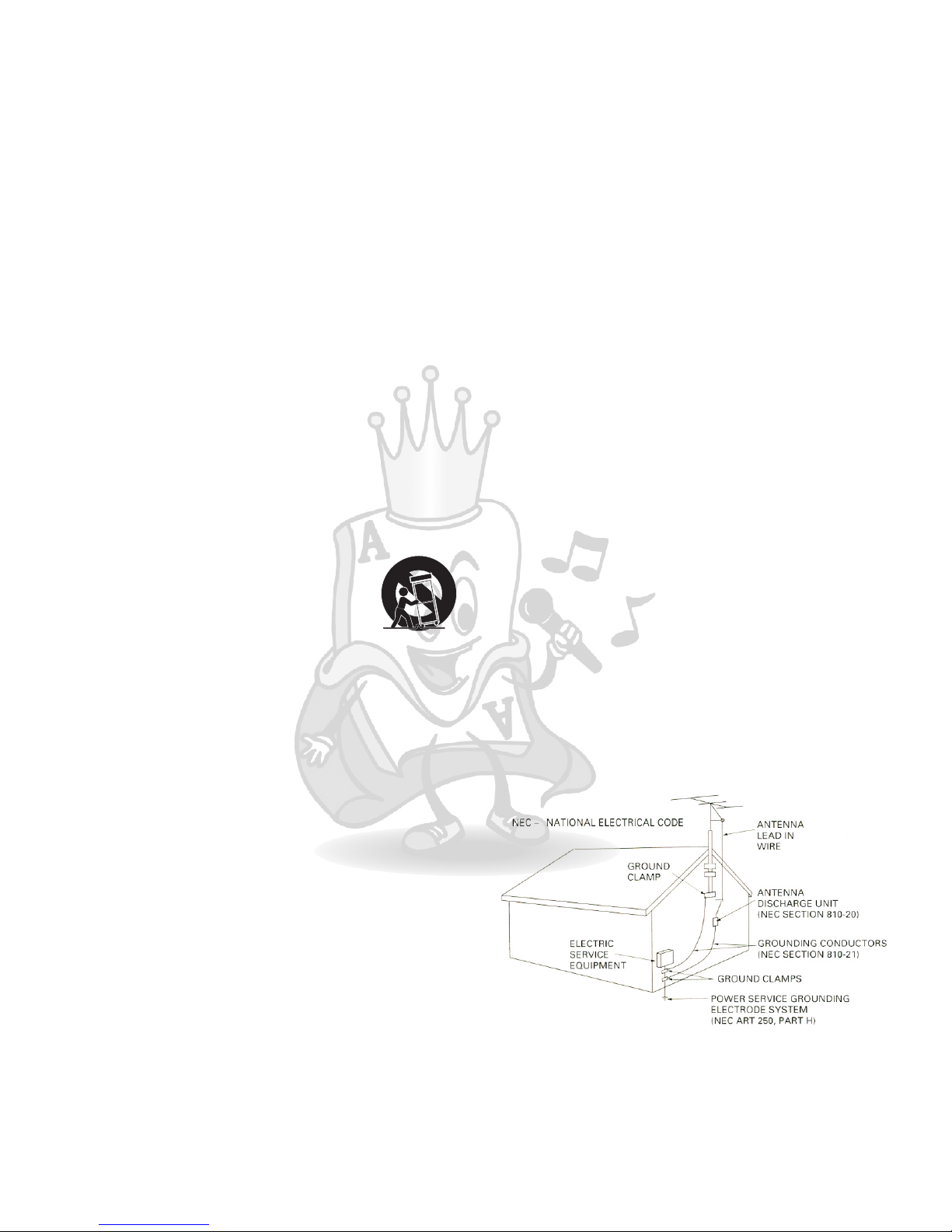

24. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded
so as to provide some protection against voltage surges
and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
See figure below.
25. Servicing
If your product is not operating correctly or exhibits a
marked change in performance and you are unable to
restore normal operation by following the detailed
procedure in its operating instructions, do not attempt to
service it yourself as operating instructions, do not attempt
to service it yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer
all servicing to qualified service personal.
18. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire
or electric shock.
3

Please check to make sure all accessories are included. If anything
is missing, please contact your dealer immediately.
- 1 AM-145 Mixing Amplifier
- 1 Remote Control
- 1 AC Power Adapter Cord
- User's Manual/Warranty Card
Table of Contents
Warnings and Caution 2
Safety Instructions 3
Table of Contents 4
Included Accessories 4
Front Panel Functions and Operation 5

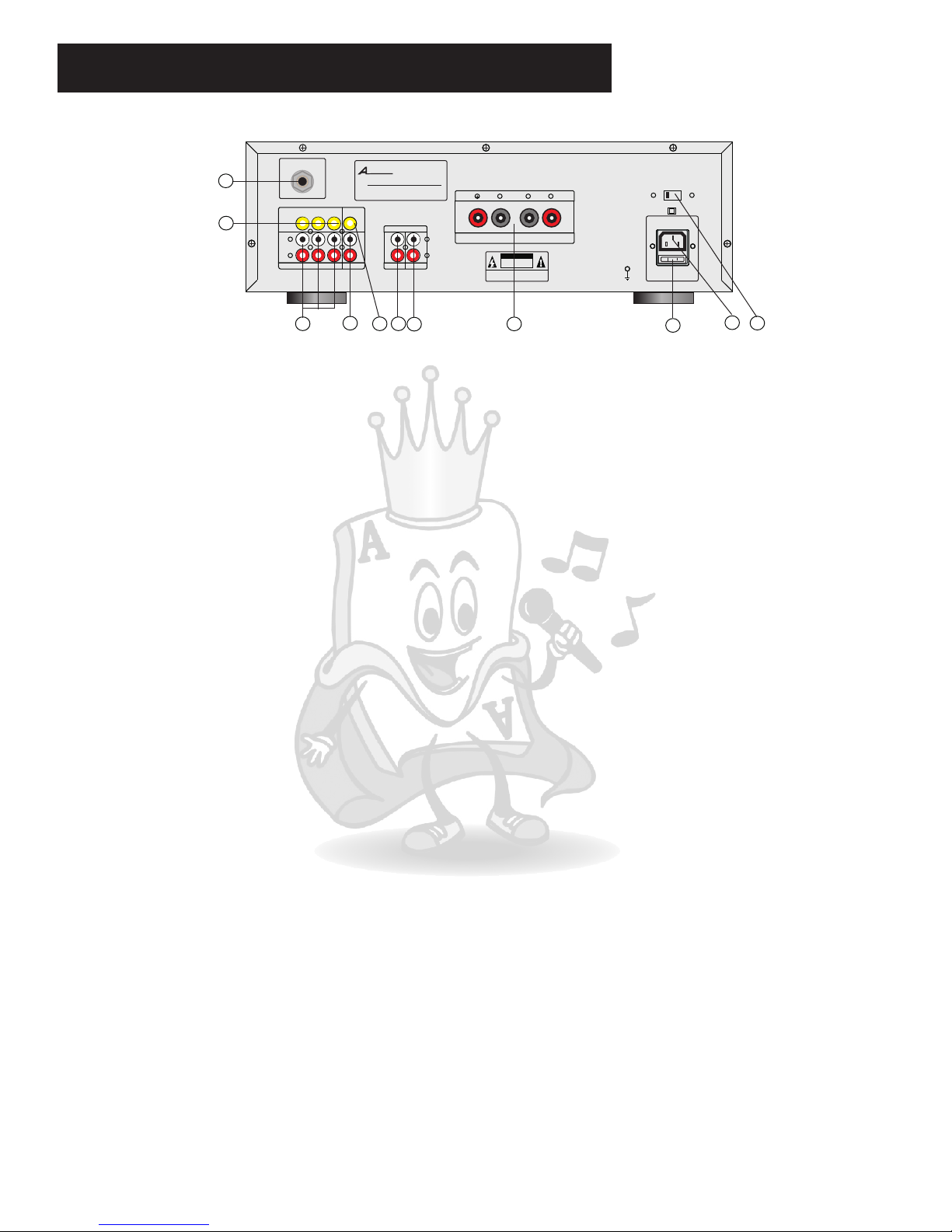

Rear Panel Functions and Operation 6
Remote Control Functions 7
Connections Diagrams 8
Troubleshooting 9
Specifications/ 10
Warranty Information 11,12
Manufacturer information
Acesonic AM-145
For easy reference, names of all functions and/or
components on the hardware and accessories are denoted
by upper-case letters.
Thank you for purchasing Acesonic's AM-145. Acesonic takes pride in
providing our customers with only the most advanced and highest
quality karaoke products on the market. Please read trough this USER’S
MANUAL before operation to ensure proper usage, and keep for future
reference. Enjoy!
Included Accessories
About this Manual
4

Front Pannel Function and Operation
1.MICROPHONE MASTER VOL control - Adjusts the overall volume output for all three(two
front & one back) microphone channels, collectively. Turn counter-clockwise to decrease
volume and clock-wise to increase volume.
2.MUTE button -Turns the music & vocal off
3.POWER ON/OFF button - Turns the AM-825 on or off.
4.DYNAMIC SOUND button - Toggles sound enhancement on or off. Turning DYNAMIC
SOUND3 helps to aesthetically enhance the output signal. Turning it OFF reverts the output
signal back to its original characteristics.
17.MUSIC MASTER VOL control - Adjusts the volume output for the selected music channels.
Turn counter-clockwise to decrease volume and clock-wise to increase volume.
5.MICROPHONE ECHO control - Adjusts the intensity (loudness of ECHO) of effect for all
microphone channels. Turn counter-clockwise to decrease intensity and clockwise to increase
intensity.
6.MICROOPHONE DELAY control - Adjusts the ECHO delay time (time of ECHO) of the echo
effect for the sound channels. Turn counter-clockwise to decrease decay time and clockwise to
increase decay time.
7.MICROPHONE BASS control - Adjusts the low frequency setting for microphone inputs.
Turn counter-clockwise to decrease and clockwise to increase.
8.MICROPHONE TREBLE control - Adjusts the high frequency setting for microphone inputs.
Turn counter-clockwise to decrease and clockwise to increase.
9.MICROPHONE INPUT jacks(MIC 1 & MIC 2) - 1/4 inch inputs for microphones. There is an
additional microphone input on the rear panel.
10.INPUT SELECTION button - Sets the input source selection to manual mode. You can
switch input from DVD, TAPE, VCD,to AUX.
11.MUSIC BASS control - Adjusts the low frequency(Bass) setting for music. Turn counter-
clockwise to decrease and clockwise to increase.
12.MUSIC TREBLE control - Adjusts the high frequency(Treble) setting for music. Turn
counter-clockwise to decrease and clockwise to increase.
13.MUSIC BALANCE control - Pans the music output to the stereo left and right channels.
Turn counter-clockwise to gradually pan to the stereo left channel. Turn clockwise to gradually
pan to the stereo right channel. Center the knob for equal output from both stereo left and right
channels.
14.MUSIC LOUDNESS button - Select between loudness and normal music sound.
15.VIDEO INPUT jacks (AUX) -VIDEO - VIDEO RCA input.
16.AUDIO/VIDEO INPUT jacks (AUX) -R- AUDIO RIGHT RCA input. L-AUDIO LEFT RCA input.
14.INFORMATION DISPLAY WINDOW - To show the information of input selection and music
frequency level.
5
11
234
1512
67910 14
18
13
15 16
817
REMOTE
AM-145 80-WATTS KARAOKE MIXING AMPLIFIER
MIC VOL MUSIC VOLUME
DOWN UPUP
ON
OFF
POWER
DYNAMIC
MUTE OFF
AUX
VCD
TAPE
DVD LOUDNESS
MUSIC BALANCE
MUSIC BASS MUSIC TREBLE
MIN MAX
MIC 1 MIC 2
MIC DELAY
MIC ECHO MIC BASS MIC TREBLE
MIN MAX MIN MAXMAX MIN MIN MAX
AUX INPUT
R
VIDEO L
DOWN
R
L
MIN MAX
MUTE ON
cesonic
AUX
VCD
DVD
TAPE
DYNAMIC
OFF
LOUDNESS
ON
SOUND ON SOUND OFF

Rear Panel Function and Operation
1.MIC #3 INPUT jack - 1/4 inch inputs for microphones. AUDIO/VIDEO INPUT jacks
2.VIDEO INPUT jacks (VCD,TAPE and DVD) -VIDEO RCA inputs for these three source inputs.
3.AUDIO INPUT jacks (VCD,TAPE and DVD) -Each columm consists of a complete set of
AUDIO LEFT & AUDIO RIGHT RCA inputs.
R - AUDIO RIGHT RCA input. Connect to the audio right output from an external component.
L - AUDIO LEFT RCA input. Connect to the audio left output from an external component.
4.AUDIO OUTPUT jacks-
R - AUDIO RIGHT RCA output. Connect to the audio right input on an external component.
L - AUDIO LEFT RCA output. Connect to the audio left input on an external component.
5.VIDEO OUTPUT jacks-VIDEO RCA output. Connect to the video input on an external
component like TV or monitor.
6.AUDIO LINE OUTPUT jacks- AUDIO RCA outputs provide line audio signal to other external
component like another amplifier.
7.SUB WOOFER LINE OUTPUT jacks- AUDIO RCA outputs provide line audio signal to other
external sub woofer component.
8.SPEAKER SYSTEM - One set of banana connector ports provide audio output to stereo
external speakers. Banana connector ports designed to be used with bare speaker wire as well
as banana connectors. The LEFT and RIGHT outputs each consist of a positive (+, red) and
negative (-, black) signal that correspond with the inputs on each speaker. (Please see
connection diagram on page 8 for proper configuration)
9.POWER FUSE-Replaceable 250V/T10A fuse to protect the machine in 110V using condition.
10.AC inlet - Male inlet for power cable.
11.AC 115/230V SELECT - Voltage selection switch. Push the switch right for 115V, and left for
230V. (Note: different regions of the world use different voltage strengths. Please check to make
sure the correct voltage is selected for your area.)
16.COMPONENT VIDEO OUTPUT jacks - RED, GREEN, BLUE component video RCA
outputs. Connect to the red, green and blue component video inputs, respectively, on an
external component.
17.COMPONENT VIDOE INPUT jacks(from BGM and DVD input) - RED, GREEN, BLUE
component video RCA inputs. Connect to the red, green and blue component video outputs,
respectively, from an external component.
6
2
34567910 11
8
1
L
R
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTORE
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION
KARAOKE AMPLIFIER
MODEL:AM-145 INPUT:AC115V-230V
S/N
CITY OF INDUSTRY,CA,USA
acesonic.com
ces onic
MIC 3 INPUT
VCD
VCD
VIDEO
INPUT
AUDIO
INPUT
L
R
DVDTAPE AUDIO OUT
DVD VIDEO OUT
OUTPUT
LINE SUB
RIGHT
SPEAKER SYSTEM(4-8 次)
+-
-+
LEFT
AC INPUT
~230/115V 50/60Hz
VOLTAGE SELECT
GND
TAPE
115V
AC 115V INPUT FUSE 250V/T5A
AC 230V INPUT FUSE 250V/T2.5A

Remote Control:
1.Manual Input Source Selection:
1.VCD button - Selects the external source
connected to the VCD INPUT.
2.TAPE button - Selects the external source
connected to the TAPE INPUT.
3.AUX button - Selects the external source
connected to the AUX INPUT.
4.DVD button - Selects the external source
connected to the DVDINPUT.
2.DYNAMIC ON/OFF buttons - Turns
sound(including music and microphone vocal)
enhancement on or off.
3.DYNAMIC ON/OFF buttons - Turns sound on
of off.
4.MIC VOL +/- buttons - Increase or decrease
the microphone master output volume.
5.MUSIC LOUDNESS ON/OFF buttons - Turns
music enhancement on or off.
6.MUSIC VOL +/- buttons - Increase or
decrease the music output volume.
7
1
2
3
4
5
6
VOL +
VOL -
MIC
VOL +
VOL -
MUSIC
MUTE
AM-145
DYNAMIC LOUDNESS
TAPE DVD
AUXVCD
cesonic

Player Connections
Make sure all power is disconnected from each component before connecting. Plug all cables
and cords securely to prevent unwanted noise.
RIGHT BOX LEFT BOX
DVD
1 2 3 4 5 10+
20+6 7 8 9 0
R
TAPE
1 2 3 4 5 10+
20+6 7 8 9 0
R
VCD
L
R
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTORE
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION
KARAOKE AMPLIFIER
MODEL:AM-145 INPUT:AC115V-230V
S/N
CITY OF INDUSTRY,CA,USA
acesonic.com
cesonic
MIC 3 INPUT
VCD
VCD
VIDEO
INPUT
AUDIO
INPUT
L
R
DVDTAPE AUDIO OUT
DVD VIDEO OUT
OUTPUT
LINE SUB
RIGHT
SPEAKER SYSTEM(4-8 次)
+-
-+
LEFT
AC INPUT
~230/115V 50/60Hz
VOLTAGE SELECT
GND
TAPE
115V
AC 115V INPUT FUSE 250V/T5A
AC 230V INPUT FUSE 250V/T2.5A
8

Troubleshooting
If you are having problems operating the AM-145, or suspect something is wrong with the unit,
please check the troubleshoot list below to see if the issue is a result of incorrect operation
rather than equipment malfunction. If you are still unable to resolve the problem, please
contact our Acesonic tech. service center at 626-820-0670.
Symptom Possible Causes Solution
Will not turn on AC power adapter cord is
incorrectly attached or not
plugged into outlet
Incorrect input source selected
Check both the AC adapter connection as well as the AC outlet connection.
Check the fuse below the AC adapter and see if it is broken.
Check to make sure the correct corresponding button is pressed on the input
selector in relation to your audio source.
No audio can be
heard, audio signal
meter shows signal
MUSIC VOL control is down
Poor or incorrect output
connection to speakers or other
external units, or bad/defective
cables, wires or connectors
Poor or incorrect input
connection from audio source
unit, or bad/defective cables,
wires or connectors
Check to see if MUSIC VOL control is all the way down. If so, turn the knob slowly
clockwise.
Double check all output connections to speakers or other units. Try using another
set of cables/cords. Make sure to turn POWER OFF before reconnecting cables.
Double check all input connections from audio source units. Try using another set
of cables/cords. Make sure to turn POWER OFF before reconnecting cables.
No audio can be
heard, audio signal
meter DOES NOT
show signal
No microphone
signal can be heard
Microphone controls are turned
down
Check MIC MASTER VOL and all MIC VOL controls to see if they are turned
down. If so, turn the knob slowly clockwise.
Poor or incorrect input
connection from microphone, or
bad/defective cables, wires or
connectors.
Double check all microphone connections. Try using another cable/cord. Make
sure to turn MIC MASTER VOL down before reconnecting cables.
Unpleasant howling
and screeching heard
from speakers
Batteries are exhausted or
positioned incorrectly
Place microphones further away from speakers. Face microphones away from
speakers.
Replace with fresh batteries or double check battery positioning.
Remote is out of range or there
is an obstruction
Move closer to the AM-825 or make sure no objects are obstructing your view of
the unit.
Remote control not
functioning
Microphone feedback
9

Specifications
Maximum Output
40W + 40W/ 8 Ohm Max
RMS (continuous) Output 60W + 60 W/ 4 Ohm RMS
Microphone Input Sensitivity <20mV
Music Input Sensitivity 300mV
Microphone Frequency Response 20hz – 20Khz/ 3db
Music Frequency Response 20hz – 20Khz/ 3db
Microphone EQ characteristics Treble: +/- 5dB (10Khz), Bass: +/- 5dB (100hz)
Music EQ characteristics Treble: +/- 5dB (10Khz), Bass: +/- 5dB (100hz)
Speaker Wattage Impedance 4 Ohm – 8 Ohm
Supply Voltage AC 110V - 120V or AC 220V - 240V (switchable)
AM-145 Specifications
1 Year Manufacturer Warranty
Lifetime Technical Support
Design in U.S.A
Technical Support: [phone]
Address:161 South 8th Avenue
City Of Industry,
CA 91746-3208, USA
Website: www.acesonic.com
10

Detach this portion and mail it to the factory
MODEL ACESONIC AM-145 SERIAL NO. PURCHASE DATE
CITY STATE ZIP
E-MAIL ADDRESS TELEPHONE
The following information is appreciated, but not required:
Dealer's name and address:
What other products and/or product changes would you like to see Manufactured?
Any other comments:
NAME: ADDRESS:______________________________________________
IP
TO VALIDATE YOUR WARRANTY: Fill out the attached warranty card, be sure to include the model and serial number of
the unit since this is how warranties are tracked. If your Acesonic product was purchased in the U.S., mail the completed
