ACME MAI 2Pump Pictor Instruction manual

Pictor Quick User Guide
Pour water into the hopper.
Connect hose to the coupling.
Turn on the machine and wait for the water to be pumped out og the hose. (Pay attention
to the water level in the hopper. Ensure that it does not fall below the minimum material
level, which is the neck of the hopper.)
Stop the machine once the water comes out of the hose.
1.
2.
3.
4.
Preparation
Pour your fully mixed material into the hopper.
Start the pump and allow the material to push the remaining water out of the hose.
When the material starts to come out of the hose, you can start your work. (ALWAYS keep
the material above the minimum material level. DO NOT dry run the pump. there must be
at least water that is in the pump.
1.
2.
3.
Pumping
MAI 2Pump Pictor Quick User Guide
pg 1
Minimum Material Level Neck of the Hopper

Stop the pump when the job is finished. (You can pump out the remaining material until
the minimum material level)
Use water to clean the hopper.
Disconnect the hose from the coupling, insert a wet sponge ball into the hose. (DO NOT
disconnect the hose if there is any pressure shown in the pressure gauge. Use the reverse
function to reduce the pressure to 0before any further cleaning work can be made)
Reconnect the hose and start the pump. Wait for the sponge ball to come out of the hose.
Repeat step 3 & 4 as necessary until the water is clear
Disconnect the hose and remove the nuts that are holding the rotor stator to pour out of
remaining water inside the hopper.
Inject grease into the pump from the injection point to remove material residue from the
pump gasket. Keep injecting until the grease is out of the pump gasket.
1.
2.
3.
4.
5.
6.
7.
Stopping & Cleaning
Pictor Quick User Guide
pg 2

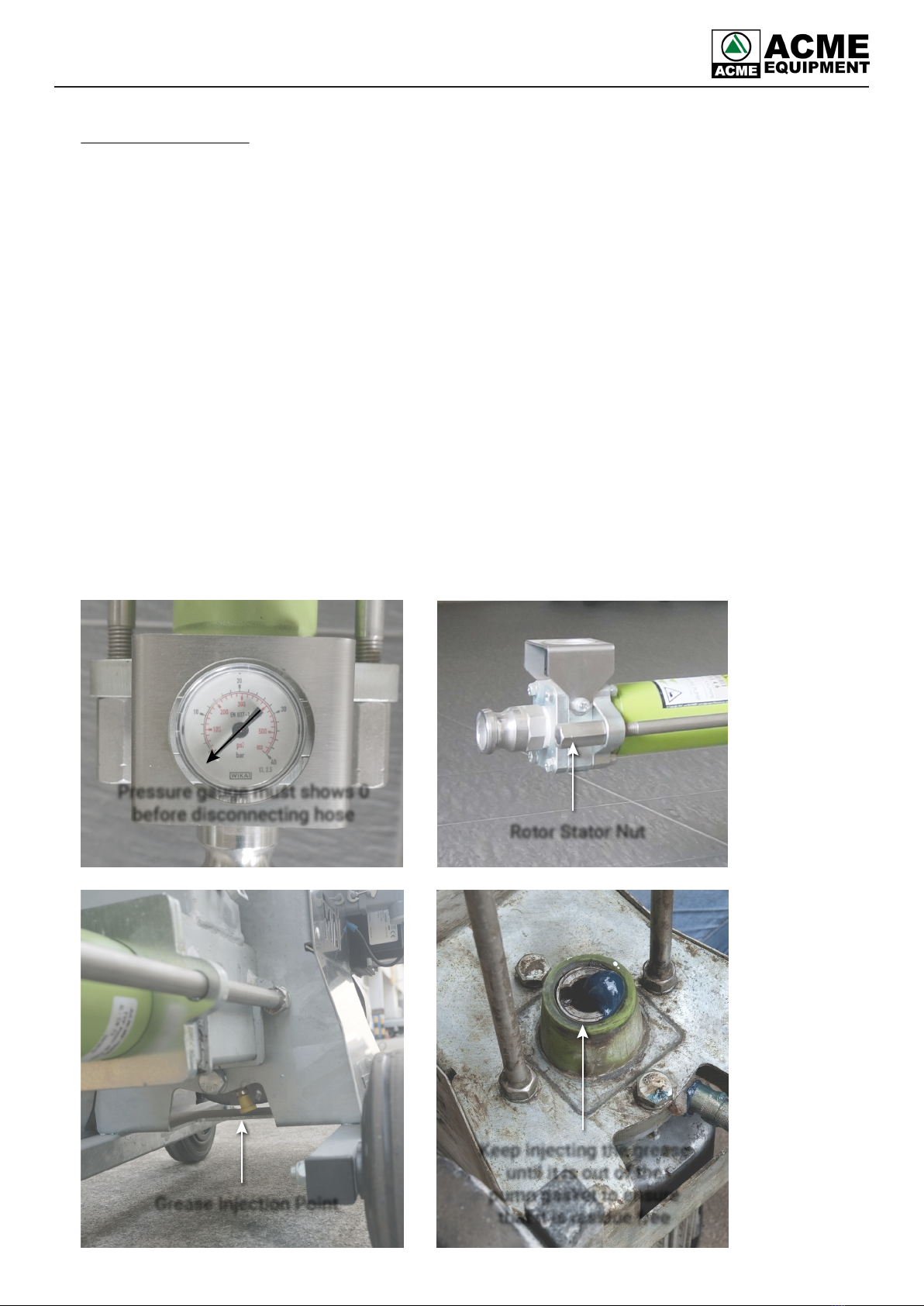

Pressure gauge must shows 0
before disconnecting hose Rotor Stator Nut
Grease Injection Point
Keep injecting the grease
until it is out of the
pump gasket to ensure
that it is residue free
