ACO QuARTz Lightline User manual

ACO L ight l i n e
QuARTz by ACO

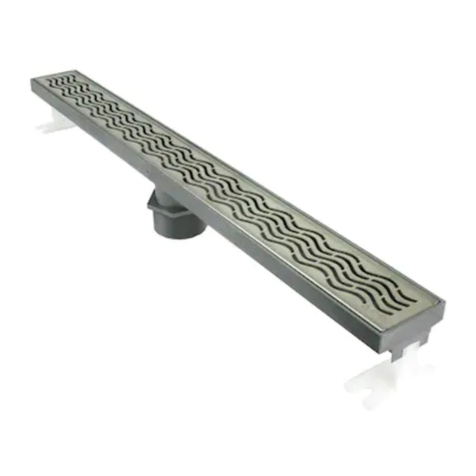

ShowerDrain Lightline
Installation & Operation
Product Description
ACO Lightline contains two low-voltage battery-operated LED units which fit directly into the
QuARTz by ACO ShowerDrain channel grating. These units will come on automatically as
soon as they come in contact with water and will go off approximately two minutes after
the shower is turned off.
Charging the LED Unit
The LED unit must be fully charged before installing for the first time. Make sure the LED
unit is clean and dry, then insert it into the charger as shown in the picture below. Note the
LED unit profile orientation before fitting it into the charger.
Connect the main adaptor to the charger and turn the power on. Control indicators will begin
to blink. The charging process can take up to 18 hours to complete. The charging is complete
when the control indicator stops flashing and remains continuously illuminated.
Note
The i
n
dicators will blink
quickly if the charge level in the LED unit is
low. If the indicators continue to blink quickly
for more than one hour, then the LED unit is
defective and should be replaced.
Under normal conditions of use, a fully -
charged module should last approximately
three months before needing a replacement.
For optimum performance, always keep
the LED unit fully charged to preserve its
lifespan.
Control indicators
Installing the LED Unit
1. Remove the grating from the shower
channel.
2. Remove the grating plastic locks from
the sides of the grating and insert the LED
unit, making sure the LEDs are facing
toward the center of the grating while the
angled top faces upward allowing water to
drain freely.
on the charging unit

ACO Lightlin e
Maintenance
Before charging the LED units, thoroughly clean and fully dry the entire surface prior to
inserting them into the charger.
The supplied charger is to be used ONLY with the ACO Lightline LED units. Use of this -
charger with any other rechargeable batteries may result in severe damage to the unit.
Be sure to exercise extreme caution when handling electrical devices around
water.
Technical Data
LED Units:
Four LED units available in red, green, blue, and rainbow
Battery: 3.6V - 2700mAh
Charger:
Input: 110 - 249V AC - 50/60Hz, 180mA
Output: 9V DC - 600mA
3. Secure the LED unit to the grating using
the plastic plugs provided.
4. Place gratingback into the drain channel.
ACO Polymer Products, Inc.
825 W.Beechcraft St
Casa Grande, AZ 85122
Tel: [phone]
Toll Free: [phone]
Fax: [phone]
www.QuARTzbyACO.com
