ACR Electronics GlobalWatch 2 AIS User manual

User Manual
Version 1.0
GlobalWatch™ AIS
Y1-03-0182-1 Rev. A
2
Y1-03-0182-1A

Product User Manual I
Version 1.0
Please read this first!
Warning:
Although ACR strives for accuracy in all its publications; this material may contain errors or
omissions, and is subject to change without prior notice. ACR shall not be made liable for any
specific, indirect, incidental or consequential damages as a result of its use. ACR components may
only be used in safety of life devices or systems, with the express written approval of ACR, as the
failure of such components could cause the failure of the ACR device or system. If these fail, it is
reasonable to assume that the safety of the user or other persons may be endangered.
Y1-03-0182-1A

GlobalWatch2
TM AIS User Manual II Version 1.0
1GLOBALWATCH2TM AIS USER INTERFACE ..........................................................................4
2GLOBALWATCH2TM AIS KEYBOARD ...................................................................................5
2.1 Explanation of the “Cursor Cross”........................................................................................ 5
2.2 Explanation of the Num-Locked and [NUM] Functions ........................................................ 5
2.3 Explanation of the Soft Keys................................................................................................ 6
2.4 Safety Keys.......................................................................................................................... 6
3GLOBALWATCH2TM AIS SCREENS .....................................................................................7
3.1 Navigation Screen................................................................................................................ 7
3.1.1 Short Header................................................................................................................................ 9
3.1.2 Other Vessel Details .................................................................................................................... 9
3.2 Menu Structure ..................................................................................................................11
3.3 Main Menu ......................................................................................................................... 12
3.4 Sub-Menus Overview......................................................................................................... 13
3.4.1 Messages................................................................................................................................... 13
3.4.2 AIS Status .................................................................................................................................. 13
3.4.3 Voyage Settings – (User Password Protected) ......................................................................... 14
3.4.4 Ship Settings – (User Password Protected) .............................................................................. 14
3.4.5 Configuration – (User Password Protected) .............................................................................. 15
3.4.6 Service Configuration – (Service Password Protected)............................................................. 15
3.4.7 Display Settings ......................................................................................................................... 16
3.5 Sub-Menus Detailed .......................................................................................................... 17
3.5.1 Messages................................................................................................................................... 17
3.5.2 AIS Status .................................................................................................................................. 31
3.5.3 Voyage Settings (User Password Protected) ............................................................................ 36
3.5.4 Ship Settings (User Password Protected) ................................................................................. 39
3.5.5 Transponder Configuration (User Password Protected)............................................................ 43
3.5.6 Service Configuration (Service Password Protected)................................................................ 54
3.5.7 Display Settings ......................................................................................................................... 60
4SAFETY FUNCTIONS .......................................................................................................61
4.1 MOB Person over Board.................................................................................................... 61
4.2 Activating the SRM Safety Related Message Button......................................................... 63
5ABBREVIATIONS .............................................................................................................68
6CONTACT AND SUPPORT INFORMATION ............................................................................69
GlobalWatch2TM AIS Transponder
User Manual
Index Page Number
Y1-03-0182-1A

GlobalWatch2
TM AIS User Manual III Version 1.0
History of Changes
Date Version Status Comments Responsible
2004-02-20 1.0.0 Released created Team
Y1-03-0182-1A

GlobalWatch2
TM AIS User Manual 4 Version 1.0

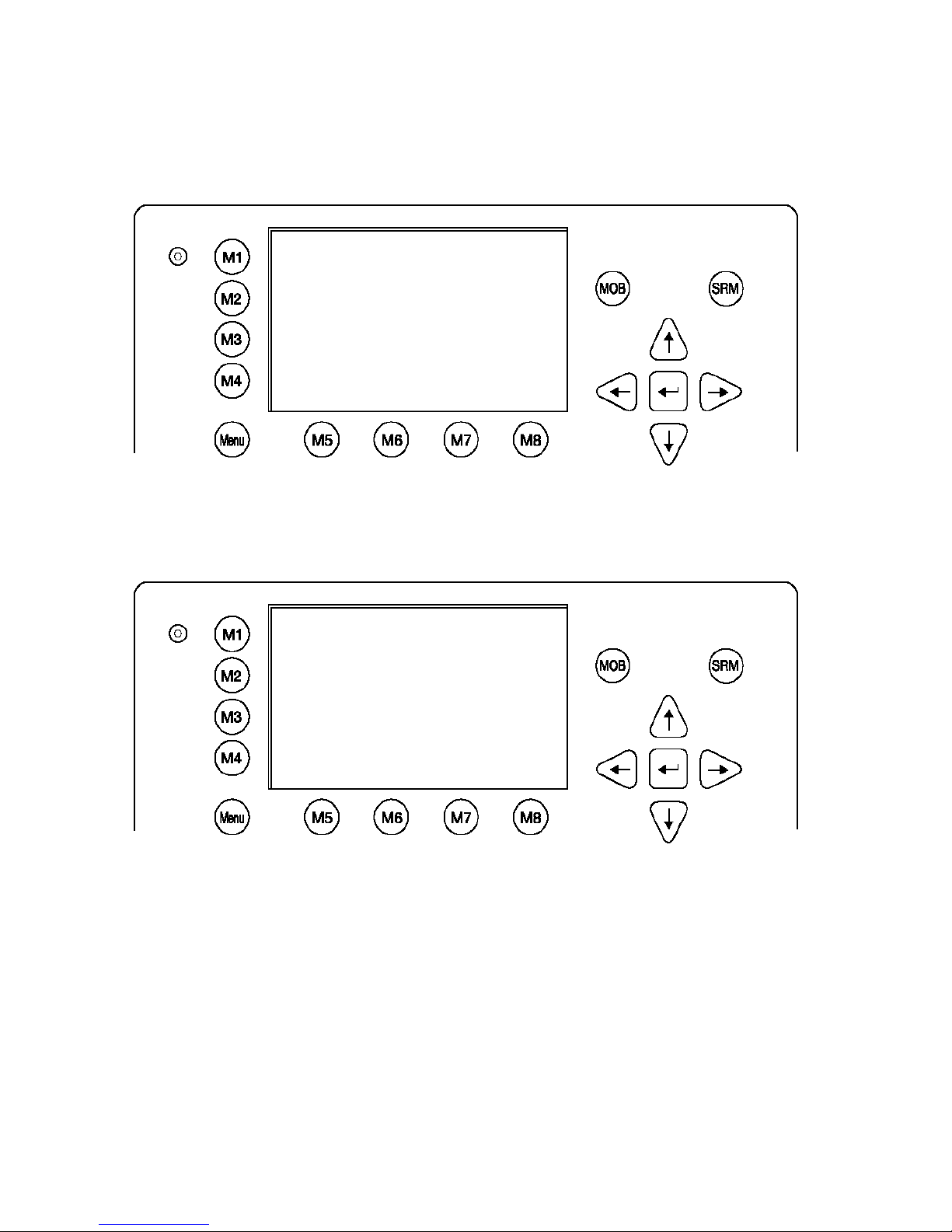

1 GlobalWatch2
TM AIS User Interface
Navigation Screen
Header (max. 3 lines)
_
_______________
_
Navigation Screen or
MENU Structure
(Content 13 lines)
Soft Keys [M1] – [M8]
Display
Safety Keys
Curser
Cross
Enter Key
Keyboard
Y1-03-0182-1A

GlobalWatch2
TM AIS User Manual 5 Version 1.0
2 GlobalWatch2
TM AIS Keyboard
The GlobalWatch2TM AIS is fitted with a full alphanumeric keyboard, with the following functions:
By pressing any key on the keyboard the letters are addressed.
Number symbols and special characters are addressed by holding down the
shift [×] key and simultaneously pressing the chosen key.
The characters ($; %; &; /; (; ); <; ^ ; \ ; [; ]; ) can be reached by holding down the Function [Fn] key
and pressing the chosen key.
2.1 Explanation of the “Cursor Cross”
The Cursor Cross allows navigation within the current
screen [Up] [Down] [Left] [Right].
In addition to the actually displayed [Enter] button, the
center of the cursor cross always has the Enter functionality.
2.2 Explanation of the Num-Locked and [NUM] Functions
The NUM-Locked function is enabled after pressing the Function [Fn] Key and the Shift [×] Key.
It is possible to disable the Num-Lock Function by pressing the Function [Fn] Key and the Shift [×]
Key.
Tip: The GlobalWatch2TM AIS automatically changes the keys “Q” through to “P” to numerical input
when the current application requires numbers, rather than letters to be input. This feature is
enabled when [NUM] appears on the bottom left hand side of the screen.
Y1-03-0182-1A

GlobalWatch2
TM AIS User Manual 6 Version 1.0
2.3 Explanation of the Soft Keys
The Soft Keys are divided into vertical static keys [M1-M4] and horizontal dynamic keys [M5-M8],
which differ in function according to the current application.
Soft Key Definition
[M1] Reserved for future use
[M2] Reserved for future use
[M3]:
Safety Message
This Soft Key allows direct Message Writing. Either broadcast or addressed messages
can be sent in this mode.
[M4]:
Display Settings - Brightness and Contrast Regulator
This Soft Key allows the Display Settings to be changed between Daytime,
and Nighttime Modes.
[Menu]: Go to Main Menu or return to the Navigation View Screen.
[M5] – [M8]: These Soft Keys are described in individual screens
2.4 Safety Keys
The GlobalWatch2TM AIS is fitted with Safety Keys, which allow the user to automatically send urgent
messages without the necessity of navigating the Menus.
[MOB]
The MOB Button sends out precise position of an MOB incident to Addressed
Vessels, therefore allowing the message to be sent to a vessel closest to
accident location.
[SRM] The SRM Button sends out emergency Broadcast Safety Related Messages to
all ships in the Vessel Listing.
Note:
For detailed description of the Safety Functions see Chapter 4.
Y1-03-0182-1A

GlobalWatch2
TM AIS User Manual 7 Version 1.0
3 GlobalWatch2
TM AIS Screens
The Display is divided into two different modes.
Navigation Screen - Standard Screen, automatically visible
Menu Structure - visible after pressing the [Menu] Soft Key
3.1 Navigation Screen
This screen provides the user with Navigation Data from the own vessel and lists all other vessels
within receiving range. This screen automatically appears after a period of 60 seconds of user
inactivity on the Transponder. The Navigation Screen can also be reached manually by pressing the
[M2] button once from the Main Menu Screen.
Lines 1 – 3 of the Navigation Screen refer to own vessel, and display Latitude and Longitude, Speed
Over Ground, Course Over Ground, Heading, Date and the UTC.
After line 4, all data refers to Other Vessels within receiving range.
Dynamic Keys: Navigation Screen
[M5] Select desired vessel
for Vessel Details
[Up] /
[Down]
Scroll Vessel Listing
Pages
[Enter] Select desired vessel for
Vessel Details
[Left] /
[Right]
Scroll Vessel Listing
Pages
LAT:N 1^27.845'ExtSOG:34.6kn 11/26/2002
LON:E 0^21.289'IntCOG:173.0^ 10:52:26
IntGPS: 3D ExtHDT:222^ Reg6 ! 3A 1T
001/021..ShipName....RNG.BRG..SOG..COG..
1>DOREEN-----------> N/A 120 22.2 301.5
2>FINE EAGLE------->0.00 N/A 13.1 359.9
3>SYLVAEPSILON----->0.10 23 32.1 203.2
4>ESSOTOKYO-------->0.43 99 10.0 120.3
5>OLYMPIAHIGHWAY FE>0.59 342 21.2 50.0
6>SANEI------------>0.80 272 32.1 270.1
7>KATOO------------>1.00 321 21.2 200.8
8>OLYMPIA PALACE--->1.34 277 [BASESTAT]
9>MINILOG---------->1.96 201 21.7 102.2
10>ALIBRAHIMYA----->2.66 340 22.1 30.3
11>ATLANIC--------->2.75 121 N/A N/A
12>BWRTZ123-------->3.36 66 24.1 2.9>
Y1-03-0182-1A

GlobalWatch2
TM AIS User Manual 8 Version 1.0
Own Vessel Data
LAT:N 1^27.845'ExtSOG:34.6kn 11/26/2002
LON:E 0^21.289'IntCOG:173.0^ 10:52:26
LAT: Latitude
LON: Longitude
Date: The actual UTC - date (mm.dd.yyyy) and time (hh.mm.ss) are displayed on the top
right hand corner of this view.
IntGPS: 3D ExtHDT:222^ Reg6 A/
IntGPS Indicates normal or differential mode of GPS position.
2D or 3D: Indicates the precision of the GPS result.
Indicates the used position source:
(int) ext:
int. = GlobalWatch2TM AIS
GPS ext = vessel sensors
ExtHDT True Heading
Reg: Indicates the actual region of own vessel’s position. If no region number is displayed,
then the vessel is traveling on high sea and is outside a predefined region.
A/B: (A or B) Indicates the last transmitting channel in use.
Message (SRM) and Alarm (ALR) Indication
LAT:N 1^27.845'ExtSOG:34.6kn *3S2A
Queued alarms or messages, e.g. *3S2A are displayed in the date field (instead of the date) – in the
above example 3 Safety Related (3S) Messages, and 2 (2A) Alarms are in queue, and await viewing
and handling (acknowledgement or rejection) in the Message Inbox History.
Other Vessel Data
001/021..SHIPNAME....RNG.BRG..SOG..COG..
001/021 (E.g: Vessel 01 of 021) current or selected Vessel/ Total number of Vessels (max.
256 Vessels)
ShipName: Name of the Ship
RNG
Vessel Range
Note: The vessel closest to own ship, or where position data is unknown (N/A), is
listed first.
BRG Vessel True Bearing
SOG Speed Over Ground
COG Course Over Ground
A maximum of 12 vessels are displayed on the screen. If more than 12 vessels are currently being
received, the symbol [>] on the right bottom appears, indicating that there are further vessels to be
Y1-03-0182-1A

GlobalWatch2
TM AIS User Manual 9 Version 1.0
seen in the Vessel Listing. By pressing the [Right] key, it is possible to scroll to the next page for
further Vessel Listing, by pressing the [Left], the user scrolls back to the previous page.
Further details on any individual vessel can be obtained by scrolling down and selecting the desired
vessel by pressing [Enter]. A full explanation of the Vessel Details is given in the following section.
3.1.1 Short Header
A constant overview of the most important AIS navigation details, including own position and
distance of the three closest vessels is always displayed the first line. This information appears in
every Submenu and is called the “Short Header”.
N 1^21 E 0^14' |1>0.10|2>1.30|3>1.80nm
Own Vessel Position: N 1^21' E 0^14'
1> Closest vessel situated 0.10 nm away
2> Second closest vessel situated 1.30nm away
3> Third closest vessel situated 1.80nm away
3.1.2 Other Vessel Details
This screen shows the Dynamic, Voyage and Vessel Related Data, which is currently being
transmitted by a previously selected vessel.
Current Time and Selected Vessel Number in Vessel Listing:
Time 2:07 ---------------- POS: 0001/0021
Time:
The period of time which has elapsed since the last update is shown in minutes and seconds.
The update rate differs according to the respective vessels speed.
POS:
Indicates the number of the selected vessel (e.g. vessel 02 of 21) from the Vessel Listing and the
total number of vessels being received.
N 1^21' E 0^14' |1>0,10|2>1.30|3>1.80nm
Time 2:07 ------------------ POS:001/021
LAT : S 74-50'23 LON : W 9-34'19
Heading :77^ ROT :-0.2^/min l
IMO No. :90733283 MMSI:5004
ShipName:DOREEN CS:DORET6W
ShipType:Passenger ship
Length :310m Beam:73m
RefPoint:A190 B120 C10 D>=63m
Cargo :N/A or harmless
Draught :3.3m
Dest. :HAWAI
ETA :10/15 12:31
NavStat.:Moored
EPFDType:GPS
PosAcc :High<10m DTE :Available
Y1-03-0182-1A
