Acson international AWM-FW User manual

CONTENTS
1. NOMENCLATURE ..................................................................................................... 1
2. FEATURES ................................................................................................................ 8
3. APPLICATION INFORMATION ................................................................................. 10
4. SOUND DATA ........................................................................................................... 30
5. SELECTION PROCESS ........................................................................................... 33
6. ENGINEERING AND PHYSICAL DATA ................................................................... 54
7. PERFORMANCE DATA ............................................................................................ 83
8. DIMENSIONAL DATA .............................................................................................. 136
9. ELECTRICAL DATA ................................................................................................ 154
10. WIRING DIAGRAMS ............................................................................................. 159
11. SERVICING AND MAINTENANCE ........................................................................ 168
12. TROUBLESHOOTING ........................................................................................... 169
This manual supersede AFCU-2005

1. NOMENCLATURE
1
AWM 25 FWAL
AX
-
Production spec variation
Type of ref. connection
X : Not applicable
Electrical
A : 220 - 240V/1Ph/50Hz
F : 380 - 415V/3Ph/50Hz
U : 220 - 240V/1Ph/50Hz/60Hz
Piping
H : 4 pipes system
Capacity
25 : 21,000 Btu/h (Cooling)
Series
F : F series
Model Type
W : Chilled water fan coil
Model Name
WM : Wall mounted split type
CK : Ceiling cassette split type
CM : Ceiling exposed split type
CC : Ceiling concealed split type
DB : Ducted split type
Brand
A : ACSON

AWM-FW Product Line-Up
2
PCB - W1V3
PCB - W2-L
G8 Cooling handset
G8 Heat pump handset
Netware 2 (Cool/Heat)
SLM 3 (Heat pump)
SLM 3 (Cooling)
Valve/Valveless
Cool/Heat
CE mark
Right piping
Left piping
1/2" BSP (female) brass adaptor 5/8" BSP (female) brass adaptor
AXALx x xxxx x
AXAMx x xxxx x
AXAOx xxxxx x
AXBC xx xxx xx
AXBD x x xxx xx
AXALx x xxxx x
AXAMx x xxxx x
AXAOx xxxxx x
AXBC xx xxx xx
AXBD x x xxx xx
AXAOx x xxxx x
AXAPx x xxxx x
AXARx xxxxx x
AXBC xx xxx xx
AXBD x x xxx xx
AXAOx x xxxx x
AXAPx x xxxx x
AXARx xxxxx x
AXBC xx xxx xx
AXBD x x xxx xx
AXALx x xxxx x
AXAMx x xxxx x
AXAOx xxxxx x
AXBC xx xxx x x
AXBDxx xxxxx
AXALx x xxxx x
AXAMx x xxxx x
AXAOx xxxxx x
AXBC xx xxx x x
AXBDxx xxxxx
301W AXAB x x x x x x x
Model name
Nomenclature
Classification
AWM
05FW
07FW
10FW
15FW
20FW
25FW
Product Line-Up

Product Line-Up
RCM-DW & RCM-CBW Product Line-Up
3
PCB - W1V3
G6 Cooling
G6 Heat pump
SLM 3 (Heat pump)
NETWARE 2 (Cool/Heat)
Valve/Valveless
CE mark
3/4" BSP (female) brass union
Cool/Heat
AXBExx xxxx
AXBFx xxxxx
AXBGx x xxxx
AXBHx x xxxx
AXBExx xxxx
AXBFx xxxxx
AXBGx x xxxx
AXBHx x xxxx
AXBExx xxxx
AXBFx xxxxx
AXBGx x xxxx
AXBHx x xxxx
AXBIxx xxxx
AXBJx xxxxx
AXBKx x xxxx
AXBLx x xxxx
AXBIxx xxxx
AXBJx xxxxx
AXBKx x xxxx
AXBLx x xxxx
Model name
Nomenclature
Classification
RCM
20DW
25DW
30DW
40DW
50DW
PCB - W1V3
G6 Cooling
Valve/Valveless
CE mark
3/4" brass thread adaptor
Cool/Heat
07CBWUXBCxxxxxx
10CBWUXBCxxxxxx
15CBWUXBCxxxxxx
Model name
Nomenclature
Classification
RCM

Product Line-Up
ACK-AW/BW/CW & ACK-AWH Product Line-Up
4
PCB - W1V3
PCB - W2.0-4P
Valve/Valveless
CE mark
3/4" BSP (female) brass union
Auto air swing
4 pipe systems
Control (depend on panel)
PLCKAW-G6 Cooling
PLCKAW-G6 Heat pump
PLCKAW-Netware 2
PLCKAW-SLM3 Heat pump
PLCKBW-G6S Cooling
PLCKBW-G6S Heat pump
PLCKBW-Netware 2
PLCKBW-SLM3 Heat pump
PLCKCW-G6 Cooling
PLCKCW-G6 Heat pump
PLCKCW-SLM3 Heat pump
PLCKAWH-G12 Heat pump
20AWAXBDx xxxx xxxxx
25AWAXBDx xxxx xxxxx
30AWAXBDx xxxx xxxxx
40AWAXBDx xxxx xxxxx
50AWAXBDx xxxx xxxxx
15BWAXAEx xxxx x xxxx
20BWAXAEx xxxx x xxxx
25BWAXAEx xxxx x xxxx
10CWAXAAx xxxx x xxx
15CWAXAAx xxxx x xxx
20CWAXAAx xxxx x xxx
20AWHAXAA xxxxxxx x
25AWHAXAA xxxxxxx x
30AWHAXAA xxxxxxx x
40AWHAXAA xxxxxxx x
50AWHAXAA xxxxxxx x
ACK
Model name
Nomenclature
Classification PANEL

Product Line-Up
ACC-CW Product Line-Up
5
PCB - W1V3
Valve/Valveless
Cool/Heat
SLM 3 (Heat pump)
Netware 2 (Cooilng / Heat pump)
CE mark
Brass adaptor 3/4" BSP (Female) Brass adaptor 7/8" BSP (Female)
Filter
Valve Application only
Left piping
Right piping
AXAC xxxx
AXAGxxxx xx x x
AXAHxxx xxx x x
AXBA x x x x x
AXBBxxxx xx x x
AXAC xxxx
AXAGxxxx xx x x
AXAHxxx xxx x x
AXBA x x x x x
AXBBxxxx xx x x
AXAC xxxx
AXAGxxxx xx x x
AXAHxxx xxx x x
AXBA x x x x x
AXBBxxxx xx x x
AXAC xxxx
AXAGxxxx xx x x
AXAHxxx xxx x x
AXBA x x x x x
AXBBxxxx xx x x
AXAA xxxx
AXAExxxx xx x x
AXAFxxx xxx x x
AXBA x x x x x
AXBBxxxx xx x x
AXAA xxxx
AXAExxxx xx x x
AXAFxxx xxx x x
AXBA x x x x x
AXBBxxxx xx x x
Model name
Nomenclature
Classification
ACC
10CW
15CW
20CW
25CW
28CW
30CW

Product Line-Up
ACC-CW Product Line-Up
6
PCB - W1V3
Valve/Valveless
Cool/Heat
SLM 3 (Heat pump)
Netware 2 (Cooilng / Heat pump)
CE mark
Brass adaptor 3/4" BSP (Female) Brass adaptor 7/8" BSP (Female)
Filter
Valve Application only
Left piping
Right piping
AXAA xxxx
AXAExxxx xx x x
AXAFxxx xxx x x
AXBA x x x x x
AXBBxxxx xx x x
AXAA xxxx
AXAExxxx xx x x
AXAFxxx xxx x x
AXBA x x x x x
AXBBxxxx xx x x
AXAA x x x x
AXAE x x x x x x x x
AXAFxxx xx xx x
AXBA x x x x x
AXBBxxxx x xx x
AXAA x x x x
AXAE x x x x x x x x
AXAFxxx xx xx x
AXBA x x x x x
AXBBxxxx x xx x
Model name
Nomenclature
Classification
ACC
38CW
40CW
50CW
60CW

Product Line-Up
ADB-BW Product Line-Up
7
No Control
No Handset
No marking
No Valve
Brazing (IN/OUT OD28.6mm)
Filter
Right piping
Left piping
Horizontal flow
Vertical flow
AXAAxxxxxxx x
AXABxxxxxx xx
AXAAxxxxxxx x
AXABxxxxxx xx
FXAAxxxxxxx x
FXABxxxxxx x x
FXACxxxxxxx x
FXADxxxxxx x x
FXAAxxxxxxx x
FXABxxxxxx x x
FXACxxxxxxx x
FXADxxxxxx x x
Model name
Nomenclature
Classification
ADB
75BW
100BW
125BW
150BW

2. FEATURES
Space Saving
Different types of fan coil units are designed to be both versatile and space saving to suit every interior design. Ceiling
concealed type for the sophisticated, luxurious floor space saving, all kind of interior decoration; ceiling exposed type for
economical and space saving installation; etc.
Zone Control
These fan coil units can be installed in different zones as each unit operates independently. Zone control on energy
saving, different comfort requirement; better air distribution needs can therefore be easily achieved.
Standardisation Of Fan Coil Unit Control
The fan coil unit controller is standardized using W1V3 I.C, which enables the selection of valve / valveless and cooling
/ heating applications. This allows the user to choose the desired application by just plugging in or removing the jumpers
at certain connectors on the PCB. The advantages of these units are lesser inventory for finished goods stock and spare
parts. For more details, please refer to General Installation guide.
Unique Features For MWM-FW Series
Easy Installation
The wall mounted fan coil unit is easily installed because of its compact size, slimness and light weight. Slim and short
outdoor unit can be easily installed even in a narrow balcony and passageway and yet have a stable profile.
Space Saving
No space is required on either floor or ceiling. This newly developed super slim design for wall mounting maximises floor
space usage and enhance ceiling appearance where ceilings are low.
Quiet Operation
Cooling comfort is improved by whisper-quiet operation which is achieved by a tangential fan.
Excellent Air Distribution
Air discharge direction can be adjusted in four directions, manually or automatically by using LCD remote control, coupled
with good air flow, the unit provides excellent air distribution.
Facilitated Maintenance Ensured
The new design cassette filter is slide-out type which can be easily removed at the air inlet grille for cleaning. Maintenance
is easy for electrical components, piping and wiring as these are all easily accessible by merely removing front plastic
panel.
Wireless Remote Control
The compact LCD transmitter is able to operate the air conditioner unit within the distance of 9 meters. Fan motor speed
can be set at low/medium/high or automatic. Sleep mode automatically increase set temperature since room temperature
is lower at night thus achieving comfort surrounding. Air flow direction can be controlled automatically. Room temperature
is controlled by electronic thermostat. The unit can be preset to on and off automatically for maximum of 15 hours by using
timer on/off.

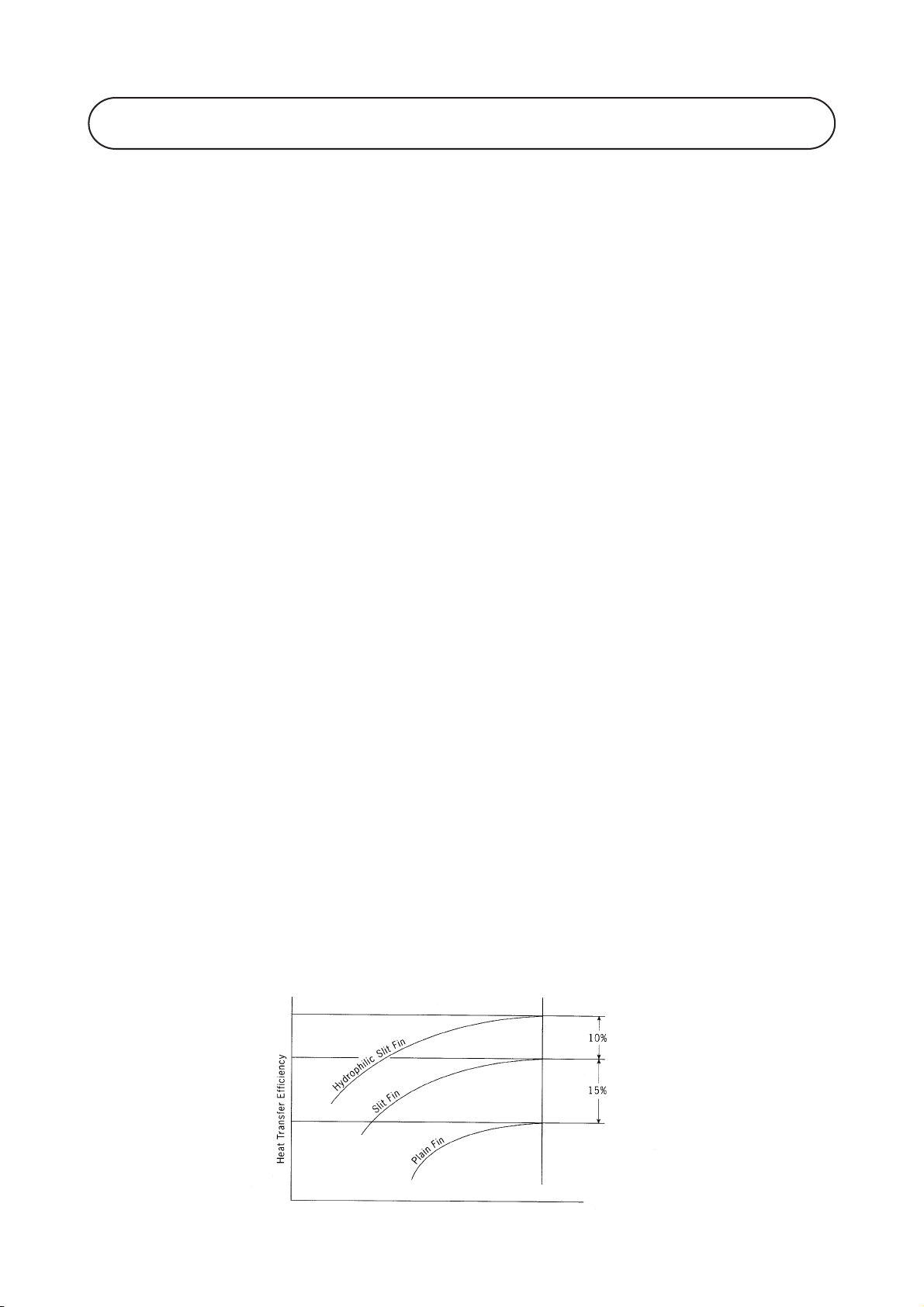

Slit Fin
The unique Hydrophilic slit fin has greatly improved the air flow and the contact surfaces with the air thus to boost the
cooling capacity.
8

Unique Features For ACK-AW/BW Series
Built In High Head Drain Pump
The unit comes with a built in high head drain pump. Condensate water can be pumped up to 700mm and drain out
smoothly.
4-way Air Discharge And Air Swing
These features greatly improve the air distribution in the conditioned space.
Wireless And Wired Controller Option
Wireless Handset is the standard controller. However if wired controller required, Netware2 & SLM3 wired controller is a
wise choice(optional).
Unique Features For RCM-DW Series
2-way Air Discharge And Air Swing
The 2-way air discharge couple with the air swing function, provide better air distribution in the conditioned space.
Easy Maintenance
The air filter and components can be easily accessed from the bottom of the unit. This make servicing and maintenance
become a simple task.
Wireless And Wired Controller Option
Wireless Handset is the standard controller. However if wired controller required, Netware2 & SLM3 wired controller is a
wise choice(optional).
Unique Features For ACC-CW Series
Elegance And Prestige
As the unit is installed above the ceiling with only the supply and return air grille exposed to view, the air conditioned space
will appear as elegant and prestigious as a centralized air conditioned area.
Evergreen Design
This unit will never become obsolete as the unit is completely concealed away. Interior decoration for maximum aesthetic
beauty as well as interior design is easily achieved.
Superior Air Distribution
As the conditioned air can be distributed to every corner of the area by air duct, this will ensure more pleasant living
environment, thus provide extra comfort to the occupants.
Optional Duct Accessories
The optional duct accessories makes the ducting and installation work so easy.
Wired Controller
Netware2 & SLM3 wired controller offers simple and flexibility in controlling the unit.
Unique Features For ADB-BW Series
Superb Air Distribution
These units are designed with high air flow and static, enables adequate distribution of air to the desired space. Providing
comfort to every corner of the room.
Reliability
The structures are strong and robust to ensure the product operation life.
Versatile
Multiple rooms can be cooled together by just using one unit of ADB.
9

3. APPLICATION INFORMATION
10

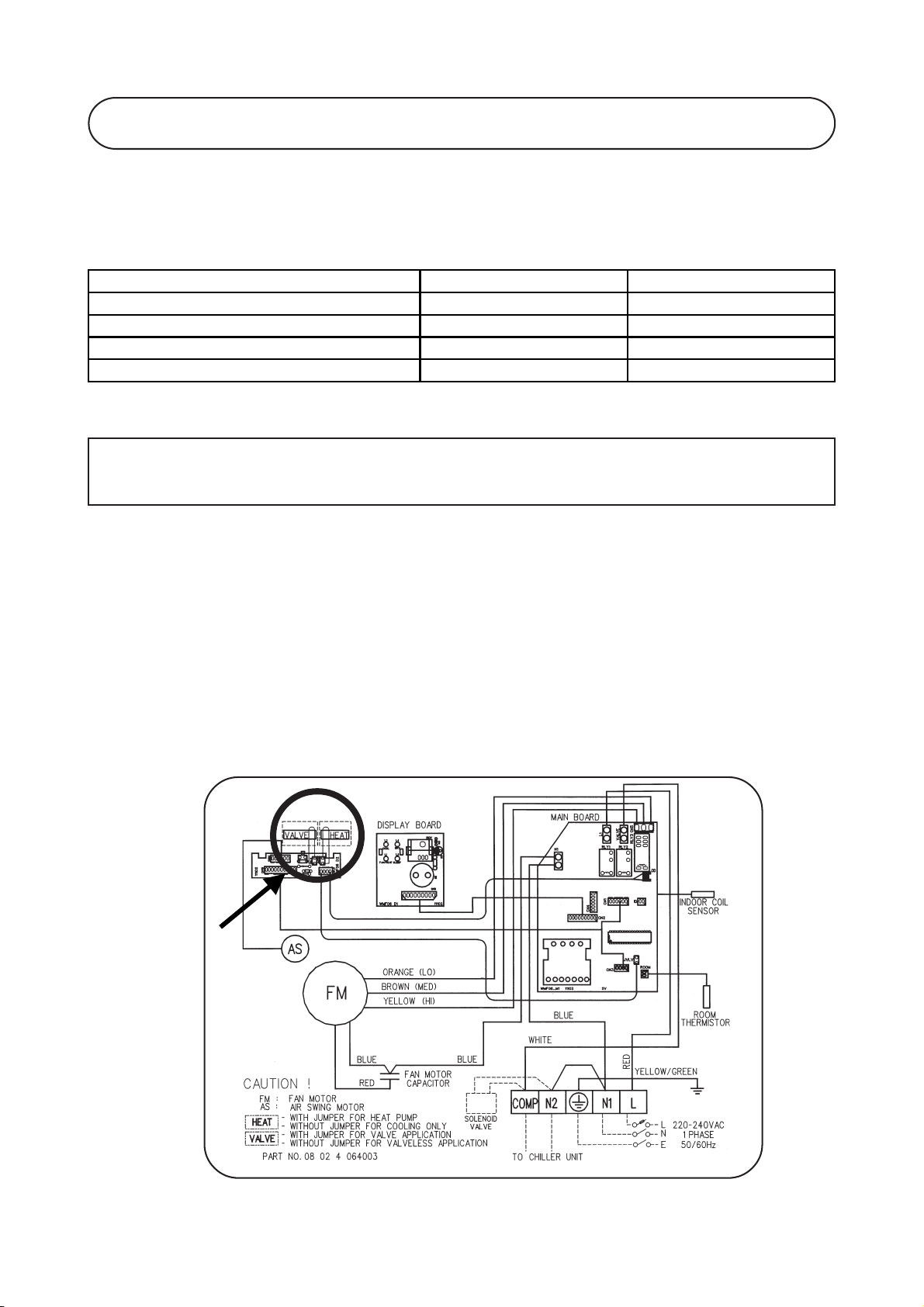

System Configuration
The standard controller board (W1V3) comes with a VALVE jumper and a HEAT jumper. The system can be
configured as the jumper selection listed below:
HEAT Jumper VALVE Jumper
Heatpump Mode & Valve Application √√
Heatpump Mode & Valveless Application √X
Cooling Mode & Valve Application X√
Cooling Mode & Valveless Application XX
CACA
CACA
CAUTION !UTION !
UTION !UTION !
UTION !
Disconnect the power supply to the unit before attempting to connect the wiring
VALVE & HEAT Jumper Location
Model: AWM 05-25FW / 301W
1. VALVE jumper is plugged into JVLV connector on the emergency switch board.
2. HEAT jumper is plugged into JMODE connector on the emergency switch board.

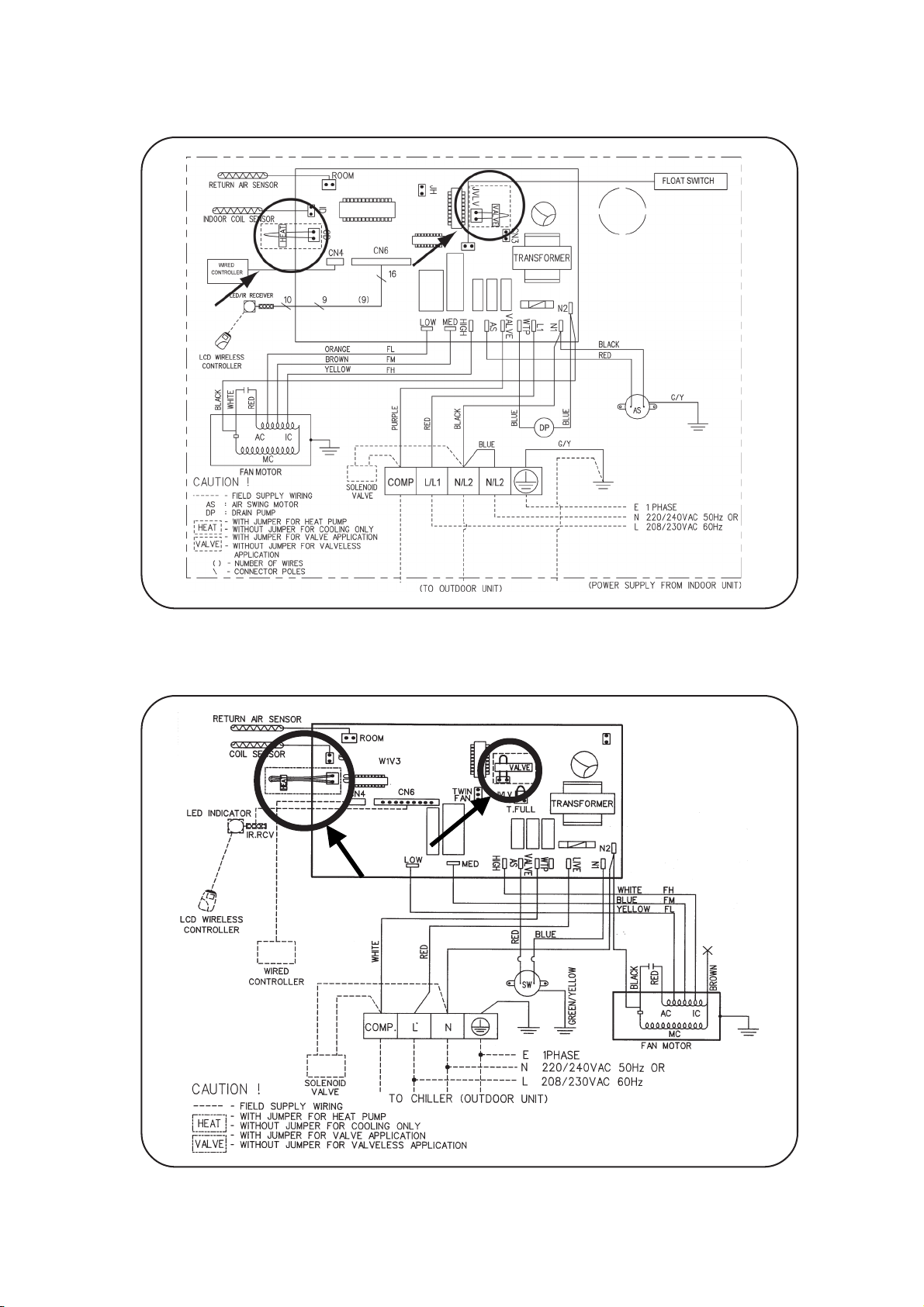

Model: ACK 20-50AW/AWH, ACK 15-30BW, ACK 10-20CW, RCM 20-50DW/CBW
and ACC 10-60CW
1. VALVE jumper is plugged into JVLV connector on the main board.
2. HEAT jumper is plugged into OD connector on the main board.

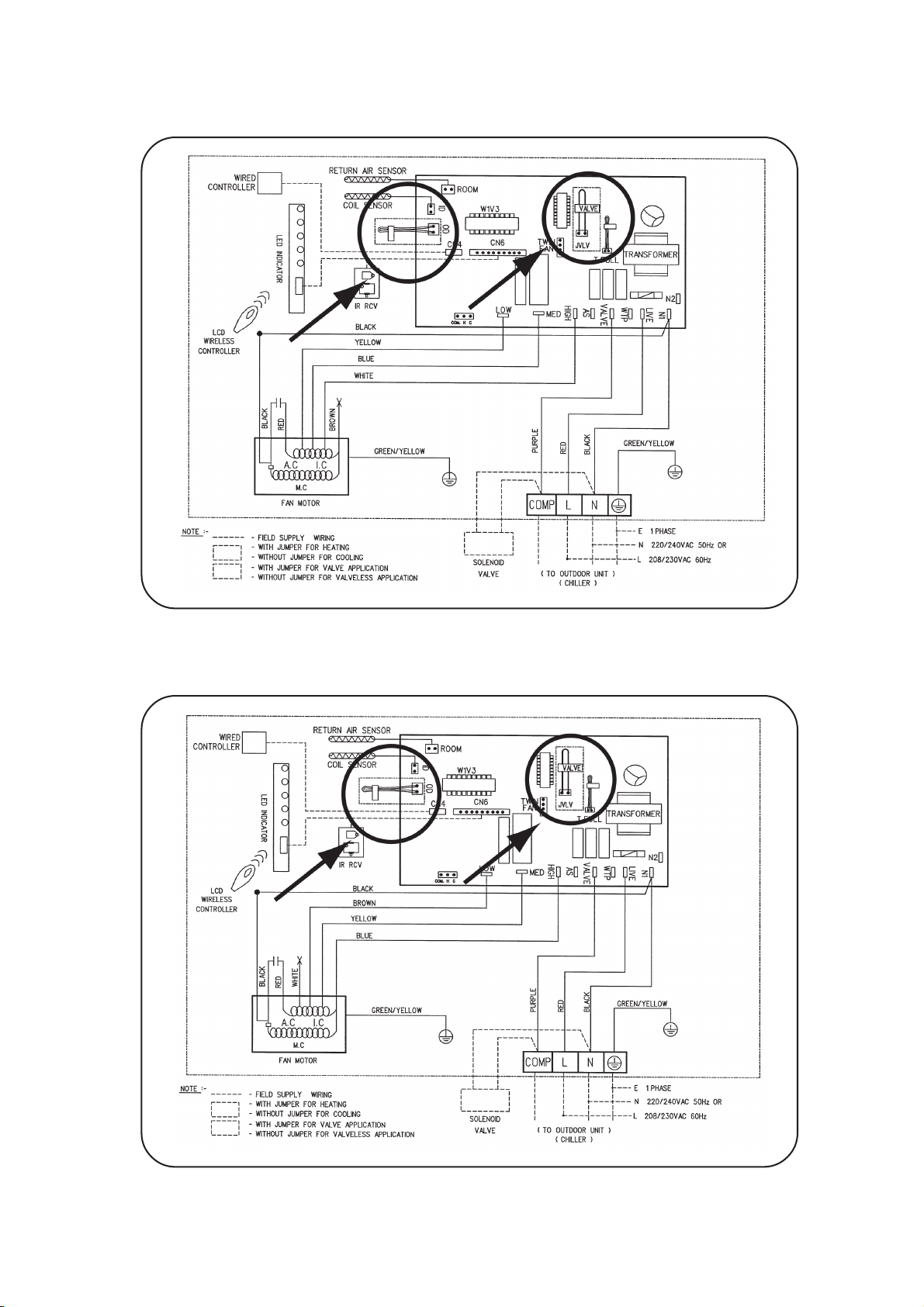

Model: AWM 05 / 07 / 10 / 15FW (G8 CONTROLLER)
√
Jumper Remained X Jumper Removed

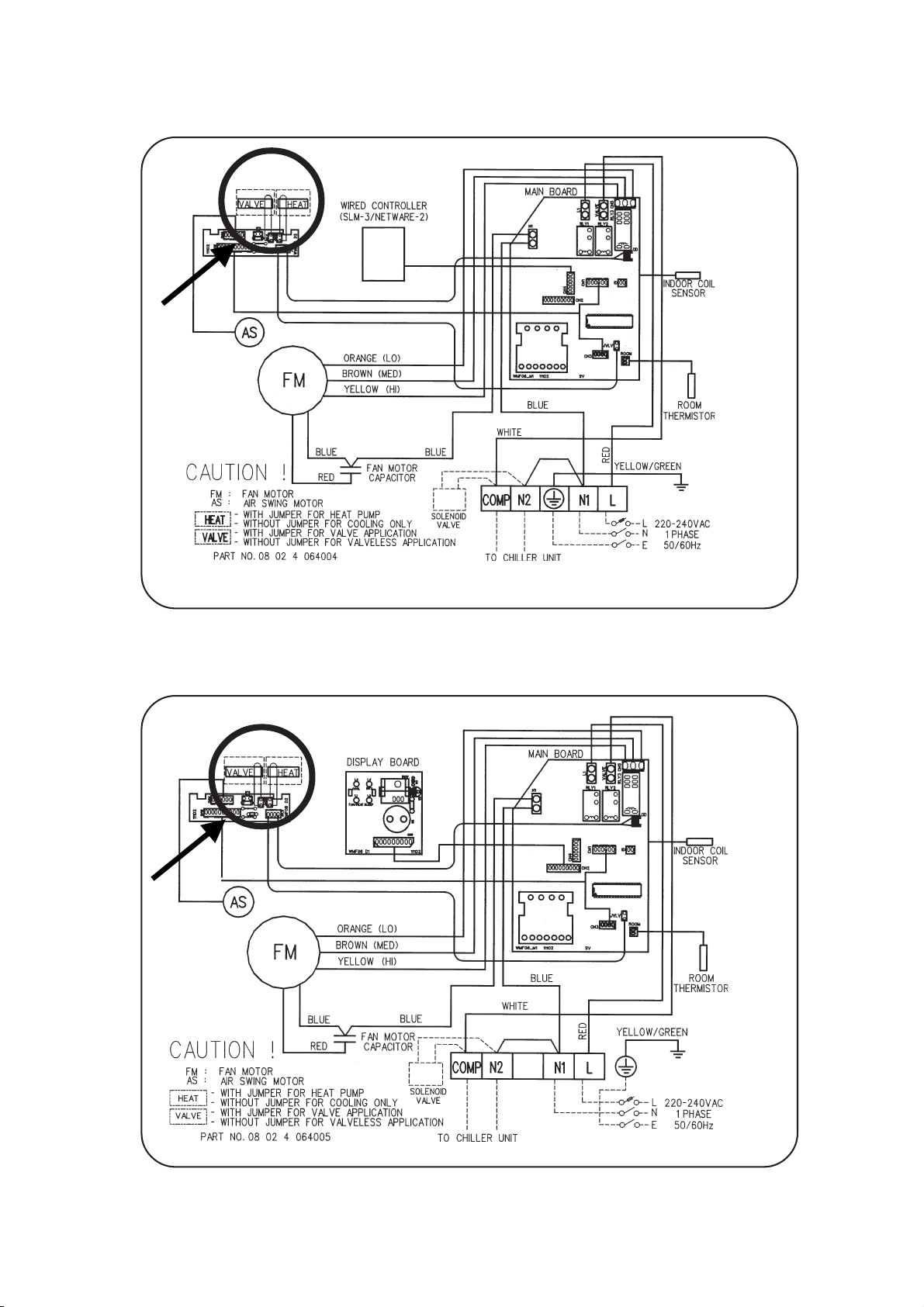

Model : AWM 05 / 07 / 10 / 15FW (NETWARE2 / SLM3 CONTROLLER)
Model : AWM 20 / 25FW (G8 CONTROLLER)
11

12

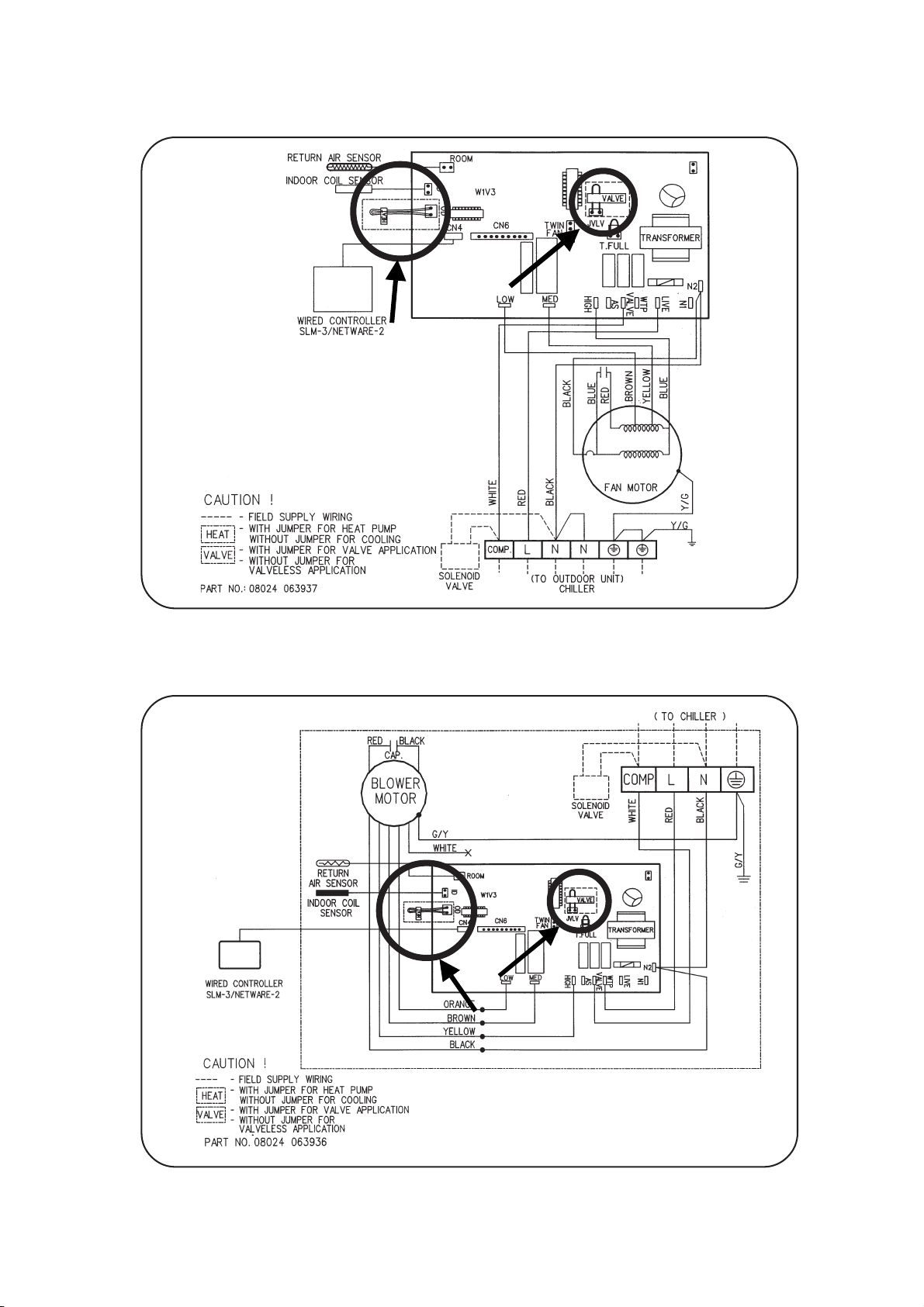

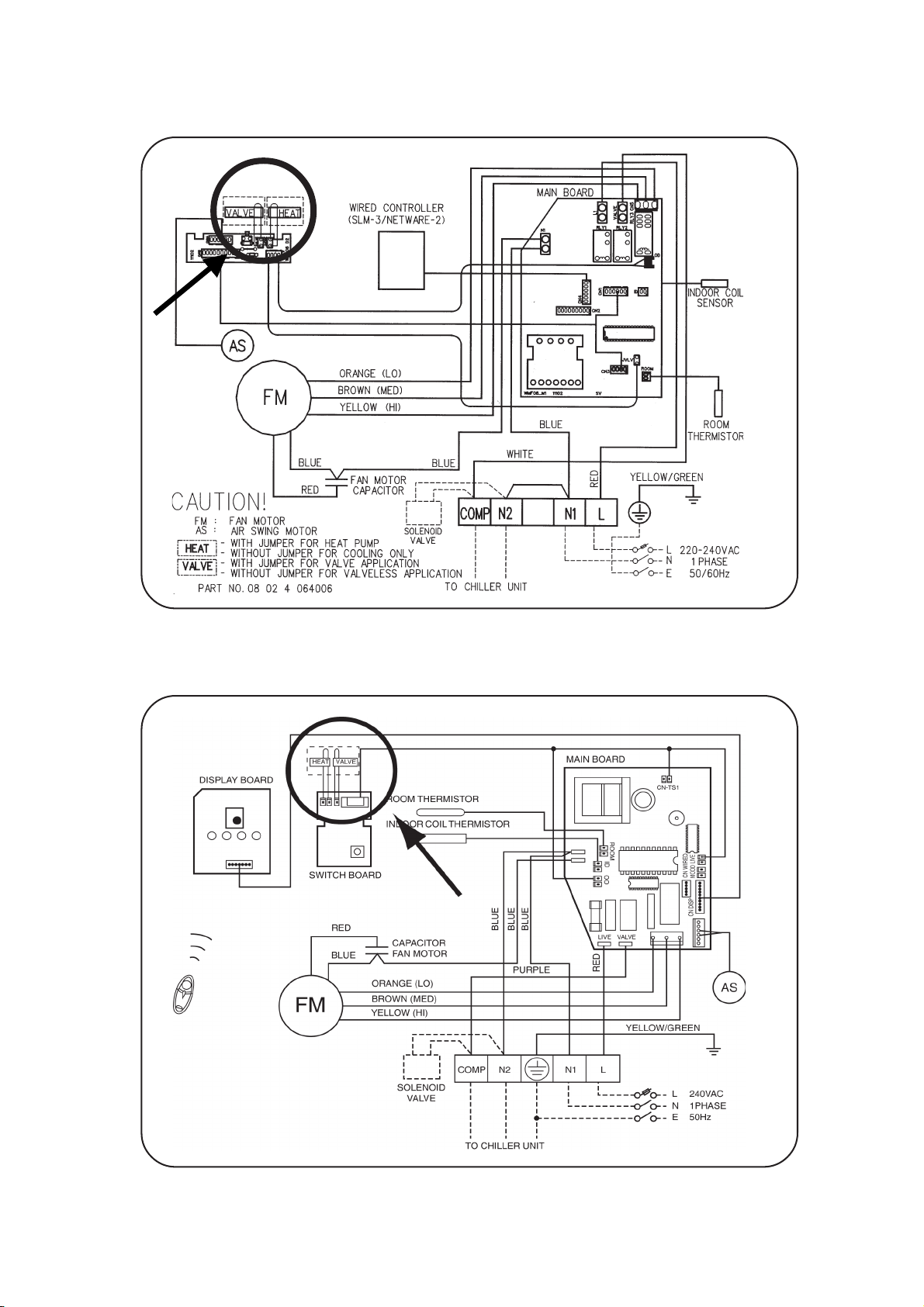

Model : AWM 20 / 25FW (NETWARE2 / SLM3 CONTROLLER)
Model : AWM 301W (G8, NETWARE2 OR SLM3 CONTROLLER)

13
Model : ACK 20 / 25 / 30 / 40 / 50AW (G8, NETWARE2 OR SLM3 CONTROLLER)
Model : ACK 15 / 20 / 25 BW (G8, NETWARE2 OR SLM3 CONTROLLER)

14
Model : ACK 10 / 15 / 20 CW (G8, NETWARE2 OR SLM3 CONTROLLER)
Model : RCM 20 / 25 / 30 / 40 / 50DW (G8, NETWARE2 OR SLM3 CONTROLLER)

Model : RCM 10 CBW (G8, NETWARE2 OR SLM3 CONTROLLER)
15
Model : RCM 07 / 15 CBW (G8, NETWARE2 OR SLM3 CONTROLLER)

16
Model : ACC 10 / 15 / 20 / 25CW (NETWARE2 / SLM3 CONTROLLER)
Model : ACC 28 / 30 / 38 / 40 / 50 / 60CW (NETWARE2 / SLM3 CONTROLLER)

ACK-AWH 4 pipes system controller board setting
A) Model selection
The standard controller board (W2.0) comes with a default setting for model selection. Please select the model
accordingly by using jumper.
System Model Function
2 Pipe
System
4 Pipe
System
M1 -
Model 1
M2 -
Model 2
M2 -
Model 2
M4 -
Model 4
Cooling or Heating
Cooling or Heating with Auxiliary Heater
Cooling Only with Boiler
Cooling or Heating with Boiler
17

B) Valve, Heat and Fan priority selection
C) Others
The controller board comes with other option.
i) Unoccupied Mode
If the dry contact is closed, the Unoccupied mode is activated and vice versa. When Timer On is active, system
goes back to Occupied mode.
The dry contact connection points can be connected parallel with other fan coil unit (FCU) boards. If the dry
contact is closed, Unoccupied mode will be activated on all fan coil units that are connected parallel as shown in
figure below.
Jumper With Jumper (Default) Without Jumper
Fan Priority Jumper User set speed or lower fan if auto Fan stop when thermostat cut off
mode is selected
Heat Jumper For Heat pump For cooling only
Valve Jumper For Valve control (Model 1,2,3 & 4) For valveless control (Model 1 & 2)
18
