CEILING CASSETTE
SPLIT TYPE AIR CONDITIONERS
(B-Series)
Model: IM-CKB-0501-ACSON
CEILING CASSETTE
INSTALLATION MANUAL

OUTLINE AND DIMENSIONS
Indoor Unit : CK15B / 20B / 25B / 30B / BR
All dimensions are in mm / (in)
i
489,0 (19,3)
489,0 (19,3)
409,0 (16,1)
605,0 (23,8)
146,0
(5,7)
120,0 (4,7)
49,0 (1,9)
293,0 (11,5)
130,0 (5,1)
240,0 (9,4)
650,0 (25,6)
573,0 (22,6)
362,0 (14,3)
340,0 (13,4)
192,0 (7,6)
22,0 (0,9)
600,0 (23,6)
582,0 (22,9)
532,0 (20,9)
68,0
(2,7)
80,0 (3,1)
727,0 (28,6)
727,0 (28,6)
Outdoor Unit : (SL - B Series)
All dimensions are in mm / (in)
Dimension A B C D E F G H J K L M N P Q R
10B / 10BR 740 494 270 266 233 474 47 55 65 166 92 348 318 129 482 68,5
15B / 15BR (29,1) (19,4) (10,6) (10,5) (9,2) (18,7) (1,9) (2,2) (2,6) (6,5) (3,6) (13,7) (12,5) (5,1) (19,0) (2,7)
20B / 20BR 840 646 330 297 309 626 41 85 75 177 106 408 378 124 592 78,5
25B / 25BR (33,1) (25,4) (13,0) (11,7) (12,2) (24,6) (1,6) (3,3) (3,0) (7,0) (4,2) (16,1) (14,9) (4,9) (23,3) (3,1)
30B / 30BR
Q
15 (0,6)
39 (1,5)
A
M
PP
840 (33,1)
D
15 (0,6)
39 (1,5)
5 (0,2)C
20 (0,8)
20 (0,8) 2,5 (0,1)
F
B
C5 (0,2)
160 (6,3) H
G
141
(5,6)
K
J
(2,6)
65
L
20 (0,8)
R
E
N

Outdoor Unit : SL30C & CR
ii
All dimensions are in mm / (in)
This product is subjected to Waste of Electrical and Electronic Equipment Regulations (WEE
E
Regulations). The waste product shall be separately collected by specific collection and treatment centre
.
P
lease refer to local authorithy for these centres. This is only applicable to European Union countries
.
Ce produit est soumis
à
la r
à
é
r
r
glementation concernant les
d
é
chets
d
es
é
quipements
é
lectriques e
t
é
lectroniques (r
é
r
r
é
ê
é
s
é
par
é
r
r
m
ent par un centre de collect
e
é
é
é
î
î
tre ces centres. Ceci
îî
é
enne
.
Questo prodotto
è
soggetto alle disposizioni RAEE (Rifiuti di apparecchiature elettriche ed elettroniche)
.
à
à
locali. Questa disposizione
à
è
valida solamente i paes
i
d
el
l
’
U.
E
.
é
ctrico y Electr
ó
n
ico en materia d
e
ñ
ñ
á
í
fico
í
í
de colecc
i
ó
solamente aplicable a los p
a
í
ses de la
U
n
i
ó
n
Europea
.
G
er
ä
ä
ä
tes
ää
getrennt vom Hausm
ü
ll bei Ihrer
ö
r
tlichen
M
ü
lldeponie bzw. Ihrem
ö
r
tliche
n
ä
ndiges Abfall-Amt. Dieser
ää
Hinweis gilt nur f
ü
f
f
rL
ä
nder der Europ
ää
ä
ischen Union
.
п
р
авилам
и
п
о
у
тилизаци
и
отхо
д
о
в
(WEEE Re
g
ulations).
и
.
,
.
Э
т
и
п
р
авил
а
Ев
р
опейског
о
.
NOTICE
141,5
(5,6) 746,5 (29,4)
1030,0 (40,6)
448,0 (17,6)
850,0 (33,5)
25,0 (1,0)
400,0 (15,7)
320,0 (12,6)
141,5
(5,6)
20,0
(0,8)
20,0
(0,8)
40,0
(1,6) 40,0 (1,6)
50,0
(2,0)
85,0 (3,3)
Scharfe Kanten und Wärmetauscherflächen stellen eine Gefahrenquelle dar. Jeglicher
Kontakt mit diesen Stellen ist zu vermeiden.
!Vorsicht
!Cautela Per preservarsi da eventuali ferite, evitare di toccare gli spigoli afilati e la superficie dei
serpentini.
!Cuidado Los Bordes afilados y la superficie del serpentín pueden producir lesiones. Evite tocarlos.
!Осторожно Острые края и поверхности змеевиков являются потенциальными
местами нанесения травм. Остерегайтесь контакта с этими местами.
Sharp edges and coil surfaces are potential locations which may cause injury hazards.Avoid
from being in contact with these places.
!Caution
!Avertissement Les bords coupants et les surfaces du refroidisseur tuulaire présentent un risque de blessure. Mieux vaut éviter le contact avec ces endroits.

1-1
English
This manual provides the procedures of installation to ensure a safe and good standard of operation for the air
conditioner unit.
Special adjustment may be necessary to suit local requirements.
Before using your air conditioner, please read this instruction manual carefully and keep it for future reference.
INSTALLATION MANUAL
CEILING CASSETTE SPLIT TYPE AIR CONDITIONER
MODEL
COOLING ONLY HEAT PUMP
Part No.: A08019025513 IM-CKB-0501 (2)-Acson
CK15BR / ACK015BR
SL15BR / ALC015BR
4SL15BR / A4LC015BR
5SL15BR / A5LC015BR
CK20BR / ACK020BR
SL20BR / ALC020BR
4SL20BR / A4LC020BR
5SL20BR / A5LC020BR
CK25BR / ACK025BR
SL25BR / ALC025BR
4SL25BR / A4LC025BR
5SL25BR / A5LC025BR
CK30BR / ACK030BR
SL30BR / ALC030BR
4SL30BR / A4LC030BR
5SL30BR / A5LC030BR
CK30BR / ACK030BR
SL30CR / ALC030CR
4SL30CR / A4LC030CR
5SL30CR / A5LC030CR
CK25B / ACK025B
SL25B / ALC025B
4SL25B / A4LC025B
5SL25B / A5LC025B
CK30B / ACK030B
SL30B / ALC030B
4SL30B / A4LC030B
5SL30B / A5LC030B
CK30B / ACK030B
SL30C / ALC30C
4SL30C / A4LC30C
5SL30C / A5LC30C

1-2
CONTENTS
- Outline And Dimensions page i – ii
- Safety Precautions page 2
- Installation Diagram page 3
- Installation of Indoor Unit page 3
- Installation of Outdoor Unit page 6
- Refrigerant Piping Work page 6
- Electrical Wiring Connection page 8
-
Special Precautions When Dealing With R410A Unit page 10
- Special Precautions When Dealing With R407C Unit page 10
SAFETY PRECAUTIONS
Before installing the air conditioner unit, please read the following safety precautions carefully.
!Warning
• Installation and maintenance should be performed by qualified persons who are familiar with local code and
regulation, and experienced with this type of appliance.
• All field wiring must be installed in accordance with the national wiring regulation.
• Ensure that the rated voltage of the unit corresponds to that of the name plate before commencing wiring work
according to the wiring diagram.
• The unit must be GROUNDED to prevent possible hazard due to insulation failure.
• All electrical wiring must not touch the refrigerant piping or any moving parts of the fan motors.
• Confirm that the unit has been switched OFF before installing or servicing the unit.
IMPORTANT
DO NOT INSTALL OR USE THE AIR CONDITIONER UNIT IN A LAUNDRY ROOM.
!Caution
Please take note of the following important points when installing.
• Do not install the unit where leakage of flammable gas may occur.
If gas leaks and accumulates around the unit, it may cause fire ignition.
• Ensure that the drainage piping is connected properly.
If the drainage piping is not connected properly, it may cause water leakage which will dampen the
furniture.
• Do not overcharge the unit.
This unit is factory pre-charged. Overcharge will cause over-current or damage to the compressor.
• Ensure that the units panel is closed after service or installation.
Unsecured panels will cause the unit to operate noisily.
- Vacuuming and Charging page 11
- Special Precautions When Charging Unit With
Copeland Scroll Compressors page 11
- Indicator Lights page 12
- Overall Checking page 12
- Standard Operation Conditions page 13
- Auto Random Re-start Function page 13
- Service and Maintenance page 13
- Troubleshooting page 14

1-3
English
Max. 0.3 m
Min. 0.5 m
Min. 0.5 m Min. 0.5 m
Min. 1.0 m
Max. 3.0 m
Floor
Obstacle
Beam
INSTALLATION DIAGRAM
Drain Hose
Front Panel
Air Filter
(behind the grille)
Air Discharge Louver
IR Receiver
LED Light
Air Intake Grille
Wireless
Remote Control
Refrigerant Piping
Air Intake
Air Discharge
or
Wired Remote Control
Indoor Unit
Outdoor Unit
Air Intake
Preliminary Site Survey
• Electrical supply and installation is to conform to local authority's (e.g. National Electrical Board) codes and regulations.
• Voltage supply fluctuation must not exceed +10% of rated voltage. Electricity supply lines must be independent of welding
transformers which can cause high supply fluctuation.
• Ensure that the location is convenient for wiring, piping and drainage.
• The indoor unit must be installed in such that is free from any obstacles in path of cool air discharge and warm air return,
and must allow spreading of air throughout the room (near the center of the room).
• Must be provide clearance for the indoor unit from the wall and obstacles as shown in the figure.
• The installation place must be strong enough to support a load 4 times the indoor unit weight to avoid amplifying noise and
vibration.
• The installation place (handing ceiling surface) must be assuring levelness and the height in the ceiling is 350 mm or more.
• The indoor unit must be away from heat and steam sources (avoid installing it near an entrance).
INSTALLATION OF INDOOR UNIT

1-4
Unit Installation
Unit Hanging
• Confirm the pitch of the hanging rod.
• Hold the unit and hang it on the hanging rod with the nut
and washer.
• Adjust the unit height to 35.0 mm between the indoor unit
bottom surface and the ceiling surface.
• Confirm with a level gauge that the unit is installed
horizontally and tighten the nut and bolt to prevent unit
falling and vibration.
• Open the ceiling board along the outer edge of the paper
installation template.
• Measure and mark the position for the hanging rod. Drill
the hole for the angle nut on the ceiling and fix the hanging
rod.
• The dimensions of the installation template are the same
as those of the ceiling opening dimensions.
• Before ceiling laminating work is completed, be sure to
fit the installation template to the indoor unit.
NOTE
Be sure to discuss the ceiling drilling work with the
installers concerned.
Ceiling board opening
Drain Piping Work
• Drain pipe must be in downward gradient for smooth
drainage.
• Avoid installing the drain pipe in up and down slope to
prevent reversed water flow.
• During the drain pipe connection, be careful not to exert
extra force on the drain connector at indoor unit.
• The outside diameter of the drain connection at the flexible
drain hose is 20 mm.
• Be sure to execute heat insulation (polyethylene foam with
thickness more than 8.0 mm) on the drain piping to avoid
the condensed water dripping inside the room.
Indoor Unit
Pipe Clamp
Good Bad
Ceiling
Board
35.0 mm
Indoor Unit

1-5
English
Drain Test
NOTE
This indoor unit uses a drain pump for condensed water
drainage. Install the unit horizontally to prevent water
leakage or condensation around the air outlet.
Main Drain Pipe
Feed Water
Flexible
Drain Hose
• Connect the main drain pipe to the flexible drain hose.
• Feed water from flexible drain hose to check the piping
for leakage.
• When the test is completed, connect the flexible drain hose
to the drain connector on the indoor unit.
From Front Panel
LED Wire
Control Box
NOTE
Install the front frame panel firmly to prevent cool air
leakage which will cause condensation and water dripping.
Screw
OPEN
• Be sure to remove the installation template before installing
the front panel.
• Open the air intake grille by pull back the catchers and
remove it together with filter from panel.
• Install the front frame panel onto the indoor unit by 4
screws and tighten it completely to prevent cool air
leakage.
• Connect the LED wire to the indoor unit.
Panel Installation
Indoor unit
cool
air
ceiling board
Panel
air leak
cool
air
air leak
ceiling board
Panel
Good Installation Bad Installation

1-6
Air intake grille installation
• Before installing the air intake grille, be sure to fix the
ionizer filter to the air filter.
• Install the air intake grille together with the air filter to the
front panel.
• The grille can be fit in any direction, when selecting
direction, the ceiling design and grille operability should
be considered.
• If the unit comes with ionizer filter (optional item), make
sure to fix the ionizer filter to the air filter before installing
the air intake grille.
• Fix the ionizer filter to the air filter with the black side on
top and white side at bottom.
• Carefully clip on the ionizer filter frame.
Frame
Ionizer
Filter
Preliminary site survey
• A place protected from rain, direct sunlight and well-ventilated wherever practicable.
• A place capable of bearing the weight of the outdoor unit and isolating noise and vibration.
• A place where there are no obstruction of air flow into or out the unit.
• Do not put any object which may become obstacle for the air flow into or out the outdoor unit.
• The location must not be susceptible to high concentration dust, oil, salt or sulfide gas.
Outdoor unit installation
• Install the outdoor unit firmly and horizontally. Maintain a space clearance from the obstruction as shown in below for
servicing and air ventilation.
AB CD
SL Series A B C D
Min. Distance, mm (in) 300 1000 300 500
(11.8) (39.4) (11.8) (19.7)
INSTALLATION OF OUTDOOR UNIT
REFRIGERANT PIPING WORK
Refrigerant piping is important in particular. Refrigeration cycle of the split air conditioner is realized
by the perfect piping work.
Piping length and elevation
If the piping is too long, both the capacity and reliability of unit will drop. As the number of bends increase, resistance to
flow of refrigerant system increases, thus lowering cooling capacity and as a result the compressor may become defective.
Always choose the shortest path and follow the recommendation as tabulated below.
Model Indoor CK15B/BR CK20B/BR CK25B/BR CK30B/BR CK30B/BR
Outdoor SL15B/BR SL20B/BR SL25B/BR SL30B SL30C/CR
Max. length, m (ft) 12 (39) 15 (49) 15 (49) 35 (114) 35 (114)
Max. elevation, m (ft) 5 (16) 8 (26) 8 (26) 8 (26) 15 (49)
Max. no. of bends 10 10 10 10 10
Liquid pipe size 1/4” 1/4” 3/8” 3/8” 3/8”
Gas pipe size 1/2” 5/8” 5/8” 5/8” 5/8”

1-7
English
Piping Connection
• Do not use contaminated or damaged copper tubing. If any piping, evaporator or condenser had been exposed or had been
opened for 15 seconds or more, then vacuum and purge with field supplied refrigerant. Generally, do not remove plastic,
rubber plugs and brass nuts from the valves, fittings, tubing and coils until it is ready to connect suction or liquid line into
valves or fittings.
• If any brazing work is required, ensure that nitrogen gas is passed through coil and joints while the brazing work is being
done. This will eliminate soot formation on the inside wall of copper tubings.
• Cut the pipe stages by stages, advancing the blade of pipe cutter slowly. Extra force and a deep cut will cause more
distortion of pipe and therefore extra burr.
• Remove burrs from cut edges of pipes with a remover. This will avoid unevenness on the flare face which will cause gas
leak.
• Align the center of the piping and sufficiently tighten the flare nut with fingers. Finally, tighten the flare nut with torque
wrench until the wrench clicks.
• Be sure to execute heat insulation. (polyurethane form with thickness more than 15 mm)
• Except the outdoor unit which is pre-charge with refrigerant R22, the indoor unit and the refrigerant connection pipes must
be purged because the air that contain moisture remaining in the refrigerant cycle may cause malfunction to the compres-
sor.
Additional Charge
The refrigerant is pre-charged in the outdoor unit, but additional charge of refrigerant after vacuuming is necessary. Follow
the recommendation as tabulated below.
Cooling Only (R22 / R407C)
Model Indoor CK15B CK20B CK25B CK30B CK30B
Outdoor SL15B SL20B SL25B SL30B SL30C
L <= 5 m 0.250 kg 0.250 kg 0.100 kg 0.100 kg 0.400 kg
L = 7 m 0.300 kg 0.280 kg 0.176 kg 0.200 kg 0.600 kg
L = 10 m 0.325 kg 0.325 kg 0.290 kg 0.350 kg 0.650 kg
L = 15 m 0.400 kg 0.400 kg 0.480 kg 0.600 kg 0.900 kg
L = 20 m – – – 0.850 kg 1.150 kg
Model Indoor CK15B CK20BR CK25BR CK30BR
Outdoor SL15BR SL20BR SL25BR SL30CR
L <= 5 m ––– –
L = 7 m 0.050 kg 0.050 kg 0.100 kg 0.100 kg
L = 10 m 0.075 kg 0.075 kg 0.500 kg 0.250 kg
L = 15 m 0.150 kg 0.150 kg 0.750 kg 0.500 kg
L = 20 m – – – 0.750 kg
Heat Pump (R22 / R407C)
Model CK15B CK20B CK25B CK30B CK30B
L <= 5 m 0.225 kg 0.225 kg 0.090 kg 0.090 kg 0.360 kg
L = 7 m 0.270 kg 0.252 kg 0.159 kg 0.180 kg 0.541 kg
L = 10 m 0.293 kg 0.293 kg 0.261 kg 0.315 kg 0.586 kg
L = 15 m 0.360 kg 0.360 kg 0.432 kg 0.541 kg 0.811 kg
L = 20 m – – – 0.766 kg 1.036 kg
Model CK15BR CK20BR CK25BR CK30BR
L <= 5 m ––– –
L = 7 m 0.045 kg 0.045 kg 0.090 kg 0.090 kg
L = 10 m 0.068 kg 0.068 kg 0.450 kg 0.225 kg
L = 15 m 0.135 kg 0.135 kg 0.676 kg 0.450 kg
L = 20 m – – – 0.676 kg
Heat Pump (R410A)
Cooling Only (R410A)

1-8
ELECTRICAL WIRING CONNECTION
Cooling Only
CK15B / CK20B / CK25B & CK30B
Model Indoor CK15B CK20B CK25B CK30B CK30B
Outdoor SL15B SL20B SL25B SL30B SL30C
Voltage Range ** 220 – 240V /1Ph /50Hz + !or 208 – 230V /1Ph /60Hz + !
Power Supply Cable Size * mm21.5 2.5 2.5 4.0 4.0
Number Of Conductors 33 3 33
Interconnection Cable Size * mm21.5 2.5 2.5 2.5 2.5
Number Of Conductors 33 3 34
IMPORTANT: *These values are for information only. They should be checked and selected to comply with local and/or
national codes and regulations. They are also subject to the type of installation and size of conductors.
**The appropriate voltage range should be checked with label data on the unit. ETL listed is only applicable
to 60Hz power supply only.
Terminal Strip
Outdoor Unit
CK15B / 20B / 25B / 30B <> SL15B / 20B / 25B / 30B
Interconnection Cable
Terminal Strip
Indoor Unit
COMP
L
N
N
COMP
N
The electrical power must be provided with
protection devices (circuit breaker or fuse) with
double pole separation system (phase + neutral)
with minimum contact gap of 3mm.
!
Power Supply Cable
CK30B <> SL30C
L
N
COMP
L
N
COMP
S
R
L
N
Terminal Strip
Outdoor Unit
Interconnection Cable
Terminal Strip
Indoor Unit
Capacitor
The electrical power must be provided with
protection devices (circuit breaker or fuse) with
double pole separation system (phase + neutral)
with minimum contact gap of 3mm.
!
Power Supply Cable

1-9
English

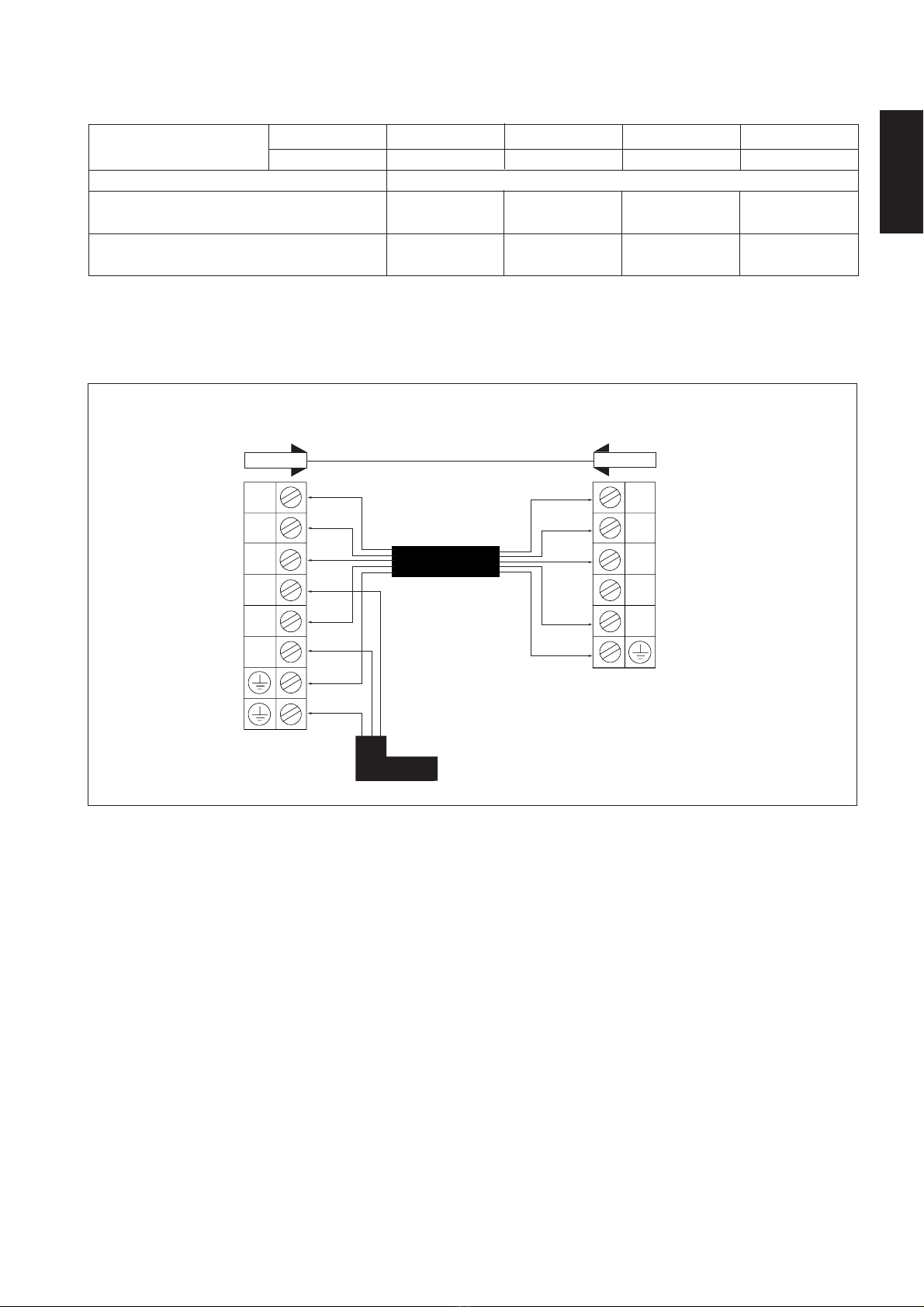

Heat Pump
CK15BR / CK20BR / CK25BR / CK30BR
Model Indoor CK15BR CK20BR CK25BR CK30BR
Outdoor SL15BR SL20BR SL25BR SL30CR
Voltage Range ** 220 – 240V /1Ph /50Hz + !or 208 – 230V /1Ph /60Hz + !
Power Supply Cable Size * mm21.5 2.5 2.5 4.0
Number Of Conductors 3333
Interconnection Cable Size * mm21.5 2.5 2.5 2.5
Number Of Conductors 5556
IMPORTANT: *These values are for information only. They should be checked and selected to comply with local and/or
national codes and regulations. They are also subject to the type of installation and size of conductors.
**The appropriate voltage range should be checked with label data on the unit. ETL listed is only applicable
to 60Hz power supply only.
CK15BR / 20BR / 25BR <> SL15BR / 20BR / 25BR
The electrical power must be provided with
protection devices (circuit breaker or fuse) with
double pole separation system (phase + neutral)
with minimum contact gap of 3mm.
!
Terminal Strip
Indoor Unit
Interconnection Cable
Terminal Strip
Outdoor Unit
Power Supply
Cable
OF
COMP
4WV
N1
N2
L
OF
COMP
4WV
N
Outdoor Coil Sensor

1-10
CK30BR <> SL30BR / CR
N
L
COMP
A
4WV
OF
N
L
COMP
A
4WV
OF
N
L
Terminal Strip
Indoor Unit
Interconnection Cable
Terminal Strip
Outdoor Unit
Power Supply Cable
Outdoor Coil Sensor
The electrical power must be provided with
protection devices (circuit breaker or fuse) with
double pole separation system (phase + neutral)
with minimum contact gap of 3mm.
!
SPECIAL PRECAUTIONS WHEN DEALING WITH R410A UNIT
R410A is a new HFC refrigerant which does not damage the
ozone layer. The working pressure of this new refrigerant is
1.6 times higher than conventional refrigerant (R22), thus
proper installation / servicing is essential.
•Never use refrigerant other than R410A in an air condi-
tioner which designed to operate with R410A.
•POE oil is used as lubricant for R410Acompressor, which
is different from the mineral oil used for R22 compressor.
During installation or servicing, extra precaution must be
taken not to expose the R410A system too long to moist
air. Residual POE oil in the piping and components can
absorb moisture from the air.
•To prevent mischarging, the diameter of the service port
on the flare valve is different from that of R22.
SPECIAL PRECAUTIONS WHEN DEALING WITH R407C UNIT
• R407C is a zeotropic refrigerant mixture which has zero
ozone depletion potential and thus conformed to the
Montreal Protocol regulation. It requires Polyol ester oil
(POE) oil for its compressor's lubricant. Its refrigerant
capacity and performance are about the same as the
refrigerant R22.
• POE oil is used as lubricant for R407C compressor, which
is different from the mineral oil used for R22 compressor.
During installation or servicing, extra precaution must be
taken not to expose the R407C system too long to moist
air. Residual POE oil in the piping and components can
absorb moisture from the air.
• Refrigerant R407C is more easily affected by dust of
moisture compared with R22, make sure to temporarily
cover the ends of the tubing prior to installation.
•Use tools and materials exclusively for refrigerant R410A.
Tools exclusively for R410Aare manifold valve, charging
hose, pressure gauge, gas leak detector, flare tools, torque
wrench, vacuum pump and refrigerant cylinder.
•As an R410A air conditioner incurs higher pressure than
R22 units, it is essential to choose the copper pipes cor-
rectly. Never use copper pipes thinner than 0.8mm even
though they are available in the market.
•If the refrigerant gas leakage occurs during installation /
servicing, be sure to ventilate fully. If the refrigerant gas
comes into contact with fire, a poisonous gas may occur.
•When installing or removing an air conditioner, do not
allow air or moisture to remain in the refrigerant cycle.
• No additional charge of compressor oil is permitted.
• No other refrigerant other than R407C.
• Tools specifically for R407C only (must not be used for
R22 or other refrigerant)
i) Manifold gauge and charging hose
ii) Gas leak detector
iii) Refrigerant cylinder/charging cylinder
iv) Vacuum pump c/w adapter
v) Flare tools
vi) Refrigerant recovery machine
• Filter-dryer must be installed along the liquid line for all
R407C air conditioners.This is to minimise the contamination
of moisture and dirt in the refrigerant system. Filter-dryer
must be of molecular sieve type. For a heat-pump system,
install a two-way flow filter dryer along the liquid line.

1-11
English
VACUUMING AND CHARGING
Vacuuming is necessary to eliminate all moisture and air from the system. The series II Outdoor Unit is provided with flare
valve fittings.
Vacuuming
Before vacuuming, perform leak check for refrigeration
circuit. After the system piping are properly connected,
connect the flexible hoses to the correct charging nipples as
shown in the diagram. Ensure that flexible hose from charging
nipples are connected to the vacuum pump via standard
servicing valves and pressure gauges (gauge manifold).
Vacuum the air conditioner system to at least 500 microns
Hg. Do not start the unit when the system is engaged in
vacuuming.
Charging
Before charging, the vacuum must be held at 500 microns Hg
for at least 15 minutes, then break vacuum by charging R-22
refrigerant. Operate the unit for 15 minutes and ensure the
refrigerant charges is of correct by monitoring running current,
gas and liquid line pressures. Suction and discharge pipe
pressure should be in the region of 75 psig and 275 psig
generally.
After ensuring the system is correctly charged, remove flexible
hose from charging nipples and replace caps.
SPECIAL PRECAUTIONS WHEN CHARGING UNIT WITH
COPELAND SCROLL COMPRESSORS
These precautions are intended for use with Copeland Scroll compressors only with R22, R407C, R134A, R404A, R507 and
R410A refrigerants but are not applied to Copeland reciprocating compressors or competitive Scroll compressors.
Scroll compressors have a very high volumetric efficiency and quickly pump a deep vacuum if there is insufficient refrigerant
in the system or if refrigerant is added too slowly. Operation with low suction pressure will quickly lead to very high discharge
temperatures. While this process is happening, the scrolls are not being well lubricated – scrolls depend on the oil mist in the
refrigerant for lubrication.A lack of lubrication leads to high friction between the scroll flanks and tips and generates additional
heat. The combination of heat of compression and heat from increased friction is concentrated in a small localized discharge
area where temperatures can quickly rise to more than 300˚C. These extreme temperatures damage the Scroll spirals and the
orbiting Scroll bearing. This damage can occur in less than one minute especially on larger compressors. Failure may occur in
the first few hours or the damage done during field charging may show up some time later.
Other typical field charging problems include undercharging, overcharging, moisture or air in the system etc. In time each one
of these problems can cause compressor failure.
Minimal equipment is required for field charging. The minimum equipment required to do a satisfactory job is:-
Set of service gauges Vacuum gauge
Hoses Scales
Vacuum pump Thermometer
The proper refrigerant charge should follow the volume as recommended by manufacturer and recommendation should be
followed by the installer.
1. Charging procedures – Single phase compressors
Evacuate the system to 500 microns Hg. (67Pa). To reduce evacuation time, use short, large diameter hoses and connect to
unrestricted service ports on the system. Quality of vacuum cannot be determined by time – a reliable vacuum gauge must
be used. (etc. electronic vacuum gauge)
Turn the refrigerant cylinder upside down, purge the charging hose and charge liquid through the liquid line charging port
until refrigerant no longer flows or until the correct charge has been weighed in. If additional charge is required start the
system and slowly bleed liquid into the suction side until the system is full.
Copeland recommends charging liquid in a CONTROLLED manner into the suction side until the system is full.
This recommendation does not hold true for reciprocating compressors where liquid charging into the suction side could
cause severe damage.
Carefully monitor the suction and discharge pressures – ensure that the suction pressure does not fall below 25 psig (1.7
bar) at any time during the charging process.
• Manifold Gauge will show cylinder pressure rather than suction pressure if the cylinder valve and Manifold
valve “A” are both open.
!Caution

1-12
INDICATOR LIGHTS
Remote Control
When there is infrared remote control operating signal, the signal receiver on indoor unit will made a <beep> for signal
acceptance confirmation.
OVERALL CHECKING
• Ensure that:
1) The unit has been mounted solidly and rigid in position.
2) Piping and connections are leak proof after charging.
3) Proper wiring has been installed.
• Drainage check:
– Pour some water into the main drain pipe from the flexible drain hose.
• Test run:
1) Conduct a test run after water drainage test and gas leakage test.
2) Check the following items:
a. Is the electric plug firmly inserted into the socket ?
b. Is there any abnormal sound from the unit ?
c. Is there any abnormal vibration on the unit itself or piping ?
d. Is the drainage of water smooth ?
• Confirm that:
1) Condenser fan is running, with warm air blowing off the condensing unit.
2) Evaporator blower is running and discharge cool air.
3) The remote control incorporate a 3 minute delay in the circuit. Thus, it requires about 3 minutes before the outdoor
condensing unit can start up.
SLEEP
Blinks with 1
second interval
HEAT
Blinks with 1
second interval
ACTION
Call your dealer
–
POWER
Blinks 4 times with 1 second interval
follow by 3 seconds interval
Blinks 4 times with 1 second interval
follow by 3 seconds interval
Blinks with 1 second interval
Blinks 3 times with 1 second interval
follow by 3 seconds interval
Blinks 2 times with 1 second interval
follow by 3 seconds interval
FAULTY INDICATION
Room/outdoor coil sensor
missing
Indoor coil sensor missing
Compressor overload
Gas leak
Pump fault
Outdoor defrost
LED
There are many ways of charging liquid in a “controlled manner” into the suction
side:-
1. Use valve A on the manifold gauge set
2. Use the valve on the refrigerant cylinder
3. Charge through a Shredder valve
4. Use a hose with a Shredder valve depressor
5. Charge into the suction side at some distance from the compressor
6. All of the above
2. Charging procedures – Three phase compressors
The fundamental procedure is the same as for single phase models but the compressor can run in the wrong direction on
starting. If this happens reverse any two phases and start again. Short term reverse rotation will not damage the compressor.
All Specter compressors (Model: ZR90 to ZR19M) have internal discharge temperature protectors which are very effective
in preventing dangerously high discharge temperatures during charging. The protection module will trip and lock the
compressor out for 30 minutes. It is not normally necessary to wait 30 minutes for the module to reset. When the compressor
has cooled down the module can be reset by breaking the power supply to the control circuit. Very often the serviceman
does not understand why the module tripped and uses a jumper wire to bypass it. He continues to charge the system and
removes the jumper when charging is complete. The compressor may or may not run with the protector back in the circuit
but it is certain that the compressor has been damaged and premature failure is inevitable.
A

1-13
English
AUTO RANDOM RE-START FUNCTION
If there is a power cut when the unit is operating, it will automatically resume the same operating mode when the power is
restored. (Applicable only to units with this feature)
!Caution
Before turning off the power supply, set the remote controller's ON/OFF switch to the “OFF” position to prevent the
nuisance tripping of the unit.
If this is not done, the unit's fans will start turning automatically when power resumes, posing a hazard to service
personnel or the user.
SERVICE AND MAINTENANCE
Indoor air filter 1. Remove any dust adhered on the filter by using a vacuum cleaner or
wash in lukewarm water (below 40 oC) with neutral cleaning detergent.
2. Rinse well and dry the filter before placing it back onto the unit.
3. Do not use gasoline, volatile substances or chemical to clean the filter.
Indoor unit 1. Clean any dirt or dust on the grille or panel by wiping it using soft cloth
soaked in lukewarm water (below 40
o
C) with neutral detergent solution.
2. Do not use gasoline, volatile substances or chemical to clean the indoor
unit.
!Caution
Do not operate any heating apparatus too close to the air conditioner unit. This may cause the plastic panel to melt or
deform as a result of the excessive heat.
At least once
every 2 weeks.
More frequently
if necessary.
At least once
every 2 weeks.
More frequently
if necessary.
Service Parts Maintenance Procedures Period
!Warning
• Disconnect from the main power supply before servicing the air conditioner unit.
• DO NOT pull out the power cord when the power is ON. This may cause serious electrical shocks which may result
in fire hazards.
STANDARD OPERATION CONDITIONS
Heat Pump Unit
Cooling unit
Temperature Ts °C / °F Th °C / °F
Minimum indoor 19.4 / 66.9 13.9 / 57.0
temperature
Maximum indoor 26.7 / 80.1 19.4 / 66.9
temperature
Minimum outdoor 19.4 / 66.9 13.9 / 57.0
temperature
Maximum outdoor 46 / 114.8 24 / 75.2
temperature
Ts: Dry bulb temperature. Th: Wet bulb temperature.
Temperature Ts °C / °F Th °C / °F
Minimum indoor 10 / 50 –
temperature
Maximum indoor 26.7 / 80.1 –
temperature
Minimum outdoor -8 / 17.6 -9 / 15.8
temperature
Maximum outdoor 24 / 75.2 18 / 64.4
temperature

1-14
Causes / Action
- Protection against frequent starting. Wait for 3 to 4
minutes for the compressor to start operating.
- Power failure, or the fuse need to be replaced.
- The power plug is disconnected.
- It is possible that your delay timer has been set incorrectly.
- If the fault persist after all these verifications, please
contact the air conditioner unit installer.
- The air filter is dirty.
- The doors or windows are open.
- The air suction and discharge are clogged.
- The regulated temperature is not high enough.
- Odors may be caused by cigarettes, smoke particles,
perfume etc. which might have adhered onto the coil.
- This is caused by air humidity after an extended long
period of operation.
- The set temperature is too low, increase the temperature
setting and operate the unit at high fan speed.
- Switch off unit and call dealer.
- Refrigerant fluid flowing into the evaporator coil.
Fault
1. The compressor does not start operate after 3 minutes
from starting the air conditioner unit.
2. The air conditioner unit does not operate.
3. The air flow is too low.
4. Discharge air flow has bad odor.
5. Condensation on the front air grille of the indoor unit.
6. Water flowing out from the air conditioner unit.
7. Hissing air flow sound from the air conditioner unit
during operation.
When any malfunction of the air conditioner unit is noted, immediately switch off the power supply to the
unit. Check the following fault conditions and causes for some simple troubleshooting tips.
TROUBLESHOOTING
If the fault persists, please call your local dealer / serviceman.

2-1
Français
Ce manuel fournit les procédures d’installation pour assurer le bon fonctionnement et la sécurite de cet
appareil.
Des ajustements peuvent être nécéssaires pour suivre les réglementations locales.
Avant d’installer et de faire fonctionner le climatiseur, lisez attentivement ce manuel et conservez le.
MANUEL D’INSTALLATION
CLIMATISEUR DE PLAFOND DE TYPE CASSETTE EN DEUX PIECES
MODÈLE
FROID SEUL REVERSIBLE
Part No.: A08019025513 IM-CKB-0501 (2)-Acson
CK15BR / ACK015BR
SL15BR / ALC015BR
4SL15BR / A4LC015BR
5SL15BR / A5LC015BR
CK20BR / ACK020BR
SL20BR / ALC020BR
4SL20BR / A4LC020BR
5SL20BR / A5LC020BR
CK25BR / ACK025BR
SL25BR / ALC025BR
4SL25BR / A4LC025BR
5SL25BR / A5LC025BR
CK30BR / ACK030BR
SL30BR / ALC030BR
4SL30BR / A4LC030BR
5SL30BR / A5LC030BR
CK30BR / ACK030BR
SL30CR / ALC030CR
4SL30CR / A4LC030CR
5SL30CR / A5LC030CR
CK25B / ACK025B
SL25B / ALC025B
4SL25B / A4LC025B
5SL25B / A5LC025B
CK30B / ACK030B
SL30B / ALC030B
4SL30B / A4LC030B
5SL30B / A5LC030B
CK30B / ACK030B
SL30C / ALC30C
4SL30C / A4LC30C
5SL30C / A5LC30C

2-2
SOMMAIRE
- Schéma et dimensions page i – ii
- Précautions de sécurité page 2
- Diagramme d’installation page 3
- Installation de l’unité intérieure page 3
- Installation de l’unité extérieure page 6
- Tuyauterie réfrigérante page 6
- Raccordement électrique page 8
-
Précautions spéciales en traitant l’unité de R410A page 10
- Précautions spéciales en traitant l’unité de R407C page 10
- Tirage au vide et charge page 11
- Précautions Spéciales Lors du Chargement d’un
Appareil à Comresseurs Scroll de Copeland page 11
- Indication et visualisation des états
de fonctionnement de climatiseur page 12
- Vérifications générales page 12
- Conditions normales de fonctionnement page 13
- Fonction de redemarrage au hasard automatique page 13
- Maintenance periodique du climatiseur page 13
- Analyse des causes de dysfonctionnement
de climatiseur page 14
PRÉCAUTIONS DE SÉCURITÉ
Avant de faire fonctionner l’appreil, veuillez bien lire précautions de sécurite suivantes.
!Attention
• L’installation et la maintenance doivent être exécutées par une personne qualifiée qui est familiarisée avec les lois
et réglementations en vigueur, et aussi expérimentée dans ce type d’équipements.
• Tous les câblages doivent répondre aux réglementations électriques nationales.
• Avant de commencer le raccordement suivant le schéma électrique, s’assurer que la tension nominale de l’appareil
corresponde bien à celle indiquée sur la plaque signalétique.
• L’unité doit être raccordée à la TERRE puor prévenir tous les risques possibles dûes à un défaut d’isolation.
• Aucun câble électrique ne doit toucher la tuyauterie du réfrigérant, le compresseur ou les pièces mobiles des
moteurs de ventilation.
• Avant l’installation ou l’entretien du climatiseur, s’assurer que l’appareil est éteint (OFF).
IMPORTANT
NE PAS INSTALLER OU UTILISER LE CLIMATISEUR DANS UNE BUANDERIE.
!Avertissement
Vérifier les points suivant au cours de l’installation.
•Ne pas installer l’appareil où il peut se produire des fuites de gaz inflammable.
En cas de fuite et accumulation de gaz autour de l’appareil, ily a risque d’incendie.
•S’assurer que le tuyau d’évacuation du condensat est correctement branché.
Si le tuyau d’évacuation n’est pas correctement branché, les éventuelles fuites d’eau risquent de mouiller
le mobilier.
•Ne pas surcharger l’unité (en fluide frigorigéne).
Cet appareil est préchargé en usine. Une charge trop importante risque de provoquer une surcharge
électrique ou d’endommager le compresseur.
•S’assurer que le panneau supérieur de l’appareil est remis en place après l’installation ou l’entretien.
Avec un panneau mal fixé l’appareil va fonctionner bruyamment.
