ACTi ACM-5801 Instructions for use

IP CCD D/N PoE Box Camera
ACM-5811 series
Ver. 120312
Hardware User’s Manual

0-1
0PRECAUTIONS
1. Read these instructions
You should read all the safety and operating instructions before using this
product.
2. Heed all warnings
You must adhere to all the warnings on the product and in the instruction
manual.
This symbol highlights several areas of concern. Please read descriptions
next to each symbol carefully.
a. Failure to follow the safety instruction given may directly endanger
people, cause damage to the system or to other equipment.
b. The requirements to make this device work, including hardware,
computer settings, network settings, and operation procedures.
c. The tips to make using this device easier, more convenient and more
efficient.
3. Servicing
Do not attempt to service this video device yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
Trademarks
All names used in this manual for hardware and software are probably registered
trademarks of respective companies.
Liability
Every care has been taken during the writing of this manual. Please inform your local
office if you find any inaccuracies or omissions. We cannot be held responsible for
any typographical or technical errors and reserve the right to make changes to the
product and manuals without prior notice.
FCC/CE Regulation
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
0
Full D1 CAM-7200 series
CAM-5200
User’s Manual

0-2
equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.

0-3
Table of Contents
0PRECAUTIONS________________________________________________ 0-1
Trademarks ________________________________________________________________ 0-1
Liability ___________________________________________________________________ 0-1
FCC/CE Regulation __________________________________________________________ 0-1
1INTRODUCTION ______________________________________________ 1-1
1.1 Package Contents _______________________________________________ 1-1
1.2 Features and Benefits ____________________________________________ 1-2
1.3 Safety Instructions ______________________________________________ 1-4
1.4 Physical Description _____________________________________________ 1-6
1.5 Basic Connections _______________________________________________ 1-9
1.6 Product Specification ___________________________________________ 1-10

1-1
1INTRODUCTION
1.1 Package Contents
ACM-5811
Product CD Terminal Blocks for Power & DI/O
Warranty Card Accessory
1

1-2
1.2 Features and Benefits
This IP CCD D/N PoE Box Camera is a cutting-edge digital video
transmission device. It can compress and transmit real time images with
outstanding image quality (D1, 720x480) at reasonable bandwidth through a
standard TCP/IP network. That is because it is Ethernet ready and has the
powerful ARM9 SoC with excellent system performance to offer dual
streams of MPEG4/MJPEG, and both formats offer megapixel resolution. In
addition, with these powerful hardware platform, excellent SDK support
and powerful respective apparatuses (e.g. the transcoder), this IP CCD D/N
PoE Box Camera is your best choice building up either conventional IP
surveillance system or intelligent IP surveillance system.
MPEG-4/MJPEG Dual Streaming
This device supports MPEG-4/MJPEG with excellent system
performance. Superior video quality can be provided at up to 30 frames
per second in full D1 resolution.
Digital Time Code Embedded
The “Digital Time Code Embedded”function provides recording time
and embeds it in the MPEG bit stream. Therefore, each image frame is
tagged with its respective recorded time. It is very useful when users
want to find the video from an exact time or between a certain time
period.
DDNS Supported
This IP CCD D/N PoE Box Camera supports DDNS (Dynamic
Domain Name Server). Users can set this IP CCD D/N PoE Box
Camera at a virtual domain name (such as cam1.Taipei.xxx) that is
linked with its dynamic IP via DDNS service. Everyone can use the
virtual domain name to view the video from anywhere with internet
acess.
Built-in Hardware Motion Detection
No more external motion sensors are required. Each IP CCD D/N PoE
Box Camera can be set with up to 3 detection areas. By tuning the
object size and sensitivity, it can provide reliable motion detection in
all kinds of environments. Moreover, hardware motion detection
delivers better sensitivity andfaster response time than software motion
detection.

1-3
Powerful Bundled Surveillance Software
To extend the capabilities of the IP CCD D/N PoE Box Camera series,
a powerful surveillance program is included in the package and is free
to use. Users can easily utilize an existing PC to be a digital video
recorder. Scheduled recording and manual recording keep every
important image recorded in the local hard disk. Reliable and accurate
motion detection with instant warning enables immediate response in
every condition. Quick and simple search and playback function lets
you easily find the images you want.
Software Development Kit Support
This IP CCD D/N PoE Box Camera can be integrated or controlled by
user’s application program through the Streaming Library or ActiveX
control. With its high level programming interface, software
developers can save a lot of time and effort while developing.

1-4
1.3 Safety Instructions
Don’t use the power supply with other voltages
This device is likely to be damaged or damage other equipments /
personnel if you use a power supply with a different voltage than the
one marked on this device. All warranty of this product will be voided
in the above situation.
Don’t open the housing of the product
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product
manufacturer as they may cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device and the power supply in a dry place
protected from weather
Servicing
Do not attempt to service this video product yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and
refer servicing to qualified service personnel under the following
conditions.
1. When the power-supply cord or plug is damaged.
2. If liquid has been spilled, or objects have fallen into the video
product.
3. If the video product has been exposed to rain or water directly.

1-5
4. If the video product does not operate normally by following the
operating Instructions in this manual. Adjust only those controls
that are covered by the instruction manual, as an improper
adjustment of other controls may result in damage, and will often
require extensive work by a qualified technician to restore the
video product to its normal operation.
Safety Check
Upon completion of any service or repair to this video product, ask the
service technician to perform safety checks to determine that the video
product is in proper operating condition.

1-6

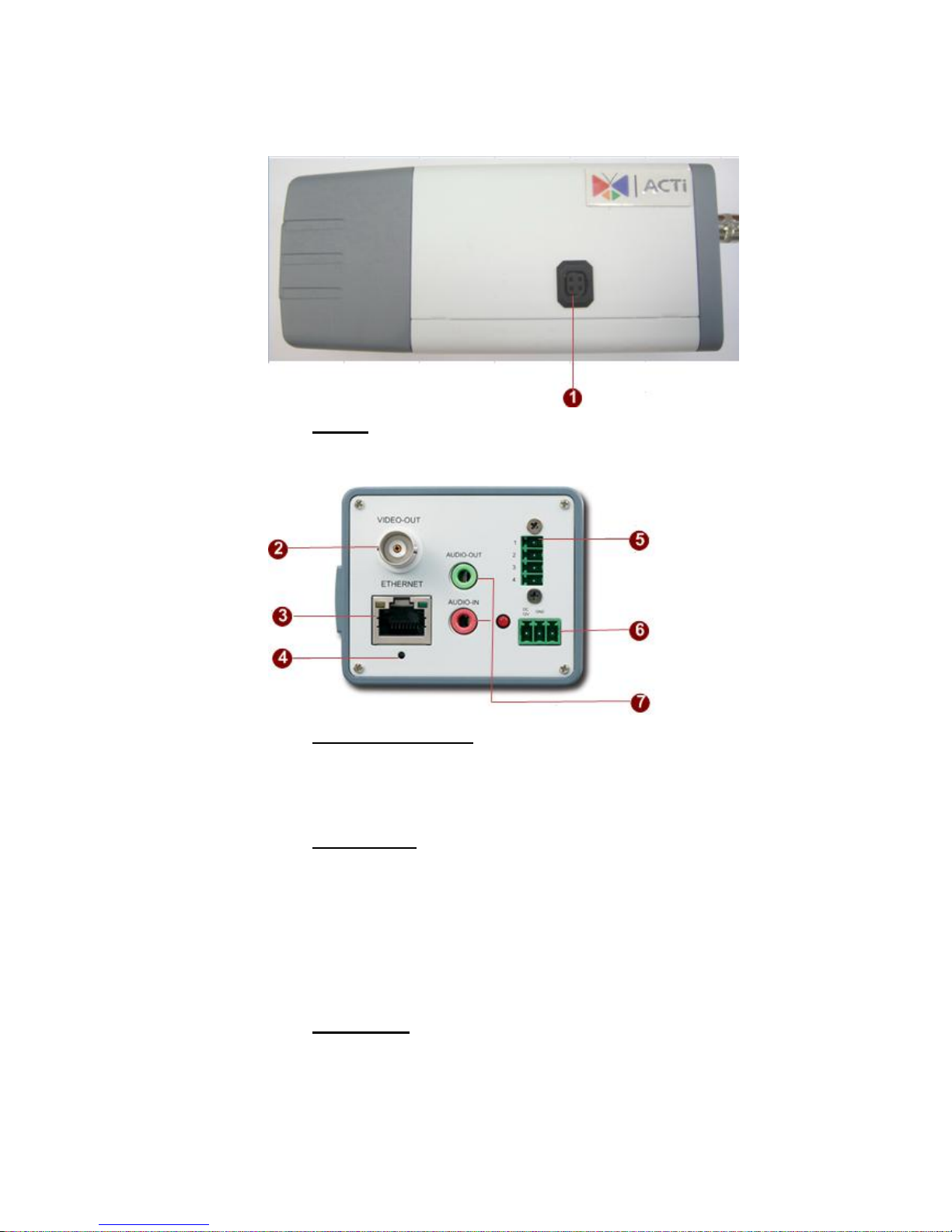

1.4 Physical Description
1. DC Iris
DC Iris Lens Control Port
2. Analog Video Output
The IP CCD D/N PoE Box Camera supports one channel analog
video output.
3. Ethernet Port
The IP CCD D/N PoE Box Camera connects to the Ethernet via a
standard RJ45 connector. This camera can automatically detect
the best network speed when connected to other
auto-negotiation(NWAY) supported devices.
(10Base-T/100Base-TX Ethernet).
4. Reset Button
Step 1: Switch off IP CCD D/N PoE Box Camera by

1-7
disconnecting the power cable
Step 2: Press and continue to hold the Reset Button with a
pointed object. Reconnect the power cable while still holding the
reset button.
Step 3: Keep the reset button depressed for at least 6 seconds
before releasing it. The unit will then start up with factory default
settings.
5. The I/O Terminal Connector
Used in applications like motion detection, event triggering, time
lapse recording, alarm notifications, etc., the I/O terminal
connector provides the interface to:
•1 transistor output - For connecting external devices such as
relays and LEDs. Connected devices can be activated by Output
buttons on the Live View page or by an Event Type. The output
will show as active (in Event Configuration > Port Status) if the
alarm device is activated.
•1 digital input - An alarm input for connecting devices that can
toggle between an open and closed circuit, for example: PIRs,
door/window contacts, glass break detectors, etc. When a signal is
received, the device state changes and the input becomes active
(shown under Event Configuration > Port Status).
•Auxiliary power and GND
Pin 1
GND
Ground
Description
Pin 2
Auxiliary DC
Power input
(not to power
this camera)
Electrically connected in parallel with the con-
nector for the power supply, this pin provides an
auxiliary connector for mains power to the unit.
This pin can also be used to power auxiliary
equipment, with a maximum current of 100mA.
Voltage: 12V DC,
Max: 1.2W
Pin 3
Digital Input
Connect to GND to activate, or leave floating (or
unconnected) to deactivate.
Must not be exposed to
voltages greater than 30V
DC.
Pin 4
Transistor
Output
Uses an open-collector NPN transistor with the
emitter connected to the GND pin. If used with an
external relay, a diode must be connected in
parallel with the load, for protection against
transient voltages.
Max load = <100mA
Max voltage = 24V DC
(to the transistor)

1-8

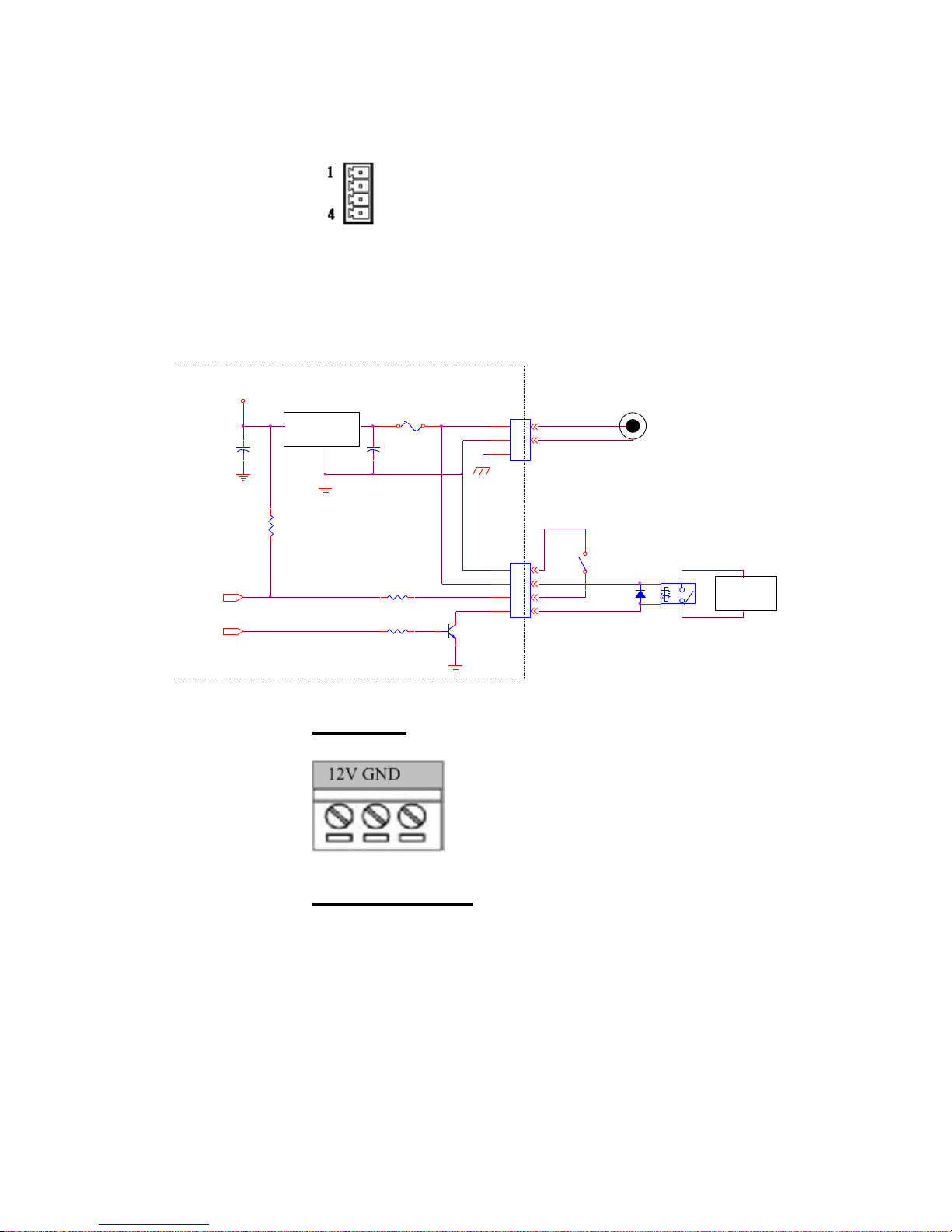

The I/O terminal pins are numbered left to right, as shown below.
Connect input/output devices to the camera as follows:
1. Attach the cables for the device securely to the supplied green
connector block.
2. Once the cables are connected, push the connector block into the
terminal connector (also green) on the camera.
1
2
3
FUSE 1A
NPN
DC TO DC
DI
DO
3.3V
DC POWER
GND 1
2
3
4
CONVERTER
EARTH GND
DO
DI
RELAY
SW
DIODE
DEVICE
-
+
POWER INPUT
CAMERA
6. Power Input
Connect the power adaptor here if your power input is DC12V.
7. Audio Input / Output
The IP CCD D/N PoE Box Camera supports audio input and
output with earphone jack

1-9
1.5 Basic Connections
Follow the procedures below to connect the IP CCD D/N PoE Box Camera
to the respective apparatuses.
1. Connect the power adaptor to IP CCD D/N PoE Box Camera
2. Connect IP CCD D/N PoE Box Camera’s ethernet port to an Ethernet
(RJ45 connectors). If your IP CCD D/N PoE Box Camera supports Power
Over Ethernet (PoE), you may connect it directly to a PoE supported
switch, a PoE injector connected to a switch or other Power Source
Equipments(PSE)
3. Connect a PC to the Ethernet hub (RJ45 connectors)
NOTE: For more detailed explanations, we provide a support
package that clarifies PoE related concepts for you. Please visit our
web site and download the support document TS-00040.

1-10
1.6 Product Specification
