ACTi CAM-6600 Series User manual

IP Outdoor High Speed Dome
CAM-6600 series
Ver. 070307
Quick Installation Guide

1 Getting Started
1.1 PACKAGE CONTENTS
CAM-6600 series Warranty Card
SoftwareCD Power&A/VCable
LAN/WAN Cable Alarm Cable
5.4” Transparent Cover Power Adaptor (Option)
Lubricant Screws
1

1.2 PHYSICAL DESCRIPTION
Outdoor High Speed Dome Bottom
1. Reset Button
Step 1: Switch off IP device by disconnecting the power cable
Step 2: Press and continue to hold the Reset Button. Reconnect the power cable
while continuing to hold the reset button.
Step 3: Keep holding the reset button depressed around 6 seconds, release the
reset button. The unit will start up with factory default settings.
2. Communication Switch Setting
The table below shows the function of each pin within the Communication
Switch.
Communication Switch Pin 1
Pin 2 RS-232 Setting (Reserved)
Pin 3 Termination
Pin 4 Line Lock
Pin 5 System Initialization (for
upgrade)
Pin 6 Reserved
RS-232 is reserved for internal use only; The Pin 3 and Pin 4, they are used for
termination and Link Lock adjustment respectively. The Pin 5 is mainly used for
return to factory default of camera setting.

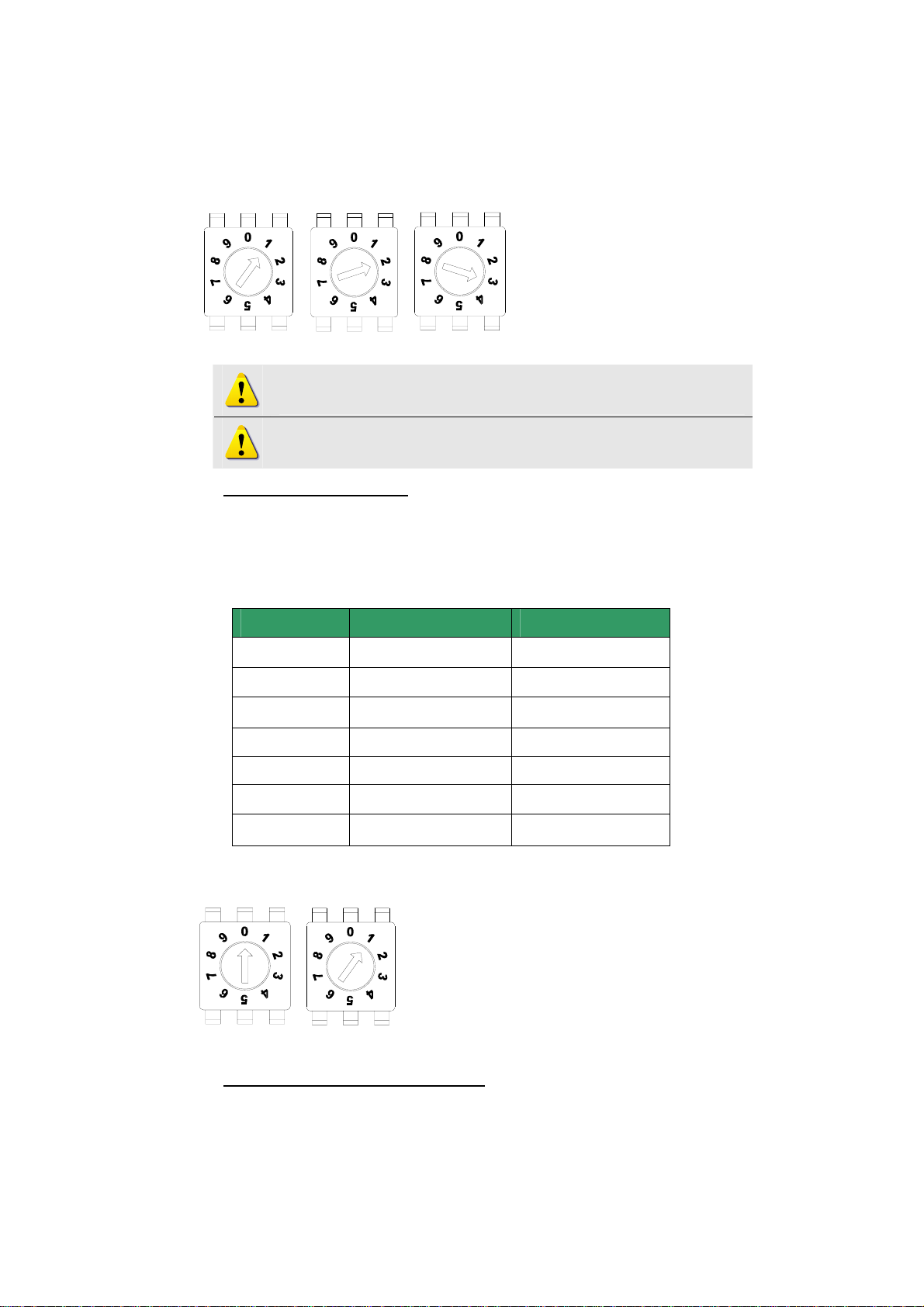

3. Dome ID Setting
Use the switch to change your speed dome ID by turning the arrow to the desired

number respectively. For instance, if the speed dome ID is 123, the ID switch
should be set as below:
centesimal decimal single digit
NOTE: No two speed domes should be given the same ID, or
communication conflict may occur.
NOTE: The number “0” should locate upwards as shown in
above diagram for correct switch definition.
4. Dome Control Protocol
Protocol is a specific set of rules, procdures used for data communications.
Basing on the protocol of your management software that you are going to use.
Use the switch to set your dome control protocol and the baud rate. Refer to
table below and turn the arrow to choose a protocol for your speed dome.
Switch No. Protocol Baud Rate
01 Pelco D 2400
02 Pelco P 4800
07 DSCP 9600
11 Pelco D 4800
12 Pelco D 9600
13 Pelco P 2400
14 Pelco P 9600
Select protocol: Pelco D, with switch no. 01 and baud rate 2400, for instance, the
ID switch should be set as below:
decimal single digit
5. 16 Pin Connector for LAN/WAN
The LAN/WAN cable (shown as the figure below) is shipped with IP high
speed dome. Please find it in the accessory bag.

6. 22 Pin Connector
A 50cm data cable (shown as the figure below) is shipped with IP high speed
dome. Please find it in the accessory bag.
The 22-pin connector definition is listed as below.
No. Pin Cable
1 AC 24-1/DC GND 20AWG
2 Alarm Pin (Not wired)
3 AC 24-2/DC 12(+) 20AWG
4 Alarm Pin (Not wired)
5 FG 20AWG
6 Alarm Pin (Not wired)
7 T+
8 R-
9 T-
10 R+
24AWG
11~20 Alarm Pin (Not wired)
21 VGND
22 Video 24AWG
Power Input
NOTE: For alarm connection, please refer to section 1.3
Cable Wiring.

PIN NAME DESCRIPTION
Wiring Indication
of Power Adapter
1 AC24V AC 24V of Power Input Brown
2 E-GND E-Ground Pin of Power Input Green/Yellow
3 AC24V AC 24V of Power Input Blue
Power Adpater
1.3 Cable Wiring
Cable Wiring and Connection
Users may need to do cable wiring when connecting alarm input and output devices.
The table follows will illustrate the way to wire cords into the connector housing
(shown in the figures below).
Insert the terminal into the pin
holes on the connector
housing, with the hook
outward, as indicated in the
figure.

To unlock the terminal, press
the hook, as indicated in the
figure, with a proper tool and
pull it out gently.
Alarm Cable Wiring
The alarm pins are serviceable for connecting alarm input and output devices, such
as alarm sensors, sirens or flashing lights with the surveillance system. The table
shown as follows lists the definition of alarm pins on the 22-pin connector.
Pin Definition
2 ALM NC
4 ALM NO
6 ALM COM
11 ISOG
12 ALM-1
13 ALM-3
14 ALM-2
15 ALM-4
16 ALM-5
17 ALM-6
18 ALM-7
19 ALM-8
20 ALM GND

1.4 IP High Speed Dome Setups
Before installing or connecting the speed dome camera, please refer to this section and complete
preparation, switch setting and communication switch settings.
1.4.1: Prepartions for Dome Setups
The section will illustrate the speed dome housing installation procedure of the outdoor speed dome
equipped with sunshield. Please follow the steps below to complete speed dome housing installation.
STEP 1
Unpack the dome package and take
out the dome body.
STEP 2
Rotate the top holder and take it
off from the dome body.
STEP 3
Set the dome on a flat table to keep
it stable and then remove the
protective cover and PE cloth.
STEP 4
Attach the dome cover to the dome
body. Before doing that, apply
some lubricant on the dome
cover’s water-proof rubber to make
the installation process smoother.

Note that the tiny protrusion on the
dome cover must align with one of
the four holes on the dome body.
STEP 5
Assemble the dome cover to the
dome body by pressing the cover
gently downward to the dome body
with two hands on the side of the
cover.
DO NOT press the cover as shown
in the figure; this might cause
damage to the dome body.
STEP 6
Screw the dome cover and body
together.
1.4.2: Dome Setups
Before connecting the speed dome camera to other devices of CCTV system, please complete the
speed dome ID and communication switch settings. These switches are located on the bottom of the
speed dome camera (refer to section 1.2 Physical Description).

1.5 Basic Connections
Follow the procedures below to connect the IP high speed dome to the respective apparatuses.

2 Quick Tour
This section guides you with a quick tour on IP high speed dome.
2.1 Configure the IP High Speed Dome
2.1.1 Make sure network environment
Default IP of IP high speed dome is 192.168.0.100. Please make sure IP high
speed dome and your PC are on the same network segment before running the
installation.
2
Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255. 0
(NOTE: xxx should be a number
from 1 to 254, but 100 is
excepted.)

2.1.2 Open Internet Explorer with IP address
NOTE: If your web browser is earlier than IE6, then download IE6 is
recommended.
NOTE: The IP high speed dome default IP address is set to 192.168.0.100
2.1.3 Login with default administrator’s account & password
NOTE: Default administrator account is set to Admin, password is set to
123456, and click button.

2.1.4 Preview the video
NOTE: In your Client PC, please make sure the setting of Network
Connections Type is set to Auto Negotation, since IP high speed dome
follows MII standard. Otherwise, you might not see the live image.

2.15 Set the new IP address
*Host Name : Enter in the domain name, Default Host Name is ACTi.
*Language : Language setting for Web Configurator after Save Reboot. Default setting is English.
*IP Address : The IP address of the LAN interface. The default IP address is 192.168.0.100.
*Subnet Mask : The subnet mask of the LAN interface.The default subnet mask is 255.255.255.0
*Click button
NOTE: Check with your MIS department, if Client PC and IP high speed
dome are setting in different VLANs, please connect to WAN port.
NOTE: In your Client PC, please make sure the setting of Network
Connections Type is set to Auto Negotation, since IP high speed dome
follows MII standard. Otherwise, you might not see the live image.
IMPORTANT: After the IP address is changed, please record this IP
address. There is no way to connect to the IP high speed dome if user
forgets the new IP address.

2.1.6 Check Default Video Setting
The streaming type [Version 1.0] – without audio function
The streaming type [Version 2.0] – with audio function
NOTE: Please make sure the TV Input (NTSC / PAL) is meet your
requirement, and click button.
2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds for
system reboot.
