ActivBody Activ5 User manual

exercise anywhere
ACTIV5 QUICK START GUIDE

DOWNLOAD APP
REGISTER
TURN ON DEVICE
( 1 AAA battery already installed )
CONNECT DEVICE TO APP
VIA BLUETOOTH
START EXERCISING!
1.
2.
3.
4.
5.

1. Download the Activ5 App, available
in the Android and iTunes app stores.
2. Follow the steps to complete your
registration. Registering enables you to
track your progress.
DOWNLOAD & REGISTER

3. To turn your Activ5 ON /
OFF press and hold the power
button down for 2 seconds.
BLUE light means
Activ5 is searching for
available Bluetooth
connections.
2
seconds
GREEN light means
Activ5 is connected to the app.
RED light means the
Activ5 device has
disconnected from the app.
Note:
If not used, Activ5
will shut down
automatically in 7
minutes.
TURNING ACTIV5 ON / OFF

4. Make sure the Bluetooth on
your mobile device is ON.
5. Follow the instructions in
the Activ5 App screen to pair
your Activ5 device.
If there is only one Activ5
device trying to connect, it will
automatically pair.
If there is more than one
Activ5 device trying to
connect, the closest one to
your mobile device will be first
on the list.
The Activ5 device name will
appear as Activ5-XX-XXXX
Note:
If Activ5 doesn't connect
within one minute it will
automatically turn o. To try to
connect again, simply turn the
Activ5 device back on.
When paired, the light will
start blinking GREEN.
You're ready to workout, so
Take 5 with Activ5.
PAIR YOUR ACTIV5

6. For best results, position the Activ5
device in your hands as follows.
CORRECT
Pressure Area
INCORRECT
HOW TO HOLD ACTIV5

SET MAX POWER
7. Every Activ5 exercise is
customized to your unique
strength level.
To personalize each exercise,
you will need to set your MAX
POWER before starting each
exercise.
The Activ5 app will prompt
you to set your MAX POWER
as you start exercises and
workouts.
During this step, the Activ5
app will ask you to adopt the
correct exercise pose and
apply maximum pressure to
the Activ5 device. You will see
your MAX POWER reading in
the Activ5 App.
Note:
To track your increase of
strength over time, we
recommend resetting your
MAX POWER every 7-10 days.
SETTING MAX POWER

After you've selected an exercise in the app,
be sure to set your MAX POWER for that
exercise. To do so, adopt the correct pose
and apply maximum pressure to the Activ5
device until the 5-second timer runs out.
By customizing your MAX POWER
Activ5 ensures that each exercise
is challenging, but achievable,
helping you to get fitter, faster.
SETTING MAX POWER

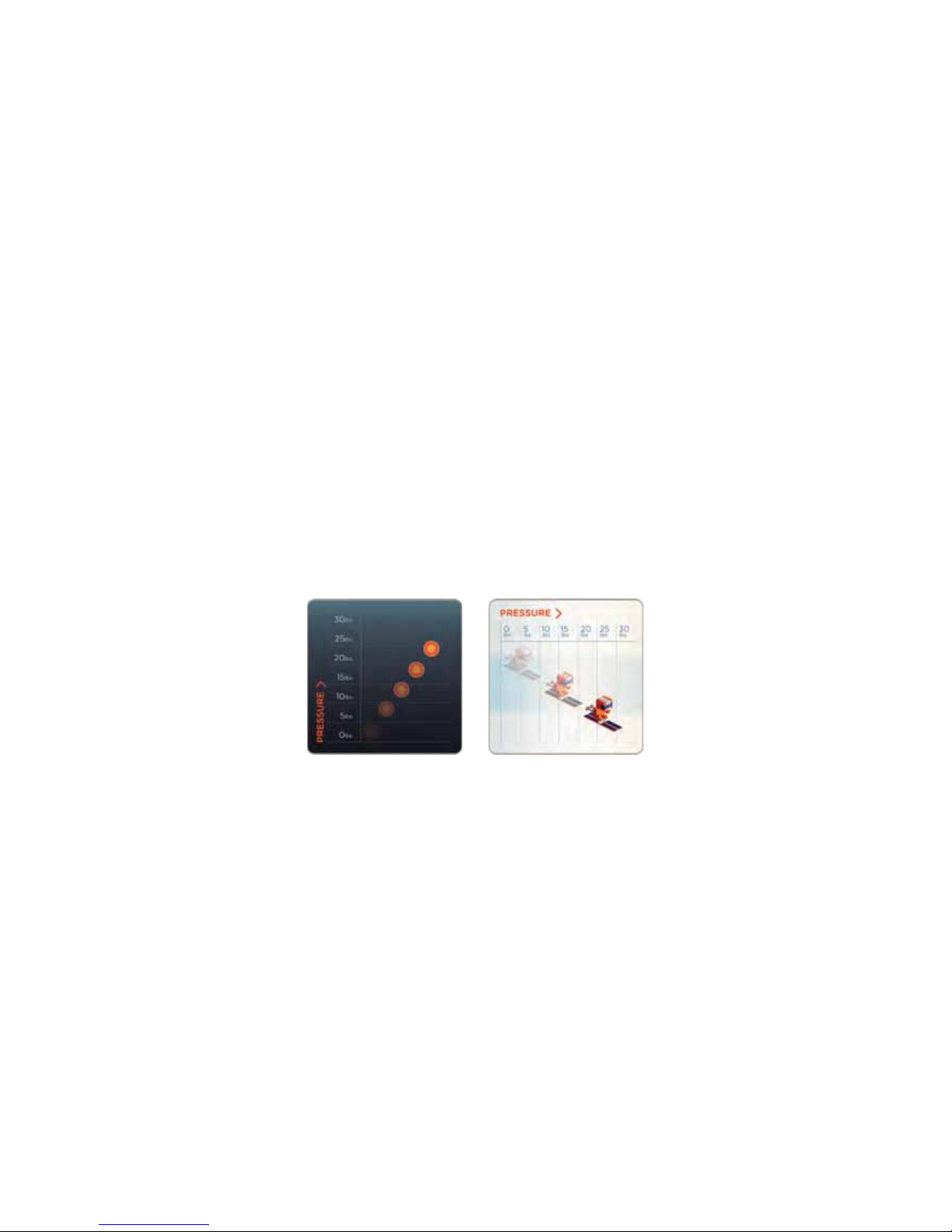

The way you interact with the
Activ5 App is through a
marker, which represents the
amount of pressure applied to
your Activ5 device.
In the Activ5 App, the marker
will be a dot or a skier.
More pressure makes the dot
go HIGHER, Less pressure
makes the dot go LOWER.
More pressure makes the skier
go RIGHT, Less pressure
makes the skier go LEFT.
In Activ5 Games, available for
separate download in the
Android and iTunes App
Stores, the marker will vary.
Pressure you apply on the
Activ5 device controls your
marker.
HOW DOES ACTIV5 WORK?

The Activ5 App coaches you
by creating curves for each
exercise, based on your MAX
POWER. We call this version of
isometric exercise "Variobics "
By applying more or less
pressure to the Activ5 device
Note: Screens may
not appear the same
on all mobile devices.
you can keep your marker on
the exercise curve.
If MAX POWER isn't set for
each exercise, the exercise will
not be customized to your
strength level and may be too
easy or too dicult.
COACHING CURVES

Isometric exercise has been
practiced for over 5,000 years and
is the muscle strengthening
foundation of both yoga and
pilates.
What distinguishes isometrics from
other forms of muscle exercise is
that you tense your muscles against
a static object (such as the floor) or
against other muscles, so your
joints are static while multiple
muscle groups are fully engaged.
You may not be moving, but
scientific research has proven that
isometric exercise is one of the
fastest and most ecient ways to
build strength, burn fat and tone
your body.
Because Activ5 isometric exercises
are discrete and static, you can
perform them at your desk, while
watching TV, or on a plane, making
powerful health-transforming
workouts available to you anytime,
anywhere.
Activ5 oers over 100 workouts
ensuring you can always find the
perfect workout, wherever you are.
Activ5 coaches you to vary the
pressure exerted during each
exercise rep, building muscle
control and turning each rep into a
game .
Activbody workouts are based on
fractionalized exercise, or working
out in short bursts throughout the
day. Medical studies have shown
fractionalized exercise can deliver
all the results of longer workouts
while contributing to heart health,
overall well-being, and reducing the
risk of chronic diseases, such as
diabetes.
Activbody Isometrics are fast, fun
workouts that make you stronger
and toned, enabling you to burn
calories faster and keep active
throughout the day.
To learn more about the science of
isometrics and ways to incorporate
Activ5 into your daily routine,
follow Activbody on social media
and read our blog at
www.activbody.com.
ISOMETRICS

+
AAA
12
34
click
Activ5 comes with a standard AAA battery, which lasts between 6
and 12 months. To replace the battery, follow these simple steps.
You need a new AAA battery
& a flat-head screwdriver.
Insert the tip of the screwdriver in
the opening.
Softly turn until you here a CLICK
sound. The lid pops slightly opened.
Hold Activ5 and the screwdriver like
this. The Activ5 logo should not be
visible.
REPLACING THE BATTERY

click
click
AAA
+
-
snap
Replace the battery. Snap the lid back on when you are
done.
Attempting to open Activ5 any other way may damage the lid snaps.
5
6 7
Gently slide the screwdriver
along the edge of Activ5,
keeping the tip inside the
crevice, until you get to the
spot as shown in the picture.
Then stop and slightly turn
until you hear a CLICK. The
lid is now open and you can
carefully remove it.

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void
the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Canada, Industry Canada (IC) Notices
This device complies with Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Cet appareil est conforme avec Industrie Canada exemptes de licence RSS standard(s).
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas
causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les
interférences qui peuvent aecter son fonctionnement.

HAPPY?
Share your first #Activ5 workout on social
media.
QUESTIONS OR
PROBLEMS?
Please email us at [e-mail]
or go to Activ5.com and click Help
Patent Protected. Activbody, Inc. ©2016 All rights reserved.
Activbody, Activ5, Exercise Anywhere, Tiny Gym in Your Pocket and the Activ5
logo are all trademarks of Activbody, Inc. US Patent Nos. 8,334,013, 8,172,723,
9,230,064, 9,262,064. SG Patent No. 191094. Other U.S. and Foreign Patents Pending.
