Active Grow Walden User manual

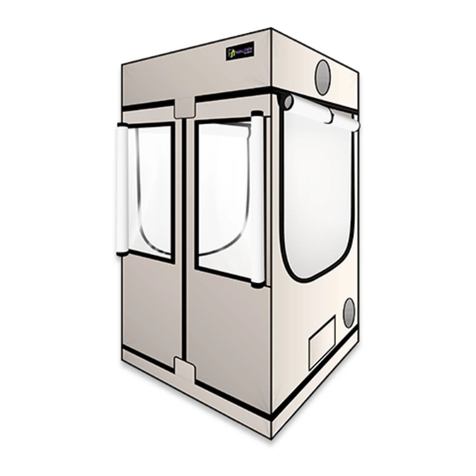

Walden Tent Installation Guide
Important
• Read all product labels and instructions before assembling and installing the tent.
• Installation does not require any tools. Before assembling the tent, confirm that all pieces needed for
installation have been included in the tent packaging.
• Contact Active Grow directly at [e-mail] if any damaged or missing parts are discovered
after opening the tent packaging.
• To avoid tearing or ripping the tent do not use excessive force when covering the frame with the tent
fabric. Any damage to the frame or tent fabric during installation as a result of not following the installation
instructions will void the warranty.
• Do not hang equipment exceeding 110 lbs on any poles.
• Do not use abrasive materials or any substance that can damage the tent fabric when cleaning the tent.
Tent may be cleaned using soap and water or other standard hydroponic sanitizers.
For use with: AG/44TENT/W
Active Grow LLC, [phone], 12345 Lake City NE #2137, Seattle, WA 98125
www.activegrowled.com
Tent Assembly Instructions
1. Before assembling the tent, confirm that all pieces needed for
installation have been included in the tent packaging.
2. Build the bottom of the tent using Corner Connectors x4 and A
Poles x4. Make sure tent poles are seated firmly in Corner
Connectors after inserting.
B Poles x4
A Poles x11
C Poles x4
Corner Connectors x8
Ax4x4
Fan/Filter Straps x2
Lateral Roof
Support Clamps x4
Medial Roof
Support Clamps x2
3. Slide B Poles x4 into existing Corner Connectors. Make sure tent
poles are seated firmly in Corner Connectors after inserting.
4. Add another section of vertical poles using C Poles x4. Make
sure the bearings on B Poles align correctly with the holes on C
Poles and snap into place.
Cx4Bx4
5. Slide Corner Connectors x4 on top of C Poles. Make sure tent
poles are seated firmly in Corner Connectors after inserting.
6. Start building the top of the tent using A Poles x4. Make sure
the tent poles are seated firmly in Corner Connectors after
inserting.
x4 Ax4

Walden Tent Installation Guide
Active Grow LLC, [phone], 12345 Lake City NE #2137, Seattle, WA 98125
www.activegrowled.com
Tent Assembly Instructions (continued)
7. Create the Medial Roof Support by sliding the Medial Roof
Support Clamps x2 onto the ends of A Pole x1. Attach it to the top
of the tent frame in the center. Make sure the open part of the
clamps face the floor when attaching the support.
8. Create the Lateral Roof Supports by sliding the Lateral Roof
Support Clamps x4 onto the ends of A Poles x2. Attach them to
the top of the tent frame below the Medial Roof Support. Make
sure the open part of the clamps face the floor when attaching
the supports.
Medial Roof Support x1 Lateral Roof Supports x2
Ax1x2 Ax2x4
AG-44TENT-W-IG-281220
9. Unzip all zippers before covering the framing with the tent.
Spread the tent on the ground and put the tent frame into the
bottom of the tent covering.
10. Place the tent covering over the top of the tent frame and
continue to wrap the sides and front of the frame. Note do not use
excessive force when stretching the tent covering over the frame.
11. Zip all tent seams together and insert the spill tray into the
bottom of the tent. Use the velcro straps on each corner of the spill
tray to attach it to the tent’s corner poles.
