Active Grow Walden User manual

Walden Grow Tent Installation Guide
For use with: AG/24TENT/W/3S
Active Grow LLC, [phone], 12345 Lake City NE #2137, Seattle, WA 98125
www.activegrowled.com
Tent Assembly Instructions
1. Before assembling the tent, confirm that all pieces needed for installation have been included in the tent packaging.
Important
• Read all product labels and instructions before assembling and installing the tent.
• Installation does not require any tools. Before assembling the tent, confirm that all pieces needed for
installation have been included in the tent packaging.
• Contact Active Grow directly at [e-mail] if any damaged or missing parts are discovered
after opening the tent packaging.
• To avoid tearing or ripping the tent do not use excessive force when covering the frame with the tent
fabric. Any damage to the frame or tent fabric during installation as a result of not following the installation
instructions will void the warranty.
• Do not hang equipment >110 lbs on any poles. Do not place equipment >45 lbs on any shelves.
• Do not use abrasive materials or any substance that can damage the tent fabric when cleaning the tent.
Tent may be cleaned using soap and water or other standard hydroponic sanitizers.
Fan/Filter Straps x2
Shelving & Lateral Roof
Support Clamps x26
Medial Roof
Support Clamps x2
Corner Connectors x8
Shelving Sections x6
Shelving Connectors Lx6 Rx6

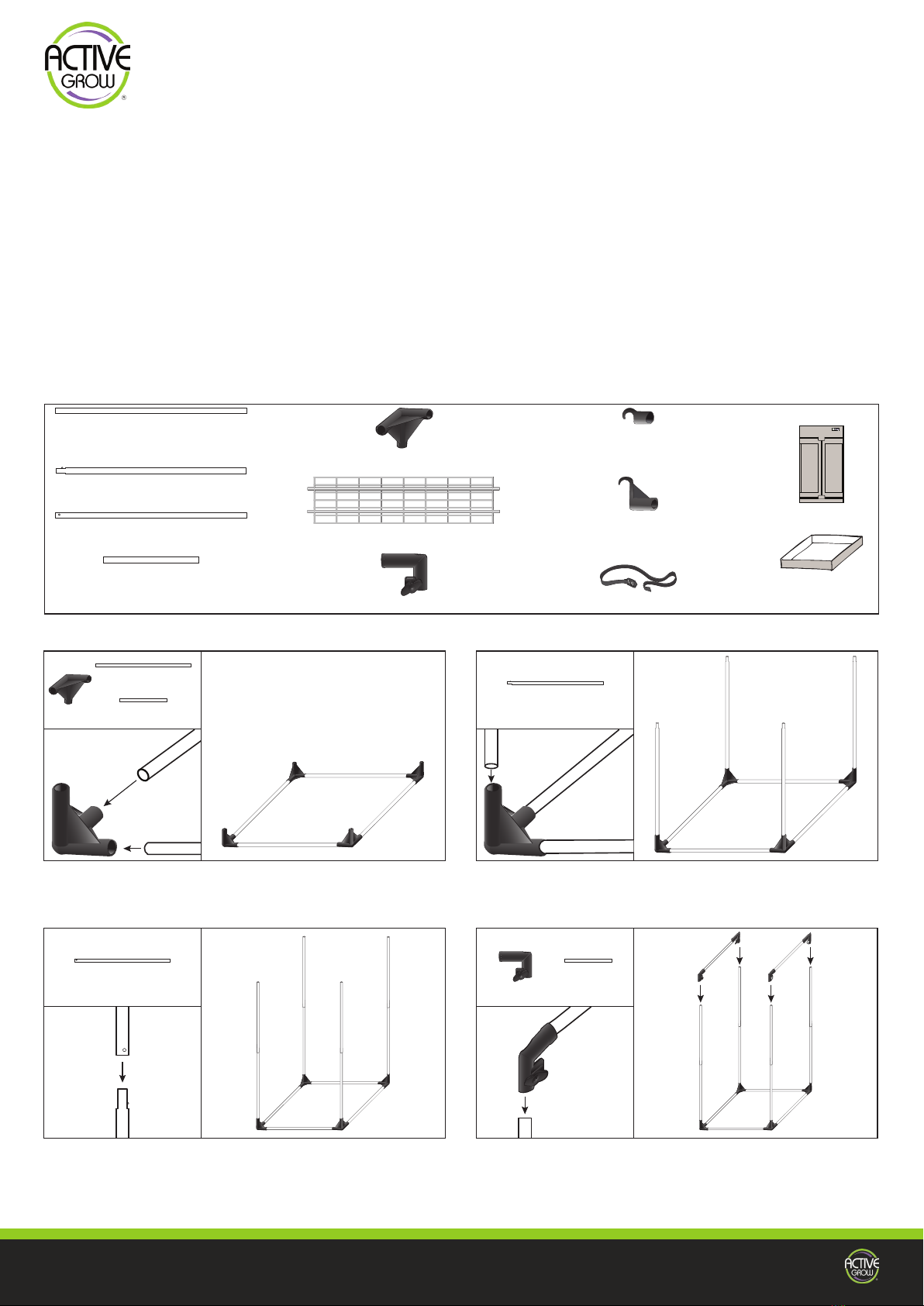

5. Build Shelving Support Cross Sections x6 using Shelving
Connectors x12 and B Poles x6. Note: All wing nuts on Shelving
Connectors should be facing inside the tent. Slide all Shelving
Support Cross Sections down the vertical poles to desired heights
and tighten securely using each connector’s wing nut.
2. Build the bottom of the tent using Corner Connectors x4, E
Poles x2 and A Poles x2. Make sure tent poles are seated firmly in
Corner Connectors after inserting.
Ax2
Ex2
A
E
x4
A
E
3. Slide C Poles x4 into existing Corner Connectors. Make sure tent
poles are seated firmly in Corner Connectors after inserting.
Cx4
4. Add another section of vertical poles using D Poles x4. Make
sure the bearings on C Poles align correctly with the holes on D
Poles and snap into place.
Dx4 Bx6x12
Spill Tray x1
Tent Canvas x1
A Poles x4
B Poles x6
F Poles x1
E Poles x4
G Poles x1
C Poles x4
D Poles x4

Walden Grow Tent Installation Guide
Active Grow LLC, [phone], 12345 Lake City NE #2137, Seattle, WA 98125
www.activegrowled.com
Tent Assembly Instructions (continued)
11. Unzip all zippers before covering the framing with the tent.
Spread the tent on the ground and put the tent frame into the
bottom of the tent covering.
6. Slide Corner Connectors x4 on top of D Poles. Make sure tent
poles are seated firmly in Corner Connectors after inserting.
x4
7. Start building the top of the tent using E Poles x2 and A Poles
x2. Make sure the tent poles are seated firmly in Corner
Connectors after inserting.
Ax2
Ex2 A A
E
8. Create the Lateral Roof Support by sliding the Lateral Roof
Support Clamps x2 onto the ends of G Pole x1. Attach it to the top
of the tent frame in the center. Make sure the open part of the
clamps face the floor when attaching the support.
Lateral Roof Support x1
x2 Gx1
9. Create the Medial Roof Support by sliding the Medial Roof
Support Clamps x2 onto the ends of F Pole x1. Attach it to the top
of the tent frame below the Lateral Roof Support. Make sure the
open part of the clamps face the floor when attaching the
support.
Medial Roof Support x1
Fx1x2
10. Slide Shelving Clamps x24 onto the ends of each Shelving
Section x6. Once all Shelving Sections are made, attach them to
the Shelving Support Cross Sections already in place on the tent.
Note: Each of the 3 final shelves is made using Shelving Sections
x2.
x24 x6
E

12. Place the tent covering over the top of the tent frame and
continue to wrap the sides and front of the frame. Note: Do not
use excessive force when stretching the tent covering over the
frame.
13. Zip all tent seams together and insert the spill tray into the
bottom of the tent. Use the velcro straps on each corner of the spill
tray to attach it to the tent’s corner poles.
Walden Grow Tent Installation Guide
Active Grow LLC, [phone], 12345 Lake City NE #2137, Seattle, WA 98125
www.activegrowled.com
Tent Assembly Instructions (continued)
AG-24TENT-W-3S-IG-070322
