Active VE56 User manual

Instruction Manual
Congratulations on the purchase of your new
ACTIVE™ pressure washer. In order to ensure you have
the best possible experience, please read through the
following instructions.
If you require any help, please contact the customer
service department at: 1-844-777-4555
The contents of the Active 1800 in this box is
specifically built for OBSESSED GARAGE.
The provided unit is designed to suit accessory
upgrades provided by OBSESSED GARAGE through their
various pressure washer upgrade packages.
The stock accessories that usually come with the
Active VE52 are not included in this oering.
Pressure
Washer
1800 PSI 2.0 GPM
MODEL NO. VE56
OG Version: 2021 V2
VE52_2021_EN .indd 1VE52_2021_EN .indd 1 2021-05-17 5:15 PM2021-05-17 5:15 PM

2
1. IMPORTANT PRECAUTIONS...................................................................................... 3
1.1 Definitions................................................................................................................................................... 3
1.2 Safety Warnings ....................................................................................................................................... 3
1.3 Intended Application............................................................................................................................. 5
2. SAFETY FEATURES AND ELECTRICAL INFORMATION ........................................... 5
2.1 Extension Cords....................................................................................................................................... 5
3. EXPLODED VIEW......................................................................................................... 6
4. PARTS LIST.................................................................................................................. 6
5. ASSEMBLY INSTRUCTIONS....................................................................................... 7
5.1 Surface Preparation .............................................................................................................................. 7
5.2 Water Supply (Cold Water Only)......................................................................................................... 7
5.3 Safety Advice............................................................................................................................................. 7
5.4 Assembly Steps ........................................................................................................................................ 7
6. OPERATING INSTRUCTIONS................................................................................... 10
6.2 Shutting Down and Cleaning Up......................................................................................................10
6.3 Taking Breaks...........................................................................................................................................10
6.4 Warnings.....................................................................................................................................................10
7. WINTERIZING AND LONGTERM STORAGE .......................................................... 11
7.1 Optimum Winterizing Procedure ....................................................................................................11
7.2 Quick Winterizing Procedure............................................................................................................11
8. CLEANING AND MAINTENANCE............................................................................. 12
8.1 Connections .............................................................................................................................................12
8.2 Cleaning the Nozzle ..............................................................................................................................12
8.3 Water Filter Screen ...............................................................................................................................12
9. TECHNICAL SPECIFICATIONS................................................................................. 12
10. TROUBLESHOOTING.............................................................................................. 13
11. WARRANTY............................................................................................................. 15
Table of Contents
VE52_2021_EN .indd 2VE52_2021_EN .indd 2 2021-05-17 5:15 PM2021-05-17 5:15 PM

3
Important Precautions
1. Important Precautions
IMPORTANT, RETAIN FOR FUTURE
REFERENCE AND READ CAREFULLY!
Do not attempt to install or operate this device
until you have read the safety instructions in this
manual. Safety items throughout this manual
are labelled with Danger, Warning, or Caution
depending on the risk type.
Failure to follow or comply with the instruction
manual in product set-up, usage or storage will
void the warranty.
1.1 Definitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol
to avoid possible injury or death.
1.2 Safety Warnings
DANGER
Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
DANGER
To reduce the risk of fire, electric shock, explosion
or injury to people, read the following:
•This product is intended for domestic outdoor
use only.
•The water spray must never be
directed towards any electric
wiring, devices, or directly towards
the pressure washer itself, or fatal
electric shock may occur.
•The pressure washer should not be used in
areas where gas vapours may be present. An
electric spark could cause an explosion or fire.
•Risk of explosion. When a combustible
liquid is sprayed, there can be danger of
fire or explosion, especially in a closed area.
Therefore, do not spray flammable liquids. Do
not use acids and solvents with this product
either. These products can cause physical
injuries to the operator and irreversible
damage to the device.
•Risk of electric shock. Inspect the cord before
using the device — do not use it if the cord is
damaged.
•Risk of injury. Do not direct the
water flow at people. The high-
pressure jet can be dangerous if
misused, and therefore must not
be directed at people, animals,
electrical devices or the unit itself.
•This device is capable of producing
high pressure as rated in the Technical
Specifications. To avoid rupture and injury, do
not operate this machine with components
rated less than the unit itself (including but
not limited to spray guns, hose, and hose
connections).
WARNING
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, could result in minor or
moderate injury.
IMPORTANT
Installation, operation, or maintenance information
which is important but not hazard-related.
VE52_2021_EN .indd 3VE52_2021_EN .indd 3 2021-05-17 5:15 PM2021-05-17 5:15 PM

4
1. Important Precautions (cont.)
1.2 Safety Warnings (cont.)
WARNING — INJECTION HAZARD
• Equipment can cause serious injury if the
spray penetrates the skin. Do not point the
gun at anyone or any part of the body. In case
of penetration, seek medical aid immediately.
CAUTION — DETERGENTS
• This device has been designed for use with
detergents that are specifically approved
for pressure washer use. The use of other
cleaning detergents may aect the operation
of the device and void the warranty.
CAUTION — SPRAY GUN
• The spray gun kicks back, so hold it with both
hands. The trigger gun safety lock prevents
the trigger from being engaged accidentally.
However, the safety feature DOES NOT lock the
trigger in the ON position.
CAUTION — WATER CONNECTIONS
• For use with fresh and clean water only. Do not
use this product with other liquids.
• The water supply system must be protected
against backflow.
• Never use this product with water
contaminated with solvents (e.g. paint
thinners, gasoline, oil, etc.).
• Always prevent debris from being drawn into
the product by using a clean water source and
an additional water filter, if required.
• If this device is connected to a potable water
system, the system must be protected against
backflow.
• Suitable water temperature: from 5 to 40 °C (41
to 104 °F).
CAUTION — USE
• Learn how to stop the device and release the
pressure quickly. Familiarize yourself with the
controls.
• Keep all connections dry and o the ground.
• Avoid accidental starts. Shut power OFF before
connecting or disconnecting the power cord.
• Never carry the pressure washer by the cord.
• Do not pull on the cord to disconnect from
the outlet.
• To allow for free air circulation, the pressure
washer should not be covered during
operation.
• Do not operate the product when tired or
under the influence of alcohol or drugs.
• Do not stand on unstable surfaces. Stand with
both feet balanced at all times.
• Keep the operating area clear of people
and pets.
IMPORTANT — MAINTENANCE
• Any assembly, use or maintenance of the
product must be carried out by adults only.
• Follow the maintenance instructions specified
in the manual.
• If replacement of the power plug or cord is
needed, use only identical replacement parts.
• Repairing and replacing parts should be done
by a certified technician.
• Before servicing, cleaning or removal of any
parts, shut the power OFF and release the
pressure.
IMPORTANT — GROUNDING
• In a double-insulated product, two systems of
insulation are provided instead of grounding.
No grounding is provided on a double-
insulated product, nor should a means for
grounding be added to the product. Servicing
a double-insulated product requires extreme
care and knowledge of the system, and should
be done only by qualified service personnel.
Replacement parts of a double-insulated
product must be identical to the parts they
replace. A double-insulated product is marked
with the words “DOUBLE INSULATION” or “DOUBLE
INSULATED”. The symbol may also be marked
on the product.
Important Precautions
VE52_2021_EN .indd 4VE52_2021_EN .indd 4 2021-05-17 5:15 PM2021-05-17 5:15 PM

5
1. Important Precautions (cont.)
1.3 Intended Application
This product is designed for specific residential
applications. Do not modify or use this product
for any application other than the one it was
designed for. This equipment was not designed
for industrial use. Please refer to the icons
below for suggested applications. For questions
regarding other uses, please refer to our website
at www.active-jobsite.com or call us
at 1-844-777-4555.
2. Safety Features
and Electrical Information
The pressure washer is equipped with a stop
device that senses when the trigger on the spray
gun is released. It will open the power circuit
to the motor and cause the pressure washer
motor to stop. The motor will start again when the
trigger is pulled.
WARNING
• The pressure washer is also equipped with a
main power ON/OFF switch. It should always be
moved to the OFF position when the pressure
washer is not being used to prevent possible
injury or damage.
CAUTION — USE A SUFFICIENT GAUGE
• Maximum cable length: 50’ (15 m). Only use 14
AWG rated extension cords.
• Only use extension cords that are intended
for outdoor use. These extension cords are
identified by a marking that reads “Acceptable
for use with outdoor appliances; store indoors
while not in use.”
• Only use extension cords that have an
electrical rating not less than the rating of the
product (15 A).
• Do not use damaged extension cords. Examine
the extension cord before using and replace
it if damaged. Do not abuse extension cords
and do not pull on any cord to disconnect the
device.
• Keep cord away from heat and sharp edges.
• Always disconnect the extension cord from
the power outlet before disconnecting the
extension cord from the product.
• To reduce the risk of electric shock, keep all
connections dry and o the ground. Do not
touch the plug with wet hands.
IMPORTANT — APPLICATIONS
Important Precautions /
Safety Features and Electrical Information
STAIRS LAWN EQUIPMENT VEHICLE
FENCING DECK OR PATIO GARAGE FLOOR
DRIVEWAY SIDING
2.1 Extension Cords
If possible, do not use extension cords with this
product. However, if you must use one, observe all
warnings and instructions listed below:
VE52_2021_EN .indd 5VE52_2021_EN .indd 5 2021-05-17 5:15 PM2021-05-17 5:15 PM

6
Exploded View / Parts List
A
B
C
D
3. Exploded View
4. Parts List
Item # Part Name Qty. Part #
A Hose holder kit (2pcs) 1 set VE20-000-0004
B Cord bracket 1 VE20-000-9003
C Bottle holder 1 VE10-000-0002
D Gun holder 1 VE20-000-9005
n/a Cleaning needle 1 Pre-attached on the manual
n/a Water filter 1 Pre-attached on the machine
* Cord bracket comes pre-attached on the machine.
VE52_2021_EN .indd 6VE52_2021_EN .indd 6 2021-05-17 5:15 PM2021-05-17 5:15 PM

7
Assembly Instructions
5. Assembly Instructions
5.1 Surface Preparation
Before beginning any cleaning task, it is
important to inspect the area for objects that
could create a hazard. Remove any objects from
the work area that could be tripped over, such as
toys or outdoor furniture. Ensure that all doors
and windows are closed tightly.
5.2 Water Supply (Cold Water Only)
Only draw water through the unit. The device
must be used with cold water supply only. The
water hose must be at least 1/2” (13 mm) in
diameter. The water flow rate must not fall below
2 GPM (9.1 LPM). The flow rate can be determined
by running water for one minute into an empty
container. The water supply temperature must
not exceed 40 °C (104 °F).
5.3 Safety Advice
5.4 Assembly
CAUTION
• Never use the pressure washer to draw in
water contaminated with solvents (e.g. paint
thinners, gasoline, oil, etc.).
• Dirt in the water inlet will damage the unit.
To avoid this risk, we recommend checking
the water filter (located inside the water
inlet. To clean it out, refer to the Cleaning and
Maintenance section).
• Always prevent debris from being drawn into
the unit by using a clean water source and an
additional accessory water filter, if required.
• To prolong the life of the unit, let it rest for 5
minutes aer every 30 minutes of use.
• Check to make sure you have all the parts.
Assemble the hose holders.
Assemble the gun holder.
Assemble the cord bracket and bottle holder.
1
2
3
VE52_2021_EN .indd 7VE52_2021_EN .indd 7 2021-05-17 5:15 PM2021-05-17 5:15 PM

8
Assembly Instructions
5. Assembly Instructions (cont.)
5.4 Assembly (cont.)
4
6
9
8
5
7
Attach high-pressure hose to the gun and
the pump outlet (hand tighten only, do not
use any tape to secure connections). Ensure
the hose adapter to the pressure washer
pump outlet is a m22-15mm connection!
Connect garden hose to the inlet adapter.
(hand tighten only)
Release the safety trigger if it is locked.
Attach garden hose to water supply and turn
water on.
Plug the GFCI plug into an outlet. Firmly press
and release the TEST button, then press and
release the RESET button. The light on the GFCI
should be illuminated.
Attach the desired spray tip to the wand and
the wand to the pressure washer gun. secure
tightly (hand tighten only)
RESET
TEST
WARNING
Make sure your hands are dry. Plug the unit
into an outlet.parts.
VE52_2021_EN .indd 8VE52_2021_EN .indd 8 2021-05-17 5:15 PM2021-05-17 5:15 PM

9
Assembly Instructions
5. Assembly Instructions (cont.)
5.4 Assembly (cont.)
10 11
Purge air by squeezing the trigger on the gun
until there is a steady stream of water.
Push ON/OFF button, switch is set in ON
position, machine is ready to operate.
Push the ON/OFF button one more time to set
switch in OFF position, machine is stopped.
CAUTION
Drain unit aer each use (for storage):
remove water connection, turn ON the
machine for a few seconds and press gun
trigger to drain remaining water in the pump.
Turn OFF immediately.
NOTE
The machine is equipped with the Total Stop
System. When switched on from the main
switch the pump will pressurize and will
switch o to idle mode. To engage the pump,
engage the trigger on pressure gun.
PURGING
VE52_2021_EN .indd 9VE52_2021_EN .indd 9 2021-05-17 5:15 PM2021-05-17 5:15 PM

10
Operating Instructions
6. Operating Instructions
6.1 Shutting Down and Cleaning Up
1Turn o water supply and disconnect the
garden hose from the water inlet on the
pressure washer.
2Pull the trigger to release any remaining
water pressure.
3Set the ON/OFF switch to the OFF position.
4Unplug the power cord from the outlet.
5Engage the safety lock on the spray gun.
1Engage the safety lock on the the
spray gun.
2Set the ON/OFF switch to the OFF position.
3Unplug the power cord from the outlet.
WARNING
Turn o the water supply and pull the trigger to
depressurize the device. Failure to do so might
result in personal injury due to discharge of
high-pressure water.
CAUTION
Failure to clean this product properly will cause
the detergent injection system to become
clogged and inoperable.
WARNING
Never use:
• Bleach, chlorine products or other
corrosive chemicals
• Liquids containing solvents
(i.e., paint thinners, gasoline, oils, etc.)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the unit and will
damage the surface being cleaned.
6.2 Taking Breaks
If taking a five minute or longer break while using
the pressure washer:
6.3 Warnings
VE52_2021_EN .indd 10VE52_2021_EN .indd 10 2021-05-17 5:15 PM2021-05-17 5:15 PM

11
Winterizing and Long-Term Storage
WARNING
Flush the pressure washer unit out with clear
water before reusing. Anti-freeze can damage the
paintwork and product, so you must ensure there
is no anti-freeze le in product system before
using it again.
CAUTION
Drain any remaining water from the gun assembly.
Aim the gun downwards and pull the trigger.
WARNING
Store the pressure washer unit in a location where
temperature does not fall below 32°F (0°C) at all
times. The pump in the machine is susceptible to
damage if exposed to cold temperatures. FREEZE
DAMAGE IS NOT COVERED BY THE WARRANTY.
7.2 Quick Winterizing Procedure
If you are unable to perform the Optimum
Winterizing Procedure, you can still protect your
pressure washer from winter damage by doing
the following:
• Disconnect all water connections.
• Turn on the device for a few seconds, until the
remaining water flows out of the pump. Turn
the device off immediately after that.
• Do not allow the high-pressure hose to
become kinked.
• Store the device and its accessories in a room
that does not reach freezing temperatures.
Do not store them near furnaces or other
sources of heat, as that might dry out the
pump seals.
• Recommended: Pressure Washer Antifreeze.
7.1 Optimum Winterizing Procedure
Winterizing your pressure washer will help
protect and prolong its life. We strongly
recommend you follow the below steps using a
Pressure Washer Antifreeze before storing for the
winter. This will keep the internal parts lubricated,
protected from rust, and prevents the pump
from freezing.
1. Connect the Pump Saver to the inlet adaptor.
2. Depress button on top of the pump saver
container.
3. Continue until fluid exits the pressure hose.
4. Remove the hose from pump inlet.
7. Winterizing and Long-Term Storage
VE52_2021_EN .indd 11VE52_2021_EN .indd 11 2021-05-17 5:15 PM2021-05-17 5:15 PM

12
Cleaning and Maintenance / Technical Specifications
8. Cleaning and Maintenance
8.1 Connections
The connections on the pressure washer’s
hoses, gun, and spray wand should be cleaned
and lubricated with non-water soluble grease
regularly.

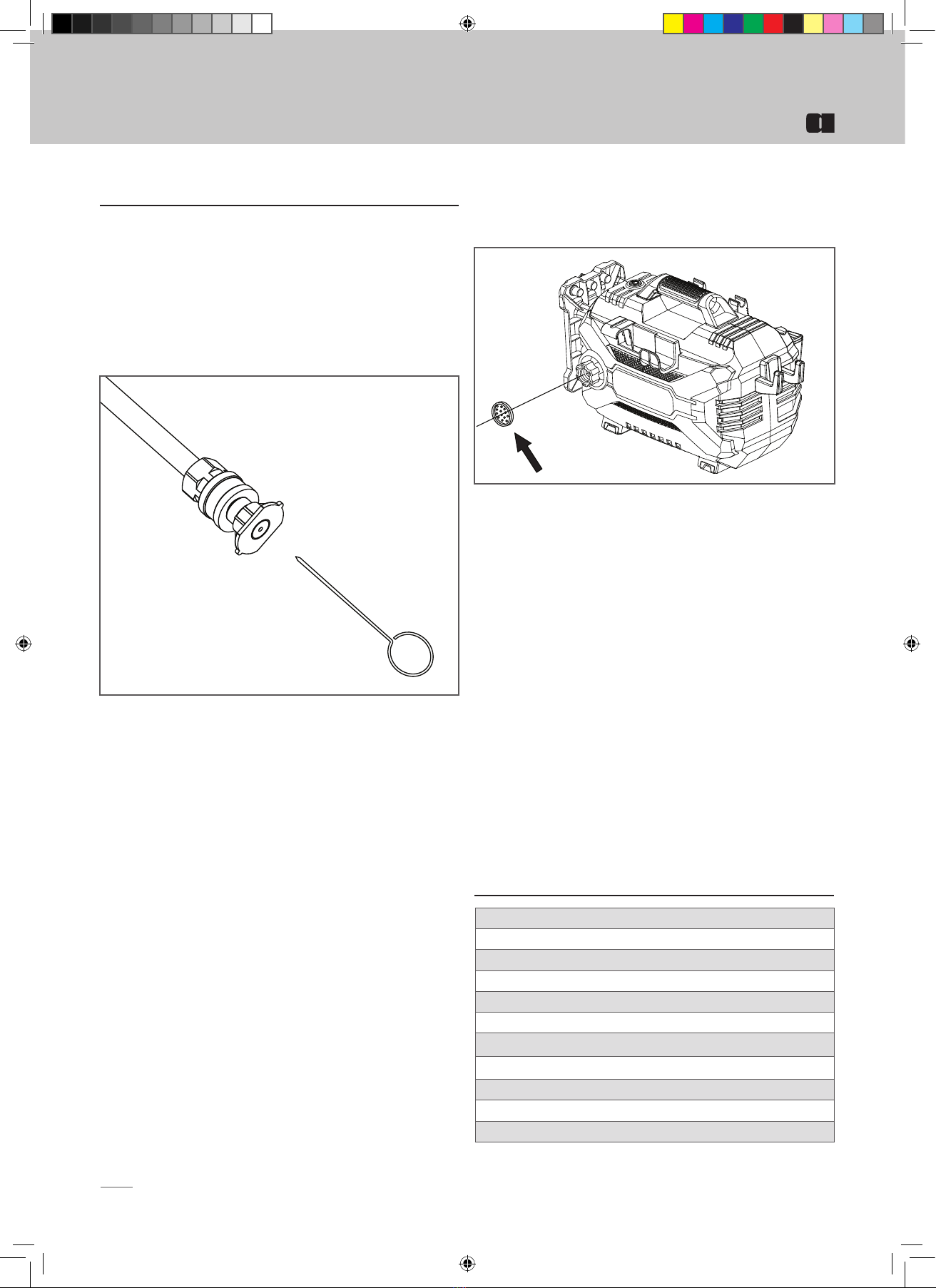

8.2 Cleaning the Nozzles
Clogging of the nozzle causes the pump pressure
to be too high, making it necessary to clean the
nozzle immediately. You can clean the nozzle by
carefully inserting the cleaning needle or a thin,
sharp instrument (i.e. paperclip) into the tip to
clean out any deposits.
8.3 Water Filter Screen
The pressure washer is equipped with a water
inlet screen to protect the pump. If the screen is
not kept clean, the flow of water to the pressure
washer will be restricted, and the pump may
become damaged.
To clean the water inlet screen:
• Remove the filter screen from inside the inlet
adaptor
(the inlet adaptor comes pre-assembled to
the machine).
• Rinse the screen until it is free of debris and
obstructions.
• Place the screen back to prevent foreign
particles from entering the pump.
9. Technical Specifications
Peak pressure: 1800 PSI (12.4 MPa)
Rated pressure: 1100 PSI (7.6 MPa)
Power source requirement: 120 V / 60 Hz
Electric code with GFCI: 35’ (10.7 m) 16 AWG
US GPM: 2.0 GPM (7.6 LPM)
Current drawn: 13 A
Inlet water: Cold tap water
CU (cleaning units): 3600
Motor: Universal
Pump: Aluminum, indirect-drive
VE52_2021_EN .indd 12VE52_2021_EN .indd 12 2021-05-17 5:15 PM2021-05-17 5:15 PM

13
Troubleshooting
10. Troubleshooting
Disconnect the device from the power source
before making any repairs.
Problem Cause Solution
The motor does not start.
The device is in OFF mode. Push the ON/OFF button once to turn to the ON
mode.
The power cord is not plugged in. Plug in the power cord.
The extension cord is too long.
The extension cord is not the proper gauge.
The extension cord is damaged.
Replace the extension cord with either a 25’
(7.6 m) 14/3 gauge cord or a 50’ (15 m) 14/3
gauge cord.
The power outlet does not supply ade-
quate power. Try a dierent outlet.
Tripped pressure washer circuit breaker. Allow the device to cool, and then restart it.
The device does not
reach high pressures.
The garden hose is too small.
Replace it with a
1” (25 mm) or
5/8” (16 mm) garden hose.
Water supply is restricted. Check the garden hose for kinks, leaks or
blockage.
Not enough water supply. Open water source fully.
The water inlet filter is clogged. Remove the filter and rinse it with warm water.
The pump is sucking air.
Check if all hoses and fittings are airtight. Turn
the device to OFF mode, and purge the pump
by pulling the trigger on the spray gun until
a steady flow of water emerges through the
nozzle.
Output pressure
fluctuates high and low.
Not enough inlet water supply. Turn faucet on fully. Check garden hose for
kinks, leaks or blockage.
The pump is sucking air.
Check if all hoses and fittings are airtight. Turn
the device OFF, and purge the pump by pulling
the trigger on the spray gun until a steady flow
of water emerges through the nozzle.
The water inlet filter is clogged. Remove the filter and rinse it with warm water.
The discharge nozzle is obstructed. Blow out or remove debris with a fine needle.
Calcified gun, hose, or power nozzle. Run distilled vinegar through the detergent
container.
VE52_2021_EN .indd 13VE52_2021_EN .indd 13 2021-05-17 5:15 PM2021-05-17 5:15 PM

14
Problem Cause Solution
The garden hose
connection leaks.
Loose fittings. Tighten fittings.
Missing/worn rubber washer. Insert new washer.
Spray wand, extension,
or nozzle leaks.
The spray nozzle was not properly
attached.
Ensure the quick-connect wand is attached
securely. Ensure the project tip is clicked in
securely.
Broken O-ring or plastic insert. Call the Toll-free Hotline.
The pump is noisy.
The pump is sucking air.
Check if all hoses and fittings are airtight. Turn
the device to OFF mode and purge the pump
by pulling the trigger on the spray gun until
a steady flow of water emerges through the
nozzle.
The water filter is clogged. Remove the filter and rinse it with warm water.
Water leaks from the pump
(up to 10 drops per minute
is permissible).
Loose fittings. Check if all fittings are tight.
Water seals are damaged or worn. Call the Toll-free Hotline.
Oil is dripping. Oil seals are damaged or worn. Call the Toll-free Hotline.
Motor hums but fails to run.
Supply voltage below minimum. Verify that only the pressure washer is running
on this circuit.
System has residual pressure.
Turn the device to OFF mode, pull the trigger
on the spray gun to release pressure, and then
turn the device back ON.
Voltage loss due to the extension cord. Unplug any extension cords attached and plug
the unit directly into the outlet.
Residual friction among components. The
device might hum.
Disconnect water supply and power ON for 2 to
3 seconds. Repeat this procedure a few times,
or until the motor starts.
No water coming out of
the nozzle.
Water supply is OFF. Turn on the water supply.
Kink in the garden hose. Remove the kink in the garden hose.
10. Troubleshooting (cont.)
IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT
WWW.ACTIVE-JOBSITE.COM
OR CALL CUSTOMER SERVICE FOR HELP AT
1-844-777-4555.
Troubleshooting
VE52_2021_EN .indd 14VE52_2021_EN .indd 14 2021-05-17 5:15 PM2021-05-17 5:15 PM

15
11. Warranty
Always keep your online receipt as proof of purchase.
We’re here to help! If you have any questions or comments, call our toll-free hotline [phone].
Have your serial number ready. The serial number can be found on the back plate, located on the side
of the unit.
Two (2) Year Limited Warranty
This product is guaranteed to be free from defects in material and workmanship for two years
from the date of its original purchase. If such a defect appears during the warranty period, upon
presentation of proof of purchase and damage, Active Products will elect to either 1)Replace the
product entirely or provide an appropriate part for replacement (no labor warranty) or 2) Refund the
full purchase price to the owner (at Actives own discretion).
What is Not Covered?
The warranty is void if the equipment is used for commercial, rental or industrial purposes.
This warranty does not cover accidental damage, unreasonable use, and normal wear and tear like
belts, chains and tine, use of improper detergents, freezing, neglect, or non-compliance with the
operating Instructions. The warranty does not cover loss of use or other consequential damages
arising from any of the above, nor does it cover repairs made or attempted by unauthorized persons.
If you have further questions, please visit our website (www.active-jobsite.com)
or call 1-844-777-4555.
Warranty
VE52_2021_EN .indd 15VE52_2021_EN .indd 15 2021-05-17 5:15 PM2021-05-17 5:15 PM

VE52_2021_EN .indd 16VE52_2021_EN .indd 16 2021-05-17 5:15 PM2021-05-17 5:15 PM
