HGX LED
Rev. 06/01/21
COMMERCIAL OUTDOOR
HGX
A complete security
floodlighting solution
Catalog
Number
Notes
Type
Hit the Tab key or mouse over the page to see all interactive elements.
Introduction
The HomeGuard LED family of security flood
lights, built with rugged die cast aluminum
construction, are long lasting, energy efficient
solutions for replacing incandescent PAR lamp
fixtures. Mounted under the eave or on the wall,
these luminaires provide reliable security lighting
in residential and commercial applications.
The HGX family has six configurations both in
bronze and white. Featuring a low cost version for
switched circuits to a fully featured product that
includes an integral photocell for that automatic
dusk-to-dawn operation, color tuning, adjustable
lumens and a motion sensor. With tool-less easy-
to-aim lamps, HGX installs quickly, and delivers a
lumen range from 1700 to 4100. The HGX family
provide great flexibility and versatility.
TM
CAN BE USED TO
COMPLY WITH 2019
HIGH EFFICACY LED LIGHT
SOURCE REQUIREMENTS
Luminaire Length (L) Width (W) Height (H) Lamp head
dia (A)
Back plate
dia (B)
Back plate
thickness (C) Weight
HGX 2RH 4.41”
(11.2cm)
7.56”
(19.2cm)
4.25”
(10.8cm)
2.4”
(6.1cm)
4.25”
(10.8cm)
1.38”
(3.5cm)
1.15 lbs
(0.52 kg)
HGX 3RH 5.12”
(13cm)
7.72”
(19.6cm)
4.53”
(11.5cm)
2.4”
(6.1cm)
4.53”
(11.51cm)
2.13”
(5.4cm)
1.77 lbs
(0.8kg)
HGX 2SH 4.53”
(11.5cm)
7.56”
(19.2cm)
4.33”
(11cm)
2.40”
(6.1cm)
4.33”
(11cm)
1.54”
(3.9cm)
1.31 lbs
(0.6kg)
HGX 2RH PIR 4.96”
(12.6cm)
7.52”
(19.1cm)
4.53”
(11.5cm)
2.40”
(6.1cm)
4.53”
(11.5cm)
1.89”
(4.8cm)
1.37lbs
(0.62 kg)
HGX 2RH ALO 4.53”
(11.51cm)
7.56”
(19.2cm)
4.33”
(11cm)
2.40”
(6.1cm)
4.33”
(11cm)
1.54”
(3.9cm)
1.31lbs
(0.6kg)

One Lithonia Way • Conyers, Georgia 30012 • Phone: [phone]-SERV (7378) • www.lithonia.com
© 2021 Acuity Brands Lighting, Inc. All rights reserved.
HGX LED
Rev. 06/01/21
COMMERCIAL OUTDOOR
*PIR unit is wet location rated and is recommended to be used for wall mount applications
Ordering Information EXAMPLE: HGX LED 3RH ALO SWW2 120 PE DDB
Full photometric data report available within 2 weeks from request. Contact Acuity tech support.
Photometric Diagrams
LEGEND
0.1 fc
0.2 fc
0.5 fc
1.0 fc
Visual - Template Tool
These lighting calculation results are for general informational purposes only and are provided without warranty as to accuracy, completeness, reliability or
otherwise. Results are based on user provided data and data provided from publicly available sources; actual field conditions may affect calculated output. Visit
www.Visual-3D.com .
Design Information
Project
Description
Wednesday, April 21, 2021
Name
Company
Phone
Email
[ A ] - HGX LED 2RH ALO SWW2 120 PE
Manufacturer Lithonia Lighting Configuration Single
Lamp Lumens 2963 Orientation Single
Lamp Quantity 1 Mounting Height 12
Light Loss Factor 1 Arm Length 1
Input Power 24.6 Tilt 45
Max Illuminance 7 Area > 0.5fc 1013
Homeguard ordering nomenclature and stocked configurations
Nomenclature UPC CI Code Features
HGX LED 2RH 40K 120 DDB 00194995254156 *271FE9
HGX LED 2RH 40K 120 WH 00194995254170 *271FEE
HGX LED 2RH ALO 40K 120 PE DDB 00194995254200 *271FEF
HGX LED 2RH ALO 40K 120 PE WH 00194995254194 *271FEH
HGX LED 2RH ALO SWW2 120 PE DDB 00194995254255 *271FEP
HGX LED 2RH ALO SWW2 120 PE WH 00194995254316 *271FEV
HGX LED 2SH ALO SWW2 120 PE DDB 00194995255214 *271FJ3
HGX LED 2SH ALO SWW2 120 PE WH 00194995255207 *271FJ4
HGX LED 3RH ALO SWW2 120 PE DDB 00194995255160 *271FHW
HGX LED 3RH ALO SWW2 120 PE WH 00194995255139 *271FJ0
HGX LED 2RH ALO SWW2 120 PIR DDB* 00194995254330 *271FEX
HGX LED 2RH ALO SWW2 120 PIR WH* 00194995255092 *271FHR
Adjustable Lumen Output
ALO
Dusk-to-Dawn Operation
PE
Switchable CCT
SWW2
Motion Sensor Capable
PIR
Visual - Template Tool
These lighting calculation results are for general informational purposes only and are provided without warranty as to accuracy, completeness, reliability or
otherwise. Results are based on user provided data and data provided from publicly available sources; actual field conditions may affect calculated output. Visit
www.Visual-3D.com .
Design Information
Project
Description
Wednesday, April 21, 2021
Name
Company
Phone
Email
[ B ] - HGX LED 2RH ALO SWW2 120 PIR
Manufacturer Lithonia Lighting Configuration Single
Lamp Lumens 2574 Orientation Single
Lamp Quantity 1 Mounting Height 12
Light Loss Factor 1 Arm Length 1
Input Power 26.2 Tilt 45
Max Illuminance 6 Area > 0.5fc 923
Visual - Template Tool
These lighting calculation results are for general informational purposes only and are provided without warranty as to accuracy, completeness, reliability or
otherwise. Results are based on user provided data and data provided from publicly available sources; actual field conditions may affect calculated output. Visit
www.Visual-3D.com .
Design Information
Project
Description
Wednesday, April 21, 2021
Name
Company
Phone
Email
[ C ] - HGX LED 3RH ALO SWW2 120 PE
Manufacturer Lithonia Lighting Configuration Single
Lamp Lumens 4397 Orientation Single
Lamp Quantity 1 Mounting Height 12
Light Loss Factor 1 Arm Length 1
Input Power 35.1 Tilt 45
Max Illuminance 11 Area > 0.5fc 1305

One Lithonia Way • Conyers, Georgia 30012 • Phone: [phone]-SERV (7378) • www.lithonia.com
© 2021 Acuity Brands Lighting, Inc. All rights reserved.
HGX LED
Rev. 06/01/21
COMMERCIAL OUTDOOR
FEATURES & SPECIFICATIONS
INTENDED USE
HGX security floods are ideal for an energy efficient replacement for two lamp 200W incandescent
security lights. The HGX LED provides over 50K hours of maintenance-free general illumination
for outdoor applications. HGX with its 2RH/3RH/2SH head with PE options prevents daylight
operation and saves on energy costs. Further with adjustable light output and color tuning
technology built into HGX, it provides great flexibility for mounting and color selection. Ideal for
entrances, walkways, corridors, yards, driveways and patios.
CONSTRUCTION
Cast-aluminum housing with dark bronze or white polyester powder paint for lasting durability.
Photocell sensitivity is adjustable. LED lamp heads are thermally isolated from the driver that is
located in the rear housing, promoting a long service life. Lenses are sealed to prolong service life.
LEDs maintain 70% of light output at 50,000 hours of service life.
ELECTRICAL
HGX family comes in six configurations from low cost version which is on switched circuit to a fully
featured product which has adjustable lumens, photocell, color and motion. The HGX is rated for
outdoor installations .The 2 RH versions consume 25W and 3RH version consumes 36W power,
120V input 60 HZ driver. LED's with min. 80 CRI provide great quality of light and rendering. HGX
with PIR option (motion sensor) has up to 180 degree motion detection angle, range of up to 40'
at 18C/65 F and has three modes - test, 1 or five minutes on time after motion is detected. Motion
sensitivity and daylight sensing is adjustable. Wall Sconce PIR unit is recommended for wall mount
only.
ADJUSTABLE FEATURES
Adjustable light output - select HGX products include adjustable lumen output -2 settings on 2
head versions & 3 settings on 3 RH version. The lumens can be adjusted by rotation of dial. Use
the same product to mount on various mounting heights by increasing or decreasing the light
output. Color Tuning - Color temperature of the lamp heads can be switched with rotation of dial
from warm to cool to daylight. Adjustable photocell - the sensitivity of the PE can be adjusted. The
dial can be turned off to make the light turn on during day time, or have it only as dusk-to-dawn
operation.
INSTALLATION
Mounts to a recessed junction box on wall or ceiling. Crossbar and hardware provided. Wet
location listed for mounting 4 feet above ground. Tool-less adjustable heads allow for precise
aiming.
LISTINGS
UL/cUL listed Listed to U.S. and Canadian safety standards for wet locations. Tested in accordance
with IESNA LM-79 and LM-80 standards. ENERGY STAR®certified product. All units are IP65
except HGX PIR which is wet location. HGX is rated for use in ambient conditions ranging from
-40° C to 40° C.
WARRANTY
Five-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/support/customer-support/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
HomeGuard LED Stocked Configurations
Low Medium High
Nomenclature Lumens Wattage CRI Lumens Wattage CRI Lumens Wattage CRI Options
HGX LED 2RH 40K 120 DDB
2750 25 80
HGX LED 2RH 40K 120 WH
HGX LED 2RH ALO 40K 120 PE DDB
1750 15 80 2750 25 80
HGX LED 2RH ALO 40K 120 PE WH
HGX LED 2RH ALO SWW2 120 PE DDB
1800 15 80 2750 25 80
HGX LED 2RH ALO SWW2 120 PE WH
HGX LED 2SH ALO SWW2 120 PE DDB
1700 15 80 2700 25 80
HGX LED 2SH ALO SWW2 120 PE WH
HGX LED 3RH ALO SWW2 120 PE DDB
1750 15 80 2750 25 80 4100 36 80
HGX LED 3RH ALO SWW2 120 PE WH
HGX LED 2RH ALO SWW2 120 PIR DDB
2150 21 80 2600 26 80
HGX LED 2RH ALO SWW2 120 PIR WH
Adjustable Lumen Output Dusk-to-Dawn Operation Switchable CCT Motion Sensor Capable

page 1
INSTALLATION INSTRUCTIONS
HGX PIR_Rev 3/24/21
LED Security Floodlight with Motion Detector
Protect yourself. Before installing, read the entire instructions carefully and save them for future reference.
Date installed:_____________
Model Number(s):
HGX LED 2RH ALO SWW2 120 PIR
SPECIFICATIONS
Adjustable Light output High / Low (DIM) 2,600 / 2,150 Lumens
Power requirement 120VAC, 60Hz
Electrical Load 26 Watts
Motion Detection Angle Up to 180 degree
Motion Detection Range Up to 40. (12m) at 18°C /65F
Motion Detection Mode Test, 1 or 5 minute(s) on-time aer motion is detected,
Manual with switch
Motion adjustable sensitivity
Daylight Sensor adjustable sensitivity
Light Color Warm, Cool, Daylight (Lamp Heads)
Operating Temperature +/- 40°C
Accent Light output / color 300lm / Cool

page 2
• To reduce the risk of death, personal injury or property damage from re,
electric shock, falling parts, cuts/abrasions, and other hazards please
read all warnings and instructions included with and on the xture box
and all xture labels.
• Before installing, servicing, or performing routine maintenance upon this
equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires should
be performed by a qualied licensed electrician.
• For Residential installation: If you are unsure about the installation or
maintenance of the luminaires, consult a qualied licensed electrician
and check your local electical code.
• Maintenance of the luminaires should be performed by person(s)
familiar with the luminaires’ construction and operation and any hazards
involved. Regular xture maintenance programs are recommended.
• This xture is intended to be connected to a properly installed and
grounded UL listed junction box.
• It will occasionally be necessary to clean the outside of the refractor/
lens. Refractor/lens should be washed in a solution of warm water and
any mild, non-abrasive household detergent, rinsed with clean water and
wiped dry. Should optical assembly become dirty on the inside, wipe
refractor/lens and clean in above manner, replacing damaged gaskets
as necessary.
• DO NOT INSTALL DAMAGED PRODUCT! This luminaire has been
properly packed so that no parts should have been damaged during
transit. Inspect to conrm. Any part damaged or broken during or after
assembly should be replaced.
• Recycle: For information on how to recycle LED electronic products,
please visit www.epa.gov.
• These instructions do not purport to cover all details or variations
in equipment nor to provide every possible contingency to meet in
connection with installation, operation, or maintenance. Should further
information be desired or should particular problems arise which are not
covered su󰀩ciently for the purchaser’s or owner’s purposes, this matter
should be referred to Acuity Brands Lighting, Inc.
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW THESE SAFETY INSTRUCTIONS!
WARNING
RISK OF ELECTRIC SHOCK
CAUTION
RISK OF INJURY
CAUTION
RISK OF FIRE
CAUTION
RISK OF PRODUCT DAMAGE
WARNING
RISK OF BURN
►Disconnect or turn o󰀨 power before installation or servicing.
►Verify that supply voltage is correct by comparing it with the luminaire
label information.
►Make all electrical and grounded connections in accordance with
the National Electrical Code (NEC) and any applicable local code
requirements.
►All wiring connections should be capped with UL approved wire
connectors.
►Wear gloves and safety glasses at all times when removing luminaire
from carton, installing, servicing or performing maintenance.
►Avoid direct eye exposure to the light source while it is on.
►Keep combustible and other materials that can burn, away from lamp/
lens.
►Do not operate in close proximity to persons, combustible materials or
substances a󰀨ected by heat.
►Never connect components under load.
►Do not mount or support these xtures in a manner that can cut the outer
jacket or damage wire insulation.
►Unless individual product specications deem otherwise: Never connect
an LED product directly to a dimmer packs, occupancy sensor, timing
device, or other related control devices. LED xtures must be powered
directly o󰀨 a switched circuit.
►Unless individual product specications deem otherwise: Do not restrict
xture ventilation. Allow for some volume of airspace around the xture.
Avoid covering LED xtures with insulation, foam, or other material that
will prevent convection or cooling.
►Unless individual product specications deem otherwise: Do not exceed
xtures maximum ambient temperature.
►Only use xture in its intended location.
►LED products are Polarity Sensitive. Ensure proper Polarity before
installation.
►Electrostatic Discharge (ESD): ESD can damage LED xtures. Personal
grounding equipment must be worn during all installation or servicing
of unit.
►Do not touch individual electrical components as this can cause ESD,
shorten lamp life, or alter performance.
►Some components inside the xture may not be serviceable. In the
unlikely event your unit may require service, stop using the unit
immediately and contact an ABL representative for assistance.
► Changes or modications not expressly approved by Acuity Brands
Lighting could void the authority to operate the equipment.
►Always read the xtures complete installation instructions prior to
installation for any additional xture specic warnings.
►Allow lamp/xture to cool before handling. Do not touch enclosure, lens
or light source.
►Do not exceed maximum wattage marked on luminaire label.
►Follow all manufacturer’s warnings, recommendations and restrictions
including but not limited to: driver type, burning position, mounting
locations/methods, replacement and recycling.
►Use only lamps that comply with ANSI standards.
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when used in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment o󰀨 and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di󰀨erent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
5-YEAR LIMITED WARRANTY
Register your warranty on www.lightahome.com/warranty. Your prompt
product registration conrms your right to the protection available under
the terms and conditions of your Lithonia Lighting warranty.
Failure to follow any of these instructions could void product warranties.
For a complete listing of product Terms and Conditions, please visit www.
acuitybrands.com. Acuity Brands Lighting, Inc. assumes no responsibilities
for claims arising out of improper or careless installation or handling of its
products.

page 3
INSTALLATION INSTRUCTIONS
1. PREPARE FOR INSTALLATION
Remove xture components and parts pack. Check to ensure
all parts are included. Note: Account for small parts and destroy
packing material, as these may be hazardous to children.
2. SELECT MOUNTING LOCATION
D
G
A
B
CE
H
F

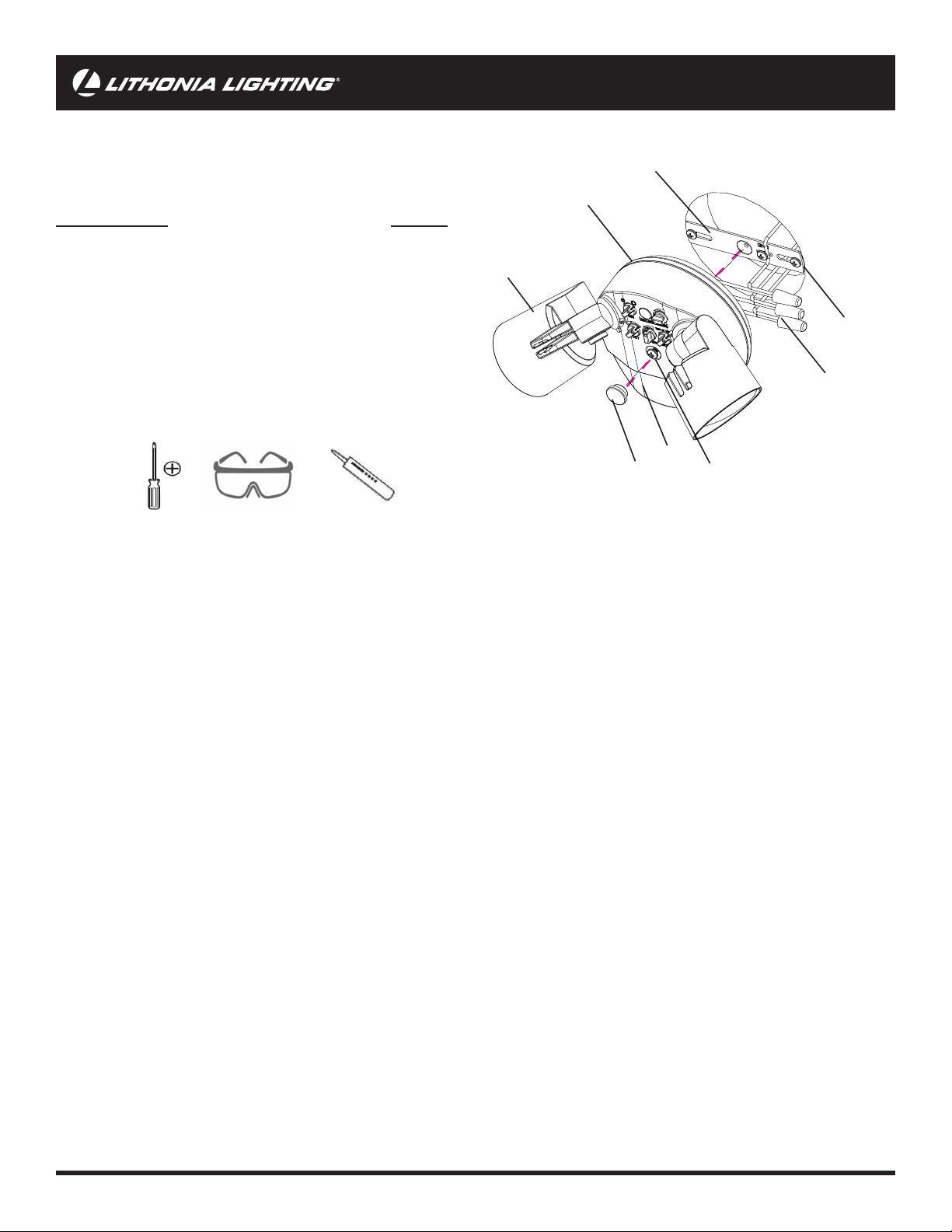

FIXTURE PACKING LIST
Part Description Quantity
A Light Fixture.......................................................................... 1
B Lamp Head........................................................................... 2
C Accent Light / Motion sensor ................................................ 1
D Mounting bracket (pre-installed) .......................................... 1
E 2” #8 Center Mounting Screw (pre-installed) ....................... 1
F 3/4” #8 & #6 & #10 Mounting Screws* ................................ 6
G Wire Nuts* ............................................................................ 3
H Rubber Plug*........................................................................ 1
*Contained in parts packs
Mounting Hardware Included
Silicone Sealant Required
REQUIRED TOOLS
For installation to properly installed and grounded UL listed round
recessed or surface mounted weatherproof junction box.
Suitable for wall mount between 6 to 8ft (1,8-2,4m) height with
Accent light facing the ground. Not suitable for mounting within 4ft
(1.2m) from ground
Note: Mounting xture above or below the recommended height
may cause motion sensor not to work properly. If xture is mounted
higher than 8ft (2.4m), the distance and downward sensitivity
will be reduced. The detector is less sensitive to motion directly
towards it.
Do NOT use with dimmers or timers or on multiple switch circuits.
Do NOT install on the same circuit with an electric motor (i.e.
appliances, HVAC equipment, washer/dryer, garage door
openers, etc.
Do NOT install near objects that change temperature rapidly, such
as heating vents and air conditioners. These heat sources
could cause false triggering.
Do NOT install Nearby large, light-colored objects reecting light
may trigger the shut-o󰀨 feature. Do not point other lights at the
daylight sensor.
Turn OFF Power at circuit breaker box
CAUTION: Do not rely on wall switch alone to turn o󰀨 power.
3. INSTALLING MOUNTING BRACKET
Note: Center mounting screw and bracket are pre-installed on the
light xture for shipping.
• Loosen the center mounting screw (E) and remove the
mounting bracket.
• Install the mounting bracket (D) to the junction box using two
3/4” #6 or #8 or #10 mounting screws (F).
Note: Choose one of the 3 screw sizes provided depending on
your junction box.
6. FIXTURE INSTALLATION
• Align xture over j-box and secure to mounting bracket by
tightening center mounting screw (E).
Note: Make sure no wires are pinched before tightening.
• Insert rubber plug (H) into center hole to cover the center
mounting screw head for moisture seal.
4. CAUTION: WIRING
Make sure power is turned o󰀨.
• Use wire nut to connect the bare copper or green house
supply ground wire to the green xture ground wire. Note:
If house wiring does not include a ground wire, consult your
local electrical code for approved grounding methods.
For proper connection, place wire nut over wires
and twist clockwise until tight.
• Use wire nut to connect the white xture wire to the white
(neutral) house supply wire.
• Use wire nut to connect the black xture wire to the black
house supply wire.
5. MOISTURE SEAL
• Apply silicone caulking (not included) around perimeter of the
xture where it contacts the mounting surface to avoid water
entry.
Turn on electricity at fuse or circuit breaker box and make sure the
wall switch is on.
Note: Light will not come on during daylight.
• Cover Light Sensor to verify success of installation.
NLightend
UNLESSOTHERWISE SPECIFIED
ALLDIMENSIONS ARE IN MILLIMETERS
100MMOR MORE ± 0.5
0TO 99MM ± 0.10
ANGULARTOL ± 1/2° .
DO NOT SCALE DRAWING
B
SHT I DRAWN BY: DRS CHECKED BY:
REV. DESCRIPTION DRAWN/CHECK DATE
CONFIDENTIAL: NLightend Proprietary Use Only
2.000SCALE

page 4

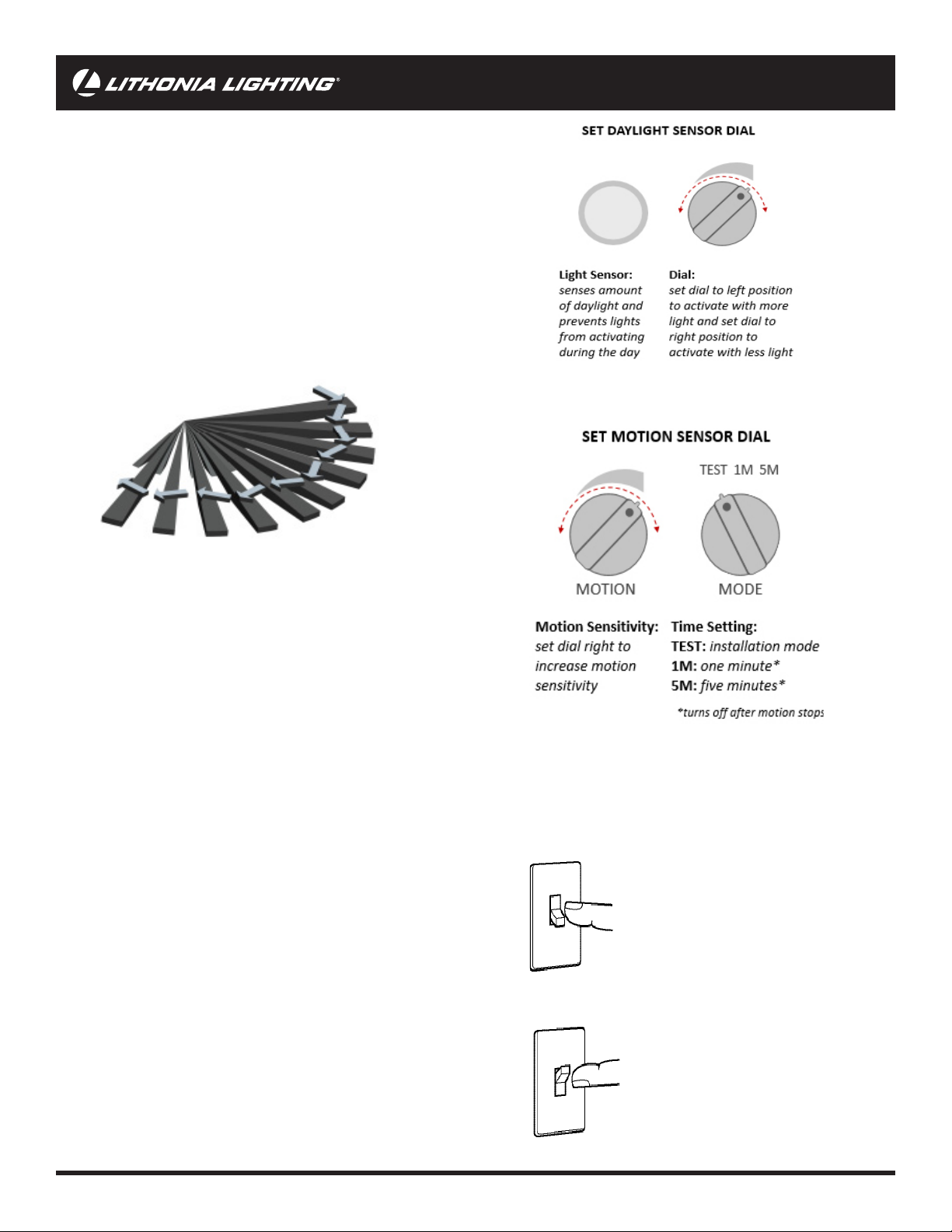

1. MOTION SENSOR SETTINGS
If you like to test your light during the daytime
• Set MODE dial to the TEST position to disable the photocell
and allow light to come on during daylight hours.
• Walk across your motion detection zone (40ft/180degree).
Note: Walk in a zigzag direction. Walking up to the motion
detector in a straight line may keep you in between detection
regions, and your light will not come on.
• If you nd motion detection is to sensitive use MOTION dial
to reduce sensitivity.
Note: Factory setting is at highest sensitivity. The sensitivity can
be adjusted to increase or decrease detection if desired. Adjust
the sensitivity as needed. If sensitivity is set too high it may cause
false triggering.
FIXTURE OPERATION
2. TIME SETTING
Once Motion detection is conrmed, set the time you want the
light to stay on after motion stops.
• Set MODE dial to 1M (minute) or 5M (minutes)
CAN THE LIGHTS STILL BE TURNED
ON/OFF WITH A LIGHT SWITCH?
At night Lights can be turned on or o󰀨 manually with a wall switch
or circuit breaker in the Manual Override Mode.
MANUAL OVERRIDE
NOTE: MODE dial must be set at 1M or 5M to use manual
override
To disable the motion sensor and keep the light continuously on
for the night, ip the wall switch o󰀨 for 5 seconds and then back
on.
To reset to Security mode, ip the switch o󰀨 again for 5 seconds
and then back on.
If you leave the light on all night it will automatically turn o󰀨 at
dawn and reset to Security mode.
NOTE: If you get confused while switching modes, turn the power
at the breaker or wall switch o󰀨 for one minute, then back on. After
the calibration time, the control will be in the Security mode.
5 Seconds OFF then...
...back on
SETTING THE MOTION SENSOR
NOTE: During daylight all lights are o󰀨. Use the daylight sensor
dial to adjust light sensor sensitivity if desired.

page 5
3. AIM LAMP HEADS
Gently grasp lamp heads (B) and position in desired directions.
CAUTION - Risk of Shock: Aim lamp heads at least 20°down
below horizontal in order to prevent water from accumulating
inside lens.

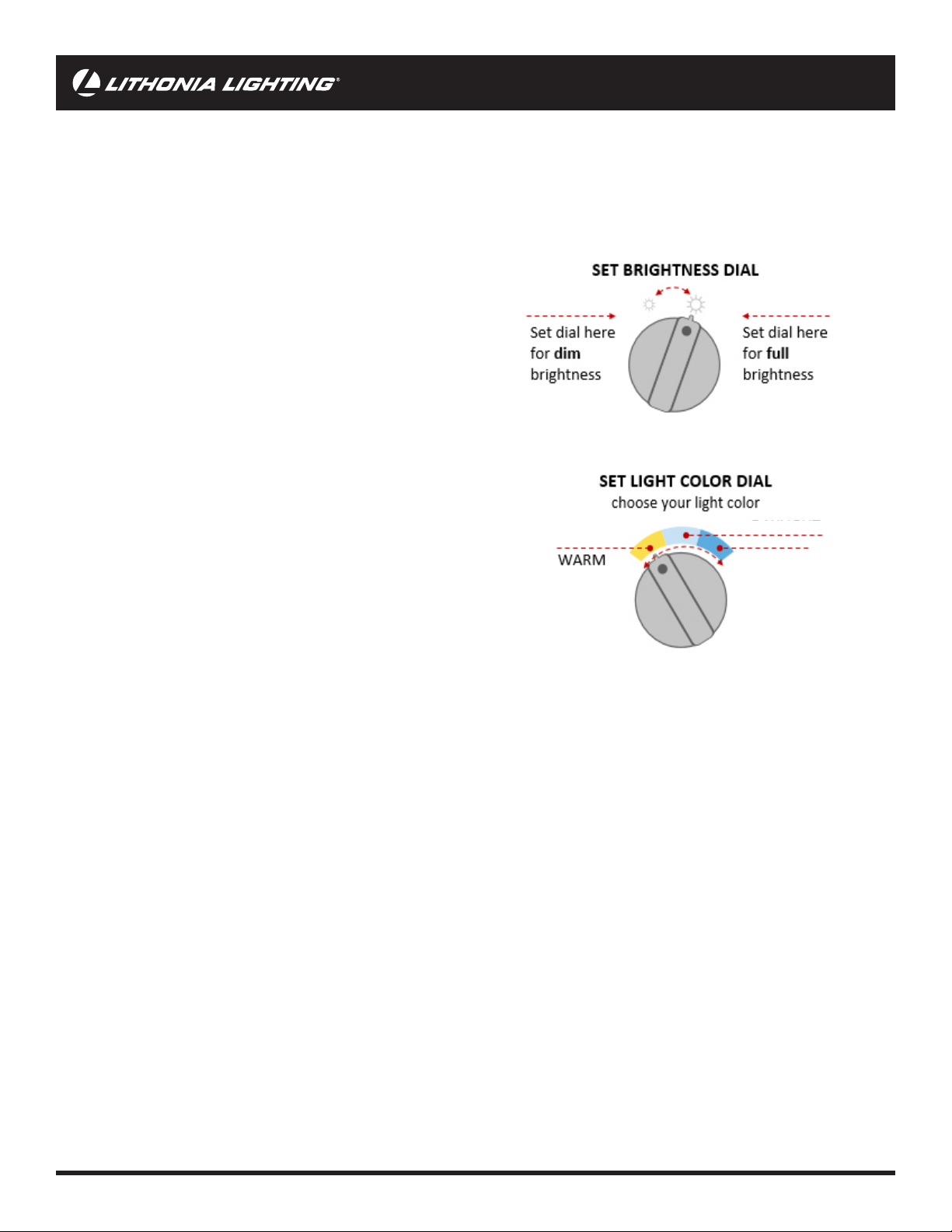

4. BRIGHTNESS LEVEL SETTING
Fixture is preset to full brightness indicated by the larger sun icon
above the DIM dial. If lower brightness is desired set DIM dial to
small sun icon.
5. LIGHT COLOR SETTING
Note: Light color is not adjustable for Accent light, the adjustment
is only for lamp heads.
• Set dial to desired light color
CONTROL SETTINGS
DAYLIGHT
COOL

Acuity Brands Lighting, Inc.
One Lithonia Way, Conyers, GA 30012
www.AcuityBrands.com
If this xture fails to operate properly, use the guide below to diagnose and correct the problem.
TROUBLE SHOOTING GUIDE
SYMPTOM POSSIBLE CAUSE SOLUTION
Lights will not come on 1. Light switch is turned o󰀨.
2. Fuse is blown or circuit breaker is turned o󰀨.
3. Incorrect circuit wiring.
4. Motion is not detected.
5. Photocontrol does not work.
1. Turn light switch on.
2. Replace fuse or turn circuit breaker on.
3. Verify wiring is correct. Check wire connections.
4. Turn MOTION sensor dial to higher sensitivity.
5. Test photocontrol function (cover daylight
sensor, light should come on)
Lights come on during the
day.
1. Light xture/Sensor may be located in a
relatively dark location.
2. Motion Sensor is in TEST mode.
1. Fixture is operating normally under these
conditions. Turn Daylight sensor dial to higher
sensitivity.
2. Set MODE dial to M1 or M5 position.
Lights come on for no
apparent reason
1. Motion sensor maybe detecting movement
from small animals or passing cars.
2. Sensitivity set too high.
3. The outdoor temperature is getting cooler.
4. The light xture is wired through a dimmer
or timer.
1/2/3. Reduce Motion sensitivity
4. Do NOT use a dimmer or timer to control light
xture.
Lights stay on continuously 1. Motion Sensor is in Manual Override mode.
2. The sensor may be picking up a heat
source like an air vent, dryer vent, or brightly
painted, heat-reective surface.
3. The sensor may be picking up motion due
to gusty wind
1. Follow manual override instructions to reset.
2. Reduce sensitivity.
Lights ash on and o󰀨
(strobing)
1. Heat or light from the lamps may be turning
the light control on and o󰀨.
2. Heat being reected from other objects may
be a󰀨ecting the sensor.
3. Sensor is in Test mode.
1. Reposition the lamp heads so Light is not
reected toward the Daylight sensor.
2. Reduce Sensitivity.
3. While in TEST mode, light only stays on for 5
seconds.
Range appears limited 1. Sensor is not level.
2. Sensor is mounted too high or low.
3. Movement is directly towards sensor.
1. Position sensor exactly level from side to side
2. If mounted above 20 feet, much of the usable
range will be lost. Mount at 6 to 10 feet for max.
range.
3. Move Sensor. Sensor will see movement across
detection pattern more quickly. Move sensor in
¼” increments.
Lights will not trigger with
motion
1. Sensitivity may be set too low. 1. Turn up sensitivity in small steps
If further technical assistance is required, contact: Technical Support at: [phone]
This LED light provides low maintenance service with no bulbs to change. Clean surfaces with mild soap
and water. Do not use abrasive materials such as scouring pads or powders, steel wool or abrasive paper.
WARNING: There are no user serviceable parts inside xture.
Contractor Resources
Check out helpful programs, tools, installation videos and more!
