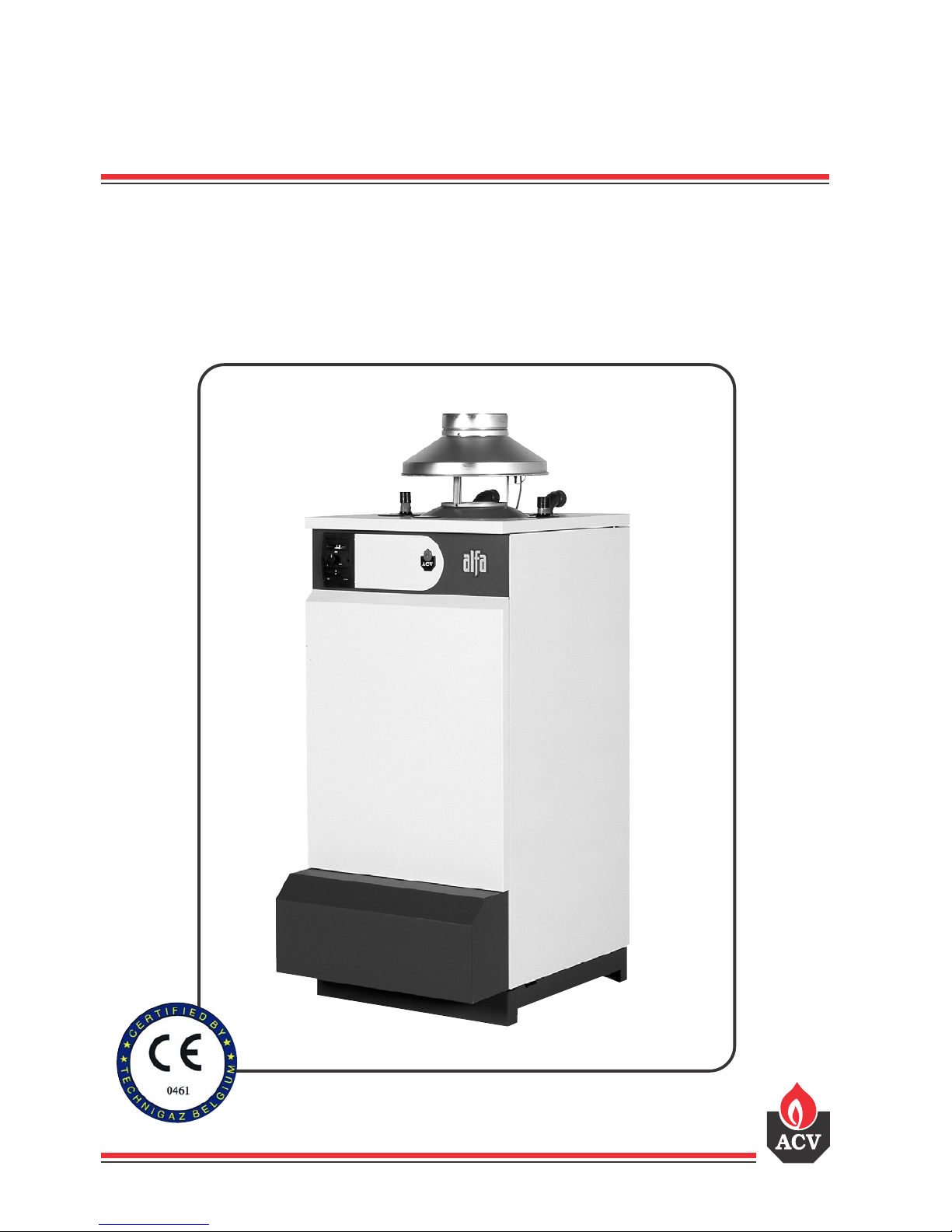

ACV Alfa G Owner's manual

INSTALLATION, OPERATING
AND SERVICING INSTRUCTIONS
ALFA Gaz
G/GP
Dual application gas boiler
with atmospheric burner
ACV reserves the right to modality the technical specifications and components of its products without prior notice. 664Y0800
05/11/2002

1.1 INTENDED USERS OF THESE INSTRUCTIONS
These instructions are intended for:
- the specifying engineer
- the installation engineer
- the user
- servicing technicians
1.2 SYMBOLS
The following symbols are used in these instructions:
Essential instruction for operating the system
correctly.
Essential instruction for personal safety and
environmental protection.
Danger of electrocution.
Risk of burns.
1.3 APPLICABLE STANDARDS
The products have received the “EC” certificate in accordance with the
standards prevailing in different countries (European Directives
90/42/EEC, “efficiency”, 90/396/EEC “gas appliances”). These
products have also received the Belgian “HR+” mark.
1 INTRODUCTION 2
1.1 Intended users of these instructions 2
1.2 Symbols 2
1.3 Applicable standards 2
1.4 Warnings 2
2 INSTALLATION 3
2.1 Boiler room 3
2.2 Connections 3
2.3 Electrical connection 5
3 STARTUP 6
3.1 Filling the heating and hot water circuits 6
3.2 Atmospheric burner troubleshooting 6
4 SERVICING 6
4.1 Recommendation 6
4.2 Servicing the gas boiler 6
4.3 Servicing the safety devices 6
4.4 Servicing the burner 7
4.5 Emptying the boiler 7
4.6 Spare parts 7
5 DESCRIPTION 8
5.1 Overview 8
5.2 Description of operation 8
5.3 Design features 8
6 TECHNICAL SPECIFICATION 9
6.1 Effective dimensions 9
6.2 Maximum operating conditions 9
6.3 Domestic hot water performance 10
6.4 Boiler performances 10
6.5 Atmospheric burner 10
7 USER GUIDE 12
7.1 Using the boiler 12
7.2 Boiler room 13
1.4 WARNINGS
These instructions are an integral part of the equipment to which they
refer and must be supplied to the user.
The product must be installed and serviced by qualified engineers, in
compliance with the prevailing standards.
ACV accepts no liability for any damage resulting from incorrect
installation or from the use of components or fittings not specified by
ACV.
Failure to observe instructions regarding tests and test
procedures can result in personal injury or pollution
risks.
Note:
ACV reserves the right to modify the technical specifications and
components of its products without prior notice.
INDEX 1 INTRODUCTION
2

2.1 BOILER ROOM
2.1.1 ACCESSIBILITY
The boiler room must be large enough to allow good access to boiler.
The following minimum distances (mm) are required around the boiler:
- front 500 - sides 100
- rear 150 - above 700
2.1.2 VENTILATION
The boiler room must be fitted with top and bottom vents according to
the table below or current regulations.
2.1.3 BASE
The base on which the boiler rests must be made of non-combustible
materials.
2.2 CONNECTION
2.2.1 CHIMNEY CONNECTION
The boiler can be connected to a suitable flue or to the chimney by a
metal pipe rising at an angle from the boiler to the chimney. It must be
easy to remove to give access to the flue pipes when servicing the boiler.
IMPORTANT
Boilers must be installed by a qualified engineer, in
accordance with the prevailing local standards and
regulations.
2.2.2 CENTRAL HEATING CONNECTION
2.2.2.1 Examples of basic circuit configurations
The drain valve and safety valve must be connected to the waste
water system in accordance with current regulations.
1. 3-way manual motorisable mixer valve
2. Safety valve pre-set to 3 bar with pressure gauge
3. Circulator
4. Non-return valve
5. System filling valve
6. Expansion tank
7. Room thermostat
8. ACV 13 controller (see controller kit page 5)
9. Central heating isolating valve
10. Drain valve
Fig. 2: Configuration with circulator controlled
by a room thermostat
2 INSTALLATION
10
6
2
3
47
5
99
10
1
6
2
3
48
5
99
Fig. 3: Configuration with motor driven mixer valve
Fig. 1: Boiler room ventilation and chimney connection
A
B
D
C
A. Top vent
B. Bottom vent
C. Chimney height
D. Chimney diameter
3
ALFA G ALFA GP
Ventilation
Min. fresh air requierement m3/h 82,8 82,8
Top vent (A) dm21,5 1,5
Bottom vent (B) dm21,5 1,5
Chimney
C = 5 m Ø min. D mm 130 130
C = 10 m Ø min. D mm 130 130
C = 15 m Ø min. D mm 130 130

2.2.2.2 ACV circulation kit
ACV offers an optional pre-assembled circulation kit comprising:
- a circulator.
- a 3-way manual motorisable valve.
- connecting pipes including a second optional circuit.
- two isolating valves.
- adapters for mounting expansion tank, safety valve and filling
valve to right or left.
2.2.2.3 Discharge
The drain valve and safety valve must be connected to the waste
water system in accordance with current regulations.
2.2.3 DOMESTIC HOT WATER CONNECTION
2.2.3.1 Pressure reducer
If the water mains pressure is greater than 6 bar, a pressure
reducer calibrated to 4.5 bar must be fitted.
2.2.3.2 Safety unit
The tank safety unit must be ACV approved and calibrated to 7 bar.
The valve discharge must be connected to the waste water
system in accordance with current regulations.
2.2.3.3 Hot water expansion tank
Installing a hot water expansion tank avoids any risk of pressure
surges due to water-hammer.
2.2.3.4 Hot water circulation
If the tank is situated a long way from the point of use, then
installing a closed return circuit can provide a faster supply of
hot water always available.
2.2.3.5 Description
1. Safety unit
2. Pressure reducer
3. Thermostatic mixing valve
4. Hot water circulator
5. Non-return valve
6. Hot water expansion tank
7. Inlet valve
8. Draw-off valve
9. Bleed valve
IMPORTANT
As a safety measure against burns, we strongly advise
installing a thermostatic mixing valve (recommended
temperature: 60° C).
Optional fittings available
2 INSTALLATION
Fig. 5a: Configuration without thermostatic mixing valve
1
2
4
6
5
7
9
8
1
2
3
4
6
5
7
9
8
Fig. 5b: Configuration with thermostatic mixing valve
4
Fig. 4: ACV circulation kit assembly
Safty unit Ø 3/4”
Pressure reducer Ø 3/4”
Thermostatic mixer Ø 3/4”
Hot water expansion tank 5 litres

Wiring diagram of ACV controller kits (fig. 7)
2 INSTALLATION
2.3 ELECTRICAL CONNECTION
2.3.1 POWER SUPPLY
The boiler operates with a 230 V - 50 Hz single phase supply.
An isolator switch with 6 A fuses must be fitted outside the boiler to
allow power to be shut off during servicing and before any repairs are
carried out on the boiler.
2.3.2 COMPLIANCE
Boiler installation must comply with the prevailing local standards and
legislation.
2.3.3 SAFETY
The stainless steel tank must be earthed separately.
2.3.4 BURNER ELECTRICAL CONNECTION
The burner is supplied with power by a 3-core cable.
1. Boiler thermostat (60/90° C)
2. On/off switch
3. Summer/winter selector
4. Thermometer
5. Flue spillage thermostat (TTB)
6. Safety thermostat (103° C max.)
7. Plug (power and control)
8. Room thermostat
9. Heating pump connection
10. To gas valve
Fig. 8: Control panel
The power to the boiler must be switched off before any
work is carried out. Fig. 9: Boiler wiring diagram
M. Brown
O. Orange
N. Black
B. Blue
R. Red
T. Green-yellow
12
C
L1
L1
NT1 T2
NT1 T2
S3
S3
N
L1
230V-50 Hz
6A
M
R
B
B
O
B
O
M
T
N
N
89
7
2
6
3
5
1
10
1
2
3
4
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
bl n/z br
SQK 349
QAAD50
(QAAD70) QAC32 QAD22
P1 B5 B9 B3 B2
P1Y1Y2NB5B9B3B2
B2. Water temperature detector
B9. Outside temperature detector
B5. Analogue/digital room thermostat
P1. Central heating pump
Y1/Y2/N. Mixer valve (SQK349)
bl. Blue N
n/z. Black Y2
br. Brown Y1
N
230V / 50 Hz
L1
ALIMENTATION
230V
5
Fig. 6a: kit 1
Fig. 6b: kit 2
2.2.4 CONTROLLER KITS
KIT 1: ACV 13.00 / Basic
Basic kit for regulating flow temperature according to
weather conditions.
It comprises: temperature regulator with analogue timer,
water temperature detector (-30/130° C), outside temperature
detector (-30/50° C), 230V - 3 spindle servomotor SQY 31
and intermediate socket.
KIT 1: ACV 13.00 / Standard
Basic kit for regulating flow temperature according to
weather conditions.
It comprises: temperature regulator with analogue timer,
water temperature detector (-30/130° C), outside temperature
detector (-30/50° C), 230V - 3 spindle servomotor SQY 349
and intermediate socket.

3.1 FILLING THE HEATING AND HOT
WATER CIRCUITS
1. Fill the domestic hot water circuit and bring it up to pressure.
IMPORTANT
The hot water tank must be pressurised before the
heating circuit is filled.
2. Fill the heating circuit taking care not to exceed the 2 bar pressure
limit.
3. Vent the air from the top of the boiler.
4. After venting the air from the system, bring the pressure up to the
static head plus 0.5 bar: 1.5 bar = 10 m – 2 bar = 15 m.
5. Check the power connection, the boiler room ventilation, and
ensure that there are no leaks in the flue gas discharge pipes.
6. Set the thermostat (1) to between 60 and 90° C.
3 START-UP 4 SERVICING
Fig. 10: Control panel
7. Set the Summer/Winter selector (3) to the desired position.
8. Switch the on/off switch (2) to the ON position.
9. Check the gas supply pressure on starting up.
3.2 BURNER TROUBLESHOOTING
Refer to the servicing and troubleshooting instructions for the burner.
Before servicing or repairs, switch off the power at the
mains switch fitted in the boiler room by the electrician.
1
2
3
4.1 RECOMMENDATION
ACV recommends that boilers should be serviced at least once a year.
The burner must be serviced and tested by a competent engineer.
4.2 SERVICING THE GAS BOILER
1- Switch off the power at the mains switch outside the boiler and
close the gas tap.
2 - Set the on/off switch on the control panel to the OFF position.
3 - Release and remove the chimney flue (1) to free the top of the
boiler.
4 - Remove the jacket top (2) and lift off the flue reducer (3).
5 - Remove the baffles (4) from the flue pipes (5) for cleaning. Replace
them if in poor condition.
6 - Unscrew the burner chamber plate (6).
7 - Brush the flue pipes (5).
8 - Clean the burner chamber (7) and the burner (8).
9 - Check that the insulation on the burner chamber plate (6) is in
good condition.

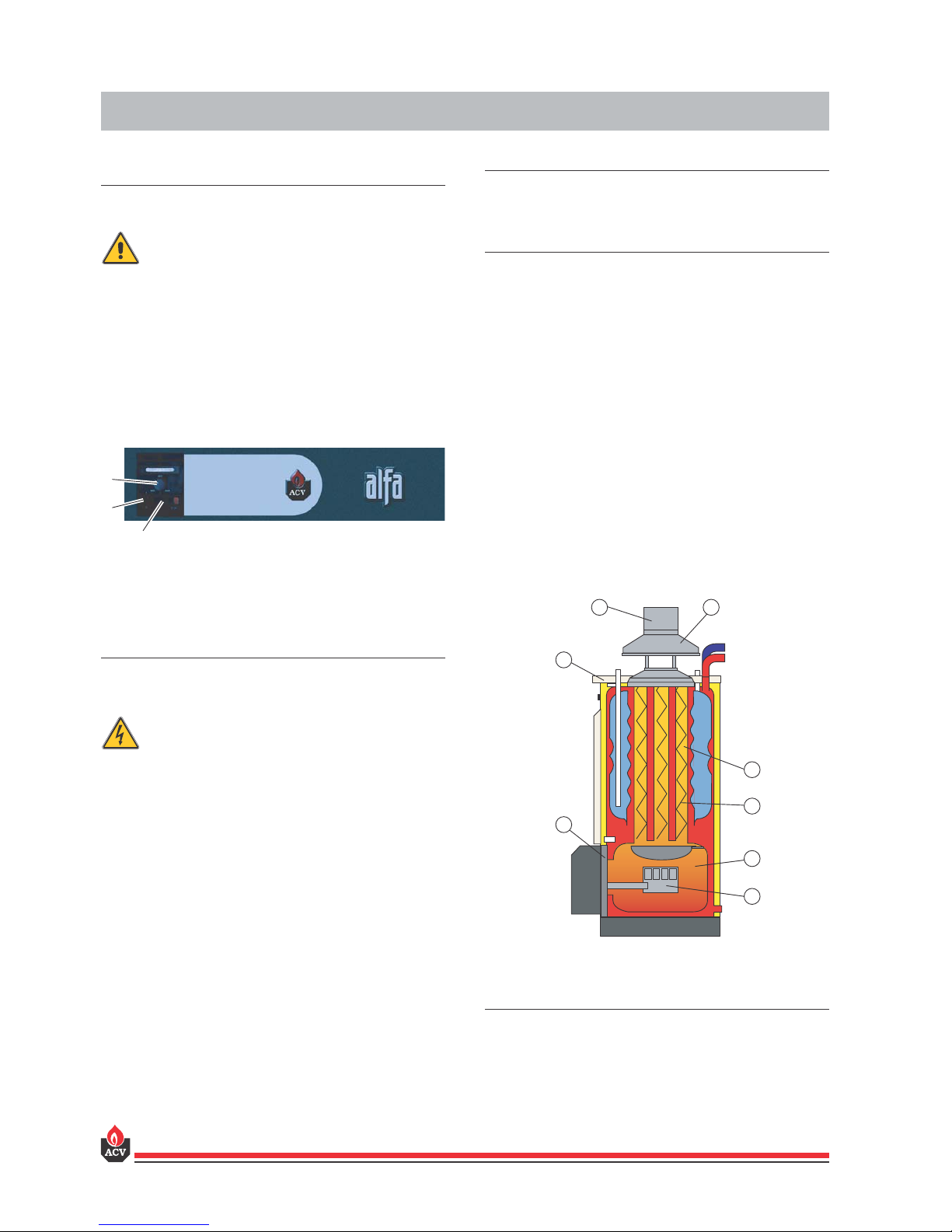

1. Chimney flue
2. Jacket top
3. Chimney flue reducer
4. Baffles
5. Flue pipes
6. Burner chamber plate
7. Burner chamber
8. Burner
Fig. 11: Main components.
4.3 SERVICING THE SAFETY DEVICES
- Check that all thermostats and safety devices are working properly:
boiler thermostat, cut-off thermostat and manual reset safety
thermostat.
- Test the safety valves on the central heating and hot water circuits.
6
5
4
6
2
13
7
8

4.4 SERVICING THE BURNER
- Check and clean the burner and ignition electrode.
- Check that the safety components are working properly.
4.5 EMPTYING THE BOILER
4.5.1 EMPTYING THE PRIMARY CIRCUIT (central heating):
1. Switch off the power to the boiler at the mains switch installed by
the electrician.
2. Close the isolating valves (1) of the boiler system.
3. Connect a hose to the drain valve (2).
Ensure that it is attached properly.
4. Open the drain valve and let the hot water drain out.
5. When the boiler is empty, return the isolating and safety valves to
their initial positions.
4.5.2 EMPTYING THE HOT WATER TANK:
1. Switch off the mains power to the boiler at the external switch
installed by the electrician.
2. Relieve the pressure in the primary circuit.
3. Close valves (A) and (B).
4. Open valves (C) and (D) (first C then D).
5. Let the water drain away.
6. After emptying, return the valves to their initial positions.
For the tank to be emptied, valve (C) must be situated at
ground level.
4.6 SPARE PARTS
Refer to the specific document available from ACV or your distributor.
4 SERVICING
Fig. 12a: Emptying the primary circuit
Fig. 12b: Emptying the hot water circuit
2
11
A
C
B
D
7

5.3 DESIGN FEATURES
5.3.1 OUTER BODY
The outer body containing the primary fluid is made of STW 22 steel.
5.3.2 TANK-IN-TANK TYPE EXCHANGER ACCUMULATOR
The ring-shaped inner tank with its large heating surface for producing
domestic hot water is built of Chrome/Nickel 18/10 stainless steel. It is
corrugated over its full height by an exclusive production process and
entirely by argon arc welded by the TIG (Tungsten Inert Gas) method.
5.3.3 COMBUSTION GAS CIRCUIT
The combustion gas circuit is protected by cold galvanisation. The
combustion gas circuit comprises:
5.3.3.1 Flue pipes
Depending on output, ALFA Gas models contain 4 or 8 steel flue
pipes with an internal diameter of 64 mm. Each pipe is fitted with
a baffle of special steel designed to improve heat exchange and
reduce flue gas temperature.
5.3.3.2 Combustion chamber
The combustion chamber on ALFA Gas models is water cooled.
5.3.4 INSULATION
The boiler body is fully insulated by rigid polyurethane foam with a high
thermal insulation coefficient, sprayed on without the use of CFCs.
5.3.5 JACKET
The boiler is covered by a steel jacket which has been scoured and
phosphated before being stove enamelled at 220° C.
5.3.6 BURNER
ALFA Gas boilers are fitted with an atmospheric burner with electric
ignition.
5.3.7 CONTROL PANEL (Fig. 14)
1 - Thermostat adjustable between 60 and 90° C
2 - On/off switch
3 - Summer/winter selector
4 - Thermometer
Fig. 14: Control panel
1
2
3
4
5.1 OVERVIEW
• Dual application boiler (central heating and domestic hot water).
• Designed for connection to a chimney or suitable flue.
• TANK-IN-TANK indirect storage type domestic hot water production.
• Fittings for connecting the circulation kit to feed the heating circuit
(available as an option).
• Control panel with setting thermostat (60/90 °C), on/off switch,
Summer/Winter selector, thermometer, warning lamp and burner
reset button.
• Flue gas anti-backdraught safety device.
• Delivered complete with atmospheric type burner.
• ALFA G for natural gas, with rated output of 20.3 kW.
• ALFA GP for propane, with rated output of 23.5 kW.
5 DESCRIPTION

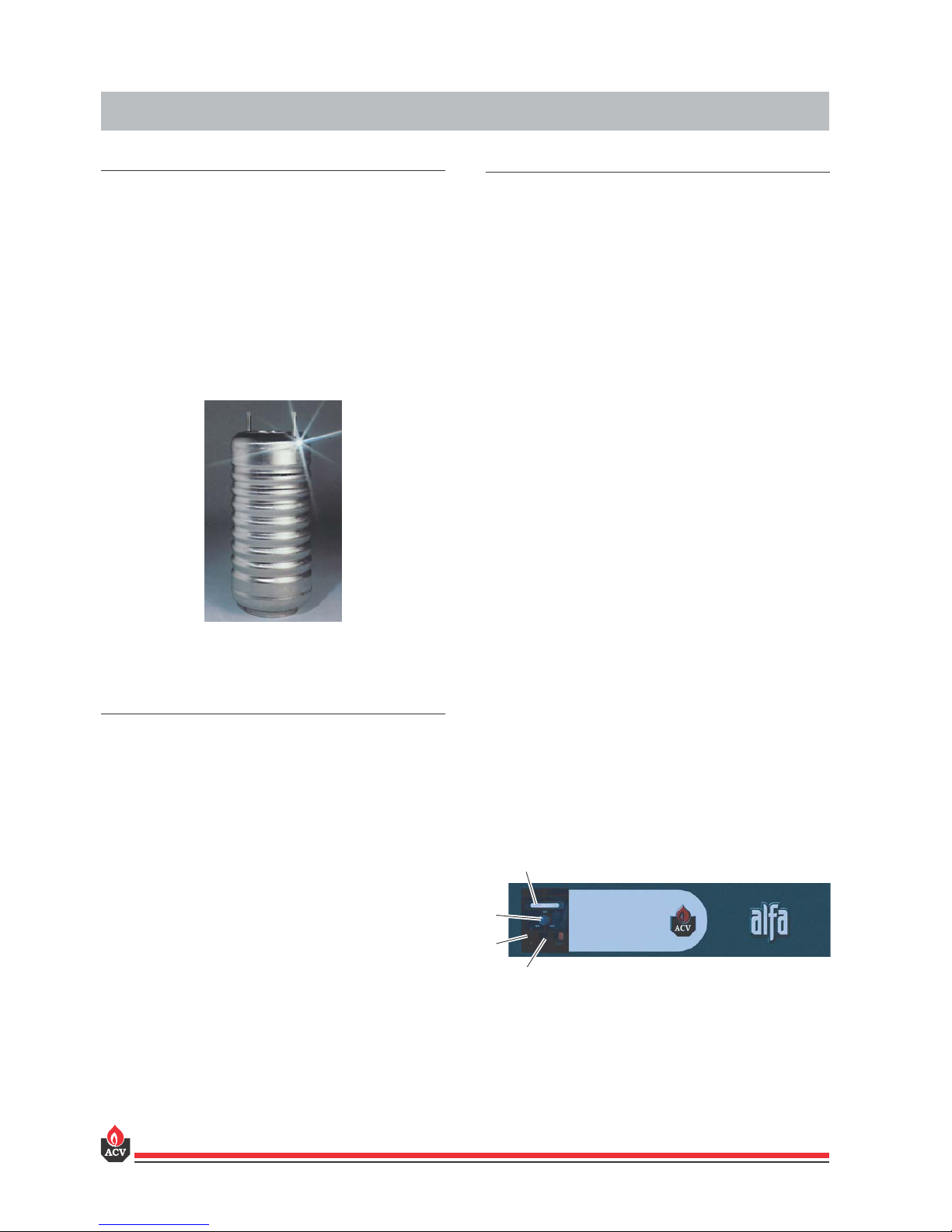

Fig. 13: Ballon inox sanitaire
8
5.2 DESCRIPTION OF OPERATION
5.2.1 THE TANK-IN-TANK CONCEPT
The ALFA Gas series differs from traditional hot water producers
because of its ring-shaped tank immersed in the primary fluid contained
in the outer body. When there is a demand for hot water from the central
heating system or the domestic hot water system, the thermostat starts
the burner. The combustion gases quickly heat up the primary fluid,
creating a natural circulation around the tank.
5.2.2 DOMESTIC HOT WATER HEATED INDIRECTLY
This circulation facilitates heat exchange between the primary fluid and
the domestic water, which takes place all over the tank surface. The
corrugations on the inner and outer shells of the ring-shaped tank
further boost the area of heat exchange and speed up the heating
process of the domestic water.
5.2.3 EASY SETTING AND SAFETY ASSURED
With a single command, the water temperature of both the primary circuit
and the hot water circuit is set by the adjustable thermostat situated on
the tank in the primary circuit. A manually reset safety thermostat shuts
off the burner if the temperature reaches 103° C.

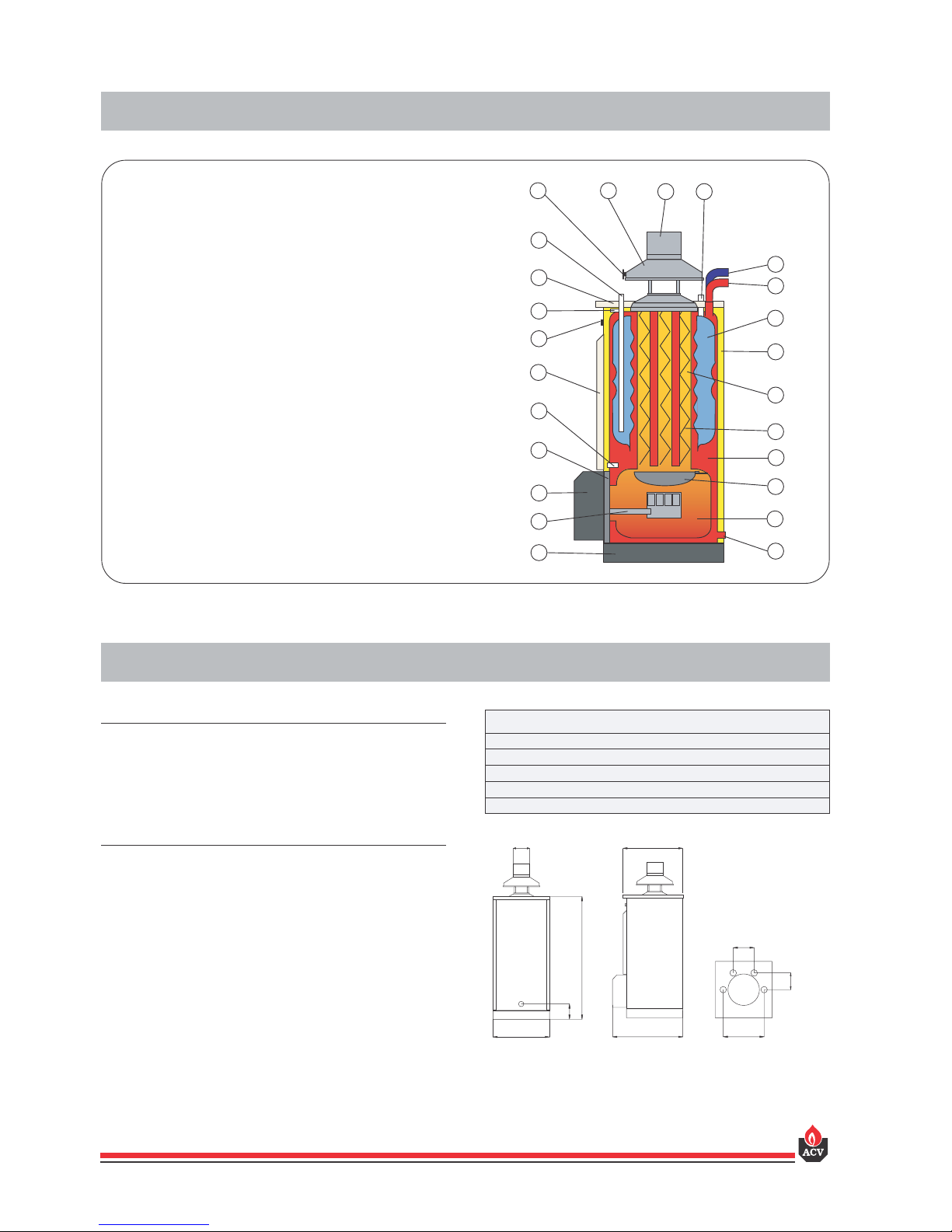

Boiler components Fig. 15
1. Chimney flue
2. Domestic hot water outlet
3. Central heating return
4. Central heating flow pipe
5. Inner ring-shaped domestic hot water tank
6. Sprayed-on polyurethane foam insulation
7. Flue pipes
8. Baffles
9. External body containing central heating circuit
10. Burner chamber disk
11. Boiler drain
12. Combustion chamber
13. Boiler base
14. Burner flame holder
15. Burner chamber cap
16. Burner chamber door
17. Thermometer / boiler thermostat bulb
18. Front
19. Control thermostat 60/90 °C
20. Manual reset safety thermostat 103 °C
21. Casing top
22. Domestic cold water flow pipe
23. Flue spillage thermostat (TTB)
24. Chimney reducing adapter
5 DESCRIPTION
6 TECHNICAL SPECIFICATION
24
18
2
6
7
8
11
17
16
20
21
19
22
1
10
4
3
23
12
5
15
14
13
9
9
6.1 EFFECTIVE DIMENSIONS
The units are delivered fully assembled, tested and packed on a timber
base with shockproof edges and protected by heat-shrunk plastic film.
On reception and after unpacking, check the equipment for damage.
For transport purposes, refer to the weights and dimensions given
opposite.
6.2 MAXIMUM OPERATING CONDITIONS
Maximum service pressure (tank full of water)
- Primary circuit: 3 bar
- Secondary circuit: 10 bar
Test pressure (tank full of water)
- Primary circuit: 4.5 bar
- Secondary circuit: 13 bar
Operating temperature
- Maximum temperature: 90° C
569
C
200
D
160
B
542
125
A
Fig. 16: Effective dimensions
Dimensions ALFA G ALFA GP
A 1363 1363
B 130 130
C 685 685
D 390 390
Kg 143 143

ALFA G ALFA GP
Gas G20 - 20 mbar - I E2+ - I 2E LL
Burner pressure mbar 9,8 -
Flow rate m3/h 2,43 -
Gas G31 - 37/50 mbar - I 3P
Burner pressure mbar - 21,2
Flow rate m3/h - 0,94
Injector Ø 1/100 mm 450 3x160
6.5 ATMOSPHERIC BURNER
6 TECHNICAL SPECIFICATION
6.3 DOMESTIC HOT WATER PERFORMANCE
6.4 BOILER PERFORMANCES
10
Domestic hot water performances ALFA G ALFA GP
Operating at 80° C
Peak delivery at 40° C (6T = 30° C) litres/10’ 170 170
Peak delivery at 40° C (6T = 30° C) litres/60’ 653 665
Continuous delivery 40° C (6T = 30° C) litres/h 579 594
Operating at 80° C
Initial heating time minutes 24 24
After draw-off of 140 l at 45° C minutes 17 16,5
Results obtained without a thermostatic mixing valve and with water supply at 10° C
ALFA G ALFA GP
Input kW 23 23,5
Output kW 20,3 20,7
Combustion efficiency %90,7 91,3
Maintenance loss at 60° C as % of rate value %11
Mass rate of combustion products g/sec. 18 19
Average CO2%8,5 9,5
Total capacity litres 99 99
Primary circuit capacity litres 56 56
Heating connection Ø1” 1”
Hot water connection Ø3/4” 3/4”
Hot water tank heat exchange surface m21,42 1,42
Weight empty Kg
143 143
Chimney connection B11 BS B11 BS
BE - FR AT - DK - ES - GB - IT - PT - IE - SE BE - FR - ES - GB - IE - PT NL LU - DE
I E2+ I 2H I 3P I 2L I 2ELL

6 TECHNICAL SPECIFICATION
Description
These atmospheric burners are fitted with a SIT gas valve and an
electrically operated relay. This gas valve has been specially developed
for atmospheric burners with automatic ignition and ionisation flame
detection.
Advantage
• No pilot flame, therefore no gas consumption when when the
boiler is off.
• The burner only operates when there is a demand for hot water.
• The electric ignition requires no action.
Starting
• Flush the gas pipe thoroughly, turn on the room thermostat and
switch the control thermostat to heat demand.
• Open the gas tap.
• Turn on the main switch on the control panel.
The burner is preset at the factory.
Check the supply pressure and the pressure in the
burner when starting the boiler.
11
Fig. 17: Burner gas valve
Propane gas atmospheric burner (fig.19)
1. Burner plug connector
2. Pot type flame holder
3. Ignition and ionisation electrode
4. Observation window
5. Injector
6. Relay
7. Reset button
8. Burner chamber plate
1. Ignition and ionisation electrode
2. Flame holder
3. Burner chamber plate
4. Injectors
5. Reset button
6. Gas valve
7. Relay
8. Observation window
Natural gas atmospheric burner (fig.18)
1
23
4
1
8
2
4
5
7
63
3
2
7
1
4
5
6
8
1. Electrically operated gas valves.
2. Upstream gas pressure test point.
3. Pressure regulator
4. Gas burner pressure test point.

7.1 USING THE BOILER
7.1.1 GETTING TO KNOW THE CONTROL PANEL (Fig. 20)
Before doing any work on the boiler, switch off the power
at the mains switch installed in the boiler room by the
electrician.
On the control panel, switch off the ON/OFF switch.
(item 2, Fig. 20)
1 - Control thermostat 60° to 90° C (item 1, Fig. 20).
Central heating systems are generally designed to operate at 80° C
maximum. If they are operated at a lower temperature, a 3-way mixer
valve installed on the heating flow pipe (see Fig. 3, page 3) allows the
temperature to be set manually or, if you decide to install a regulator
(§ 2.2.4, page 5), automatically.
We recommend you set the thermostat to the maximum values to get
the best from the domestic hot water system.
The water stored in the domestic hot water tank in the boiler can be at
a very high temperature.
In all cases, install the thermostatic mixer (Fig. 5b, page 4) on the
domestic hot water flow pipe which must not exceed 60° C. A blender
or mixing valve is recommended at each point of use.
2 - ON/OFF switch (item 2, Fig. 20).
This must be used to switch off the boiler before working on it.
3 - Summer/winter selector (item 3, Fig. 20)
“Winter” position: activates both the hot water and central heating
functions. “Summer” position: the room thermostat or regulator (§ 2.2.4,
page 5) is switched off. The heating circulator is also switched off. Only
the domestic hot water function is provided. You can lower the
temperature on the thermostat (1) to save energy.
If there is not enough hot water, we recommend setting the thermostat
(1) to its maximum value.
When the next heating season begins, simply select “Winter” to
reactivate the heating system.
4 - Thermometer (item 4, Fig. 20)
Reads the temperature of the boiler primary circuit (central heating)
directly.
7.1.2 HEATING SYSTEM GAUGE PRESSURE
Your system is fitted with a heating safety valve set to 3 bar, with a
pressure gauge.
Ensure that the water in the system is always pressurised. When cold,
and after the air in the system has been vented, the pressure gauge
must show a pressure between 0.5 and 1.5 bar, depending on the
height of the building (1 bar = 5m / 1.5 bar = 10 m and 2 bar = 15 m).
To add water, open the filling valve (Fig. 2 and 3 page 3). Close the valve
after filling. Vent the air in the system to get an accurate water pressure
reading.
7.1.3 SAFETY VALVE (central heating)
(item 2, Fig. 3, page 3)
Water flowing out of the safety valve is extremely
hot and can cause serious burns.
The discharge pipe to the drain must be iaw
current regulations.
Keep people away from discharges of hot water.
In the event of a fault after this short trial, inform the
installing engineer.
7.1.4 SAFETY UNIT (domestic hot water)
(item 1, Fig. 5a and 5b, page 4)
A monthly inspection is recommended.
Lift the lever on the emptying device for a few seconds to ensure that
the safety valve is working properly.
Water flowing out of the safety valve is extremely
hot and can cause serious burns.
The discharge pipe to the drain must be iaw
current regulations.
Keep people away from discharges of hot water.
In the event of a fault after this short trial, inform the
installing engineer.
7 USER GUIDE
Fig. 20: Control panel
1
2
3
4
12

7.2 BOILER ROOM
• Keep vents free at all times.
• Do not store inflammable products in the boiler room.
• Take care not to store corrosive products near the boiler, such
as paints, solvents, chlorine, salt, soap and other cleaning
products.
• If you smell gas, do not switch on the light or light a flame. Turn
off the mains gas tap at the meter and inform the appropriate
services immediately.
7 USER GUIDE

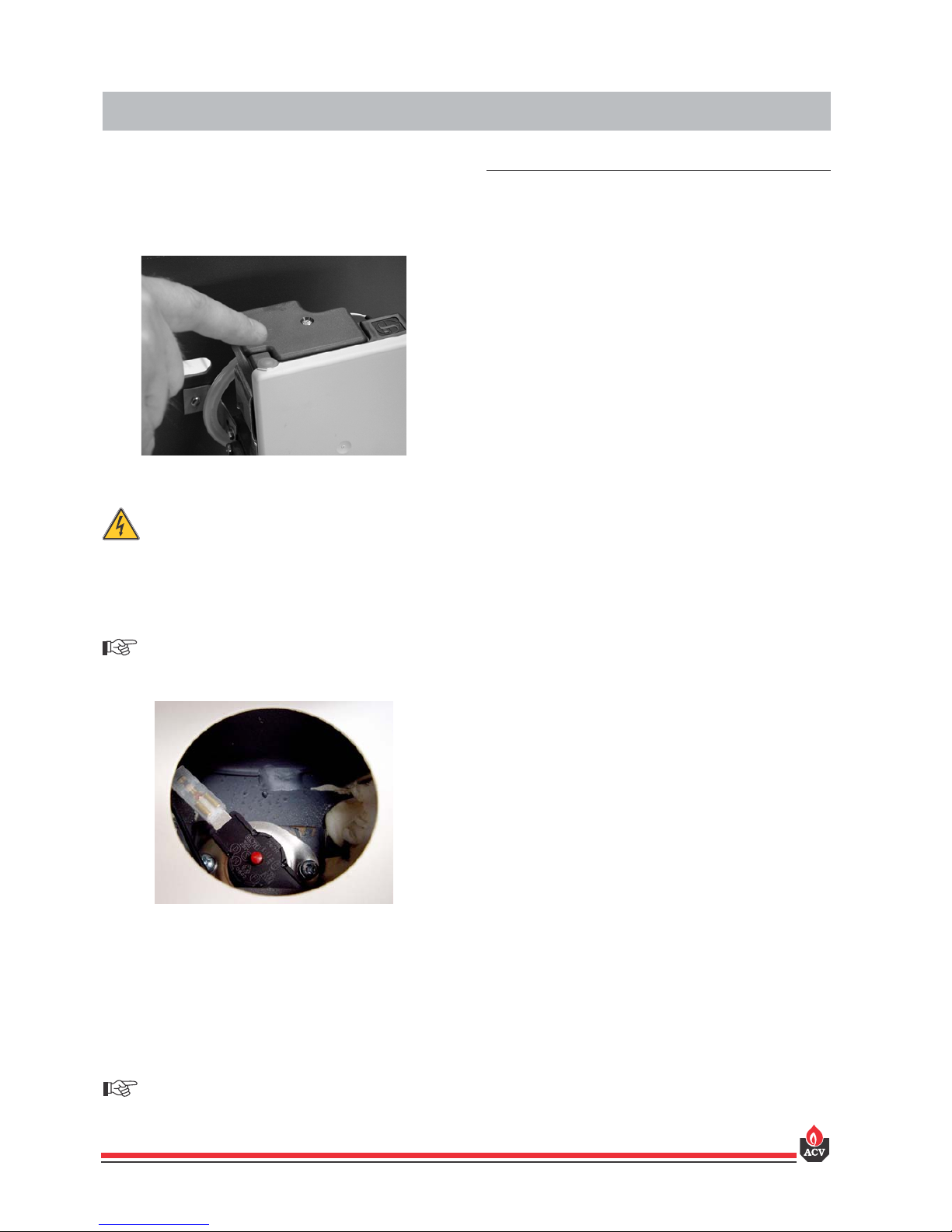

7.1.5 GAS BURNER - RESETTING
If the atmospheric burner is not working:
1. Remove the protective cover.
2. Press the red button to start the burner.
If the burner is not working, isolate the electricity
supply before attempting to reset the safety thermostat.
3. Remove the circular cover on the boiler top and press the red
safety thermostat button
.
Wait until the boiler temperature is below 60° C then
replace the casing front panel.
4. If the burner lights, replace the cover.
6. If the fault persists, notify the installing engineer.
Starting the burner.
In normal operation, the gas burner starts automatically whenever the
boiler temperature falls below the set temperature.
To ensure your system operates properly, have it
professionally serviced once a year before the central
heating season begins.
Fig. 22: Safety thermostat reset button
Fig. 21: Burner reset button
13

INTERNATIONAL
ACV international n.v
KERKPLEIN, 39
B-1601 RUISBROEK - belgium
TEL.: [phone]
FAX: [phone]
E-MAIL: [email protected]
AUSTRALIA
ACV PACIFIC PTY.LTD
UNIT 7, 10 ANELLA AVENUE
CASTLE HILL NSW 2154 - AUSTRALIA
TEL.: [phone]
FAX: [phone]
E-MAIL: [email protected]
BELGIUM
ACV BELGIUM nv/sa
KERKPLEIN, 39
B-1601 RUISBROEK-BELGIUM
TEL.: [phone]
FAX: [phone]
E-MAIL: [email protected]
CHILE
ALBIN TROTTER Y ACV LTDA
SAN PABLO 3800
QUINTA NORMAL - SANTIAGO - CHILE
TEL.:[phone]
FAX:[phone]
E-MAIL: [e-mail]
CZECH REPUBLIC
ACV CR SPOL. s.r.o
NA KRECKU 365
CR-109 04 PRAHA 10 - CZECH REPUBLIC
TEL.:[phone]
FAX:[phone]
E-MAIL: ceskarepublika.inf[email protected]
DEUTSCHLAND
ACV DEUTSCHLAND Gmbh
GEWERBEGEBIET GARTENSTRASSE
D-08132 MÜLSEN ST.JACOB - DEUTSCHLAND
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
ESPAÑA
ACV ESPAÑA
C/ANTONIO GAUDI, 3
E-08349 CABRERA DE MAR - ESPANA
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
FRANCE
ACV FRANCE sa
31, RUE AMPERE - Z.I MI - PLAINE
F-69680 CHASSIEU - FRANCE
TEL.:[phone]
FAX:[phone]
E-MAIL: france.inf[email protected]
ITALIA
ACV ITALIA
VIA MALPIGHI 6
I-48018 FAENZA (RA) - ITALIA
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
NEDERLAND
ACV NEDERLAND bv
POSTBUS 350
NL-2980 AJ RIDDERKERK - NEDERLAND
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
POLAND
ACV POLSKA sp. z.o.o.
BUIRO GLOWNE
PL-87 - 702 KONECK - POLAND
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
PORTUGAL
BOILERNOX LDA
RUA OUTEIRO DO POMAR
CASAL DO CEGO, FRACÇÃO C,
PAVILHÃO 3 - MARRAZES
2400-402 LEIRIA - PORTUGAL
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
RUSSIA
ACV RUSSIA
1/9, MALYI KISELNYI
103031 MOSCOW - RUSSIA
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
SLOVAK REPUBLIC
ACV SLOVAKIA s.r.o.
PLUHOVÁ 49
831 04 BRATISLAVA - SLOVAK REPUBLIC
TEL.:[phone]
FAX:[phone]
E-MAIL: slovakia.inf[email protected]
UK
ACV UK Ltd
ST. DAVID’S BUSINESS PARK
DALGETY BAY - FIFE - KY11 9PF - SCOTLAND
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
USA
TRIANGLE TUBE PHASE III
FREEWAY CENTER - 1 TRIANGLE LANE
BLACKWOOD NJ 08012 - USA
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
ARGENTINA
TECNOPRACTICA
ALFEREZ BOUCHARD 4857
1605 CARAPACHAY - BUENOS AIRES
TEL.: [phone]
FAX: [phone]
E-MAIL: [email protected]
BRAZIL
SIMETAL INDUSTRIA E COMERCIO
DE FERRAMENTAS LTDA
RUA GERSON ANDREIS 535
95112 - 130 CAXIAS DO SUL - BRAZIL
TEL.: [phone]
FAX: [phone]
E-MAIL: [email protected]
BULGARIA
PROXIMUS ENGINEERING LTD
7 BIAL KREM STR.
9010 VARNA - BULGARIA
TEL.:[phone]
FAX:[phone]
E-MAIL: [e-mail]
CHINA
BEIJING HUADIAN HT POWER TECHNOLOGY
DEVELOPMENT CO. LTD
ROOM B-912, TOWER B, COFCO PLAZA
N°. 8, JIANGUOMENNEI AVENUE
BEIJING 100005 - PEOPLE’S REPUBLIC OF CHINA
TEL.:[phone] EXT 101
FAX:[phone]
E-MAIL: [email protected]
DENMARK
VARMEHUSET
FRICHSVEJ 40 A
8600 SILKEBORG - DENMARK
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
ESTONIA
TERMOX AS
TAHE 112A
51013 TARTU - ESTONIA
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
GREECE
ESTIAS
MARASLI STREET 7
54248 THESSALONIKI - GREECE
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
ÎLE MAURICE
SOTRATECH
29, RUE MELDRUM
BEAU BASSIN - ÎLE MAURICE
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
LITHUANIA
UAB “GILIUS IR KO”
SAVARNORIU PR. 192
3000 KAUNAS - LITHUANIA
TEL.:[phone]
FAX:[phone]
MAROC
CASATHERM
PLACE EL YASSIR
20300 CASABLANCA - MAROC
TEL.:[phone]
FAX:[phone]
MOLDAVIA
STIMEX - PRIM S.R.L.
STR BUCURESTI, 60A
2012 CHISINAU - MOLDAVIA
TEL.:[phone]
FAX:[phone]
E-MAIL: [e-mail]
ÖSTERREICH
PROTHERM HEIZUNGSTECHNIK Gmbh
TRAUNUFERSTRASSE 113
4052 ANSFELDEN - ÖSTERREICH
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
ROMANIA
SC TRUST EURO THERM SA
D.N PIATRA NEAMT - ROMAN
km 2 C.P 5 O.P 3 jud. Neamt
5600 PIATRA NEAMT - ROMANIA
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
SLOVENIA
Z*MAJ d.o.o.
CESTA OF 49
1420 TRBOVLJE - SLOVENIA
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
SWEDEN
WÄRMEPRODUKTER I KLIPPAN AB
TEMPLAREGATAN 7
26435 KLIPPAN - SWEDEN
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
TUNISIE
SO.CO.ME CHAUMAX
BOÎTE POSTALE N°44
1002 TUNIS - TUNISIE
TEL.:[phone]
FAX:[phone]
UKRAINE
UKRTEPLOSERVICE LTD
PR. LAGUTENKO 14
83086 DONETSK - UKRAINE
TEL.:[phone]
FAX:[phone]
E-MAIL: [email protected]
