Adamson IS118 User manual

Adamson Systems Engineering |
Table of Contents
Read these instructions, keep them available for reference.
This manual can be downloaded from
Heed all warnings and follow all instructions.
A qualifi ed technician must be present during the installation and use of this product. This product
is capable of producing extremely high sound pressure levels and should be used according to the
specifi ed local sound level regulations and good judgement. Adamson Systems Engineering will
not be liable for damages caused by any possible misuse of this product.
Servicing is required when the loudspeaker has been damaged in any way, such as when the
loudspeaker has been dropped; or when for undetermined reasons the loudspeaker does not
operate normally. Inspect your products regularly for any visual or functionality irregularities.
Protect the cabling from being walked on or pinched.
Read the appropriate IS-Series Rigging Manual before installing the product.
Pay attention to rigging instructions included in both Blueprint AV™ and the IS-Series Rigging
Manual.
Use only with the rigging frames/accessories specifi ed by Adamson, or sold with the loudspeaker
system.
This speaker enclosure is capable of creating a strong magnetic fi eld. Please use caution around
the enclosure with data storage devices such as hard drives.
Safety & Warnings
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
3
4
5
6
7
8
9
In an effort to continuously improve its products, Adamson releases
updated accompanying software, presets and standards for its products.
Adamson reserves the right to change the specifications of its
products and the content of its documents with no prior notice.
Page 1
IS118 User Manual

Distribution Date: May 1st, 2021
Copyright 2021 by Adamson Systems Engineering Inc.; all rights reserved
This manual must be accessible to the person operating this product. As such, the product owner must store it in a safe
place and make it available upon request to any operator.
Resale of this product must include a copy of this manual.
This manual can be downloaded from
Declarations
EU Declaration of Conformity
Adamson Systems Engineering declares that the
products stated below are in conformance with the
relevant fundamental health and safety criteria of the
applicable EC Directive(s), in particular:
Signed at Port Perry, ON. CA - May 1st, 2021
------------------------------------------------
Brock Adamson (President & CEO)
ADAMSON SYSTEMS ENGINEERING, Inc.
1401 Scugog Line 6, Port Perry (ON), L9L 1B2, Ontario,
Canada
T: [phone], F: [phone]
Email: [email protected]
Website: www.adamsonsystems.com
IS118 User Manual
Directive 2014/35/EU: Low Voltage Directive
IS118 - 992-0010, 992-0011, 992-0013,
992-5010, 992-5011, 992-5013
Directive 2006/42/EC: Machinery Directive
IS7/IS118 Rigging Frame - 930-0026, 930-5026
Extended Beam - 930-0021, 930-5021
Moving Point Extended Beam - 930-0033, 930-5033
IS7 Micro Frame - 930-0029, 930-5029
Extended Lifting Plates - 932-0043
Line Array H-Clamp - 932-0047
https://www.adamsonsystems.com/en/support/downloads-directory/is-series/is118

Adamson Systems Engineering |
Table of Contents
Read these instructions, keep them available for reference.
This manual can be downloaded from
Heed all warnings and follow all instructions.
A qualifi ed technician must be present during the installation and use of this product. This product
is capable of producing extremely high sound pressure levels and should be used according to the
specifi ed local sound level regulations and good judgement. Adamson Systems Engineering will
not be liable for damages caused by any possible misuse of this product.
Servicing is required when the loudspeaker has been damaged in any way, such as when the
loudspeaker has been dropped; or when for undetermined reasons the loudspeaker does not
operate normally. Inspect your products regularly for any visual or functionality irregularities.
Protect the cabling from being walked on or pinched.
Read the appropriate IS-Series Rigging Manual before installing the product.
Pay attention to rigging instructions included in both Blueprint AV™ and the IS-Series Rigging
Manual.
Use only with the rigging frames/accessories specifi ed by Adamson, or sold with the loudspeaker
system.
This speaker enclosure is capable of creating a strong magnetic fi eld. Please use caution around
the enclosure with data storage devices such as hard drives.
Safety & Warnings
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
______________________________________________________________________________________
3
4
5
6
7
8
9
In an effort to continuously improve its products, Adamson releases
updated accompanying software, presets and standards for its products.
Adamson reserves the right to change the specifications of its
products and the content of its documents with no prior notice.
Page 3
IS118 User Manual
1. Safety & Warnings
2. Product Introduction
3. Wiring
4. Amplication
5. Presets & Dispersion
6. Weatherized
7. Technical Specications
https://www.adamsonsystems.com/en/support/downloads-directory/is-series/is118

Adamson Systems Engineering | Page 4 IS118 User Manual

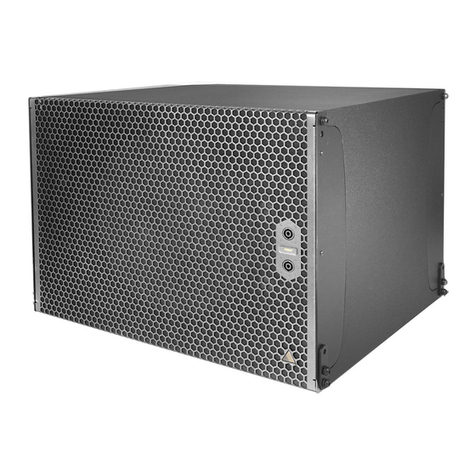

IS118
• The IS118 is an ultra-compact subwoofer enclosure designed for extended LF capabilities. It contains one ND18-S
18” LF driver.
• The operational frequency range of the IS118 is 35 Hz to 100 Hz. The use of proprietary techologies such as
Advanced Cone Architecture give the IS118 an extremely high maximum SPL level.
• The enclosure has an unobtrusive visual design which blends seamlessly into the surrounding space, including
identical grills at the front and back so cardioiod deployments appear identical to non-cardioid. It is made of marine
grade birch plywood, and has an aluminum rigging system mounted on each corner. Without sacricing lowered
resonance to composite material, the IS118 is able to maintain a low weight of 39 kg / 85 lbs.
• Up to sixteen IS118 can be flown when using the IS7 & IS118 Support Frame and can also be flown in the same
array as the IS7 when using an additional IS7 & IS118 Support Frame. Always consult Blueprint AV™ and the IS-
Series Line Array Rigging Manual for correct rigging positions (including ground stacking options) and installation
procedures.
• The IS118 is intended to be paired with the IS7 Ultra Compact Line Array with a crossover frequency of 80 or 100
Hz, depending on the preset used.
• The IS118 is designed for use with Lab.gruppen’s D-Series line of installation ampliers. The nominal impedance of
the IS118 is 8 Ω.
IS118 Ultra Compact Subwoofer

Adamson Systems Engineering | Page 5 IS118 User Manual
IS118
The IS118 (992-0010, 992-5010) comes with 4x Neutrik Speakon™ NL4 connections, wired in parallel. The 2 rear
connections pass pin 1 +/- to the driver and the 2 front connections pass pin 2 +/- to the driver.
The IS118b (992-0011, 992-5011) comes with an external barrier strip mounted to the rear grill. Terminals 1, +/- are
passed to the driver, terminal 2, +/- are not connected.
To operate the IS118b in FB or FBF cardioid mode, swap the front and rear grills by:
1. Removing the six screws holding each grill to the side rigging pieces
2. Unclipping the grill with the barrier strip from the rear PCB, and swapping the grills
3. Re-clipping the grill with the barrier strip to the front PCB and afx with the same screws
Wiring
IS118 Rear
IS118 Front
IS118b Rear

Adamson Systems Engineering | Page 6 IS118 User Manual
IS118
The IS118 is paired with Lab.gruppen D-Series ampliers.
Maximum quantities of the IS118 per amplier model are shown below.
For a master list, please refer to the Adamson PLM & Lake Handbook, found on our website.
https://adamsonsystems.com/support/downloads-directory/design-and-control/e-rack/283-amplication-
chart-9/le
4x IS118
D40:4L D80:4L
8x IS118
D120:4L
12x IS118
Amplification

Adamson Systems Engineering | Page 7 IS118 User Manual
IS118
Subwoofer Conguration Applicable Preset
Presets
IS118
All IS118 forward facing
Omni pattern
IS118 FB
Bottom IS118 forward facing,
top IS118 reversed
Cardioid pattern
IS118 FBF
Bottom and top IS118 forward
facing, middle IS118 reversed
Cardioid pattern
The Adamson Load Library (https://www.adamsonsystems.com/support/downloads-directory/design-and-control/e-
rack/245-adamson-load-library-5-0-1/le) contains presets designed for a variety of IS118 deployments.
For a master list, please refer the Adamson PLM & Lake Handbook, found on our website. https://adamsonsystems.
com/support/downloads-directory/design-and-control/e-rack/205-adamson-plm-lake-handbook/le
When flown in the same array as an IS7, all IS118 presets contain the inherent delay needed to be properly phase-
aligned.
When flown or ground stacked separately, IS118 subs should be phase-aligned using measurement software.
Subwoofer Conguration
100 Hz35 Hz
0°
180°
180°
90°
90°
100 Hz35 Hz
0°
180°
180°
90°
90°
IS118 FB IS118 FBF
Cardioid Dispersion
IS118 EF40
End re 40”/100cm Distance
from Front Screens
Cardioid pattern

Adamson Systems Engineering | Page 8 IS118 User Manual
IS118
Weatherized
IS-Series weatherized models add an additional layer of environmental and corrosion protection to Adamson’s
already durable cabinet design. Weatherized enclosures are ideal for marine and coastal venues, outdoor stadiums,
open-air performance spaces, and other permanent outdoor installations.
IS-Series weatherized cabinets feature the following additional protective features.
Corrosion resistance
Corrosion resistance extends the lifetime performance of your system in outdoor venues where water, salt and
acidity can impact durability and function.
All structural steel elements of Adamson weatherized cabinets – including rigging and rigging links – are made of
a high yield strength stainless steel alloy that offers 100% corrosion resistance.
Cabinet hardware is made of non-plated stainless steel, designed to provide exceptional rust and corrosion
resistance, particularly in high-saline environments.
Environmental sealing
Additional protection of the cabinet helps ensure that loudspeaker performance isn’t impeded by the harsh
environments in which your system is deployed.
To guard against water and particle intrusion, the same two-part polyurea coating that gives Adamson cabinets
their life-extending exterior protection is applied to the interior of the enclosure, creating a complete seal.
Weatherized models feature an exterior coating with a distinctive smooth nish that allows for easy cleaning and
removal of contaminants like dirt, grime, salt water or sand.
To protect against dust and other particles, a ne stainless steel mesh has been added to all points of entry
including behind the front grille screens.
Cabling for the IS-Series weatherized cabinets is pre-wired and protected inside a gasket-sealed jackplate, with
gland nuts in place to seal the connection points.

Adamson Systems Engineering | Page 9 IS118 User Manual
IS118
Technical Specifications
**12 dB crest factor pink noise at 1m, half space, using specied processing and amplication
Frequency Range (+/- 3dB) 35 Hz - 100 Hz
Maximum Peak SPL** 133 dB
Components LF ND18-S 18” Neodymium Driver
Nominal Impedance LF 8 Ω
Power Handling (AES / Peak) LF 500 / 2000 W
Rigging Integrated Rigging System
Connection 4x Speakon™ NL4 (2x Front 1+/1-, 2x Rear (2+/2-) or
Barrier Btrips
Height (mm / in) 507 / 19.95
Width (mm / in) 527 / 20.75
Depth (mm / in) 529 / 20.81
Weight (kg / lbs) 39 / 85
Colour Black & White (RAL 9010 as standard, other RAL
colours on demand)
Processing Lake
527 mm / 20.75 in
529 mm / 20.81 in 507 mm / 19.95 in
