Adept Audio ADS8 User manual
®
Subwoofer Installation Manual
ADS8 • ADS10 • ADS12
2
Thank you for buying an Adept Audio subwoofer. This subwoofer was designed and tuned by one of the world’s most
experienced speaker design teams. It’s built to deliver outstanding performance day in and day out for years to come.
This manual provides all the necessary information for installation and operation. If for any reason you experience
problems or if you have installation questions, please call us at (888) 982-3378. Hours of operation are 8:00am to 5:00pm
(Pacic Time), Monday through Friday.
Subwoofer Installation Manual
Important Safety Instructions - 3
Warranty - 5
What’s Included - 6
Controls and Connections - 7
Speaker Placement - 8
Subwoofer Adjustments - 9
Specications - 9
Troubleshooting - 10
Table of Contents
®
3

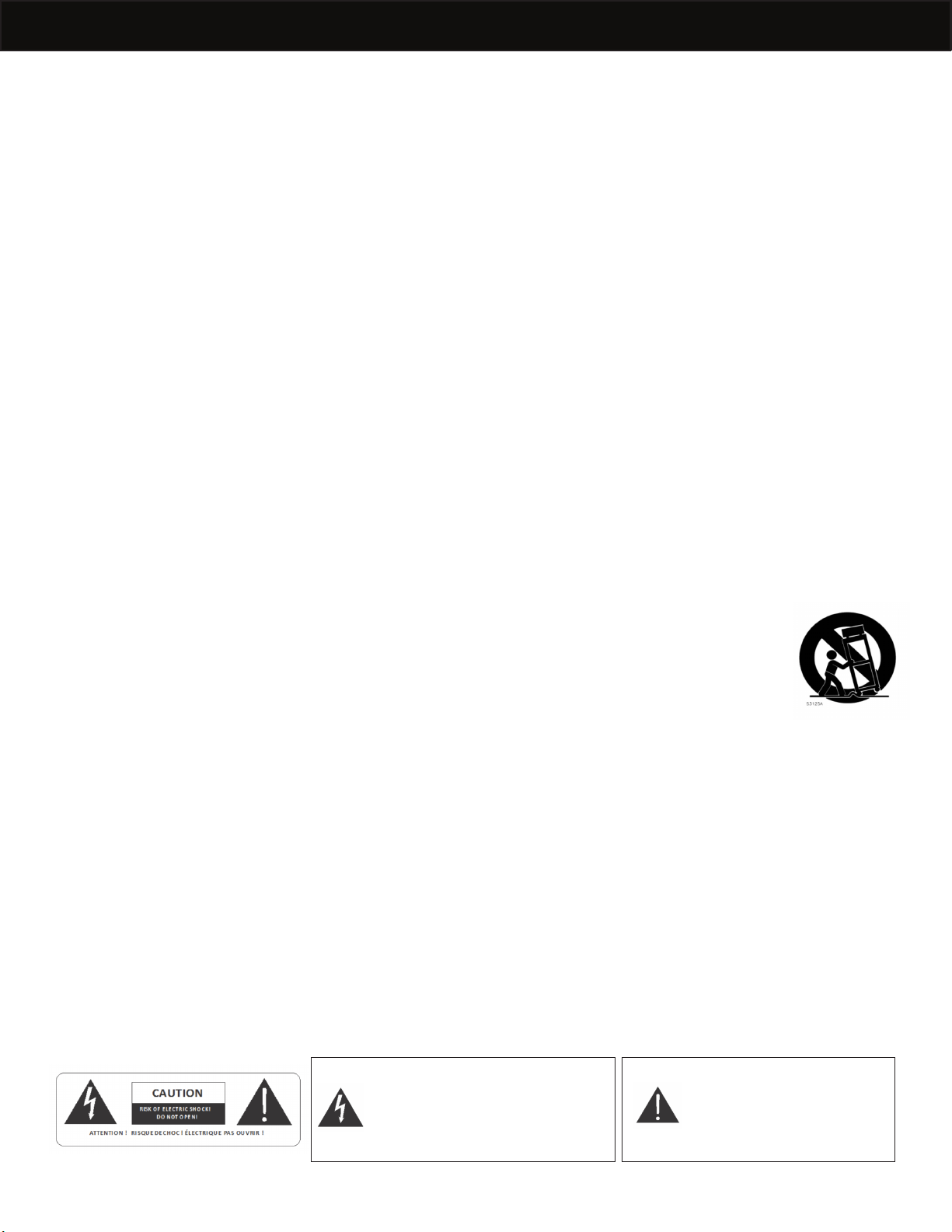

Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)
that produce heat.
9) Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one wider than the other.
The wide bladed is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) Do not open the equipment to reduce the risk of electrical shock. For safety reasons it is only allow to the opened by
qualied service personnel.
16) WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture. And the
apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be
placed on the apparatus.
17) The MAINS plug is used as the disconnect device and shall remain readily operable.
Subwoofer Installation Manual
The lightning ash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufcient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
4
Consignes de sécurité importantes
1) Lisez ces instructions.
2) Conservez ces instructions.
3) Observez tous les avertissements.
4) Observez tous les avertissements.
5) N’utilisez pas cet appareil à proximité de l’eau.
6) Utilisez uniquement un chiffon sec pour le nettoyer.
7) Ne bloquez pas les ouvertures de ventilation. Installez conformément aux instructions du fabricant.
8) Ne l’installez pas à proximité de sources de chaleur telles que des radiateurs, des bouches de chaleur, des poêles ou
d’autres appareils (amplicateurs compris) produisant de la chaleur.
9) Ne pas contourner le dispositif de sécurité de la che polarisée. Une che polarisée possède deux lames dont une
plus large que l’autre. La grande lame est fournie pour votre sécurité. Si la che fournie ne rentre pas dans votre prise,
consultez un électricien pour le remplacement de la prise obsolète.
10) Protégez le cordon d’alimentation, surtout au niveau des ches, des prises et des points où il sort de l’appareil, pour
éviter qu’on ne marche dessus ou qu’on ne le pince.
11) Protégez le cordon d’alimentation, surtout au niveau des ches, des prises et des points où il sort de l’appareil, pour
éviter qu’on ne marche dessus ou qu’on ne le pince.
12) Utilisez uniquement avec le chariot, le socle, le trépied, la table ou le support spécié par le fabricant
ou vendu avec l’appareil. En le fabricant ou vendu avec l’appareil. Cas d’utilisation d’un chariot, faites
attention lorsque vous déplacez l’ensemble chariot / appareil de ne pas le renverser.
13) Débranchez cet appareil lors d’orage avec foudre ou lorsque vous ne l’utilisez pas pendant des périodes prolongées.
14) Faites-le réparer et entretenir par un personnel de service qualié. Il est nécessaire de faire réparer l’appareil lorsqu’il
a subi des dommages quelconques du type suivant : cordon ou che d’alimentation abîmé, liquide renversé ou objets
tombés dans l’appareil, exposition de l’appareil à la pluie ou à l’humidité, mauvais fonctionnement ou chute.
15) Faites-le réparer et entretenir par un personnel de service qualié. Il est nécessaire de faire réparer l’appareil lorsqu’il
a subi des dommages quelconques du type suivant : cordon ou che d’alimentation abîmé, liquide renversé ou objets
tombés dans l’appareil, exposition de l’appareil à la pluie ou à l’humidité, mauvais fonctionnement ou chute.
16) ATTENTION: Pour réduire le risque d’incendie ou d’électrocution, n’exposez pas cet appareil à la pluie ou à
l’humidité. De plus, l’appareil ne doit pas être exposé au dégouttement ou aux éclaboussures et aucun objet rempli de
liquide, tel qu’un vase, ne doit être posé sur l’appareil.
17) La che d’alimentation CA sert de principal dispositif de déconnexion et doit toujours être capable de
fonctionner correctement.
Le symbole de l’éclair avec une èche à son extrémité, dans un
triangle équilatéral, a pour but de vous avertir de la présence
d’une « tension électrique dangereuse » et non isolée à l’intérieur
de l’enceinte de l’appareil, qui peut être sufsamment puissante
pour constituer un risque d’électrocution pour les personnes.
Le point d’exclamation dans un triangle
équilatéral vous avertit de l’existence
d’instructions importantes de fonctionnement et
d’entretien (intervention) dans la documentation
accompagnant l’appareil.
Subwoofer Installation Manual
5
Warranty
Adept Audio warrants to the original retail purchaser only that our products will be free from defects in materials and
workmanship, provided the speaker was purchased from an Adept Audio authorized dealer. If the product is determined
to be defective, it will be repaired or replaced at Adept Audio’s discretion. If the product must be replaced yet it is no
longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original.
If this is the case, installing the replacement model may require mounting modications; Adept Audio will not be
responsible for any such related costs.
2 Year Limited Warranty
This warranty may not be valid if the product was purchased through an unauthorized dealer. This warranty only applies
to the individual that made the original purchase, and it cannot be applied to other purchases. The purchaser must be
prepared to provide proof of purchase (receipt). This warranty will not be valid if the identifying number or serial number
has been removed, defaced, or altered.
Requirements & Warranty Coverage
All warranties and warranty conditions are subject to change. Please refer to www.adeptaudio.com for the latest
information.
These conditions are not covered by warranty:
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modications by anyone other than Adept Audio or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage input in excess of the rated maximum of the unit
• Damage inicted during the return shipment
Subwoofer Installation Manual
6
Extras You’ll Need
• RCA audio interconnect cables
• Sound pressure level meter (or smartphone app)
General lnformation
• Observe all warnings on the subwoofer and in the manual. Please check the subwoofer for damage before use.
The subwoofer must be in perfect working condition. Damaged parts may lead to personal injury.
• Connect the subwoofer according to the instructions in the manual.
• Install the subwoofer on a level surface only.
• When choosing the location of the subwoofer, do not place it in locations that are:
- In direct sunlight
- Very humid
- Prone to vibrations
- Exceptionally hot or cold
- Close to magnetic cards (since the speakers are not magnetically shielded placing magnetic cards such as credit
cards may cause them to fail)
Caution! Adept Audio subwoofers are heavy. Be careful when lifting them to prevent personal injury.
What’s Included
Subwoofer • Grille • AC Power Cord • Manual
Subwoofer Installation Manual
7
Volume
This knob adjusts the subwoofer’s volume. Turn it clockwise for full volume. Note that the subwoofer level control in an AV
receiver will also affect how loud the subwoofer plays. With most AV receivers, setting this knob at about halfway up (the 12
o’clock position) will provide a volume level that allows the subwoofer’s level to be matched with that of the main speakers.
Phase
Use this knob to adjust the phase of the subwoofer relative to the main speakers. This will help achieve a smoother blend
of the sound of the subwoofer and the main speakers. To adjust it, sit in the chair or couch where you usually listen, and
play some bass-heavy music with the phase knob set to 0. Now play the same music with the knob set to 180. If you hear a
difference, experiment with different settings until the bass sounds smoothest from your chair.
Crossover
Use this knob to set the highest bass frequency the subwoofer will play, from 50 to 150 Hz. If you’re using an AV receiver or
surround-sound processor, set this knob at 150 and use the crossover built into the receiver or processor. If the subwoofer
is installed in a stereo system, set this knob as close as possible to the lowest rated bass extension of the main left and right
speakers.
Subwoofer Installation Manual

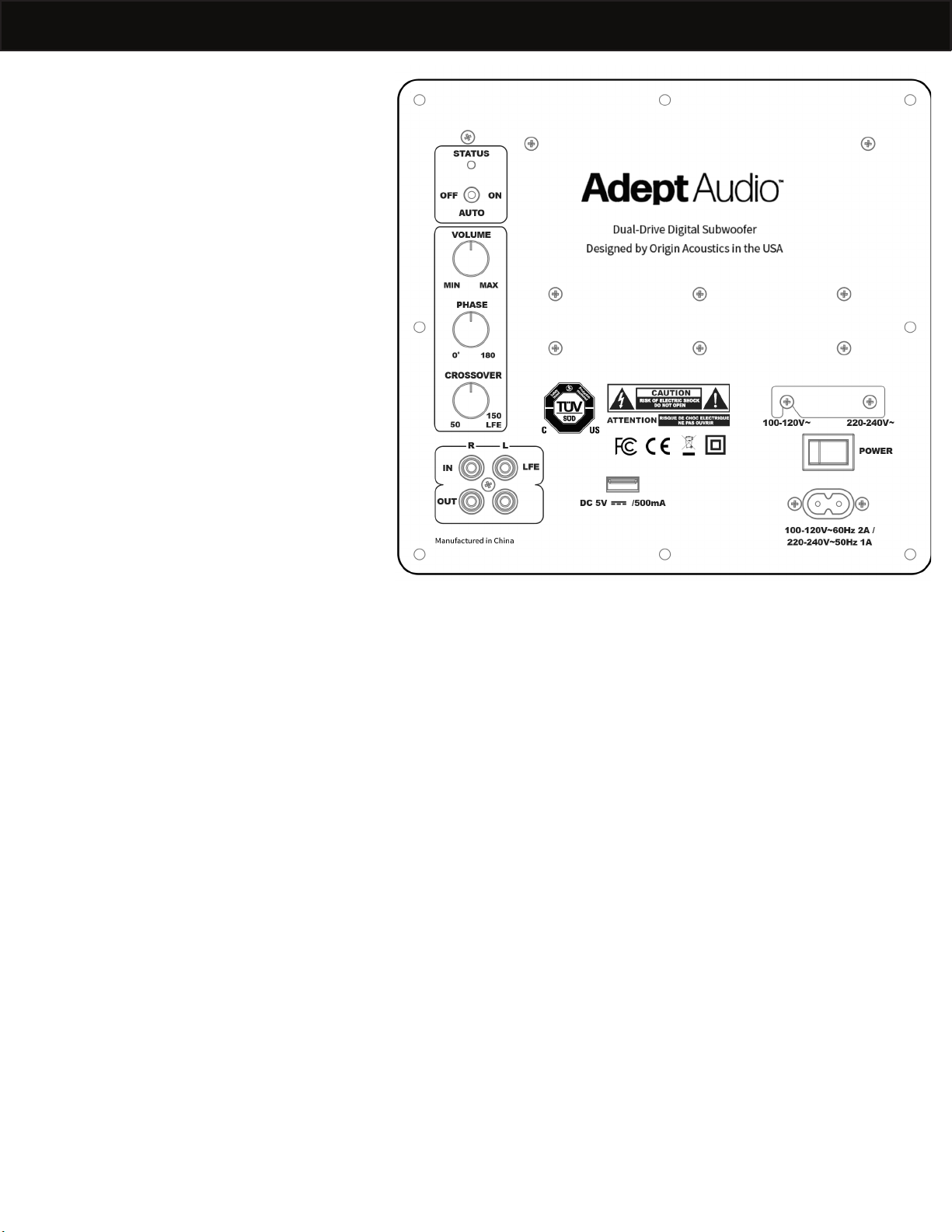

Controls and Connections
Status Light
This light glows when the subwoofer’s power is on.
Off/Auto/On Switch
This switch functions only when the power switch
(see pg. 8 “Power Switch”) is set to “on.” When
this switch and the power switch are both set to
“on,” the subwoofer’s power will always be on.
When this switch is set to “auto,” the subwoofer’s
power will come on automatically when it senses
an incoming audio signal. If there is no signal for
15-18 minutes, the subwoofer will automatically
shut off.
8
Inputs
These jacks accept a signal from an AV receiver, a surround-sound processor, a stereo receiver or a stereo preamp. In
a surround-sound system, use an RCA audio interconnect cable (not included) to connect the receiver or processor’s
subwoofer output to the input jack labeled LFE. In a stereo system, connect two RCA cables (not included) from the
preamp or the receiver’s preamp output to the jacks labeled R and L.
USB 5VDC output
This jack outputs 5-volt DC power, which can be used to power accessories such as a wireless subwoofer receiver/
transmitter system.
Power switch
This is the master power switch that turns on the AC power. It must be in the “on” position for the subwoofer to
function. If the power switch is on, the on/auto/off switch (see pg. 7 “off/Auto/On Switch”) controls the subwoofer’s
power.
AC cord input
This connector accepts a standard two-conductor AC power cord (included). Note that the jack is not polarized, which
means the connector can be reversed. Reversing the AC cord in this jack can sometimes x hum (grounding) problems in
the audio system.
Subwoofer Placement
The more walls the subwoofer is near, the louder (and sometimes boomier) the bass will sound. If you want maximum
bass output, put the subwoofer in a corner. If this makes the bass too loud or boomy, move the subwoofer out of the
corner and closer to the center of the wall. Often, placing the subwoofer near or between the main speakers helps the
subwoofer blend better with the speakers, and gives the best compromise between maximum output and smoothest
sound. When you listen to evaluate different subwoofer positions, always do it from the chair or couch where most of the
listening will take place.
A simple trick used by many home theater enthusiasts is to place the subwoofer in the primary listening chair, play some
music with a melodic bass line (most pop and jazz recordings will work), and crawl around with your head about a foot or
two off the ground. Find the spot along the wall where the bass sounds the smoothest and most even from note to note,
and put the subwoofer there.
Subwoofer Installation Manual
9
Subwoofer Adjustment
If the subwoofer is installed in a surround-sound system: Use the crossover frequency and level controls in the receiver or
surround processor, following the manufacturer’s instructions.
If the subwoofer is installed in a stereo system without a built-in subwoofer crossover: Set the subwoofer’s crossover
control to match the rated bass extension of the speakers as closely as possible—e.g., if you’re using tower speakers
with 40 Hz rated deep bass response, set the crossover control to 50 Hz.
If you’re not sure what the speakers’ bass rating is, start with this control set in the middle (about 100 Hz), with the
volume control set in the middle. Adjust the volume control until the bass level roughly matches the level of the main
speakers. If some bass notes seem to be too quiet, set the crossover control to a higher frequency. If some bass notes
seem too loud, set the crossover control to a lower frequency. Do all of your listening tests from the chair or couch where
most of the listening will take place.
Specications
ADS8
8” Front-Firing Treated Paper Cone Woofer
8” Down-Firing Treated Paper Cone Woofer
180W Class D Amp
Power Rating Continuous: 180 Watts RMS
Power Rating Peak: 320 Watts Peak
Frequency Response: 32Hz-200Hz
Subwoofer Output: 95dB SPL
Inputs: Left & Right Line Level, LFE
Outputs: Line Level High-Pass
Phase Control: 0 - 180˚
Crossover: 50Hz - 150Hz; Bypass
Features: Auto/on/off, 5V USB,
110-220V voltage switch
Dimensions W/ Feet: 11 ¾” x 12 5/8” x 13 5/8”
(298mm x 319mm x 346mm)
Subwoofer Installation Manual
ADS10
10” Front-Firing Treated Paper Cone Woofer
10” Down-Firing Treated Paper Cone Woofer
200W Class D Amp
Power Rating Continuous: 200 Watts RMS
Power Rating Peak: 350 Watts Peak
Frequency Response: 28Hz-200Hz
Subwoofer Output: 99dB SPL
Inputs: Left & Right Line Level, LFE
Outputs: Line Level High-Pass
Phase Control: 0 - 180˚
Crossover: 50Hz - 150Hz; Bypass
Features: Auto/on/off, 5V USB,
110-220V voltage switch
Dimensions W/ Feet: 13 ¼” x 14 1/8” x 15 ¼”
(337mm x 358mm x 385mm)
ADS12
12” Front-Firing Treated Paper Cone Woofer
12” Down-Firing Treated Paper Cone Woofer
300W Class D Amp
Power Rating Continuous: 300 Watts RMS
Power Peak: 500 Watts Peak
Frequency Response: 21Hz-200Hz
Subwoofer Output: 101dB SPL
Outputs: Line Level High-Pass
Inputs: Left & Right Line Level, LFE
Phase Control: 0 - 180˚
Crossover: 50Hz - 150Hz; Bypass
Features: Auto/on/off, 5V USB,
110-220V voltage switch
Dimensions W/ Feet: 14 ¾” x 15 5/8” x 16 ¾”
(375mm x 396mm x 423mm)
10
Troubleshooting
Main speakers work but no sound from the subwoofer: If the status LED is not lit, make sure the subwoofer’s master
power switch and off/auto/on switches are set to “on.” If the status LED still does not come on, check to make sure
the AC cord is plugged into the subwoofer and the AC outlet. If the subwoofer is plugged into a power strip or power
conditioner, make sure that device is turned on and plugged into the AC outlet. If the status LED is lit but there’s still
no output from the subwoofer, check to make sure the RCA cables are connected from the receiver, surround processor
or preamp to the subwoofer, and that the cables are in good condition. If the cable connection is good, make sure the
subwoofer’s volume control is turned up. If there’s still no output, and you’re using a receiver or surround processor, make
sure the subwoofer level in the receiver or processor is turned up, and make sure the receiver or processor is congured
for a subwoofer (typically this will be a 5.1, 7.1, 5.1.2 or 7.1.2 conguration in the receiver or processor’s onscreen setup
menu).
Bass has too much boom: Turn the volume control on the subwoofer down slightly, move the subwoofer further from
the corner and closer to the middle of the wall, or if you have a stereo system, set the subwoofer’s crossover control to a
lower frequency.
Bass is too quiet or some bass notes are missing: Turn the volume control on the subwoofer up slightly, move the
subwoofer closer to one of the corners of the room, or if you have a stereo system, set the subwoofer’s crossover control
to a higher frequency.
Subwoofer makes humming sound all the time: Try unplugging the AC cord from the subwoofer, ipping it over, and
plugging it back in. If this doesn’t work, try connecting the subwoofer to the same AC outlet or power strip as the rest of
the audio system. Using a wireless transmitter/receiver can sometimes eliminate persistent hum problems.
Subwoofer Installation Manual
11
If you have any questions or concerns about installing or using this product, you can reach us through one
of the following methods:
Phone: (888) 982-3378
Hours of operation: 8:00am - 5:00pm (Pacic Time), Mon - Fri
Email: [email protected]
If you are having technical trouble, please include the model number and briey explain what steps you took to resolve
the problem in your email, or be prepared to answer these questions over the phone. If you are considering returning the
product, it’s required that you contact Adept Audio prior to any return attempts. This way we can determine if the issue can
be resolved without returning the product, or if needed we can provide instructions and support for the return process.
Subwoofer Installation Manual
12
NOTES
13
NOTES
®
© 2019 Origin Acoustics, LLC. All rights reserved.
This manual suits for next models
2
Table of contents
