ADF LINEA 100B DUO User manual

Owner’s Manual
ADF LINEA 100B DUO and DUO L
Freestanding Appliances
Supplied by:
Castworks Pty Ltd
12 Fiveways Boulevard
Keysborough VIC 3173
TESTED IN ACCORDANCE WITH AS/NZS 4012:2014 & AS/NZS 4013:2014
Please read this manual thoroughly before installing and starting your free-standing appliance.
Keep these instructions for future reference
V18062018

2
Index
1. Introduction 03
2. Appliance Layout 05
3. Technical Specifications 06
4. Installation Instructions 09
Flue Outlet 12
5. Fan 13
6. Installing the bricks and baffles 15
7. Instructions for use 16
8. Maintenance and cleaning 18
9. Troubleshooting 20
10. Warranty 21
11. Data Label 23
Linea Duo 100B
Linea Duo 100B L

3
1. Introduction
Congratulations on your purchase of your new ADF woodfire appliance!
Years of extensive research and dedication to innovation and quality, since 1976, has resulted in these
beautifully designed European appliances, constructed to strict Portuguese and European legislation, and
tested and Certified to the Australian Emissions, Efficiency and Safety standard requirements
guaranteeing excellent performance.
Please read this manual fully to ensure safe and efficient use of your heater and to comply with the
warranty guidelines.

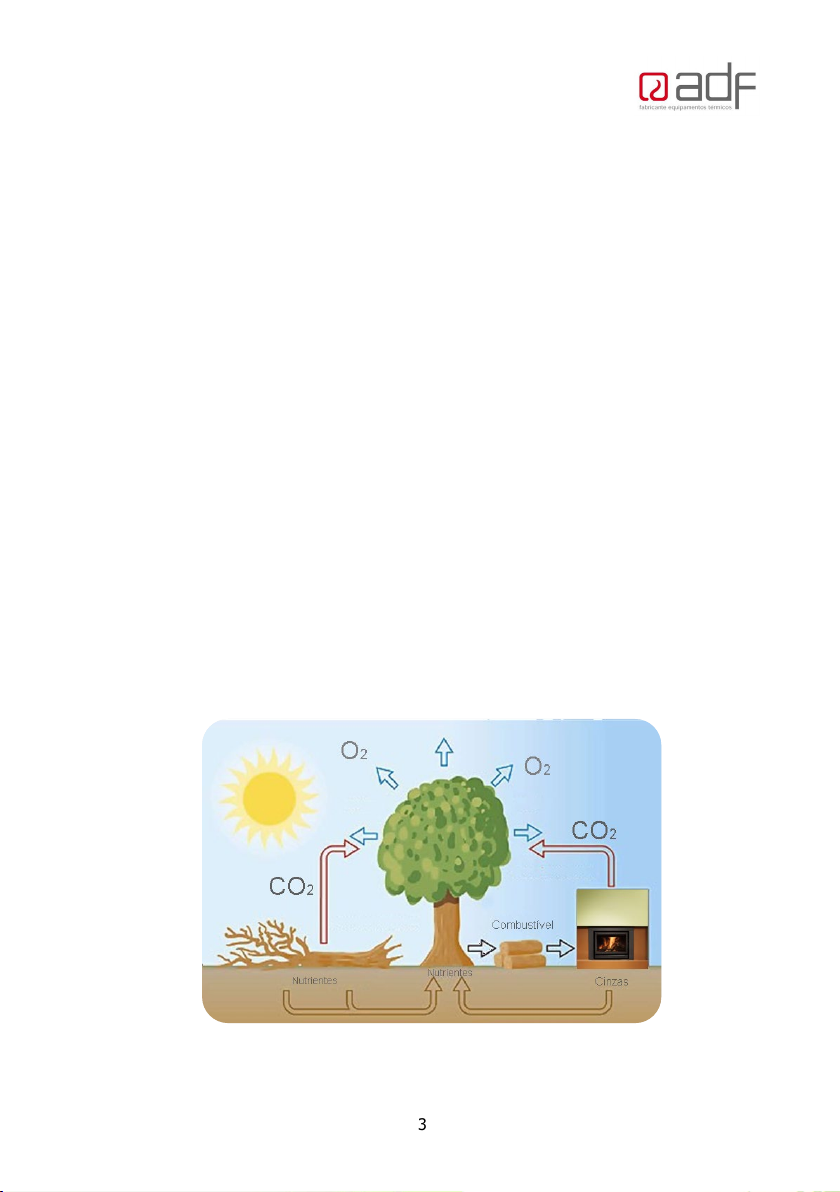

Solid Fuel – Ecological Energy
Through photosynthesis, plants capture energy from the sun and transform it into chemical energy. The
trapped energy, e.g., in the form of wood, pellets, coal are called biomass fuels and can be converted
into various forms: electricity, fuel or heat. Biomass burning causes the release of carbon dioxide into
the atmosphere, but since this compound had previously been absorbed by the plants that originated
the fuel, the CO2 emissions balance is zero, not contributing to the greenhouse effect on the planet.
Firewood is the most environmentally friendly way of producing heat in your home, as it is a fully
renewable resource. The amount of CO2 that is released during the combustion of firewood is not higher
than the amount that would be released from its natural decomposition. Wood ash is a mineral fertilizer
easily absorbed by the environment in a totally ecological way.

4
Firewood – Use
Choosing your wood
All wood types have a different calorific value. You should choose only well-seasoned hard woods.Do
not use logs that are too large.Split round logs so they cannot roll and cause a hazard.
Drying your wood
Whichever firewood is chosen; it must be very dry and seasoned. Unseasoned or green firewood does
not heat as much, because a large part of the energy is consumed in the evaporation of the water and
creosote contained in the wood, which is highly corrosive and will damage the appliance and
consequently it could void your Warranty. In addition, moist firewood produces a large amount of
smoke and little flame, which will foul the appliance, the glass and the chimney. When raining the
stored wood should be covered and well ventilated. Generally, green wood should be left to “season”
for two years.
Wood to Avoid
Softwoods and low-density wood: This kind of firewood release a lot of heat but burn too quickly and
projects embers and resin that foul the chimney and the interior of your woodstove.These should be
used as Kindling only, for starting your fire.
Do not use:
Wood with varnish, exotic wood, treated/painted timber, agglomerates that can produce toxic fumes
which will damage the appliance. Do not use driftwood or coastal wood with high salt content, it will
quickly damage the heater.
All ADF appliances are designed to burn firewood and firewood only, with less than 20% moisture
content. The use of unseasoned firewood or firewood with moisture or other types of fuel not
recommended will void the warranty.See below, the drier the wood the better heat you get out of it.
0.0
1.0
2.0
3.0
4.0
5.0
6.0
010 20 30 40 50 60 70 80 90
(kWh/kg)
Moisture (%)
Moisture Vs Energy released by firewood

5
2-Appliance Layout
Note single sided unit shown.
Pos. Designation
1 Door lever, Tool supplied for Door and Air Control
2
Combustion Air control (Use tool):
Open (+) slide to the right
Close (-) slide to the left
3 Vermiculite brick lining
4 Primary convection outlet – comes out each side above both the doors.
5 Secondary convection outlet (hot air distribution for ducting) Inbuilt only
6 Smoke Outlet – Flue collar 200mm (8” Crimped)
7 Convection inlet
Important:
oThe compartment below the combustion chamber should not be used to store combustible materials.
oPlease read this manual thoroughly before installing and starting your free-standing appliance.
oInstallation must be carried out by a licenced and certified installer.
oKeep these instructions for future reference

6
3- Technical Specification
Specifications
TESTED IN ACCORDANCE WITH
AS/NZS 4012:2014 & AS/NZS 4013:2014
Burning Harwood
Unit
ADF
DUO
100
Maximum Avearge Heat Output kW 18.9
Maximum Peak Heat Output kW 20.4
Overall Average Efficiency % 60
Particulate Emission Factor g/kg 1.1
Maximum firewood load kg 10
Minimum clearance distances from combustible materials mm
See page
10.
Flue Diameter mm 200
Recommended Fuel
Burn only Harwood
Moisture ≤ 20%
Electrical Specification – Note optional Fan requires
specific bench requirements and a wall mount control
W
36
V
220-240
Hz
50/60
Fan Settings
Variable speed from 2 to 8
Model
Dimensions (mm)
Width Depth Height Weight
ADF100 DUO 100 Linea (NMV-B) Freestanding
1010
550
565
220kg

7
WARNINGS:
A wood burning heater is, by its nature, an appliance that operates at high temperatures, so it is
necessary to take into account potential risk factors that should be avoided at all costs. Children must
be kept away from any combustion appliance and supervised in the room at all times.
Installation must be carried out by a licenced and certified installer.
The installation must meet the requirements of the manufacturers instructions, AS2918 and the Building
Code of Australia.
The appliance must be installed in such a way as to allow easy maintenance.
Incorrect installation may cause serious damage to the equipment and the safety of people and property.
Before installing your appliance, please ensure the following:
oThe appliance must be installed on a heat resistant surface to 600°C.
oThe floor must be structurally sound, to support the installation weight.
oThe compartment below the heater should not be used to store combustible materials (NM-RS
models).
oReplacement outside air must be supplied to the room with the heater, a minimum equivalent to
half the cross-sectional area of the flue, ie 160cm2 free air.
oFollow the clearances to combustible materials as shown on page 9. and 10.
oYour appliance must be non-permanently installed and easily accessible to ensure general
maintenance (chimney and equipment).
oThe equipment must not be cemented in its enclosure under any circumstances.
Keep these instructions for future reference
WARNINGS:
oREFER TO COMPLIANCE LABEL – DISREGARD ANY CONTRADICTORY FUEL TYPE INFORMATION IN
INSTRUCTION MANUAL
oWARNING: THE APPLIANCE & FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH AS/NZS
2918:2001 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES.
oWARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL COMPLY WITH
THE REQUIREMENTS OF AS/NZS 4013:2014 WHERE REQUIRED BY THE REGULATORY AUTHORITY,
I.E. THE APPLIANCE SHALL BE IDENTIFIABLE BY A COMPLIANCE PLATE WITH THE MARKING “TESTED
TO AS/NZS 4013:2014”.
oANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE
TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH OF THE APPROVAL GRANTED FOR
COMPLIANCE WITH AS/NZS 4013:2014.

8
WARNINGS:
oCAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT SOURCES OR
MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENETS MAY RESULT IN HAZARDOUS
CONDITIONS. WHERE SUCH ACTION IS CONSIDERED, THE MANUFACTURER SHOULD BE
CONSULTED IN THE FIRST INSTANCE.
oCAUTION: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES, MAY
RENDER THE INSTALLATION UNSAFE.
oWARNING: ANY MODIFICATION OF THE APPLICANCE THAT HAS NOT BEEN APPROVED IN WRITING
BY THE TESTING AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013.
oWARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE FIRE.
oWARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS APPLIANCE
WHEN IT IS OPERATING.
oWARNING: DO NOT STORE FUEL WITHIN THE HEATER INSTALLATION CLEARANCES.
oWARNING: WHEN OPERATING THIS APPLIANCE AS AN OPEN FIRE USE A FIRE SCREEN.
oWARNING: OPEN AIR CONTROL (AND DAMPER WHEN FITTED) BEFORE OPENING FIRING DOOR.
oCAUTION: THIS APPLIANCE SHOULD NOT BE OPERATED WITH A CRACKED GLASS.
oTHIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH
THESE INSTRUCTIONS.
oTHE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS A FUEL CAN BE HAZARDOUS.
oTHE APPLIANCE OR FLUE SYSTEM SHOULD NOT BE MODIFIED IN ANY WAY WITHOUT THE WRITTEN
APPROVAL OF THE MANUFACTURER.
oBURN ONLY HARDWOOD
oPrior to installation check with your state and local authorities regarding any specific regulations that
may apply.

9
4-Installation
Keep these instructions for future reference
All local regulations, including those referring to national standards, must be observed
when installing the appliance.
NOTE: If the heater is supplied with base feet, these are to be removed. Remove the door to avoid any
breakage, lay heater on its back and undo the bolts fixing the feet. Feet originally included for transit
with fan installed. If feet are required, ie including fan and using an existing hearth – contact your
supplier
The floor must be structurally sound.
The Hearth must have a heat resistant surface to 600°C, with an insulating thickness of non-
combustible material equivalent to 24mm of cement sheet with thermal resistivity of 0.026m².K/W for
6mm. e.g., Bellis Board or fibre cement sheet equivalent.
Replacement room air from outside equivalent to 314cm2 must be supplied into the room.
The heater must have its own dedicated flue. The active flue must be 8” for the entire length of the
flue, and always less than 45 degrees from the vertical.
The Flue terminal must meet the minimum height and external clearances for the flue, according to
AS/NZ 2918:2001, see the diagram shown below on page 12.
The ADF DUO Linea 100 was tested with a 200mm (8”) triple skin flue kit in a manner confirming to joint
Australia/New Zealand Standard 2918:2001.
The base of the unit is raised 350mm from the floor protector for the following clearances to apply.
AS2918 default clearances apply for installations directly on the floor (75mm concrete slab suspended
with 25mm air gap below – see AS/NZS2918 3.3.3)
A minimum 1450mm deep x 1240mm wide x 6mm thick floor protector (Bellis Board or similar cement
sheet) should be used under and in front and behind the appliance base when installing the appliance
(see joint AS/NZS 2918:2001 3.3.2). The floor protector must extend 450mm in front of both appliance
fuel loading doors and be placed centrally in the 1240mm width. The Thermal conductivity of the floor
protector is 0.026m².K/W for 6mm thick sheets.

10

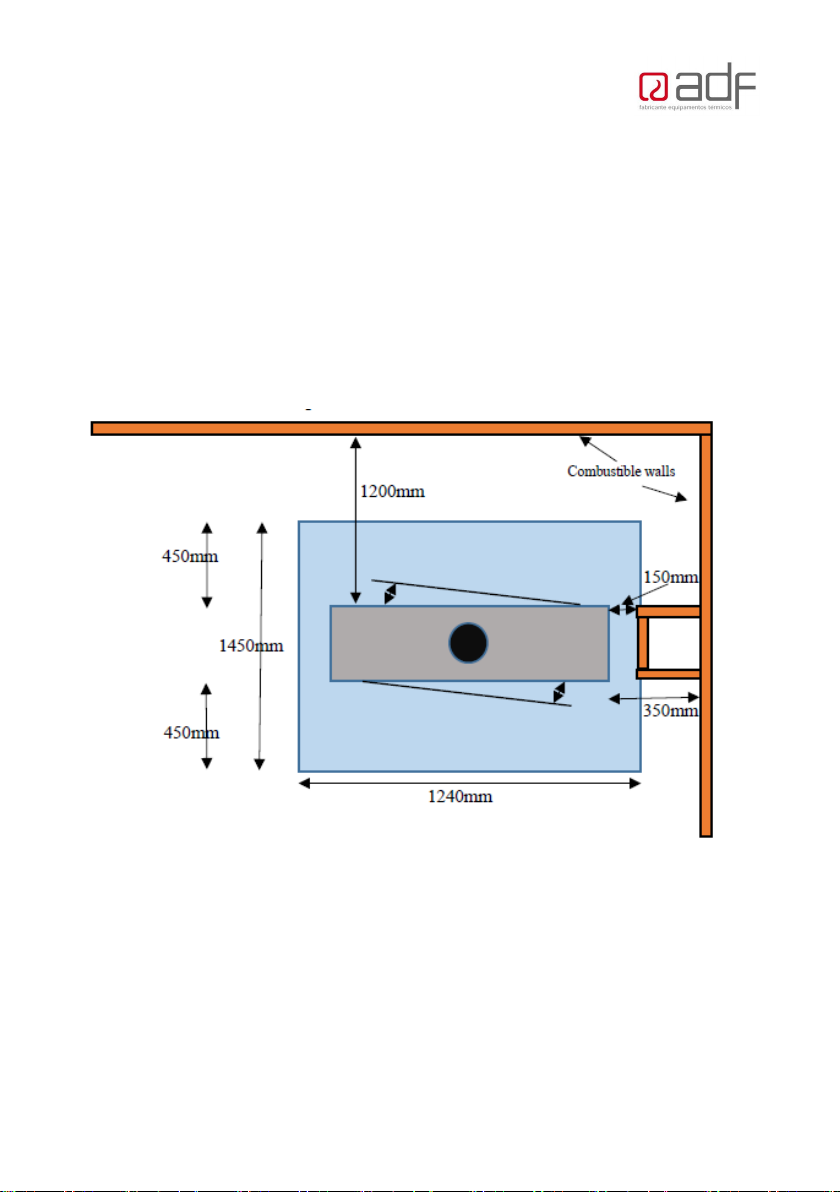

The appliance and flue were tested at the following clearances:
The side clearance to combustible walls, in line with the front of the door glass, is 350mm. The side
clearance to the side of the heater is 150mm to combustibles, ie island bench or log storage or similar.
The clearances to combustibles in front of either glass door is 1200mm.
Position A – Parallel position – 150mm clearance to cabinetry alongside the heater. 350mm clearance
to the side inline flush with the door glass

11
Flue Installation
Flue type: Triple skin flue, 200mm/250mm/300mm or 8”/10”/12”. The Active 200mm flue must be a
tight fit into the heater collar.
The heat shield in the room is a solid 10” decorative flue shield.
The heater must have its own dedicated flue. The active flue must be 8” for the entire length of the
flue, and always less than 45 degrees from the vertical.
Replacement room air from outside equivalent to 160cm2 must be supplied into the room.
Flue Outlet Positions
Minimum Flue Height as per AS/NZS 2918:2018

12
NOTE: Flue exit MUST also be as high as any nearby structure within a 6m Radius. ( AS 2918:2018 )
External Requirements
Refer to AS/NZS 2918:2018
Note: All external air vents & ceiling penetrations must be bird & rodent proofed with permanently
fixed screens

13
5- Fan (for optional inbuilt fan available).
•Must be installed in accordance with AS/NZS 3000.
•Must be installed to the manufacturer’s specifications.
•Power supply must be installed by a licensed electrician.
•If the power cable is damaged, for any reason, do not use. Have the cord replaced
immediately.

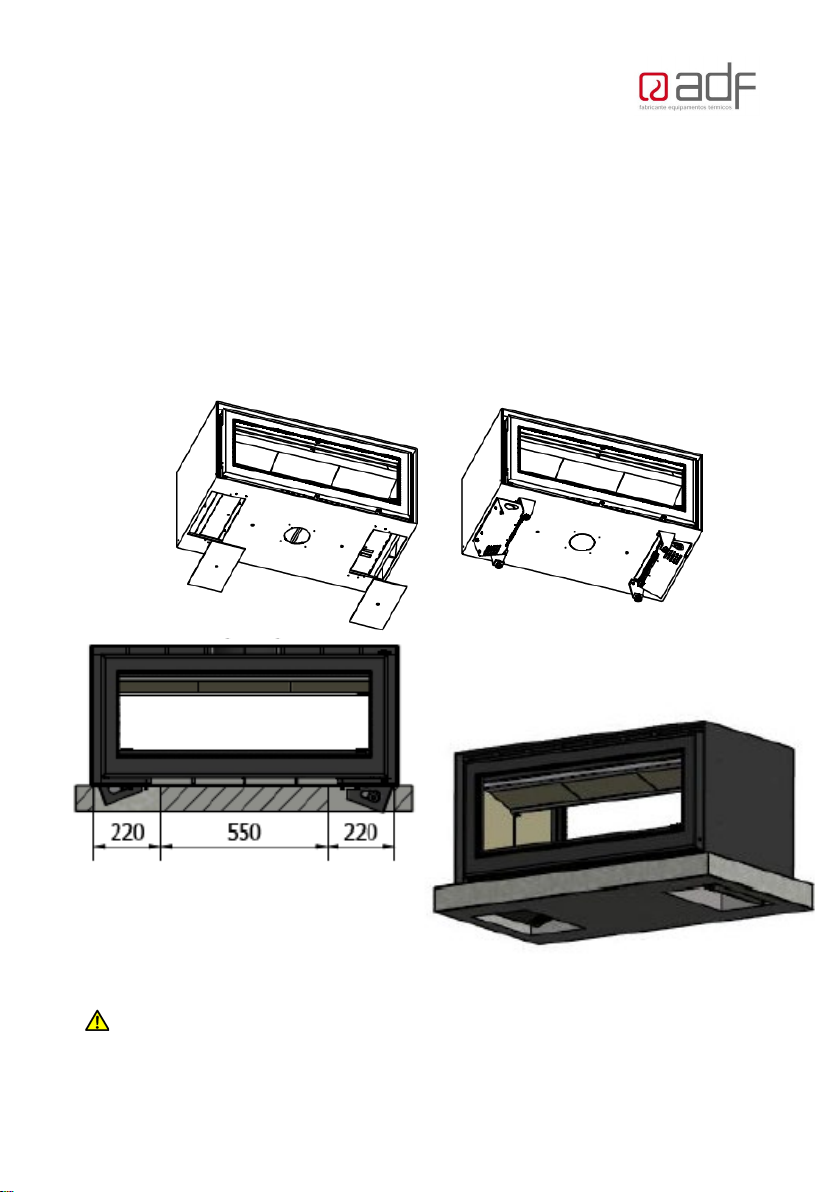

The freestanding unit can have a fan fitted, but the base will need a custom designed fan cut out in the
bench, with air supply to each fan below the heater base. A cable will need to run from the heater to a
wall mount controller – the 240V power supply is supplied to the wall mount controller – see the fan
instruction manual for details.
NOTE: REMOVE THE FEET UNLESS REQUIRED WITH
FAN ON EXISTING HEARTH
Warnings
Danger of Electrocution: All electrical work must be carried out by a qualified electrician.
Note: All electrical components should be installed in an airy location away from hot parts

14
Important Recommendations
The heater must be installed by a qualified and accredited professional.
Caution: the outside surfaces of the equipment are hot; wear suitable protective
gloves whenever you need to touch hot parts of the appliance and when loading
firewood into the heater.
Do not use the appliance as your incinerator. The combustion of domestic waste can
cause the release of toxic fumes and cause early corrosion of the components of your
equipment and void your warranty.
This appliance is not a toy! Keep children away at all times.
Check that the exhaust system is well dimensioned, ensuring proper drainage and
that it complies with the Australian standards in force, so that there is no undue
smoke escape into the surrounding space.
Keep combustible and flammable materials at a safe distance from the appliance
(minimum 1.5 meters).
NEVER use liquid fuel .
During the first use, curing of the paint occurs – which may give off some odours.
Avoid inhalation and keep the area well ventilated. The first 2 firings should be made
with a small kindling fires with a minimal amount of wood, in order to favour the
dissipate of the metal tension and let the paint cure slowly, so it does not present
imperfections later on.
In case of adverse atmospheric conditions that disturb the drawing of smoke, it is
advisable not to use the appliance.

15
6- Installing the bricks and baffles
1. First insert the side (1 and 2) and base
bricks (3) – may be factory assembled.
2. Stainless-steel baffle support bars – lay
the central one across the middle on the
side bricks, and the outer “C” channel
support bars (6) front and back. Begin
with the side baffle bricks, resting on the
side bricks, then insert the middle brick
and lock all three in positon by trapping
the front edge of the brick in the “C”
Channel. Bring the side baffle bricks in to
close any gaps. Repeat on the other side.

16
7- Instructions for Use
Combustion Control:
Open (+), slide to the right
Close (-), slide to the left
Ignition
1. It is extremely important, when first using or lighting for the first time for the season, to thoroughly
examine the chimney and to make sure it is clean and unobstructed. Ensure the Chimney is swept
regularly, If necessary, contact your local chimney sweep.
2. Do not overload the appliance, the appliance is designed to display a beautiful flame pattern.
3. Completely open both combustion air controls, on each door, pushing it to the right. On the base of
the fire use a small amount of easily flammable material such as scrunched up paper, firelighters,
pinecones. Then lay fine kindling around and on this base in such a way that they are interlocking
and self-supported, thus allowing air to flow around them and without the pile collapsing and
suffocating.
4. Once the kindling is well alight, add some small split logs to the kindling stack, resting against each
other to allow maximum air flow around the wood and so the kindling doesn’t collapse. Use about
1kg of split small logs of dry wood.
5. Keep the door slightly open, allowing the amount of air needed for a quick and efficient ignition,
keeping the combustion air control fully open.Never leave the fire unattended whilst the door is left
ajar.
6. After 5 minutes close the door and reduce both the door combustion air controls to reduce the
combustion air intake. Don’t over fire the heater by leaving controls open continuously.
7. Ensure there is a good amount of coal bed and each additional log is well lit before shutting down the
fire.
After Firing
1. Slowly open the door, spread the embers evenly across the furnace base.
2. Place the wood logs (approximately 1 - 2kg each) horizontally left to right, keeping the log away from
the door glass. Do not overload the appliance – check your model in the specifications table for the
maximum permissible load.
3. Choose a position in the combustion air control to produce a gentle, long-lasting burn, avoid
uncontrolled burning with the air control left open.
Note:- single sided unit shown

17
4. Keep the ash bed away from the primary air slots at the front of the fire.
Notes:
Only reload with wood when the previous load has been fully consumed, do not overload the combustion
chamber.
For well insulated houses or forced air ventilation in adjacent spaces, it is advisable to place a ventilation
grid on an outside wall near the equipment of at least 100 cm2 and always be unobstructed. In this way,
you supply the surrounding space with a good source of oxygen so that it does not run out, and the air
masses move in the right direction. As for the air inlet grills, it must be taken into account that they must
be positioned in such a way that their obstruction is not easy. In the case of simultaneous operation with
other heating appliances, sufficient oxygen must be ensured.
Warnings:
This appliance was not designed to work with the door open. Open the door for lighting and reloading
only. Do not open the heater door suddenly or with the smoke control fully or partially closed, as the
combustion chamber may overpressure, causing smoke or even flame out into the room.
Excessive combustion does not necessarily translate into more heating power nor into an increase of
efficiency. Furnacing may also cause irreparable damage to the appliance if carried out for long periods
of time.
In the event of malfunction, immediately extinguish combustion by closing the fuel inlet control and the
smoke control, causing the fire to extinguish by itself due to lack of oxygen. Expose the problem to our
services and / or agents to be resolved
8-Cleaning and Maintenance
To get the best out of your appliance, it should be regularly maintained, and the
flue regularly swept.
Cleaning and maintenance should always be carried out when the
appliance is cold.
Cleaning
oThe glass should be kept reasonably clean by the airwash.
In cases where a log has been left too close to or touching the glass, or green wood/kindling has
been used then use a glass cleaner available from your retailer.
Ensure the glass cleaner does not come into contact with the metal parts or the rope seal.
oWhen removing excess ash when/as required when fire is cool, place ash in a non-combustible
container with a tightly fitting lid and move outdoors immediately to a location clear of combustible
materials.

18
Maintenance
oAt the end of the winter season, at which point the appliance will be out of use for some time,
thoroughly clean out the ash and residues inside it without using any abrasive products.
oWith the aid of a vacuum cleaner, vacuum the secondary air heating chamber above the lower baffle
bricks.
oOver time, you may feel that the appliance needs to be repainted, if that is the case, paint the
equipment using high temperature spray paint. Paint the equipment only when it is completely cold.
Before painting, carefully cover any areas you do not want to soil (glass and fireplace) and follow the
instructions on the paint can. Note the paint will produce a small odour in the first few firings, it is
recommended to have a small fire initially and keep windows open for ventilation.
oClean the chimney and the flame baffle at least once a year using a qualified technician if necessary.
oPeriodically check and replace the door seal.
oUse only ADF recommended replacement parts.
Fire Hazard
Your ADF equipment has been designed in accordance with existing legislation and in order to minimize
any risk of fire in the chimney, however in such cases:
1. Keep calm and make sure the area is safe.
2. Close the stove door completely.
3. Completely close the combustion air inlet and, if possible to do safely, cover the flue/chimney outlet.
4. The fire should be extinguished by itself due to lack of oxygen.
5. In the absence of safety conditions, move away from danger and request immediate rescue to
Firefighters through the emergency number: 000 for Australia.
6. Before using the appliance again, have the chimney inspected and cleaned by a qualified technician.

19
9-Troubleshooting
If you comply with the instructions given in this manual, you should not have
any major problem in enjoying your appliance. However, before requesting
service, please check the following:
1. All the instructions given in this manual are complied with.
2. If there has been any recent change in the periphery that may have given rise to the problem.
3. If the problem falls into the following points.
Problem (s)
Possible Cause
Correction
The appliance is
smoking
→Closed smoke damper regulation
(when door open)
→Wet or green firewood.
→Dirty or clogged chimney.
→Check the baffle is moving freely
when opening door.
→Use drier wood.
→Clean the chimney.
Weak or
inefficient burn
→Wet or green firewood.
→Dirty or clogged chimney.
→Insufficient firewood.
→Use dry wood.
→Clean the chimney.
Very fast
burning
→Low density firewood.
→Poorly adjusted door
→Filling cord consumed
→Load the stove with more dense
firewood.
→Door readjustment
→Replacement of the cord
The fire
extinguishes
→Wet or green firewood.
→The appliance is not heated
enough.
→Use drier wood.
→Leave the air lever open for
longer to get a bed of coals
before turning to low.
Blower not
working
→The thermostat's operating
temperature has not been
reached
→
Power failure
→Load more firewood
→Check outlets and connections
Dirty glass
→Wet or green firewood.
→Logs too close to or resting on the
glass.
→Slightly open the air inlet control
→Use dry wood.
→Keep logs parallel to and away
from glass.
If the problem persists, please contact your retailer of the original purchase, to assist you to resolve the
problem.

20
10-Warranty Conditions
Warranty:
ADF offers the purchaser of this appliance a limited 5-year warranty against manufacturing defects
from the date of purchase:
Equipment structure
5-year Warranty
Electrical components
2-year Warranty
Glass, Refractory Firebricks, Door seal, Glass,
Flame Grate, Paint
Not covered by warranty as their use is out of the
manufacturers control and subject to quality of
firewood, and user operation.
The warranty is voided by any evidence of tampering by unauthorised persons, misuse or abuse, or if the
product has not be used as per the instructions.
Conditions to activate the warranty:
1. The appliance must be within the time limits described above (the date from which the product was
purchased will be considered as the start of the warranty period).
2. The complaint must be presented and validated by one of our agents and endorsed by ADF.
3. The installation, use and maintenance conditions described in this manual have been strictly
respected and no misuse has occurred or changes or modifications to the product.
4. The Warranty is limited to the replacement / repair by the ADF or its agent of the components known
to be damaged and excludes any other type of cover or damages.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
The benefits given under this Limited Warranty are in addition to other rights and remedies you have
under the Australian Consumer Law that cannot be excluded.
