ADJ MOD STQ User manual

User Instructions
MOD STQ

©2019 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be
trademarks or registered trademarks of their respective companies and are hereby acknowledged.
All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of
their respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and operation
of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installa
-
tion. This device uses and can radiate radio frequency energy and, if not installed and used in accordance
with the included instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this device does cause harmful
interference to radio or television reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the following methods:
· Reorient or relocate the device.
· Increase the separation between the device and the receiver.
· Connect the device to an electrical outlet on a circuit different from which the radio receiver is
connected.
· Consult the dealer or an experienced radio/TV technician for help.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of this document
may be available online.
Please check www.adj.com for the latest revision/update of this manual before beginning
installation and/or programming.
10/01/19 1 1.00 4/5//7/8/9/12/13/15 Initial Version
Date Document
Version
Software
Version > DMX Channel Mode Notes

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 2
MOD STQ Table of Contents
Introduction
Features I Warranty Registration
Safety Guidelines
Overview
Installation
DMX Set Up
DMX Addressing
DMX Modes & Values
Color Macro Chart
System Menu
Master-Slave Set Up
UC IR & Airstream Remote Control
Dimmer Curve Chart
Dimensional Drawings I Frost Filter Install
Power Linking I Trouble Shooting I Cleaning
Limited Warranty (USA Only)
Technical Specications
3
4
5
6
7
8
10
11
13
15
18
19
20
21
22
23
24

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 3
MOD STQ Introduction
Unpacking: Thank you for purchasing the MOD STQ by ADJ Products, LLC. Every MOD STQ has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your xture for any damage and be sure all accessories necessary to operate the unit
has arrived intact. In the case damage has been found or parts are missing, please contact our toll free
customer support number for further instructions. Do not return this unit to your dealer without rst
contacting customer support.
Introduction: The ADJ MOD STQ is a DMX intelligent, high powered LED par fixture. This xture can
be used in a stand alone set up or connected in a Master/Slave set up. To optimize the performance
of this product, please read these operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety information regarding the use and
maintenance of this unit. Please keep this manual with the unit, for future reference.
Customer Support: Contact ADJ Service for any product related service and support needs. Also visit
forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit:
http://parts.adj.com (US)
http://www.adjparts.eu (EU)
ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [email protected]
ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [email protected]
ADJ PRODUCTS LLC USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [e-mail]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]
www.adj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
doing so will void your manufactures warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.

MOD STQ Features
• Multi-Colors
• Electronic Dimming 0-100%
• Built in Microphone
• DMX-512 protocol
• Locking 3-Pin & 5-Pin XLR Connections In/Out
• 8 DMX Channel Modes: 4 / 5 / 7 / 8 / 9 / 12 / 13 / 15
• ADJ UC IR compatible and Airstream IR compatible
• Multiple Unit Power Linking (See page 22)
INCLUED:
1 x Scissor Yoke
1 x Locking Power Cable
3 x Frost Filters (20/40/60 Degrees)
MOD STQ Warranty Registration
The MOD STQ carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate
your purchase. All returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the out-
side of the return package. A brief description of the problem as well as the R.A. number must also
be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you
must provide a copy of your proof of purchase invoice. You may obtain a R.A. number by contacting
our customer support team on our customer support number. All packages returned to the service
department not displaying a R.A. number on the outside of the package will be returned to the ship-
per.
ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 4

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 5
MOD STQ Safety Guidelines
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to
remove or break o the ground prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 23
for cleaning details.
• Heat -The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the fixture.
C. The fixture does not appear to operate normally or exhibits a marked change in performance.
D. The fixture has fallen and/or subjected to extreme handling.

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 6
MOD STQ Overview
SET UP
MODE UP
DOWN
DMX IN
DMX OUTDMX OUTPOWER OUT
DMX INPOWER IN
MODE BUTTON
SET UP BUTTON
UP BUTTON
DOWN BUTTON
LCD DISPLAY
LOCKING POWER
CONNECTOR IN
LOCKING POWER
CONNECTOR OUT
LOCKING 3-PIN & 5-PIN
XLR CONNECTORS IN
LOCKING 3-PIN & 5-PIN
XLR CONNECTORS OUT

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 7
MOD STQ Installation

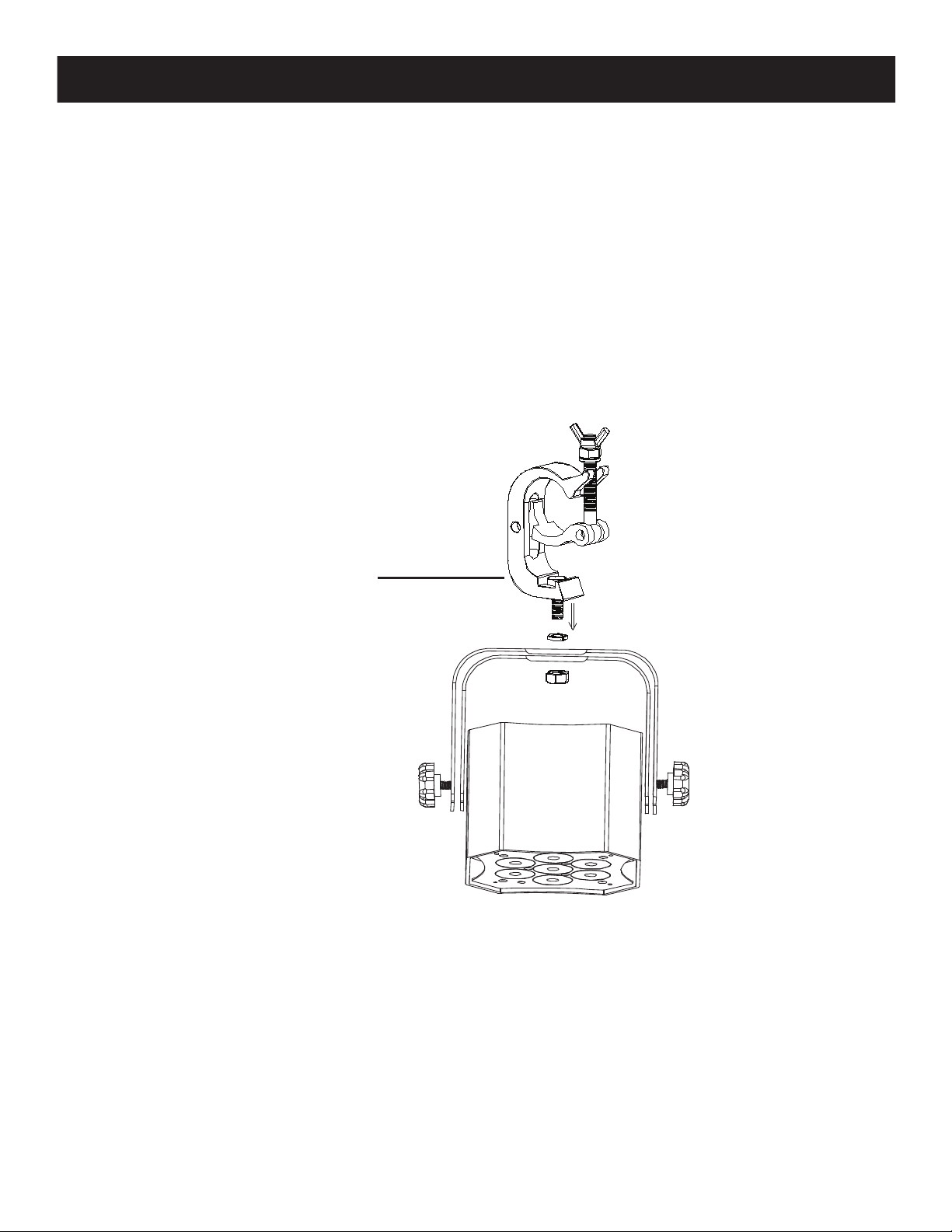

Screw one clamp via a M12 screw and nut into the bracket. Pull a safety cable through the opening(s)
located on either side of the bracket and over the trussing system or a safe xation spot. Insert the
end in the carabine and tighten the safety screw.
The MOD STQ is fully operational in three dierent mounting positions, hanging upside-down from a
ceiling or trussing, sideways on trussing, or set on a at level surface. Be sure this xture is kept at
least 12m (40ft) away from any ammable materials (decoration etc.). Always use and install the supplied
safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp
fails (see next page). Never use the carrying handles for secondary attachment.
When installing the unit, the trussing or area of installation must be able to hold 10 times the weight
without any deformation. When installing the unit must be secured with a secondary safety attachment,
e.g. and appropriate safety cable. Never stand directly below the unit when mounting, removing, or
servicing the unit.
Overhead mounting requires extensive experience, including calculating working load limits, installation
material being used, and perodic safety inspection of all installation material and unit. If you lack
these qualications, do not attempt the installation yourself.
These installaiton should be checked by a skilled person once a year.
NOTICE: The suitable enviromental temperature for this lighting xture is between -25˚ C to 45˚C.
Do not place this lighting xture in an enviroment where the temperatures are under or above the
temperatures stated above. This will allow the xture to run at its best and help prolong the xture
life.
CLAMP
(NOT INCLUDED)

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 8
MOD STQ DMX Set Up
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only
have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of dierent manufactures to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use
the shortest cable path possible. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): The MOD STQ
can be controlled via DMX-512 protocol. The DMX address is set on the rear panel
of the MOD STQ. Your unit and your DMX controller require a standard 3-pin XLR
connector for data input and data output (Figure 1). We recommend Accu-Cable
DMX cables. If you are making your own cables, be sure to use standard 110-120
Ohm shielded cable (This cable may be purchased at almost all pro lighting stores).
Your cables should be made with a male and female XLR connector on either end
of the cable. Also remember that DMX cable must be daisy chained and cannot be
split. Figure 1
Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket XLR Pin Conguration
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 9
Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator
on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the
female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
MOD STQ DMX Set Up
DMX512 IN
3-PIN XLR
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 4
5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATA transmis-
sion in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin DMX line. When inserting
standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily
available at most electric stores. The chart below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 10
DMX ADDRESSING
All xtures should be given a DMX starting address when using a DMX controller, so the correct xture
responds to the correct control signal. This digital starting address is the channel number from which
the xture starts to “listen” to the digital control signal sent out from the DMX controller. The assignment
of this starting DMX address is achieved by setting the correct DMX address on the digital control
display on the xture.
You can set the same starting address for all xtures or a group of xtures, or set dierent addresses
for each individual xture. Setting all xtures to the same DMX address will cause all xtures to react
in the same way, in other words, changing the settings of one channel will aect all the xtures
simultaneously.
If you set each xture to a dierent DMX address, each unit will start to “listen” to the channel number
you have set, based on the quantity of DMX channels of each xture. That means changing the settings
of one channel will only aect the selected xture.
In the case of the MOD STQ, when in 4 Channel you should set the starting DMX address of the rst
unit to 1, the second unit to 5 (4 + 1), the third unit to 9 (5 + 4), and so on. (See chart below for more
details.)
MOD STQ DMX Addressing
Channel Mode Unit1
Address
Unit2
Address
Unit3
Address
Unit4
Address
4 channels 1 5 9 13
5 channels 1 6 11 16
7 channels 1 8 15 22
8 channels 1 917 25
9 channels 1 10 19 28
13 channels 1 14 27 40
12 channels 1 13 25 37
15 channels 1 16 31 46

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 11
MOD STQ DMX Modes & Values
VALUES FUNCTIONS4 Ch 5 Ch 7 Ch 9 Ch
000-255 RED
0-100%
000-255 GREEN
0-100%
000-255 BLUE
0-100%
000-255 WHITE
0-100%
8 Ch 12 Ch 15 Ch13 Ch
1
2
3
4
5
1
2
3
4
5
1
2
3
4
SHUTTER & STROBE
Closed
Open
Strobing Slow-Fast
Open
Pulse Effect
Open
Random Strobing Slow-Fast
Open
000-031
032-063
064-095
096-127
128-159
160-191
192-223
224-255
000-255 MASTER DIMMER
0-100%
000-255 MASTER DIMMER FINE
AUTO PROGRAMS
No Function
Auto Program 1
Auto Program 2
Auto Program 3
Auto Program 4
Auto Program 5
Auto Program 6
Auto Program 7
Auto Program 8
Auto Program 9
Auto Program 10
Auto Program 11
Auto Program 12
Auto Program 13
Auto Program 14
Auto Program 15
Auto Program 16
No Function
000-010
011-020
021-030
031-040
041-050
051-060
061-070
071-080
081-090
091-100
101-110
111-120
121-130
131-140
141-150
151-160
161-170
171-255
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
000-255 COLOR MACROS
See pages 14-15 for Macro Chart
5 5 5 5
6 6 6 6
5 6 7 7 7 7
6 7 8 8 8 8
7 8 9 9 9 9
10 10 10
000-255 COLOR TEMPERATURE
2700-6500K
000-255 AUTO PROGRAM SPEED
Slow-Fast
000-255 AUTO PROGRAM FADE
Less-More or Slow-Fast
11 11 11
12 12 12

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 12
MOD STQ DMX Modes & Values
VALUES FUNCTIONS4 Ch 5 Ch 7 Ch 9 Ch8 Ch 12 Ch 15 Ch13 Ch
REFRESH RATES
Default to Unit Setting
900Hz
1000Hz
1100Hz
1200Hz
1300Hz
1400Hz
1500Hz
2500Hz
4000Hz
5000Hz
10000Hz
15000Hz
20000Hz
25000Hz
No Function
000-015
016-030
031-045
046-060
061-075
076-090
091-105
106-120
121-135
136-150
151-165
166-180
181-195
196-210
211-225
226-255
DIMMER MODES
Standard
Stage
TV
Architectural
Theatre
Stage 2
DIMMER DELAY TIME
0.1Sec.
0.2Sec.
0.3Sec.
0.4Sec.
0.5Sec.
0.6Sec.
0.7Sec.
0.8Sec.
0.9Sec.
1.0Sec.
1.5Sec.
2.0Sec.
3.0Sec.
4.0Sec.
5.0Sec.
6.0Sec.
7.0Sec.
8.0Sec.
9.0Sec.
10Sec.
Default to Unit Setting
000-020
021-040
041-060
061-080
081-100
101-120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141-255
GAMMA
Default to Unit Setting
2.0
2.2
2.4
2.6
2.8
No Function
000-020
021-040
041-060
061-080
081-100
101-120
121-255
13 13
14
15

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 13
MOD STQ Color Macro Chart
Color No. DMX
VAULE
RGBW COLOR INTENSITY
Color No. DMX
VAULE
RGBW COLOR INTENSITY
RED GREEN BLUE WHITE
RED GREEN BLUE WHITE
OFF 0 0 0 0 0
Color33 129-132 255 206 143 0
Color1 1-4 80 255 234 80
Color34 133-136 254 177 153 0
Color2 5-8 80 255 164 80
Color35 137-140 254 192 138 0
Color3 9-12 77 255 112 77
Color36 141-144 254 165 98 0
Color4 13-16 117 255 83 83
Color37 145-148 254 121 0 0
Color5 17-20 160 255 77 77
Color38 149-152 176 17 0 0
Color6 21-24 223 255 83 83
Color39 153-156 96 0 11 0
Color7 25-28 255 243 77 77
Color40 157-160 234 139 171 0
Color8 29-32 255 200 74 74
Color41 161-164 224 5 97 0
Color9 33-36 255 166 77 77
Color42 165-168 175 77 173 0
Col or10 37-40 255 125 74 74
Color43 169-172 119 130 199 0
Color11 41-44 255 97 77 74
Color44 173-176 147 164 212 0
Color12 45-48 255 71 77 71
Color45 177-180 88 2 163 0
Color13 49-52 255 83 134 83
Color46 181-184 0 38 86 0
Color14 53-56 255 93 182 93
Color47 185-188 0 142 208 0
Color15 57-60 255 96 236 96
Color48 189-192 52 148 209 0
Color16 61-64 238 93 255 93
Color49 193-196 1 134 201 0
Color17 65-68 196 87 255 87
Color50 197-200 0 145 212 0
Color18 69-72 150 90 255 90
Color51 201-204 0 121 192 0
Color19 73-76 100 77 255 77
Color52 205-208 0 129 184 0
Color20 77-80 77 100 255 77
Color53 209-212 0 83 115 0
Color21 81-84 67 148 255 67
Color54 213-216 0 97 166 0
Color22 85-88 77 195 255 77
Color55 217-220 1 100 167 0
Color23 89-92 77 234 255 77
Color56 221-224 0 40 86 0
Color24 93-96 158 255 144 144
Color57 225-228 209 219 182 0
Color25 97-100 255 251 153 153
Color58 229-232 42 165 85 0
Color26 101-104 255 175 147 147
Color59 233-236 0 46 35 0
Color27 105-108 255 138 186 138
Color60 237-240 8 107 222 0
Color28 109-112 255 147 251 147
Color61 241-244 0
Color29 113-116 151 138 255 138
Color62 245-248 0
Color30 117-120
Color63 249-252 0 0 0
Color31 121-124 138 169 255 138
Color64 253-255
Color32 125-128 255 255 255 255
0 2550 0
255
0 255 0
00255
99 0 255 100

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 14
MOD STQ Color Macro Chart
Color No. DMX
VAULE
RGBW COLOR INTENSITY
Color No. DMX
VAULE
RGBW COLOR INTENSITY
RED GREEN BLUE WHITE
RED GREEN BLUE WHITE
OFF 0 0 0 0 0
Color33 129-132 255 206 143 0
Color1 1-4 80 255 234 80
Color34 133-136 254 177 153 0
Color2 5-8 80 255 164 80
Color35 137-140 254 192 138 0
Color3 9-12 77 255 112 77
Color36 141-144 254 165 98 0
Color4 13-16 117 255 83 83
Color37 145-148 254 121 0 0
Color5 17-20 160 255 77 77
Color38 149-152 176 17 0 0
Color6 21-24 223 255 83 83
Color39 153-156 96 0 11 0
Color7 25-28 255 243 77 77
Color40 157-160 234 139 171 0
Color8 29-32 255 200 74 74
Color41 161-164 224 5 97 0
Color9 33-36 255 166 77 77
Color42 165-168 175 77 173 0
Col or10 37-40 255 125 74 74
Color43 169-172 119 130 199 0
Color11 41-44 255 97 77 74
Color44 173-176 147 164 212 0
Color12 45-48 255 71 77 71
Color45 177-180 88 2 163 0
Color13 49-52 255 83 134 83
Color46 181-184 0 38 86 0
Color14 53-56 255 93 182 93
Color47 185-188 0 142 208 0
Color15 57-60 255 96 236 96
Color48 189-192 52 148 209 0
Color16 61-64 238 93 255 93
Color49 193-196 1 134 201 0
Color17 65-68 196 87 255 87
Color50 197-200 0 145 212 0
Color18 69-72 150 90 255 90
Color51 201-204 0 121 192 0
Color19 73-76 100 77 255 77
Color52 205-208 0 129 184 0
Color20 77-80 77 100 255 77
Color53 209-212 0 83 115 0
Color21 81-84 67 148 255 67
Color54 213-216 0 97 166 0
Color22 85-88 77 195 255 77
Color55 217-220 1 100 167 0
Color23 89-92 77 234 255 77
Color56 221-224 0 40 86 0
Color24 93-96 158 255 144 144
Color57 225-228 209 219 182 0
Color25 97-100 255 251 153 153
Color58 229-232 42 165 85 0
Color26 101-104 255 175 147 147
Color59 233-236 0 46 35 0
Color27 105-108 255 138 186 138
Color60 237-240 8 107 222 0
Color28 109-112 255 147 251 147
Color61 241-244 0
Color29 113-116 151 138 255 138
Color62 245-248 0
Color30 117-120
Color63 249-252 0 0 0
Color31 121-124 138 169 255 138
Color64 253-255
Color32 125-128 255 255 255 255
0 2550 0
255
0 255 0
00255
99 0 255 100

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 15
MOD STQ System Menu
SYSTEM MENU
The xture includes an easy to navigate system menu control panel display where all necessary
settings and adjustments are made. (See image below) During normal operation, pressing the MODE
button once will access the xture’s main menu. Once in the main menu, you can navigate through
the dierent functions and access the sub-menus with the UP and DOWN buttons. When you reach
a eld that requires adjusting, press the ENTER button to access that eld and use the UP and
DOWN buttons to adjust the eld. Pressing the ENTER button once more will conrm your setting.
You may exit the main menu at any time without making any adjustments by pressing the MODE
button.
SET UP
MODE UP
DOWN

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 16
MOD STQ System Menu
DMX MODE
001-XXX
DMX Lost Status
DMX Channel Mode Selection
DMX Addressing
4 / 5 / 7 / 8 / 9 / 12 / 13 / 15
MENU OPTIONS DESCRIPTIONSUBMENU
Slave Setting
ADDR:
CHAN:
NO: HOLD / BLACK / PROG
PERSON
(Personality)
MANUAL
MAST:
SLAV:
Manual Control Settings
Master Setting
RED
GREN (Green)
BLUE
WHIT (White)
CLRMA (Color Macro)
CRTP (Color Temp.)
STROB (Strobe)
DIM (Master Dimmer)
AtPr (Auto Program)
SPEED (Prog. Speed)
FADE (Prog. Fade)
Dimming Modes
Dimming Speed
Standard / Stage / TV / Archi / Theatre / Stage2
Speed: 0.1-0.9s ~ 1-10s
1200 / 900-1500 / 2500 / 4000 / 5000 / 6000 / 10000 / 15000 / 20000 /
25000 (Hz) LED Refresh Rate Setting
GMA: 1.0 / 2.0 / 2.2 / 2.4 / 2.6 / 2.8 Gamma Brightness
BACK: OFF~10M Display Shutoff Time
OFF~10M Display Control Lock
CALI:
YES / NO
(Pass Code = 11)
Calibration Adjustment
Restore Factory Settings
YES / NO
(Pass Code = 11)
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
000-255
ON / OFF
ON / OFF
IntProgs
(Internal
Programs)
Program 0
Program 1
Program 2
Program 3
Program 4
Program 5
Program 6
Program 7
Program 8
Program 9
Program 10
Program 11
Program 12
Program 13
Program 14
Program 15
Program 16
Program 0 with Adjustments
Program 1 with Adjustments
Program 2 with Adjustments
Program 3 with Adjustments
Program 4 with Adjustments
Program 5 with Adjustments
Program 6 with Adjustments
Program 7 with Adjustments
Program 8 with Adjustments
Program 9 with Adjustments
Program 10 with Adjustments
Program 11 with Adjustments
Program 12 with Adjustments
Program 13 with Adjustments
Program 14 with Adjustments
Program 15 with Adjustments
Program 16 with Adjustments
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
Speed: 000~255 Fade: 000~255 Sound: ON / OFF
PwronHr1: XXXXXXXH
PwronHr2: XXXXXXXH
PwronRst: Pass Code = 050
Total Power On Time
(Not Resettable)
Current Power On Time
(Resettable)
Reset Current Power On Time
INFORMAT TMP: XXX F / XXX C Current Temperature
INFORMAT: VX.XX Current Software Version
LOCK:
REST:

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 17
MOD STQ System Menu
DMX MODE - The submenus listed under DMX MODE are as follows: ADDR (Address), CHAN
(Channel Mode), and NO (No DMX Status).
- ADDR - In this submenu you are able to nd and set your desired DMX address.
- CHAN - In this submenu you are able to nd and set your desired DMX channel mode.
- NO - This setting is used as a precaution mode in case the DMX signal is lost or interrupted.
The operating mode chosen is the running mode the xture will go into when the DMX signal is lost.
Listed below are the 3 modes.
• HOLD - This setting will have the xture stay in the last DMX setup.
• BLACK - This setting will have the xture automatically go into blackout mode.
• PROG - This setting will have the xture automatically run 1 of 17 (0-16) internal programs.
PERSON (PERSONALITY) - The submenus listed under PERSON (PERSONALITY) are as follows:
MAST (Master), SLAV (Slave), Dim Mode, LED Refresh Rate (LEDRfrsh), Gamma, Display, and
Service.
- MAST (Master) - Set the unit to act as the Master unit in a master-slave set up.
- SLAV (Slave) - Set the unit to act as the slave unit in a master-slave set up.
- Dimming Modes & Dimming Speed Setttings - In this submenu you are able to set your desired
dimmer mode or dimming speed.
- LED Refresh Rate Setting - In this submenu you are able to set your desired LED refresh rate.
- GMA (Gamma) - In this submenu you are able to set your desired gamma brightness.
- BACK (Display Blackout) - In this submenu you you are able to adjust and set the display backlight
blackout time.
- LOCK (Display Lock) - In this submenu you are able to adjust the display/system lock time.
- CALI (Calibration Adjustment) - In this submenu you you are able to adjust the calibration settings.
- REST (Factory Settings) - In this submenu you are able to reset the unit to its factory/default settings.
MANUAL - This submenu is for manual control and testing.
INTPROGS (INTERNAL PROGRAMS) - This menu allows you to select 1 of 16 (0-16) internal programs
to run. The internal program speed and fade speeds are adjustable. The internal programs can also
be run as sound active.

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 18
INFORMATION - The submenus listed under INFORMATION are as follows: Fixture Hours, Fixture
Temperature, and Software Version.
- HOURS (FIXTURE HOURS)
• PwrOnHr1 -The TOTAL power ON running time of the unit is displayed. This time CANNOT be
reset.
• PwrOnHr2 - The CURRENT power ON running time of the unit is displayed. This running time may
not be the same as the total power ON running time displayed under “Power On Time”. This time
CAN be reset.
• PwrOnRst - Reset the current power ON running time that is displayed under “PwrOnHr2”.
- INFORMAT TMP (FIXTURE TEMPERATURE)
XXX F / XXX C - Current temperature
- INFORMAT VX.XX (Software Version) - Current software version is displayed.
MOD STQ System Menu
MOD STQ Master-Slave Set Up
Master-Slave Set Up:
This function will allows the user to link units together to run in a Master-Slave set-up. In a Master-
Slave set up, one unit will act as the controlling unit and the others will react to the controlling units
operating mode. Any unit can act as a Master or as a Slave, however, only one unit can be programmed
to act as the “Master.”
Master-Slave Connections and Settings:
1. Daisy chain your units via the XLR connector on the rear of the unit. Use standard XLR data
cables to link your units together. Remember that the Male XLR connector is the input and the
Female XLR connector is the ouput. The first unit in the chain (master) will use the female XLR
connector only. The last unit in the chain will use the male XLR connector only.
2. Connect the rst “Slave” unit to the “Master.”
3. “Master” Unit: Activate the “Master” setting located in the “PERSNLTY” menu.
“Slave” Unit(s): Activate the “Slave” setting located in the “PERSNLTY” menu.
4. Set the “Master” unit to your desired mode of operation.
5. The slave unit(s) will now follow the master unit.

ADJ Products, LLC - www.adj.com - MOD STQ User Manual Page 19
MOD STQ UC IR & Airstream Remote Control
Works with App page 1
STAND BY - Pressing this button will blackout the fixture. Press the button again to return to the
initial state.
FULL ON -Press this button down to fully light up the unit. Press any button to exit this mode..
FADE/GOBO - This button activate’s the internal program mode. Use the numeral buttons 0-9 to select
the program number (0-16). Use the dimmer buttons to adjust the output intensity.
NOTE:Running speed and fade speed is not adjustable using the IR control functions.
“DIMMER +” and “DIMMER -” - Use these buttons to adjust the output intensity.
STROBE -Press this button to activate and deactivate strobing. Use buttons 1-4 to adjust the strobe
speed. “1” being the slowest, “4” being the fastest. Press this button again to stop strobing.
COLOR -Press this button to activate color macro mode. Use the numeral buttons 1-9 to select your
desired color (0-64). Use the dimmer buttons to adjust the output intensity.
Example: Press the numeral buttons “1+3” to activate color “13”.
SOUND ON & OFF - Use these buttons to activate and deactivate sound active mode. Use the dimmer
buttons to adjust the output intensity.
NOTE: Sound sensitivity is not adjustable using the IR control functions.
SHOW 0 - Press this button to select show “0” or color “0” when either internal program mode or
color macro mode is active.

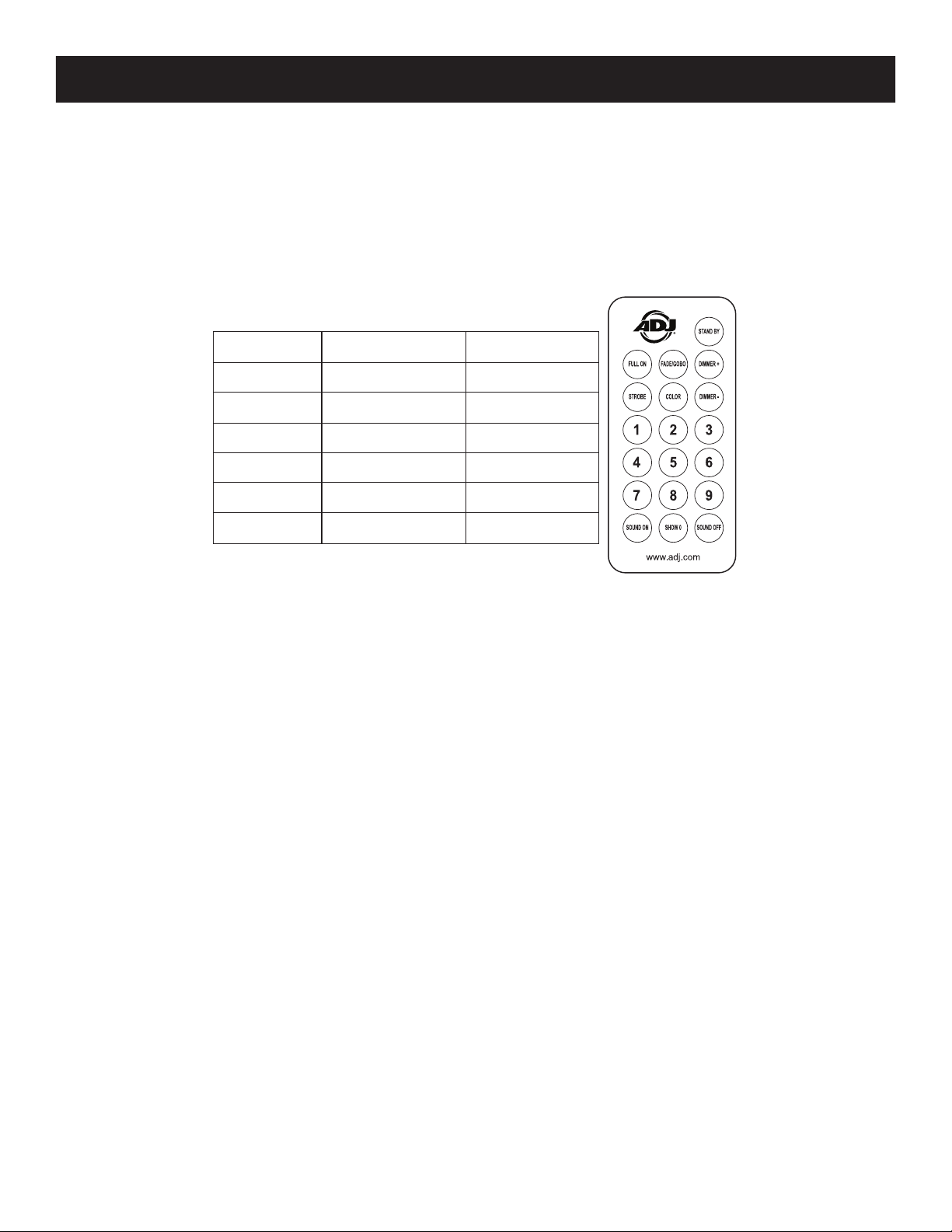

The UC IR infrared remote gives you control of various functions (See below). To control the fixture
you must aim the remote at the front of the fixture and be no more than 30 feet away.
The Airstream IR remote transmitter plugs into the headphone jack of your iOS phone or tablet. To
control your IR fixture you must raise the volume to the maximum on your iOS phone or tablet and
aim the transmitter at the fixture sensor and be no more than 15 feet away. The app is a free download
from the app store for your iOS phone or tablet. The app comes with 3 pages of control depending on
the fixture you are using. Please see below for the IR functions.
Standby
FullON Fade/Gobo 
Strobe Color 
1 2 3
4 5 6
7 8 9
SoundOn Show0 SoundO
