Unpacking: Thank you for purchasing the Encore Prole 1000 Color by ADJ Products, LLC. Every
Encore Prole 1000 Color has been thoroughly tested and has been shipped in perfect operating con-
dition. Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any damage and be sure all accesso-
ries necessary to operate the unit have arrived intact. In the case damage has been found or parts are
missing, please contact our toll free customer support number for further instructions. Do not return
this unit to your dealer without rst contacting customer support.
Introduction: The ADJ Encore Prole 1000 Color is a DMX intelligent, high powered LED follow spot.
This follow spot has ve operating modes: RGBW dimmer mode, color change mode, color fade
mode, auto run mode, static color mode, and DMX control mode. This xture can be used in a stand
alone mode or connected in a Primary/Secondary conguration. To optimize the performance of this
product, please read these operating instructions carefully to familiarize yourself with the basic opera-
tions of this unit. These instructions contain important safety information regarding the use to and
maintenance of this unit. Please keep this manual with the unit for future reference.
Customer Support: ADJ Products, LLC provides a customer support line, to provide set up help and
to answer any questions or problems that you may encounter during set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or suggestions. Service Hours are
Monday through Friday 8:00am to 4:30pm PST.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as
doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
PLEASE recycle the shipping carton whenever possible.
Encore Profile 1000 Color Introduction

Encore Profile 1000 Color Features
• Five Operating Modes
• Electronic Dimming 0-100%
• 5 Selectable Dimming Curves
• 64 Color Macros
• 4 Included Gobos
• DMX-512 protocol
• Locking 3-Pin & 5-Pin XLR Connector In/Out
• 5 DMX Modes: 4 Channel Mode, 5 Channel Mode, 6 Channel Mode, 10 Channel Mode, & 11
Channel Mode.
• ADJ LED RC2, ADJ UC IR, (Not Included) & Airstream IR compatible
• Power Cord Daisy Chain Capability (see Power Cord Daisy Chain section of this manual)
ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 5
Encore Profile 1000 Color Warranty Registration
The Encore Profile 1000 Color carries a 2 year limited warranty. Please fill out the enclosed warranty
card to validate your purchase. All returned service items, whether under warranty or not, must be
freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be
clearly written on the outside of the return package. A brief description of the problem as well as the
R.A. number must also be written down on a piece of paper included in the shipping carton. If the unit
is under warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A.
number by contacting our customer support team on our customer support number. All packages
returned to the service department not displaying an R.A. number on the outside of the package will
be returned to the shipper.
Encore Profile 1000 Color Installation
The unit should be mounted using a mounting clamp (not provided) and affixing the clamp to unit’s
mounting bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while
operating. Always ensure that the structure to which you are attaching the unit is secure and is able
to support at least 10 times the unit’s weight. Also, always use a safety cable that can hold at least 12
times the weight of the unit when installing the fixture.
The equipment must be installed by a professional, and it must be installed in a place where it is out
of the reach of people’s grasp.

Encore Profile 1000 Color Safety Precautions
ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 6
• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture.
• Do not spill water or other liquids into or onto your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under for any reason. There are no user serviceable parts inside.
• Never operate this unit with the cover removed.
• Never plug this unit in to a dimmer pack.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit if it has been damaged in any way.
• This unit is intended for indoor use only. Use of this product outdoors voids all warranties.
• During long periods of non-use, disconnect the unit from the power source.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to the point at which they exit from
the unit.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the
Cleaning section of this manual for cleaning details.
• Heat - The appliance should be situated away from heat sources, such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen onto, or liquid has been spilled into, the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in perfor-
mance.

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 7
Encore Profile 1000 Color DMX Set Up
Power Supply: The ADJ Encore Profile 1000 Color contains an automatic voltage switch, which will
automatically sense the voltage when it is plugged into the power source. With this switch there is
no need to worry about the correct power voltage. This unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only
have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are DMX
compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): The Encore Profile 1000 Color can
be controlled via DMX-512 protocol. The Encore Profile 1000 Color has 5 DMX modes; please see
the Channel Mode sections of this manual for detailed descriptions of the different modes. The
DMX address is set on the back panel of the Encore Profile 1000 Color. Your unit and your DMX con-
troller require a standard 3-pin or 5-pin XLR connector for data input and data output (Figure 1). We
recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard
110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your
cables should be made with a male XLR one one end of the cable and a female XLR connector on
the other. Also remember that DMX cable must be daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 8
Encore Profile 1000 Color DMX Set Up
Notice: Be sure to follow figures two and three when making your own cables. Do not use the
ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or
allow the shield conductor to come into contact with the XLR cable’s outer casing. Ground the shield
could cause a short circuit and result in erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the chance of erratic behavior.
5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA trans-
mission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When insert-
ing standard 5-pin data cables in to a 3-pin line, a cable adaptor must be used. These adaptors are
readily available at most electric stores. The chart below details a proper cable conversion.

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 9
Encore Profile 1000 Color Operating Instructions
LCD Backlight On/O:
To set the LCD backlight to turn o after 20 seconds of inactivity, press the MODE button until
“OTHER” is displayed, then press the SET UP button until “OTHER BLGT:XX” is displayed. “XX” rep-
resents the current state. Press the UP or DOWN buttons to set the backlight to turn “OFF” after 20
seconds of inactivity, or “ON” to stay on at all times.
Operating Modes:
The Encore Prole 1000 Color has six operating modes:
• RGBW Dimmer Mode - Choose one of the four colors to remain static or adjust the intensity of
each color to create your desired combination.
• Color Change Mode - There are 16 color change modes to choose from. In color change mode,
the unit will cycle through various colors depending on the color change mode that is chosen.
The color change speed is also adjustable.
• Color Fade Mode - There are 16 color fade modes to choose from. In color fade mode, the unit
will cycle/fade through various colors depending on the color fade mode that is chosen. The fade
speed is also adjustable.
• Auto Mode - In Auto Mode, the xture will run a combination of color change and color fade. The
speed is adjustable.
• Static Color Mode - There are 64 color options to choose from.
• DMX Control Mode - This function will allow you to control each individual xture trait with a
standard DMX 512 controller.
RGBW Dimmer Mode:
1. Plug the xture in and press the MODE button until “MANUAL” is displayed. Press the SET UP
button to cycle through the RGBW colors.
2. When “RED” is displayed, you are in Red dimming mode. Press the UP and DOWN buttons to
adjust intensity.
3. When “GREN” is displayed, you are in Green dimming mode. Press the UP and DOWN buttons
to adjust intensity.
4. When “BLUE” is displayed, you are in Blue dimming mode. Press the UP and DOWN buttons to
adjust intensity.
5. When “WHIT” is displayed, you are in White dimming mode. Press the UP and DOWN buttons to
adjust intensity.
6. After you have adjusted the RGBW colors to make your desired color combination, you can then
activate strobing by pressing the SET UP button to enter strobing.
7. “STRO” will be displayed, indicating that you are in strobing mode. The strobing can be adjusted
between “00” (strobing o) to “15” (fastest strobing).
Color Change Mode:
1. Plug the xture in and press the MODE button until “JUMP RUN SNAP:XX” is displayed. “XX”
represents a number between 01-16.
2. Use the UP and DOWN buttons to nd your desired color change mode.
3. Press the SET UP button and “SPEED:XX” will be displayed. Use the UP and DOWN buttons to
adjust the speed of the color change. The speed can be adjusted between “01” (slowest) to “16”
(fastest).

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 10
Encore Profile 1000 Color Operating Instructions
Color Fade Mode:
1. Plug the xture in and press the MODE button until “FADE RUN FADE:XX” is displayed. “XX” rep-
resents a number between 01-16.
2. Use the UP and DOWN buttons to nd your desired color fade mode.
3. Press the SET UP button and “SPEED:XX” will be displayed. Use the UP and DOWN buttons to
adjust the speed of the color fade. The speed can be adjusted between “01” (slowest) to “16”
(fastest).
Auto Run Mode:
1. Plug the xture in and press the MODE button until “AUTO RUN FAD+SNAP” is displayed.
2. Press the SET UP button and “SPEED:XX” will be displayed. Use the UP and DOWN buttons to
adjust the speed of the Auto Run. The speed can be adjusted between “01” (slowest) to “16”
(fastest).
Static Color Mode:
1. Plug the xture in and press the MODE button until “CLR MACS COLOR:XX” is displayed. “XX”
represents a number between 00-64.
2. Use the UP and DOWN buttons to scroll through the 64 colors and nd you desired color. After
you have found your desired color, you can activate strobing by pressing the SET UP button to
enter the strobe mode.
3. “STROB:XX” will be displayed, indicating that the unit is in strobe mode. The strobing can be
adjusted between “00” (ash o) to “15” (fastest ash).
DMX Mode:

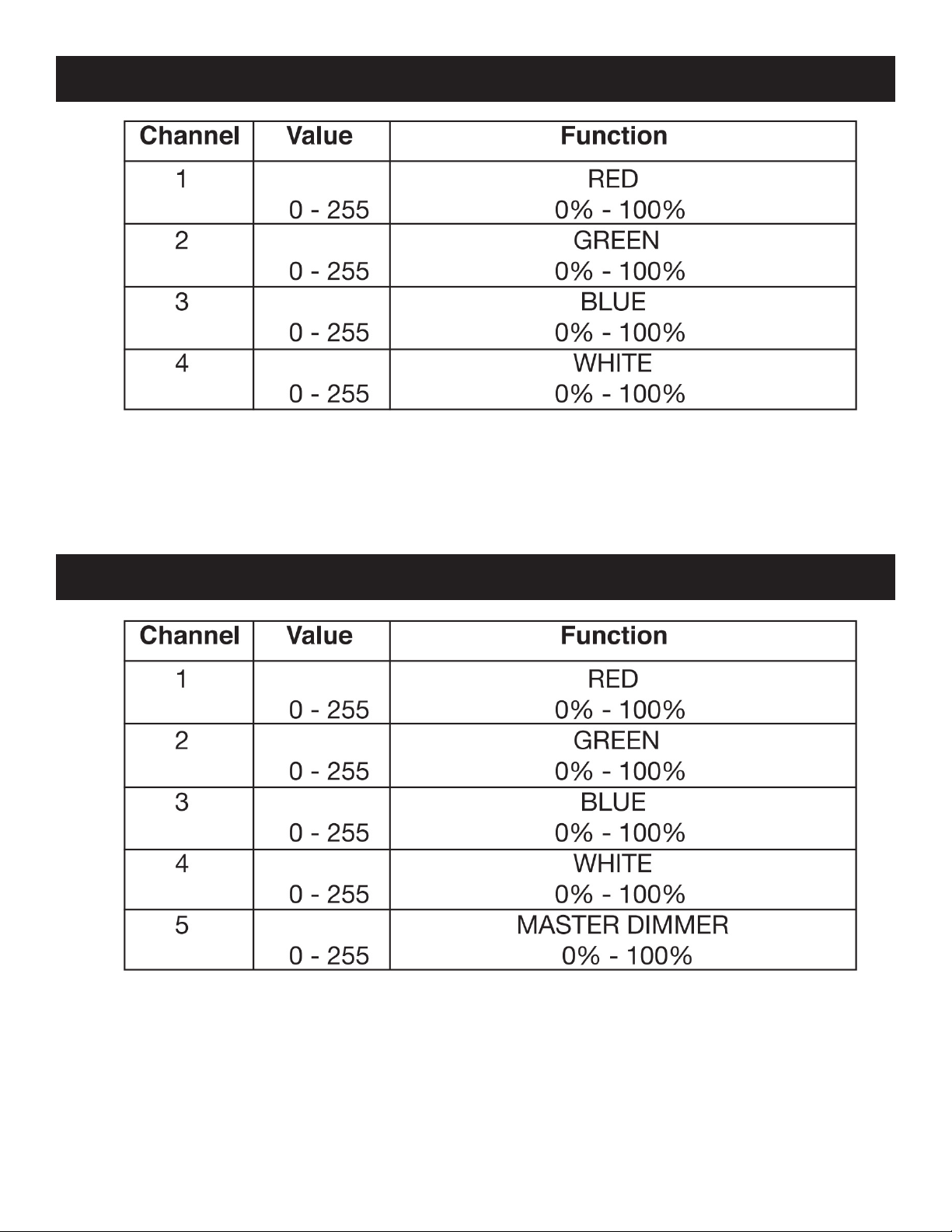

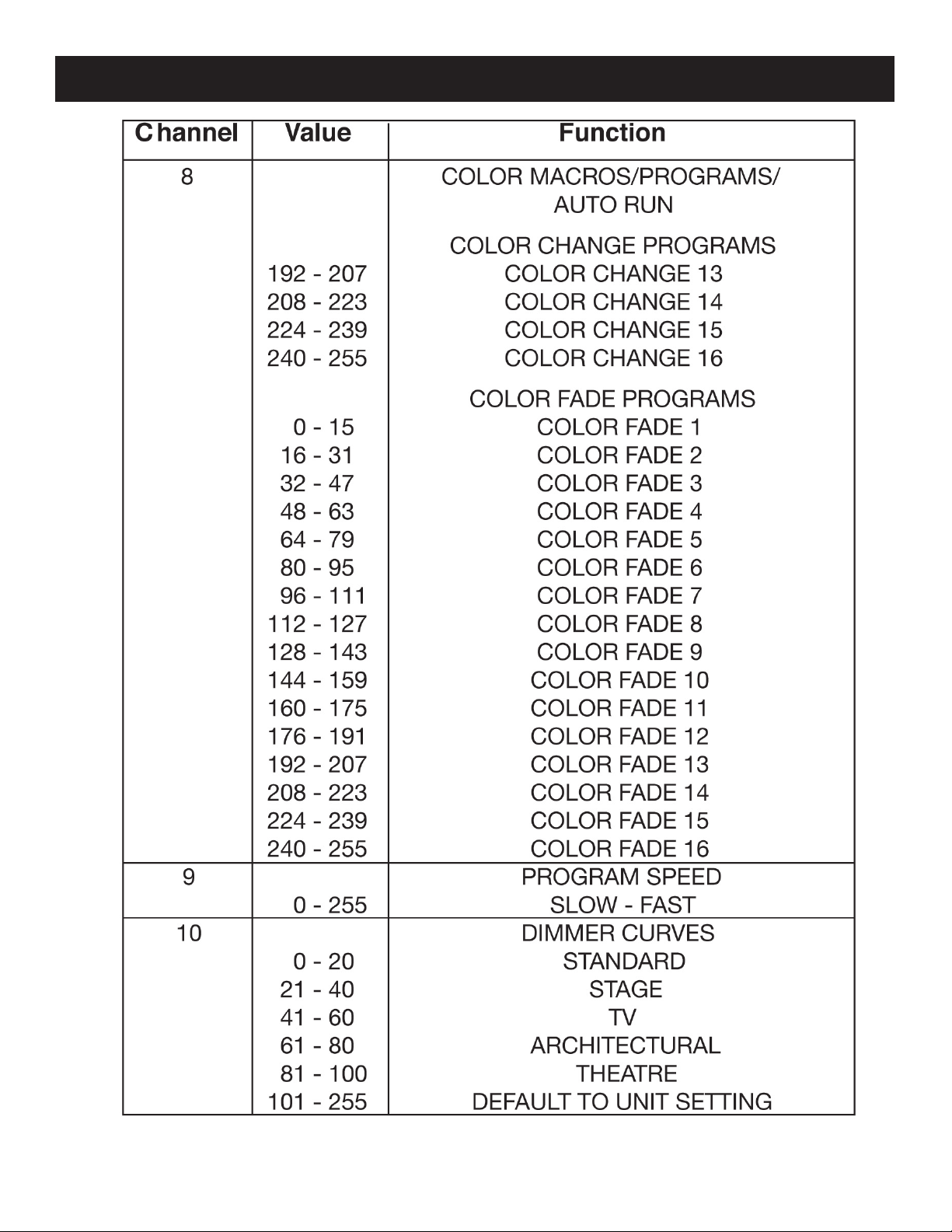

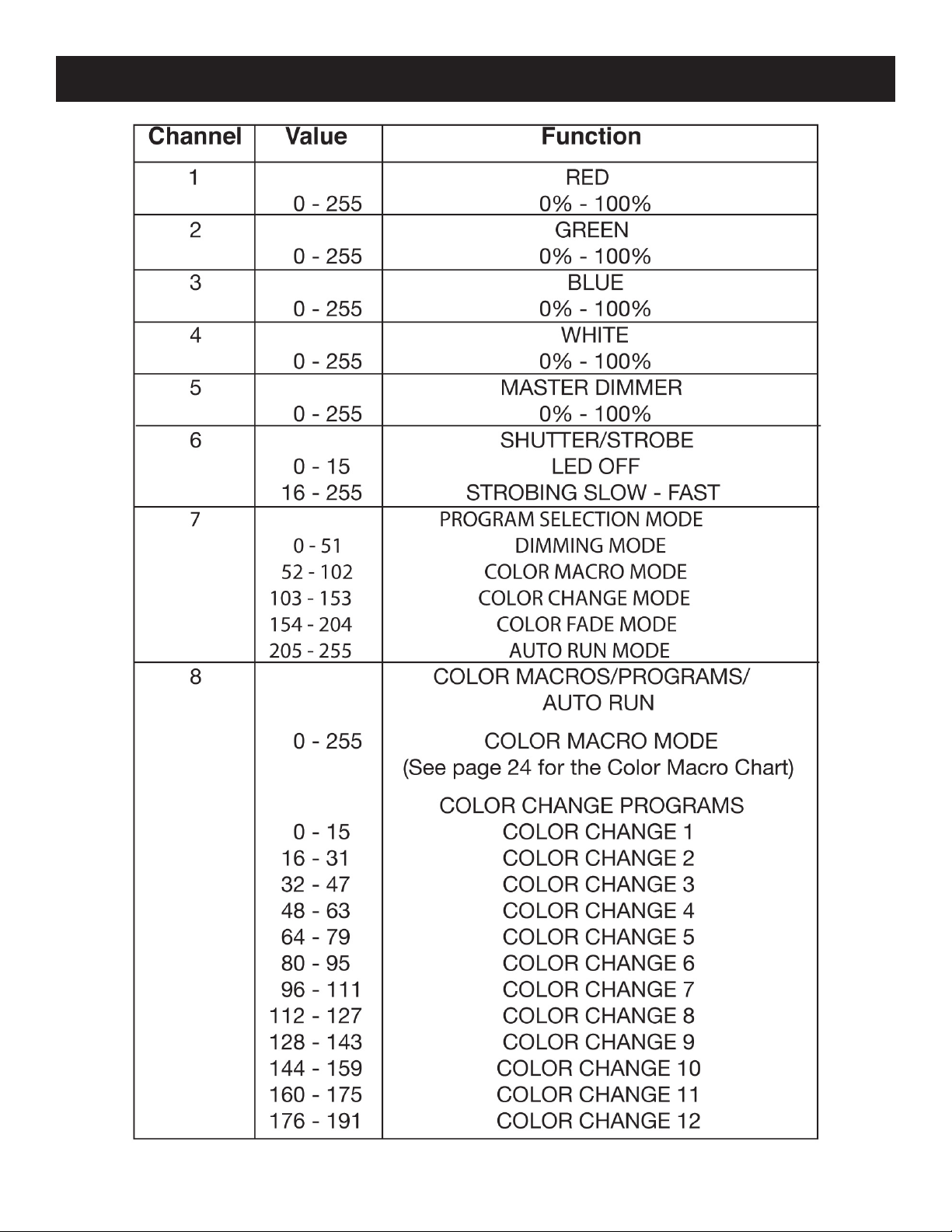

Operating through a DMX controller gives the user the freedom to create their own programs tailored
to their own individual needs. The Encore Prole 1000 Color has 5 DMX modes: 4 channel mode, 5
channel mode, 6 channel mode, 10 channel mode, and 11 channel mode. See the Channel Mode
sections of this manual for detailed descriptions of DMX traits.
1. This function will allow you to control each individual xture’s traits with a standard DMX 512
controller.
2. To run your xture in DMX mode press the MODE button until “DMX MODE:XXX” is displayed.
“XXX” represents the current displayed DMX address. Use the UP or DOWN buttons to select
your desired DMX address, then press the SETUP button to select your DMX channel mode.
3. Use the UP or DOWN buttons to scroll through and select the desired DMX channel mode.
4. After you have chosen your desired DMX Channel mode, connect the xture to any standard
DMX controller via the XLR connection ports.
System Reset:
This will return the xture to its factory settings.
1. Plug the xture in and press the MODE button until “OTHER MODE” is displayed.
2. Press the SET UP button until “SYSRESET” is displayed.
3. Press the UP and DOWN buttons simultaneously to reset or press the MODE button to exit.

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 11
Encore Profile 1000 Color Operating Instructions
Dimmer Curve:
This is used to set the dimming curve used with DMX mode. See the Dimmer Curve Chart section
of this manual for details.
1. Plug the xture in and press the MODE button until “DMX MODE ADDR:XXX” is displayed.
2. Press the SET UP button until “DELAY:X” is displayed. “X” represents the displayed dimmer
curve (0-4).
• 0 - Standard
• 1 - Stage
• 2 - TV
• 3 - Architectural
• 4 - Theatre
3. Press the UP or DOWN buttons to scroll through and select your desired dimming curve.
DMX State:
This setting denes how the unit will behave when DMX signal is lost or interrupted, as well as how
the unit will behave when it is rst powered up.
1. Plug the xture in and press the MODE button until “DMX MODE ADDR:XXX” is displayed.
2. Press the SET UP button until “DMX MODE NO” is displayed. The current DMX state will be dis-
played.
• “BLACK” (Blackout) - If the DMX signal is lost or interrupted, the unit will automatically go
into stand by mode.
• “HOLD” (Last State) - If the DMX signal is lost or interrupted, the xture will adhere the last
DMX setting in use before the DMX signal was lost.
• “AUTO” (Auto Run) - If the DMX signal is lost or interrupted, the unit will automatically go into
Auto Run mode.
3. Press the UP or DOWN buttons to scroll through and select your desired DMX state.
ADJ RFC:
This function is used to activate and deactivate the infared sensor. When this function is activated,
the xture can be controlled using the ADJ LED RC2 (sold separately), UC IR (sold separately), and
Airstream IR app. See the ADJ LED RC2 Operation and UC IR Remote & Airstream IR sections
of this manual for details. To control the Encore Prole 1000 Color, plug the included IR receiver into
the IR receiver input located on the rear of the controller. The remote control device must be aimed
at the IR sensor, and maximum range is 30 feet.
1. Plug the xture in and press the MODE button until “OTHER MODE” is displayed.
2. Press the SET UP button until “IR: XX” is displayed.
3. Press the UP or DOWN buttons to either activate the remote function (On) or deactivate it (O).

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 12
Encore Profile 1000 Color Operating Instructions
Color Balance Mode:
1. Plug the xture in and press the MODE button until “BALANCE” is displayed. Press the SET UP
button for at lease 3 seconds until the displayed number begins to ash.
2. When “RED” is displayed, you are in Red balance mode. Press the UP and DOWN buttons to
adjust intensity.
3. When “GREN” is displayed, you are in Green balance mode. Press the UP and DOWN buttons to
adjust intensity.
4. When “BLUE” is displayed, you are in Blue balance mode. Press the UP and DOWN buttons to
adjust intensity.
5. When “WHIT” is displayed, you are in White balance mode. Press the UP and DOWN buttons to
adjust intensity.
6. Press the SET UP button for 3 seconds to save your settings.
Gamma:
This feature is predominately used when shooting video. Adjust the gamma setting to clean up any
lines that might be seen on camera.
1. Plug the xture in and press the MODE button until “GAMMA” is displayed. The current gamma
setting will be displayed.
2. Use the UP and DOWN buttons to change the gamma setting.
Refresh Rate:
This feature is predominately used when shooting video. Adjust the frequency setting to clear up any
LED icker that might be seen on camera.
1. Plug the xture in and press the MODE button until “FREQUENC” is displayed. The current fre-
quency setting will be displayed.
2. Use the UP and DOWN buttons to change the frequency setting.
Fan Speed:
This will let you set your desired fan speed.
1. Plug the xture in and press the MODE button until “FAN SPEED” is displayed, and press EN-
TER.
2. Use the UP and DOWN buttons to switch between the dierent fan speeds.
PCB Temperature:
This will check the current temperature of unit as well as switch between fahrenheit and celsius.
1. Plug the xture in and press the MODE button until “OTHER MODE” is displayed.
2. Press the SET UP button until “TEM:XXXX” is displayed.
3. Use the UP and DOWN buttons to switch between fahrenheit and celsius.

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 13
Encore Profile 1000 Color Primary-Secondary Configuration
Secondary Conguration:
This function will allow you to link units together to run in a Primary-Secondary setup. In a Primary-
Secondary set up, one unit will act as the controlling unit and the others will react to the controlling
unit’s behavior. Any unit can act as a Primary or as a Secondary; however, only one unit can be pro-
grammed to act as the “Primary.”
Primary-Secondary Connections and Settings:
1. Daisy chain your units via the XLR connectors on the rear panels of the units. Use standard XLR
data cables to link your units together. Remember that the Male XLR connector is the input and
the Female XLR connector is the ouput. The rst unit in the chain (primary) will use the female
XLR connector only, and the last unit in the chain will use the male XLR connector only.
2. Set the “Primary” unit to your desired mode of operation.
3. On the “Secondary” units, press the MODE button until “Secondry Mode” is displayed. The unit
is now set as the “Secondary” unit. Each secondary unit must be set to the same setting.
4. Connect the rst “Secondary” unit to the “Primary”, and the “Secondary” unit should now start to
follow the “Primary”.
Encore Profile 1000 Color Focus and Zoom Adjustments
The knobs located on the right side of unit are used to adjust the focus and the zoom. For a tighter/
narrower beam, move the rst/front knob to the front of the xture, and move the second knob to
rear. For a wider beam, move the rst/front knob towards the middle of the xture, and move the
second knob towards the middle as well. Adjust accordingly.

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 14
Encore Profile 1000 Color ADJ LED RC2 Operation
The ADJ LED RC2 infrared remote (sold seperately) has many dierent functions. To control the x-
ture, you must aim the controller at the infrared sensor and be within the 30-foot maximum operating
range. To use the ADJ LED RC2 you must rst activate the xtures infrared sensor. See the Operat-
ing Instructions section of this manual for detailed instructions.
BLACKOUT - Pressing this button will blackout the xture.
SELECT PROG - Pressing this button will cycle through static color mode, color change mode,
color fade mode, and auto run mode. Each press of this button will change to the next mode. When
you have found your desired mode, use the “+” or “-” to scroll through the programs or static colors.
When in either color fade mode or color change mode, press the Speed button and use the “+” or
“-” to adjust the running speed. When in static color mode, press the Flash button to activate strobe
and use the “+” or “-” to adjust the strobe speed.
FLASH - This button will activate the strobe eect. You can control the ash rate by pressing the “+”
and “-” buttons. Press this button again to exit strobe mode.
SPEED - Press this button and use the “+” & “-” buttons to adjust the speed of the color change
mode, color fade mode, or auto run.
DMX MODE - This button will cycle between DMX addressing, DMX channel mode, and dimmer
curve selection. Some xtures will come with dierent DMX channel modes. This button will switch
between the dierent modes. Please see the Channel Mode sections of this manual for DMX
modes, values, and traits.
SECONDRY/SOUND ACTIVE - This designates the xture as a secondry xture in a primary/secon-
dry conguration. Sound active has no assigned function for this xture.
SET ADDRESS - Press this button to set the DMX address. Press this button rst, then press the
numbers to set the address. If the address is correctly set, all LED’s will ash and the unit will auto-
matically go into DMX mode.
R G B W - Press any of these buttons, and then press the “+” or “-” to adjust the brightness. Press
the FLASH button to activate strobing and use the “+” or “-” to adjust the ash speed.
“+” and “-” - These buttons adjust the ash rate and speed of the color change mode, color fade
mode, and auto run. When in color change or color fade mode they are used to nd your desired
program. See the Operating Instructions section of this manual for details.

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 15
Encore Profile 1000 Color ADJ LED RC2 Operation
DMX Mode:
Operating through a DMX controller gives the user the freedom to create programs tailored to his or
her own individual needs. Follow the directions below to set your DMX address and DMX channel
mode.
Before connecting this unit to a DMX controller, select the desired DMX channel mode by pressing
the DMX Mode button, then using the “+” or “-” buttons to scroll through the available DMX channel
mode options. Set the mode before setting the address of the xture.
After you have selected your mode, set the DMX address for the xture by pressing the “S” button.
When the “S” button is pressed the LED’s will ash 2-3 times. Use the number buttons to key in your
desired address.
Note: When setting the DMX address, the LED display will ash in a particular color each time a
number is entered. The color of the LED ashes indicate the selected DMX mode as listed below:
• Red LED = 4 Channel Mode.
• Green LED = 5 Channel Mode.
• Blue LED = 6 Channel Mode.
• White LED = 10 Channel Mode.
• Red & Green LED = 11 Channel Mode.
The LED display will ash 2-3 times when the DMX address has been set correctly, indicating that
you may now connect the xture via the XLR connections to any standard DMX controller. Please
refer to the Channel Mode sections of this manual for a detailed descriptions of the DMX modes,
values, and traits.

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 16
Encore Profile 1000 Color UC IR Remote & Airstream IR
The UC IR (sold separately) infrared remote gives you control of various functions. To control the
xture, aim the remote at the front of the xture. Maximum range is 30 feet.
The Airstream IR (sold separately) remote transmitter plugs into the headphone jack of your iOS
phone or tablet. To control your IR xture you must raise the volume to the maximum on your iOS
phone or tablet and aim the transmitter at the xture sensor. Maximum range is 15 feet. After you
have purchased the Airstream IR transmitters, the app is a free download from the app store for your
iOS phone or tablet. The app comes with 3 pages of control depending on the xture you are using.
Please see below for IR functions including the corresponding app page.
Works with App page 1.
STAND BY - Pressing this button will blackout the xture. Press the button again to return to the
initial state.
FULL ON - Hold this button down to fully illuminate the unit. When the button is released, the unit
will return to its previous state.
FADE/GOBO - Pressing this button activates color fade mode.
“DIMMER +” and “DIMMER -” - Use these buttons adjust output intensity in color mode.
STROBE - Press and hold this button for strobing.
COLOR - Press this button to activate color mode. Use buttons 1-9 to select your desired color. Use
the “DIMMER+” and “DIMMER-” to scroll through the colors.
1-9 - Use these buttons to select your desired color or show when show mode is active. Use the
“DIMMER+” and “DIMMER-” buttons to adjust the output intensity.
SHOW 0 - Press this button to activate show mode. Use buttons 1-9 to select shows 1-9. Press this
button twice to run show 10, and press button 1 to run show 11.

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 17
Encore Profile 1000 Color 4 Channel Mode
Encore Profile 1000 Color 5 Channel Mode

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 18
Encore Profile 1000 Color 6 Channel Mode

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 19
Encore Profile 1000 Color 10 Channel Mode

ADJ Products, LLC - www.adj.com - Encore Prole 1000 Color User Manual Page 20
Encore Profile 1000 Color 10 Channel Mode
