ROOMAIRCONDITIONER
Use and Care Manual
v 8,1 ]_/ <;0 @ ...<,..,._,_,,.;s.,.,,,,:_
Remote control
AAW-05CR1 FHU
AAW-06CR1 FHU
AAW-08CR1 FHU
AAW-08DR1 FHU
Mechanical control
AAW-05CM1 FHU
AAW-06CM1 FHU
AAW-08CMIFHU
AAW-08DM1 FHU
Thank you for purchasing an Admiral _room air conditioner. Please read this "Use and Care Manual" carefully
before installing and using this appliance. Keep this manual for future reference.
M <hasef:_a_asp> cor_ _a_ a e acor/dco a< >Admiral Leaaer!amer_te_ Man a de Jsoy
Ma er /_ er_;Io a esde r_;slaa_y t za eslep_od clo Censeveesler_ar a palace s a_oe_ e [ I_'o
For Service Call 1 877 465 3566
<,, V.<IX.C (;... (7'_:,_ iF/ qOd o,._<;,..,

WAC 5 6 8 USER MAN final 3/2/05 12:23 PH Page 3 O
Page
Introduction .................................................. 2
Parts Identification ........................................... 2-3
Air Conditioner Safety ......................................... 4-5
Electrical Specifications
Tips Before Installation
Installation Instructions
Operating Instructions
Care and Maintenance
Troubleshooting Guide
Warranty
...................................... 8-10
...................................... 11-14
......................................... 15
......................................... 16
................................................... 17
Page

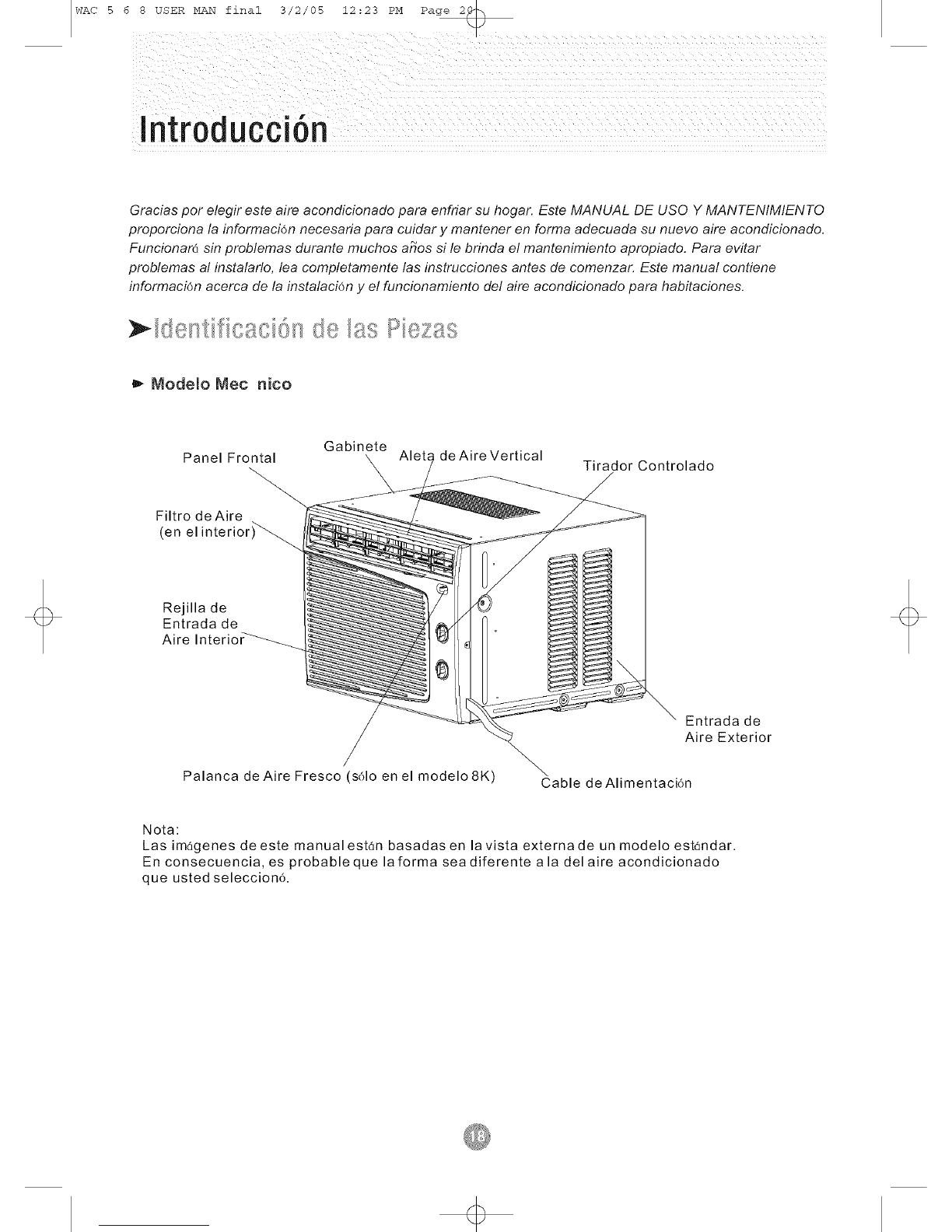

Introducci6n ................................................. 18

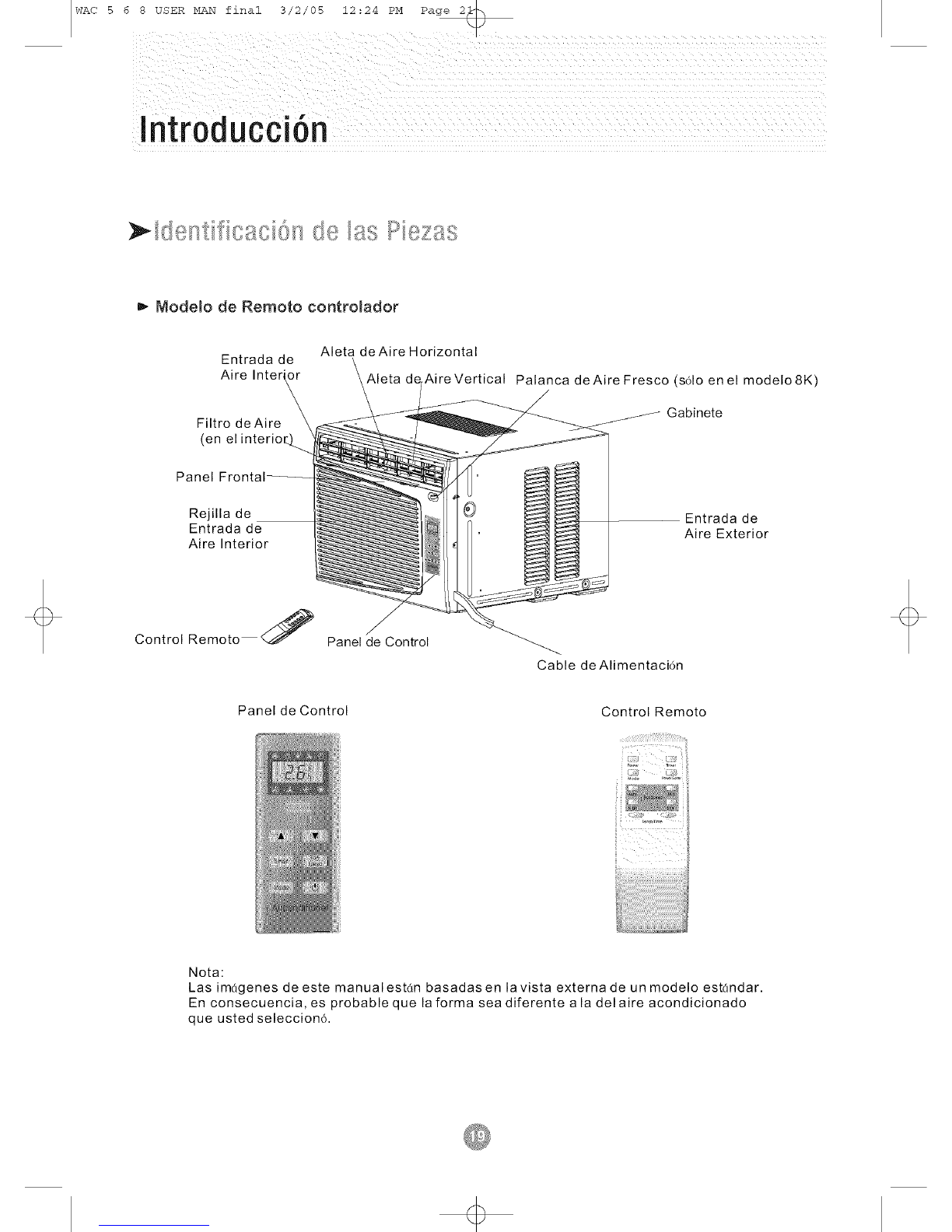

Identificaci6n de las Piezas .................................. 18-19
Especificaciones EI6ctricas ..................................... 20
Consejos Antes dela Instalaci6n .................................. 21
Instrucciones de Instalaci6n .................................. 22-24
Instrucciones de Operaci6n .................................. 25-28
Cuidado y Mantenimiento ....................................... 29
Guia para la Soluci6n de Problemas ............................... 30
Garantia .................................................... 31

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page 4Q

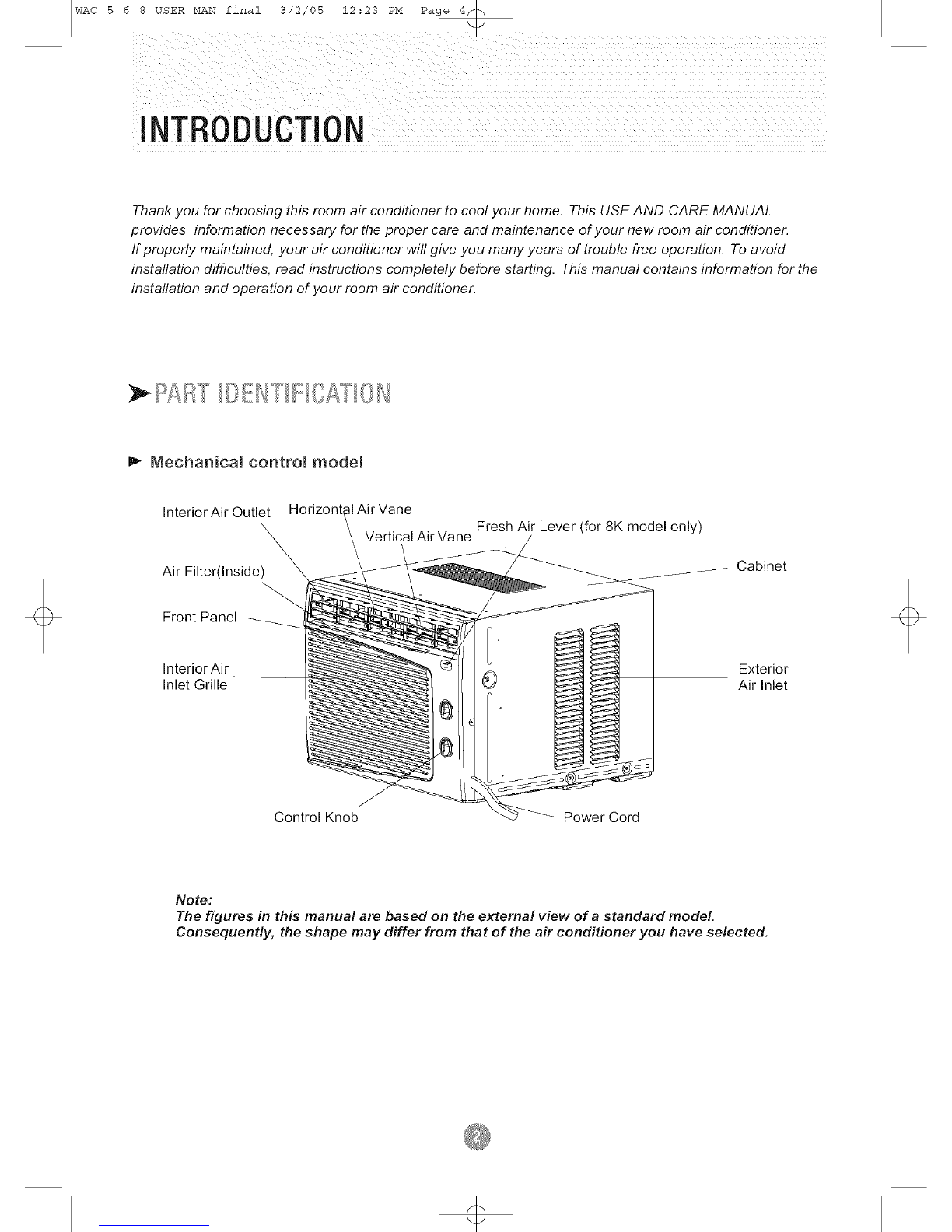

INTRODUCTION
Thank you for choosing this room air conditioner to cool your home. This USE AND CARE MANUAL
provides information necessary for the proper care and maintenance of your new room air conditioner.
If properly maintained, your air conditioner will give you many years of trouble free operation. To avoid
instaflation difficulties, read instructions completely before starting. This manual contains information for the
instaflation and operation of your room air conditioner.
Mechanicam control modem
Interior Air Outlet
Air Filter(Inside)
Front Panel
al Air Vane
Vertical Air Vane Fresh Air Lever (for 8K model only)
Cabinet
interior Air Exterior
inlet Grille Air Inlet
Control Knob Power Cord
Note:
The figures in this manual are based on the external view of a standard model,
Consequently, the shape may differ from that of the air conditioner you have selected,

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page 50
INTRODUCTION
_,-Remote control model
Interior Air Outlet )ntal Air Vane
Vertical Air Vane Fresh Air Lever (for 8K model only)
Air Filter(Inside) Cabinet
Front Panel
Interior Air
Inlet Grille
Remote Control
Control Panel
o
_- Power Cord
Exterior
Air Inlet
Control Panel Remote Control
Note:
The figures in this manual are based on the external view of astandard model.
Consequently, the shape may differ from that of the air conditioner you have selected.

WAC 5 6 8 USER MAN final 3/2/05 12:23 PH Page 6Q
AiR CONDiTiONERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey
all safety messages.
This is the SAFETY ALERT SYMBOL.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously inured if you don't
immediately follow instructions.
You can be killed or seriously inured if you
don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
!IVlPORTANTSAFETYiNSTRUCTIONS
WARNING:To reduce the risk of fire, electrical shock, or
injury when using your air conditioner, follow these basic
precautions:
• Plug into a grounded 3-prong outlet.
• Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Unplug air conditioning before
servicing.
Use two or more people to
move and install air conditioner.
mSAVE THESE INSTRUCTIONS

WAC 5 6 8 USER MAN final 3/2/05 12:23 PH Page 7 0

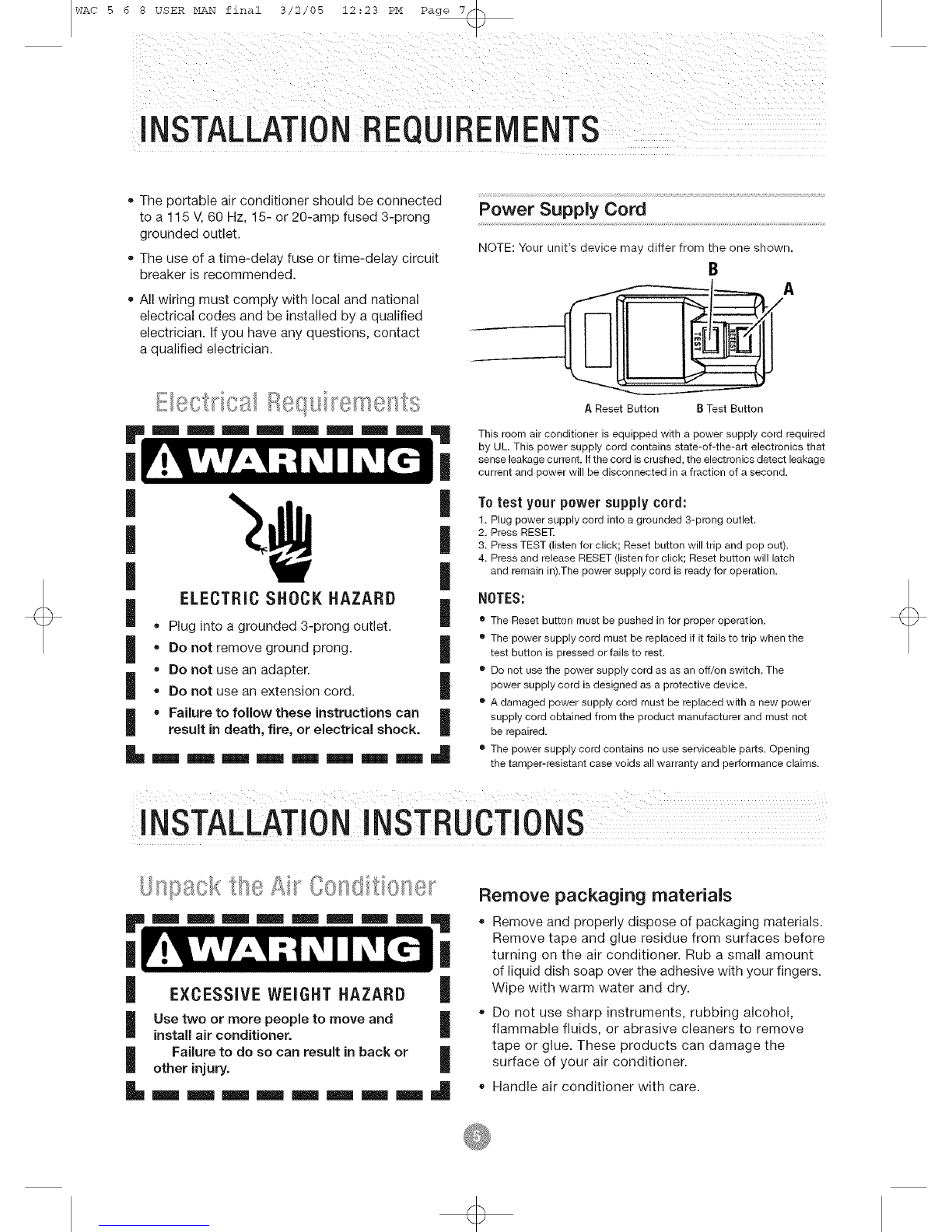

INSTALLATIONREQUIREMENTS
o
o
The portable air conditioner should be connected
to a 115 V, 60 Hz, 15- or 20-amp fused 3-prong
grounded outlet.
The use of a time-delay fuse or time-delay circuit
breaker is recommended.
All wiring must comply with local and national
electrical codes and be installed by a qualified
electrician. If you have any questions, contact
a qualified electrician.
ELECTRIC SHOCK HAZARD
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
• DO not use an extension cord.
• Failure to follow these instructions can
result in death, fire, or electrical shock.
|
|
|
|
|
|
|
|
_mmmmmmmml_
Power Supply Cord
NOTE: Your unit's device may differ from the one shown.
B
A Reset Button B Test Button
This room air conditioner is equipped with a power supply cord required
by UL This power supply cord contains state-of-the-art electronics that
sense leakage current. If the cord is crushed, the electronics detect leakage
current and power will be disconnected in a fraction of a second.
Totest your power supply cord:
1. Plug power supply cord into a grounded 3-prong outlet.
2. Press RESET.
3. Press TEST (listen for click; Reset button will trip and pop out).
4. Press and release RESET (listen for click; Reset button will latch
and remain in).The power supply cord is ready for operation.
NOTES:
• The Reset button must be pushed in for proper operation.
• The power supply cord must be replaced if it fails to trip when the
test button is pressed or fails to rest,
•Do not use the power supply cord as as an off/on switch, The
power supply cord is designed as a protective device,
• A damaged power supply cord must be replaced with a new power
supply cord obtained from the product manufacturer and must not
be repaired.
•The power supply cord contains no use serviceable parts, Opening
the tamper-resistant case voids all warranty and performance claims.
INSTALLAT! !N INSTRUCTION
EXCESSIVE WEIGHT HAZARD I
Use two or more people to move and I
install air conditioner.
Failure to do so can result in back or I
other injury.
L ,,,, .,, .,, .,, ,,,, ,,,, ,,,, ,,,, .i
Remove packaging materials
= Remove and properly dispose of packaging materials.
Remove tape and glue residue from surfaces before
turning on the air conditioner. Rub a small amount
of liquid dish soap over the adhesive with your fingers.
Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your air conditioner.
Handle air conditioner with care.

WAC 5 6 8 USER MAN f_nal 3/2/05 12:23 PM Page 8 0
ELECTRICALSPECIFICATIONS
1. All wiring must comply with local and national
electrical codes and must be installed by a
licensed electrician. Once you have any
questions regarding the following instructions,
contact a licensed electrician.
2. Check available power supply and resolve any
wiring problems BEFORE installing and operating
this unit.
3. For your safety and protection, this unit is
grounded through the power cord when
plugged into a matching wall outlet. If you are
not sure whether your wall outlet is properly
grounded, please consult a licensed
electrician.
If the air conditioner has a serial plate rating
of 115 volts and up to and including 7.5 amps
the unit maybe on a fuse or circuit breaker
with other devices. However, the maximum
amps of all devices on that fuse or circuit
breaker can not exceed the amps of the fuse
of circuit breaker.
If the air conditioner has a serial plate rating
of 115 volts and greater than 7.5 amps it
must have its own fuse or circuit breaker,
and no other device or unit should be
operated on the fuse or circuit breaker.
To avoid the possibility of personal injury,
disconnect the power to the unit before
installing or servicing.
4. The wall outlet(3-pin) must match the plug
(3-pin) on the power cord supplied with the unit.
DO NOT use plug adapters or extension cords.
See (Table 1) for receptacle and fuse information.
5. The rating plate on the unit contains electrical
and other technical data. The rating plate is located
on the right side of the unit.
COOLING CAPACITY 5K, 6K. 8K
RATED VOLTS 125
AMPS 15
WALL OUTLET
FUSE SIZE 15
Time Delay Fuse Plug type
(or circuit breaker)
Table 1
Note: 5K including
6K including
8K including
AAW-05CR1FHU AAW-05CM1FHU
AAW-06CR1FHU AAW-06CM1FHU
AAW-08CR1FHU AAW-08DR1FHU
AAW-08CM 1FHU AAW-08DM 1FHU

WAC 5 6 8 USER MAN final 3/2/05 12:23 PH Page 9 0
TiPS BEFOREiNSTALLATiON
Your RoomAir Conditioner unit is designed to
be highly efficient and save energy. Follow these
recommendations for greater efficiency.
1. Select thermostat setting that suits your
comfort needs and leave the thermostat at
that chosen setting. P'!'I
2. The air filter is very efficient in removing airborne
particles. Keep the air filter clean. Typically, filter
should be cleaned once a month. More
frequent cleaning may be necessary depending
on outdoor and indoor air quality.
3. Use drapes, curtains, or shades to keep
direct sunlight from heating your room, but
DO NOT obstruct the air conditioner. Allow air to
circulate around the unit without obstructions.
4. Start your air conditioner before outdoor
air becomes hot and uncomfortable. This
avoids an initial period of discomfort while
the unit is cooling off the room.
5. When outdoor temperature is cool
enough, use HIGH or LOW FAN
only. This circulates indoor air, providing
some cooling comfort, and utilizes less
electricity than when operating on a
cooling setting.
Your RoomAir Conditioner was designed
for easy installation in a single or double-hung
window. NOTE: This unit is NOT designed for
vertical (slider type) windows.
To avoid installation/operating difficulties,
read the instructions thoroughly.
NOTE: Save the shipping carton and packing
materials for future storage or transport of the unit.
Please check the contents of the hardware kit
against the corresponding model check list, prior to
installation of the unit.
See lists below. (Fig. 1)
(_s_> 3/4"Screws (12)
2/5"Screws (8)
1_ Top Channel(1 )
factory installed
L Bracket(2)
Side Bracket(2)
Fig.1
Seal(l)
(_ Foam(1 )
Side Curtain RH(1)
Side Curtain LH(1)
NOTE: Surplus screw(s) for spare use,
Tools Needed for Window Installation
Screw drivers: Both Philips and flat head
Power drill: 1/8 inch diameter drill bit
Pencil
Measuring tape
Scissors
Carpenters level

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page 1_

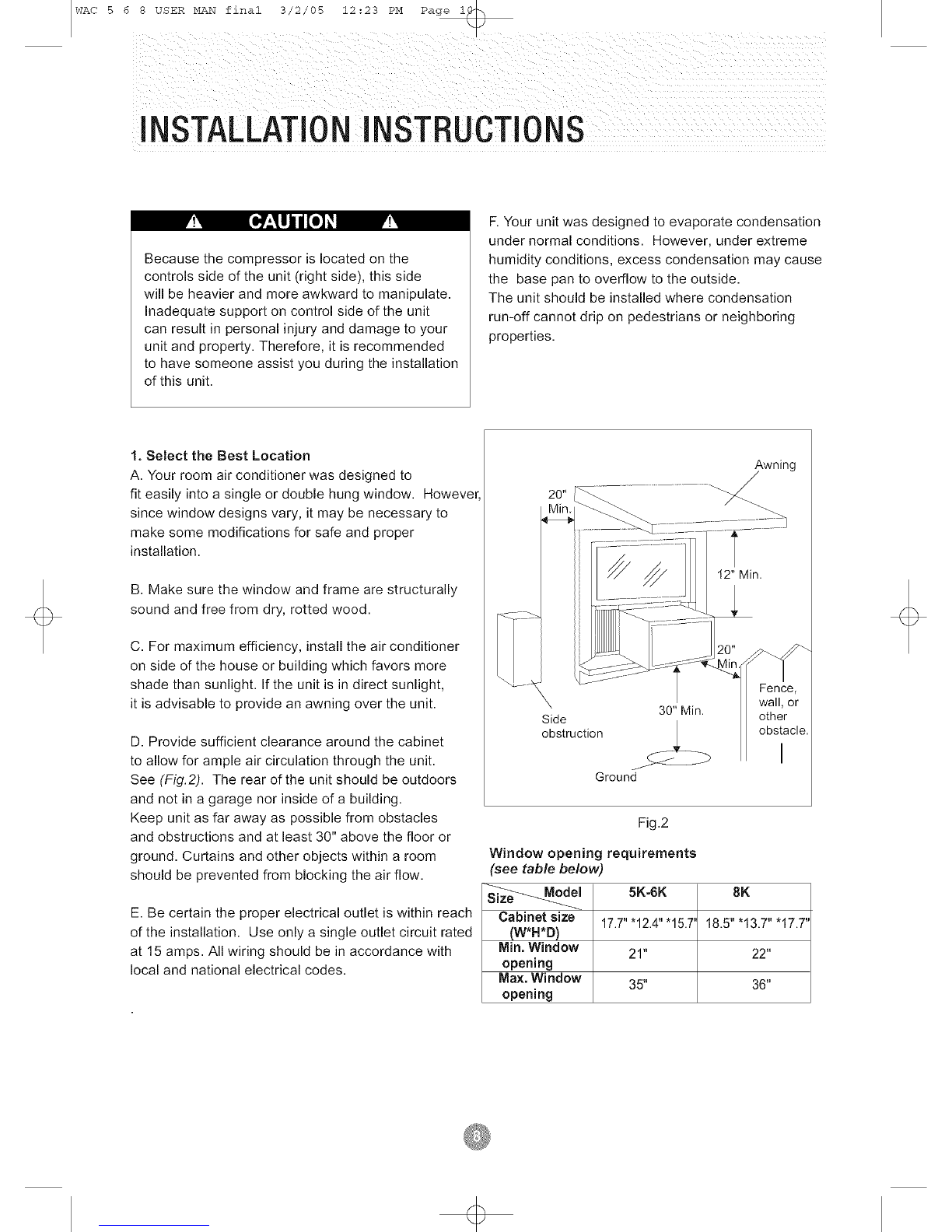

iNSTALLATiONiNSTRUCTiONS
Because the compressor is located on the
controls side of the unit (right side), this side
will be heavier and more awkward to manipulate.
Inadequate support on control side of the unit
can result in personal injury and damage to your
unit and property. Therefore, it is recommended
to have someone assist you during the installation
of this unit.
F. Your unit was designed to evaporate condensation
under normal conditions. However, under extreme
humidity conditions, excess condensation may cause
the base pan to overflow to the outside.
The unit should be installed where condensation
run-off cannot drip on pedestrians or neighboring
properties.
1. Select the Best Location
A. Your room air conditioner was designed to
fit easily into a single or double hung window. However
since window designs vary, it may be necessary to
make some modifications for safe and proper
installation.
B. Make sure the window and frame are structurally
sound and free from dry, rotted wood.
C. For maximum efficiency, install the air conditioner
on side of the house or building which favors more
shade than sunlight. If the unit is in direct sunlight,
it is advisable to provide an awning over the unit.
D. Provide sufficient clearance around the cabinet
to allow for ample air circulation through the unit,
See (Fig.2). The rear of the unit should be outdoors
and not in a garage nor inside of a building,
Keep unit as far away as possible from obstacles
and obstructions and at least 30" above the floor or
ground, Curtains and other objects within a room
should be prevented from blocking the air flow,
E. Be certain the proper electrical outlet is within reach
of the installation. Use only a single outlet circuit rated
at 15 amps. All wiring should be in accordance with
local and national electrical codes.
Awning
/
Fence,
wall, or
Side 30" Min. other
obstruction _ obstacle.i
Ground
Fig.2
Window opening requirements
(see table below)
5K-6K 8K
Cabinet size 17.7" "12.4" "15.7" 18.5" "13.7" "17.7"
(W*H*D)
Min. Window 21" 22"
opening
Max. Window 35" 36"
opening

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page i s
iNSTALLATiONiNSTRUCTiONS
_W P_I96_IW_'_":'_'__,*'"__,,_fs_(}B _::_1::'__:_
1. If your air conditioner cabinet 18" wide, it will fit
window openings 21" to 32" in wide. Minimum
opening height is 14" from bottom of sash to sill
(Fig. 1).
Fig. 1
2. Insert the guide panels into the guides of the air
conditioner. Fasten the curtains to the unit with screws
(Fig. 2).
2/5 " Screws
Fig. 2
3. Cut the adhesive-backed seal strip the window width.
Remove the backing from the seal strip and attach
the seal strip to the underside of the bottom window.
(Fig. 3)
Fig. 3
4. Measure the inside window sill width and find
the center line as shown in Fig. 4.
Fig. 4

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page 1_

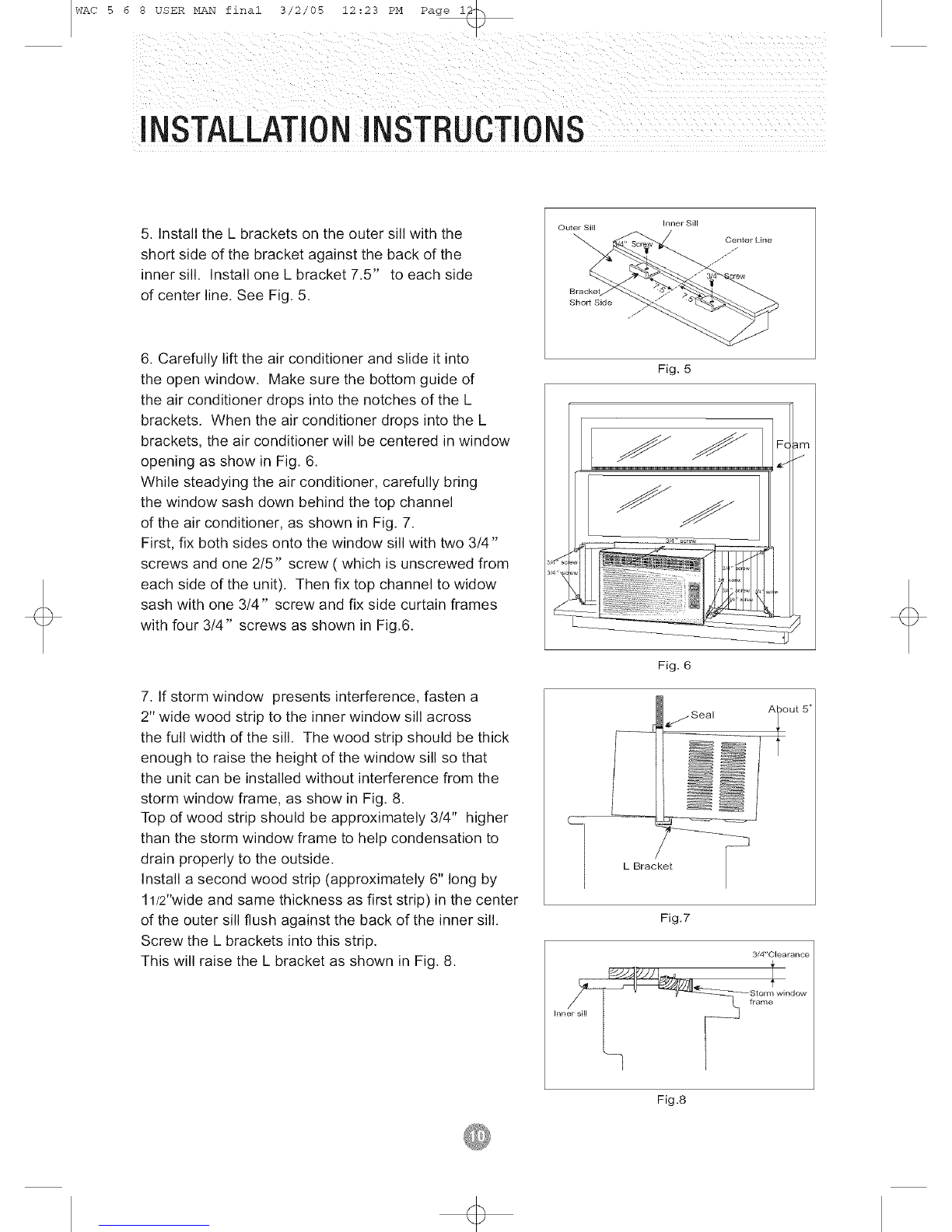

iNSTALLATiONiNSTRUCTiONS
5. Install the L brackets on the outer sill with the
short side of the bracket against the back of the
inner sill. Install one L bracket 7.5" to each side
of center line. See Fig• 5.
6. Carefully lift the air conditioner and slide it into
the open window. Make sure the bottom guide of
the air conditioner drops into the notches of the L
brackets• When the air conditioner drops into the L
brackets, the air conditioner will be centered in window
opening as show in Fig. 6.
While steadying the air conditioner, carefully bring
the window sash down behind the top channel
of the air conditioner, as shown in Fig. 7.
First, fix both sides onto the window sill with two 3/4"
screws and one 215" screw ( which is unscrewed from
each side of the unit). Then fix top channel to widow
sash with one 3/4" screw and fix side curtain frames
with four 3/4" screws as shown in Fig.6.
7. If storm window presents interference, fasten a
2" wide wood strip to the inner window sill across
the full width of the sill. The wood strip should be thick
enough to raise the height of the window sill so that
the unit can be installed without interference from the
storm window frame, as show in Fig. 8.
Top of wood strip should be approximately 3/4" higher
than the storm window frame to help condensation to
drain properly to the outside.
Install a second wood strip (approximately 6" long by
11/2"wide and same thickness as first strip) in the center
of the outer sill flush against the back of the inner sill.
Screw the L brackets into this strip.
This will raise the L bracket as shown in Fig. 8.
Outer SIll inner SIll
Short Side
./'"
Fig. 5
Fig. 6
Fig.7
3/4"Clearance
S,or,,L,10ow
,,l&,,, ¢' .......
Fig .8

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page i_
OPERATINGiNSTRUCTiONS
_Mechanicam control model
MODE
The mode knob controls fan speeds and cooling
speeds. To set desired cooling temperature, simply
rotate the mode knob dial to the appropriate
setting. See Fig. 9.
THERMOSTAT
The thermostat automatically controls the cooling
cycle (compressor) of the air conditioner to maintain
room temperature. However, the fan motor will
continue to operate after the compressor (cooling
cycle) is completed. See Fig.9.
LOW FAN will circulate the air at a minimum speed
without cooling.
HIGH FAN will circulate the air at a maximum speed
without cooling. P'_'I [o,7,:,_!jui[o]_ IV_y
LOW COOL provides cooling, automatically with
minimum air circulation. Recommended for night-
time use.
HIGH COOL provides cooling, automatically with
quick cooling or for extremely hot days. Once room
is cooled, reduce setting to LOW COOL.
OFF will completely shut-off the unit.
NOTE: After setting the mode, allow 3
minutes before switching to another mode.
Thermostat kno<
OFF
Mode knob
Fig.9
When using FAN control, turn slowly allowing unit
to adjust.
When using THERMOSTAT, be sure to allow three
minutes before changing temperature. Adjusting
too quickly may cause an overload resulting in a
blown fuse.
Fresh Air Ventilation is usually kept in the closed
position. Use only when clearing smoke and/or
odors from the room. Pull to open. (See Fig.10).
Fresh Air
Vent Lever
Fig.10

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page i_

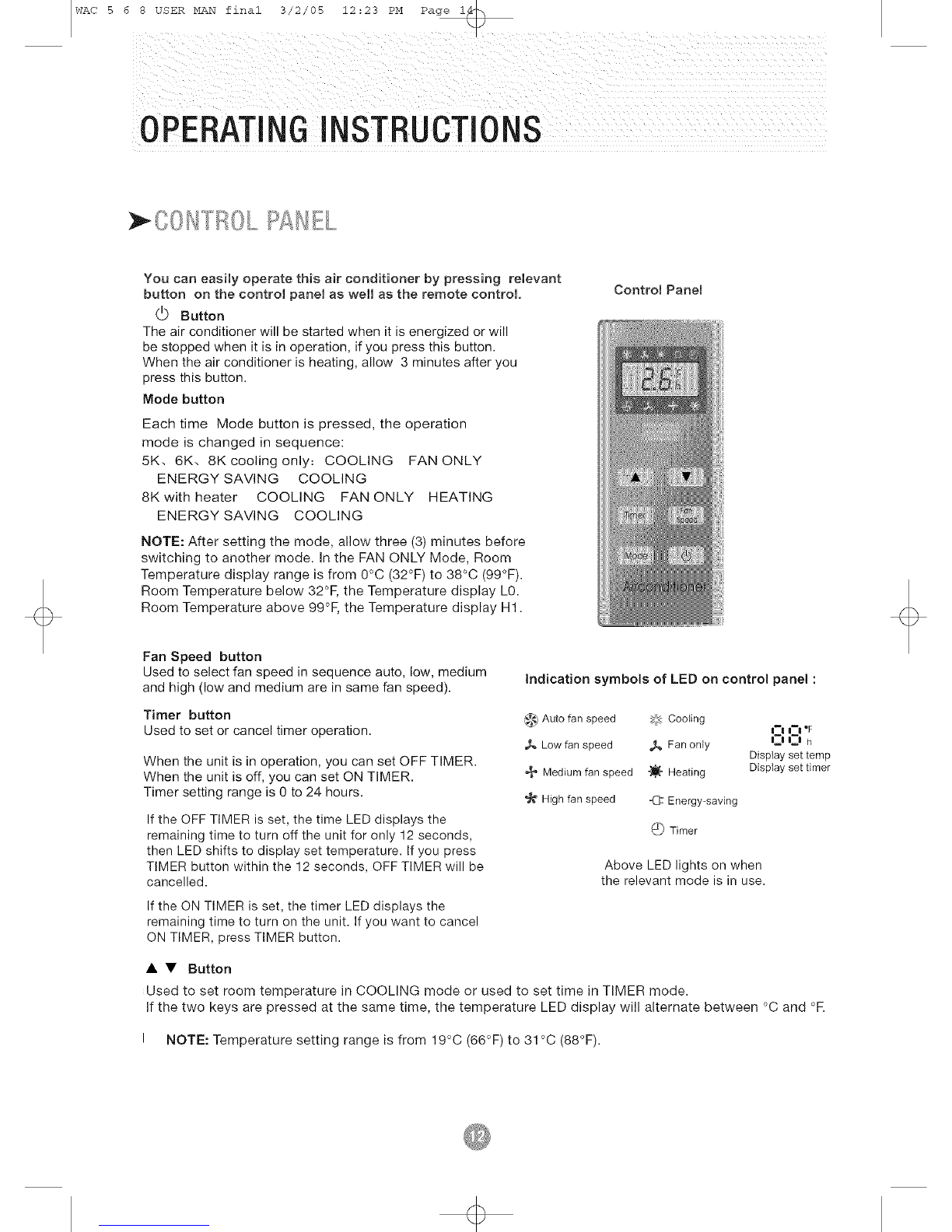

OPERATINGiNSTRUCTiONS
You can easily operate this air conditioner by pressing relevant
button on the control pane[ as we[[ as the remote control
(_) Button
The air conditioner will be started when it is energized or will
be stopped when it is in operation, if you press this button.
When the air conditioner is heating, allow 3 minutes after you
press this button.
Mode button
Each time Mode button is pressed, the operation
mode is changed in sequence:
5K, 6K, 8K cooling only: COOLING FAN ONLY
ENERGY SAVING COOLING
8K with heater COOLING FAN ONLY HEATING
ENERGY SAVING COOLING
NOTE: After setting the mode, allow three (3) minutes before
switching to another mode. In the FAN ONLY Mode, Room
Temperature display range is from O°C (32°F) to 380C (99°F).
Room Temperature below 32°F, the Temperature display LO.
Room Temperature above 99°F, the Temperature display HI.
Control Panel
Fan Speed button
Used to select fan speed in sequence auto, low, medium
and high (low and medium are in same fan speed). indication symbols of LED on control panel :
Timer button
Used to set or cancel timer operation.
When the unit is in operation, you can set OFF TIMER.
When the unit is off, you can set ON TIMER.
Timer setting range is 0 to 24 hours.
If the OFF TIMER is set, the time LED displays the
remaining time to turn off the unit for only 12 seconds,
then LED shifts to display set temperature. If you press
TIMER button within the 12 seconds, OFF TIMER will be
cancelled.
_ Auto fan speed _ Cooling I--a J--I "F
Low fan speed ,_ Fan only Cl I"l h
Display set temp
,_ Medium fan speed "]_" Heating Display set timer
High fan speed 42: Energy-saving
Timer
Above LED lights on when
the relevant mode is in use.
If the ON TIMER is set, the timer LED displays the
remaining time to turn on the unit. If you want to cancel
ON TIMER, press TIMER button.
• • Button
Used to set room temperature in COOLING mode or used to set time in TIMER mode.
If the two keys are pressed at the same time, the temperature LED display will alternate between °C and °E
I NOTE: Temperature setting range is from 19°C (66°F) to 31 °C (88°F).

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page i_
OPERATINGiNSTRUCTiONS
0
0
0
0
0
Mode Power Saver
ii
0Power BUTTON
The appliance will be started when it is
energized or will be stopped when it is
in operation, if you press this button.
Mode BUTTON
Used to select the operation mode.
BUTTONS
Used to set roomtemperature in COOLING
mode or used to set time in Timer mode.
High BUTTON
Used to select the
Mid BUTTON
Used to select the
speed mode.
LOW BUTTON
Used to select the
0
0
0
Auto BUTTON
Used to select the
high fan speed mode.
mid (same as low) fan
low fan speed mode.
auto fan speed mode.
Timer BUTTON
Used to set or cancel timer operation.
Power Saver BUTTON
Used to select the Energy-saving mode.
,, hen changing modes during operation, sometimes the unit does not always
respond at once. Wait three (3) minutes.
,, Wait three (3) minutes before restarting the appliance.

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page i_
OPERATINGiNSTRUCTiONS
•How to insert the Batteries
Remove the battery cover according to the arrow direction.
Insert new batteries making sure that the (+) and (-) of
battery are matched correctly.
Reattach the cover by sliding it back into position.
Note:
Use 2LR6 AA(f.Svolt) batteries. Do not use rechargeable batteries.
Replace batteries with new ones of the same type when the display
becomes dim.
If the replacement is done within 1 minute, the remote control
will keep original presetting. (This function only for LCD remote
control)
• How to Use
To operate the room air conditioner, aim the
remote control to the signal receptor. The remote
control will operate the air conditioner at a
distance of up to 23 feet when pointing at signal
receptor of indoor unit.
Signal receptor

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page i_

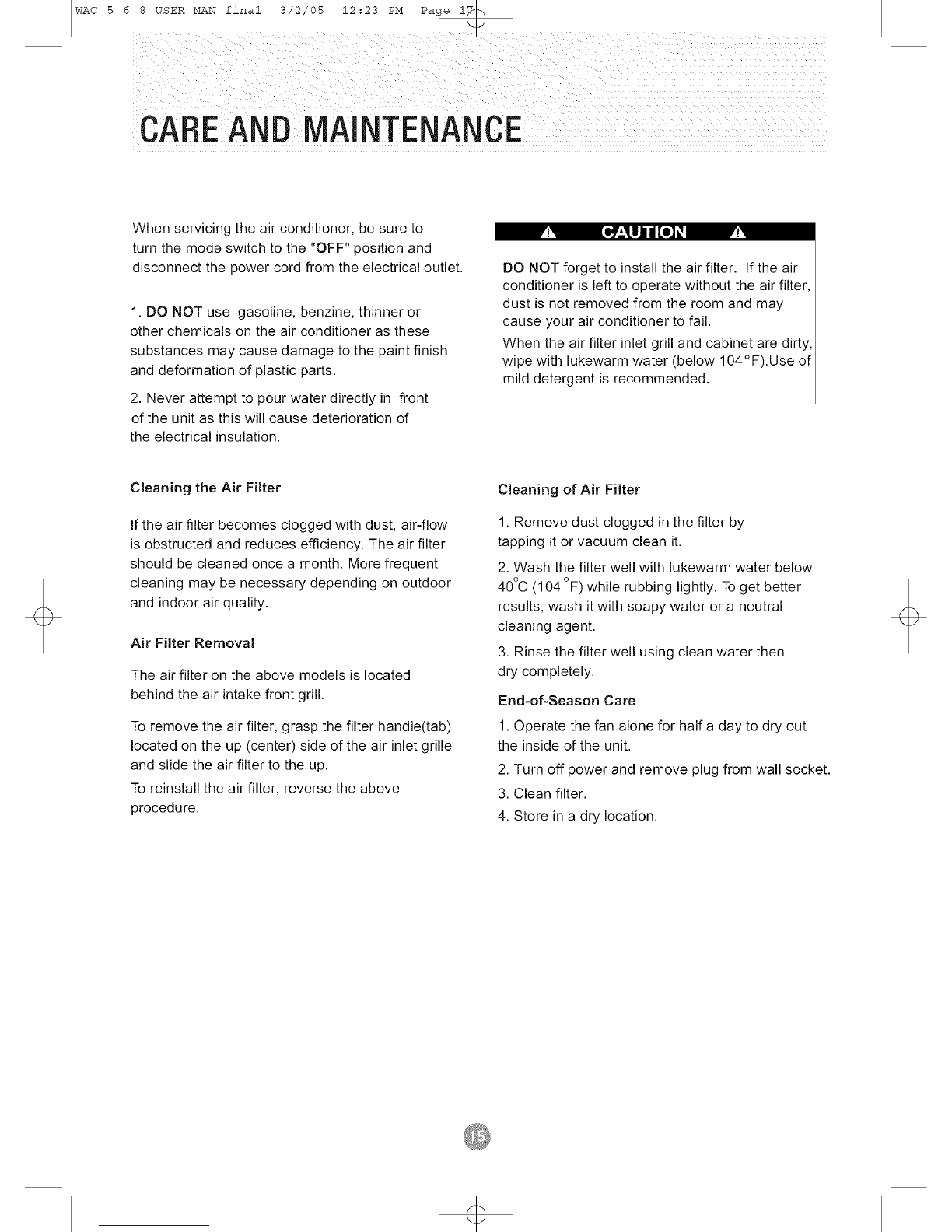

CAREAND MAINTENANCE
When servicing the air conditioner, be sure to
turn the mode switch to the "OFF" position and
disconnect the power cord from the electrical outlet.
1. DO NOT use gasoline, benzine, thinner or
other chemicals on the air conditioner as these
substances may cause damage to the paint finish
and deformation of plastic parts.
2. Never attempt to pour water directly in front
of the unit as this will cause deterioration of
the electrical insulation.
DO NOT forget to install the air filter. If the air
conditioner is left to operate without the air filter,
dust is not removed from the room and may
cause your air conditioner to fail.
When the air filter inlet grill and cabinet are dirty,
wipe with lukewarm water (below 104°F).Use of
mild detergent is recommended.
Cleaning the Air Filter
If the air filter becomes clogged with dust, air-flow
is obstructed and reduces efficiency. The air filter
should be cleaned once a month. More frequent
cleaning may be necessary depending on outdoor
and indoor air quality.
Air Filter Removal
The air filter on the above models is located
behind the air intake front grill.
To remove the air filter, grasp the filter handle(tab)
located on the up (center) side of the air inlet grille
and slide the air filter to the up.
To reinstall the air filter, reverse the above
procedure.
Cleaning of Air Filter
1. Remove dust clogged in the filter by
tapping it or vacuum clean it.
2. Wash the filter well with lukewarm water below
40°C (104 °F) while rubbing lightly. To get better
results, wash it with soapy water or a neutral
cleaning agent.
3. Rinse the filter well using clean water then
dry completely.
End-of-Season Care
1. Operate the fan alone for half a day to dry out
the inside of the unit.
2. Turn off power and remove plug from wall socket.
3. Clean filter.
4. Store in a dry location.

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page 1_
TROUBLESHOOTING GUIDE
Frequently, a problem is minor and a service call may not be necessary, use this troubleshooting guide for a
possible solution.
PROBLEM
Air conditioner will
not operate
Inefficient or no cooling
POSSIBLE CAUSE SUGGESTED SOLUTION
No power to the unit. Check connection of power cord to
power source.
Check fuse or circuit breaker.
Dirty air filter.
Inappropriate capacity
for application.
Blocked air flow.
Power interruption, settings
change too quickly, or
compressor overload tripped.
Loose parts.
Inadequate support.
Formation of mold, mildew, or
algae on wet surfaces.
Set MODE knob to position other
than "OFF".
Clean or replace air filter.
Check with dealer to determine proper unit
capacity for application.
Remove obstruction from grill or
outdoor louvers.
Let fan run to restart compressor
(in approximately 10 minutes).
Noisy unit Tighten loose parts.
Provide additional support to unit.
Odors Remove drain plug and drain base pan.
Replace drain plug.
Clean unit thoroughly.
Water dripping outside Condensation run-off is normal Add flexible tubing to redirect water flow.
during hot and humid weather
Water dripping inside Unit is not properly angled to Unit must be installed on an angle for proper
allow water to drain outside, condensation run-off. Check the unit and
make adjustments.
Ice or frost build-up Low outside temperature.
Unit air filter is dirty.
When outdoor temperature is approximately
65°F or below, frost may form when unit is in
cooling mode. Switch unit to FAN (only)
operation until frost melts.
Remove and clean filter.
NOTE:
If circuit breaker is tripped repeatedly, or fuse is blown more than once, contact a ficensed technician.

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page 1_
WARRANTY
5 YEAR FULL WARRANTY
This product is warranted for 5years from the date of original purchase. Any part
which fails in materials or workmanship will be replaced within the warranty period.
This warranty covers in home service. Acopy of your proof of purchase, with date of
purchase and product name included, is required to arrange this service repair.
For the name and location of an authorized service provider nearest you, please
CALL 1-877-465-3566. Please reference product name, brand name, and model
number when you call.
This warranty does not apply if the damage occurs because of accident, improper
handling or operation, shipping damage, abuse, misuse, unauthorized repairs
made or attempted, or the use of the product for commercial use, or any other use
for which it was not intended.
ALL WARRANTIES, EXPRESSED OR IMPLIED, LAST FOR 5 YEARS FROM THE
DATE OF ORIGINAL PURCHASE. THIS WARRANTY DOES NOT COVER
LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR ANY
CAUSE WHATSOEVER.
This warranty is extended to the original owner and any succeeding owner for
products purchased for home use within the USA. Some states do not allow the
exclusion or limitation of incidental or consequential damages. This warranty
gives you specific rights, and you may also have other rights which may vary from
state to state. To know what your legal rights are, consult your local or state
consumer affairs office or your state's Attorney General.

WAC 5 6 8 USER MAN final 3/2/05 12:23 PM Page 2 0
lntr0ducci6n
Gracias por elegir este aire acondicionado para enfriar su hogar. Este MANUAL DE USO Y MANTENIMIENTO
proporciona la informaciOn necesaria para cuidar y mantener en forma adecuada su nuevo aire acondicionado.
Funcionar(] sin problemas durante muchos afios si le brinda el mantenimiento apropiado. Para evitar
problemas al instalarlo, lea completamente las instrucciones antes de comenzar. Este manual contiene
informaci(}n acerca de la instalacion y el funcionamiento del aire acondicionado para habitaciones.
Modeio Mec nico
Panel Frontal Gabinete de Aire Vertical Tirador Controlado
Filtro deAire
(en el interior
Rejilla de
Entrada de
Aire
Palanca de Aire Fresco (s(_lo en el modelo 8K)
Entrada de
Aire Exterior
Cable de Alimentaci6n
Nota:
Las im(_genes deeste manualestan basadas en la vista externa de un modelo estdndar.
En consecuencia, es probableque la forma sea diferente a la del aire acondicionado
que usted seleccion6.

WAC 5 6 8 USER MAN final 3/2/05 12:24 PM Page 2 0
lntr0ducci6n
D, Modemo de Remoto contromador
Entrada de
Aire Inter*ar
Filtro deAire
(en el interior
Panel
Rejilla de
Entrada de
Aire Interior
Control Remoto
Aleta deAire Horizontal
AireVertical PalancadeAireFresco(s01oenelmodelo8K)
Gabinete
Panel de Control j"Cable de Alimentaci0n
Entrada de
Aire Exterior
Panel de Control Control Remoto
<
Nota:
Las im0genes de este manualestdn basadasen lavista externa de un modelo est0ndar.
En consecuencia, es probable que la forma sea diferente ala delaire acondicionado
que usted seleccionO.
