Admiral AW-05CR1FHLU User manual

Admiral
ROOM AIR CONDITIONER
Use and Care Manual
AIRE ACONDICIONADO PARA HABITACIONES
Manual de Uso y Mantenimiento
Y
=
:
:
:
Remote
control
AW-05CR1FHLU
y
4
l|
i
Mechanical control
AW-05CM1FLU
Thank you for purchasing an Admiral room air conditioner. Please read this “Use and Care Manual” carefully
before installing and using this appliance. Keep this manual for future reference.
Muchase gracias por comprar un aire acondicionado Admiral. Lea atentamente el “Manual de Uso y
Mantenimiento” antes de instalar y utilizar este producto. Conserve este manual para consultario en el futuro
For Service Call 1 877 465 3566
Para obtener servicio técnico, llame al 1877 465 3566

TABLE OF CONTENTS
Page
E a ei 2-3
Introduction and Parts Identification ............. +... .«........ 4-5
ENMGCHIGE SOBUITICOATODS: src AAA AA 6
MICRA IMM ercer a RNA AAA 7
IA rra 8-10
Operate IICA pizarra ieee See AA 11-14
A ASAS cee 15
MAN oc A Rd iaghated 16
MERO ELIANA AA ee 17
INDICE
Page
MOGUCEM secous CREAS AAA 18
IIONUTICACION de PPAR oia cra 18-19
Especificaciones A Nrern een 20
Consejos Antes COI inStniggign ¿izar 21
INSUUECIONOS DO MODOD «rr rra 22-24
RICE OC DAMA arras quaint 25-28
A A AAA a eee ae Pee ea 29
Gula Dara la SOCION GS PIODIGWIAS AR 30
AS wane eee 31

AIR CONDITIONER SAFETY
What You Need to Know About Safety Instructions
Warning and Important Safety Instructions appearing in this manual are not meant to cover
all possible conditions and situations that may occur. Common sense, caution, and care
must be exercised when operating or cleaning tools and equipment.
Always contact your dealer, distributor, service agent, or manufacturer about problems or
conditions you do not understand.
A This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
D AN GER DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
() WARNING WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
À C AUTI ON CAUTION indicated a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
CAUTION used without the safety alert symbol indicated a
CAUTION potentially hazardous situation which, if not avoided, may result in
property damage.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical
shock, or injury when using your air
44 WARNING
conditioner, follow these basic precautions:
e Plug into a grounded e Do not use an extension cord.
3-prong outlet.
e Do not remove e Unplug air conditioning
ground prong. before servicing.
* Do not use + Use two or more people to move
an adapter. and install air conditioner.
SAVE THESE INSTRUCTIONS
Po
ES

AIR CONDITIONER SAFETY
e The portable air conditioner should be connected
to a 115 V, 60 Hz, 15- or 20-amp fused 3-prong
grounded outlet.
e The use of a time-delay fuse or time-delay circuit
breaker is recommended.
e All wiring must comply with local and national
electrical codes and be installed by a qualified
electrician. If you have any questions, contact
a qualified electrician.
Electrical Requirements
A WARNING
y
ELECTRIC SHOCK HAZARD
Plug into a grounded 3-prong outlet,
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
Power Supply Cord
NOTE: Your unit's device may differ from the one shown.
A Reset Button B Test Button
This room air conditioner is equipped with a power supply cord required
by UL. This power supply cord contains state-of-the-art electronics that
sense leakage currant. If the cord is crushed, the electronics detect leakage
current and power will be disconnected in a fraction of a second.
To test your power supply cord:
1. Plug power supply cord into a grounded 3-prong outlet.
2. Press RESET,
3. Press TEST (listen for click; Reset button will trip and pop out)
4. Press and release RESET (listen for click; Reset button will latch
and remain in). The power supply cord is ready for operation,
NOTES:
* The Reset button must be pushed in for proper operation,
* The power supply cord must be replaced if it fails to trip when the
test button is pressed or fails to rest.
* Do not use the power supply cord as as an off/on switch. The
power supply cord is designed as a protective device.
* A damaged power supply cord must be replaced with a new power
supply cord obtained from the product manufacturer and must not
be repaired.
* The power supply cord contains no use serviceable parts. Opening
the tamper-resistant case voids all warranty and performance claims.
INSTALLATION INSTRUCTIONS
Unpack the Air Conditioner
AWARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and
install air conditioner.
Failure to do so can result in back or
other injury.
Remove packaging materials
* Remove and properly dispose of packaging materials.
Remove tape and glue residue from surfaces before
turning on the air conditioner. Rub a small amount
of liquid dish soap over the adhesive with your fingers.
Wipe with warm water and dry.
* Do not use sharp instruments, rubbing alcohol,
flammable fiuids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your air conditioner.
* Handle air conditioner with care.

Introduction And Parts Identification /
Thank you for choosing this room air conditioner to cool your home. This Use and Care Manual provides
information necessary for the proper care and maintenance of your new room air conditioner. If properly
maintained, your air conditioner will give you many years of trouble free operation. To avoid installation
difficulties, read instructions completely before starting. This manual contains information for the installation
and operation of your room air conditioner.
Part Identification
> for mechanical control model
Thermostat
Knob
Vertical
Air
Vane
Cabinet
FanSpeed Switch Interior t Outlet
Power Switch ^,
Air Filter
Front Panel
Air Inlet
f
A
Power Cord
Interior Air Inlet Grille
Note:
The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner you have selected.
@

Introduction And Parts Identification y
Thank you for choosing this room air conditioner to cool your home. This Use and Care Manual provides
information necessary for the proper care and maintenance of your new room air conditioner. If properly
maintained, your air conditioner will give you many years of trouble free operation. To avoid installation
difficulties, read instructions completely before starting. This manual contains information for the installation
and operation of your room air conditioner.

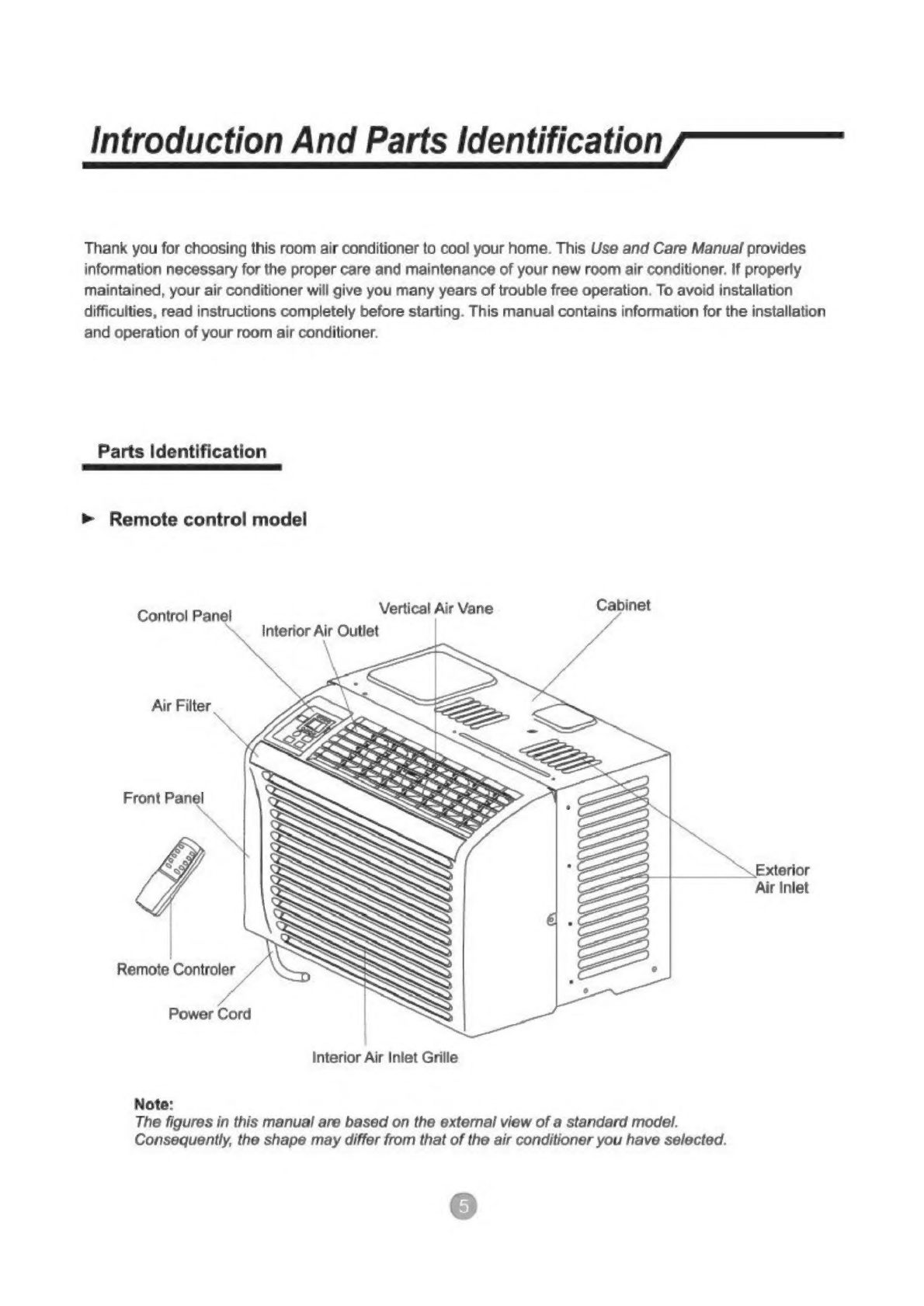

Parts Identification
AA A AAA A
> Remote control model
Control
Panel
Vertical
Air
Vane
caló
Interior
Air
Outlet
>
Air Filter
Front Panel
N
Air Inlet
Interior Air Inlet Grille
Note:
The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner you have selected.
©

Electrical Specifications
1. All wiring must comply with local and national
electrical codes and must be installed by a
qualified electrician. If you have any questions
regarding the following instructions, contact a
qualified electrician.
2. Check available power supply and resolve any
wiring problems BEFORE installing and operating
this unit.
3. For your safety and protection. This unit is
grounded through the power cord when plugged
into a matching wall outlet. /f you are not sure
whether your wall outlet is properly grounded,
please consult a qualified electrician.
4. The wall outlet must match the plug on the
service cord supplied with the unit. DO NOT use
plug adapters or extension cord.
5. The rating plate on the unit contains electrical
and other technical data. The rating plate is
located on the right side of the unit.
“y Electric Shock Hazard
If the air conditioner has a serial plate rating
up to and including 7.5 amps, the unit maybe
on a fuse or circuit breaker with other devices.
However, the maximum amps of all devices
on that fuse or circuit breaker can not exceed
the amps of the fuse of circuit breaker.
If the air conditioner has a serial plate rating
greater than 7.5 amps, it must have its own
fuse or circuit breaker, and no other device or
unit should be operated on the fuse or circuit
breaker.
To avoid the possibility of personal injury,
disconnect power to the unit before installing
or servicing.
RECEPTACLE AND FUSE TYPES
COOLING CAPACITY
5K
RATED VOLTS
AMPS
125
WALL OUTLET
FUSE SIZE
15
Time Delay Fuse
(or circuit breaker)
Plug type
Table 1

Tips before Installation
Your Room Air Conditioner unit is designed to
be highly efficient and save energy. Follow these
recommendations for greater efficiency.
1. Select thermostat setting that suits your
comfort needs and leave the thermostat at
that chosen setting.
2. The filter is very efficient in removing airborne
particles. Keep air filter clean. Normally, filter
should be cleaned once a month. More
frequent cleaning may be necessary depending
on outdoor and indoor air quality.
3. Use drapes, curtains, or shades to keep direct
sunlight from heating your room, but DO NOT
obstruct the air conditioner. Allow three(3) inches
around unit to circulate.
4. Start your air conditioner before outdoor
air becomes hot and uncomfortable. This
avoids an initial period of discomfort while
the unit is cooling off the room.
5. When outdoor temperature is cool
enough, use HI or LOW FAN ONLY.
This circulates indoor air, providing
some cooling comfort, and utilizes less
electricity than when operating on a
cooling setting.
Your Room Air Conditioner was designed
for easy installation in a single or double-hung
window. NOTE: This unit is NOT designed for
vertical (slider type) windows.
To avoid installation/operating difficulties,
_ read the instructions thoroughly.
NOTE: Save the shipping carton and packing
materials for future storage or transport of the unit.
Please check the contents of hardware kit against
the corresponding model check list, prior to
installation of the unit.
See lists below.
Installation Hardware
(== 3/4"Screws (7) Seal(1)
me 2/5"Screws (11) Foam(1)
>, Top Channel(1) Side Curtain RH(1)
“=
Channel
Seal(1)
Side
Curtain
LH(1)
<> L Bracket(2)
NOTE: Surplus screw(s) for spare use.
Tools Needed for Window Installation
Screw drivers: Both Philips and flat head
Power drill: 1/8 inch diameter drill bit
Pencil
Measuring tape
Scissors
Cutter
Carpenters level

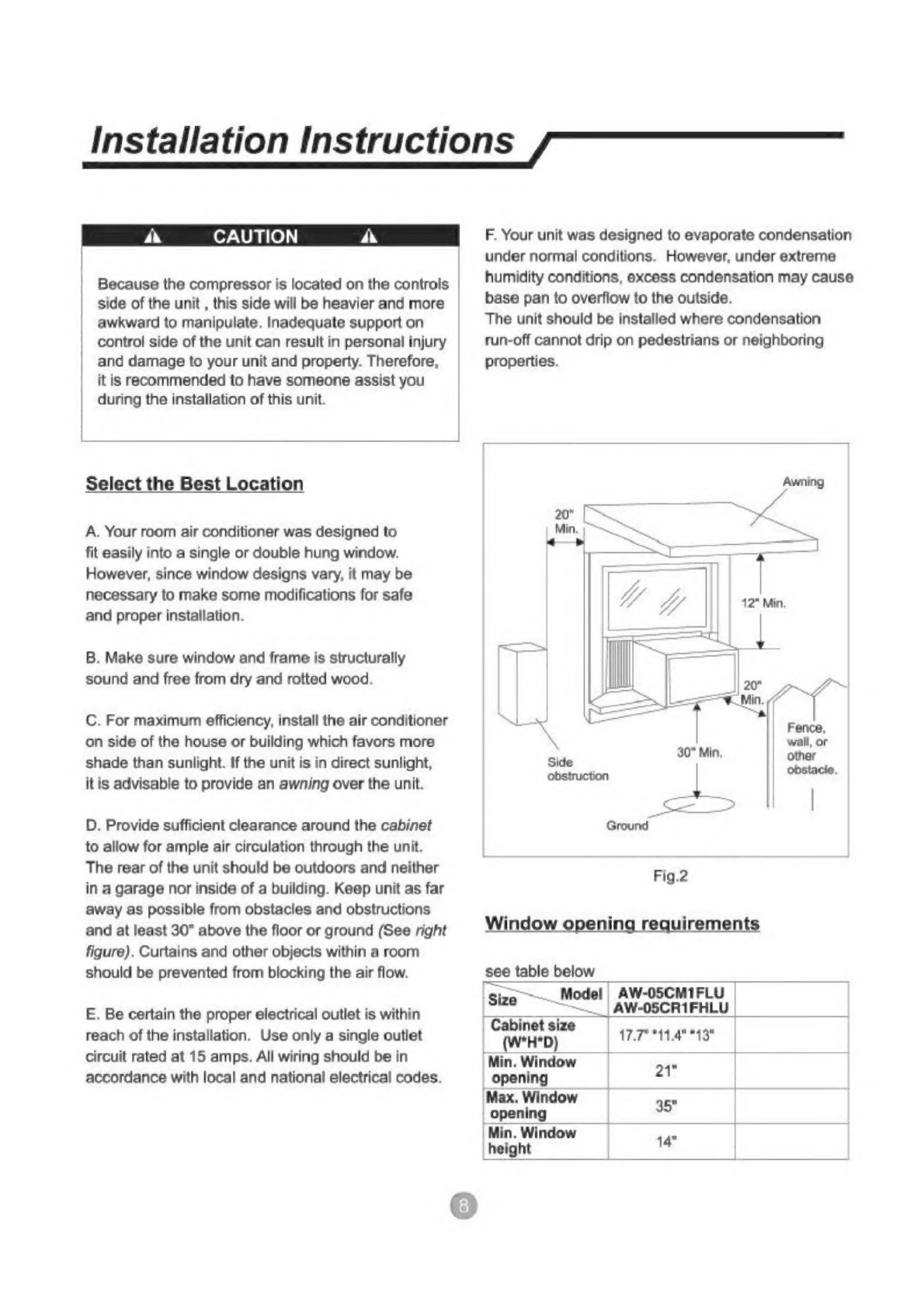

Installation Instructions
A CAUTION dh
Because the compressor is located on the controls
side of the unit , this side will be heavier and more
awkward to manipulate. Inadequate support on
control side of the unit can result in personal injury
and damage to your unit and property. Therefore,
itis recommended to have someone assist you
during the installation of this unit.
Select the Best Location
A. Your room air conditioner was designed to
fit easily into a single or double hung window.
However, since window designs vary, it may be
necessary to make some modifications for safe
and proper installation.
B. Make sure window and frame is structurally
sound and free from dry and rotted wood.
C. For maximum efficiency, install the air conditioner
on side of the house or building which favors more
shade than sunlight. If the unit is in direct sunlight,
itis advisable to provide an awning over the unit.
D. Provide sufficient clearance around the cabinet
to allow for ample air circulation through the unit.
The rear of the unit should be outdoors and neither
in a garage nor inside of a building. Keep unit as far
away as possible from obstacles and obstructions
and at least 30" above the floor or ground (See right
figure). Curtains and other objects within a room
should be prevented from blocking the air flow.
E. Be certain the proper electrical outlet is within
reach of the installation. Use only a single outlet
circuit rated at 15 amps. All wiring should be in
accordance with local and national electrical codes.
©
F. Your unit was designed to evaporate condensation
under normal conditions. However, under extreme
humidity conditions, excess condensation may cause
base pan to overflow to the outside.
The unit should be installed where condensation
run-off cannot drip on pedestrians or neighboring
properties.
Awning
20" [
Min. | es
A]
A a
E Fence,
\ wall, or
Side other
Fig.2
see table below
Size — Model | AW-05CM1FLU
Re | AW-05CR1FHLU
MD) 47.7" "41.4" "13"
Min. Window | 24"
Opening
¡Max. Window 35"
opening |
Min. Window | 14"
¡height

Installation Instructions
Window installation step
1. If your air conditioner cabinet 17.7" wide, it will fit
window openings 21" to 35" in wide. Minimum
opening height is 14" from bottom of sash to sill.
See Fig. 1.
2. Attach the channel seal to the channel bottom,
and install the top channel to the air conditioner with
screws, and insert the guides of the curtain frame into
the guides of the unit, then fasten the curtains to the
unit with screws. See Fig. 2.
If the guide of the curtain frame presents interference
with the base pan, cut the guide to proper length.
3. Cut the adhesive-backed seal strip the window width.
Remove the backing from the seal strip and attach
the seal strip to the underside of the bottom window.
See Fig. 3.
4. Measure the inside window sill width and find
the center line as shown in Fig. 4.

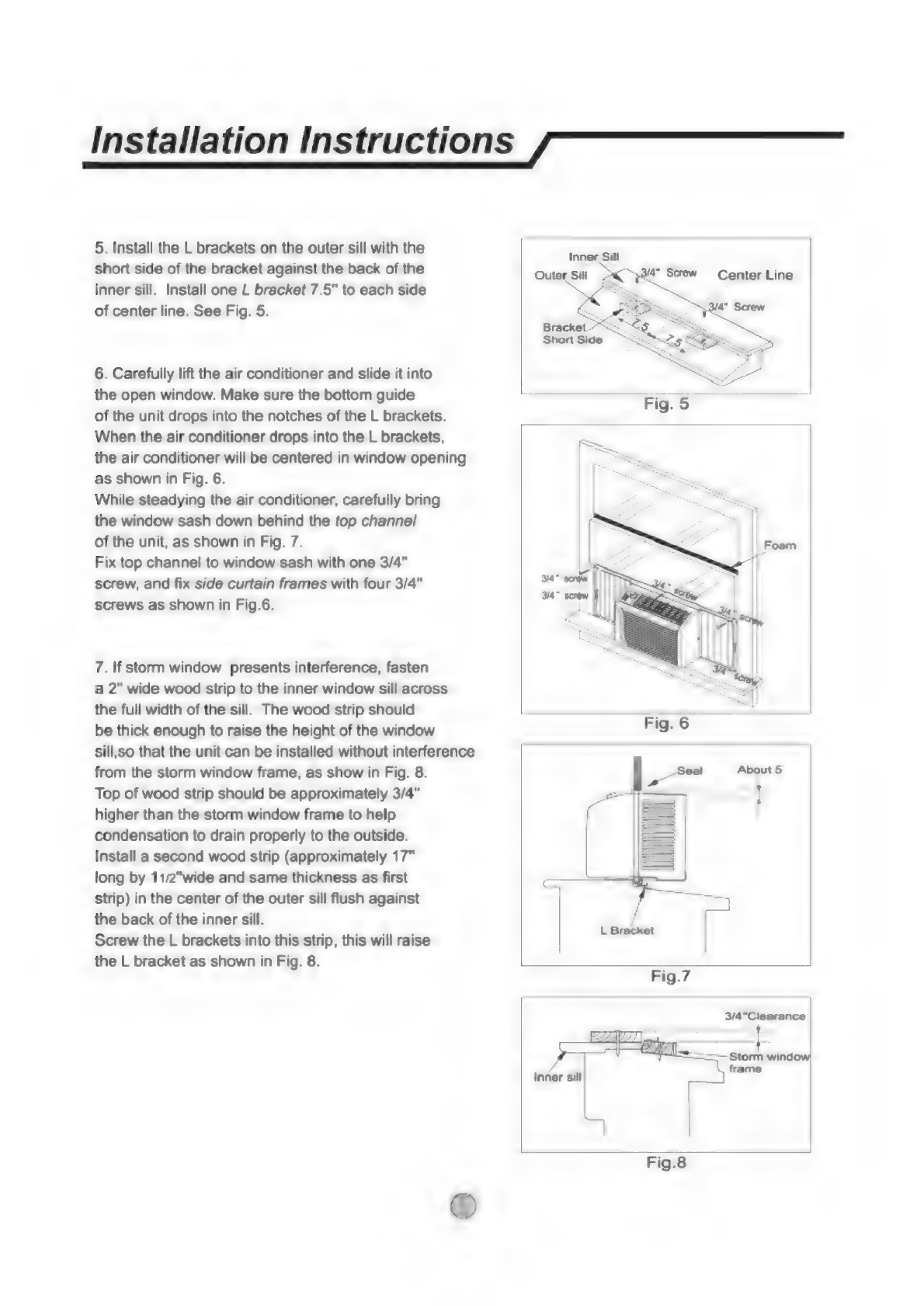

Installation Instructions
5. Install the L brackets on the outer sill with the
short side of the bracket against the back of the
inner sill. Install one L bracket 7.5" to each side
of center line. See Fig. 5.
Inner Sill
4° Screw Center Line
6. Carefully lift the air conditioner and slide it into
the open window. Make sure the bottom guide 5
of the unit drops into the notches of the L brackets.
When the air conditioner drops into the L brackets, y
the air conditioner will be centered in window opening Sq
as shown in Fig. 6.
While steadying the air conditioner, carefully bring
the window sash down behind the top channel
of the unit, as shown in Fig. 7.
Fix top channel to window sash with one 3/4"
screw, and fix side curtain frames with four 3/4"
screws as shown in Fig.6.
7. If storm window presents interference, fasten
a 2" wide wood strip to the inner window sill across
the full width of the sill. The wood strip should
be thick enough to raise the height of the window
sill,so that the unit can be installed without interference
from the storm window frame, as show in Fig. 8.
Top of wood strip should be approximately 3/4"
higher than the storm window frame to help
condensation to drain properly to the outside.
Install a second wood strip (approximately 17"
long by 11/2"wide and same thickness as first
strip) in the center of the outer sill flush against
the back of the inner sill.
Screw the L brackets into this strip, this will raise
the L bracket as shown in Fig. 8.
Fig.8

Operating Instructions
> Mechanical control model
Power
ON will star the air conditioner ,
OFF will completely shut-off the unit,
See Fig.9.
Fan Only
Rotate the knob dial to the Fan Only mark, the unit
will circulate the air without cooling.
See Fig.9.
Cooler
Rotate the knob dial to the Cooler marks, the unit
will circulate the air with cooling.
To set desired cooling temperature, simply rotate
the knob to the appropriate setting. The thermostat
will automatically controls the cooling cycle of the
air conditioner to maintain room temperature,
However, the fan motor will continue to operate after
the compressor is completed.
See Fig.9.
Fan Speed
LOW will circulate the air at a minimum speed with
cooling or not. Recommended for night-time use.
HI will circulate the air at a maximum speed with
cooling or not.
NOTE: After setting the mode, allow 3 minutes
before switching to another mode.
Thermostat knob
Woit Three Minutes
Before Restarting
y
switch Fig.9
A CAUTION A
| When using FAN control, turn slowly allowing
| unit to adjust.
When using THERMOSTAT, be sure to allow
3 minutes before changing temperature.
Adjusting too quickly may cause an overload
resulting in a blown fuse.

Operating Instructions
> Control Panel
You can easily operate this air conditioner by press relevant
button on the control panel as well as the remote control.
ON/OFF
The air conditioner will be started when it is energized or will
be stopped when it is in operation, if you press this button.
MODE
Each time Mode button is pressed, the operation mode is
changed in sequence:
COOLING -FAN ONLY -> ENERGY SAVING -+ COOLING
NOTE: After setting the mode, allow 3 minutes before
switching to another mode.
In the FAN ONLY Mode , Room Temperature display range
is from 0'C(32T) to 38 (99T ).
Room Temperature below 0'C the Temperature display LO.
Room Temperature above 38'C,the Temperature display H1.
FAN SPEED
Used to select fan speed in sequence AUTO, LOW,MEDIUM
and HIGH.
TIMER (this button is not available on the control panel)
Used to set or cancel timer operation.
When the unit is in operation, you can set OFF TIMER.
When the unit is off, you can set ON TIMER. Timer setting
range is 0 to 24 hours.
If the OFF TIMER is set, the timer LED displays the
remaining time to turn off the unit for only 12 seconds, then
LED shifts to display set temperature. If you press TIMER
button within the 12 seconds,OFF TIMER will be canceled.
If the ON TIMER is set, the timer LED displays the
remaining time to turn on the unit. If you want to cancel
ON TIMER, press TIMER button.
AY
Used to set room temperature in COOLING mode or used
to set time in TIMER mode.
If the two keys are pressed at the same time ,the
temperature LED display will alternate between T and F.
But the mark of "C"or""F"you can not change. Usually,
those models used 220V~/50Hz marked with "C", other
models marked with "F".
NOTE: Temperature setting range is from 19'C (66F ) to
31°C (88F ).
Control Panel
TN,
\
CASO
(4) 18842) (7)
BEBE
i i 4 `
( )] JONO F
(FAN) Gp.
SPEED. MODE
Indication symbols of LED on control panel :
F
HR
Display set temp
Display set timer
& Cooling & Auto fan speed
4 Fan only B Low fan speed
‘ Energy-saving $ Medium fan speed
© Timer $ High fan speed
Above LED lights on when the relevant mode is in used.

Operating Instructions
» Remote control
The remote control transmits signals to the system.
Temp/Time
902 909279090 9 9 G@ ES
Power button
The appliance will be started when it is ener-
gized or will be stopped when it is in operati-
on, if you press this button.
Timer button
Used to set or cancel timer operation.
Mode button
Used to select the operation mode.
Power Saver button
Used to select the Energy-saving mode.
Auto button
Used to select the Auto fan speed mode.
Mid button
Used to select the Mid fan speed mode,
High button
Used to select the high fan speed mode.
Low button
Used to select the Low fan speed mode.
— + buttons
Used to set room temperature in COOLING
mode or used to set time in TIMER mode.
NOTE:1.Changing modes during operation, sometimes the unit does not response at once. Wait 3 minutes.
2.Wait 3 minutes before restarting the appliance.
®

Operating Instructions
> Remote control
How to Insert Batteries
Remove the battery cover according to the arrow direction.
Insert new batteries making sure that the (+) and (-) of battery
are matched correctly.
Reattach the cover by sliding it back into position.
Note:
* Use 2 LR6 AA(1.5volt) batteries. Do not use rechargeable batteries. Re-
place batteries with new ones of the same type when the display beco-
mes dim.
* Do not mix old batteries with new ones .Dispose of one old batteries
properly.
+ If the replacement is done within 1 minute, the remote control
will keep original presetting.
How to Use
To operate the room air conditioner , aim the remote control
to the signal receptor.
The remote control will operate the air conditioner at a dis-
tance of up to 23 feet when pointing at signal receptor of indoor
unit.
Signal receptor

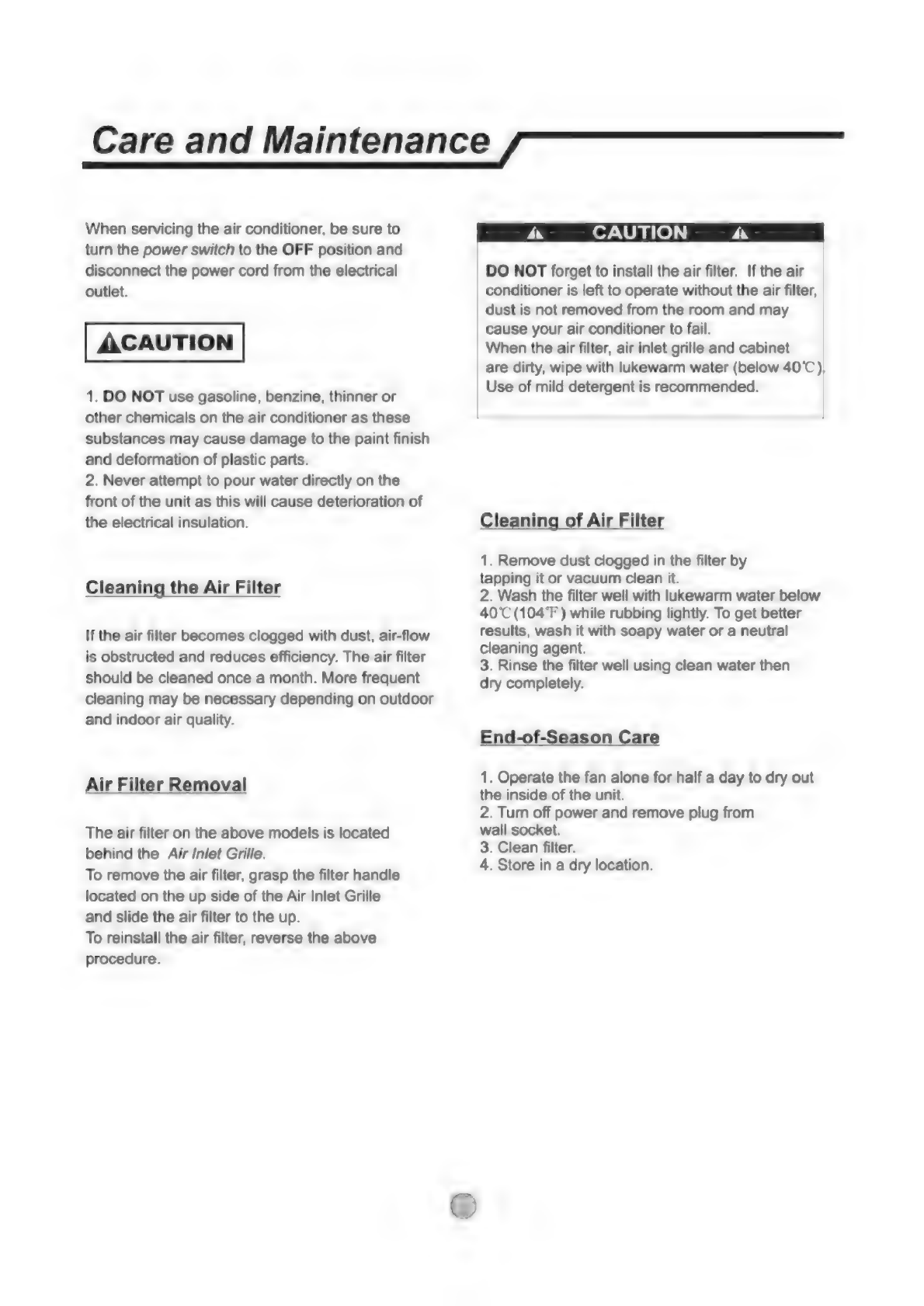

Care and Maintenance
When servicing the air conditioner, be sure to
turn the power switch to the OFF position and
disconnect the power cord from the electrical
outlet.
ACAUTION
1, DO NOT use gasoline, benzine, thinner or
other chemicals on the air conditioner as these
substances may cause damage to the paint finish
and deformation of plastic parts.
2. Never attempt to pour water directly on the
front of the unit as this will cause deterioration of
the electrical insulation.
Cleaning the Air Filter
If the air filter becomes clogged with dust, air-flow
is obstructed and reduces efficiency. The air filter
should be cleaned once a month. More frequent
cleaning may be necessary depending on outdoor
and indoor air quality.
Air Filter Removal
The air filter on the above models is located
behind the Air Inlet Grille.
To remove the air filter, grasp the filter handle
located on the up side of the Air Inlet Grille
and slide the air filter to the up.
To reinstall the air filter, reverse the above
procedure.
dh. CAUTION dh.
DO NOT forget to install the air filter. If the air
conditioner is left to operate without the air filter,
dust is not removed from the room and may
cause your air conditioner to fail.
When the air filter, air inlet grille and cabinet
are dirty, wipe with lukewarm water (below 40°C),
Use of mild detergent is recommended.
Cleanina of Air Fil
1. Remove dust clogged in the filter by
tapping it or vacuum clean it.
2. Wash the filter well with lukewarm water below
40°C (104 ) while rubbing lightly. To get better
results, wash it with soapy water or a neutral
cleaning agent.
3. Rinse the filter well using clean water then
dry completely.
End-of-Season Care
1. Operate the fan alone for half a day to dry out
the inside of the unit.
2. Turn off power and remove plug from
wall socket,
3. Clean filter.
4. Store in a dry location.

Troubleshooting Guide
Frequently, a problem is minor and a service call may not be necessary, use this troubleshooting guide for a
possible solution.
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION
Air conditioner will | No power to the unit. Check connection of power cord to
not operate power source.
Check fuse or circuit breaker.
Turn the power switch to ON.
|
Inefficient or no cooling | Dirty air filter. Clean or replace air filter.
Inappropriate capacity Check with dealer to determine proper unit
for application. capacity for application.
Blocked air flow. Remove obstruction from grille or
outdoor louvers,
Power interruption, settings Let fan run to restart compressor
change too quickly, or (in approximately 10 minutes).
compressor overload tripped.
Noisy unit | Loose parts. Tighten loose parts.
| Inadequate support. Provide additional support to unit.
Odors Formation of mold, mildew, or | Remove drain plug and drain base pan.
algae on wet surfaces. Replace drain plug.
Clean unit thoroughly.
E A — Y — — -i
Water dripping outside | Condensation run-off is normal | Add flexible tubing to redirect water flow.
during hot and humid weather
Water dripping inside | Unit is not properly angled to Unit must be installed on an angle for proper
allow water to drain outside. condensation run-off. Check the unit and
make adjustments.
Ice
or
frost
build-up
_
Low
outside
temperature.
When
outdoor
temperature
is
approximately
65°F or below, frost may form when unit is in
cooling mode. Switch unit to FAN ONLY
operation until frost melts.
| Unit air filter is dirty. Remove and clean filter.
NOTE:
If circuit breaker is tripped repeatedly, or fuse is blown more than once, contact a qualified technician.
©

WARRANTY
1.One year full warranty
For one year from the date of purchase by the original owner, any part which
fails in materials or workmanship under normal use, the part will be replaced.
During this period, all parts and service will be provided free of charge, so
long as the air conditioner has been installed and operated in accordance with
the written instructions in this manual. This warranty includes in home service.
2.Limited second through third year warranty
For the second through the third year from date of original purchase, this
warranty will provide a replacement compressor free of charge due to
product failure. The customer will be responsible for the labor charges related
to replacing the compressor in years two through three. The consumer is
responsible for the service labor and possible freight charges for shipping
the unit. Cost to move the air conditioner to the servicers’ shop and back to
the user’s home may be required and are the user’s responsibility.
3.What is not covered
e This warranty does not apply if damage occurs because of accident,
improper handling or operation, shipping damage, abuse, misuse,
unauthorized repairs made or attempted, commercial use of the product
or any other use for which it was not intended.
e This warranty does not apply to damage to the product caused by accident,
fire, floods, acts of war, terrorism, or acts of God.
@ This warranty does not cover service trips to your home to educate you on
the use of the product, or loss of food and drink due to spoilage.
e This warranty does not apply outside the continental United States.
e ALL WARRANTIES, EXPRESSED OR IMPLIED, LAST FOR 3 YEARS FROM
THE DATE OF ORIGINAL PURCHASE THIS WARRANTY DOES NOT COVER
LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR ANY
CAUSE WHATSOEVER.
e This warranty is to the original owner for products purchased for home use
within the USA. Some state do not allow the exclusive or limitation of
incidental damages. This warranty gives you specific rights, and you may
also have other rights which may vary from state to state. To know what
your legal rights are, consult your local or state consumers affairs office
or your state's Attorney General.
m
wW

Introducción
Gracias por elegir este aire acondicionado para enfriar su hogar. Este MANUAL DE USO Y MANTENIMIENTO
proporciona la información necesaria para cuidar y mantener en forma adecuada su nuevo aire acondicionado.
Funcionará sin problemas durante muchos años si le brinda el mantenimiento apropiado. Para evitar
problemas al instalarlo, lea completamente las instrucciones antes de comenzar. Este manual contiene
información acerca de la instalación y el funcionamiento del aire acondicionado para habitaciones.
»> Identificación de las Piezas
> Modelo Mec nico
Aleta de Aire Vertical
Rejilla
de
Ventilación
Gabinete
de Aire Interior
Termostato Controlado
Interruptor de FanSpeed
Interruptor de Energra
Filtro de Aire
(en el interior)
Entrada de
Panel Frontal Aire Exterior
Rejilla de Ventilacion
de Aire Interior
Cable de Alimentación
Nota:
Las imágenes de este manual están basadas en la vista externa de un modelo estándar.
En consecuencia, es probable que la forma sea diferente a la del aire acondicionado
que usted seleccionó.

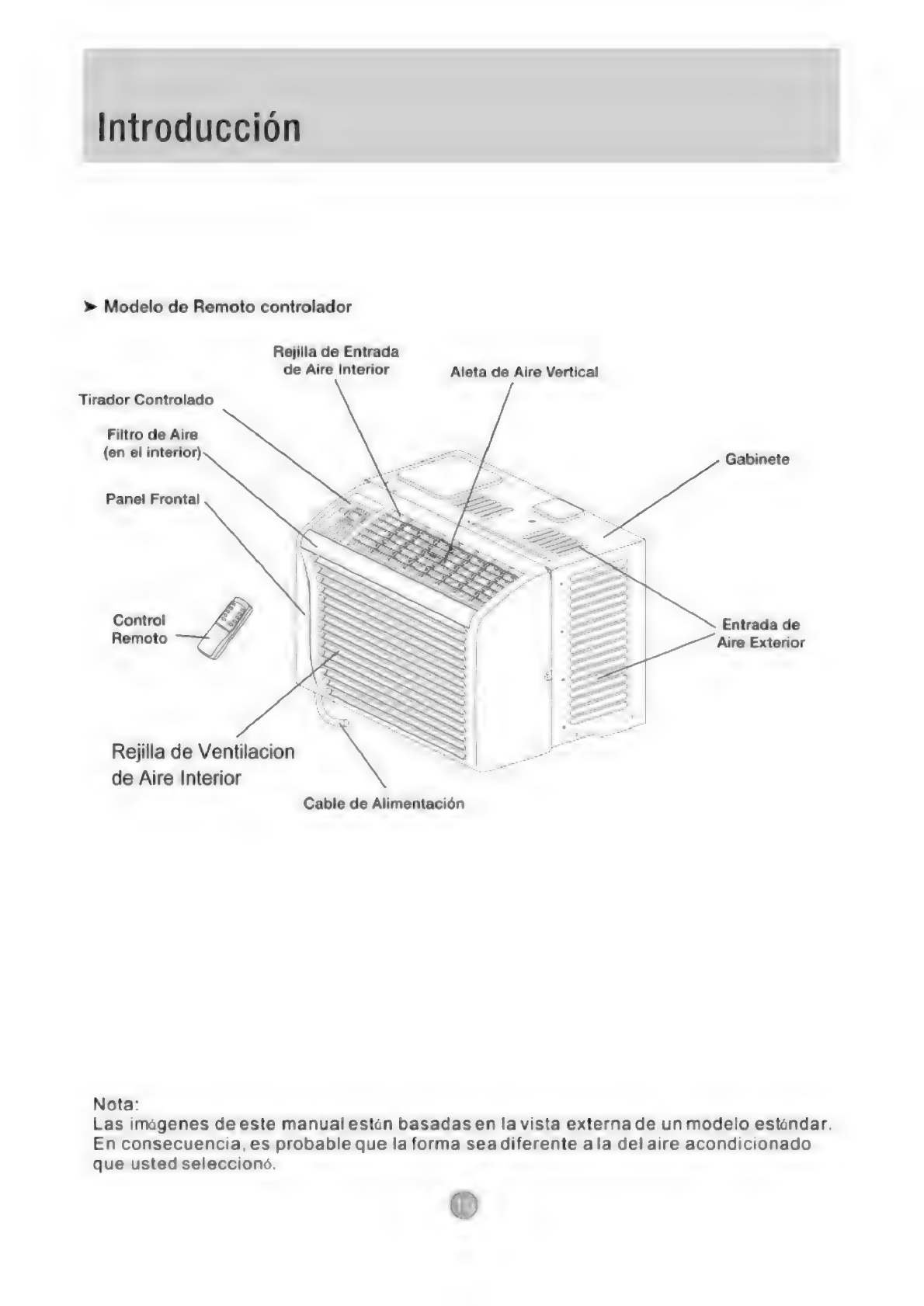

» Modelo de Remoto controlador
Rejilla de Entrada
de Aire Interior Aleta de Aire Vertical
Tirador Controlado
Filtro de Aire
Gabinete
Entrada de
Aire Exterior
Control
Remoto
Rejilla de Ventilacion
de Aire Interior
Cable de Alimentación
Nota:
Las imágenes de este manual están basadas en la vista externa de un modelo estándar.
En consecuencia, es probable que la forma sea diferente ala del aire acondicionado
que usted seleccionó.
