Admiral AAW-08CR1FHUE User manual

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PM Page i

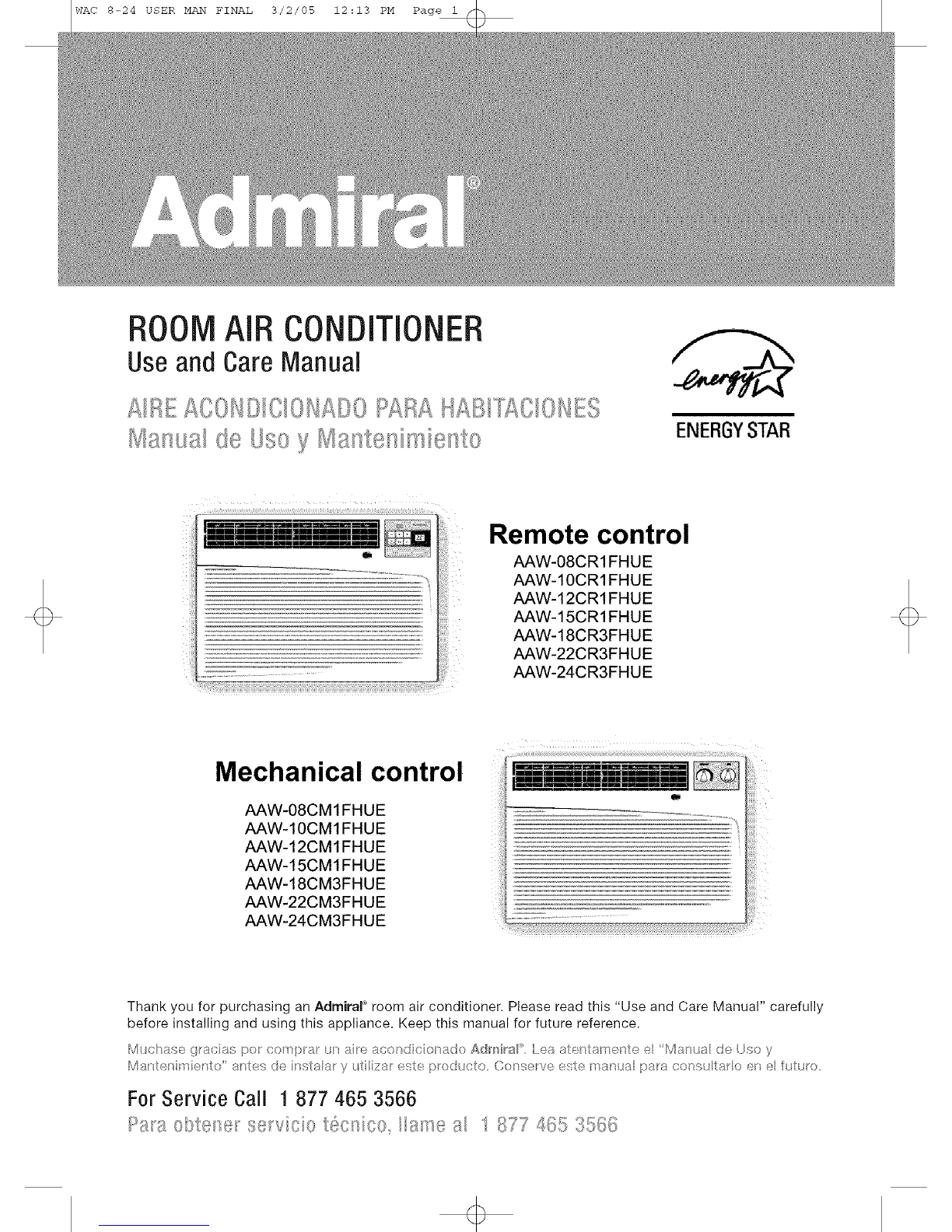

ROOMAIRCONDITIONER
Use and Care Manual
ENERGYSTAR
: !iiiiiiiiiii
i ............................. i i(i(i(i(i(i_i
Remote control
AAW-08CR1FHUE
AAW-10CR1FHUE
AAW-12CR1FHUE
AAW-15CR1FHUE
AAW-18CR3FHUE
AAW-22CR3FHUE
AAW-24CR3FHUE
Mechanical control
AAW-08CM 1FH UE
AAW-10CM1FHUE
AAW-12CMIFHUE
AAW-15CMIFHUE
AAW-18CM3FHUE
AAW-22CM3FHUE
AAW-24CM3FHUE
......, _ _(_(_ _;;;;;;;;;;;;;;;;;;;;;; ;£(%8¸;_8_<; <_;%_i
_!i_!i_!ii!iiii!
Thank you for purchasing an Admiral '_room air conditioner. Please read this "Use and Care Manual" carefully
before installing and using this appliance. Keep this manual for future reference.
M <hasef:_a:asp> cor_ _a_ a e acor/dco a< _Admi_al Leaae/!amer_te_ Man a de Jsoy
Ma e_ /_ enlo a esde nslaa_y t za eslep_odsclo Censeveesle_a_ sa pa_aco ss a_oe_ e _ Iso
For Service Call 1 877 465 3566
<,, Y ..IX.C {... (!i'<,_ J// "'_0oo,._<;,..,

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PM Page 3

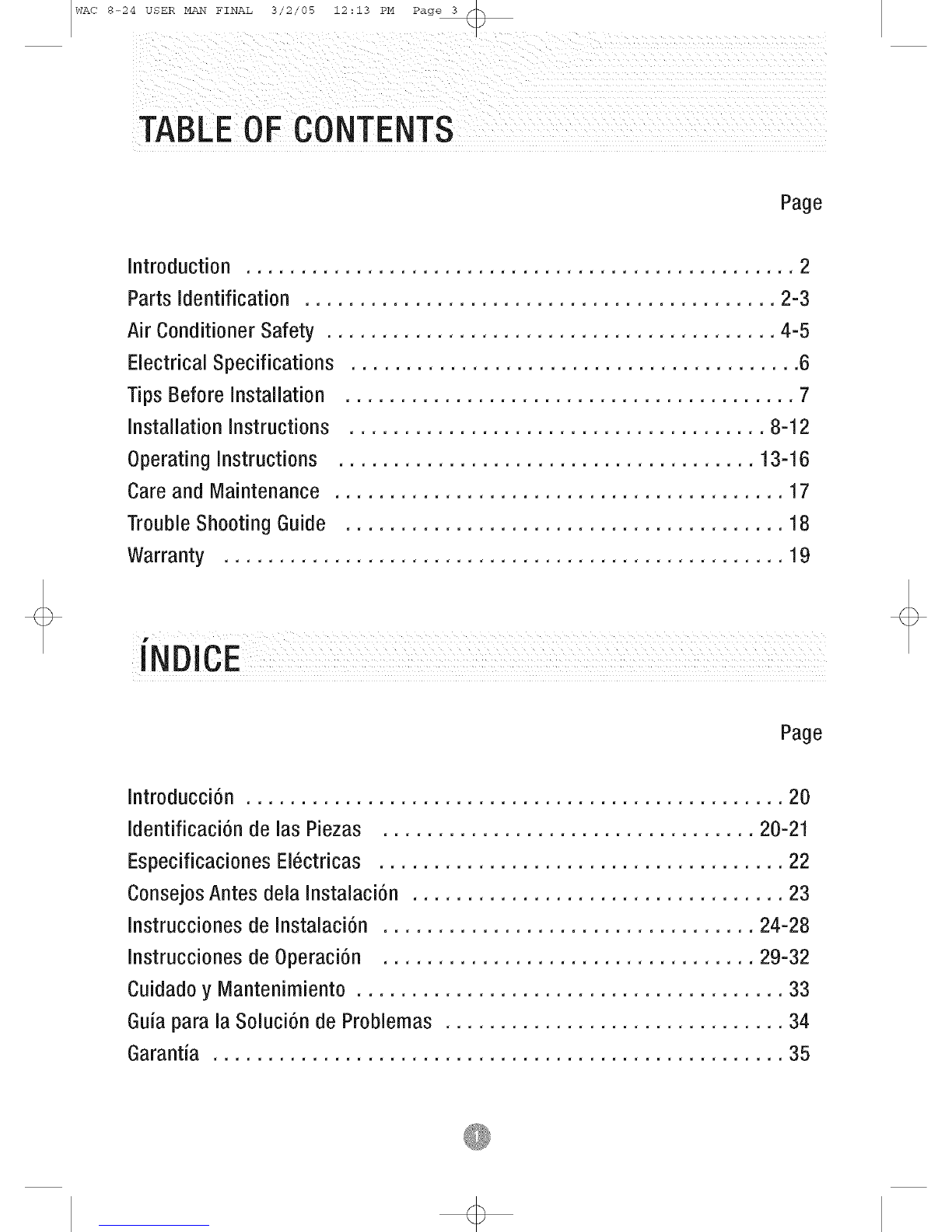

Page
Introduction .................................................. 2
Parts Identification ........................................... 2-3
Air Conditioner Safety ......................................... 4-5
Electrical Specifications
Tips Before Installation
Installation Instructions
Operating Instructions
Care and Maintenance
Trouble Shooting Guide
Warranty
...................................... 8-12
...................................... 13-16
......................................... 17
........................................ 18
................................................... 19
Page
Introducci6n ................................................. 20
Identificaci6n de las Piezas .................................. 20-21
Especificaciones EI6ctricas ..................................... 22
Consejos Antes dela Instalaci6n .................................. 23
Instrucciones de Instalaci6n .................................. 24-28
Instrucciones de Operaci6n .................................. 29-32
Cuidado y Mantenimiento ....................................... 33
Guia para la Soluci6n de Problemas ............................... 34
Garantia .................................................... 35

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PM Page 4 O

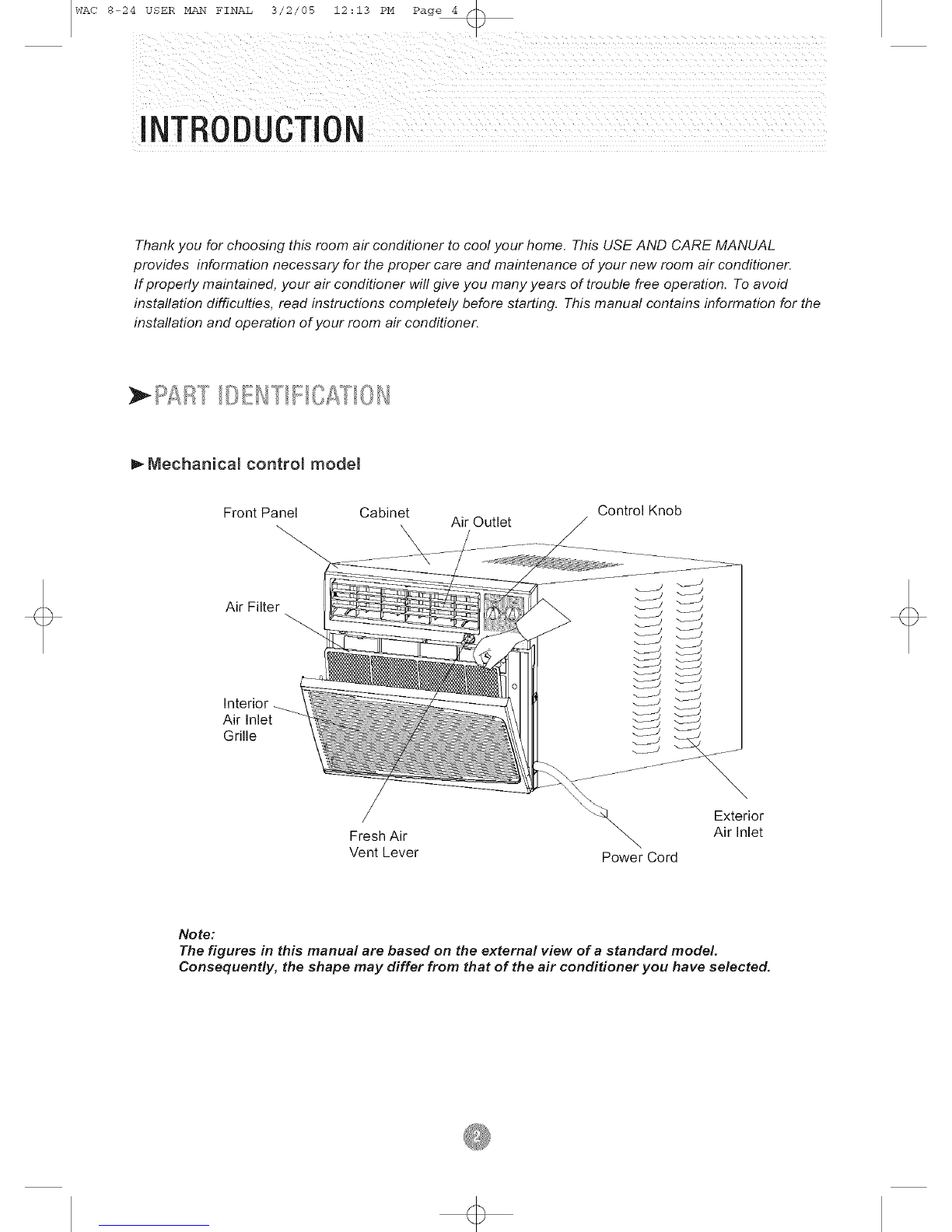

INTRODUCTION
Thank you for choosing this room air conditioner to cool your home. This USE AND CARE MANUAL
provides information necessary for the proper care and maintenance of your new room air conditioner.
If properly maintained, your air conditioner will give you many years of trouble free operation. To avoid
instaflation difficulties, read instructions completely before starting. This manual contains information for the
instaflation and operation of your room air conditioner.
Mechanicam control modem
Front Panel Cabinet Control Knob
Air Outlet
Air Filter
Air Inlet
Grille
Fresh Air
Vent Lever
Exterior
Air Inlet
Power Cord
Note:
The figures in this manual are based on the external view of a standard model,
Consequently, the shape may differ from that of the air conditioner you have selected,

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PM Page 5 Q

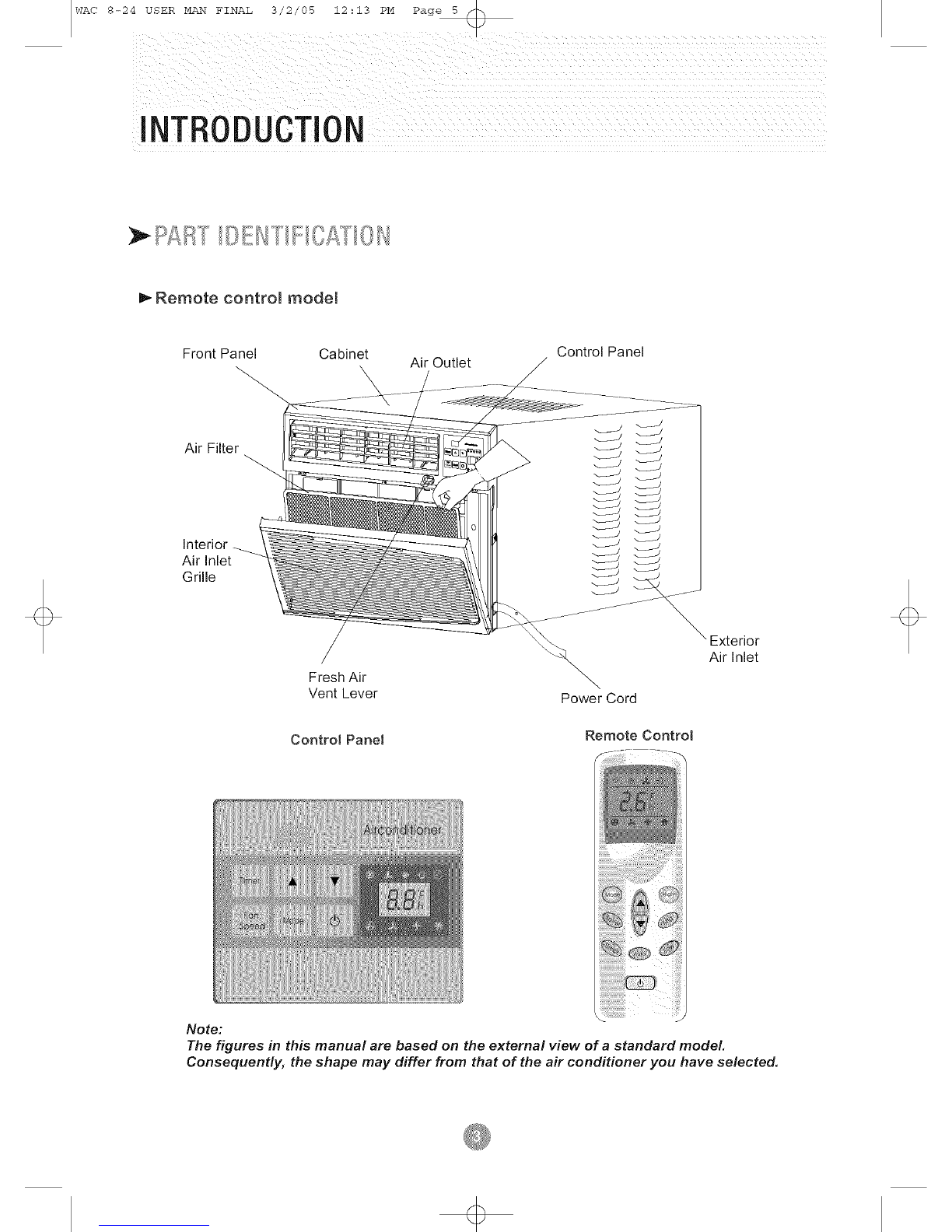

INTRODUCTION
m,-Remote control modeJ
Front Panel Cabinet Control Panel
Air Outlet
Air Filter
Interior
Air Inlet
Grille
Fresh Air
Vent Lever
ControJ PaneJ
Exterior
Air Inlet
Power Cord
Remote ControJ
@iiiii',
Note:
The figures in this manual are based on the external view of astandard model,
Consequently, the shape may differ from that of the air conditioner you have selected.

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PM Page 6 Q
AiR CONDiTiONERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey
all safety messages.
This is the SAFETY ALERT SYMBOL.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously inured if you don't
immediately follow instructions.
You can be killed or seriously inured if you
don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
!IVlPORTANTSAFETYiNSTRUCTIONS
WARNING:To reduce the risk of fire, electrical shock, or
injury when using your air conditioner, follow these basic
precautions:
• Plug into a grounded 3-prong outlet.
• Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Unplug air conditioning before
servicing.
Use two or more people to
move and install air conditioner.
mSAVE THESE INSTRUCTIONS

WAC 8-24 USER MAN FINAL 3/2/@5 12:13 PM Page 7 O

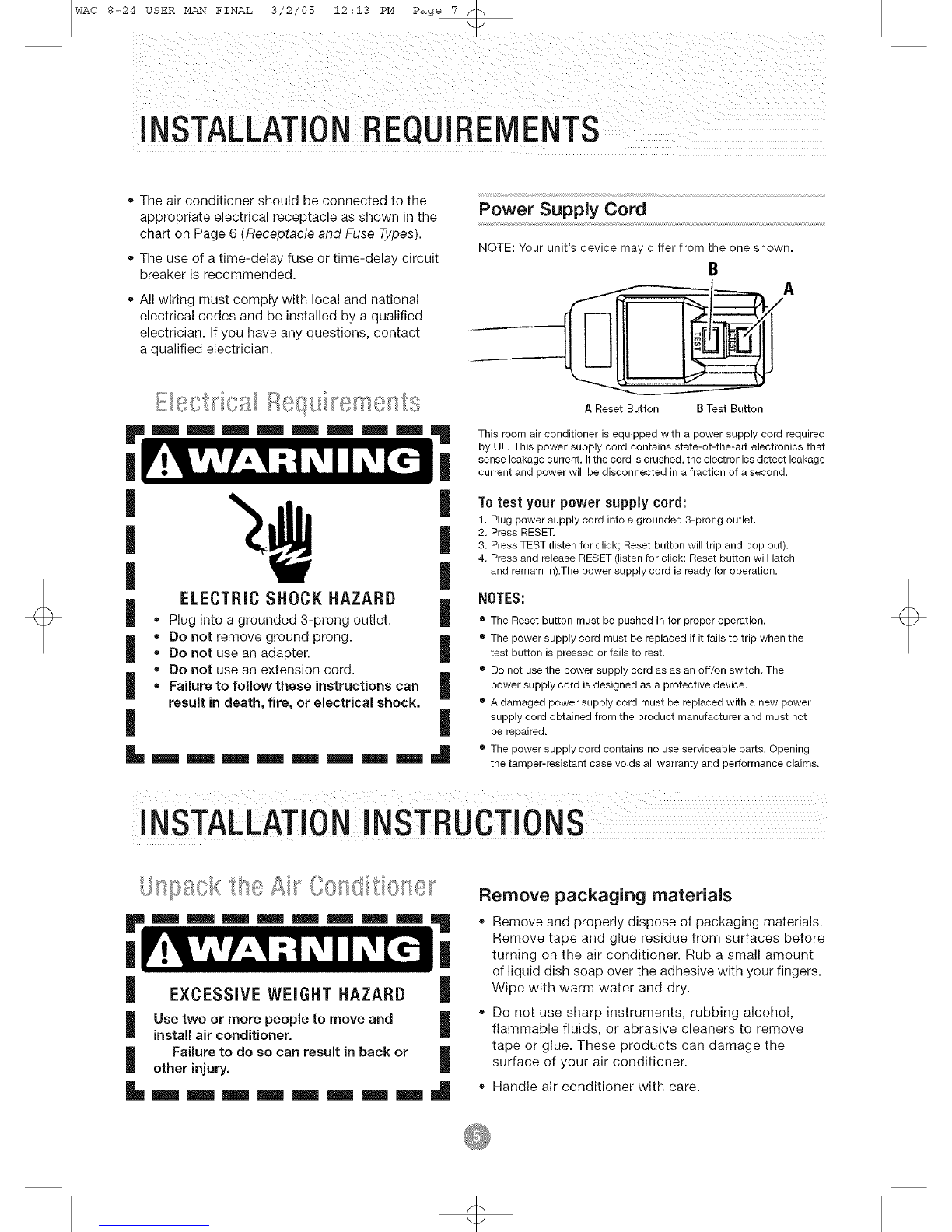

INSTALLATIONREQUIREMENTS
o
o
The air conditioner should be connected to the
appropriate electrical receptacle as shown in the
chart on Page 6 (Receptacle and Fuse Types).
The use of a time-delay fuse or time-delay circuit
breaker is recommended.
All wiring must comply with local and national
electrical codes and be installed by a qualified
electrician. If you have any questions, contact
a qualified electrician.
ELECTRIC SHOCK HAZARD
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
•Do not use an extension cord.
• Failure to follow these instructions can
result in death, fire, or electrical shock.
|
|
|
|
|
|
|
|
_mmmmmmmml_
Power Supply Cord
NOTE:Your unit's device may differ from the one shown.
B
AReset Button BTest Button
This room air conditioner is equipped with a power supply cord required
by UL This power supply cord contains state-of-the-art electronics that
sense leakage current. If the cord is crushed, the electronics detect leakage
current and power will be disconnected in a fraction of a second.
To test your power supply cord:
1. Plug power supply cord into a grounded 3-prong outlet.
2. Press RESET.
3. Press TEST (listen for click; Reset button will trip and pop out).
4. Press and release RESET (listen for click; Reset button will latch
and remain in).The power supply cord is ready for operation.
NOTES:
• The Reset button must be pushed in for proper operation.
• The power supply cord must be replaced if it fails to trip when the
test button is pressed or fails to rest,
•Do not use the power supply cord as as an off/on switch, The
power supply cord is designed as a protective device,
• A damaged power supply cord must be replaced with a new power
supply cord obtained from the product manufacturer and must not
be repaired.
•The power supply cord contains no use serviceable parts, Opening
the tamper-resistant case voids all warranty and performance claims.
INSTALLAT! !N INSTRUCTION
EXCESSIVE WEIGHT HAZARD I
Use two or more people to move and I
install air conditioner.
Failure to do so can result in back or I
other injury.
L ,,,, .,, .,, .,, ,,,, ,,,, ,,,, ,,,, .i
Remove packaging materials
= Remove and properly dispose of packaging materials.
Remove tape and glue residue from surfaces before
turning on the air conditioner. Rub a small amount
of liquid dish soap over the adhesive with your fingers.
Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your air conditioner.
Handle air conditioner with care.

WAC 8-24 USER MAN FINAL 3/2/@5 12:13 PM Page 8 O

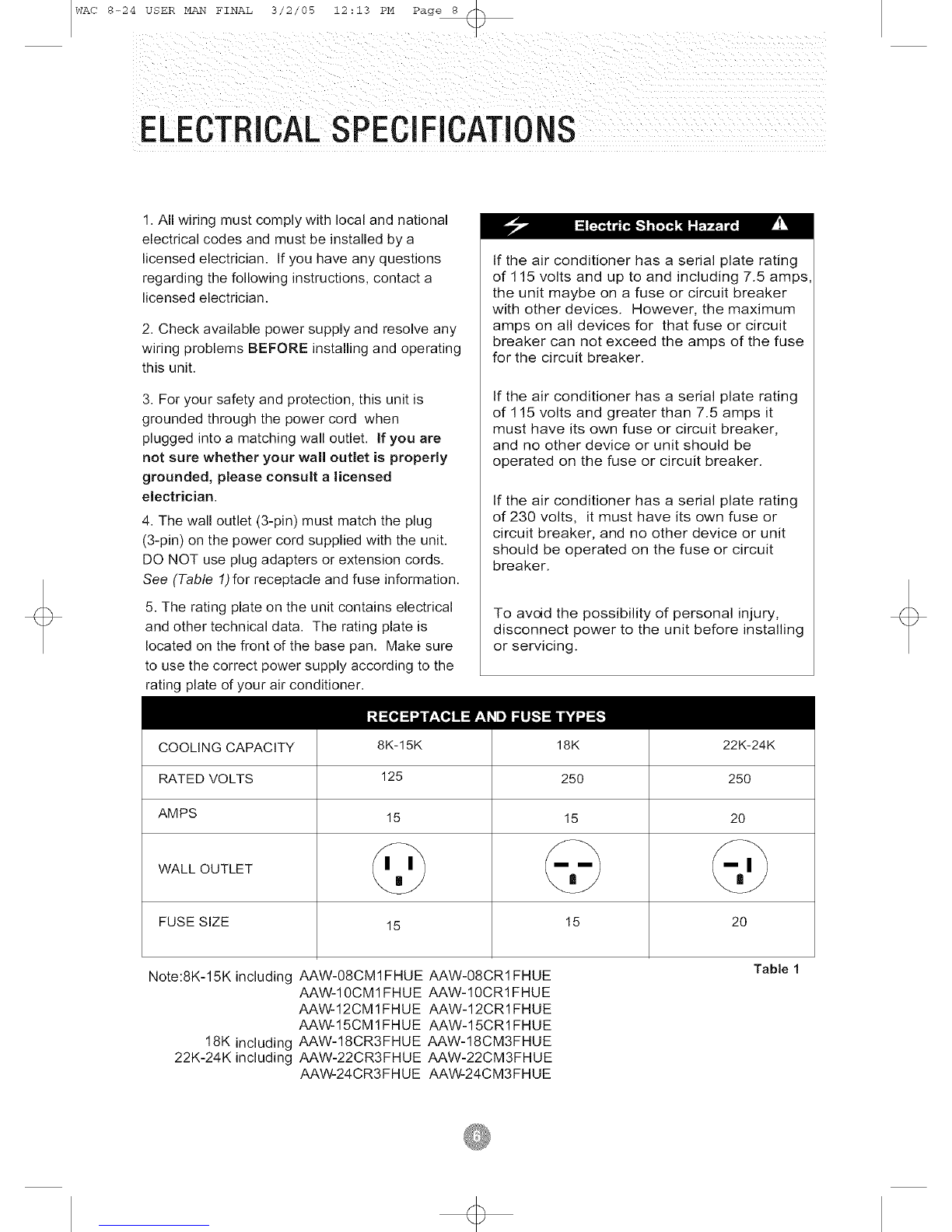

ELECTRICALSPECIFICATIONS
1. All wiring must comply with local and national
electrical codes and must be installed by a
licensed electrician. If you have any questions
regarding the following instructions, contact a
licensed electrician.
2. Check available power supply and resolve any
wiring problems BEFORE installing and operating
this unit.
3. For your safety and protection, this unit is
grounded through the power cord when
plugged into a matching wall outlet. If you are
not sure whether your wall outlet is properly
grounded, please consult a licensed
electrician.
4. The wall outlet (3-pin) must match the plug
(3-pin) on the power cord supplied with the unit.
DO NOT use plug adapters or extension cords.
See (Table 1)for receptacle and fuse information.
5. The rating plate on the unit contains electrical
and other technical data. The rating plate is
located on the front of the base pan. Make sure
to use the correct power supply according to the
rating plate of your air conditioner.
If the air conditioner has a serial plate rating
of 1 15 volts and up to and including 7.5 amps,
the unit maybe on a fuse or circuit breaker
with other devices. However, the maximum
amps on all devices for that fuse or circuit
breaker can not exceed the amps of the fuse
for the circuit breaker.
If the air conditioner has a serial plate rating
of 115 volts and greater than 7.5 amps it
must have its own fuse or circuit breaker,
and no other device or unit should be
operated on the fuse or circuit breaker.
If the air conditioner has a serial plate rating
of 230 volts, it must have its own fuse or
circuit breaker, and no other device or unit
should be operated on the fuse or circuit
breaker.
To avdd the possibility of personal injury,
disconnect power to the unit before installing
or servicing.
COOLING CAPACITY 8K-15K 18K 22K-24K
RATED VOLTS 125 250 250
AM PS 15 15 20
WALL OUTLET
FUSE SIZE 15 15 20
Note:8K-15K including AAW-08CM1FHUE AAW-08CR1 FHUE Table 1
AAW-10CM 1FHUE AAW-10CR1FHUE
AAW-12CM 1FHUE AAW-12CR1FHUE
AAW-15CM 1FHUE AAW-15CR1FHUE
18K including AAW-18CR3FHUE AAW-18CM3FHUE
22K-24K including AAW-22CR3FHUE AAW-22CM3FHUE
AAW-24CR3FHUE AAW-24CM3FHUE

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PM Page 9 O
TiPS BEFOREiNSTALLATiON
Your RoomAir Conditioner unit is designed to
be highly efficient and save energy. Follow these
recommendations for greater efficiency.
1. Select thermostat setting that suits your
comfort needs and leave the thermostat at
that chosen setting. ¥!q ¥!q
2. The air filter is very efficient in removing airborne
particles. Keep the air filter clean. Typically, the filter
should be cleaned once a month. More
frequent cleaning may be necessary depending
on outdoor and indoor air quality.
3. Use drapes, curtains, or shades to keep
direct sunlight from heating your room, but
DO NOT obstruct the air conditioner.Allow air to
circulate around the unit without obstructions.
4. Start your air conditioner before outdoor
air becomes hot/cold and uncomfortable. This
avoids an initial period of discomfort while
the unit is cooling or heating off the room.
5. When outdoor temperature is cool
enough, use HIGH or LOW FAN
only. This circulates indoor air, providing
some cooling comfort, and utilizes less
electricity than when operating on a
cooling setting.
Your RoomAir Conditioner was designed
for easy installation in a single or double-hung
window. NOTE: This unit is NOT designed for
vertical (slider type) windows.
To avoid installation/operating difficulties,
read the instructions thoroughly.
NOTE: Save the shipping carton and packing
materials for future storage or transport of the unit.
Please check the contents of the hardware kit against
the corresponding model check list, prior to
installation of the unit.
See lists below.(Fig.A)
3/4" Screws (10) [_ Shutter Clamp(2)
(]_ 1/4" Screws (23) Gasket@O)
Top Channel(1 )
_ Bottom Channel(1 ) Side Curtain RH(1 )
(For 8K to 12K models) Side Curtain LH(1 )
o o channe,,1,
(For 15K to 24K models)
(Factory-installed)
0 Lock Washers(4)
1-1/2" x1/4 Bolts(4) _ Seal(l)
1/4" Nuts(4)
[_......... I _ Foam (1)
ooo .... o .... I
y Mounting
Brackets(2) Double
Angle Adhering
_ Brackets(2) Seal(l)
End Cap &
Leveling Legs(2)
NOTE: Surplus screw(s) for spare use.
Tools Needed for Window Installation
Screw drivers: Both Philips and flat head
Power drill: I/8 inch diameter drill bit
Pencil
Measuring tape
Scissors
Carpenters level

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 10£

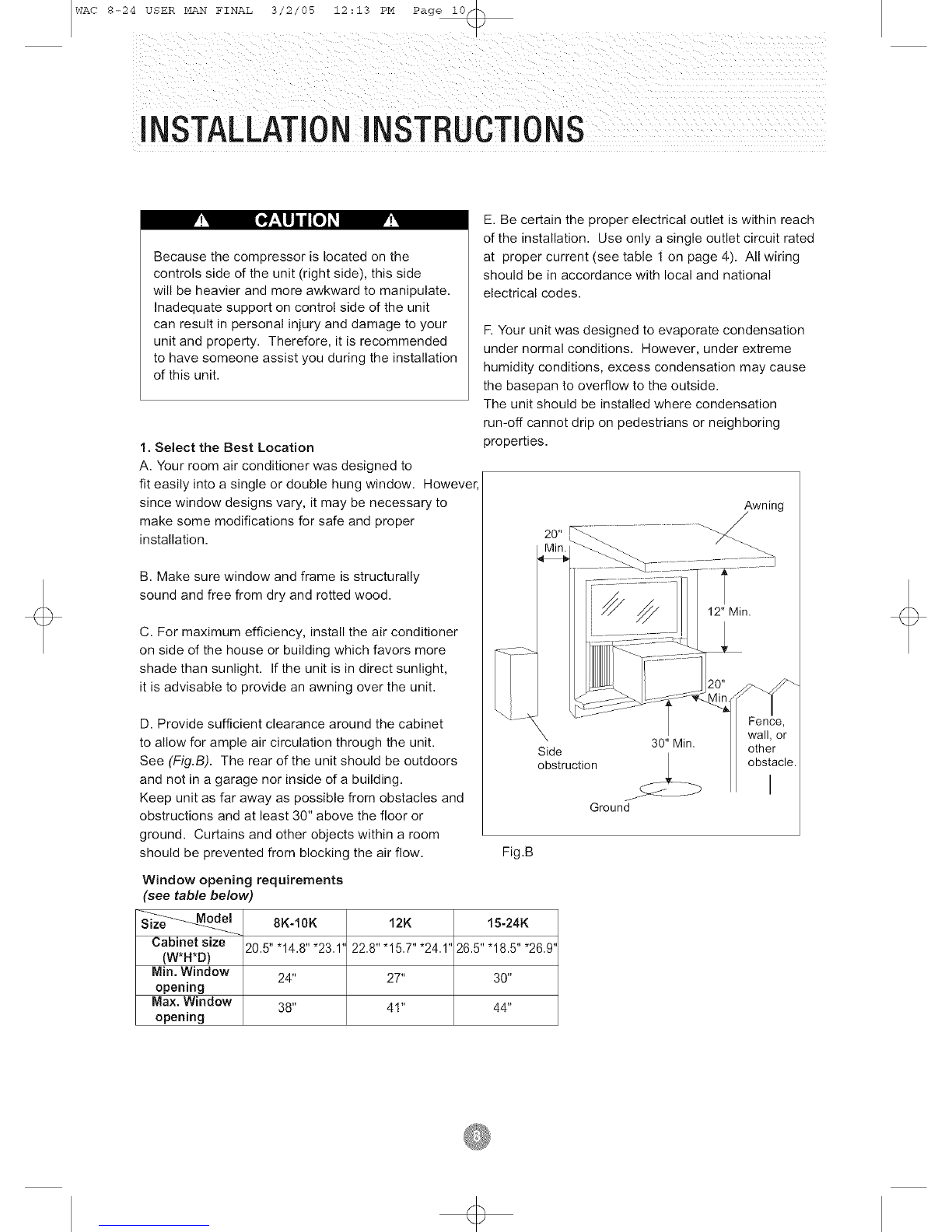

iNSTALLATiONiNSTRUCTiONS
Because the compressor is located on the
controls side of the unit (right side), this side
will be heavier and more awkward to manipulate.
Inadequate support on control side of the unit
can result in personal injury and damage to your
unit and property. Therefore, it is recommended
to have someone assist you during the installation
of this unit.
1. Select the Best Location
A. Your room air conditioner was designed to
fit easily into a single or double hung window. However,
since window designs vary, it may be necessary to
make some modifications for safe and proper
installation.
B. Make sure window and frame is structurally
sound and free from dry and rotted wood.
C. For maximum efficiency, install the air conditioner
on side of the house or building which favors more
shade than sunlight. If the unit is in direct sunlight,
it is advisable to provide an awning over the unit.
D. Provide sufficient clearance around the cabinet
to allow for ample air circulation through the unit.
See (Fig.B). The rear of the unit should be outdoors
and not in a garage nor inside of a building.
Keep unit as far away as possible from obstacles and
obstructions and at least 30" above the floor or
ground. Curtains and other objects within a room
should be prevented from blocking the air flow.
Window opening requirements
(see table below)
Cabinet size
(W*H*D)
IVlin.Window
opening
Max. Window
opening
E. Be certain the proper electrical outlet is within reach
of the installation. Use only a single outlet circuit rated
at proper current (see table 1 on page 4). All wiring
should be in accordance with local and national
electrical codes.
F. Your unit was designed to evaporate condensation
under normal conditions. However, under extreme
humidity conditions, excess condensation may cause
the basepan to overflow to the outside.
The unit should be installed where condensation
run-off cannot drip on pedestrians or neighboring
properties.
Fig.B
Awning
/
/_ /_ 12" Min.
30" Min.
Side
obstruction
Ground
Fence,
wall, or
other
obstacle,
I
8K-10K 12K 15-24K
20.5"'14.8"'23.1" 22.8"'15.7"'24.1' 26.5"'18.5"'26.9"
24" 27" 30"
38" 41" 44"

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 11£
iNSTALLATiONiNSTRUCTiONS

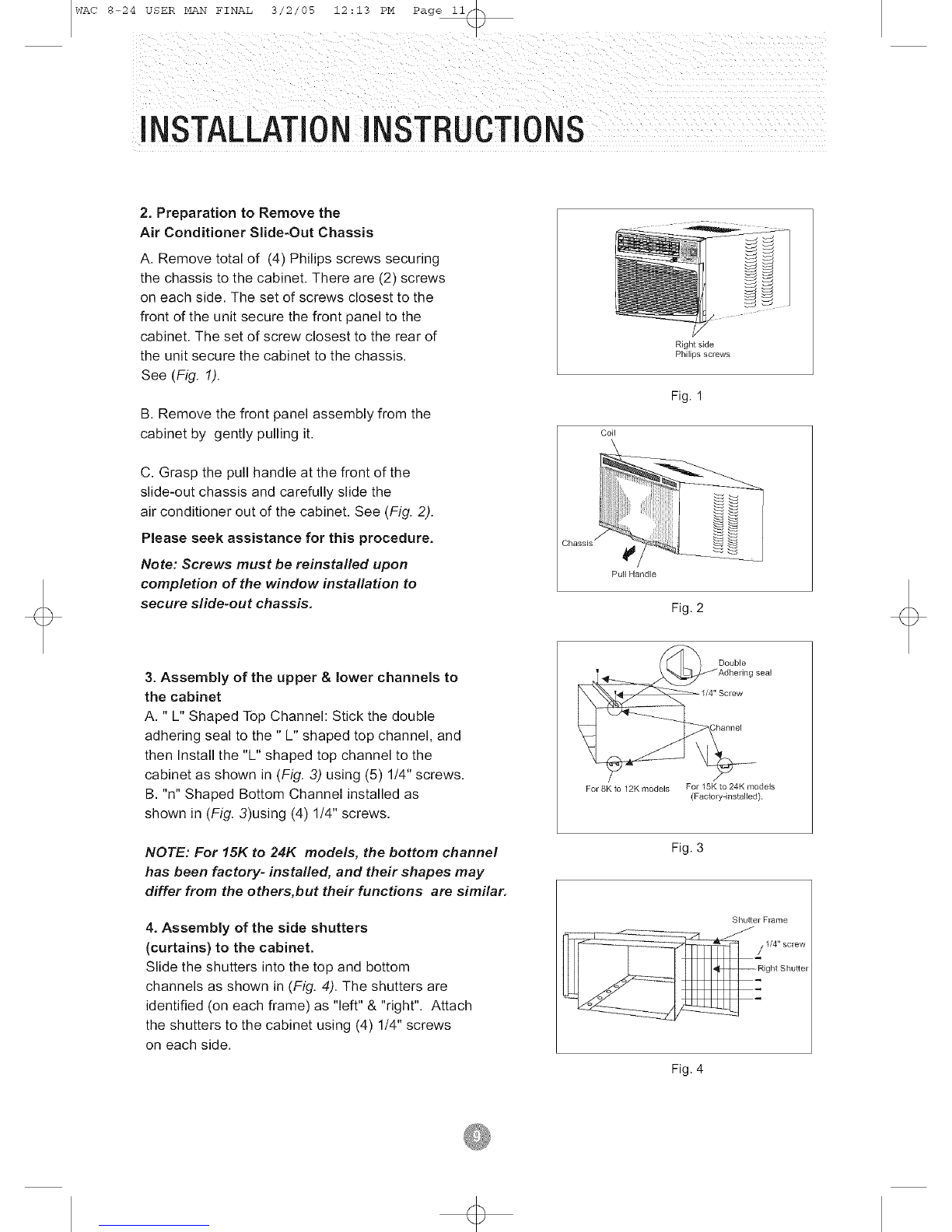

2. Preparation to Remove the
Air Conditioner Slide-Out Chassis
A. Remove total of (4) Philips screws securing
the chassis to the cabinet. There are (2) screws
on each side. The set of screws closest to the
front of the unit secure the front panel to the
cabinet. The set of screw closest to the rear of
the unit secure the cabinet to the chassis.
See (Fig. 1).
B. Remove the front panel assembly from the
cabinet by gently pulling it.
C. Grasp the pull handle at the front of the
slide-out chassis and carefully slide the
air conditioner out of the cabinet, See (Fig. 2).
Please seek assistance for this procedure.
Note: Screws must be reinstafled upon
completion of the window installation to
secure slide-out chassis,
Right side
Philips screws
Fig. 1
Coil
Pull Handle
Fig. 2
3. Assembly of the upper & lower channels to
the cabinet
A. " L" Shaped Top Channel: Stick the double
adhering seal to the " L" shaped top channel, and
then Install the "L" shaped top channel to the
cabinet as shown in (Fig. 3) using (5) 1/4" screws.
B. "n" Shaped Bottom Channel installed as
shown in (Fig. 3)using (4) 1/4" screws.
NOTE: For 15K to 24K models, the bottom channel
has been factory- installed, and their shapes may
differ from the others, but their functions are similar.
4. Assembly of the side shutters
(curtains) to the cabinet.
Slide the shutters into the top and bottom
channels as shown in (Fig. 4). The shutters are
identified (on each frame) as "left" & "right". Attach
the shutters to the cabinet using (4) 114" screws
on each side.
Double
w Adhering seal
1/4" Screw
For 8K to 12K models For 15K to 24K models
(Factory-installed)
Fig. 3
Shutter Frame
Fig. 4

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 12£
iNSTALLATiONiNSTRUCTiONS
5. Installation of Mounting Brackets and
First Sealing Strip
NOTE: Windows come in a variety of different
styles. Therefore, it may be necessary to modify
or improve your particular installation.
A. Attach the bracket assembly to 90°angle support
brackets (Fig. 5) using (2) 1 1/2" bolts
Two bolts per bracket. Secure with the (2)
1/4" lock washers and (2) 1/4"nuts. DO NOT
immediately tighten these bolts as it may be
necessary to adjust the depth of the bracket
assembly, depending on the depth of your window sill.
See (Fig. 7).Install the two leveling screws into the
90"support brackets. Test the bracket assembly in the
window before cabinet installation. If the leveling
screws are distanced too far away from the wall to
provide stability, it may be necessary for you to fill
this area with a solid piece of wood. See (Fig. 8).
B. Measure the inside window sill width and find the
center as shown in (Fig, 6). Align the V-slot in each
bracket on these marks and mount the brackets to the
sill using 3/4" screws provided, Brackets should be
perpendicular to the inside window sill, See (Fig, 6).
(TOPVIEW)
V-slot_ ooooooooo]
_ oo.,o .... o .... I
Bracket Bo PP
Leveling Screw)Its _ _
Fig. 5
Measurement for Model 8K =7.5"
Measurement for Model 1OK =9.6"
Measurement for Model 12K = 10.3"
Measurement for Model 15K to 24K = 126"
Fig. 6
_ (2) 3/4" screws per bracket
C. For proper condensation run-off it will be necessary
to adjust the angle/pitch of the window brackets. This is
accomplished by adjusting the distance of the leveling
screw on the outer wall. The maximum angle/pitch
should not exceed more than 3/16". See (Fig.7).
D. Cut the seal strip to fit the underside of the bottom
window sash. Remove the peel-off backing on the
seal and attach it to this sash. See (Fig. 9).
Fig. 7
_o o o o Oo o o oe o o
Solid Piece Wood
Fig. 8
P" W #I P" W
Use a solid piece of wood to provide stability. This
will be required when sills are extra deep,
See (Fig. 8).
Fig. 9

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 13£
iNSTALLATiONiNSTRUCTiONS
6. Installation of the cabinet
A. Align one hole in the bottom of the cabinet with one
hole in the bracket assembly. Secure the cabinet to the
bracket using (3) 114" screws provided. Repeat the
same procedure on the opposite side of the cabinet.
See (Fig. 10).
B. Ensure the "L" shaped mounting channel is
positioned in front of the sash. The "U" shaped
bottom channel of the cabinet should be positioned
in the track provided on the bracket assembly. Pull
the window down until it rests just behind the front
of the "L" shaped mounting channel. See (Fig. 11).
C. Check to make sure that the cabinet is slanted
slightly downward on the outside. If necessary,
re-adjust support bracket as shown in (Fig. 7).
7. Secure Shutters
A. Carefully slide the air conditioner back into the
cabinet.(Please seek assistance for this procedure).
B. Reinstall the slide-out-chassis security screws
(removed earlier) on both sides of the cabinet.
See (Fig. 12).
Secure the top of the frames to the window sash with
(2) 3/4" screws.
C. Now, secure bottom frame of shutters using one
shutter clamp and one 3/4" screw on each side(Fig. 12).
8. Reinstalling Front Panel Assembly
A. Position the front panel on the cabinet starting at the
top. The front panel lock tabs must be inserted into the
retaining slots in the cabinet. Repeat this procedure on
all sides.
B. Secure the front grille to the cabinet using the Philips
screws removed earlier(Fig. 1).
Fig. 10
Window Sash
"L"Shaped Seal
Mounting
Channel
Fig. 11
3/4" screws
Coil
Mounting
Channel
Seal
Fig. 12

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 14£
iNSTALLATiONiNSTRUCTiONS
9. Complete the installation
A. Cut the foam to fit the opening between the top of
the inside and outside window. See (Fig. 13). Fosm
B. Some installations may require additional sealing
around the window and air conditioner. Check for any
air leaks and seal where necessary. Fig. 13
C. In very humid areas, the water removal may be
excessive enough to overflow the unit or increase the
noise of the air conditioner. If this occurs, you may wish
to attach a drain hose (not included) to the drain plug
allowing condensations to run off conveniently.
See (Fig. 14).
Fig. 14
Drain Hose
(notinciuded)

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 15 0
OPERATINGiNSTRUCTiONS
MODE
The mode knob controls fan speeds and cooling
speeds. To set desired cooling temperature, simply
rotate the mode knob dial to the appropriate
setting.
THERMOSTAT
The thermostat automatically controls the cooling
cycle (compressor) of the air conditioner to maintain
room temperature. However, the fan motor will
continue to operate after the compressor (cooling
cycle) is completed.
LOW FAN will circulate the air at a minimum speed
without cooling.
MED FAN will circulate the air at a middle speed
without cooling.
HIGH FAN will circulate the air at a maximum speed
without cooling.
LOW COOL provides cooling, automatically with
minimum air circulation. Recommended for night-
time use.
MED COOL provides cooling, automatically with
middle air circulation. Recommended for night-
time use.
HIGH COOL provides cooling, automatically with
quick cooling or for extremely hot days. Once room
is cooled, reduce setting to LOW COOL.
OFF will completely shut-off the unit.
NOTE: After setting the mode, allow 3
minutes before switching to another mode.
V_I [e_:_lJlill:o]_l V_
Fresh Air Ventilation is usually kept in the closed
position. Use only when clearing smoke and/or
odors from the room. Pull to open.
Thermostat Mode knob
knob
Fig. 15
When using FAN control, turn slowly allowing
unit to adjust.
When using THERMOSTAT, be sure to allow
three minutes before changing temperature.
Adjusting too quickly may cause an overload
resulting in a blown fuse.
Fresh Air
Vent Lever
Fig. 16

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 16 0
OPERATINGiNSTRUCTiONS
You can easily operate this air conditioner by pressing
relevant button on the control panel as well as the
remote control.
(_) Button
The air conditioner will be started when it is energized
or will be stopped when it is in operation, if you press
this button.
Control Panel
Mode button
Each time Mode button is pressed, the operation
mode is changed in sequence:
COOLING FAN ONLY ENERGY SAVING COOLING
1
NOTE: After setting the mode, allow three (3) minutes before
switching to another mode. In the FAN ONLY Mode, Room
Temperature display range is from 0°C (32°F) to 38°C (99°F).
Room Temperature below 32°F, the Temperature display L0.
Room Temperature above 99°F, the Temperature display H1.
indication symbols of LED on control panel :
(_ Auto fan speed ._._'_"Cooling i-Ii-l7
Low fan speed ,_ Fan only Display set temp
Medium fan speed (_ Timer Display set timer
Fan Speed button
Used to select fan speed in sequence auto, low,
medium and high.
Timer button
Used to set or cancel timer operation.
High fan speed _ Energy-saving
-}_!_-Heating
LED on control panel lights on when the relevant mode is in used.
When the unit is in operation, you can set OFF TIMER.When the unit is off, you can set ON TIMER.Timer
setting range is 0 to 24 hours.
If the OFF TIMER is set, the time LED displays the remaining time to turn off the unit for only 12 seconds,
then LED shifts to display set temperature. If you press TIMER button within the 12 seconds, OFF TIMER
will be cancelled.
If the ON TIMER is set, the timer LED displays the remaining time to turn on the unit. If you want to cancel
ON TIMER, press TIMER button.
• • Button
Used to set room temperature in COOLING mode or used to set time in TIMER mode.
If the two keys are pressed at the same time, the temperature LED display will alternate between °C and °R
NOTE: Temperature setting range is from 19°C (66°F) to 31 °C (88°F).

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 17 0

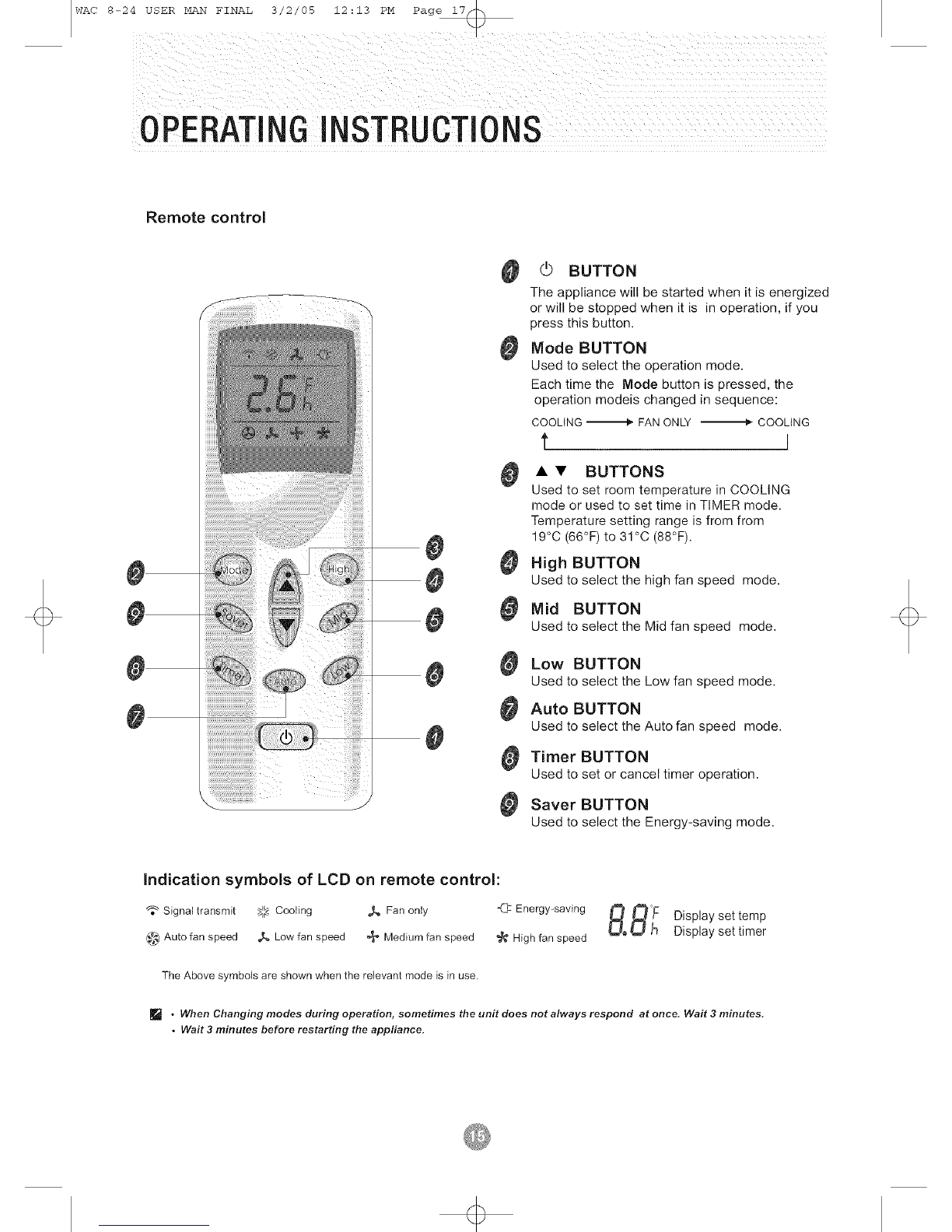

OPERATINGiNSTRUCTiONS
Remote control
0 (_ BUTTON
The appliance will be started when it is energized
or will be stopped when it is in operation, if you
press this button.
Mode BUTTON
Used to select the operation mode.
Each time the Mode button is pressed, the
operation models changed in sequence:
COOLING _ FAN ONLY "_ COOLING
t I
0
0
0
0
0
0
0
• • BUTTONS
Used to set room temperature in COOLING
mode or used to set time in TIMER mode.
Temperature setting range is from from
19°C (66°F) to 31°C (88°F).
High BUTTON
Used to select the high fan speed mode.
Mid BUTTON
Used toselect the Midfan speed mode.
Low BUTTON
Used toselect the
Auto BUTTON
Used toselect the
Low fan speed mode.
Auto fan speed mode.
Timer BUTTON
Used toset or cancel timer operation.
Saver BUTTON
Used toselect the Energy-saving mode.
Indication symbols of LCD on remote control:
%_ Signal transmit "_" Cooling _ Fan only _ Energy-saving
@ Auto fan speed ,,3,,_Low fan speed _¢" Medium fan speed '_ High fan speed 8.81[ Display set temp
Display set timer
The Above symbols are shown when the relevant mode is in use.
[] • When Changing modes during operation, sometimes the unit does not always respond at once. Wait 3 minutes.
•Wait 3 minutes before restarting the appliance.

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 18 0
OPERATINGiNSTRUCTiONS
Remote control
How to insert the Batteries
Remove the battery cover according to the arrow direction.
Insert new batteries making sure that the (+) and (-) of
battery are matched correctly.
Reattach the cover by sliding it back into position.
Note:
•Use 2 LR03 AAA (1.5volt) batteries. Do not use rechargeable batteries.
Replace batteries with new ones of the same type when the display
becomes dim.
•If the replacement is done within 1 minute, the remote control
will keep original presetting.
How to Use
To operate the room air conditioner, aim
the remote control to the signal receptor.
The remote control will operate the air
conditioner at a distance of up to 23 feet
when pointing at signal receptor of indoor
unit.
Remote Control Presetting
The remote control is NOT preset as Cooling
only or Heat Pump by manufacturer.
Each time after the remote control replaces batteries
or is energized, the Cooling indicator_and Heating
indicator':_'will flashes alternately on LCD of the remote control.
User can preset the remote control type depending
on the air conditioner type you have purchased as follows:
Signal receptor
Press any button when_ flashes, Heat Pump will be set.
Press any button when_ flashes, Cooling Onlywill be set.
If you don not press any button within 12 seconds, the remote control will be set as Heat Pump
automatically.
Back-light function(optional)
Hold down any button of remote control for about 2 seconds, back-light turns on. Release the
button, it lights off automatically 10 seconds later.

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 19 0
CAREAND MAINTENANCE
When servicing the air conditioner, be sure to
turn the mode switch to the "OFF" position and
disconnect the power cord from the electrical outlet.
P'!_I [_o]]_] F!Y
1. DO NOT use gasoline, benzine, thinner or
other chemicals on the air conditioner as these
substances may cause damage to the paint finish
and deformation of plastic parts.
2. Never attempt to pour water directly in
front of the unit as this will cause deterioration of
the electrical insulation.
Cleaning the Air Filter
Removal of Air Filter
If the air filter becomes clogged with dust, air-flow
is obstructed and reduces efficiency. The air filter
should be cleaned once a month. More frequent
cleaning may be necessary depending on outdoor
and indoor air quality.
Air Filter Removal:
The air filter on the above model is located
behind the air intake front grille.
To remove the air filter, open the air inlet
grille and take the air filter.
To reinstall the air filter, reverse the above
procedure.
DO NOT forget to install the air filter. If the air
conditioner is left to operate without the air filter,
dust is not removed from the room and may
cause your air conditioner to fail.
When the air filter inlet grille and cabinet are dirty,
wipe with lukewarm water (below 40°C/104°F).
Use of mild detergent is recommended.
Cleaning of Air Filter
1. Remove dust clogged in the filter by
tapping it or vacuum clean it.
2. Wash the filter well with lukewarm water below
40°C (104°F) while rubbing lightly: To get better
results, wash it with soapy water or a neutral
cleaning agent.
3. Rinse the filter well using clean water then
dry completely.
End-of-Season Care
1. Operate the fan alone for half a day to dry out
the inside of the unit.
2. Turn off power and remove plug from wall socket.
3. Clean filter.
4. Store in a dry location.

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 20 0

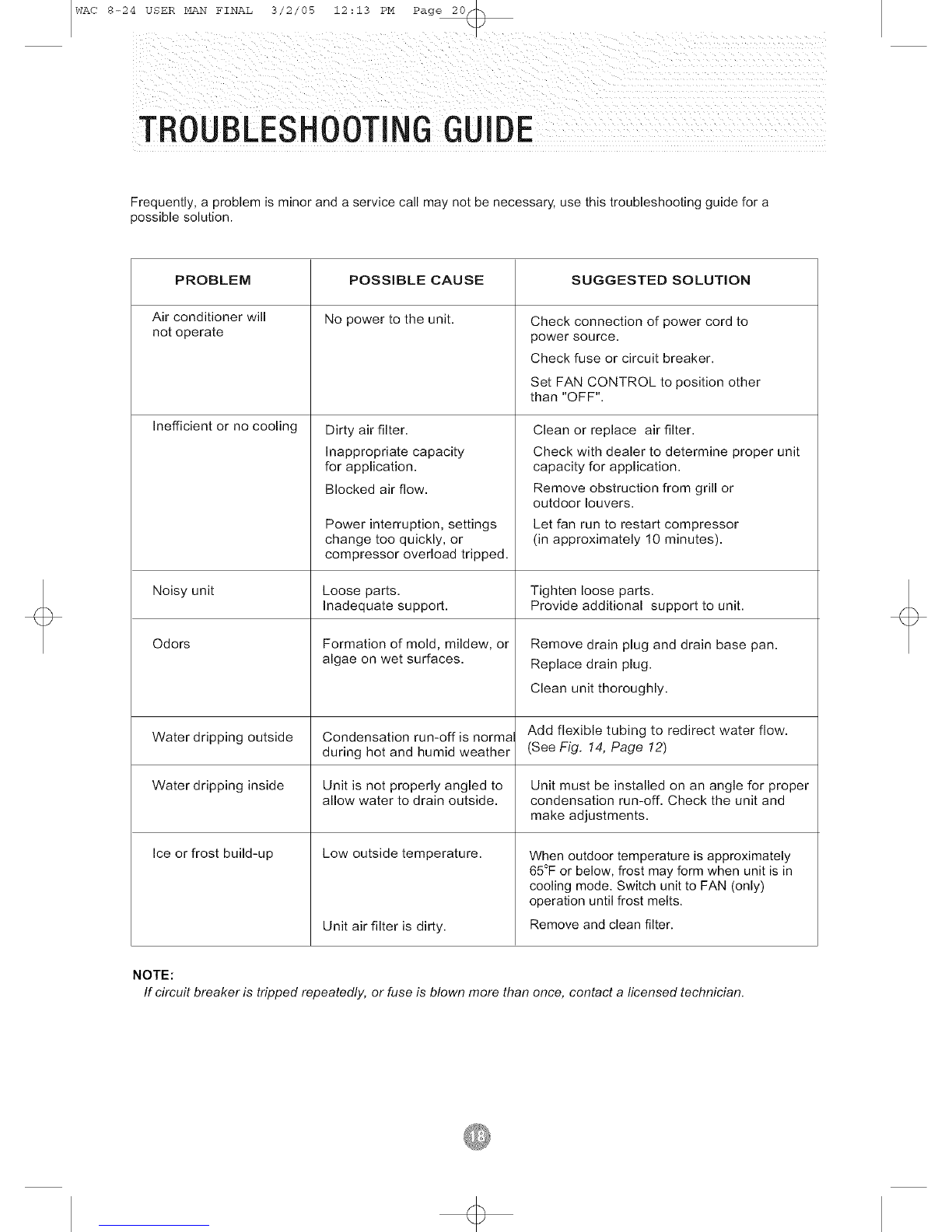

TROUBLESHOOTING GUIDE
Frequently, a problem is minor and a service call may not be necessary, use this troubleshooting guide for a
possible solution.
PROBLEM
Air conditioner will
not operate
Inefficient or no cooling
POSSIBLE CAUSE SUGGESTED SOLUTION
No power to the unit.
Dirty air filter.
Inappropriate capacity
for application.
Blocked air flow.
Power interruption, settings
change too quickly, or
compressor overload tripped.
Check connection of power cord to
power source.
Check fuse or circuit breaker.
Set FAN CONTROL to position other
than "OFF".
Clean or replace air filter.
Check with dealer to determine proper unit
capacity for application.
Remove obstruction from grill or
outdoor louvers.
Let fan run to restart compressor
(in approximately 10 minutes).
Noisy unit Loose parts. Tighten loose parts.
Inadequate support. Provide additional support to unit.
Odors Formation of mold, mildew, or Remove drain plug and drain base pan.
algae on wet surfaces. Replace drain plug.
Clean unit thoroughly.
Water dripping outside Condensation run-off is normal Add flexible tubing to redirect water flow.
during hot and humid weather (See Fig. 14, Page 12)
Water dripping inside Unit is not properly angled to Unit must be installed on an angle for proper
allow water to drain outside, condensation run-off. Check the unit and
make adjustments.
Ice or frost build-up Low outside temperature.
Unit air filter is dirty.
When outdoor temperature is approximately
65°F or below, frost may form when unit is in
cooling mode. Switch unit to FAN (only)
operation until frost melts.
Remove and clean filter.
NOTE:
If circuit breaker is tripped repeatedly, or fuse is blown more than once, contact a licensed technician.

WAC 8-24 USER MAN FINAL 3/2/05 12:13 PH Page 21 0

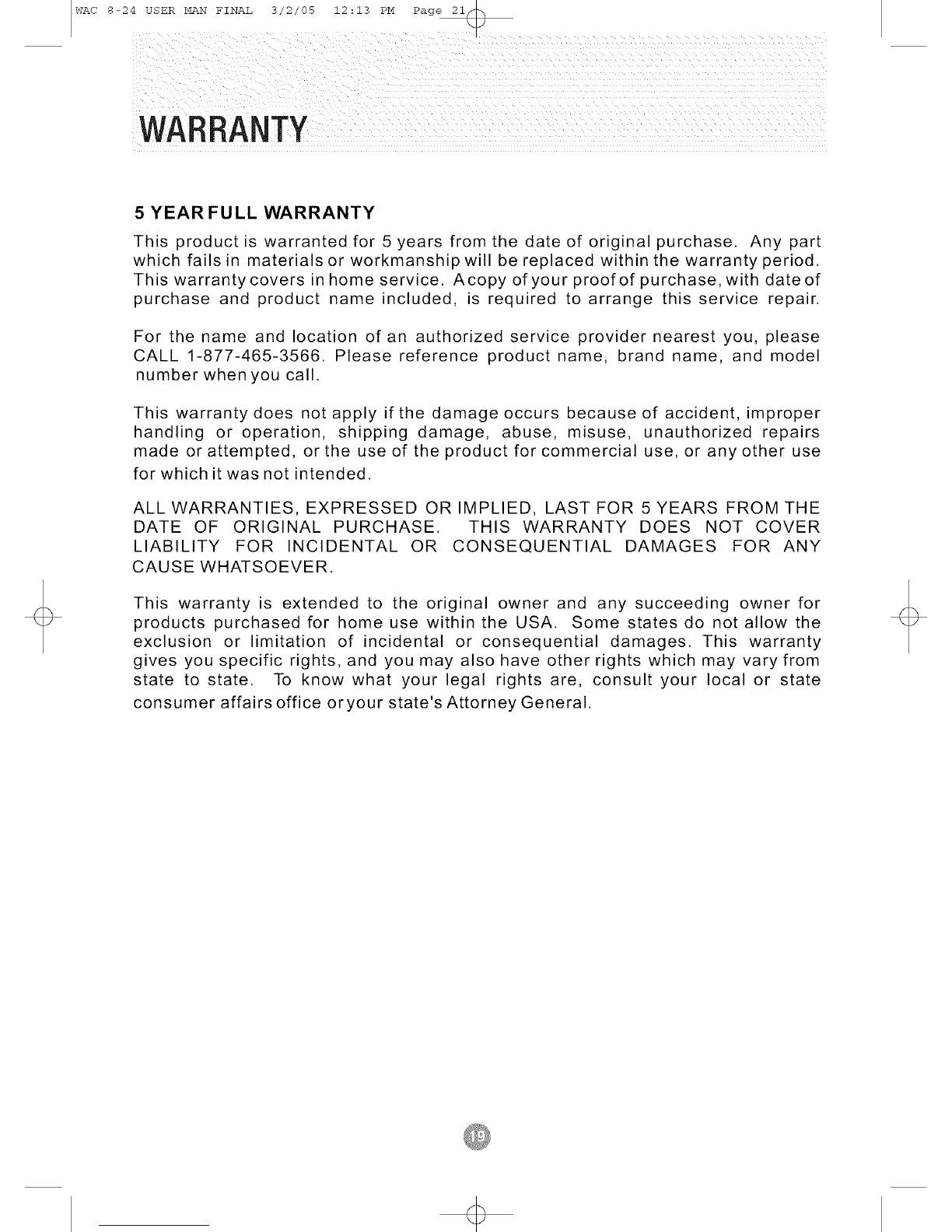

WARRANTY
5YEAR FULL WARRANTY
This product is warranted for 5years from the date of original purchase. Any part
which fails in materials or workmanship will be replaced within the warranty period.
This warranty covers in home service. A copy of your proof of purchase, with date of
purchase and product name included, is required to arrange this service repair.
For the name and location of an authorized service provider nearest you, please
CALL 1-877-465-3566. Please reference product name, brand name, and model
number when you call.
This warranty does not apply if the damage occurs because of accident, improper
handling or operation, shipping damage, abuse, misuse, unauthorized repairs
made or attempted, or the use of the product for commercial use, or any other use
for which it was not intended.
ALL WARRANTIES, EXPRESSED OR IMPLIED, LAST FOR 5 YEARS FROM THE
DATE OF ORIGINAL PURCHASE. THIS WARRANTY DOES NOT COVER
LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR ANY
CAUSE WHATSOEVER.
This warranty is extended to the original owner and any succeeding owner for
products purchased for home use within the USA. Some states do not allow the
exclusion or limitation of incidental or consequential damages. This warranty
gives you specific rights, and you may also have other rights which may vary from
state to state. To know what your legal rights are, consult your local or state
consumer affairs office oryour state's Attorney General.
