ADONIS
ALTERNATOR NOISE FILTER MFL-30D
INSTRUCTION MANUAL
Space Electric Corporation
OSAKA, JAPAN

SEC
- 2 -
ALTERNATOR NOISE FILTER MFL-30D
INSTRUCTION
Thank you very much for your purchasing of "ADONIS" Noise Filter model MFL-30D.
This unit reduces the alternator noise and improves the S/N ratio by connecting between the car
battery and transceiver.
Please read carefully this instruction and we hope you can enjoy the performance of this unit
for a long time.
FEATURES:
The alternator noise will be reduced and the S/N ratio will be improved.
Large Current Capacity, 30[A] continuously.
Splash-Proof Construction. (Mountable in the engine room)

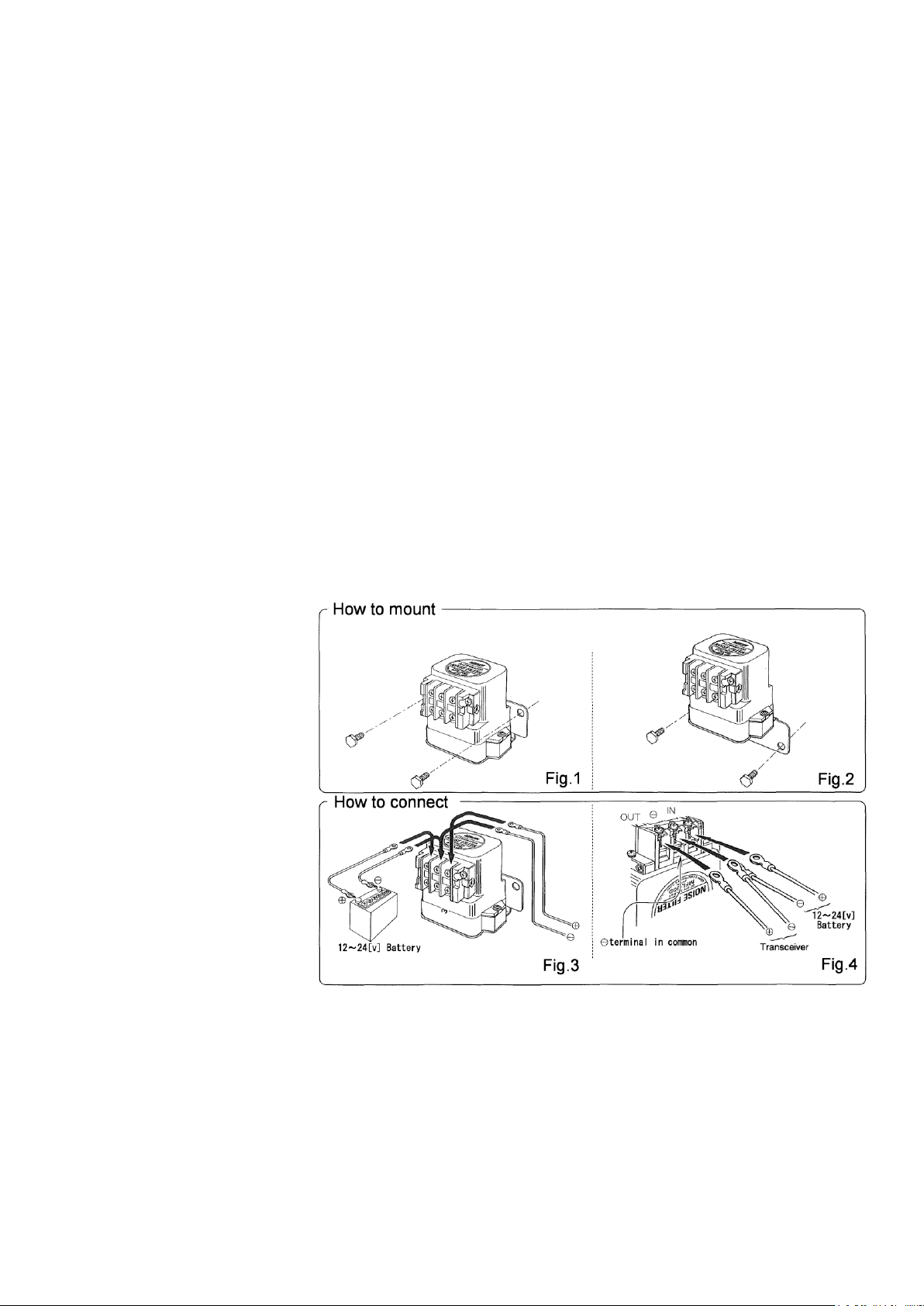

MOUNTING:
Fix the MFL-30D with mounting bolt or fasten with screw already set at the place where MFL-30D
will not have any splash of water easily.
The Mounting hardware of MFL-30D will be useable for the reverse mounting. (Please see
figure 2)
When wiring, please use a large diameter type, more than 3.2sq type, and wire as shown on
the sketch on figure No.3.
When connecting to the car battery and the terminal of MFL-30D, use the round type pressure
connection terminal and connect strongly.
SPECIFICATIONS:
Rated Voltage :12-24[V] DC
Rated Current :30[A]
Filter :Unbalanced Choke Method
External Size :100(W)×97(D)×66(H)
Accessory :Mounting Bolt×2 pieces
:Mounting Tapping Screw×2 pieces
CAUTIONS:
Do not connect with battery excepting 12-24[V] DC battery.
Please set it at the place away from the engine heating and water splashing area.
