Spinner Frenzy
SF-50-1001
Operation & Service Manual
Version 1.0
* Read this manual before use

Spinner Frenzy Manual V1.0
2 | P a g e
General Remark
If you encounter any difficulties or if you need support on how to update and/ or install your
Spinner Frenzy Arcade product, we invite you to contact your local distributor or reach us at
[email protected] or by calling our support line [phone]
Adrenaline Amusements Team
Adrenaline Amusements
1150 Levis, Suite 302
Terrebonne, Qc
Canada
J6W 5S6

Spinner Frenzy Manual V1.0
3 | P a g e
Table of Contents
Contents
General Remark..................................................................................................2
Table of Contents................................................................................................3
Chapter 01 - Preface ...........................................................................................5
Precaution for Game Operation.................................................................................................. 5
Safety........................................................................................................................................... 6
Environmental Conditions........................................................................................................... 6
Chapter 02 - Game Features................................................................................7
Chapter 03 –Unit Features .................................................................................8
Hardware Features...................................................................................................................... 8
Cabinet Facts ............................................................................................................................... 8
Voltage ........................................................................................................................................ 9
Chapter 04 –Unit Installation ...........................................................................10
Assembling your Spinner Frenzy Unit ....................................................................................... 10
Chapter 05 –Operator Menu ............................................................................12
Operator Menu ......................................................................................................................... 12
Ticket Payouts Structures.......................................................................................................... 14
Chapter 06 –Service & Repair...........................................................................22
Computer Connections ............................................................................................................. 22
Troubleshooting ........................................................................................................................ 23
Video Troubleshooting........................................................................................................................23
Audio Troubleshooting ....................................................................................................................... 23
Monitor Replacement ............................................................................................................... 24
Front Kickboard Assembly RGB LED replacement ..............................................................................34
Wireless Internet Configuration................................................................................................ 37
Chapter 07 - Parts .............................................................................................38

Spinner Frenzy Manual V1.0
4 | P a g e
Cabinet Parts ............................................................................................................................. 38
Computer & Electronics ............................................................................................................ 40
Header & LEDs........................................................................................................................... 41
Spinner RGB PCB ....................................................................................................................... 42
Cabling....................................................................................................................................... 43
Wiring Harness .......................................................................................................................... 44
Chapter 08 –Diagrams & Schematics................................................................45
I/0 Board ADR-04-1001 ............................................................................................................. 45
I/O Board - Spinner Sensors Wiring .......................................................................................... 48
I/O Board - Coins & Ticket Wiring ............................................................................................. 49
Power Distribution Schematics ................................................................................................. 50
RGB LED Wiring ......................................................................................................................... 52
Chapter 09 –Software Recovery .......................................................................57
Chapter 10 –Card Reader .................................................................................58
Embed System........................................................................................................................... 59
Limited Warranty Policies ......................................................................61

Spinner Frenzy Manual V1.0
Chapter 01 - Preface
5 | P a g e
Chapter 01 - Preface
Please read this page before preparing your Spinner Frenzy Arcade product for
game play.
The following safety instructions apply to all game operators and service personnel. Specific
warnings and cautions will be included throughout this manual.
Use the following safety guidelines to help protect the system from potential damage and to
ensure your personal safety:
Electronic components in the game cabinet run on 110V AC 60Hz (220V/ 50Hz in most of
Europe, the Middle East and the Far East delivered units).
To help prevent electric shock, plug the system into a properly grounded power source.
These cables are equipped with 3-prong plugs to help ensure proper grounding. Do not
use adapter plugs or remove the grounding prong from a cable. If you must use an
extension cable, use a 3-wire cable with properly grounded plugs. We do recommend a
15A rated current or higher power cord.
To help protect your system from sudden increases and decreases in electrical power,
use a surge suppressor, line conditioner or Uninterruptible Power Supply (UPS).
Be sure nothing rests on the system’s cables and that the cables are not located where
they can be stepped on or tripped over.
Keep your system far away from radiators and other heat sources.
Do not block cooling vents.
Precaution for Game Operation
Adrenaline Amusements Inc. assumes no liability for injuries incurred while playing our games.
Operators should be aware that certain health and physical conditions may make people
susceptible to injury when playing video games.

Spinner Frenzy Manual V1.0
Chapter 01 - Preface
6 | P a g e
Safety
To avoid electrical shock, unplug the cabinet before performing
installation or service procedures.
If a power cord is damaged, it must be replaced by the equivalent
power cord available from your distributor.
Adrenaline Amusement Inc. assumes no liability for any damages or
injuries incurred while setting up or servicing the cabinet. Only qualified
service personnel should perform installation or service procedures.
Environmental Conditions
Cabinet is intended for indoor use only. Be sure to keep the cabinet dry and maintain operating
temperatures of 59° - 86°F (15° - 30°C).

Spinner Frenzy Manual V1.0
Chapter 02 –Game Features
7 | P a g e
Chapter 02 - Game Features
Spinner Frenzy is an addictive game!
It requires precision, not strength!
How to Play
Spin the Spinner Wheel to exactly 500 RPM and win the bonus!
Spinning too fast or too slow will payout different tickets amount.
100% Skill game.
Different ticket payouts structures available (See Chapter 5)

Spinner Frenzy Manual V1.0
Chapter 03 –Unit Features
8 | P a g e
Chapter 03 – Unit Features
Hardware Features
4 Monitors (1 Hidden into Side Service Door)
Amazing Interactive RGB LEDs animations.
100% Skill Game, challenge your friends!
Cabinet Facts

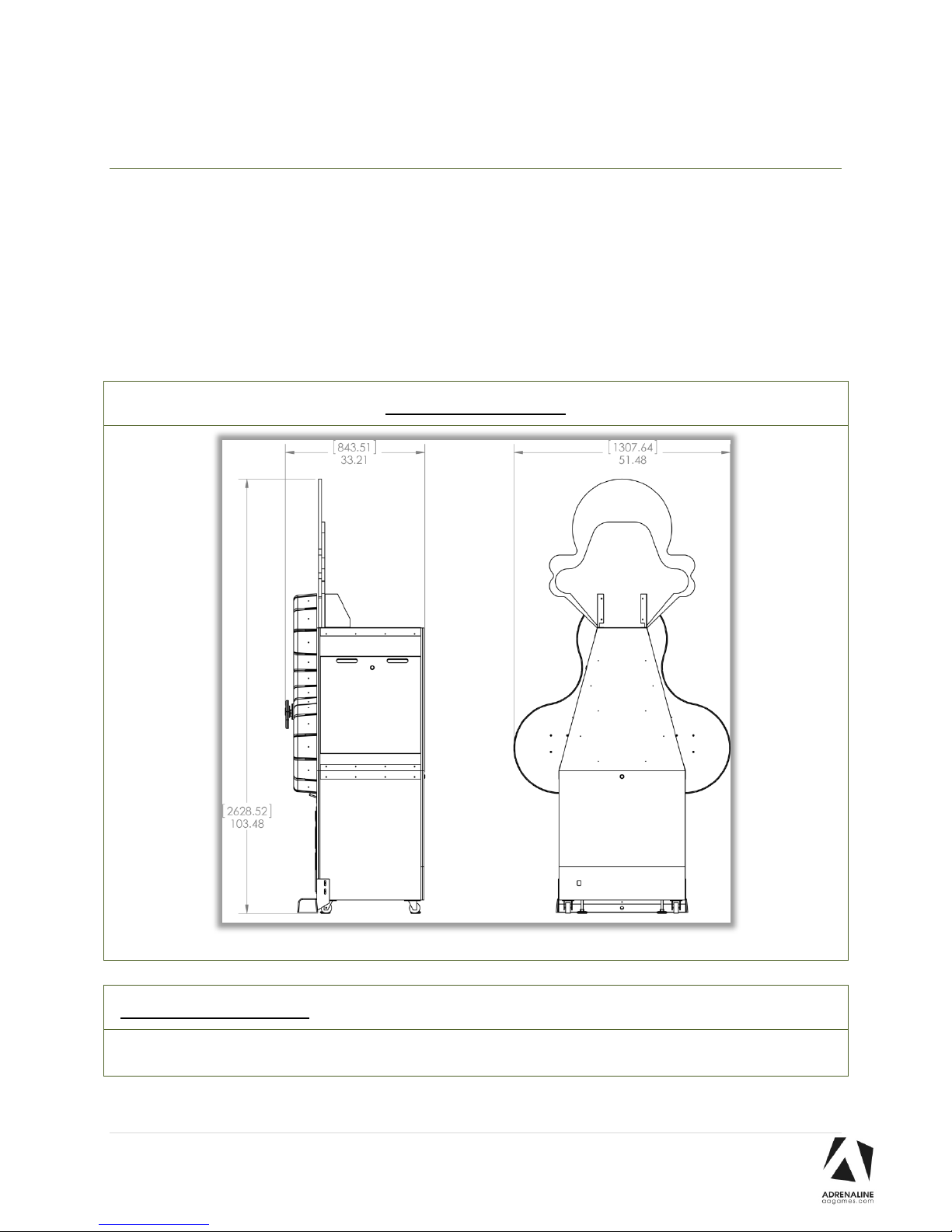

Cabinet Dimensions
Height = 103.48” [2628.52]
Depth = 33.21” [843.51mm] Width = 51.48” [1307.64mm]
Shipping Dimensions
Width = 54” Depth = 36” Height = 82”
Weight = 400 lbs

Spinner Frenzy Manual V1.0
Chapter 03 –Unit Features
9 | P a g e
Voltage
Voltage
Operating
110V AC
2.5 AMP
220V AC
1.25 AMP

Spinner Frenzy Manual V1.0
Chapter 04 –Unit Installation
10 | P a g e
Chapter 04 – Unit Installation
Assembling your Spinner Frenzy Unit
**You need to be 2 persons to assemble the unit**
1. Carefully remove the Cabinet from the shipping container, giving you enough space.
2. Move the cabinet to the desired location.
3. Lower the four Level adjustors until the Pivot Wheels are slightly above the floor.
4. Install the front kickboard assembly. Connect the wires and screw the metal sides to the
cabinet with the provided wooden screws.

Spinner Frenzy Manual V1.0
Chapter 04 –Unit Installation
11 | P a g e
5. Install the header using the 4 provided lock bolts.
6. Connect the cables for the RGB LEDs and the White LEDs coming from the top of the
cabinet to the Header.

Spinner Frenzy Manual V1.0
Chapter 05 –Operator Menu
12 | P a g e
Chapter 05 – Operator Menu
Operator Menu
Access the Operator Menu by pressing the Operator button located inside the drawer
on the I/O board directly.
Operator: Open the Operator Menu
Up/Down: Scroll Up/Down & Increase/ Decrease Value
Select Button: Select/Deselect

Spinner Frenzy Manual V1.0
Chapter 05 –Operator Menu
13 | P a g e
Operator Menu
Values
What It Does
Credits Per Game
1-20
Adjusts the number of credits required to play. “0” sets
the unit in free play mode.
Game Audio Volume
0-20
Adjusts the in-game audio volume. “0” will mute the
game.
Attract Audio Volume
0-20
Adjusts the audio volume of the attract loop. “0” will
mute the attract loop.
Ticket Value
1-2
Adjusts the value of physical tickets. Physical tickets are
either worth “1” ticket or “2” tickets.
Payment Type
Credit / Card
Changes the credit type. “Credits” = Coins and
“Card” = Card Reader. This will change the in-game text
accordingly.
Redemption Unit Name
Tickets /
Coupons
Adjusts the in-game text accordingly.
Bonus Value
100-200-500-
1000
Adjusts the number of tickets given when the Bonus is
reached. (Can be changed for all different payouts)*
Bonus Window
0-4
Adjusts the precision range to win the bonus.
0 is harder to win the bonus, 4 is easier to win it.
Recommended Value: 2
Tickets Payout
1-7
Adjusts the values layout structure for % payout.
(Refer page 14 to 21)
*The Bonus Cover Value can be installed on all 7 payout structures. You only need to install the Cover
matching the Operator menu desired value.

Spinner Frenzy Manual V1.0
Chapter 05 –Operator Menu
14 | P a g e
Ticket Payouts Structures
If you choose a different ticket payouts structure than the one originally installed, refer to the on-screen
images to install the good values cover at their good positions.
The extra value covers are located in the bottom cabinet. Open the back service door to reach them.
The Payout for each layout is based from average skilled players and is not 100% accurate. Each store
locations have different skill based players and the results will fluctuates.
To change the values cover, remove the screw and gently pull out the cover. Replace the value covers
following the on-screen or this manual image.

Spinner Frenzy Manual V1.0
Chapter 05 –Operator Menu
15 | P a g e
Use Payout 01 if you want to use Coin Value 0.25$ and use Bonus Value Cover 100.

Spinner Frenzy Manual V1.0
Chapter 05 –Operator Menu
16 | P a g e
Use Payout 02 if you want to use Coin Value 0.75$ and use Bonus Value Cover 500.

Spinner Frenzy Manual V1.0
Chapter 05 –Operator Menu
17 | P a g e

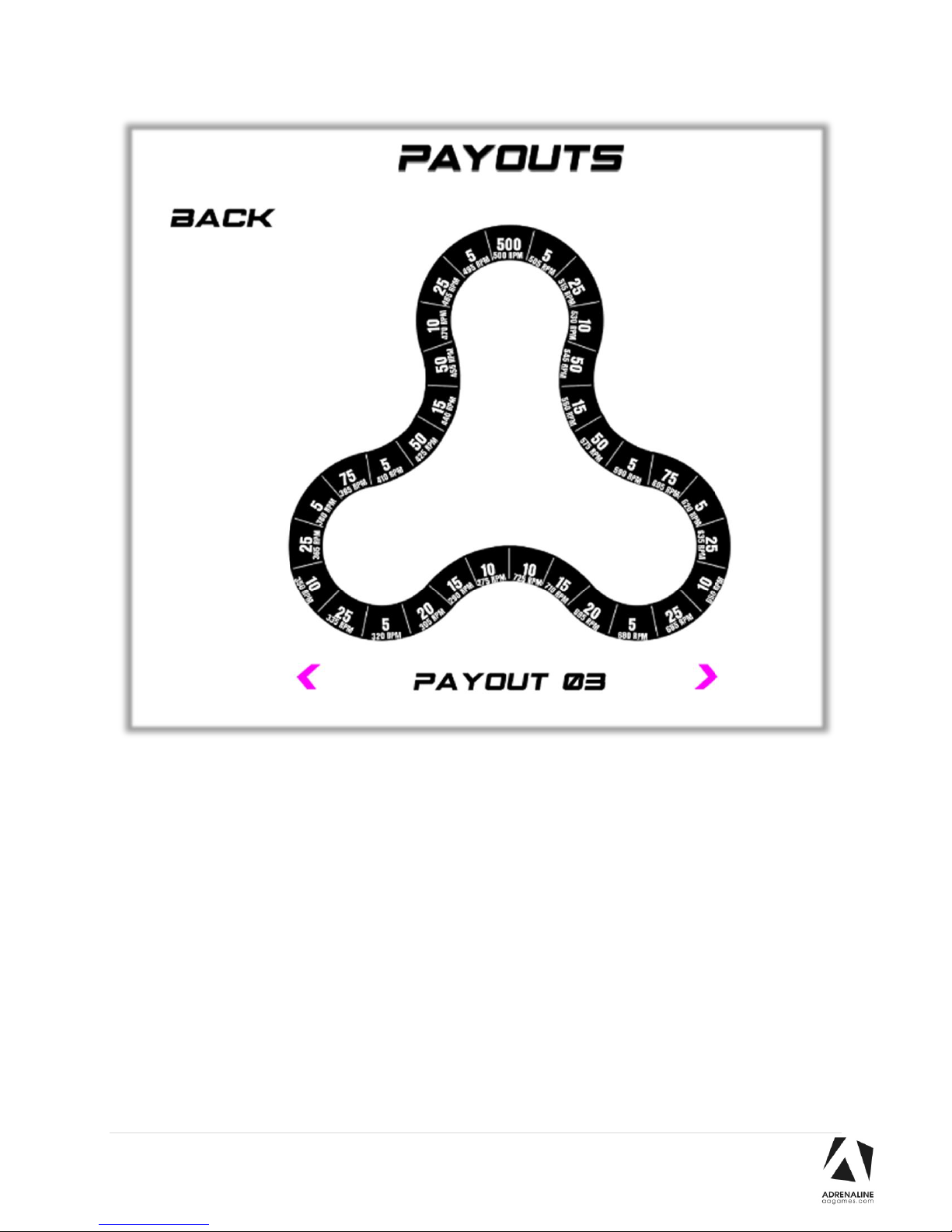

Use Payout 03 if you want to use Coin Value 1.00$ and use Bonus Value Cover 500 for a Low Payout.

Spinner Frenzy Manual V1.0
Chapter 05 –Operator Menu
18 | P a g e

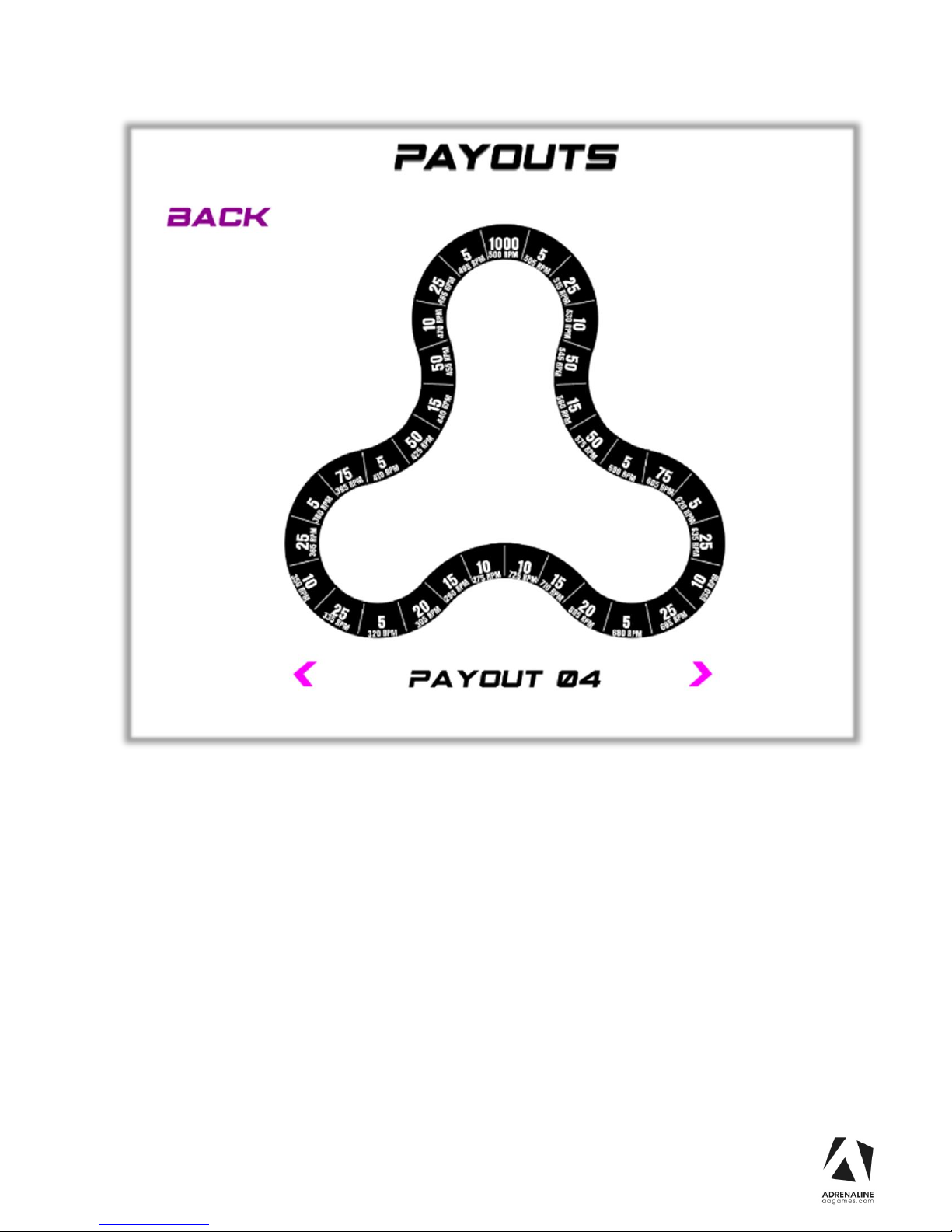

Use Payout 04 if you want to use Coin Value 1.00$ and use Bonus Value Cover 1000 for a Medium
Payout.

Spinner Frenzy Manual V1.0
Chapter 05 –Operator Menu
19 | P a g e
Use Payout 05 if you want to use Coin Value 1.00$ and use Bonus Value Cover 1000 for a High Payout.

Spinner Frenzy Manual V1.0
Chapter 05 –Operator Menu
20 | P a g e
Use Payout 06 if you want to use Coin Value 1.50$ and use Bonus Value Cover 1000.
