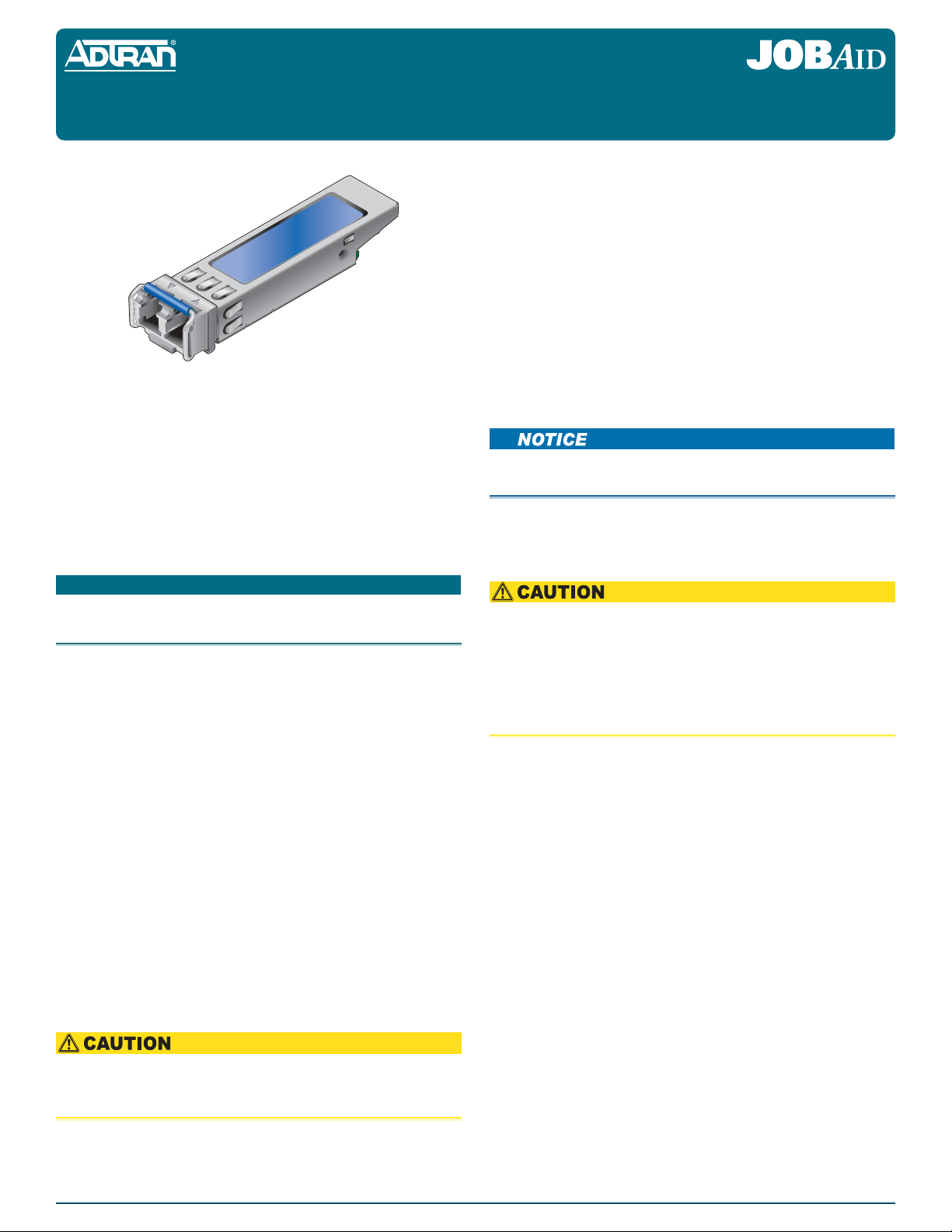

DESCRIPTION
The Small Form-Factor Pluggable (SFP) 3.125 Gigabit
Ethernet is a single mode fiber SFP that plugs into a
module designed to accept SFPs. The SFP provides a dual
optical interface to the 3.125 Gigabit Ethernet physical
interface. Installed into an appropriate module, the SFP
provides 3.125 Gigabit Ethernet interface to the supporting
system.
NOTE
This SFP should not be used in applications requiring
standard Gigabit (1000Base) Ethernet services.
The following features are supported on the SFP:
♦3.125 Gigabit Ethernet data rate
♦1310nm Transmitter
♦Wavelength: 1310nm
♦Optical distance: 20 km maximum
Operational Specifications
♦Optical transmit level: –5 dBm to 0 dBm
♦Optical receive level: –16 dBm to 0 dBm
♦Optical connectors: LC
♦SFF 8472 Digital diagnostic compliant
♦Compatible with SFP MSA
♦Extended Environmental Support:
◊Operational temperature range: –40°C to +85°C
◊Storage temperature range: –40°C to +85°C
◊Relative humidity to 95%, noncondensing
Due to compliance certification requirements, use only
SFPs supplied by ADTRAN. ADTRAN cannot certify system
integrity with other SFPs.
Small Form Factor Pluggable
3.125 Gigabit Ethernet 20 km
INSTALLATION
To install the SFP into an appropriate module, complete the
following steps:
1. Inspect the SFP. If damaged, file a claim with the car-
rier and then contact ADTRAN Customer Service.
2. Do not remove the protective end cap from the SFP
until the fiber optic cable is ready to be connected.
3. Insert the SFP into the SFP cage on the module.
Ensure the manufacturer’s label on the SFP is facing
upward for correct installation.
4. Slide the SFP all the way into the receptacle until there
is an audible “click.”
The latch on the SFP is used to remove the SFP from the
cage on the circuit card.
COMPLIANCE
Electrostatic Discharge (ESD) can damage electronic
modules. When handling modules, wear an antistatic
discharge wrist strap to prevent damage to electronic
components. Place modules in antistatic packing material
when transporting or storing. When working on modules,
always place them on an approved antistatic mat that is
electrically grounded.
The SFP meets or exceeds all the applicable requirements
of NEBS, Telcordia GR-63-CORE, and GR-1089-CORE. The
SFP is intended for deployment in Central Office type facil-
ities, EEEs, EECs, and locations where the NEC applies (for
example, Customer Premises). The SFP is to be installed in
ADTRAN products in Restricted Access Locations only, and
installed by trained service personnel.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications not expressly approved by
ADTRAN could void the user’s authority to operate this
equipment.
CLEI: SOOTAKDJ_ _
Product P/N: 1442820G1
Issue Date: 0812
Document P/N: 61442820G1-22B

C A U T I O N
C A U T I O N
!
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
Warranty: ADTRAN will replace or repair this product within the warranty period if it does not
meet its published specifications or fails while in service. Warranty information can
be found online at www.adtran.com/warranty.
©2008 ADTRAN, Inc. All Rights Reserved.
PRICING AND AVAILABILITY 800.827.0807
TECHNICAL SUPPORT 800.726.8663
RETURN FOR REPAIR 256.963.8722
*61442820G1-22B*
The SFP is a Class 1 Laser Product and complies with the
Laser Safety requirements of FDA 21CFR 1040.10 and
1040.11, and EN60825-1 and -2. The SFP is NRTL Listed
and CB Certified to all applicable American and European
safety standards.
♦ Per GR-1089-CORE the ADTRAN system that the SFP is
being deployed in is designed and intended for
installation as part of a Common Bonding Network
(CBN). The ADTRAN system that the SFP is being
deployed in is not designed nor intended for installation
as part of an Isolated Bonding Network (IBN).
♦ Per GR-1089-CORE Section 9, the SFP does not have an
internal DC connection between battery return and
frame ground. The SFP can be installed in a DC-I
(isolated) or DC-C (common) installation. For
installations where other cards or the host system have
internal connections between battery return and frame
ground, the system would be intended for deployment
only in a DC-C installation.
♦ The ADTRAN system chassis frame ground terminal
must be connected to a reliable earth ground to ensure
that the metal enclosure of the SFP is properly grounded
via the backplane connector.
NOTE
3.125 Gigabit Ethernet port(s) are optical and therefore are
not classified as any type of port as defined in Appendix B
of GR-1089-CORE Issue 4.
ETSI EN
The SFP is designed to meet the following environmental
classes:
♦ETSI EN 300 019-1-1 “Classification of environmental
conditions; Storage,” Class 1.2
♦ETSI EN 300 019-1-2 “Classification of environmental
conditions, Transportation,” Class 2.3
♦ETSI EN 300 019-1-3 “Classification of environmental
conditions, Stationary use at weather-protected
locations,” Class 3.3
The equipment is designed to function without degradation
during exposure to all test severities per Class 3.3.
