Advent ADV200B User manual

128-7252A
1 of 35
ADV200B/
ADV200S/
ADV200P
DVD PLAYER
WITH
DROP-DOWN
VIDEO
MONITOR
128-7252A
SOURCE VOLUME
FM
SELECT
ON OFF AUTO
SELECT
HEADPHONE
S
INPUT
AUDIO
L R
VIDE
O
IR
5
2

128-7252A
2 of 35
-2-
Important Notice
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used
for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle
is in “park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the
operator of the motor vehicle.
Warnings
Do not use any solvents or cleaning materials when cleaning the video monitor.
Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest position.
Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain
the vehicle’s battery.
Do not put pressure on the screen.
Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.
Television Reception
This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television reception in a moving
vehicle will be limited and in some areas will not be possible due to weak and variable signal strength. Television viewing in a stationary
vehicle will result in an improvement, but may still be marginal due to signal strength. The quality of the picture will not be consistent with
home TV reception. Reception may be affected by weather and distance from TV station. A weak signal may cause the picture to roll, be
snowy, or cause some color loss.
Licensedunderoneormoreofthefollowingpatents,
PatentNOS. 5,775,762 and 5,927,784

128-7252A
3 of 35
-3-
Congratulationson your purchase ofthe ADVENT ADV200 DVD
Player with Drop-Down Video /Monitor. The ADV200 has been
designed to give you and your family many years of video
entertainment in the mobile environment. Please read the
directions that follow to familiarize yourself with the product and
to ensure that you obtain the best results from your equipment.
Please note: Installationoptionsvary, seethe individual owner’s
manuals for each component in your system to obtain a full
understanding of each component’s operation.
Safety Precaution
For safety reasons, when changing video media it is
recommended that the vehicle is not in motion, and that you do
not allow children to unfasten seat-belts to change video media
or make any adjustments to the system. System adjustments
can be accomplished using the remote control, while seat-
belts remain fastened. Enjoy your Audiovox entertainment
system but remember the safety of all passengers remains the
number one priority.
Features
••
••
•8.5 Inch TFT (Thin Film Transistor) Active Matrix
LCD (Liquid Crystal Display) Monitor
••
••
•OSD (On Screen Display) for Control of Picture
Quality and Functions
••
••
•Optional TV Tuner*
••
••
•Full Function Remote Control
••
••
•Infrared Transmitter for IR Wireless Headphones.
••
••
•Two Audio /VideoInputs (AV1/AUX)
••
••
•Built-in DVD Player
••
••
•Two Headphone Jacks
••
••
•Built-in Five Frequency Wireless FM Modulator
(**Optional Relay Box)
••
••
•Forward and Side Remote Sensor
••
••
•Dome Lights with 3-Position Switch
••
••
•Backlit Controls for Low Light Operation
••
••
•Last Position Memory for DVD
Options
* Audiovox P/N PODTVT
** Audiovox P/N SIRSWB

128-7252A
4 of 35
-4-

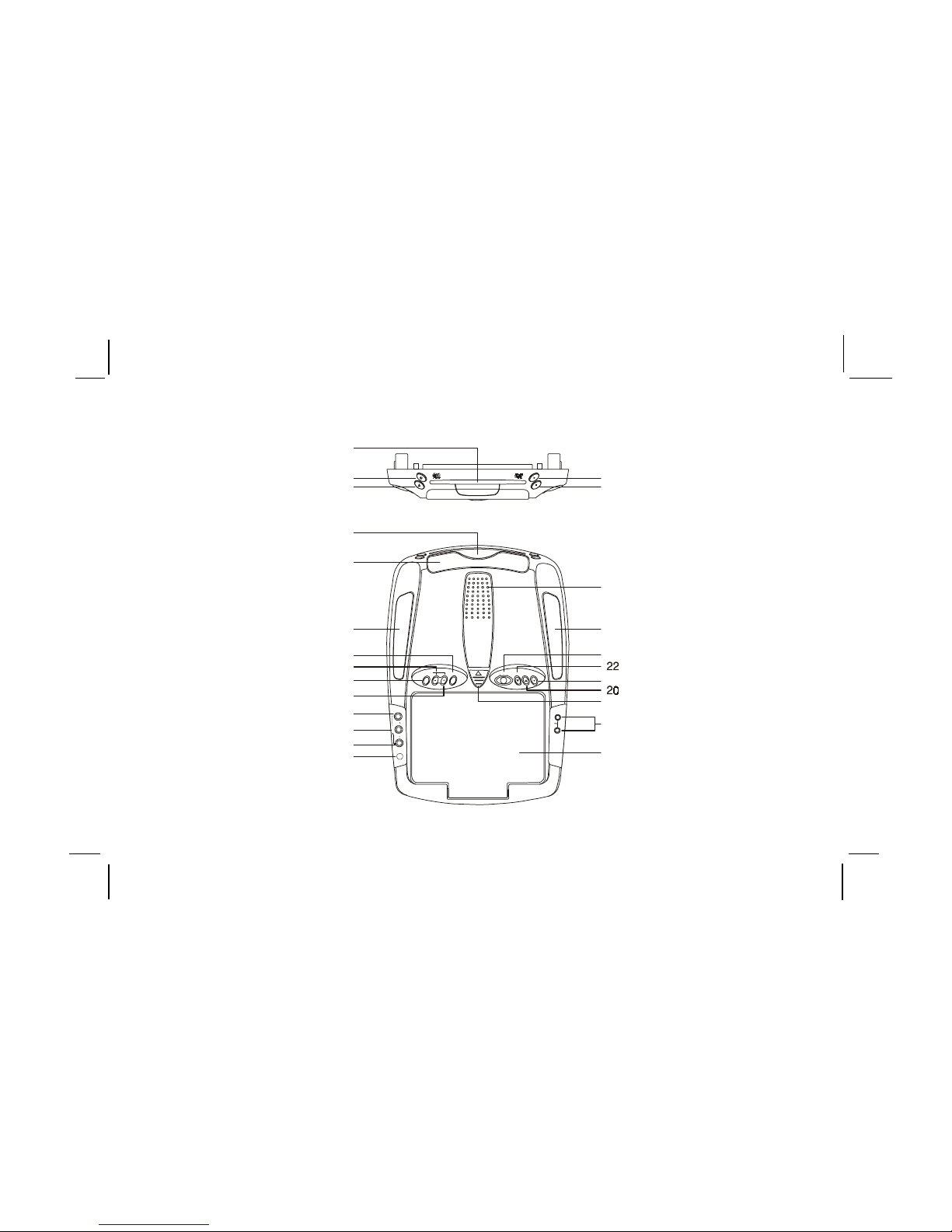

Controls and Indicators Diagram
VOLUME
FM
SELECT
ON OFF AUTO
HEAD
PH
ONES
INPUT
AU
DI
O
L R
VIDEO
IR
POWER
EJECT
PLAY
STOP


!
"
#
$
&
%
&
'



!
"
#
$ %
&
'

!
SOURCE
SELECT
5
2

128-7252A
5 of 35
-5-
Control Function Descriptions
1. DVD Disc insertion slot – ForloadingDisc.
2. POWERButton –Used toturn thesystemON/OFF.Bright
red when system is on, dim when off.
3. EJECT ( ) Button – For ejecting discs from the disc
compartment.
4. PLAY ( ) Button – This button is used to start playback
of a disc.
5. STOP ( ) Button – To stop playback.
6. Infrared Transmitter and Sensor – Use to transmitaudio
tothe wirelessheadphones. Alsoallowstheremotecontrol
tooperate the ADV200 andto control other accessoriesin
the system.
7. ADV200 Ventilation Opening.
8. Dome Lights –Provideadditional interior illumination.
9. SOURCE Select –Used to selectone ofthethree sources
(DVD,AV1, AUX,*TV Optional).
10. ( + ) Button –Used to increase levelsinthe picture adjust
mode.
11. PICTURE SELECT Button – Allows the user enter the
pictureadjustment mode.
12. ( – ) Button – Used to decrease levels in the picture
adjustmentmode.
13. Auxiliary Audio Right Input.
14. Auxiliary Audio Left Input.
15. Auxiliary Video Input.
16. Side Remote Sensor Eye – Allows the remote control to
operatetheADV200, controlvolumeto thewiredheadphone
jacks and control the other accessories.
17. Drop Down LCD Panel.
18. Headphone Jacks – Allow the use of wired headphones
witha 1/8” plug forlisteningto the video programaudio.
19. Screenrelease– Movesin directionof thearrowto release
thedrop down screen.
20. VOLUME( )Button –Usethisbuttonto raisethe volume
levelof the headphonejacks.
*Consult the PODTVTInstallation/Owner’s Manual foroptional
TVtunerinstructions.

128-7252A
6 of 35
-6-
21. FM Select Button – When this button is pressed it will
turnon the wireless FMModulator and then cycle through
FMfrequencies (Channel1,88.3MHz;Channel2,88.7MHz;
Channel 3, 89.1MHz; Channel 4, 89.5MHz; Channel 5,
89.9MHzand OFF).
22. VOLUME ( ) Button – Use this button to decrease the
volumelevel oftheheadphone jacks.
Note:These buttons will not affect the volume of wireless
headphones or the wireless FM modulator. When using
thesedevicesthevolumemust beadjustedwiththewireless
headphonevolumecontrolorwithyourradio’svolumecontrol
(seepage 16, WirelessHeadphones,or page 17,Wireless
FMModulator).
23. Three position Dome Light Switch
• Auto – Automatically switches on the dome lights in
conjunctionwith the vehicle’s interiorillumination.
• Off – The dome lights will not turn on in this position.
• On – Turns on the dome lights.
Note : Audiovox recommends the use of the Audiovox HP 275
Headphoneswhen usingwired headphones.

128-7252A
7 of 35
-7-
Battery Installation
Before attempting to operate your Remote Control, install the
batteriesas described below.
1) Turn the Remote Control face down. Using a fingernail,
liftthe battery cover off.
2) Install two “AAA” batteries as shown. Make sure that
properpolarity (+ or -)is observed.
3) Align the cover tabs with the remote control and press
down until the cover clicks.
The remote control will operate the ADV200 and most Audiovox
VCP’s. It is not a universal remote control and will not control
equipmentfrom othermanufacturers.
Remote Control Operation

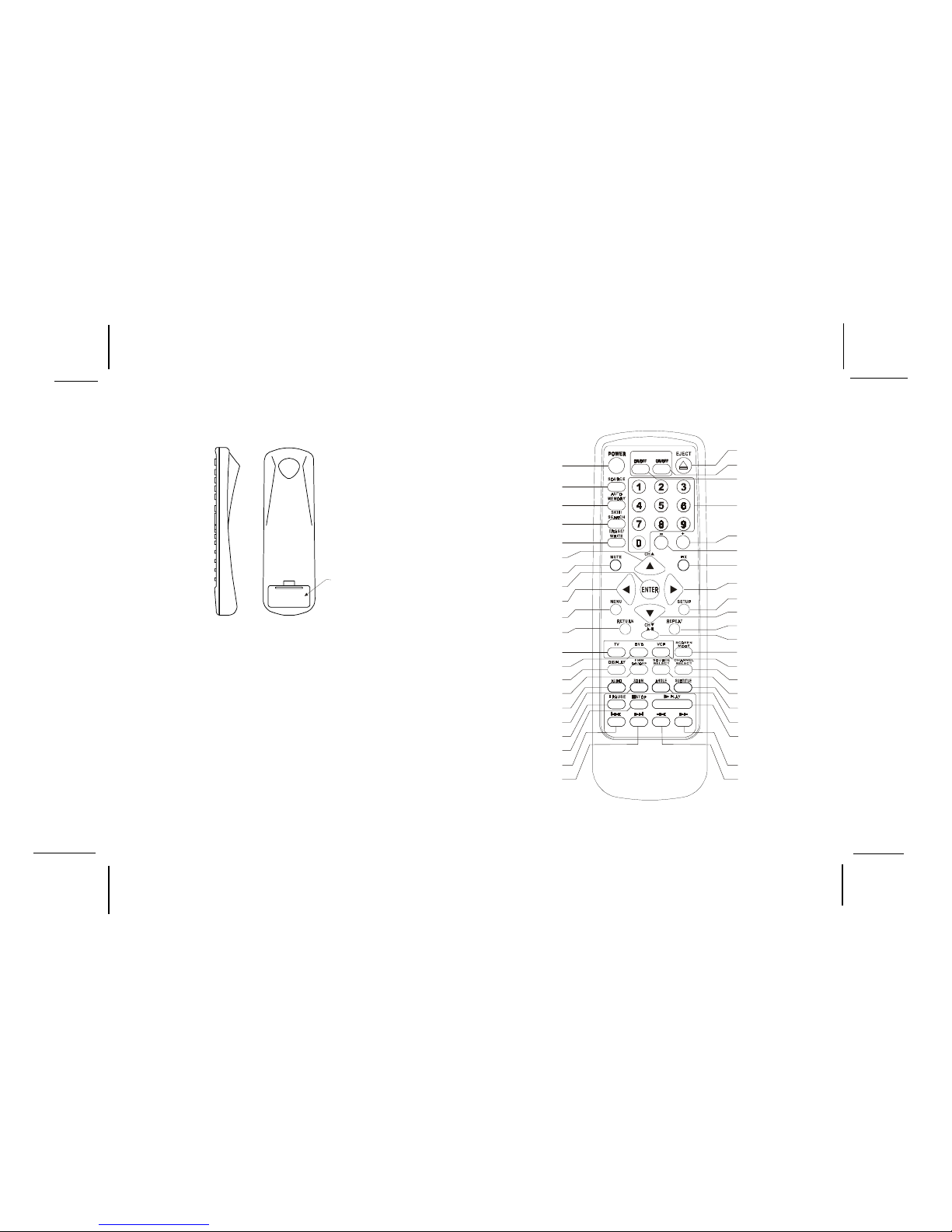

146) 146*
1
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21 23
22
24
25
26
27
28
29
30
31
32
34
33
35
36
37
38
39
40
41
42
BATTERY COVER

128-7252A
8 of 35
-8-
Remote Control Function Descriptions
*Function control is available on the unit and the remote control.
** Not used in this model
***TheTV Option will onlybe displayed and the TVcontrol functions are onlyavailableif the optional TVTuner(P/N PODTVT) is
installed.
1. POWER Button*
Press this button to turn the ADV200 on. Press the button again to turn the ADV200 off.
2. SOURCE Button*
Each time the button is pressed, the audio / video source will change: DVD, AV1, AUX and TV***.
3. AUTO MEMORY Button(AUTO PROGRAMButton)***
When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with signals of
sufficentlevels are automatically stored.
4. SKIP/SEARCH Button***
Thisbutton selectsbetweeenSKIP andSEARCH mode. In“SKIP mode”theTV tunerwill tune andstop on channelsthat are
programmedinto memory whenCHANNELUP/DOWN buttons areused. When the SKIPmode is disabled,theTV will stop
onall active channels.
5. ERASE/WRITE Button***
Whiletuned to achannel, pressing thisbutton will storeorerase thechannelfrom memory.The stored channelnumbers are
displayedin “GREEN” and theerased channel numbers aredisplayed in “RED”.
6. Channel Up ( ) Button
Usethisbutton to increase the channel number*** tothedesired channel and to scroll upwardinmenu options.

128-7252A
9 of 35
-9-
7. MUTE Button
Press this button to mute the audio.
Pressing the button again restores the sound to the previously set level.
8. ENTER Button
Used to implement a selected setting or menu option.
9. LEFT ( ) Button
Allows the user to shift left in the menu options.
10. MENUButton
Allows the user to access the main menu.
11. RETURNButton**
12. TV Mode Select Button***
Switches certain function keys on the remote control for TV functions.
13. DVD Mode Select button
Switchescertainfunction keys on the remotecontrol for DVD functions.

128-7252A
10 of 35
-10-
14. DISPLAYButton
Presstodisplay DVD Disc current information.
Press DISPLAY button DVDPlayerPerform
Once DisplaycurrentTITLE ,CHAPTER &elapsedtime
Twice DisplaycurrentSUBTITLE
3 times DisplaycurrentAUDIOlanguage &channel
4 times Displaycurrentsurround mode
5 times Display currentANGLE
6 times DisplayA-Bcurrent status
7 times Display REPEAT current status
8 times Displayoff
ForSubtitle,Audio, Surround,Angle,A - B&Repeat, pressEnterkey repeatedlytochange the options.Theseoptions may
varyfrom discto disc.
15. FMTRANSMITTERON/OFF Button
TurnsFM Modulatorpower on/off.
16. AUDIOButton
Press this button to display and select the desired AUDIO language. Each time the button is pressed, the language or track
changes. NOTE: The languages & tracks you can select are vary from disc to disc.

128-7252A
11 of 35
-11-
17. ZOOM Button – Press this button to zoom the picture
PressZOOMbutton OSD DVDPlayerPerform
Once 1X ZOOMpicture 2times
Twice 2X ZOOMpicture 3times
3 times 3X ZOOMpicture 4times
4 times 1/2 Reduces picture to 1/2 normal size
5 times 1/3 Reduces picture to 1/3 normal size
6 times 1/4 Reduces picture to 1/4 normal size
7 times OFF Returnstonormal size
18. PAUSE ( ) Button
Allows the user to pause the playback.
19. STOP (n) Button*
Disc playback will be stopped.
20. PREVIOUS ( ) Button
Allows the user to return to the previous chapter or track.
21. NEXT ( ) Button
Allows the user to skip to the next chapter or track.
22. REV ( ) Button
Allows the user to search in a backward direction at 2, 4, 8, 16 and 32 times the normal speed.

128-7252A
12 of 35
-12-
23. FWD ( ) Button
Allows the user to search in a forward direction at 2,4,8, 16 and 32 times the normal speed.
24. PLAY ( )Button*
Press this button to activate the play mode when a disc is loaded into the disc compartment.
25. ANGLEButton
Press this button to display and select the available camera angles. Each time the button is pressed, the angle will change.
NOTE: The number of angles vary from disc to disc.
26. SUBTITLEButton
Press this button to display and select the available subtitle language in DVD. Each time the button is pressed, the
subtitlelanguage changes. NOTE: The type & number of languages for subtitles vary from disc to disc.
27. SOURCESELECT Button**
With FM ON, used to select the Audio source to the FM Modulator, POD audio or SAT Audio (Second IR input).
With FM OFF, used to select from SAT Audio or Car Audio.
28. CHANNELSELECTButton* (FM Select)
Selects the FM modulator Frequency (Frequency 1, 88.3MHz, Frequency 2, 88.7MHz, Frequency 3, 89.1MHz, Frequency 4,
89.5MHz,Frequency 5, 89.9MHz).
29. VCP Mode Select button
Switches certain function keys on the remote control for VCP functions.
30. Screen Mode Button
Allows the user to change screen format ( Aspect Ratio, 4:3 or 16:9 )

128-7252A
13 of 35
-13-
31. A-BButton
Allows the user to repeat playback of a DVD or CD from point A to point B.
32. REPEAT Button
Allows the user to repeat a chapter, title, track, or all of a DVD, CD or MP3.
33. Channel Down ( ) Button
Use this button to decrease the channel number*** to the desired channel and to scroll downward in the menu options.
34. SETUPButton
Allows the user to access the DVD setup menu and select various playback options (Display, OSD Language, Defaults,
ParentalControl,Password,Exit Setup).
35. RIGHT ( ) Button
Allows the user to shift to the right in the menu options.
36. PIXButton(PICTURE SELECT)
Eachtime this buttonispressed, the OSDwill display the “adjustment bars”for BRIGHTNESS, CONTRAST,COLORor TINT.
Once the desired adjustment bar is displayed, use the VOLUME UP/DOWN buttons to adjust the setting. The display will
automatically turn off if no adjustments are made within 6 seconds, or if any other button is pressed.
37. VOLUMEDOWN(-) Button*
Usethisbuttonto decrease the volume level of the wiredheadphonejacks. It is also used to make picture adjustments
in picture select mode.

128-7252A
14 of 35
-14-
38. VOLUMEUP (+) Button*
Use this button to raise the volume level of the wired headphone jacks. It is also used to make picture adjustments in
pictureselect mode.
Note: The volume buttons will not affect the volume of wireless headphones or the wireless FM Mmodulator. When using these
devices the volume must be adjusted with the wireless headphone volume control or with your radio’s volume control
(see page 16, Headphones, or page 17, Wireless FM Modulator).
39. NUMBERButtons
Allows the user to enter numbers 0 to 9 for selection of CD tracks, DVD chapters, and password setting.
40. IRTA ON/OFF Buttons
TurnInfrared TransmitterpowerON/OFF forIR WirelessHeadphoneChannel A.
41. IRTBON/OFFButtons**
TurnInfrared Transmitterpower ON/OFFforIR WirelessHeadphone ChannelB.
42. EJECT( )Button*
The disc will be ejected from the disc compartment.

128-7252A
15 of 35
-15-
Turning the ADV200 On or Off
1. Sliding thescreen release lockforward willunlock theLCD screenandit willdrop downslightly.Pivot the screendownward until
a comfortable viewing angle is reached. The internal hinge friction will hold the screen in position while the system is in use.
2. Pressing the power button on the unit or the remote control will turn the system on or off alternately. When in use the internal
backlighting will illuminate the controls.
3. Afterthe unit has beenturned on load adisc into the discslot (lable side up).Adjust the viewingangleby pivoting thescreento
optimize the picture quality.
4. Remember to turn the unit off and pivot the LCD to the locked position when not in use.
Overhead Dome Lights
The lights integrated into the ADV200 are controlled by a
threepositionslide switch. Slidingtheswitch totheonposition
will turn the lights on. The off position will prevent the lights
from turning on at all times, and the auto position will allow
thelights to turn onand off withthevehicle’s interior lighting.
Referto the Installation Manualforthe wire connections.
NOTE: Do not leave the vehicle unattended with the dome
light switch in the on position, as this could result in a
dischargedbattery.
Dome
Light
Switch

128-7252A
16 of 35
-16-
Remote Sensor
TheADV200 incorporatestwo Infrared sensorswhich relaysignals fromthe
remotecontrol toallowthe unitto be controlledsimply bypointingits remote
control at the remote sensor eye. The repeater function allows control of
auxiliaryequipmentsuch asanAudiovoxVideoCassette Player. Theinfrared
sensor can relay signals from most manufacturer’s remote controls to its
respective component connected to the AV 1 input. In this case you must
use the remote control supplied withthecomponent.
Accessories
Wireless Headphones
TheADV200 includesa built-ininfrared transmitterfor usewith ADVENTWirelessHeadphones(Part NumberIRHSN). The volume
can then be adjusted using the controls on each headset. Any number of wireless headphones may be used but they must be
used within a line of sight from the transmitter, as infrared transmissions, like visible light travel only in a straight line. See the
documentationaccompanying your Audiovox WirelessHeadphones.
Remote
Sensor
Eye
Remote
Sensor
Eye

128-7252A
17 of 35
-17-
Wired Headphones
Thereare two1/8”headphone jackson the ADV200that canbeused withany standard wiredstereo headphones. These jacksare
controlled by the volume up / down buttons on the ADV200 or the remote control.
Wireless FM Modulator
The ADV200 is equipped with buit-in wireless FM Modulator*, that allows you to listen to the ADV200 audio signal by tuning your
vehicle’sradio totheselected frequency,(88.3, 88.7,89.1,89.5, 89.9MHz). Thisfeatureisaccessedby usingeitherthe FMtransmitter
buttons on the remote (On/Off, Channel Select) or the FM Select button on the unit.
AV1 Input
The AV1 video input may be connected to a Video cassette Player (VCP), video game system, or other audio / video devices. To
accessthe A/V1 input,turn theADV200on and pressthesource buttonon the ADV200or the Sourcebutton on theremote control
until“AV1” is displayedon the screen.Turnthe video sourcecomponenton with itspower button or remotecontrol. The ADV200is
nowreadyto play the audio andvideosignals from the source connectedto AV1 input. TheAV1 input requires a 8010730cable.
*NOTE: In certain areas where there are a large number of FM radio stations (e.g. large cities, urban areas), the reception of the FM
signal from the overhead pod may not be satisfactory, resulting in static, distorted sound or signal bleed thru from strong local radio
stations. This is not a defect in the product, but the result of a stronger local radio station overpowering the wireless FM transmitter in
youroverheadpod.
If wireless reception is unsatisfactory, an optional wired relay box (Audiovox P/N SIRSWB) can be installed which will improve audio
quality. Please contact the installer if this is the case with your product.

128-7252A
18 of 35
-18-
AUX A/V Input
TheADV200 willaccept anaudio/video inputthrough theRCAjackslocatedon theside ofthe unit.The audio/ videodevicecouldbe
avideo game system, videocamera, or other inputdevice.
Audio/Video Out
TheADV200 providesan AVoutput foran optionalvideomonitor(s). (Refer topage 6of theInstallation Guidefor moredetails.) This
outputwill provide an A/Vsignalthat duplicates the signalprocessed by the ADV200to an additional monitororvideo display. The
audiosignal can also be usedto feed an AUX input ona vehicle radio ifavailable.Please see your installerformore information.
DVDBasics
To get the optimum use out of the DVD player, make sure you read this section completely.
Regional Coding
Boththe DVD playerand disc arecodedby region. These regionalcodes must matchin order forthe disc toplay. If thecodes don’t
match, the disc won’t play. This unit’s code is region 1. Other regional codes cannot be played in this unit. The unit will display
“WRONGREGION.”

128-7252A
19 of 35
-19-
Types of Discs your DVD will play
•DVD discs – DVDs discs which contain video.
•Audio discs – Audio CDs that contain music or sound content only.
•MP3 discs – A disc that contains audio files (for example, a CD-R/CD-RW with downloaded MP3 files).
Loading and Playing Discs
Before you load a disc, make sure that it is compatible with the player.
Note: the following Discs CANNOT be used with this player :
• MiniDisc
• Laserdisc
• CD-I, CD-ROM, DVD-ROM
To load and Play a Disc
Whenyou press thePower button theunit will turnon and displaythe source selected. SelectDVD mode andinsert the disc(Label
Up) into the disc compartment. When the disc is half way in it will be automatically pulled in and play will begin.
Last Memory
Theplayer isable toresumeplayback fromthe lastposition ifany power interruptionhappens, providedthe discis notremovedfrom
theplayer.
NOTE: Thisfunction is only availableon DVD’sand Audio CD’s.

128-7252A
20 of 35
-20-
2. In order to Go to the desired page, move the highlight using the cursor button or to the desired icon and press enter or button .
3. After entering the desired page, highlight the desired item using the or cursor button and press enter.
4. Press or to select the desired options, and then press ENTER to confirm the selection.
5. Repeat steps 3~4 to continue setting the items in the same Setup Page.
6. To change to another Setup page, press until the highlight moves back to the icon on the top part of the Setup Menu. Then, repeat
steps 2~5.
Exiting the Setup Menu
Press the SETUP button again or Move the highlight to " " icon and then press ENTER.
Settings and Adjustments
The Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen
display, limit playback for children, load default settings for the picture quality etc.
Using the Setup Menu
1. Press the SETUP button on the remote. The Setup Menu appears
on the screen as shown in the diagram to the right. There are 5
icons on the top part of the Setup Menu. Each icon represents a
page. Main Page
Audio Setup
Password Setup
Preference Setup
Exit Setup
