Adyton Pythia User manual

Pythia Earphone User Guide
June 5, 2020 1

CONTENTS
Pythia™ Earphone 2
Overview 3
Pythia™’s novel technologies include: 4
No Phone: 4
WiFi Channeling: 4
Immediate Process Access: 4
Safety & Personal Protection: 4
Big Data 4
Auto-Translation 4
On-the-Fly Operations 4
Pythia™ Controls 4
Voice and Button Controls: 5
Power On/Off 5
Wake Word 5
Voice Controls 5
Button Controls 5
Charging the Earphone: 6
WiFi Technology: 6
Care and Maintenance: 6
Troubleshooting: 7
June 8, 2020 2

Pythia™ Earphone
IMPORTANT SAFETY INSTRUCTIONS
● Please read and keep all safety and use instructions.
● Pythia™ earphone is not a hearing instrument or hearing conservation aid and is not
intended to replace a properly fitted and calibrated hearing instrument.
● Do NOT open the Pythia™ earphone enclosure for any reason.
● Do NOT use Pythia™ earphone while driving.
● Do NOT use the earphone at maximum volume for extended periods.
○ To avoid hearing damage, use your earphone at a comfortable, moderate
volume level at all times.
● Where appropriate, adjust the earphone to ensure you can hear surrounding sounds,
including alarms and warning signals.
● Be aware of how sounds that you rely on as reminders or warnings may vary in
character when using the earphone.
● Be aware that it may be more difficult to identify where a sound is coming from
when using the earphone.
● Do NOT use the earphone if it emits any loud unusual noise.
○ If this happens, turn the earphone off and contact Adyton customer service to
request an immediate replacement.
● Do NOT submerge or expose the earphone to water.
● Remove earphone immediately if you experience a warming sensation.
● Earphone contains small parts which may be a choking hazard.
○ Not suitable for children under age 3.
● This product contains magnetic material. Consult your physician on whether this might
affect your implantable medical device.
● Do NOT make unauthorized alterations to this product.
● Do NOT expose earphone to excessive heat (e.g. from storage in direct sunlight, fire,
etc.).
June 8, 2020 3

REGULATORY INFORMATION
FCC Part 15 Declaration of Conformity Statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. FCC Part 15 Subpart C is for intentional radiators.
Intentional radiators governed by the FCC Part 15 Subpart C must either have a permanently
attached antenna or provide a unique coupler to prevent the use of unauthorized antennas.
These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area may cause harmful interference in which case
the user will be required to correct the interference at his own expense. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the PythiaTM device off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
1. Reorient or relocate the receiving antenna
2. Increase the separation between the PythiaTM device and receiver
3. Consult the dealer or an experienced radio/TV technician for help
● Changes or modifications not expressly approved by the party responsible for
compliance will void the user’s authority to operate the equipment
● Opening as few as 1 device enclosures will void the user’s authority to possess the
equipment and will result in: a) All devices associated with the responsible party being
deactivated without refund or other consideration and 2) Immediate recall and return of
all PythiaTM devices distributed to the responsible party at the party’s expense.
FCC CAUTION!!! FCC RF Radiation Exposure Statement
This device complies with the FCC Part 15 license exempt RSS standard(s). Operation is
subject to the following two conditions: (1) This device may not cause interference, and (2) This
device must accept any interference, including interference that may cause undesired operation
of the device.
FCC 15.105: Information to user
June 8, 2020 4

Note: This Equipment has been tested and found to comply with the limits for a Class A digital
device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency enverty, and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense
FCC 15.21: Information to user

Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment
FCC CAUTION!!!
● Any changes or modifications not expressly approved by the party Responsible for
compliance could void the user’s authority to operate this Equipment.
● This equipment should be fitted to the user’s right ear.
FCC CAUTION!!!
Users must follow the processes and usages approved as per compliance. A changed or
modified usage not expressly approved by compliance could void the user’s authority to operate
this PythiaTM device.
This device integrates Wi-Fi module (Model Number: ESP32-WROVER) from ESPRESSIF
SYSTEMS (SHANGHAI) PTE LTD, having FCC ID 2AC7Z-ESP32WROVERE for radio
communication. The Modules are integrated to this product as per the module integration rule.
FCC ID 2AVV5-PF24V1
Grantee Code: 2AVV5
Equipment Product Code: PF24V1
Contact: [email protected]
LIMITED WARRANTY (United States)
Subject to the exclusions set forth below, Adyton, LLC will repair or replace, at its option without
charge, any Pythia device which fails due to a defect in material or workmanship within One
June 8, 2020 5

Year following the initial consumer purchase. This warranty does not apply to water damage,
abuse, or misuse, unauthorized service, or modification or altered products.
ANY IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED AS SET FORTH HEREIN AND TO THE DURATION OF THE LIMITED
WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER AND IS
PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT
SHALL ADYTON OR ITS PARTNERS BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING BUT NOT LIMITED TO NEGLIGENCE, GROSS NEGLIGENCE, BODILY
INJURY, PROPERTY DAMAGE AND DEATH) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL
OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA OR OTHER FINANCIAL LOSS
ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE
PRODUCTS OR ACCESSORIES TO THE FULL EXTENT THESE DAMAGES MAY BE
DISCLAIMED BY LAW.
Performance of any obligation under this warranty may be obtained by contacting an authorized
PythiaTM distributor or contacting: [email protected]
This warranty gives you specific legal rights, and you may also have other rights, which vary
from state to state.
Note: The above warranty applies only to merchandise purchased through an authorized
PythiaTM distributor in the United States of America or any of the territories or possessions
thereof, or from a U.S. Military exchange.
Overview
Congratulations on choosing a truly unique and innovative technology. Pythia™ is the world’s
first mobile system designed to verbally deliver step-by-step directions on demand, in any
language*, to a WiFi earphone, then report the time used to complete each step along with user
feedback.
*Translation feature is pending development
June 8, 2020 6

Pythia’s Novel Technologies
● No Phone:
○ The Pythia™  system requires no phone or Bluetooth device of any type for it’s
configuration, implementation, or operation in any way
● WiFi Channeling:
○ Pythia™ Model 1 only works on pre-selected 802.11n WiFi channels at constant
speeds of 50MBps or faster; it will not work outside pre-selected WiFi channel
ranges
● Immediate Process Access:
○ Pythia™ is able to immediately provide verbal steps for standard operating
procedures including emergency procedures and others that may be used
frequently, infrequently, or as a precaution, never.
● Safety & Personal Protection:
○ Pythia™ ensures users are reminded to perform tasks safely including using
proper personal protective equipment every time they perform tasks that risk
organizational liability, personal injuries, and property damage.
○ Pythia™ immediately alerts management when users need help hands-free via
voice or by pressing an earphone button
● Big Data
○ Pythia™ passively collects data at process step and individual user granularity
that yields performance, process, and other information to reveal continuous
improvement opportunities.
● Auto-Translation
○ Pythia™ enables organizations to write their standard operating procedure in one
language, then verbally deliver them in 129 other languages and dialects
on-the-fly

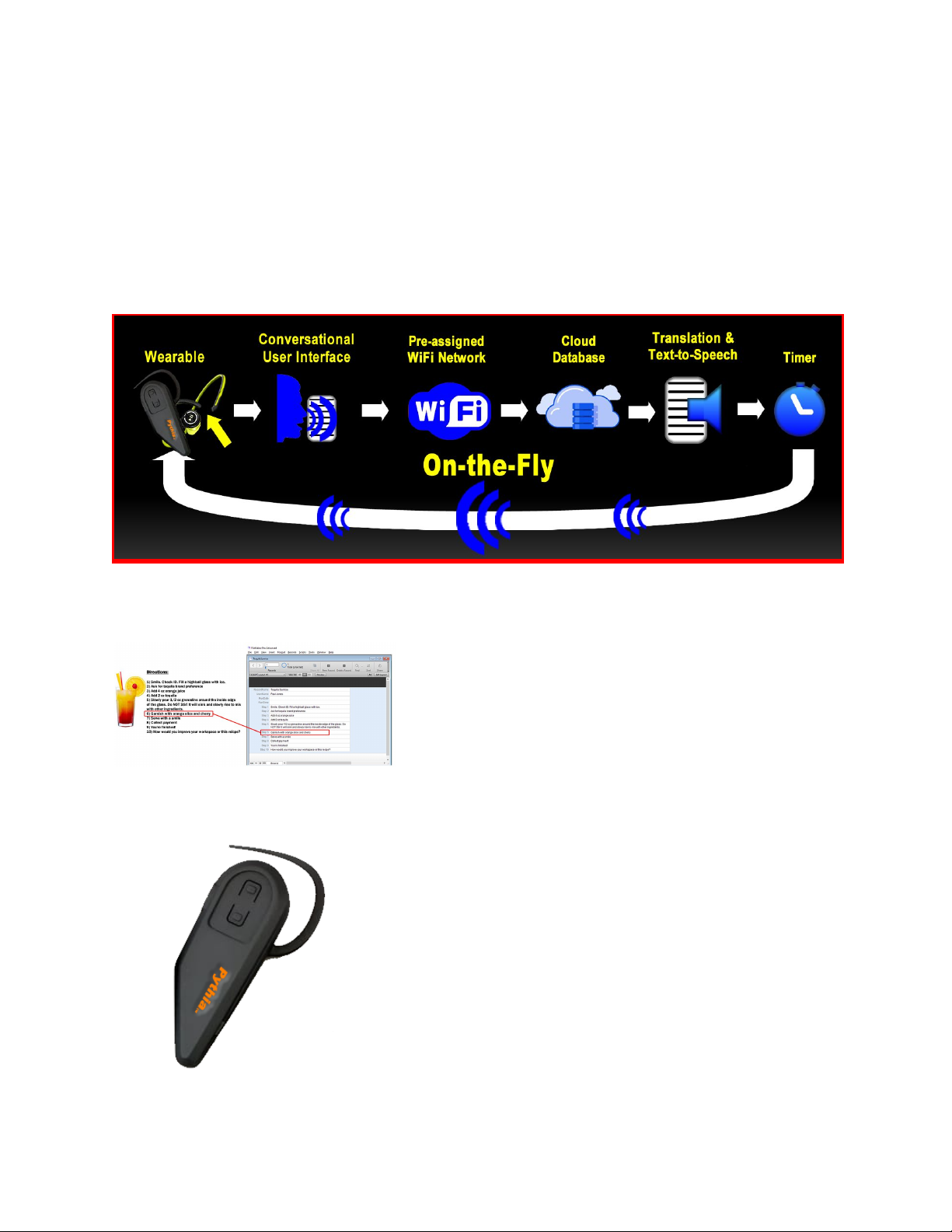

● On-the-Fly Operations
○ Pythia™ delivers step-by-step work instructions, captures performance data,
captures user feedback, and translates text written in one language to 129 other
languages & dialects completely on-the-fly.
● Security
○ PythiaTM was designed with security in mind
■ PythiaTM security plans and subsequent systems were reviewed and
approved by a former US-National Security Agency and Central
Intelligence Agency information security specialist
■ PythiaTM operates “on-the-fly” to increase security of client intellectual
property as no process title, process, or process step is ever saved
outside the PythiaTM cloud
June 8, 2020 7

■ PythiaTM earphones and user accounts are password protected
■ PythiaTM earphones will not operate outside the range of pre-configured
WiFi channels
■ The entire PythiaTM system is routinely audited for data vulnerabilities and
those vulnerabilities are tested for severity, then eliminated or mitigated
■ Four permission levels ensure security across all Organizations
(Super-Admin), within Organizations (Admin), within Work Groups
(Super-User), and among Users (User).
■ PythiaTM security is backed by world class Google services including;
Google Cloud, Google Storage, Google Speech, and Google Translate.
Pythia™ Controls
Voice and Button Controls:
The Pythia™  earphone uses a conversational user interface and/or mechanical buttons on the
earphone. The conversational interface uses process titles, a wake word, and The mechanical
button sends commands through 1 or 2 Short-presses or 1 Long-press.
Power On/Off
Pythia™ earphones include a separate power button used to turn the device on and off.
●Power On:  While shut down, press the power button. The system will start up, then ask
for a process title to run.
●Power Off  : While turned on, press the power button. The earphone will shut down.
Wake Word
The Pythia™ wake word is “OK”. OK causes the system to “listen” for an assigned process title
and/or a command. All commands must be preceded with the wake word. For example: Say,
“OK. Next.” to tell the system to play the next step.
Voice Controls
Use the following voice commands to operate the system in your own language. The
system supports 130 languages*:
●Next  = Advances to next process step
●Repeat  = Repeats the last process step instruction
●Quit  = Ends the current process, then recycles to request mode
●Help  = Sends an immediate email alert to the designated supervisor
●All interactions except record requests and volume controls can be accomplished with
voice commands and/or mechanical button on the earphone
*Translation feature is pending development
June 8, 2020 8

Button Controls
Pythia™ earphones are equipped with 3 mechanical buttons: Top, Bottom, and Power. Button
operations include:
●Single Short-Press Top Button  = Next
●Double Short-Press Top Button  = Repeat Current Step
●Single Long-Press Top Button  = Quit Current Process
●Single Long-Press Bottom Button = Send Help Request
●Single Short-Press Bottom Button =  Volume Down 1 Increment
●Double-Short-Press Bottom Button =  Volume Up 1 Increment
●Press Power Button  = On, Off
●Triple-Long Press  = Help/Send Alert
●All interactions except record requests and volume controls can be accomplished with
voice commands and/or mechanical button on the earphone
Charging the Earphone:
The Pythia™ earphone uses a state-of-the-art lithium polymer (LiPo) battery for maximum use
between re-charging. You’ll hear a series of verbal messages when battery power depletion is
imminent:
● When battery power reaches 10%, system says, “10% power remaining.”
● When battery power reaches 5%, system says, “5% power remaining.”
● When battery power reaches 2%, system says, “Shutting down; please stand by.”
Each Pythia™ earphone is equipped with a micro-USB interface to facilitate battery charging.
Connect a regular micro-USB cable to the earphone and a power source.
●The system’s firmware is set to fully recharge the earphone battery in about 30 minutes.
WiFi Technology
Pythia™ uses pre-selected 802.11n WiFi channels to operate the system. Faster WiFi speeds
deliver faster system performance. The minimum recommended speed is 60mbps.
Thanks to Pythia™‘s WiFi capability, there’s no Bluetooth pairing, and no phone; just turn it on,
say your password, and go!
June 8, 2020 9

Care and Maintenance
● Unplug your earphone’s charger cable when fully charged and before use
● Never open the earphone enclosure for any reason
● Your earphones may require periodic cleaning
○ If your earphone includes self-cleaning plastic, simply curtail use for up to 5
hours. The microbial plastic will cleanse itself, then simply wipe the earphone
casing with an electronics or optical-safe towelette.
○ If your earphone does not include self-cleaning plastic, clean it only with an
electronics or optical-safe towelette.
○ Never use cleaning solvents or detergents to clean the Pythia™ earphone.
○ Broken or damaged Pythia™ earphones must be returned to an authorized Pythia
Partner or to Adyton. A replacement will be promptly delivered.
■ Contact [email protected] to arrange earphone returns and
replacements.
○ Your Adyton earphones are covered by a 30 day satisfaction guarantee.
■ Contact [email protected] if an earphone malfunctions within 30
days and a replacement earphone will be delivered ASAP
■ Return the defective earphone to your authorized PythiaTM distributor or
send it to:
Adyton, LLC
550 Lockport RD
Rochester Hills, MI 48307
Earphone Operation:
Pythia navigates cloud database records using a verbal wake word and verbal commands
and/or mechanical buttons on the earphone.
Earphone features include:
● Mechanical Buttons
○ On/Off Button
■ Press to turn on; press again to turn off
○ Top Button
■ Short-press to play next step
■ Double Short-press to repeat the step instruction
June 8, 2020 10

■ Long-press to Quit the process
○ Bottom Button
■ Short-press to turn down speaker volume
■ Double Short-press to turn up speaker volume
■ Long press to request Help (sends email to assigned supervisor)
● Verbal Commands
○ Wake Word
■ “OK” - Say the wake word before every verbal command
■ “Next” - Say “OK. Next” to hear the next process step & start a timer
● If there was a prior step, “OK. Next.” stops the time, calculates
how long it took to complete that step & sends the duration to the
cloud before playing the next step
■ “Repeat” - Say “OK. Repeat.” to have a step verbally repeated
■ “Quit” - Say “OK. Quit.” to end a process before completing it
■ “Help” - Say “OK. Help.” to send an immediate email alert to a manager
● Critical Step
○ The system automatically detects when users fail to spend the minimum
expected amount of time on a “Critical” process step.
■ When the minimum time is not spent on a critical step, the system
automatically sends an email alert to a manager
June 8, 2020 11

Operation:
Users verbally request work processes, the system delivers step-by-step directions and tracks
the time spent on each step. Upon completing all steps, the system asks the user for feedback
on how to improve the process, their performance, or anything other performance-related factor.
.
Make Database Records
Standard Operating Procedures, like recipes,
assemblies and/or high tech procedures are entered
into a cloud database as records; one text field per
instruction or step.
Pythia WiFi Earphone
Upon power up, the Pythia device automatically
connects to an in-range, pre-configured secure WiFi
channel, finds the user account it's assigned to, then
asks user to request a process. The earphone has a
microphone, speaker and control buttons that operate
June 8, 2020 12

the system. The battery lasts around 5 hours and fully
recharges via micro-USB in around 30 minutes.
Conversational Interface
Like Siri or Cortana, Pythia uses a conversational
user interface to operate the system by speaking the
wake word, "OK", and the commands, "Next", "Quit",
"Repeat", "Help", and to process titles.
802.11n WiFi
Pythia runs on regular, pre-configured, 802.11n WiFi
channels, >60mbps or faster. Upon power up,
earphones automatically connect to an in-range,
pre-configured WiFi channel, finds the user account
it's assigned to, then asks user to request a process.
Cloud Database
Processes/recipes, user accounts, and performance
data are all kept in our cloud database. For complete
security, no process, step, or performance data is
ever saved outside the cloud; everything operates
on-the-fly.
Text-to-Speech
After the system finds a requested process to run,
Pythia converts the record's first text field to speech
and plays it on-the-fly to the earphone.
June 8, 2020 13

Digital Timer
A timer begins. It ends when the user finishes the
step and says, "OK. Next."
Next Steps
After completing a step, the user says, "OK. Next",
the system stops the timer, calculates the
performance duration, uploads the data to the cloud,
converts the next step's text to speech, and plays it
on-the-fly to the earphone.
Feedback
After completing all the steps of a process, Pythia
asks users to provide their optional feedback.
Recycle to Beginning
After the feedback phase, Pythia recycles to the
beginning and asks the user to request a process.
Analytics
Performance data is immediately available and can
be sorted down to individual performer, date range,
and specific process STEP. The standard Mean
Performance Report automatically calculates a mean
performance duration for the sorted data and
highlights it relative to the mean. Scores are
June 8, 2020 14

assigned; Green is for events closest to mean, Red is
the farthest from the mean, and Gold includes best
practices and the best chance to deliver the highest
Return On Investment when achieved.
Global SOP Updates
Companies using Pythia can update and deliver
process updates anywhere in the world simply by
editing database text fields.
Our auto-translation capability enables our clients to
write their SOPs in one language and deliver it in over
100 other languages, in real time.
Alerts!
Pythia users can request help by saying, "OK. Help."
or by Long-Pressing the Alert Button on the earphone
to send an immediate text message to their
supervisor. A text alert is also sent when users don't
spend the minimum expected amount of time on
"Critical Process Steps".
NO Phones!
For more than a decade, technologies have
converged with dependency on phones and tablets.
The next decade will begin the divergence from
phones. Pythia's Patented technologies are
trailblazing because they don't require a phone or
June 8, 2020 15

tablet. This also adds to our clients ROI by saving
them thousands of dollars in collective phone costs.
Hands-free
Like Siri and Cortana, Pythia operates by voice,
which enables it to navigate completely hands-free.
This is important when safety, cleanliness, efficiency,
and accuracy matter.
Troubleshooting:
If you experience problems with your earphones:
● Turn off the earphone, then turn it back on
● Ensure you’re within range of a pre-selected WiFi channel
● Ensure the selected WiFi channel is broadcasting
● When possible, check with other users to see if their earphones are operating properly
● Ensure you’re requesting a process by its exact title
● Ensure the process you’re trying to run is assigned to you
● Turn off the earphone, connect it to a power source & charge the battery for 30 minutes;
then try using the earphone again
● Ensure the device you’re using is assigned to you
● Turn off the earphone if it begins to feel warm
● Users: Contact your Super-user or Admin for more help
● Admins: Contact your Business Partner or dedicated Super-administrator
● Business Partner: Contact your dedicated Super-administrator
June 8, 2020 16
