AEG Electrolux S 75388 KG9 User manual

S 75388 KG9
S 75388 KG98
Refrigerator freezer combination
Instruction book
PERFEKT IN FORM UND FUNKTION
A/AE/11-1. (07.)
200371878

2
Dear customer,
Before switching on your new appliance please read these operating instruc-
tions carefully. They contain important information for safe use, for installa-
tion and for care of the appliance. Please keep these operating instructions
for future reference. Pass them on to possible new owners of the appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Caution!, Important!). Please observe the following carefully.
1. This symbol guides you step by step in the operation of the appliance.
2. .....
Supplementary information regarding operation and practical applications of
the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of the
appliance are marked with the cloverleaf.
Explanations of the technical terminology used in the operating instructions
can be found at the end in the section "TechnicalTerminology". The operating
instructions contain instructions for the correction of possible malfunctions
by the user in the section "What to do if ...". If these instructions should not
be sufficient, contact your local Service Force Centre.
Printed on paper manufactured with environmentally sound processes
he who thinks ecologically acts accordingly...

3
Contents
Important safety information.................................................................................................5
General safety precautions........................................................................................................5
Precautions for child safety.......................................................................................................6
Safety precautions for installation .........................................................................................6
Safety precautions for isobutane ............................................................................................6
Installing the appliance............................................................................................................7
Transportation, unpacking..........................................................................................................7
Cleaning ...........................................................................................................................................7
Placement .......................................................................................................................................8
Change of door opening direction......................................................................................10
Instructions for the User........................................................................................................12

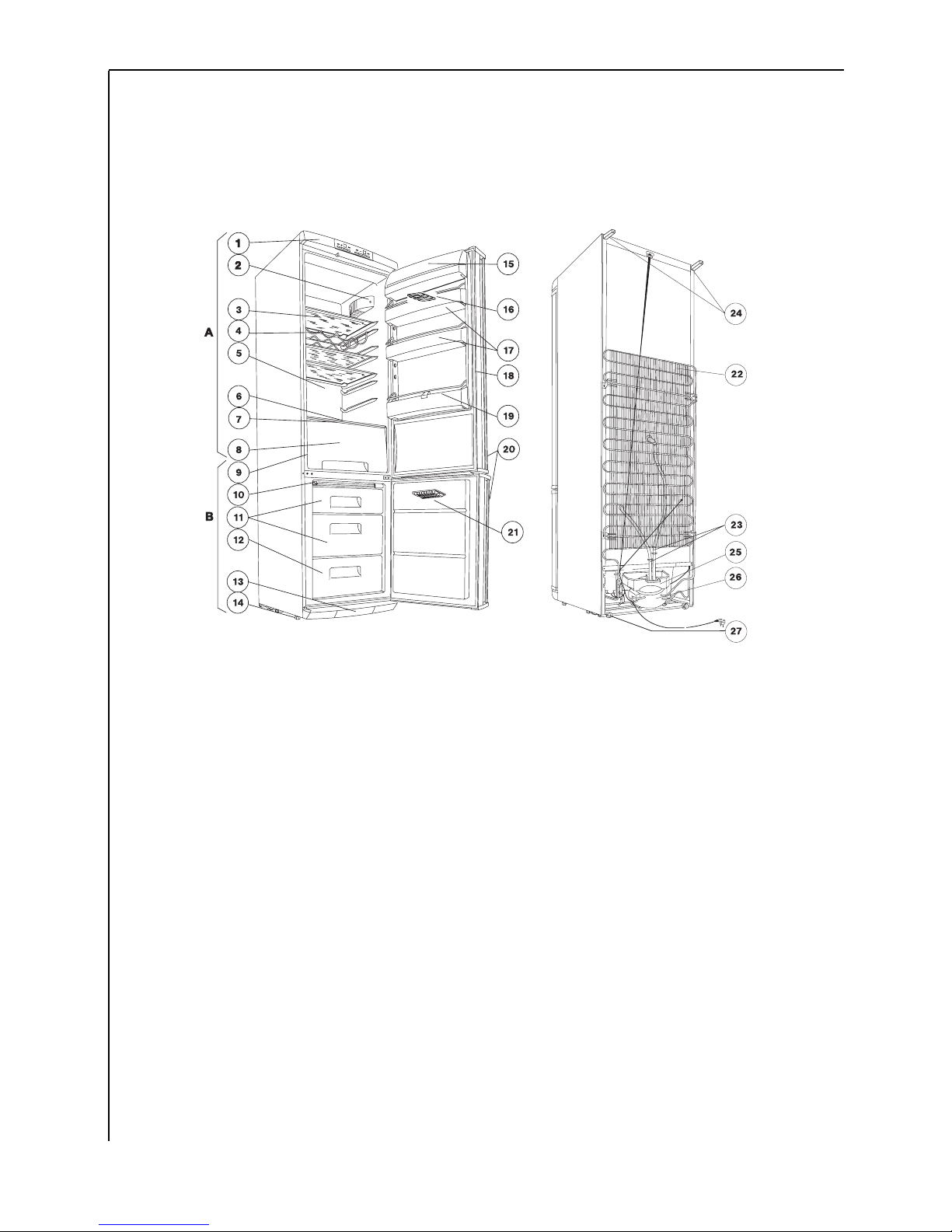

Description of the appliance, main parts ...........................................................................12
Operating and indicator panel Fridge...............................................................................13
Temperature setting buttons...................................................................................................13
Temperature display ...................................................................................................................13
Starting Up - Setting the Temperature ...............................................................................14
COOLMATIC...................................................................................................................................14
Holiday function.........................................................................................................................14
How to use the refrigerator..................................................................................................15

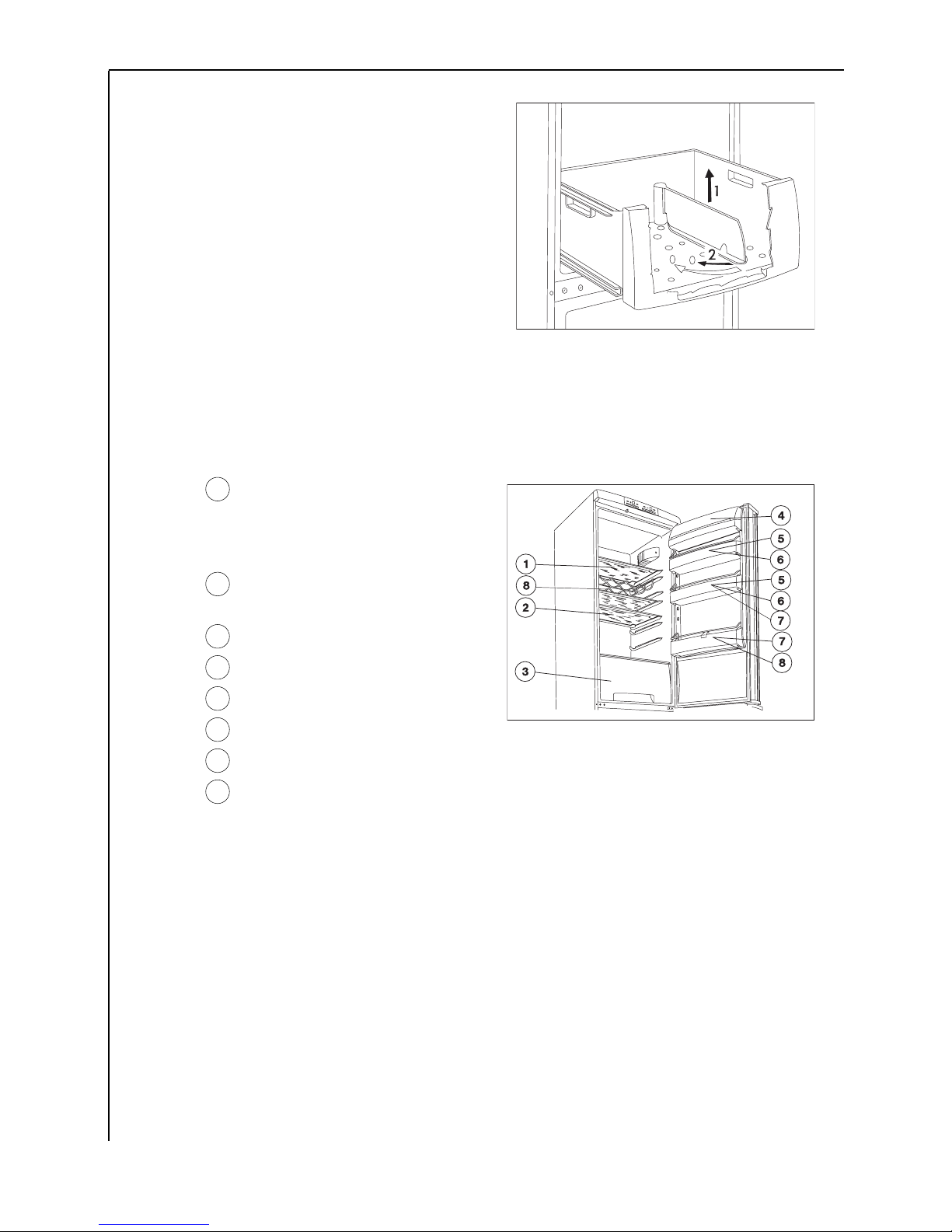

Interior Accessories ..................................................................................................................15
Storage Shelves ...........................................................................................................................15
Drawer............................................................................................................................................16
Storing in the refrigerator.....................................................................................................16
Storage time and temperature of foods .............................................................................16
Operating and indicator panel Freezer.............................................................................17
Temperature setting buttons...................................................................................................17
Temperature display ...................................................................................................................17
Starting Up - Setting the Temperature ...............................................................................18

4
FROSTMATIC..................................................................................................................................18
Alarm reset button.....................................................................................................................18
Switching the Appliance off...................................................................................................19
Freezeng and storing frozen food.......................................................................................19
Storing in the freezer ..............................................................................................................20
How to make ice cubes.............................................................................................................20
Some useful information and advice.................................................................................21
Hints and ideas............................................................................................................................22
How to save energy....................................................................................................................22
The appliance and environment............................................................................................22
Maintenance ...............................................................................................................................23
Defrosting .....................................................................................................................................23
Regular cleaning........................................................................................................................24
Internal cleaning.........................................................................................................................24
External cleaning........................................................................................................................24
If something does not work..................................................................................................25
How to change the bulb ..........................................................................................................27
Electrical connection................................................................................................................27
Electrical Requirements ..........................................................................................................28
Storage time chart (1) ............................................................................................................29
Time and method of storage of fresh foods in the refrigerator..................................29
Storage time chart (2) ............................................................................................................30
Storage time of deep-frozen and products .......................................................................30
Guarantee / Customer Service .............................................................................................31
Standart quarantee conditions ..............................................................................................31
Exclusions ......................................................................................................................................31
Service and Spare Parts............................................................................................................32
Customer Care.............................................................................................................................32
Europen Guarantee....................................................................................................................33

5
Important safety information
General safety precautions
Keep these instructions and they should remain at the appliance when
moving away or changing owner.
This appliance is designed for storing food, domestic use according to
these instructions only.
Specialised companies that are qualified to do so by the manufacturer
must carry out service and repairs including repairing and changing the
power cord. Accessory parts supplied by them should be used only for
repairing. Otherwise the appliance can be damaged or can cause other
damage or injury.
The appliance is out of circuit only in that case if the plug is removed from
the socket. Before cleaning and maintenance always unplug it (do not get
it by the cable). If the socket is difficult to reach, switch off the appliance
by cutting off the current.
Power cord must not be lengthened.
Make sure that the power plug is not squashed or damaged by the back
of the fridge/freezer.
- A damaged power plug may overheat and cause a fire.
Do not place heavy articles or the fridge/freezer itself on the power
cord.
- There is a risk of a short circuit and fire.
Do not remove the power cord by pulling on its lead, particularly when
the fridge/freezer is being pulled out of its niche.
- Damage to the cord may cause a short-circuit, fire and/or electric shock.
- If the power cord is damaged, it must be replaced by a certified service
agent or qualified service personnel.
If the power plug socket is loose, do not insert the power plug.
- There is a risk of electric shock or fire.
Without the lamp cover of interior lighting you must not operate the
appliance.
When cleaning, defrosting, taking out frozen food or ice tray do not use
sharp, pointed or hard devices, as they can cause damage to the appliance.
Be careful not to allow liquids to the temperature control and lighting
box.
Ice and ice-cream can cause hurt if they are eaten immediately after
removal from the frozen food compartment.
After dissolving frozen food must not be refrozen, it must be used up as
soon as possible.
Store pre-packed frozen food in accordance with the frozen food manu-
facturer's instructions.
You must not make defrosting faster with any electric heating appliance
or chemicals.

6
Do not put hot pot to the plastic parts.
Do not store flammable gas and liquid in the appliance, because they may
explode.
Do not store carbonated drinks, bottled drinks and bottled fruits in the
frozen food compartment.
Check and clean the outlet of melting water coming during defrosting reg-
ularly. If it is clogged the melting water gathered can cause earlier failure.
Precautions for child safety
Do not allow children to play with the packaging of the appliance. Plastic
foil can cause suffocation.
Adults must handle the appliance. Do not allow children to play with it or
its controlling parts.
If you are discarding the appliance pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the
door to prevent playing children to suffer electric shock or to close them-
selves into it.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction con-
cerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Safety precautions for installation
Put the appliance to the wall to avoid touching or catching warm parts
(compressor, condenser) to prevent possible burn.
When moving the appliance take care of the plug not to be in the socket.
When placing the appliance take care not to stand it on the power cord.
Adequate air circulation should be around the appliance, lacking this leads
to overheating. To achieve sufficient ventilation follow the instructions rel-
evant to installation.
Safety precautions for isobutane
Warning
The refrigerant of the appliance is isobutane
(R 600a) that is inflammable and explosive to a greater extent.
Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrost-
ing process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the manufac-
turer.
For the safety of life and property keep the precautions of these user's
instructions as the manufacturer is not responsible for damages caused by
omission.

7
Installing the appliance
Transportation, unpacking
It is recommended to deliver the appliance in original packaging, in vertical
position considering the protective warning on packaging.
After each transportation the appliance must not be switched on for approx.
2 hours.
Unpack the appliance and check if there are damages on it. Report possible
damages immediately to the place you bought it. In that case retain packag-
ing.
Cleaning
Remove every adhesive tape and everything else, which ensure the accessories
not to move in the appliance.
Wash the inside of the appliance using lukewarm water and mild detergent.
Use soft cloth.
After cleaning wipe out the inside of the appliance.

8

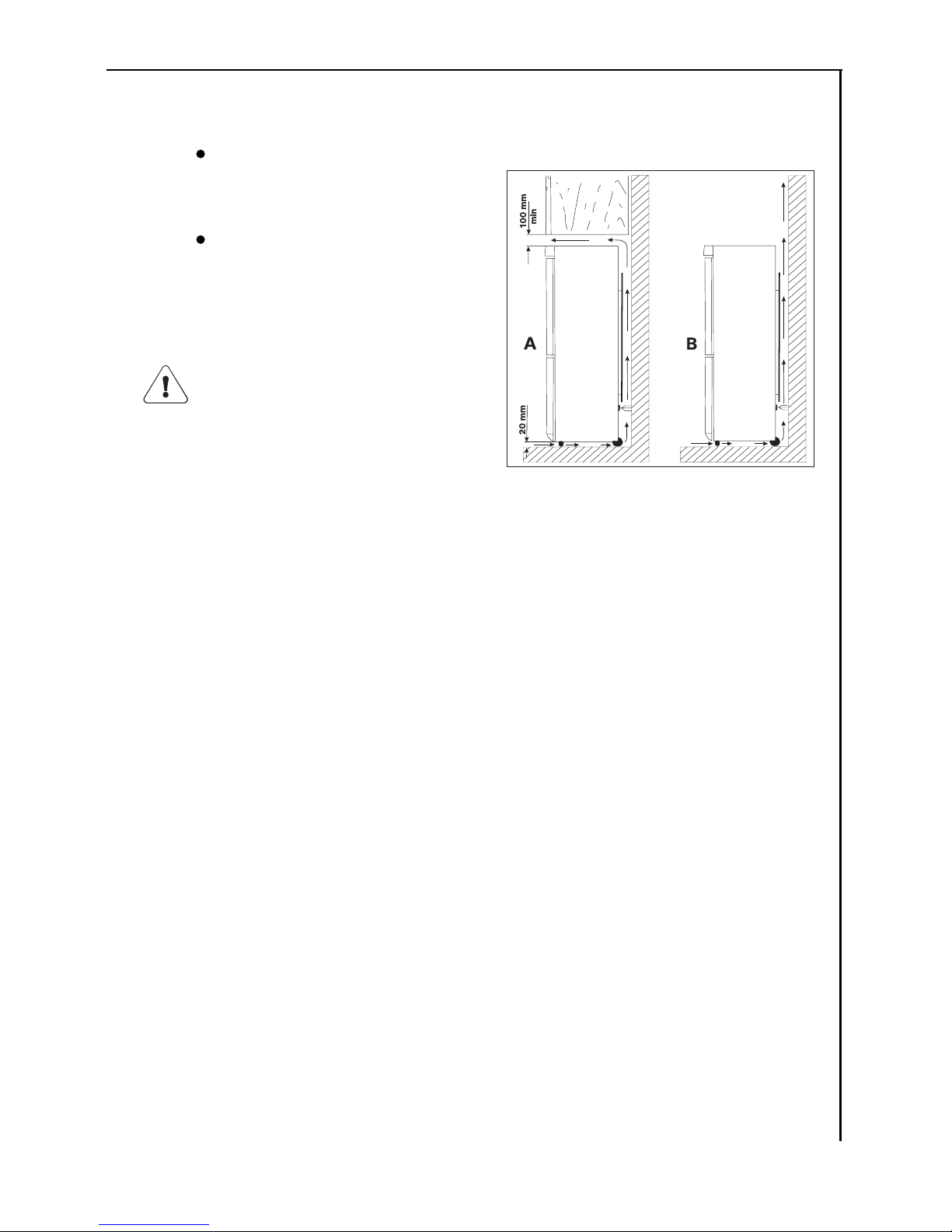

Placement
The ambient temperature has an effect on the energy consumption and
proper operation of the appliance.
When placing, take into consideration that it is practical to operate the
appliance between ambient temperature limits according to the climate class
that is given in the chart below and can be found in the data label.
If the ambient temperature goes below the lower data the temperature of the
cooling compartment can go beyond
the prescribed temperature.
If the ambient temperature goes
beyond the upper data this means
longer operating time of the com-
pressor, breakdown in the automatic
defrosting increasing temperature in
the cooling compartment or increas-
ing energy consumption.
In the bag of the accessories there
are two spacers which must be fit-
ted in the two top corners.
Slacken the screws and insert the
spacer under the screw head, the
re-tighten the screws.
When placing the appliance ensure
that it stands level.
This can be achieved by two
adjustable feet at the bottom in
front.
Do not stand the appliance on a
sunny place or close to a radiator or
cooker.
Class of climate Ambient temperature
SN +10…+32°C
N +16…+32°C
ST +18…+38°C

9
If it is unavoidable because of furnishing and the appliance has to be stood
near a cooker take these minimum distances into consideration:
In case of gas or electric cooker 3
cm must be left, when it is less
put a 0,5-1 cm non-flam insula-
tion between the two appliances.
In case of oil or coal-fired stove
the distance must be 30 cms
since they give off more heat.
The refrigerator is designed to oper-
ate when it is totally pushed to the
wall.
When placing the refrigerator keep
minimal distances recommended in
figure.
A: placing it under a wall-cupboard
B: placing it freely

10
Change of door opening direction
Should the setting-up place or handling demand it, door-opening direction
can be refitted from right-handed to left-handed.
Appliances on the market are right-handed.
Following operations are to be done on the basis of figures and explanations:
1. To perform the operations listed below it is
recommended to ask another person for help
who safely can keep the doors while perform-
ing the operations.
2. Disconnect the appliance from the electricity
supply.
3. Open the doors and dismount the double
door hinge (a,b) by removing the screws (2
pieces) (c). (fig. 2)
4. Take off the double door hinge (a,b,c) by grad-
ually removing it from the cabinet, slightly
tilting both doors. Do not forget to remove
the plastic spacer (b) under the hinge. (fig. 2)
5. Take off the refrigerator door by pulling it
slightly downwards.
6. Take off the freezer door by pulling it slightly
upwards.
7. Unscrew the top door hinge pin (d) of the
refrigerator then screw it back on the other
side. (fig. 1)
8. Remove the insert of the plinth (e) by a screw-
driver. (fig. 4)
9. Unmount the lower hinge pin (f) and its wash-
er (h) and mount them on the other side.
(fig. 4)
10. Replace the insert of the plinth (e) on the
other side.
11. Remove the covering nails (3 pieces) (n,k) of
the double door holder on the left side and
put them to the other side. (fig. 2)
12. Remove the (t, z) plugs from both doors.
(fig. 3)
13. Remove the (u, v) door closing devices by
unscrewing the (s) screw.
14. Unscrew the top handle bracket from the
handle rod (1). Unscrew the bottom handle
bracket from the door (2). Unscrew the top

11
handle bracket from the door (3) and screw
onto the bottom righthand side of the door
(4). (fig.5)
15. Turn the handle bracket with the handle rod
180° and screw them to the door (5) and the
fitted handle bracket (6). (fig.5) Do not over-
tighten the screw (max. 2 Nm) as you may
damage the door handles.
16. Replace the (u, v) door devices on the oppo-
site side of the other door after turning
them, then fix them by screwing the (s) screw.
17. Replace the (t, z) plugs on the opposite side.
18. Fit the pin of the double door hinge (m) into
the left drill of the freezer door. (fig. 2)
19. Fit the freezer door to the lower door hinge
pin (f). (fig. 4)
20. Fit the refrigerator door to the upper door
hinge pin (d) then slightly tilting both doors
fit the pin of the double door hinge (m) into
the left drill of the refrigerator door.
21. Opening both doors fix the double door
hinge onto the left side using the screws (2
pieces) (c). Do not forget to replace the plas-
tic spacer (b) under the hinge. Be careful that
the door edges are parallel with the edge of
the mantle.
22. Put the appliance to its place, set it level, and
apply to voltage it.
In case you do not want to perform the pro-
cedures above, call the nearest brand-mark
service. Technicians will accomplish the refit-
ting expertly for charge.

12
Instructions for the User
Description of the appliance, main parts
A- Refrigerator
B - Freezer
1. Top with switch and indicator set
2. Lighting box
3. Glass shelves
4. Bottle rack
5. Cooling surface
6. Defrost water drain
7. Glass shelf
8. Drawer
9. Data label
10. Air grid
11. Storing compartment(s)
12. Freezing compartment
13. Bottom plinth
14. Adjustable feet
15. Butter compartment lid
16. Egg tray
17. Door shelf
18. Door gasket
19. Bottle shelf
20. Handles
21. Ice tray
22. Condenser
23. Defrost water outlet tube
24. Spacer
25. Evaporator tray
26. Compressor
27. Rollers

13
Operating and indicator panel Fridge
A. ON/OFF button
B. Temperature setting button (for
warmer temperatures)
C. Temperature display
D. Temperature setting button (for
colder temperatures)
E. COOLMATIC function "on" indicator (yellow)
F. COOLMATIC button
Temperature setting buttons
The temperature is adjusted using the (B) and (D) buttons. These buttons are
connected to the temperature display.
The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the
DESIRED temperature (Temperature display flashes) by pressing one of the
two buttons, (B) or (D).
Each time one of the two buttons is pressed again the DESIRED tempera-
ture is adjusted by 1 °C. The DESIRED temperature must be reached with-
in 24 hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL temper-
ature.
DESIRED temperature means:
The temperature that has been selected for inside the fridge. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the fridge.
The ACTUAL temperature is indicated with illuminated numbers.
Temperature display
The temperature display can indicate several pieces of information in the
fridge (ACTUAL temperature) is displayed.
During normal operation, the temperature currently present in the fridge
(ACTUAL temperature) is displayed.
When the temperature is being adjusted a flashing display indicates the
fridge temperature currently set (DESIRED temperature).

14
Starting Up - Setting the Temperature
1. Plug the mains plug into the mains socket.
2. Press (A) button. The appliances start.
3. Press either the (B) or (D) button. The temperature display switches over and
the DESIRED temperature currently set flashes on the temperature display.
4. Set the required temperature by pressing the (B) or (D) buttons (see section
"Temperature setting buttons"). The temperature display will immediately
show the changed setting. Each time the button is pressed the temperature is
adjusted by 1 °C.
From a food safety point of view +5 °C should be considered sufficiently cold
for storing food in the fridge.
5. Once the required temperature has been set, after a short period (approx. 5
sec.) the temperature display will change and again indicate the current
ACTUAL temperature inside the fridge. The display will change from flashing
to continuous illumination.
Information! When the setting is changed, the compressor does not start
immediately if automatic defrosting is currently taking place. As the storage
temperature within the fridge is reached quickly you can store food immedi-
ately after switching on.
COOLMATIC
The COOLMATIC function is suited for quick cooling of large quantities of
goods in the refrigerator.
1. The COOLMATIC function is switched on by pressing the COOLMATIC button
(F).
The yellow light (E) illuminates.
The COOLMATIC function now provides for intensive cooling. A DESIRED tem-
perature of +2 ?C is automatically selected. The COOLMATIC function is ended
automatically after a period of 6 hours.
2. The COOLMATIC function can be ended manually at any time by pressing the
COOLMATIC button again. The yellow light goes out.
Holiday function
The holiday function sets the temperature at +15°C. This function allows you
to keep the refrigerator shut and empty during a long holiday period (e.g. the
summer holidays) without the formation of a bad smell.
1. To turn on the holiday function, press button (B).
2. Press continuously button (B) until the letter "H" (Holiday) appears on the
temperature indicator. The temperature indicator can modify the displayed
temperature up to +8°C, 1° at a tim. 8°C will be followed by the letter "H".
Now the refrigerator is in the "holiday" function in the energy-saving mode.
The fridge compartment must be empty with holiday function on.

15
How to ise the refrigerator
For adequate cooling developing interior air circulation is necessary. For this
reason you are asked not to cover the air circulation gaps behind the shelves
(e.g. with tray etc.).
Do not put hot food into the refrigerator. Allow it to reach room temper-
ature naturally. In this way the unnnecessary frost building up can be
avoided.
Foods can take over odours from each other. So it is essential to put foods
in closed dishes or wrap them in cellophane, aluminium foil, grease-proof
paper or cling film before placing them into the refrigerator. This way
foods will keep their moisture e.g. vegetables will not dry out after some
days.
Interior Accessories
Storage Shelves
Various glass storage shelves are
included with your appliance. The
height of the storage shelves can be
adjusted:
1. To do this pull the storage shelf for-
ward until it can be swivelled
upwards or downwards and
removed.
2. Please do the same in reverse to
insert the shelf at a different
height.

16
Storing in the refrigerator
When placing the different kinds of food take into consideration the sketch
below in figure:
1 Confectionery, ready-cooked
foods, foods in
dishes, fresh meat, cold cuts,
drinks
2 Milk, dairy products, foods in
dishes
3 Fruits, vegetables, salads
4 Cheese, butter
5 Eggs
6 Yoghurt, sour cream
7 Small bottles, soft drinks
8 Big bottles, drinks
Storage time and temperature of foods
The storage time chart at the end of the instruction book gives information
about storage time.
The storage time can not be determined exactly in advance, as it depends on
the freshness and handling of the cooled food. That is why the storage time
made known is only informative.
If you do not want to use up deep-frozen foods bought immediately they can
be stored for about 1 day (until dissolving) in the refrigerator.
Drawer
The drawer is suitable for storing fruit
and vegetables.
There is a separator inside the drawer
that can be placed in different posi-
tion to allow for the subdivision best
suited to personal needs.

17
Operating and indicator panel Freezer
G. FROSTMATIC function "on" indica-
tor (yellow)
H. FROSTMATIC button
I. Temperature setting button (for
warmer temperatures)
J. Temperature display
K. Temperature setting button (for colder temperatures)
L. Alarm reset button
M.Alarm reset light
Temperature setting buttons
The temperature is adjusted using the (I) and (K) buttons. These buttons are
connected to the temperature display (J).
The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the
DESIRED temperature (Temperature display flashes) by pressing one of the
two buttons, (I) or (K).
Each time one of the two buttons is pressed again the DESIRED tempera-
ture is adjusted by 1 °C. The DESIRED temperature must be reached with-
in 24 hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL temper-
ature.
DESIRED temperature means:
The temperature that has been selected for inside the freezer. The DESIRED
temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature display indicates the current temperature inside the freezer.
The ACTUAL temperature is indicated with illuminated numbers.
Temperature display
The temperature display can indicate several pieces of information.
During normal operation, the temperature currently present in the freezer
(ACTUAL temperature) is displayed.
When the temperature is being adjusted a flashing display indicates the
freezer temperature currently set (DESIRED temperature).

18
Starting Up - Setting the Temperature
1. Plug the mains plug into the mains socket.
2. Press (A) button. The alarm light (M) flashes since the temperature is reached.
The buzzer sounds.
3. Pressing button (L) the buzzer stops.
4. Press either the (I) or (K) button. The temperature display switches over and
the DESIRED temperature currently set flashes on the temperature display.
5. Set the required temperature by pressing the (I) or (K) buttons (see section
"Temperature setting buttons"). The temperature display will immediately
show the changed setting. Each time the button is pressed the temperature is
adjusted by 1 °C.
From a food safety point of view -18 °C should be considered sufficiently cold
for storing food in the freezer.
FROSTMATIC
The FROSTMATIC function accelerates the freezing of fresh food and, at the
same time, protects foodstuffs already stored from undesirable warming.
1. The FROSTMATIC function is switched on by pressing the FROSTMATIC button
(H).
The yellow light (G) illuminates.
If the FROSTMATIC function is not ended manually, the appliance will switch
off the FROSTMATIC function after about 52 hours. The yellow light goes out.
2. The FROSTMATIC function can be ended manually at any time by pressing the
FROSTMATIC button again. The yellow light goes out.
Alarm reset button
In the event of an abnormal temperature rise inside the freezer (e.g. power
cut) warning light (M) will start to flash and a buzzer will sound. Push the
alarm reset button (L) to stop the buzzer sound, while the warning light will
continue to flash.
The buzzer will stop automatically when the temperature has returned to
normal while the warning light (M) will continue to flash. If we press the
alarm reset button (L) we stop the warning light and at the same time the
indicator show for about 5 seconds the warmest temperature reached in the
compartment.

19
Switching the Appliance off
To switch off, hold down the (A) button.
If the appliance is not going to be used for an extended period:
1. Turn off the appliance.
2. Remove the mains plug or switch off or turn out the circuit breaker or fuse.
3. Defrost the freezer compartment and clean the appliance thoroughly (see
section: "Cleaning and Maintenance").
4. Finally, leave the doors open so as to avoid a build up of odours.
Freezing and storing frozen food
You can use your freezer for freezing fresh food yourself.
Important!
The temperature in the freezer compartment must be -18 °C or colder
before freezing food.
Please observe the freezing capacity given on the rating plate. The freez-
ing capacity is the maximum quantity of fresh food that can be frozen
within a period of 24 hours. If you wish to freeze food several days in a row,
please observe a maximum capacity of only 2/3 to 3/4 of that on the rat-
ing plate. The quality of the food is best preserved when it is frozen right
through to the core as quickly as possible.
Allow warm food to cool down before freezing. The warmth will cause
increased ice formation and increase the power consumption.
Please note the maximum storage times specified by the manufacturer.
Thawed foods which have not been processed further (cooked into meals)
may not under any circumstances be frozen a second time.
Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flamma-
ble materials such as, for example, spray cans, fire extinguisher refill car-
tridges etc in the refrigerator/freezer.
Bottles and cans must not be placed in the freezer. They can burst when
the contents freeze, high carbonate content drinks can even explode!
Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer.
Exception: high alcohol content spirits can be stored in the freezer.
All foods must be packed air tight prior to freezing, so that they do not dry
out or lose their flavour, and so that no flavour contamination of other
frozen goods occurs.
Caution! Do not touch frozen food with wet hands. Your hands could freeze
to the food.
1. To achieve faster freezing of food or to freeze the maximum allowed quanti-
ty, depress the ambient switch 12 hours before loading the food without
modifying the thermostat setting.

20
Storing in the freezer
It is practical to replace frozen products into the basket(s) after freezing has
finished. Doing this you could make room in the freezing compartment for
another freezing. Intermediate freezing does not deteriorate foods already
stored.
In large quantities of food are to be stored, remove the baskets except the
lowermost one from appliance and place food on the cooling surface.
Do not forget to keep to the storage time given on the packaging of frozen
products if you buy them frozen. To store home-frozen products see the stor-
ing instructions placed in the door of the freezer. Symbols signify the various
foods, numbers mean maximum storing time given in months.
It is safe to store quick-frozen, frozen foods only if they have not dissolved
even for a short time until placing them into the freezer. If the deep-frozen
food has already dissolved, refreezing is not recommended, it has to be used
up as soon as possible.
How to make ice cubes
To make ice cubes fill the enclosed ice cube tray with water and put it to the
frozen food compartment. Setting thermostatic control knob to maximum
position can shorten preparing time. After finishing do not forget to reset the
thermostatic control to the suitable position.
Ready ice cubes can be taken out of the tray under running water then twist
or hit it. If the ice tray freezes to the compartment, avoid using metal tools
or knife to take it out as the cooling system can be damaged.
2. Place the food to be frozen in the top drawer.
3. Not open the door frequently or leave it open longer than absolutely neces-
sary.
