INSTRUCTION BOOK
Wok burner
GB

2
Your New Appliance
Thank you for purchasing an AEG appliance.
To enable you to use your new appliance efficiently and safely, please read
this instruction book carefully before installing or using the appliance, and
retain for future reference. Should the appliance be transferred to a new
owner please ensure this instruction book is left with the appliance in order
that the new owner can get to know the functions of the appliance and the
relevant warnings.
If you require further assistance or advice, please contact our Customer Care
Department either by letter or telephone:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
SL1 1DZ
Tel: [phone]*
* calls to this number may be recorded for training purposes

3
Contents Page no
For the user
Your new appliance ...................................................................................... 2
Safety information ........................................................................................ 4
Description of the product ......................................................................... 5
Placement of grid ................................................................................. 5
Operating instructions ................................................................................ 6
Burner cover/inner- and outer burner ring............................................ 7
Ignition electrode (A) ........................................................................... 7
Thermo couple (B) ............................................................................... 7
Ignition .................................................................................................. 10
Cleaning and maintenance ....................................................................... 11
Splashguard ........................................................................................ 11
Stainless steel surfaces ....................................................................... 12
The wok .............................................................................................. 12
Something not working ............................................................................. 17
Service and spareparts ............................................................................. 18
Guarantee conditions ................................................................................ 19
For the installer
Technical data ............................................................................................. 12
Important safety requirments .................................................................. 13
Gas connection ........................................................................................... 14
Mounting .................................................................................................. 15
Table of contents
1... 2...Step by step
Safety information
Hint and tips
Environmental information
How to read the operating instructions:

4
Safety information
These warnings are provided in the
interests of your safety. Ensure you
fully understand them before installing
or using the appliance. Your safety is of
paramount importance. If you are
unsure about the meaning of these
warnings contact the Customer Care
Department for assistance.
Installing
This wok must be installed according
to the instructions supplied. Any
installation work must be undertaken
by a qualified competent person.
Do not alter the specifications or
attempt to modify the appliance in any
way.
During Use
The wok is intended for domestic
cooking only. It is not designed for
commercial/industrial purposes.
Ensure that the control knob is in the
OFF position when not in use.
Do not use the wok if it is damaged in
any way, contact your local AEG
Service Centre.
Never use plastic or aluminium dishes
on the wok.
Never leave the wok unattended while
deep fat frying, or heating fats and oils.
Child Safety
Young children must not be allowed to
tamper with the wok or play with the
control.
The wok gets hot when it is in use.
Children should be kept away until the
wok has cooled.
Maintenance and Cleaning
Only clean this wok in accordance
with the instructions given in this
book.
Service
Repairs carried out by inexperienced
persons may cause injury or serious
malfunction of the appliance. Repairs
must only be carried out by a
qualified/competent person. Contact
your local AEG Service Centre.
Disposal
Make the wok unusable by cutting off
the cable.
Dispose of any packaging material and
old appliances at an authorised
disposal site.

5

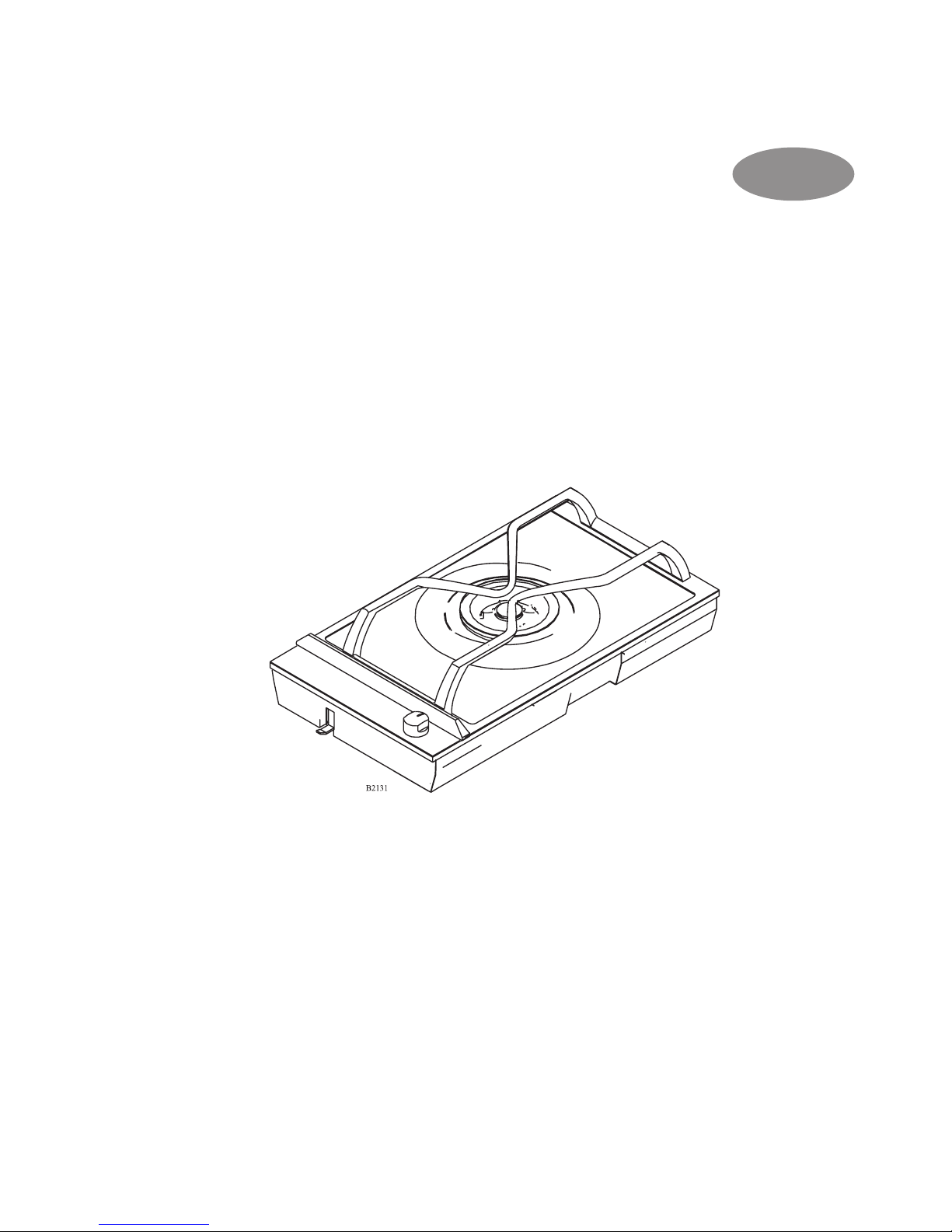

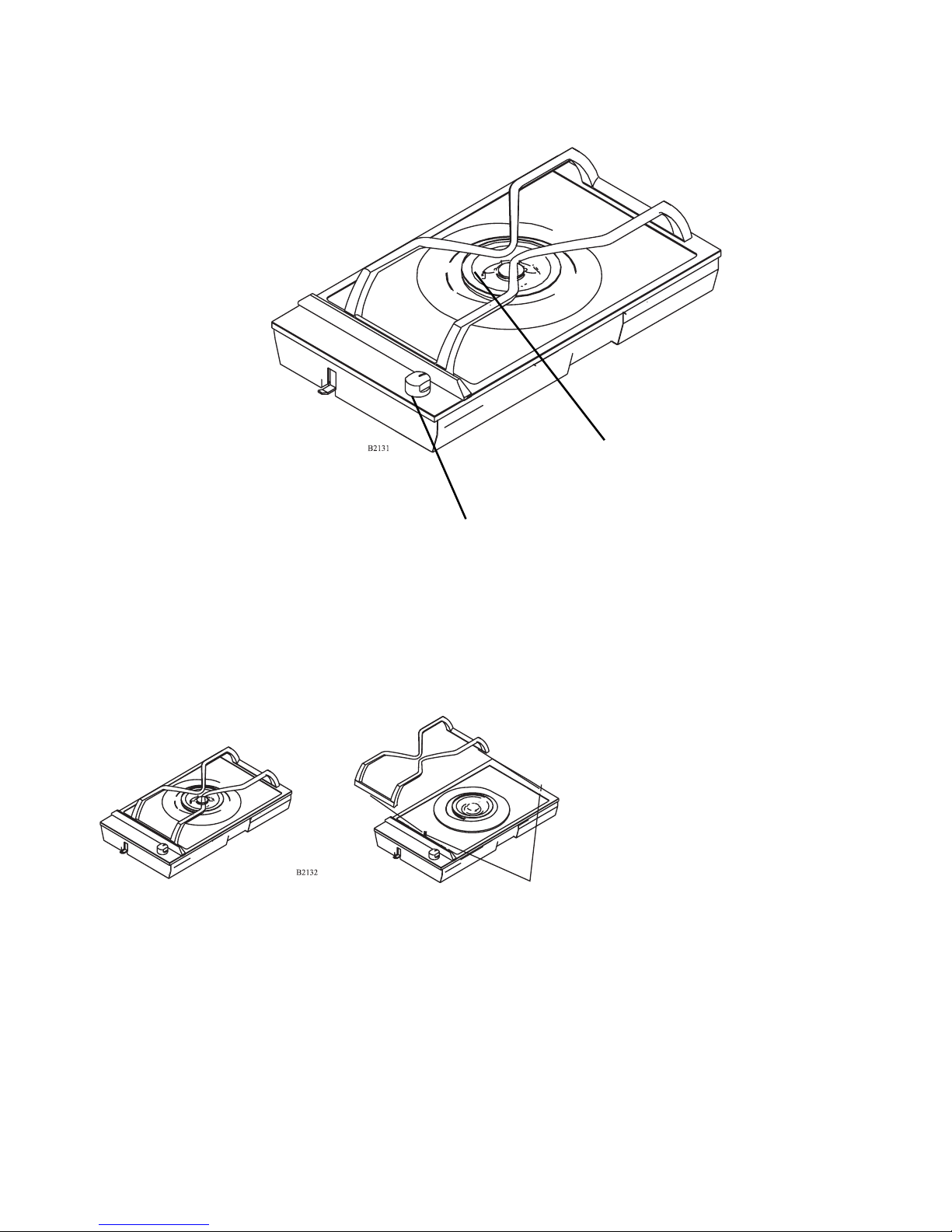

Description of the product
Burner
Knob
Placement of grid
Guide pins for grid

6
 

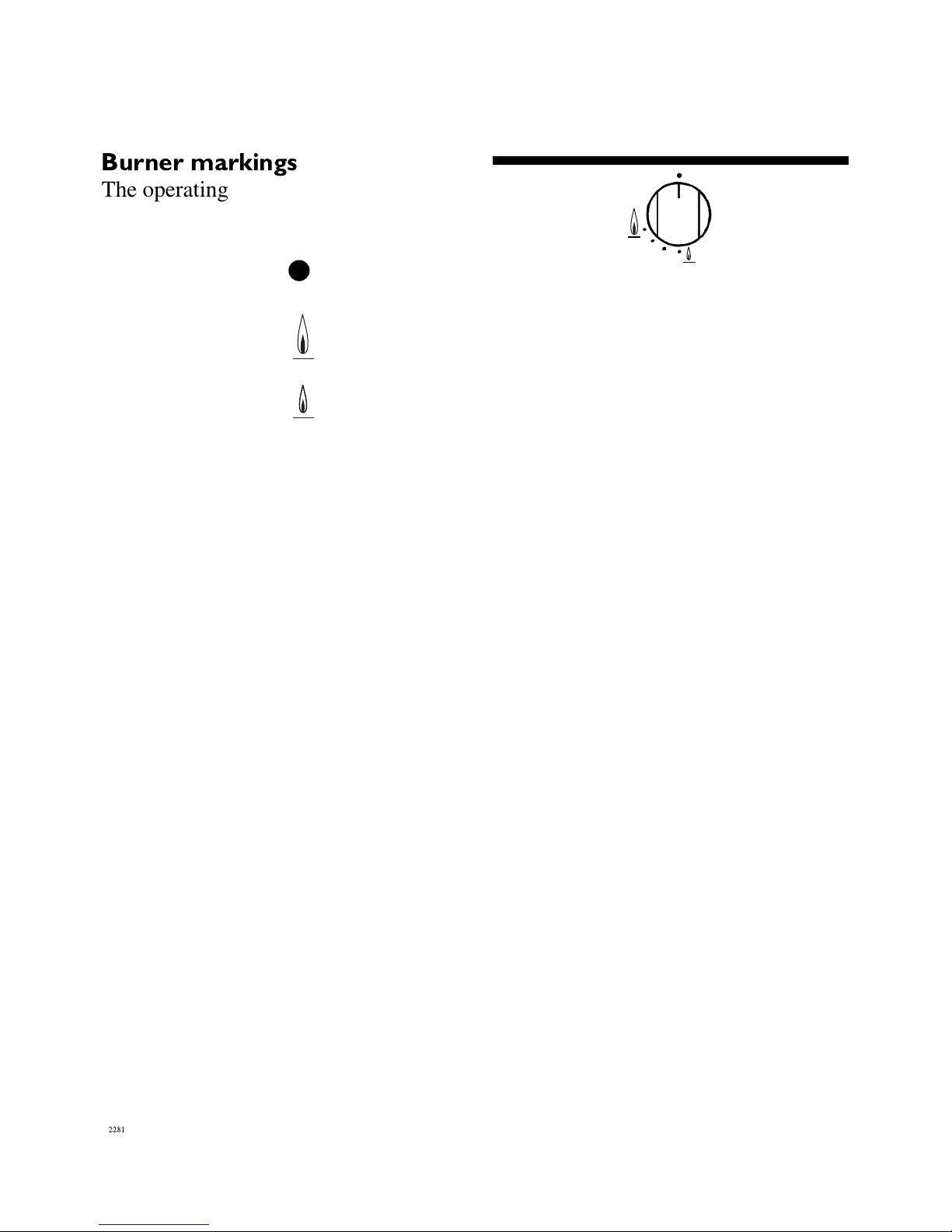

The operating knob has a ring showing
the scale of markings.
Off.
Max. flame
and ignition position
Min. flame
Operating instructions

7
Burner cover/burner ring
Together with the burner ring the burner
cover forms a space where the final
mixture of gas and air takes place in
order to make the gas burn correctly.
Please note: It is consequently very
important that the burner cover/ring is
placed correctly on the burner. The
burner ring has been provided with
holes for the ignition electrode, and the
thermo sensor.
If the burner cover/ring are wrongly
placed the burner will operate
incorrectly, and the burners may be
damaged within at short space of time.
Ignition electrode (A)
The burner has been provided with an
ignition electrode. As long as the
operating knob is depressed, the
automatic ignition will ensure that a
spark is emitted between the ignition
electrode and the burner cover.
Thermo Sensor (B)
The hob unit features fully-secured gas
taps (thermo-fuse)
In case the flame goes out, the thermo
sensor automatically prevents gas
admission after a few seconds (max. 90
seconds).
Note: Gas admission is always allowed
while the operation button is pressed -
See start-up procedure

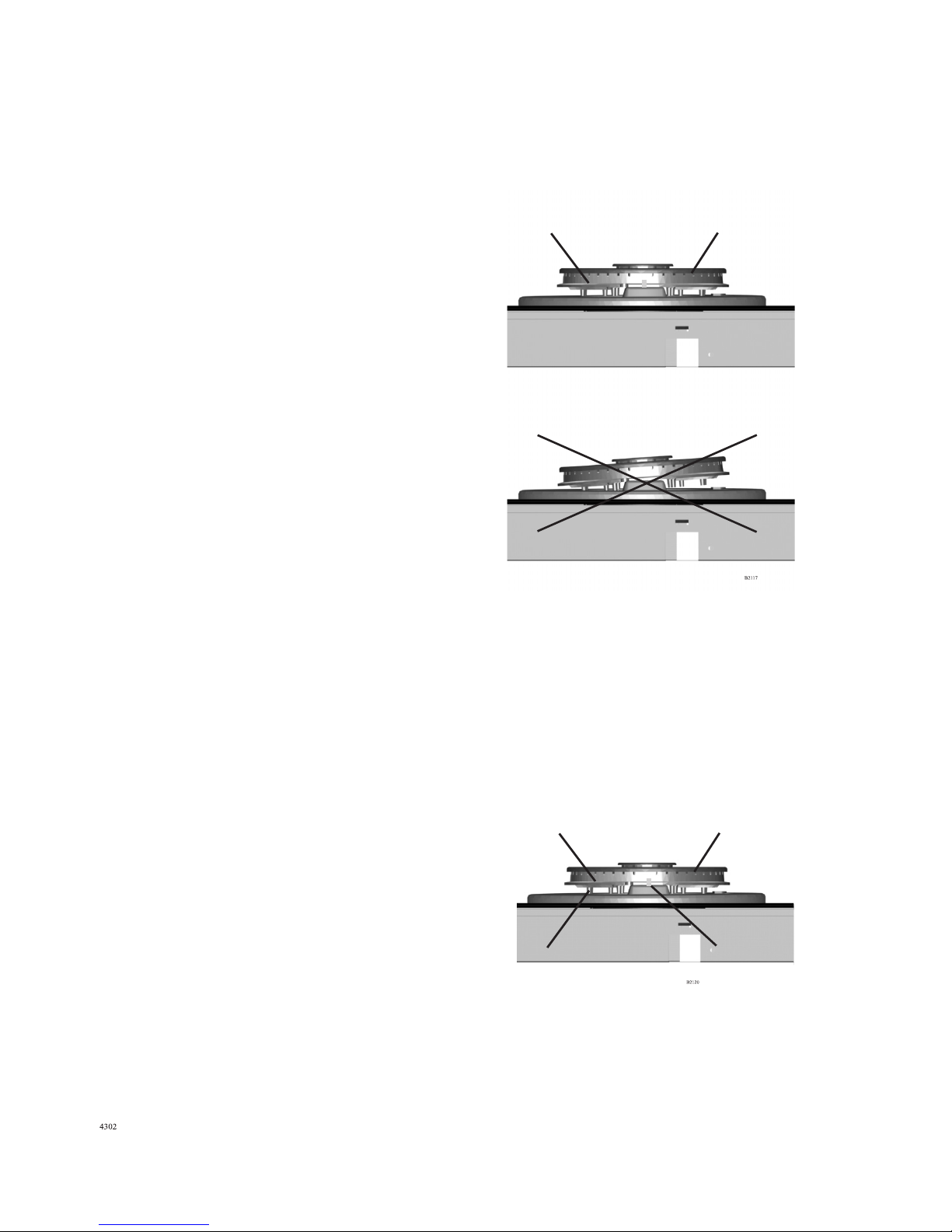

Burner Main nozzle
Burner ring Burner cover
Correct
Wrong
Burner ring Burner cap
Ignition electrode (A) Thermo Sensor (B)

8
The wok-unit has a special pan support
which enables use of a wok pot with
curved bottom.
When using cooking utensils with a
flat bottom the diameter of the utensils
must not be less than 26 cm.

9
1. Depress and turn the control knob
for the burner, the left to Max. flame
2. The ignition electrode will emit
sparks, and when the mixture of gas
and air is correct, the burner will be
ignited. Is not possible to connect
the unit to mains, a match may be
used to ignite the burner
3. After starting the burner, press the
control knob for approx. 10
seconds to activate the automatic
thermo couple.
4. Important Ignition position is at
Max flame
Ignition

10
Cleaning and maintenance
For reasons of hygiene and
safety, the cooking burner
must be kept clean.
Grease stains and spilled
food generate smoke when
heated, and can even cause
fire.

The splashguard can be removed to
make it easier to clean the surface.
What to do:

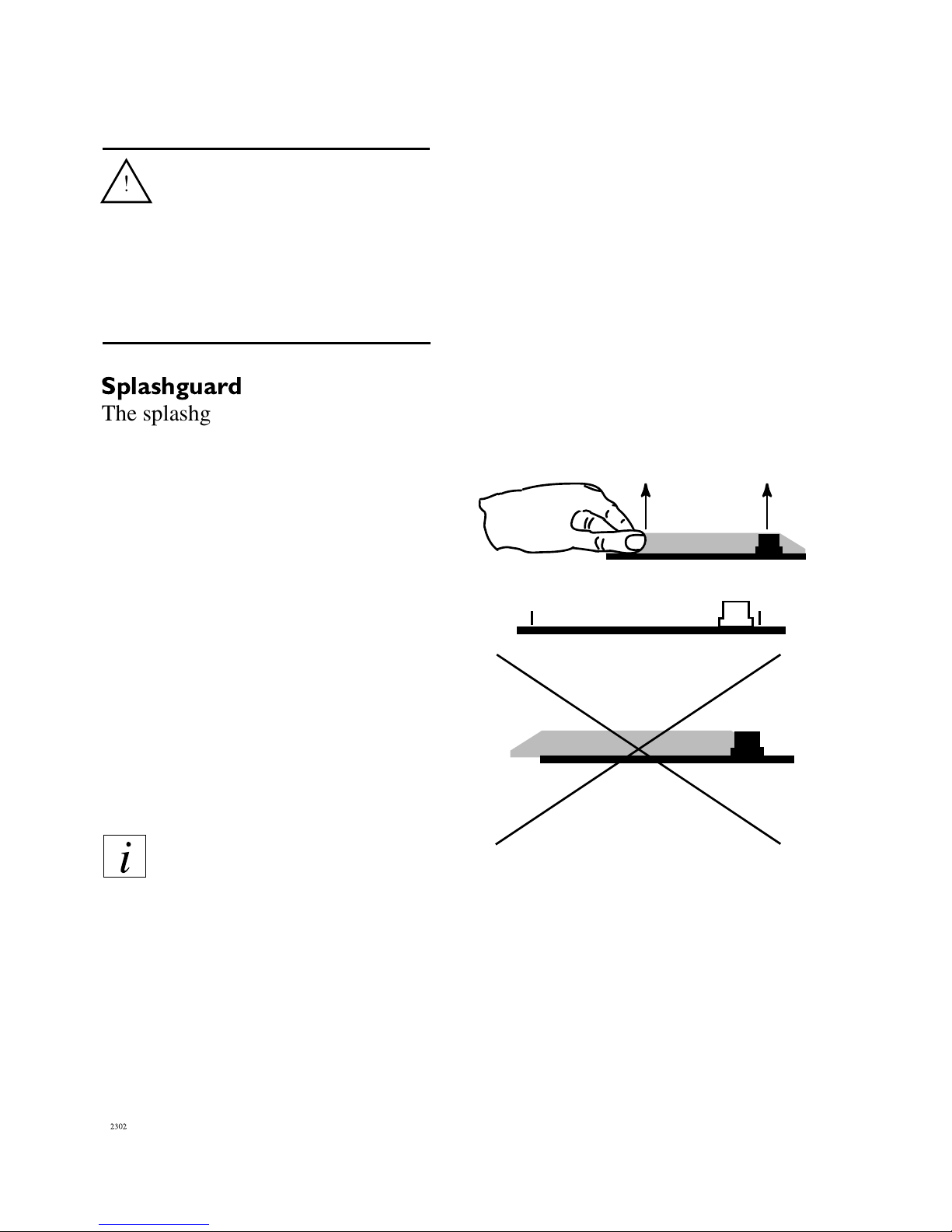

1. Hold the splashguard as shown
in the diagram.
2. Lift the splashguard straight up
3. Clean the top surface as
described in “cleaning the steel
surface”.
Be aware of the two retaining
pegs, which are sharp.
4. Replace the splashguard in
position ENSURE that it is
fitted the correct way round.
Never use hard or sharp
implements to lift off the
splashguard.

Do not wash the splashguard
in a dishwasher.
The hob must not be used
with the splashguard off.

11
Stainless steel surfaces
Perform daily cleaning with a slightly
damp cloth. For more severe soiling,
use a liquid cream. Always clean the
steel in the direction of the steel finish.
To ensure that the steel retains its
shine, it is recommended that you use a
polishing agent for stainless steel on a
regular basis. Always polish in the
direction of the steel finish (cross-
wise).
Never use steel wool, metal sponges or
other abrasive cleaning agents.
Cleaning of gas burner
Clean the control panel and knobs plus
the pan grid, as well as burner caps and
rings, with ordinary cleansing agents.
Never use scouring powder, Brillo
pads, metal pads or other scouring
agents on enamelled or painted
surfaces!
Care must be taken to avoid
boil-over
If water accidentally gets into the edge
of the burner head (boil-over) the water
must be removed with a lint-free cloth
before the burner is turned on again.
Likewise, caps and grids must be
thoroughly wiped off before the gas
ring is used again so that the boil-over
does not permanently scar the enamel
or paint.

12
Type of gas
Adjusted for Natural, G-20 - 20mbar
Category and pressures
GB: II2H3+ 20 - 28/37 mbar
Max. nominal load Q, HS:
Wok burner = 3,9 kW x 1
Total= 3,9 kW
FSD
The unit features fully-secured gas taps
(thermo-fuse).
HS= Gross calorific value
Q = Nominal load
Voltage= 220-240 V AC
Ignition transformer= 50 HZ - 0,6 VA
CE 048 AT- 0030
Radio-noise reduction
This unit observes the current EEC-directive
on radio noise reduction.
This gas appliance is -approved and mar-
ked in accordance with the gas appliance
Directive (90/396/CEE), the low voltage
directive (73/23/CEE) and the EMC directive
(89/336/CEE incl. the agreed directive
changes.
Technical data
The hob must be connected via an
external switch with a contact
gap of min. 3 mm (the main switch
may be used)

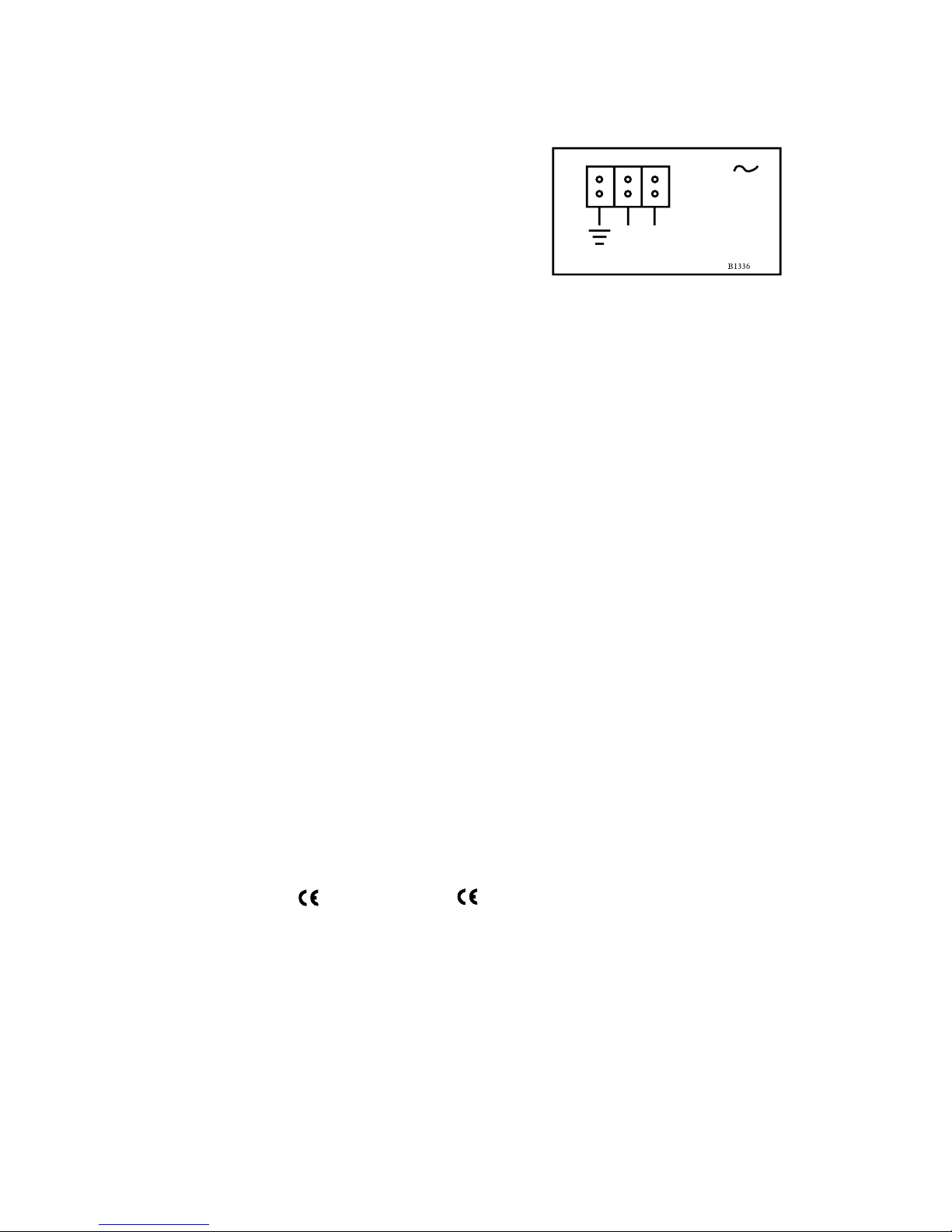

Cable type: 0,75 mm² HO5VV-F
N L1
240 V
1N + PE

13
This hob must be installed in
accordance with the Gas Safety
(Installation and Use) Regulations
(Current Edition) and the IEE
Wiring Regulations (Current
Edition).
Detailed recommendations are
contained in the following British
Standards Codes Of Practice: B.S.
6172/ B.S. 5440, Par. 2 and B.S.
6891 Current Editions.
The hob should not be installed in a
bed sitting room with a volume of
less than 20 m³. If it is installed in a
room of volume less than 5 m³ an
air vent of effective area of 110 cm²
is required. If it is installed in a
room of volume between 5 m³ and
10 m³ an air vent of effective area of
50 cm² is required, while if the
volume exceeds 11 m³ no air vent is
required.
However, if the room has a door
which opens directly to the outside
no air vent is required even if the
volume is between 5 m³ and 11 m³.
If there are other fuel burning
appliances in the same room, B.S.
5440 Part 2 Current Edition, should
be consulted to determine the
requisite air vent requirements.
This hob must be installed by
qualified personnel to the
relevant British Standards.
Any gas installation must be
carried out by a CORGI
registered installer.
The maufacturer will not
accept liability, should the
above instructions or any of
the other safety instructions
incorporated in this book be
ignored
Important safety requirments

14
Gas installation
In accordance with local
requirements for domestic gas
cooking appliances.
Gas installation must only be
carried out by an authorised person.
For gas types see technical data.
Gas connection

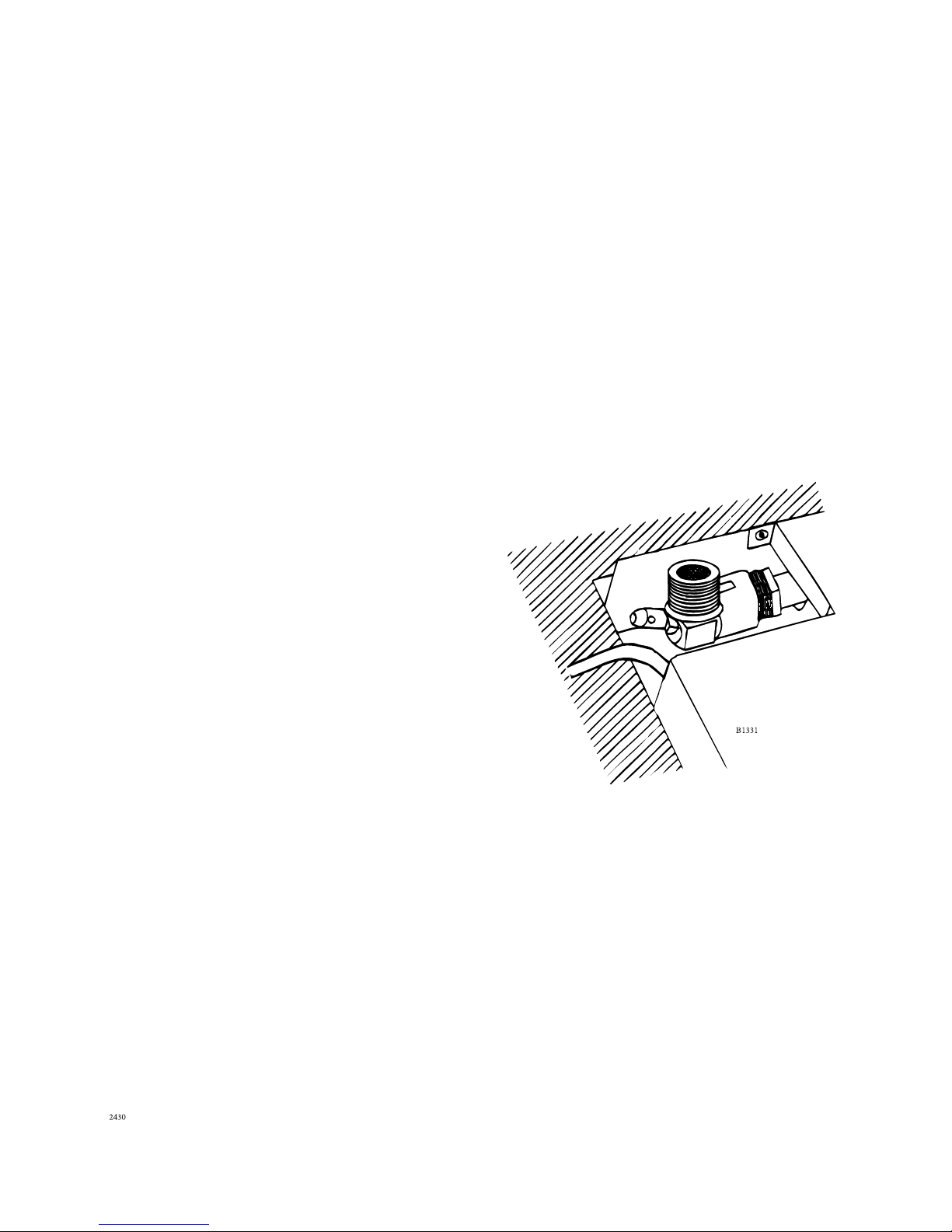

The gas intake is situated at the
lower rear of the appliance. The
intake has a ½" conical pipe thread
(see fig 1) If the appliance is to be
connected to a gas cylinder,
conversion with the optional
modification kit will be necessary.
Pressure test
The unit should be pressure-tested
at Max. 150 mbar.
Fig 1
Gas connection

15
Caution: In order to avoid a hazard this
appliance must be installed according
to these instructions for installation

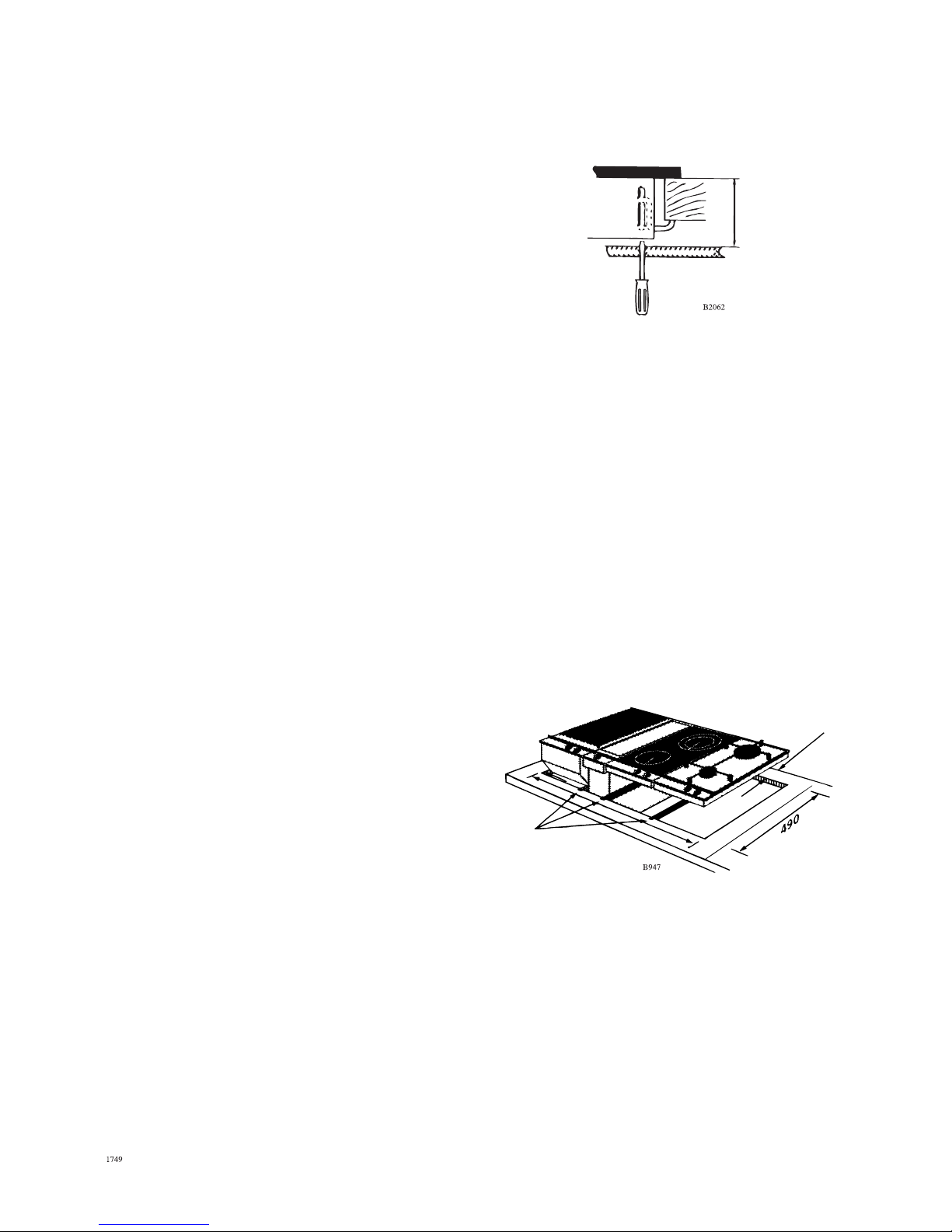

The hob unit can be mounted in any
type of kitchen with a table surface
whose thickness is between 28 mm
and 40 mm.
Headroom
The distance to any shelves or tops of
a cabinet under the hob is to be at least
55 mm.
Fixing
Screw the fixing brackets out to such
an extent that they can be turned in
under the table top. Tighten the
brackets on to the table top with an
ordinary screwdriver.
Cut-out measurements
One rectangular hole is sawn out for
the hob combination chosen.
The depth of the cut-out for any unit
is: 490 mm
Length of hole = sum of all units`
externally measured length, less 20
mm.
Mounting of Reinforcement
Beams
A reinforcement Beam, with
supporting flanges at each end, is
included with each two-burner unit.
For unit combinations, a reinforcement
beam must be used between each unit.
MIN 55
Mounting
Minimum distance
to side wall:
150 mm
Minimum distance to
rear wall (non
flammable material):
50 mm
Reinforcement
beams

16
It is not necessary to attach the
reinforcement beam to the work top
surface, as it is held in place by a
specially designed moulding, which is
incorporated in the hob units flanges.
The units externally measured
length
145 mm:
Cooker hood
290 mm:
Two-zone ceramic-top electric hob
Two-burner gas hob
Grill
Fryer
Wok
580 mm:
Four-zone ceramic-top electric hob
Four-burner gas hob
725 mm:
Four-zone ceramic-top electric hob
Installation of a single unit

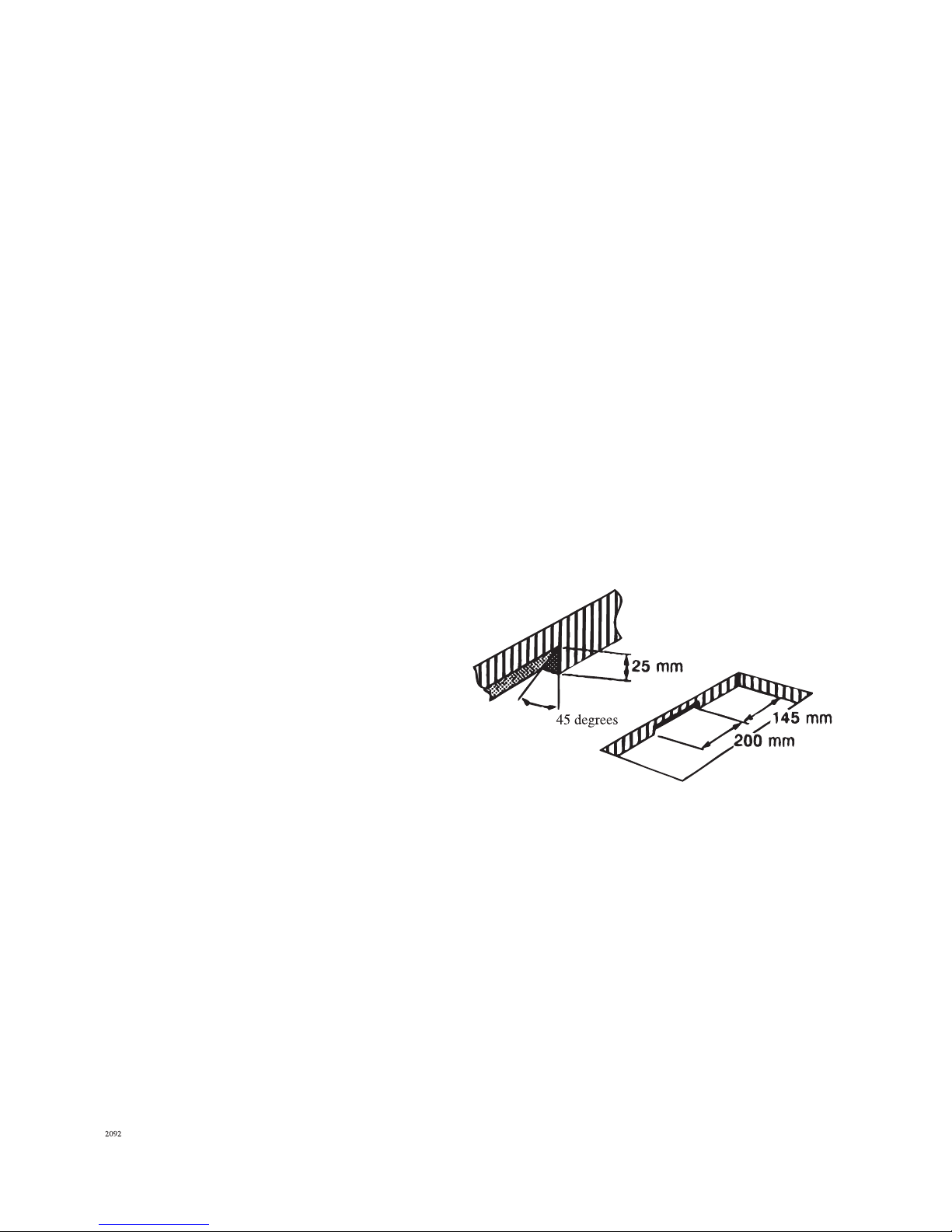

When mounting a single unit, be it a
half-or full size unit, in a
worktopsurface which is thicker than
30 mm, it is necessary to make a
special notch in both sides of the cut-
out hole, as shown in the adjacent
drawing.
The purpose of these notches is to
create space for the electrical cables.

17
Something not working
If the hob is not working correctly, please carry out the following checks before
contacting your local AEG Service Force Centre.
IMPORTANT: If you call out an engineer to a fault caused by incorrect use or
installation, a charge will be made even if the hob is under guarantee.
If after all these checks, your hob still does not operate correctly, contact your
local AEG Service Force Centre.
In-guarantee customers should ensure that the above checks have been made as
the engineer will make a charge if the fault is not a mechanical or electrical
breakdown.
Please note that it will be necessary to provide proof of purchase for any in-
guarantee service calls.
Sympton:
There is no spark when lighting the
gas
When the operating knob is released
the gas ring goes out again
The gas ring burns unevenly
Solution
Check hob is connected to the
electricity supply. Check the fuse and
replace if necessery.
The operating knob has not been
depressed long enough, or has not
been depressed sufficiently.
Ensure the cover has been replaced
correctly, e.g. after cleaning.

18
In the event of your appliance requiring service, or if you wish to purchase spare
parts, contact your local AEG Service Force Centre by telephoning:
08705 929 929
Your call will automatically be routed to the Service Centre covering your post
code area.
In-guarantee customers should ensure that the recommended checks under the
heading "Something Not Working" have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for in-guarantee service calls.
Help us to help you
Please determine your type of enquiry before writing or telephoning. When you
contact us we need to know:
1. Your name, address, post code and telephone number
2. Clear and concise details of the fault.
3. Date of purchase
4. The model and serial number
This information can be found on the rating plate.
Customer Care
For general enquires concerning your AEG appliance or for further information
on AEG products, please contact our Customer Care Department at the address
below or visit our website at www.aeg.co.uk
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough, Berkshire
SL1 1DZ
Tel [phone]*
*calls to this number may be recorded for training purposes
Service & spare parts

19
AEG offer the following guarantee to
the first purchaser of this appliance:
1. The guarantee is valid for 12
months commencing when the
appliance is handed over to the first
retail purchaser, which must be
verified by purchase invoice or
similar documentation.
2. The guarantee covers all parts or
components which fail due to faulty
workmanship or faulty material.
The guarantee does not cover
appliances where defects or poor
performance are due to misuse,
accidental damage, neglect, faulty
installation, unauthorised
modification or attempted repair,
commercial use or failure to
observe requirements and
recommendations set out in the
instruction book.
3. Should guarantee repairs be
necessary the purchaser must
inform the nearest AEG Service
Force Centre. AEG reserves the
right to stipulate the place of repair
(i.e., the customer's home, place of
installation or AEG workshop).
4. The guarantee or free replacement
includes both labour and materials.
5. Repairs carried out under guarantee
do not extend the guarantee period
for the appliance. Parts removed
during guarantee repairs become
the property of AEG.
6. The purchaser's statutory rights are
not affected by this guarantee.
European guarantee
If you should move to another country
within Europe then your guarantee
moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you
first purchased your product.
The guarantee is for the same period
and to the same extent for labour and
parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and
cannot be transferred to another user.
The product is installed and used in
accordance with our instructions and is
only used domestically, i.e. a normal
household.
The product is installed taking into
account regulations in your new
country.
Guarantee conditions

20
Before you move please contact your
nearest Customer Care centre, listed
below, to give them details of your new
home. They will then ensure that the
local service organisation is aware of
your move and able to look after you
and your appliances.
France
Senlis [phone]
Germany
Nürnberg [phone]
Italy
Pordenone [phone]
Sweden
Stockholm [phone]
UK
Slough + 44 (0) 1753 219899
