AEG Favorit 65080 Vi User manual

Favorit 65080 Vi
User manual Dishwasher

2
Dear Customer
Thank you for choosing one of our highquality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per
formance and control  indeed we are setting the highest standards of excel
lence.
In addition to this you find environmental and energy saving aspects as an inte
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 4
Safety 4
Diagram of Appliance 5
Control Panel 6
Prior to Using for the First Time 7
Setting the Water Softener 8
Adding dishwasher Salt 10
Filling Up with Rinse Aid 11
Activating/deactivating the acoustic signal 12
In daily use 13
Loading cutlery and dishes 13
Adjusting the Height of the Upper Basket 17
Adding Detergent 18
Using 3 in 1 detergents 19
Selecting the dishwashing cycle (Cycle Table) 20
Starting a dishwashing cycle 22
Setting the Delay Timer 23
Switching Off the dishwasher 23
Care and cleaning 24
What to do if… 26
Remedying small malfunctions 26
If the dishwashing results are not satisfactory 29
Disposal 30
Technical data 30
Notes for Test Institutes 31
Installation and connection instructions 32
Safety Information for the Installation 32
Installing the Dishwasher 32
Connecting the dishwasher 33
Electrical Connection 35
Guarantee/Customer Service 36
Service and Spare Parts 39

Operating Instructions4
Operating Instructions
1Safety
Prior to using for the first time
•Follow the ”Instructions for installation and connection”.
Correct Use
•The dishwasher is only intended for washing domestic dishes.
•Additions or modifications to the dishwasher are not permitted.
•Use only special salt, detergent and rinse aid suitable for domestic dishwash
ers.
•Do not put any solvents in the dishwasher. This could cause an explosion.
Child Safety
•Keep packaging away from children. There is a risk of suffocation.
•Children often do not recognise the hazards associated with electrical appli
ances. Don’t allow children to use the dishwasher unsupervised.
•Make sure that children and pets don’t climb into the dishwasher. Could en
danger life!
•Dishwasher detergents can cause chemical burns to the eyes, mouth and
throat. Could endanger life! Comply with the safety instructions of the dish
washer detergent manufacturer.
•The water in the dishwasher is not for drinking. Risk of chemical burns.
General Safety
•Repairs to the dishwasher are only to be carried out by qualified/authorised
service engineers.
•When the dishwasher is not being used, switch it off and shut off the water
tap.
•Never unplug the appliance by pulling on the cable. Always pull the plug.
•Ensure that the door of the dishwasher is always closed when it is not being
loaded or unloaded. In this way you will avoid anybody tripping over the open
door and hurting themselves.
•Never sit or stand on the open door.
•If the dishwasher is located in a room where there may be a frost, remove the
connection hose from the tap after each use of the dishwasher.

5Diagram of Appliance
Diagram of Appliance
Upper basket spray arm
and lower spray arm
Water softener
unit.
Salt Container
Detergent
Dispenser
Rinse aid
dispenser
Rating plate
Filters
Control panel

Control Panel6
Control Panel
To use the appliance, always open the dishwasher door first.
The ON/OFF button is used to turn the dishwasher on and off.
The Programme buttons are used to select the desired dishwashing cycle.
ON/OFF button
Programme buttons
Function buttons
12 3
Multidisplay
Control
indicators
Set delay
timer

7Prior to Using for the First Time
Function buttons: In addition to the preset dishwashing cycle, the following
functions can also be set using these buttons:
The multidisplay can indicate:
–the level of hardness to which the water softener is set.
–whether the acoustic signal has been activated/deactivated.
–the start delay that has been set.
–the estimated time remaining for the current dishwashing cycle.
–what type of error has occurred with the dishwasher.
The control indicators have the following meanings:
Prior to Using for the First Time
3If you wish to use 3 in 1 detergent:
– First read the section “Using 3 in 1 detergents”.
– Do not fill up with special salt or rinse aid.
If you do not use 3 in 1 detergent, before using for the first time
1. Set the water softener
2. Fill up with dishwasher salt
3. Fill up with rinse aid
Function button 1 Sets the water softener
Function button 2  not programmed 
Function button 3 Activates/deactivates the acoustic signal
1)
1) These control indicators are never illuminated while a dishwashing cycle is running.
Refill with dishwasher salt
1) Refill with rinse aid
Turn on the tap

Prior to Using for the First Time8
Setting the Water Softener
The water softener must be set manually and electronically:
3To avoid scale deposits on the dishes and in the dishwasher, the dishes must be
washed with soft water, i.e. water with a low lime content. The water softener
must be set according to the table to the water hardness in the area where you
live. Your local water company will be able to give you information about the
water hardness in your area.
The dishwasher must be switched off.
Setting manually:
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn water hardness dial on the left wall of
the dishwasher interior to 1 or 2 (see table).
Setting electronically:
1. Press the ON/OFF button.
3If the LED indicator of only one programme button is illuminated, this wash pro
gramme has been activated. The wash programme must be deselected:
Press function buttons 2and 3 simultaneously for approx. 2 seconds.
The LED indicators of all the programme buttons that can be selected will illumi
nate.
2. Press function buttons 2and 3simultaneously and hold them down.
The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 1.
The LED indicator for function button 1 will flash.
The multidisplay will indicate the hardness setting.
4. Pressing function button 1increases the hardness setting by 1.
(Exception: hardness setting 1 follows hardness setting 10).
5. When the hardness setting is correct, press the ON/OFF button.
The hardness setting is now saved.
If the water softener is set electronically to “1”, this switches off the control in
dicator for dishwasher salt.

9Prior to Using for the First Time
Water hardness Setting for
water hardness Indicator
on the multi
display
Number
of
acoustic
signals1)
1) The water hardness will only be indicated acoustically if the acoustic signal has been activated.
in
°d 2)
2) (°d) German degree, measure of the hardness of water
in
mmol/l 3)
3) [mmol/l] millimol per litre, international unit for water hardness
Range Manual Electronic
51  70
43  50
37  42
29  36
23  28
9,0  12,5
7,6  8,9
6,5  7,5
5,1  6,4
4,0  5,0
IV
2*
10 4)
9
8
7
6
4) On this setting the length of the dishwashing cycle may be slightly longer.
*) factory setting
10L
9L
8L
7L
6L
10
9
8
7
6
19  22
15  18
3,3  3,9
2,6  3,2 III 5* 4
5L
4L
5
4
1
11  14 1,9  2,5 II 33L 3
4  10 0,7  1,8 I/II 22L 2
below 4 below 0.7 I
1
no salt
required
1L 1

Prior to Using for the First Time10
Adding dishwasher Salt
To decalcify the water softener, it must be filled up with dishwasher salt. Use
only special salt suitable for domestic dishwashers.
If you do not use 3 in1 detergent, fill up with dishwasher salt:
–Before using the dishwasher for the first time.
–When the control indicator for dishwasher salt is illuminated on the control
panel.
1. Open the door and remove the lower
basket.
2. Unscrew the lid on the salt dispenser by
turning it anticlockwise.
3. Only when using the dishwasher for the
first time:
Fill the salt dispenser with water.
4. Place the funnel (supplied) over the dis
penser opening.
Fill the dispenser with dishwasher salt; the
capacity of the dispenser is approx. 1.01.5
kg, depending on the size of the grains. Do
not overfill the dispenser.
3If water overflows when filling up with dishwasher salt, this is completely harm
less.
5. Clean away any salt remnants from the dispenser opening.
6. Screw the lid back on in a clockwise direction.
7. Run a dishwashing cycle after filling the salt dispenser with dishwasher
salt. This will wash away salt water and salt crystals that have been spilt.
3Depending on the size of the salt granules, it can take several hours for the salt
to dissolve in the water and for the control indicator for dishwasher salt to go
out.

11Prior to Using for the First Time

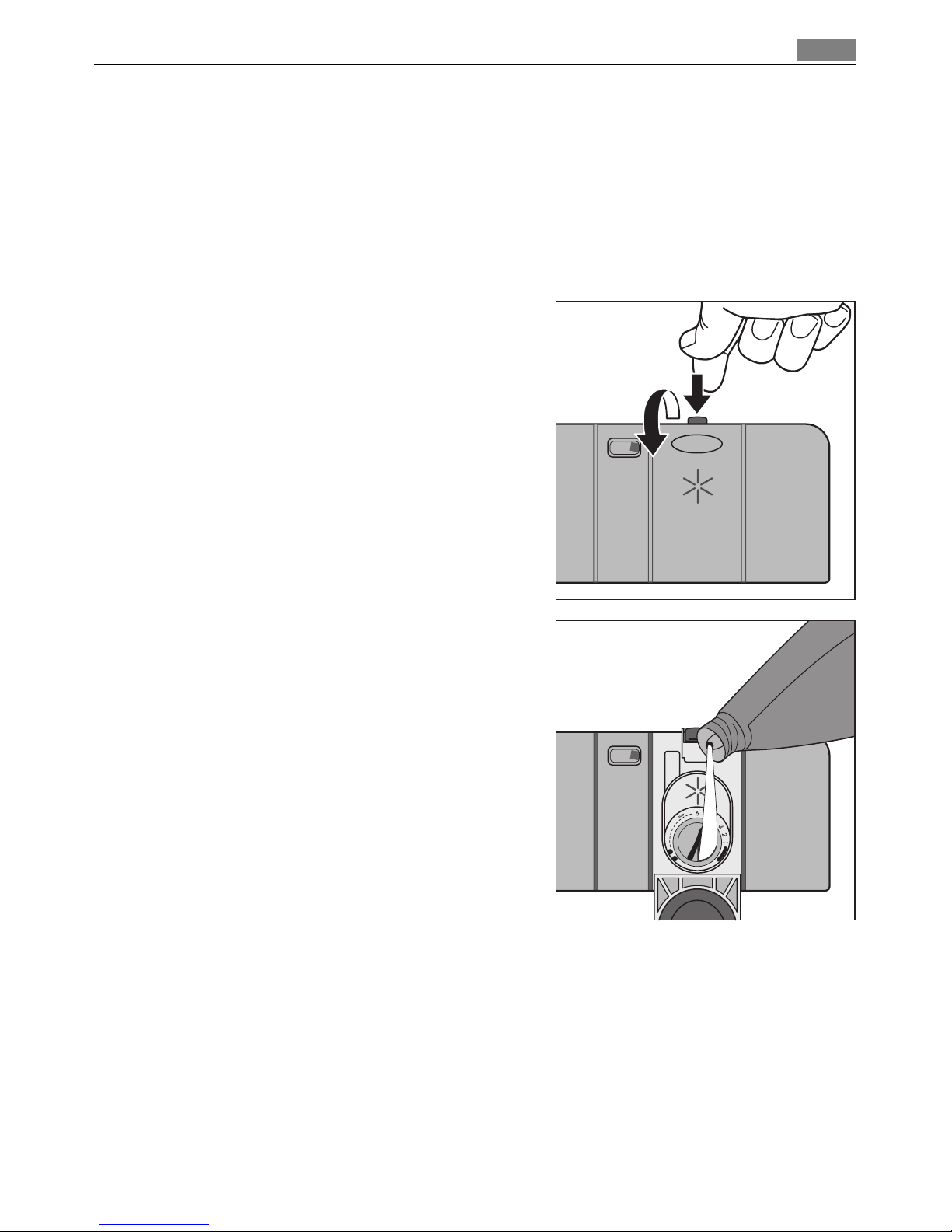

Filling Up with Rinse Aid
Rinse aid causes the rinse water to flow easily from the crockery leaving gleam
ing dishes and glassware.
If you do not use 3in1 detergent, fill up with rinse aid:
–Before using the dishwasher for the first time.
–When the control indicator for rinse aid is illuminated on the control panel.
Use only special rinse aid for dishwashers.
1. Open the door.
The rinse aid compartment is located on
the inside of the dishwasher door.
2. Press the release button on the rinse aid
compartment.
3. Open the cover.
4. Pour rinse aid in slowly right up to the bro
ken “max” line;
this corresponds to a volume of approx.
140 ml when full.
5. Press the lid shut until it clicks into place.
6. Wipe up any spilt rinse aid with a cloth.
Otherwise there will be too much foam
when rinsing.

Prior to Using for the First Time12
Setting the Amount of Rinse Aid Required
3Only change the amount dispensed, if smears, milky spots (reduce the amount)
or dried on water spots (increase the amount) can be seen on glasses and dishes.
(See section “If dishwashing results are not satisfactory”.) The dosage can be set
from 16. The dosage is preset to “4” in the factory.
1. Open the dishwasher door.
2. Press the release button on the rinse aid
compartment.
3. Open the cover.
4. Set the dosage level.
5. Press the lid shut until it clicks into place.
6. If rinse aid has leaked out, wipe it away
with a cloth.
Activating/deactivating the acoustic signal
In addition to the optical display (e.g. indicating the end of the cycle, errors) you
can also choose to set an acoustic signal.
1. Press the ON/OFF button.
3If the LED indicator of only one programme button is illuminated, this wash pro
gramme has been activated. The wash programme must be deselected:
Press function buttons 2and 3 simultaneously for approx. 2 seconds.
The LED indicators of all the programme buttons that can be selected will illumi
nate.
2. Press function buttons 2and 3simultaneously and hold them down.
The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 3.
The LED indicator for function button 3 will flash.
The multidisplay will indicate the current setting:
4. Pressing function button 3will change the setting.
5. Once the multidisplay is indicating the required setting, press the ON/OFF but
ton. The setting is now saved.
0b Acoustic signal deactivated
1b Acoustic signal activated (factory setting)

13In daily use
In daily use
Loading cutlery and dishes
1Sponges, cleaning cloths and any other objects that can absorb water must not
be washed in the dishwasher. Plastic and Tefloncoated dishes and pans tend to
retain water droplets. These dishes and pans therefore do not dry as well as
those made of china and stainless steel.
•Before loading the dishes, you should:
–Remove the worst of the food residues.
–Soak pans with burnton food residues.
•When loading the dishes and cutlery, please note:
–Dishes and cutlery must not impede the rotation of the spray arms.
–Load bowls, cups, glasses, pans, etc. with the opening downwards so that
water cannot collect in them
–Dishes and items of cutlery must not lie inside one another or cover one an
other
–To avoid damage to glasses, they must not touch one another
–Don’t put small items (e.g. lids) in the baskets for the dishes, but in the cut
lery basket, so that they can’t fall through the holes.
For washing in the dishwasher, the following cutlery/dishes/pots and pans
are not suitable: are of limited suitability:
•Cutlery with wooden, horn, china or
mother of pearl handles
•Plastic items that are not heat re
sistant
•Older cutlery with cement
that is sensitive to temperature
•Dishes or cutlery with glued parts
•Pewter or copper items
•Lead crystal glass
•Steel items that rust
•Wooden boards/platters
•Items made from synthetic materials
•Only wash stoneware in the dishwasher if it is spe
cifically marked by the manufacturer as being dish
washersafe.
•Glazed patterns may fade if washed very frequently
in the dishwasher.
•Silver and aluminium parts have a tendency to dis
colour during washing. Food remains, e.g. egg white,
egg yolk and mustard often cause discoloration and
staining on silver. Therefore always clean food resi
dues from silver immediately, if it is not to be
washed straight after use.
•Glass can become dull after a large number of wash
es.

In daily use14
Loading cutlery
1Warning: Sharp knives and other items of cutlery with sharp edges must be laid
in the cutlery rack or in the upper basket to avoid the risk of injury.
To ensure that all items of cutlery in the cutlery basket can be reached by the
water, you should:
For larger utensils, such as whisks, leave off one half of the cutlery grid.
The cutlery basket can be opened out.
Always make sure that you put your hand
around both parts of the twopart handle
when removing it from the dishwasher.
1. Place the cutlery basket on a table or work
surface.
2. Open out the twopart handle.
3. Remove cutlery.
1.Place the grid insert on the cutlery
basket
2.Place forks and spoons in the cutlery
basket's grid insert with their han
dles pointing downwards.

15In daily use

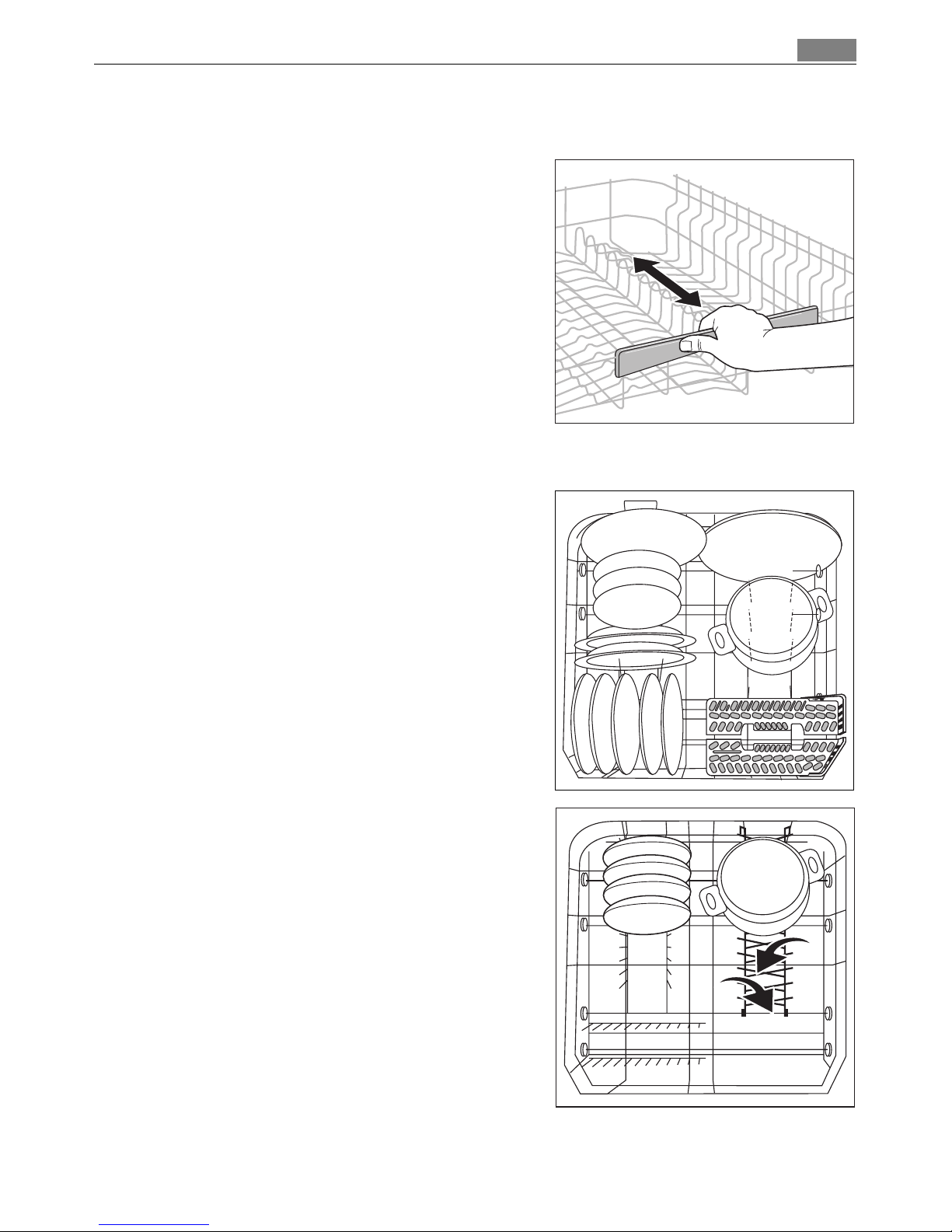

Loading / Unloading lower basket and upper basket
To load and unload, pull out or push in the
upper and lower baskets in the middle us
ing the handle on the front of the basket.
Pots, Pans, Large Plates
Load larger and heavily soiled dishes and
pans in the lower basket.
(Max. diameter for plates 29 cm).
To make it easier to load larger dishes, the
two plate racks on the right in the lower
basket can be folded down.

In daily use16
Cups, Glasses, Coffee Service
Load smaller, fragile crockery and long,
sharp cutlery in the upper basket.
•Arrange items of crockery on and under
the folding cup racks so that they are
offset from each other and water can
reach all items.
•The cup racks can be folded up out of the
way for tall crockery items.
•Lay or hang wine and brandy glasses in
the slots in the cup racks.
•For glasses with long stems, fold the
glass rack to the right, otherwise fold it
away to the left.

17In daily use
•The row of spikes on the left of the upper
basket is also in two parts and can be
folded away.
Spikes not folded away: place glasses,
mugs etc. in the upper basket.
Spikes folded away: More room for serv
ing dishes.
Adjusting the Height of the Upper Basket
3The height of the baskets can also be adjusted when they are loaded.
Raising / Lowering the upper basket
1. Pull out the upper basket completely.
2. Holding the upper basket by the handle,
raise it as far as it will go and then lower it
vertically.
The upper basket will latch into the lower
or the upper position.
Maximum height of dishes in the
Upper basket Lower basket
with upper basket raised 22 cm 30 cm
with upper basket lowered 24 cm 29 cm

In daily use18
Adding Detergent
Detergents remove the dirt from dishes and
cutlery.
The detergent must be added before the
cycle starts.
1Only use detergent intended for domestic
dishwashers.
The detergent compartment is located on
the inside of the door.
1. If the lid is closed:
Press the release button.
The lid will spring open.
2. Place the detergent in the detergent dis
penser. The markings indicate the dosing
levels for powder detergents: “20/30” cor
responds to approx.
20/30 ml of detergent.
Follow the manufacturer’s instructions
with regard to dosing and storage.
3. Close the lid and press until it locks into
place.
3In the case of very heavily soiled dishes, fill
the adjoining compartment (1) with addi
tional detergent. This detergent comes into
use during the prewash cycle.

19In daily use
Concentrated detergents
Today’s detergents for dishwashers are almost exclusively lowalkaline concen
trated detergents with natural enzymes in tablet or powder form.
2Using 50°C dishwashing cycles in conjunction with these concentrated deter
gents reduces pollution and is good for your dishes, as these dishwashing cycles
are specially matched to the dirtdissolving properties of the enzymes in con
centrated detergents. It is for this reason that using 50 °C dishwashing cycles in
conjunction with concentrated detergents can achieve the same cleaning results
that can otherwise only be achieved using 65 °C cycles.
Detergent tablets
3Detergent tablets from different manufacturers dissolve at different rates. For
this reason, some detergent tablets do not attain their full cleaning power dur
ing short cycles. Therefore please use dishwashing cycles with prewash when
using detergent tablets.
Using 3 in 1 detergents
These products are detergents with a combined cleaning, rinsing and salt func
tion.
If you want to use 3 in 1 products
1. There is no need to fill up with special salt or rinse aid.
2. Set the water softener to water hardness range “I”.
3. Set the rinse aid dosage to “1”.
Before the start of the dishwashing cycle put 3in1 detergent in the detergent
dispenser.
If you do not want to use 3 in 1 products any more
If you want to stop using 3in1 products, please do the following:
•Fill up the dispensers for salt and rinse aid again.
•Switch the water softener to the highest setting and perform up to three nor
mal cycles without loading any dishes.
•Then set the water softener to the water hardness in your area.
If you want to use 4 in 1 products
When using "4 in 1" detergents that integrate also anti glass corrosion agent
into "3 in 1" formula, please follow the same indication as given for "3 in 1" de
tergents.

In daily use20
Selecting the dishwashing cycle (Cycle Table)
Dishwashing
cycle
Suitable
for:
Type of
soiling
Programme
sequence
Consumption
values1)
1) The consumption values were obtained under standardised conditions. They depend on how full the bas
kets for the dishes are. Variations are therefore possible in practice.
Prewash Main wash Intermediate rinse Final rinse Drying Length (minutes) Energy (kWh) Water (litres)
INTENSIV
CARE 70°2)
2) During the final rinse, the temperature is increased to 68° for 10 minutes to sanitize e.g. plastic chopping
boards or jam jars.
Dinner service and
cookware
heavily soiled,
driedon food remains,
in particular protein
and starch
••
2x
••
120  130
1,80  2,00
22  24
AUTO
(45° 70°)3)
3) When using this cycle the degree of water clouding determines the amount of soiling on the dishes. The
length of the cycle and water and energy consumption can vary greatly – depending upon the load and
how dirty the dishes are. Depending upon the soiling, the temperature of the water will be automatically
adjusted to between 45°C and 70°C.
Dinner service and
cookware
normally soiled,
driedon food remains ••
1 to 2x
••
90  125
1,1  1,6
11  22
30 MIN
(60)4)
4) When using this cycle, only load the dishwasher half full.
Dishes, excluding
saucepans
just used, lightly to nor
mally soiled  • •
30
0,8
9
ECO 50°5)
5) Test programme for Test Institutes
Dinner service and
cookware, tempera
turesensitive
crockery
normally soiled •••••
130  160
0,95  1,05
11  13
(cold)6)
6) This cycle does not need any detergent.
All types of dishes
Used dishes that are be
ing stored in the dish
washer and are to be
washed later.
•
12
< 0,1
4
