1Important Safety Information
• Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
• This tumble dryer is designed to be vented through to the open air. It
should have its own ventilation system which should not be joined
with any other ventilation system connected to any other appliance.
• The dryer must not be vented into a chimney, or flue pipe designed to
carry the exhaust from a fuel burning heating appliance.
• If the tumble dryer is installed next to fuel burning stove, a heat
insulation non-flammable pad must be inserted between the fuel
burning stove and the tumble dryer: (dimensions 85 x 57 cm).
• If the dryer is installed in a room with a fuel burning heating
appliance, consult your local Corgi registered installer.
• The tumble dryer should not be installed in situations which may be
subject to freezing temperatures.
• The installation site must be well ventilated.
• Ensure the appliance does not stand on the electrical supply cable.
• If the machine is situated on carpeted floor, please adjust the feet in
order to allow air to circulate freely.
• The tumble dryer must be level.
• Observe the safety precautions in the operating instructions for your
dryer.

13
Installation
Site Preparation
• The installation surface must be clean and dry.
• Do not install on a deep pile carpet.
• If the appliance is installed next to a heat source (e. g. cooking
appliance), a heat insulation pad (85 x 57 cm) must be placed
between the washing machine and the heat source.
• Do not install the appliance where the temperature may fall below
freezing or rise above 35°C.
• Please ensure that when the appliance is installed it is easily
accessible for the engineer in the event of a breakdown.
Levelling the Appliance
The appliance must be levelled using the adjustable feet. Use a
screwdriver to adjust to the feet until the appliance is level.

Venting
14
Venting
The appliance expels hot, moist air which must be able to flow freely
from the tumble dryer vent.

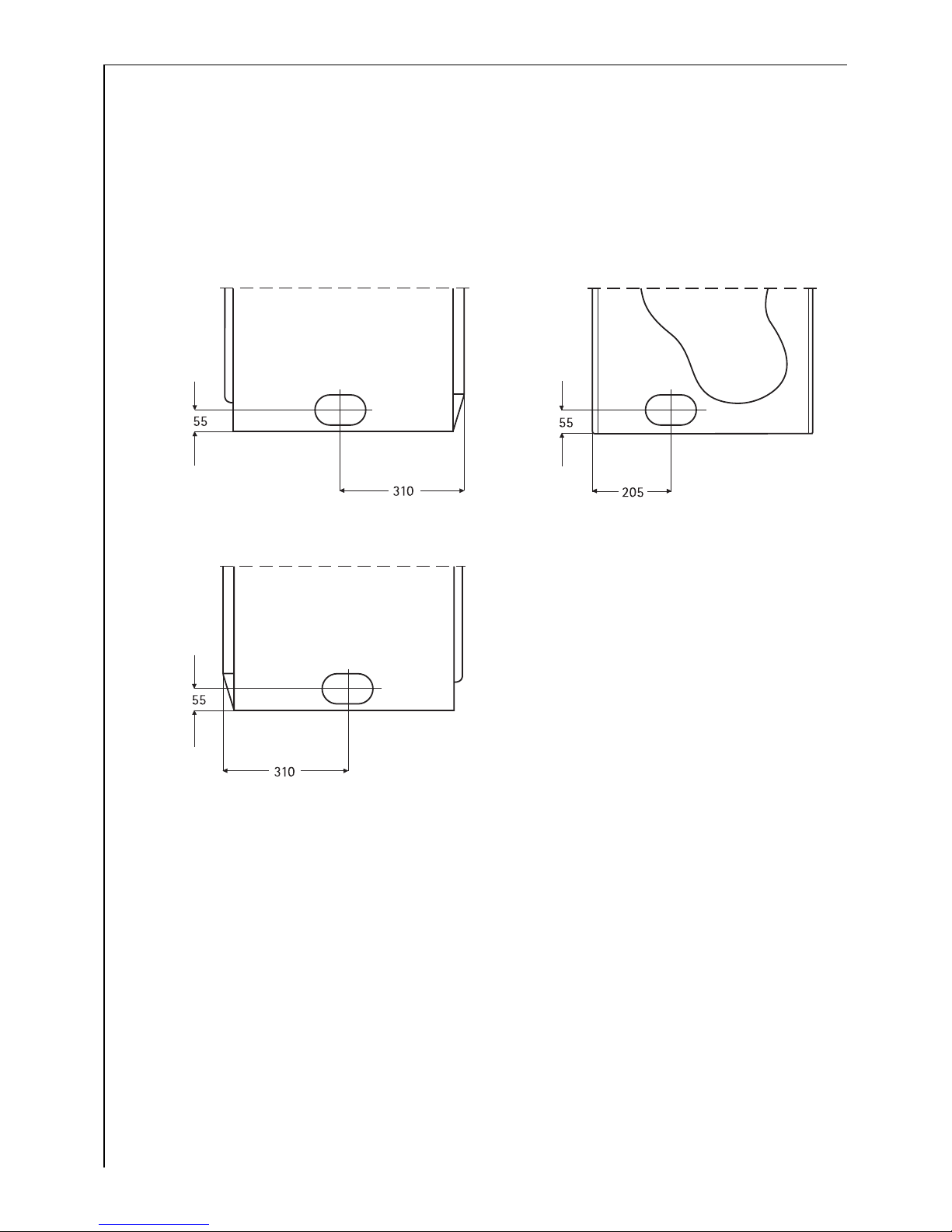

Tumble Dryer Vents
The most efficient way of venting the expelled air is via a vent hose
through to the outside.
View from left
View from right
Rear view

Venting
15

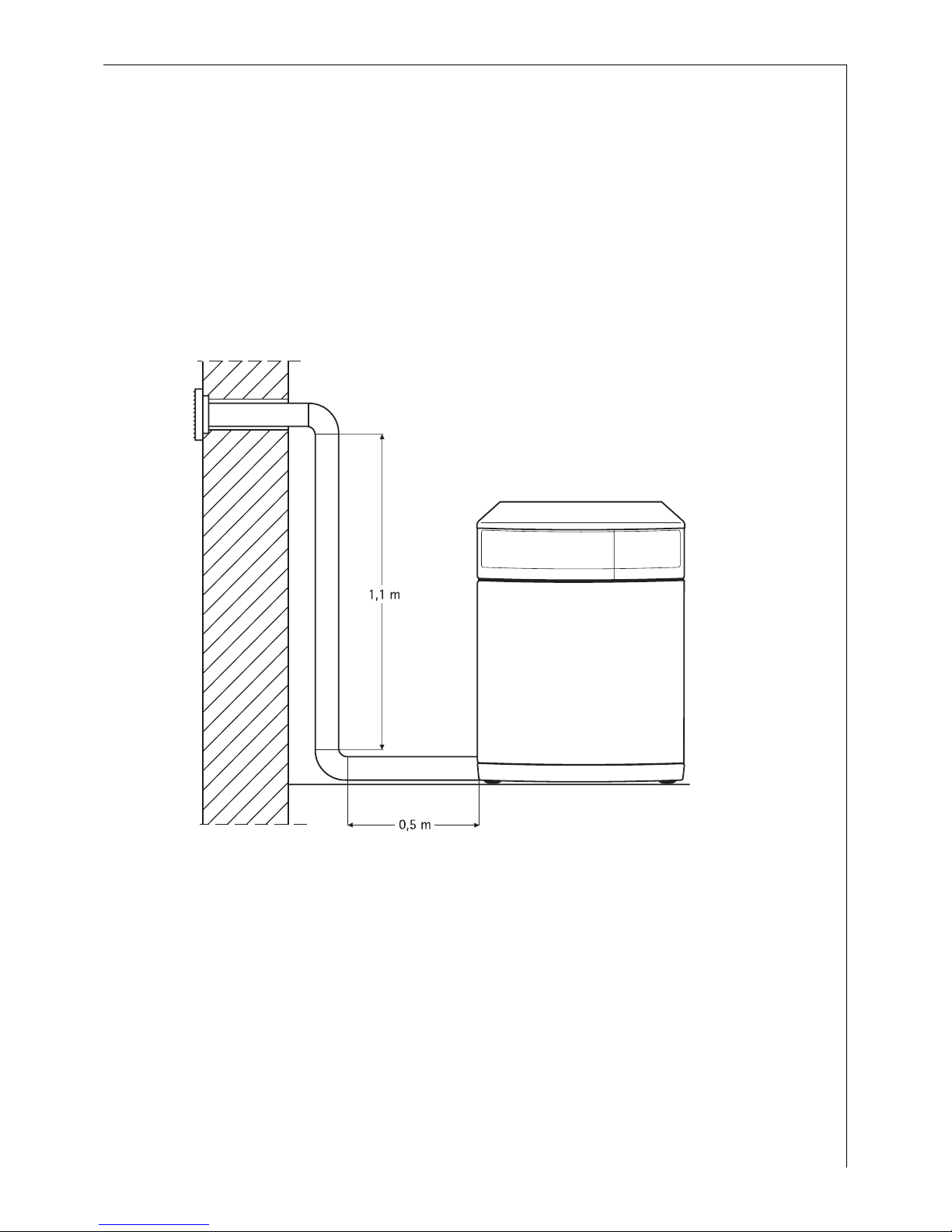

Venting through a Vent Hose
The vent hose expelling the hot air should be 100 mm diameter and no
longer than 4 meters. Avoid bends in the vent hose as this will reduce
the air flow. The maximum length of the vent hose may be:
4 meters with 0 bends, or
2 meters with 2 bends.
If the vent hose is to be permanently installed to the outside, a wall box
or suitable cover should be used on the outside wall.
Example:
A vent hose (Part number: 647 000 010) and wall box (Part number:
647 000 020) are available from your local AEG Service Force Centre.
Ensure the vent hose is not squashed. The drying efficiency of the
tumble dryer will be affected and may cause the safety cut outs to
operate.
1 Warning! The vent hose must not be connected to a flue pipe or
chimney designed to carry the exhaust from a fuel burning heating
appliance.

Venting
16
Venting without a Vent Hose
If a vent hose is not connected to the tumble dryer, the air can be
expelled into the installation room providing the following precautions
are observed.
• The vent(s) in use must be at least 30 cm from the wall or any other
object.
• Any vent less than 30 cm from a wall or other object must be closed
using the cover provided.
• The installation room must be well ventilated during the drying cycle.

17
Electrical Connection
(United Kingdom)
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
1
WARNING - THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should these safety
measures not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate is
located inside the door.
The appliance is supplied with a 13amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13amp ASTA
approved (BS 1362) fuse must be used.
Should the plug need to be
replaced for any reason. The
wires in the mains lead are
coloured in accordance with
the following code:
Green and Yellow : Earth
Blue : Neutral
Brown : Live
Blue
Green
& Yellow
Brown
Cord Clamp

Electrical Connection
18
• The wire coloured green and yellow must be connected to the
terminal marked with the letter “E“ or by the earth symbol or
coloured green and yellow
• The wire coloured blue must be connected to the terminal “N“ or
coloured black.
• The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
• Upon completion there must not be cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheath.
1
WARNING: A cut off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut off plug is disposed of
safely.
Permanent connection
In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm between the switch contacts
and of a type suitable for the required load in compliance with the
current electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
AEG Service Force
(United Kingdom)
If you wish to contact your local AEG Service Force Centre for advice or
spare parts, telephone:
0990 929 929
