EN FIRE Warning; Risk of re / ammable materials

EN -3-
INDEX
BEFORE USING THE APPLIANCE ......................................................... 6
General warnings ............................................................................................. 6
Old and out-of-order fridges or freezer........................................................... 10
Safety warnings.............................................................................................. 10
Installing and operating your fridge freezer.................................................... 11
Before Using your Fridge ............................................................................... 12
Dimensions..................................................................................................... 13
THE VARIOUS FUNCTION AND POSSIBILITIES ................................. 14
Information about New Generation Cooling Technology ................................ 14
Display and Control Panel.............................................................................. 15
Operating Your Fridge Freezer....................................................................... 15
Super Freeze Mode ................................................................................................15
Super Cool Mode ....................................................................................................16
Economy Mode .......................................................................................................16
Holiday Mode ..........................................................................................................17
Drink Cool Mode .....................................................................................................17
Screen Saver Mode ................................................................................................18
The Child Lock Function .........................................................................................18
Door Open Alarm Function......................................................................................18
Temperature Settings ..................................................................................... 19
Freezer Temperature Settings.................................................................................19
Cooler Temperature Settings ..................................................................................19
Temperature Adjustment Warnings ................................................................ 20
Temperature indicator.................................................................................... 21
Accessories .................................................................................................... 22
Ice Tray ...................................................................................................................22
The Freezer Box .....................................................................................................22
Extra Chill Compartment.........................................................................................22
The Fresh Dial.........................................................................................................23
CustomFlex.............................................................................................................23
ARRANGING FOOD IN THE APPLIANCE ............................................ 24
Refrigerator compartment .............................................................................. 24
Freezer compartment ..................................................................................... 25
CLEANING AND MAINTENANCE ......................................................... 28
Defrosting................................................................................................................29

EN -4-
TRANSPORTATION AND CHANGING OF INSTALLATION POSITION29
Repositioning the Door................................................................................... 29
BEFORE CALLING YOUR AFTER SALES SERVICE........................... 30
Hints for Energy Saving.................................................................................. 33
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ........ 34
TECHNICAL DATA ................................................................................. 35
INFORMATION FOR TEST INSTITUTES............................................... 35

EN -5-
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler –
features you might not nd on ordinary appliances. Please spend a few minutes reading to
get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data
available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.

EN -6-
BEFORE USING THE APPLIANCE
General warnings
This appliance is not intended to be used as a built-in appliance.
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
WARNING: In order to avoid any hazards resulting from the
instability of the appliance, it must be xed in accordance with
the following instructions:
If your appliance uses R600a as a refrigerant (this information
will be provided on the label of the cooler) you should take care
during transportation and installation to prevent the cooler
elements from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In the event of a leak
due to damage of the cooler elements, move your fridge away
from open ames or heat sources and ventilate the room where
the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
PART - 1.

EN -7-
• Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
• This appliance is intended to be used in household and
domestic applications such as:
- staff kitchen areas in shops, ofces and other working
environments.
- farm houses and by clients in hotels, motels and other
residential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, a service agent or similarly
qualied persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 16 amperes or 10 amperes
according to country where the product will be sold. If there
is no such socket in your house, please have it installed by
an authorized electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances. Children are not expected
to perform cleaning or user maintenance of the appliance,
very young children (0-3 years old) are not expected to use
appliances, young children (3-8 years old) are not expected to

EN -8-
use appliances safely unless continuous supervision is given,
older children (8-14 years old) and vulnerable people can
use appliances safely after they have been given appropriate
supervision or instruction concerning use of the appliance.
Very vulnerable people are not expected to use appliances
safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualied
persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.
To avoid contamination of food, please respect the
following instructions:
• Opening the door for long periods can cause a signicant
increase of the temperature in the compartments of the
appliance.
• Clean regularly surfaces that can come in contact with food
and accessible drainage systems
• Store raw meat and sh in suitable containers in the
refrigerator, so that it is not in contact with or drip onto other
food.
• Two-star frozen-food compartments are suitable for storing
pre-frozen food, storing or making ice cream and making ice
cubes.
• One-, two- and three-star compartments are not suitable for
the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods,
switch off, defrost, clean, dry, and leave the door open to
prevent mould developing within the appliance.

EN -9-
Service
• To repair the appliance contact theAuthorised Service Centre.
Use original spare parts only.
• Please note that self-repair or nonprofessional repair can
have safety consequences and might void the guarantee.
• The following spare parts will be available for 7 years after
the model has been discontinued: thermostats, temperature
sensors, printed circuit boards, light sources, door handles,
door hinges, trays and baskets.
• Please note that some of these spare parts are only available
to professional repairers, and that not all spare parts are
relevant for all models.
• Door gaskets will be available for 10 years after the model
has been discontinued.

EN -10-
Old and out-of-order fridges or freezer
• If your old fridge or freezer has a lock, break or remove the lock before discarding it,
because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Disposal of your old appliance
The symbol on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city ofce, your household
waste disposal service or the shop where you purchased the product.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or common
use. Such use will cause the guarantee of the appliance to be cancelled and our company
will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.
Safety warnings
• Do not connect your fridge freezer to the mains electricity supply using
an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to
play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short
circuit or electric shock.

EN -11-
• Do not place glass bottles or cans in the ice-making compartment as
they will burst when the contents freeze.
• Do not place explosive or ammable material in your fridge. Place drinks
with high alcohol content vertically in the fridge compartment and make
sure their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may
cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes
immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food
poisoning.
Installing and operating your fridge freezer
Before using your fridge freezer for the rst time, please pay attention to the following points:
• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge freezer may have an odour when it is operated for the rst time. This is normal
and the odour will fade when your fridge freezer starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate
(voltage and connected load) matches that of the mains electricity supply. If in doubt,
consult a qualied electrician.
• Insert the plug into a socket with an efcient ground connection. If the socket has no
ground contact or the plug does not match, we recommend you consult a qualied
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power
supply (AC) and voltage at the operating point must match with the details on the name
plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your fridge freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores,
and at least 5 cm away from electrical ovens.
• If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between
them to prevent humidity forming on the outer surface.
• Do not cover the body or top of fridge freezer with lace. This will affect the performance
of your fridge freezer.
• Clearance of at least 150 mm is required at the top of your appliance. Do
not place anything on top of your appliance.
• Do not place heavy items on the appliance.
• Use the adjustable front legs to make sure your appliance is level and stable.
You can adjust the legs by turning them in either direction. This must be
done before placing food in the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).

EN -12-
• Before using your fridge freezer, wipe all parts with a solution of warm water and a
teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts
to the fridge freezer after cleaning.
• Install the two plastic distance guides (the parts on the black vanes
-condenser- at the rear) by turning it 90° (as shown in the gure) to
prevent the condenser from touching the wall.
• The distance between the appliance and back wall must be a maximum
of 75 mm.
Before Using your Fridge
• When using your fridge for the rst time, or after transportation, keep it
in an upright position for at least 3 hours before plugging into the mains.
This allows efcient operation and prevents damage to the compressor.
• Your fridge may have a smell when it is operated for the rst time. This
is normal and the smell will fade away when your fridge starts to cool.
Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These
lamps are intended to withstand extreme physical conditions in household appliances,
such as temperature, vibration, humidity, or are intended to signal information about the
operational status of the appliance. They are not intended to be used in other applications
and are not suitable for household room illumination.

EN -13-

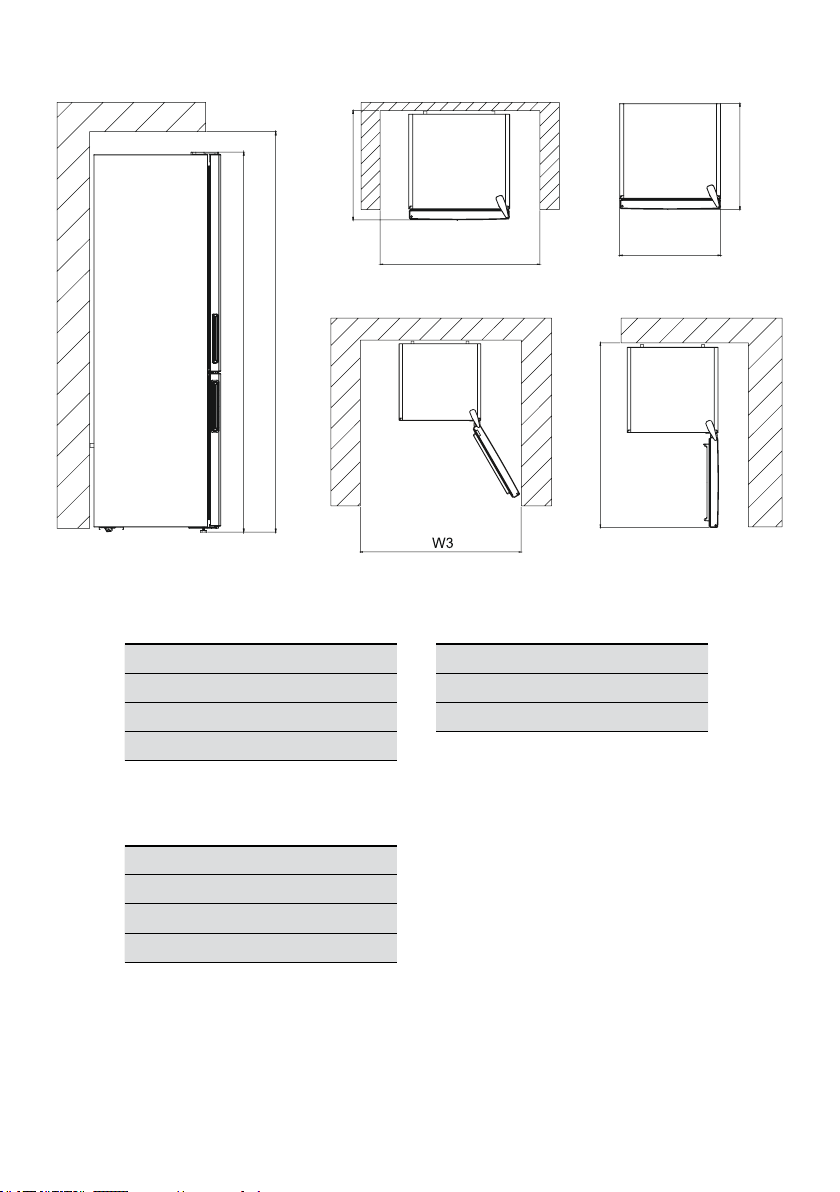

Dimensions
3the height, width and depth of the
appliance including the handle,
plus the space necessary for free
circulation of the cooling air, plus
the space necessary to allow
door opening to the minimum
angle permitting removal of all
internal equipment
Overall dimensions 1
H1 mm 2010
W1 mm 595
D1 mm 650
Space required in use 2
H2 mm 2160
W2 mm 695
D2 mm 688
1the height, width and depth of the
appliance without the handle
2the height, width and depth of the
appliance including the handle,
plus the space necessary for free
circulation of the cooling air
Overall space required in use 3
W3 mm 927
D3 mm 1179
H1 H2
W2
D2
W1
D1
D3
90o

EN -14-
THE VARIOUS FUNCTION AND POSSIBILITIES

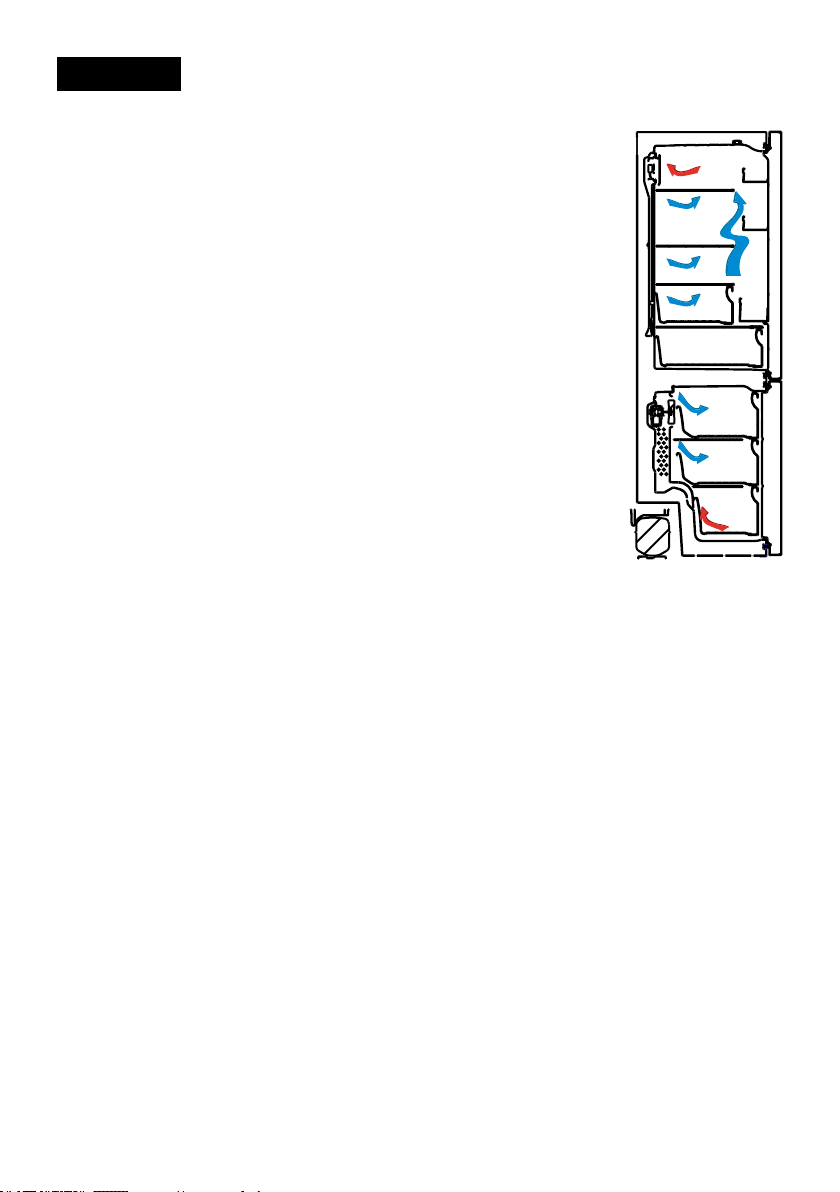

Information about New Generation Cooling Technology
Fridges with new-generation cooling technology have a different operating
system to static fridges. Other (static) fridges may experience a build up
of ice in the freezer compartment due to door openings and humidity in
the food. In such fridges, regular defrosting is required; the fridge must
be switched off, the frozen food moved to a suitable container and the
ice which has formed in the freezer compartment removed.
In fridges with new-generation cooling technology, a fan blows dry cold
air evenly throughout the fridge and freezer compartments. The cold air
cools your food evenly and uniformly, preventing humidity and ice build-up.
In the refrigerator compartment, air blown by the fan, located at the top
of the refrigerator compartment, is cooled while passing through the gap
behind the air duct. At the same time, the air is blown out through the
holes in the air duct, evenly spreading cool air throughout the refrigerator
compartment.
There is no air passage between the freezer and refrigerator compartments,
therefore preventing the mixing of odours.
As a result, your fridge, with new-generation cooling technology, provides
you with ease of use as well as a huge volume and aesthetic appearance.
PART - 2.

EN -15-
Display and Control Panel
Operating Your Fridge Freezer
Super Freeze Mode
Purpose
• To freeze a large quantity of food that cannot t on the fast freeze shelf.
• To freeze prepared foods.
• To freeze fresh food quickly to retain freshness.
How Would It Be Used?
Press freezer set button until Super freeze symbol will be seen on the screen. Buzzer
will sound beep beep. Mode will be set.
During This Mode:
• Temperature of cooler and super cool mode may be adjusted. In this case super
freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting.
1
3
2
4
5
6
7
9
8
10
Using the Control Panel
1. It is cooler set value screen.
2. It is super cooling indicator.
3. It is freezer set value screen.
4. It is super freeze indicator.
5. It is economy mode symbol.
6. It is holiday mode symbol.
7. It is child-lock symbol.
8. It is alarm symbol.
9. Door open alarm symbol.
10. It enables the modes (economy, holiday…) to be activated if
desired.

EN -16-
Notes:
• The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is
shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, activate Super Freeze
mode 3 hours before you put fresh food into the freezer.
• At the end of this period, the fridge will sound an audible alarm notifying that it is ready.
Super freeze mode will automatically cancel after 24 hours or when the freezer sensor
temperature drops below -32 °C.
Super Cool Mode
Purpose
• To cool and store a large quantity of food in the fridge compartment.
• To quickly cool drinks.
How Would It Be Used?
Press cooler set button until super cool symbol will be seen on the screen. Buzzer
will sound beep beep. Mode will be set.
During This Mode:
• Temperature of freezer and super freeze mode may be adjusted. In this case
super cool mode continues.
• Economy and holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation of selecting.
Economy Mode
Purpose
Energy savings. During periods of less frequent use (door opening) or absence from home,
such as a holiday, Eco program can provide optimum temperature whilst saving power.
How Would It Be Used?
• Push "MODE" button until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3
times. When mode is set, buzzer will sound beep beep.
• Freezer and refrigerator temperature segments will show "E".
• Economy symbol and E will light till mode nishes.
During This Mode:
• Freezer may be adjusted. When economy mode will be cancelled, the selected
setting values will proceed.
• Cooler may be adjusted. When economy mode will be cancelled, the selected
setting values will proceed.
• Super cool and super freeze modes can be selected. Economy mode is
automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the
selected mode is activated.
• To cancel, you will just need to press on mode button.

EN -17-
Holiday Mode
How Would It Be Used?
• Push "MODE" button until holiday symbol appears
• If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink
3 times. When mode is set, buzzer will sound beep beep.
• Cooler temperature segment will show "--".
• Holiday symbol and "--" will light till mode nishes.
During This Mode:
• Freezer may be adjusted. When holiday mode will be cancelled, the selected
setting values will proceed.
• Cooler may be adjusted. When holiday mode will be cancelled, the selected
setting values will proceed.
• Super cool and super freeze modes can be selected. Holiday mode is
automatically cancelled and the selected mode is activated.
• Economy mode can be selected after cancelling the holiday mode. Then the selected
mode is activated.
• To cancel, you will just need to press on mode button.
Drink Cool Mode
Purpose
This mode is used to cool drinks within an adjustable time frame.
How Would It Be Used?
• Press freezer button for 3 seconds.
• Special animation will start on freezer set value screen and 05 will blink on
cooler set value screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).
• When you select the time the numbers will blink 3 times on screen and sound
beep beep.
• If no button is pressed within 2 seconds the time will be set.
• The countdown starts from the adjusted time minute by minute.
• Remaining time will blink on the screen.
• To cancel this mode press freezer set button for 3 seconds.

EN -18-
Screen Saver Mode
Purpose
This mode saves energy by switching off all control panel lighting when the panel
is left inactive.
How To Use?
• This mode will be activated when you press on "MODE" button for 3 seconds.
• If no button is pressed within 30 seconds when he mode is active, lights of the
control panel will go off.
• If you press any button when lights of control panel are off, the current settings
will appear on the screen, and then you can maket he adjustment as you want.
If you neither cancel screen saver mode nor press on any button in 30 seconds,
the control panel will go off again.
• To cancel screen saver mode press on "MODE" button for 3 seconds again.
• When screen saver mode is active you can also activate child lock.
• If no button is pressed within 30 seconds after child lock is activated, the lights of the
control panel will turn off. You can see latest status of settings or modes after you pres
any button. While control panel ‘s light is on, you can cancel child lock as described in
the instruction of this mode.
The Child Lock Function
Purpose
Child lock can be activated to prevent any accidental or unintentional changes being
made to the appliance settings.
Activating Child Lock
Press on freezer and cooler buttons simultaneously for 5 seconds.
Deactivating Child Lock
Press on freezer and cooler buttons simultaneously for 5 seconds.
Child lock will also be deactivated if electricity is interrupted or the fridge is
unplugged.
Door Open Alarm Function
If cooler door is opened more than 2 minutes, appliance sounds ‘beep beep’ and door
open icon will be light.

EN -19-
Temperature Settings
Freezer Temperature Settings
• The initial temperature value for the freezer setting indicator is -18°C.
• Press the set freezer button once.
• When you rst push this button, the last set value will blink on the screen.
• Whenever you press this button, temperature will decrease respectively.
• When you push the set freezer button until the super freeze symbol appears,
and if you do not push any other button within 1 second, super freeze will ash.
• If you continue to press it, it will restart from -16 °C.
• The temperature value selected before holiday mode, super freeze mode,
super cool mode or economy mode is activated and will remain the same when
the mode is over or cancelled. The appliance continues to operate with this
temperature value.
Cooler Temperature Settings
• Initial temperature value for the cooler setting indicator is +4 °C.
• Press the cooler button once.
• When you rst push this button, the last value will appear on the cooler setting
indicator.
• Whenever you press this button, temperature will decrease respectively.
• When you push the cooler set button until the super cool symbol appears, and
if you do not push any button within 1 second, super cool will ash.
• If you continue to press the button, it will restart from +8 °C.
• The temperature value selected before holiday mode, super freeze mode,
super cool mode or economy mode is activated and will remain the same when
the mode is over or cancelled. The appliance continues to operate with this
temperature value.
Recommended Settings for the Freezer and Cooler Compartment Temperature
Freezer Compartment Cooler
Compartment Remarks
-18 oC 4 oC For regular use and best performance.
-20 oC, -22 oC or -24 oC 4 oCRecommended when environmental
temperature exceeds 30 °C.
Super Freeze mode 4 oCMust be used when you wish to freeze food in a
short period of time.
-18 oC, -20 oC, -22 oC or -24 oC 2 oC
These temperature settings must be used
when the environmental temperature is high or
if you think the refrigerator compartment is not
cool enough becuse the door is being opened
frequently.

EN -20-
Temperature Adjustment Warnings
• It is not recommended that you operate your fridge in environments colder than 10°C
in terms of its efciency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings,
the quantity of food kept inside the fridge and the ambient temperature in the location
of your fridge.
• In order to allow your fridge to reach the operating temperature after being connected to
mains, do not open the doors frequently or place large quantities of food in the fridge.
Please note that, depending on the ambient temperature, it may take 24 hours for your
fridge to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your fridge
when connecting or disconnecting to mains, or when an energy breakdown occurs. Your
fridge will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C)
intervals stated in the standards, according to the climate class displayed on the
information label. We do not recommend operating your appliance out of the stated
temperature limits in terms of cooling effectiveness.
Climate class Meaning Ambient Temperature
TTropical This refrigerating appliance is intended to be used at
ambient temperatures ranging from 16 °C to 43 °C.
ST Subtropical This refrigerating appliance is intended to be used at
ambient temperatures ranging from 16 °C to 38 °C.
NTemperate This refrigerating appliance is intended to be used at
ambient temperatures ranging from 16 °C to 32 °C.
SN Extended temperate This refrigerating appliance is intended to be used at
ambient temperatures ranging from 10 °C to 32 °C.
Important installation instructions
This appliance is designed to work in difcult climate conditions (up to 43 degrees C or 110
degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen
food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So
you may then install your appliance in an unheated room without having to worry about frozen
food in the freezer being spoilt. When the ambient temperature returns to normal, you may
continue using the appliance as usual.
