Contents
Operating Instructions 4
Safety instructions 4
Description of the Appliance 6
Cooking surface layout 6
Control panel layout 7
Touch Control sensor fields 8
Displays 9
Residual heat indicator 9
Operating the appliance 10
Switching the appliance on and off 10
Setting the heat setting 10
Switching the STOP+GO function on and off 10
Using the automatic warmup function 11
Locking/unlocking the control panel 12
Using the child safety device 13
Switching the power function on and off 14
Using the timer 15
Cooking over two cooking zones 18
Automatic switch off 19
Tips on Cooking and Frying 20
Cookware for induction cooking zones 20
Tips on energy saving 21
Examples of cooking applications 21
Cleaning and Care 22
What to do if … 23
Disposal 25
Installation Instructions 25
Safety instructions 25
Guarantee/Customer Service 27
Service 29
Assembly 94
RatingPlate 97

Operating Instructions4
Operating Instructions
1Safety instructions
Please comply with these instructions. If you do not, any damage resulting is not
covered by the warranty.
5This appliance conforms with the following EU Directives:
–73/23/EEC dated 19.02.1973 Low Voltage Directive
–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive
92/31/EEC
–93/68/EEC dated 22.07.1993 CE Marking Directive
Correct use
•People (including children) who, because of their physical, sensory or mental
capabilities or their inexperience or ignorance are not able to use the device
safely, should not use this device without supervision or instruction by a re
sponsible person.
•Do not leave the appliance unattended during operation.
•This appliance should be used only for normal domestic cooking and frying of
food.
•The appliance must not be used as a work surface or as a storage surface.
•Additions or modifications to the appliance are not permitted.
•Do not place or store flammable liquids, highly inflammable materials or fusi
ble objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
•Small children must be kept away from the appliance.
•Only let bigger children work on the appliance under supervision.
•To avoid small children and pets unintentionally switching the appliance on,
we recommend activation of the child safety device.
General safety
•The appliance may only be installed and connected by trained, registered
service engineers.
•Builtin appliances may only be used after they have built in to suitable built
in units and work surfaces that meet standards.

5Safety instructions
•In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and discon
nected from the electrical supply, to prevent the possibility of an electric
shock.
•Repairs to the appliance must only be carried out by trained registered service
engineers.
Safety during use
•Remove stickers and film from the glass ceramic.
•There is the risk of burns from the appliance if used carelessly.
•Cables from electrical appliances must not touch the hot surface of the appli
ance or hot cookware.
•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
•Switch the cooking zones off after each use.
•Users with implanted pacemakers should keep their upper body at least 30 cm
from induction cooking zones that are switched on.
•Risk of burns! Do not place objects made of metal, such as knives, forks,
spoons and saucepan lids on the cooking surface, as they can get hot.
Safety when cleaning
•For cleaning, the appliance must be switched off and cooled down.
•For safety reasons, the cleaning of the appliance with steam jet or highpres
sure cleaning equipment is not permitted.
How to avoid damage to the appliance
•The glass ceramic can be damaged by objects falling onto it.
•The edge of the glass ceramic can be damaged by being knocked by the cook
ware.
•Cookware made of cast iron, cast aluminium or with damaged bottoms can
scratch the glass ceramic if pushed across the surface.
•Objects that melt and things that boil over can burn onto the glass ceramic
and should be removed straightaway.
•Do not use the cooking zones with empty cookware or without cookware.
•To avoid damaging cookware and glass ceramics, do not allow saucepans or
frying pans to boil dry.
•The ventilation gap of 5mm between the worktop and front of the unit un
derneath it must not be covered.

Description of the Appliance6
Description of the Appliance
Cooking surface layout
The cooking surface is divided into four cooking zones. In each cooking zone un
der the glass ceramic is an induction heating element, the middle of each one
being marked with a cross on the glass ceramic surface. Cookware can be placed
on any of the cooking zones. But the cross must be completeely covered by the
cookware.
The bottom of the cookware must be from 125210mm in diameter.
Induction cooking zone 2300W
with power function 3200W
Induction cooking zone 2300W
with power function 3200W
Induction cooking zone 2300W
with power function 3200W
Control panel Induction cooking zone 2300W
with power function 3200W

7Description of the Appliance
Larger cookware such as a roaster, for example, can be heated on two cooking
zones. If doing this, cookware must cover at least the middle of the two crosses.
Control panel layout
On/Off
with power indicator
Heat setting selection
Lock
Timer display
Display
Cooking zone indicators
Timer function
Power function
STOP+GO
Timer

Description of the Appliance8
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are con
trolled by touching sensor fields and confirmed by displays and acoustic signals.
Touch the sensor fields from above, without covering other sensor fields.
1Warning! Risk of burns from heat emitted. Lengthy cooking on higher settings
with larger cookware on the front cooking zones can heat the sensor fields. Take
care when touching sensor fields.
3Cooking utensils must not be pulled across or placed on the control panel.
Sensor field Function
On / Off To switch the appliance on and off
Increase settings Increasing heat setting/time
Decrease settings Decreasing heat setting/time
Timer Timer selection
Lock Locking/unlocking the control panel
Power Switching the power function on and
off
Stop+Go To switch the Keep Warm setting on/
off

9Description of the Appliance
Displays
Residual heat indicator
1Warning! Risk of burns from residual heat. After being switched off, the cook
ing zones need some time to cool down. Look at the residual heat indicator h.
3Residual heat can be used for melting and keeping food warm.
The induction cooking zones create the heat required for cooking directly in
the base of the cookware. The glass ceramic is merely heated by the residual
heat of the cookware.
The cooling fan switches itself on and off depending upon the temperature of
the electronics.
Display Description
¾Cooking zone is switched off
uKeep warm setting Keep warm setting/STOP+GO function
is set
¿ ÇHeat settings Heat setting is set
2 6Heating setting plus
decimal point
Intermediate heat setting is set
aAutomatic warm up func
tion
Automatic warmup function is acti
vated
eFault Malfunction has occurred
fPan detection Cookware is unsuitable or too small or
no cookware has been placed on the
cooking zone
hResidual heat Cooking zone is still hot
lChild safety device Lock/child safety device is engaged
pPower Power function is switched on
_Automatic switch off Switch off is active.

Operating the appliance10
Operating the appliance
3Use the induction cooking zones with suitable cookware.
Switching the appliance on and off
3After switching on, within approx. 10 seconds a heat setting or a function must
be set, otherwise the appliance automatically switches itself off.
Setting the heat setting
3The keep warm setting ulies between ¾and ¿. It is used to keep food warm.
Switching the STOP+GO function on and off
The STOP+GO function simultaneously switches all cooking zones that are
switched on to the keep warm setting and then back to the heat setting that
was previously set.
3Timer functions are not stopped by STOP+GO.
3STOP+GO locks the whole control panel except the sensor field .
Control panel Display Pilot light
Switch on Touch for 2 seconds ¾/ hlights up
Switch off Touch for 1 second h/ none goes out
Control panel Display
Increase Touch uto Ç/ p
Decrease Touch Çto ¾
Switch off Touch and at the same time ¾
Control panel Display
To switch on Touch u
To switch off Touch heat setting that was previously
set (not automatic warm up func
tion)

11Operating the appliance
Using the automatic warmup function
All cooking zones are equipped with an automatic warmup function. The auto
matic warmup function sets the cooking zone to the highest setting for a cer
tain period of time and then automatically switches back to the cooking setting
that was originally set.
3If during the automatic warm up aa higher heat setting is selected, e.g. from
Áto Ã, the automatic warm up is adjusted.
The length of time that the automatic warm up function operates depends on
the heat setting selected.
Step Control panel Display
1. Setting the maximum setting Ç/ p
2. Place to one side for a moment Ç/ p
3. touch a
4. touch in order to set the desired
cooking setting
Æuntil ¿/ u
after 3 seconds a
Heat
setting
Length of the
automatic warm up
[min:sec]
Intermedi
ate
heat
setting
Length of the
automatic warm up
[min:sec]
v0:10
10:10
20:10 2. 1:20
33:10 3. 4:20
45:50 4. 8:10
510:10 5. 10:30
62:00 6. 2:00
72:30
82:50
9

Operating the appliance12
Locking/unlocking the control panel
The control panel, with the exception of the “On/Off” sensor field, can be locked
at any time in order to prevent the settings being changed e.g. by wiping over
the panel with a cloth.
3When you switch the appliance off, the locking function is automatically
switched off.
Control panel Display
Switch on Touch l(for 5 seconds)
Switch off Touch previously set heat setting

13Operating the appliance
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Setting the child safety device
Releasing the child safety device
Overriding the child safety device
The child safety device can be released in this way for a single cooking session; it
remains activated afterwards.
Step Control panel Display/Signal
1. Switch on the appliance
(Do not set a heat setting)
¾
2. Touch until the signal sounds Acoustic signal
3. Touch l
Appliance switches off. The child safety device is engaged.
Step Control panel Display/Signal
1. Switch on the appliance l
2. Touch until the signal sounds Acoustic signal
3. Touch
Appliance switches off. The child safety device is released.
Step Control panel Display/Signal
1. Switch on the appliance l
2. Touch and at the same time ¾/ acoustic signal
Until the appliance is next switched off, it can used as normal.

Operating the appliance14
Switching the power function on and off
The power function makes more power available to the induction cooking
zones, e.g. to bring a large quantity of water to the boil quickly.
The power function is activated for 10 minutes. After that the induction cooking
zone automatically switches back to heat setting 9.
3If the power function has ended, the cooking zones automatically switch back to
the heat setting set previously.
Power Management
The cooking zones of the cooking surface
have a maximum power available to them.

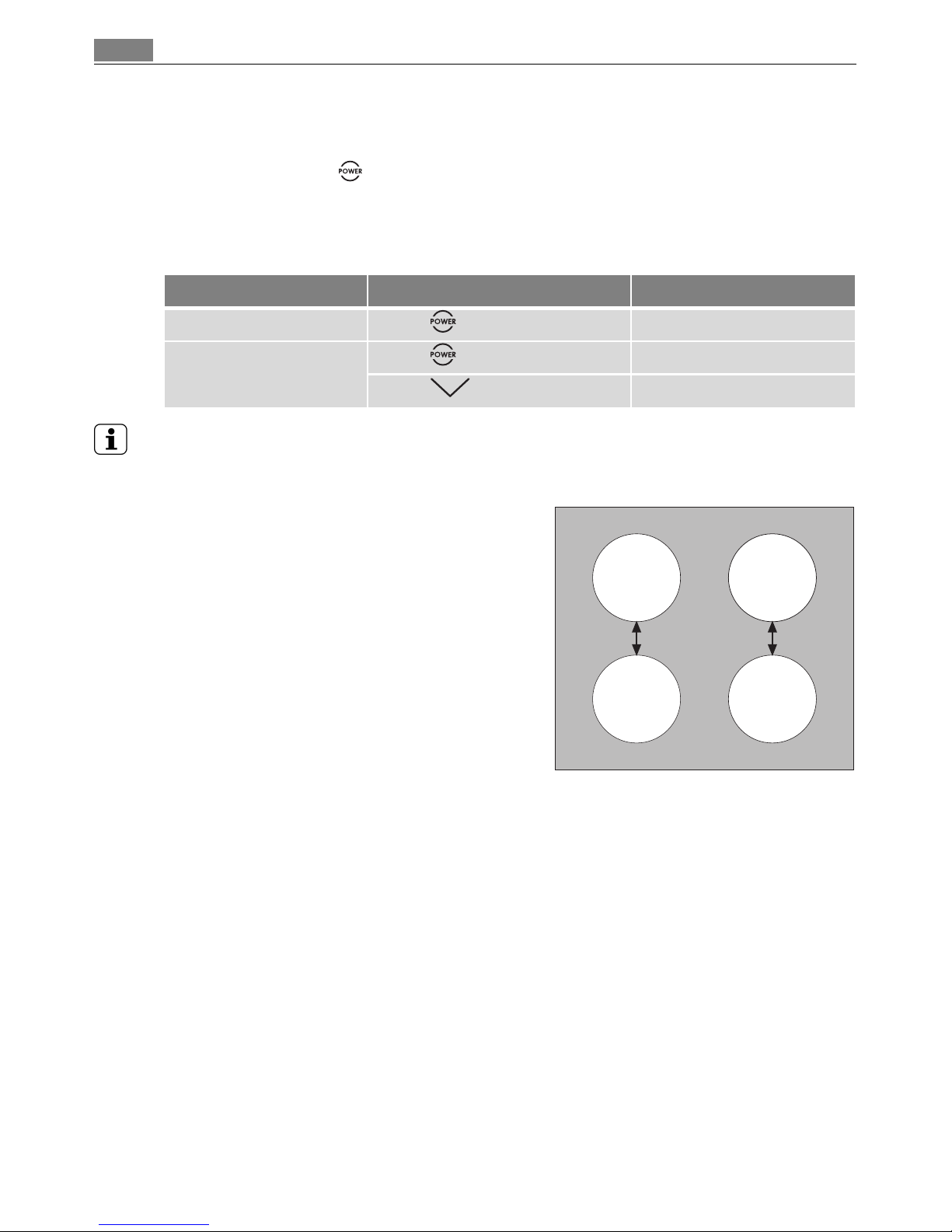

Two cooking zones make up a pair (see fig
ure).
So that the Power function can always be
carried out, Power Management may re
duce the power of the other cooking zone
in the pair
Example: heat setting 9 is selected on a
cooking zone. The Power function is
switched on for the cooking zone paired up
with it. The Power function is performed,
but heat setting 9 on one cooking zone and Power function on the other cook
ing zone of a pair exceeds the maximum output for both. Therefore Power Man
agement reduces the first cooking zone that was switched on from 9 to 7, for
example, and the display for this cooking zone alternates between 9 and 7 and
then remains on the current maximum of 7. (Whether the display alternates be
tween 9 and 7 or 9 and 6 or other values, depends on the appliance type and the
size of the cooking zone.)
Control panel Display
Switch on Touch p
Switch off Touch Ç
Touch Ç

15Operating the appliance
Using the timer
All cooking zones can use each use one of the two timer functions at the same
time.
3If a cooking zone is switched off, the timer function set is also switched off.
3If a heat setting is set on this cooking zone in addition to a countdown timer,
the cooking zone is switched off after the time set has elapsed.
Function Condition Outcome after the
time has elapsed
Automatic cutout a heat setting is set acoustic signal
00 flashes
Cooking zone switches
off
Countdown timer cooking zones not in use acoustic signal
00 flashes

Operating the appliance16
Selecting a cooking zone
3The heat setting indicator of the selected cooking zone goes out, as long as the
timer time can be set.
3If the pilot light is flashing more slowly, the heat setting indicator appears again
and the heat setting can be reset or modified.
3If other timer functions are set, after a few seconds the shortest remaining time
of all the timer functions is displayed and the corresponding pilot light flashes.
Step Control panel Display
1. Touch once Pilot light of the first cook
ing zone flashes
2. Touch once Pilot light of the second
cooking zone flashes
3. Touch once Pilot light of the third
cooking zone flashes
4. Touch once Pilot light of the fourth
cooking zone flashes

17Operating the appliance
Setting the time
Switching off the Timer function
Changing the time
Step Control panel field Display
1. Select cooking zone Pilot light of the cooking zone selected
flashes
2. Touch or for
the cooking zone se
lected
00 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
Step Control panel Display
1. Select a cooking
zone
Pilot light of the selected cooking zone
flashes more quickly.
Remaining time is displayed
2. Touch for the
cooking zone selected
The remaining time counts down to 00.
Simultaneoulsy touch
and for the
cooking zone selected
00 is displayed.
The pilot light goes out.
The Timer function for the selected cooking zone is switched off.
Step Control panel field Display
1. Select cooking zone Pilot light of the cooking zone selected
flashes faster
The time remaining is displayed
2. Touch or for
the cooking zone se
lected
01 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.

Operating the appliance18
Displaying the time remaining for a cooking zone
Switching off the acoustic signal
Cooking over two cooking zones
Large cookware can be heated with two cooking zones simultaneously. Either
the two cooking zones on the lefthand side or on the righthand side of the
cooking surface are suitable for this.
1. Place cookware centrally on the two zones.
The cookware must cover at least the middle of the two crosses.
2. Set the same heat setting for the two cooking zones (max. setting 8).
3With different cookware there can be differences in the heat distribution. Good
cooking results can be achieved with cookware with thick, flat bottoms.
Step Control panel field Display
1. Select cooking zone Pilot light of the cooking zone selected
flashes faster
The time remaining is displayed
After a few seconds the pilot light flashes more slowly.
Step Control panel field Acoustic signal
1. Touch Acoustic signal to acknowledge.
Acoustic signal stops.

19Operating the appliance
Automatic switch off
Cooking surface
•If after switching on the cooking surface, a heat setting is not set for a cook
ing zone within approx. 10 seconds, the cooking surface automatically switch
es itself off.
•If one or more sensor fields are covered by objects (a pan, cloths, etc.) for
longer than approx. 10 seconds, a signal sounds and the cooking surface
switches off automatically.
•If all cooking zones are switched off, the cooking surface automatically
switches itself off after approx. 10 seconds.
Control panel
•When the appliance is switched off, if one or more of the sensor fields on the
control panel are covered for more that 10 seconds, an acoustic signal sounds.
The acoustic signal switches itself off automatically when the sensor fields are
no longer covered.
Induction cooking zones
•In the event of overheating (e.g. when a pan boils dry) the cooking zone auto
matically switches itself off. _is displayed. Before being used again, the
cooking zone must be set to 0and allowed to cool down.
•If cookware that is not suitable is used, fflashes in the display and after 2
minutes the display for the cooking zone switches itself off.
•If one of the cooking zones is not switched off after a certain time, or if the
heat setting is not modified, the relevant cooking zone switches off automati
cally. _is displayed. Before being used again, the cooking zone must be set to
0.
Heat setting Switches off after
v, 1  26 hours
3 45 hours
54 hours
6 91.5 hours

Tips on Cooking and Frying20
Tips on Cooking and Frying
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe
cially in products containing starch, can constitute a health risk due to acryla
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.
Cookware for induction cooking zones
Cookware material
3Cookware for induction cooking zones is labelled as suitable by the manufactur
er.
Suitability test
Cookware is suitable for induction cooking, if …
•... a little water on an induction cooking zone set to heat setting 9 is heated
within a short time.
•... a magnet sticks to the bottom of the cookware.
3Certain cookware can make noises when being used on induction cooking zones.
These noises are not a fault in the appliance and do not affect operation in any
way.
Bottom of the cookware
The bottom of the cookware should be as thick and flat as possible.
Pan size
Induction cooking zones adapt automatically to the size of the bottom of the
cookware up to a certain limit. However the magnetic part of the bottom of the
cookware must have a minimum diameter depending upon the size of the cook
ing zone.
Cookware with a bottom with a diameter of less than 12cm is not suitable.
Cookware material Suitable
Steel, enamelled steel yes
Cast iron yes
Stainless steel if appropriately labelled by the manufacturer
Aluminium, copper, brass 
Glass, ceramic, porcelain 
