AEG B 89092-4 User manual

B 89092-4
Built-in oven
Instruction booklet IEGB

2
Important Safety Information
YouMUSTreadhesewarningscarefullybeforeinstallingorusingthehob.Ifyouneedassistance,contact
our Customer Care Department on 08705 350350
Installation
• This oven must be installed by qualified personnel
to the relevant British Standards.
• This oven is heavy. Take care when moving it.
• Remove all packaging, both inside and outside the
oven, before using the oven.
• Do not attempt to modify the oven in any way.
Child Safety
• This oven is designed to be operated by adults. Do
not allow children to play near or with the oven.
• The oven gets hot when it is in use. Children should
be kept away until it has cooled.
During Use
• This oven is intended for domestic cooking only. It
is not designed for commercial or industrial
purposes.
• Appliances become very hot with use, and retain
their heat for long periods after use. Care should
betakentoavoid touchingheating elementsinside
the oven.
•Always stand back from the oven when opening
the oven door during cooking or at the end of it
to allow any build up of steam or heat to release.
• Neverline anypart ofthe ovenwith aluminiumfoil.
• Do not allow heatproof cooking material, e.g.
roasting bags, to come into contact with oven
elements.
• Never place plastic or any other material which
may melt in or on the oven.
• Donot placesealed cansor aerosolsinsidethe oven.
They may explode if they are heated.
• Do not hang towels, dishcloths or clothes from the
oven or its handle.
• Do not use this oven if it is in contact with water
and never operate it with wet hands.
• Take great care when heating fats and oils as they
will ignite if they become too hot.
• Alwaysuse ovengloves toremove andreplace food
in the oven.
• Ensurethat allcontrol knobsare inthe OFFposition
when not in use.
• Do not leave cookware containing foodstuffs, e.g.
fat or oil in or on the oven in case it is inadvertently
switched ON.
• When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the oven.
Maintenance and Cleaning
• Only clean this oven in accordance with the
instructions.
• The oven should be kept clean at all times. A build-
up of fats or other foodstuffs could result in a fire,
especially in the grill pan.
• Never use steam or high pressure steam cleaners
to clean the appliance.
• Always allow the oven to cool down and switch off
the electrical supply before carrying out any
cleaning or maintenance work.
Service
• This oven should only be repaired or serviced by an
authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
• After installation, please dispose of the packaging
with due regard to safety and the environment.
• When disposing of an old appliance, make it
unusable, by cutting off the cable. Remove any
door catches, to prevent small children being
trapped inside.

3
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
Guide to Use the instructions

The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
Keep this instruction book for future reference and ensure it is passed on to any new
owner.

4
Contents
Important Safety Information ............................................................................................................ 2
Description of the appliance ........................................................................................................................... 5
Control Panel .......................................................................................................................................................6
The Oven Safety Devices ...................................................................................................................................7
When the oven is first installed ...................................................................................................................... 7
Before the first use of the oven ...................................................................................................................... 9
Cooking Functions .......................................................................................................................................... 12
Programming the Oven ................................................................................................................................. 13
Safety and Energy Saving Functions.......................................................................................................... 16
The "Recipe Selection" Function ................................................................................................................. 19
Using the Oven ................................................................................................................................................. 21
Hints and Tips ................................................................................................................................................... 22
The Conventional Oven .................................................................................................................................. 24
The Fan Oven .................................................................................................................................................... 26
Grilling ................................................................................................................................................................ 29
Pizza Oven.......................................................................................................................................................... 32
Defrosting .......................................................................................................................................................... 33
Cleaning the Oven ........................................................................................................................................... 34
Care of catalytic liners .................................................................................................................................... 36
Something not working ................................................................................................................................. 40
Service and Spare Parts .................................................................................................................................. 41
Customer Care .................................................................................................................................................. 41
Guarantee Conditions .................................................................................................................................... 42
Installation ......................................................................................................................................................... 43
Technical Data .................................................................................................................................................. 43
Electrical Connection ..................................................................................................................................... 44
Building In ......................................................................................................................................................... 46

5

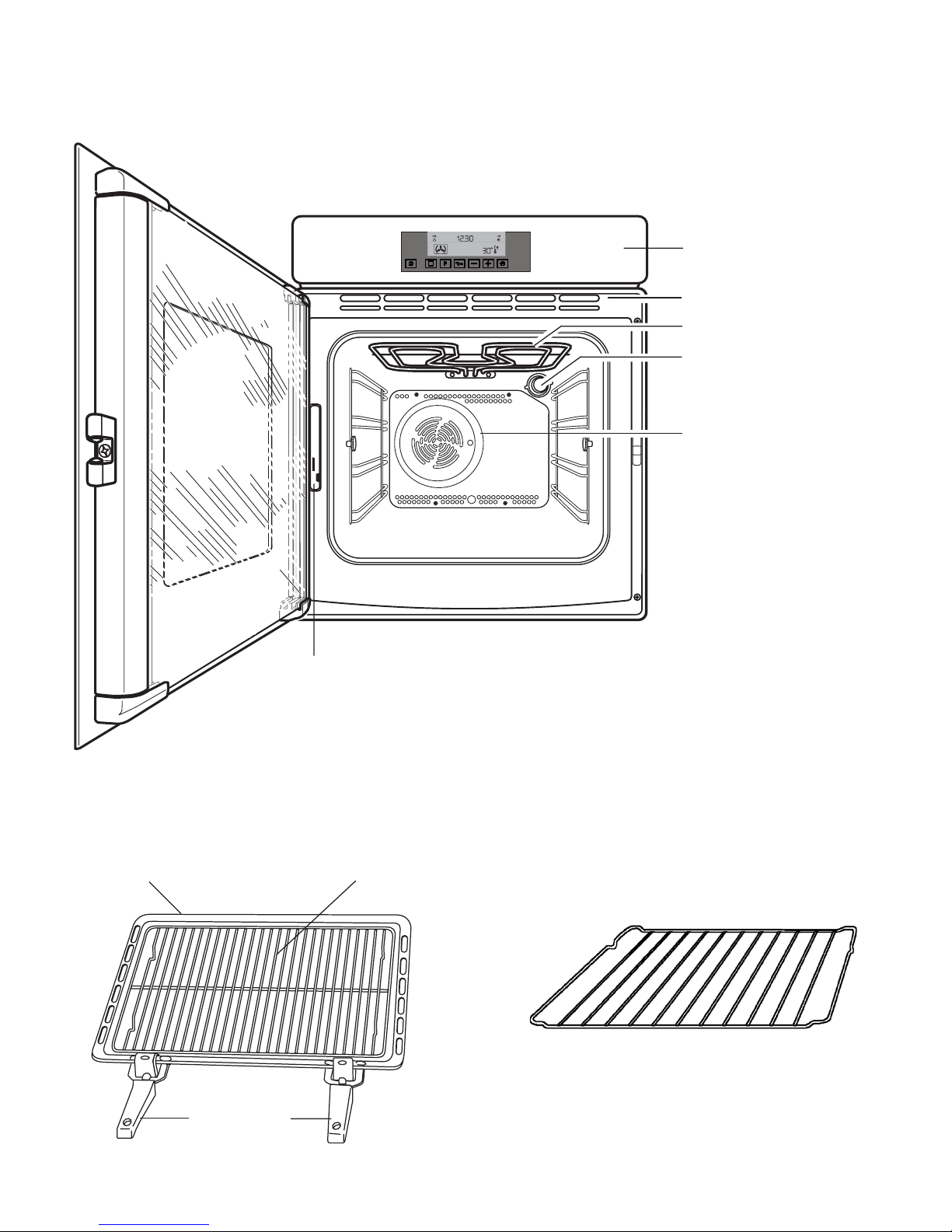

Description of the appliance
OvenLight
Grill Element
Control Panel
Rating Plate
OvenFan
Air Vents for Cooling Fan
Anti-tip shelf (x 2)
Grilltrivet
Grill/roasting pan
Removable
handles
Oven accessories

6
Control Panel
Time
display
Temperature
display
Cooking Functions
display
1234567
Cooking Duration
Symbol
End Of Cooking Time
Symbol
Clock
Symbol
Thermometer
Symbol

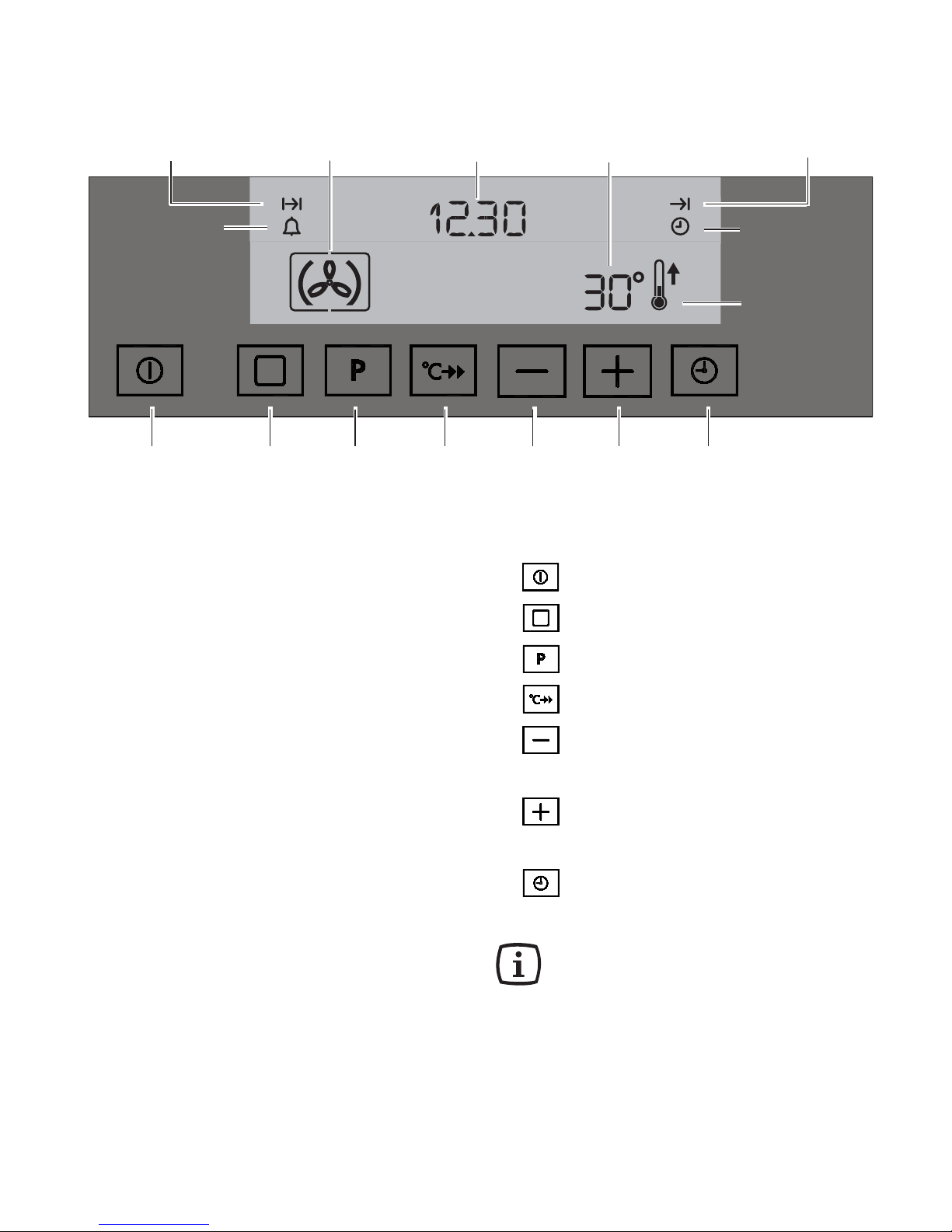

The Oven Electronic Controls
1. ON / OFF Touch control
2. Cooking Functions Touch Control
3. Recipe Selection Touch Control
4. Fast Heat Up Function Touch Control
5. Decreasing Touch Control (Time or
Temperature)
6. Increasing Touch Control (Time or
Temperature)
7. Time Function Touch Control
In the event of a power failure, the
programmer will keep all the settings
(time of day, programme setting or
programme in operation) for about 3
minutes. If power is not restored within
3 minutes, all the settings will be
cancelled. When the power is restored,
you will have to re-set the programmer.
General Features of The Oven
Electronic Control
The touch controls
All the oven functions are controlled by an
electronic device. You can select any
combination of cooking function, cooking
temperature and automatic timing using the
touch controls.
Make sure you touch just one control at a time.
If you press the control for a longer time, the
cooking function which follows the desired one
will be selected.
The display
The upper section of the display gives
information about the time (the current time of
day, the programmed cooking duration, the
programmed end of cooking time, etc.), and
shows the name of the selected cooking
function or recipe.
The lower section gives information about the
selected cooking function, the selected
temperature and the current temperature inside
the oven.
Minute Minder
Symbol

7
The Safety Thermostat
This oven is provided with a safety thermostat.
In case of malfunctioning of the main thermostat,
and consequential over-heating, the safety
device will stop the power supply to the
appliance. If this happens, call your local Service
Force Centre. Under no circumstances should
you attempt to repair the appliance yourself.
The cooling fan
The cooling fan operates during cooking. Air is
expelled through vents between the oven door
and the control panel.
The cooling fan may run on after the oven is
switched off to keep the controls cool. This is
quite normal.
The Oven Safety Devices
When the oven is first installed
Whentheovenisfirstconnectedtotheelectrical
supply, or when supply is restored after a long
power failure, the upper section of the display
shows this message:
WELCOME TO * KRONOS -3 * BASIC - 2 *
DANSK * DEUTSCH * ENGLISH * ESPANOL *
FRANCAIS * ÅËËÇÍÉÊÁ * ITALIANO *
NEDERLANDS * NORSK * PORTUGUES *
SVENSKA * ÐÓÑÑÊÈÉ
This message lists all the languages which can be
chosentooperatewiththeOvenElectronicControl
(Fig. 1).

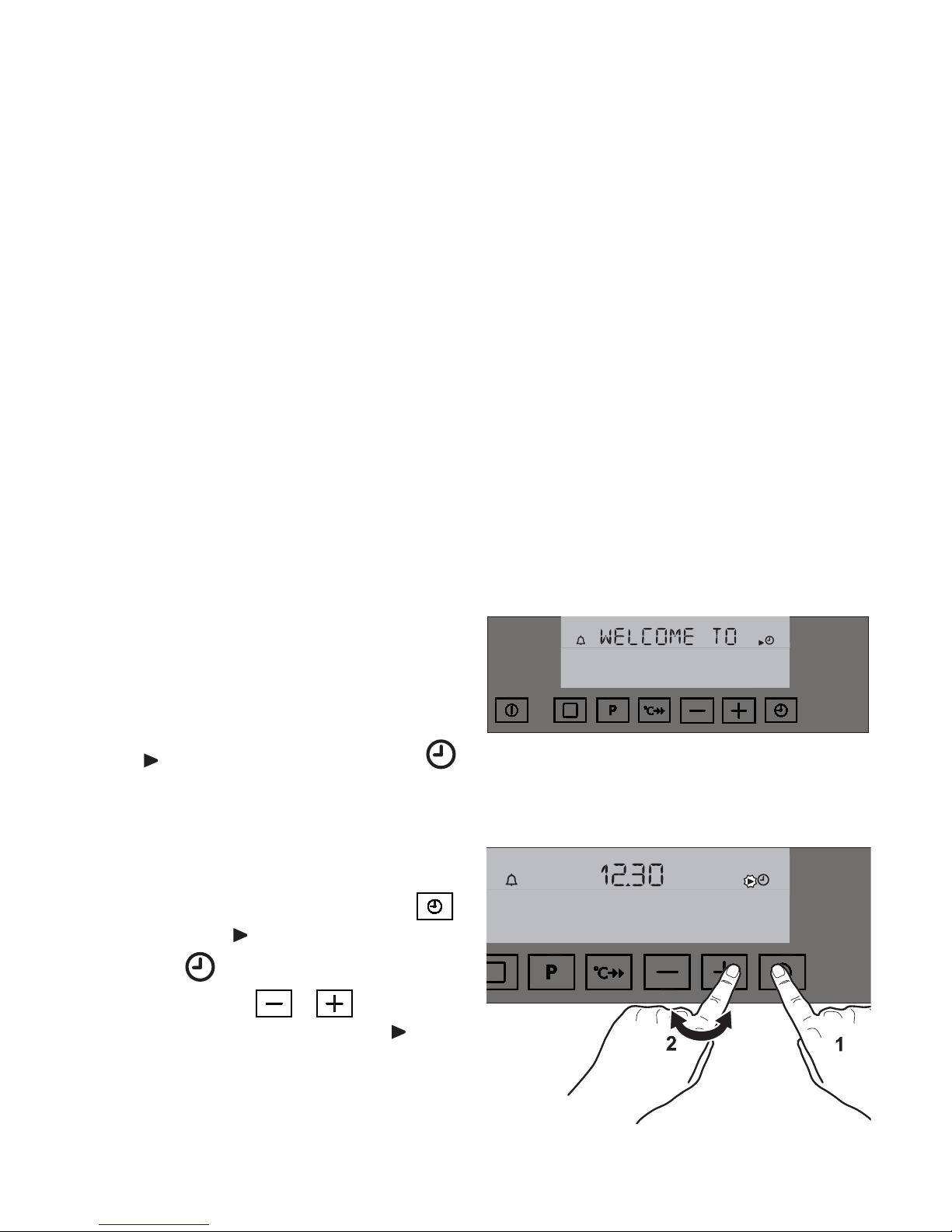

Symbol flashing near the "Clock Symbol"
means that you need to set the current time of
day before using the oven.
To set the correct time of day:
1. Touch the "Time Function Control" .
While symbol flashes near the "Clock
Symbol" , set the current time of day
touching controls or (Fig. 2). Once
you have set the time, the symbol keeps
flashing for 5 seconds and then goes out.
This means that the setting has been stored
in the Electronic Control memory.

Fig. 1
Fig. 2

8
To Select the Language
You can choose the language to be used in the
Oven Electronic Control display.
The oven must be OFF when carrying out this
operation.
1. Touch the "Cooking Function Control"
and the "Recipe Selection Control" at
the same time and keep them pressed for 2
seconds at least. The Electronic Control beeps
once and the display shows the current
language selection (Fig. 3).
2. Within 5 seconds, touch control to
select your language (Fig. 4).
3. Once you select your language, you have 5
seconds to confirm your selection by
touching the "Cooking Function Control"
and the "Recipe Selection Control"
at the same time and keeping them pressed
for 2 seconds at least.
Please note that any time you carry out a
stepofthisprocedure,youhave 5 seconds
tocarryoutthefollowingstep.Ifyou wait
more than 5 seconds the Electronic
Control switches off and the selection is
not stored in its memory.
Here follows the list of available languages:
Danish (DANSK), German (DEUTSCH), English
(ENGLISH), Spanish (ESPANOL), French
(FRANCAIS), Greek (ÅËËÇÍÉÊÁ), Italian
(ITALIANO), Dutch (NEDERLANDS), Norwegian
(NORSK), Portuguese (PORTUGUES), Swedish
(SVENSKA) and Russian (ÐÓÑÑÊÈÉ).
2. If symbol stops flashing before you have
had time to set the clock, touch the "Time
Function Control" twice. The symbol
starts flashing again.
Then, proceed as described at point 1.
Fig. 4
Fig. 3

9

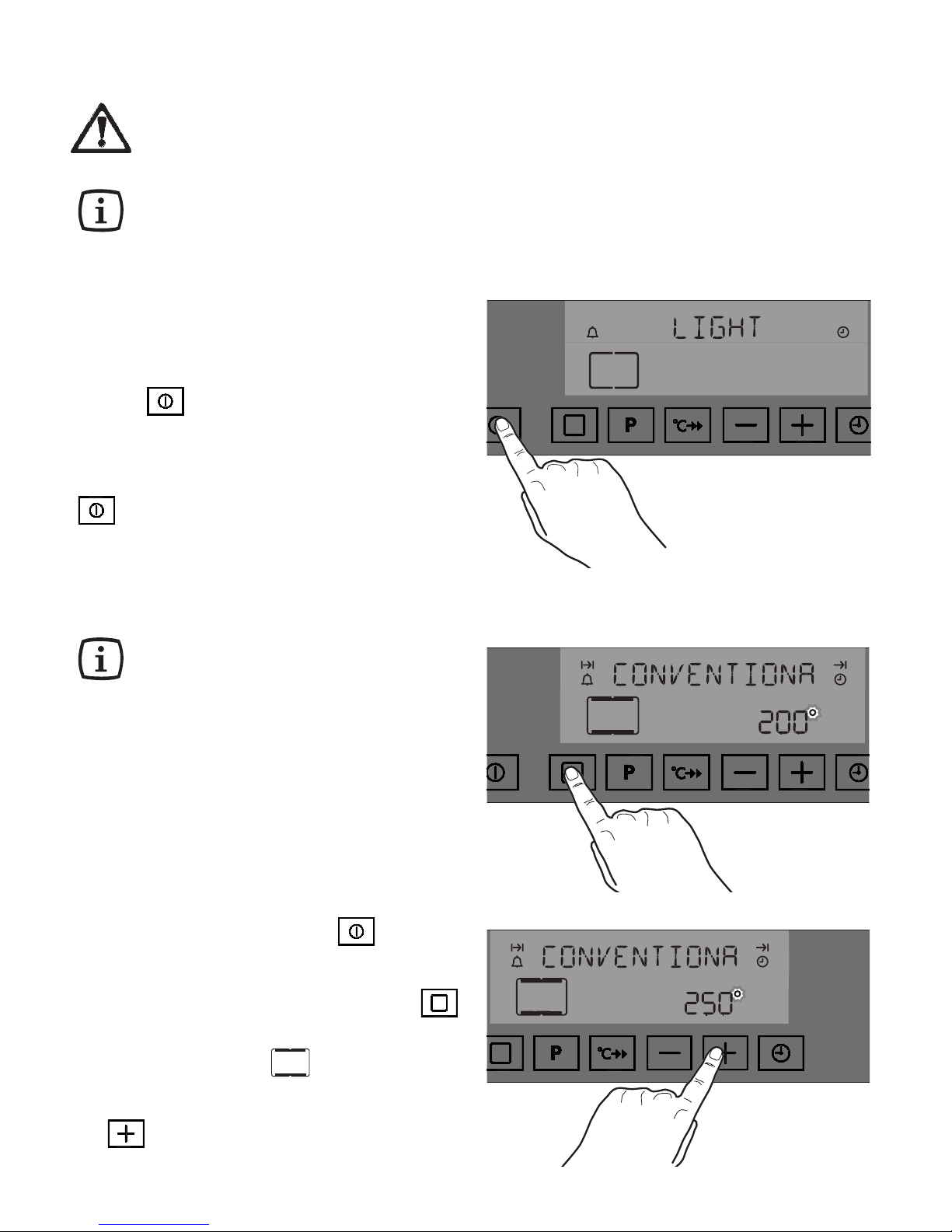

To switch the oven on
and off
The oven must be switched on before setting
any cooking function or programme. When
control is touched, the oven light will
switch on. The oven symbol and the message
"LIGHT" appear on the display (Fig. 5).
To switch off the oven, you can touch control
at any time. Any cooking function or
programme will stop, the oven light will switch
off and the time display will show the time of
day only.

Before first use, the oven should be
heated without food.
During this time, an unpleasant odour
may be emitted. This is absolutely
normal, and is caused by residues of
manufacturing.
Ensure the room is well ventilated.
1. Set the time of day with the electronic
programmer (see paragraph "To set the
correct time of day").
2. Touch the "ON/OFF" control to switch
on the oven.
3. Touch the "Cooking Functions" control
twice and select the "Conventional
Cooking" function (Fig. 6).
4. Set the temperature to 250°C using control
(Fig. 7).
Remove all packaging, both inside and
outside the oven, before using it.
The oven will work only if the time of
day has been set.
Before the first use of the oven
Fig. 5
Fig. 6
Fig. 7

10
5. Allow the oven to run empty for
approximately 45 minutes.
6. Open a window for ventilation.
This procedure should be repeated with the
"Fan Cooking" function and the "Double
Grill" function for approximately 5-10
minutes.
Once this operation is carried out, let
the oven cool down, then clean the
oven cavity with a soft cloth soaked in
warm water to which a little mild
washing-up liquid has been added.
Before cooking for the first time,
carefully wash the oven accessories.

To select a Cooking Function
1. Switch on the oven by touching the "ON/
OFF" control .
2. Touch the "Cooking Functions" control
to select the required oven function. Each
time control is touched, a different
cooking symbol appears in the lower section
of the display and the description of the
cooking function appears as a message in
the upper section. The pre-set temperature
for each function is shown in the lower
section, and symbol "" flashes on the right
hand (Fig. 8).
3. Symbol "" flashing means that it is
possible to adjust the pre-set temperature by
touching control or (Fig. 9).
Temperature level is adjusted in 5 degree
steps. Please note that symbol "" will flash
for 5 seconds.
4. When 5 seconds elapse, symbol "" will go
out showing that the temperature level has
been stored in the Electronic Control
memory. The thermometer symbol rises
slowly , indicating the degree to which
the oven is currently heated.
Fig. 8
Fig. 9

11
5. When the required temperature is reached,
an acoustic alarm will sound for a short time
and the thermometer symbol will light
permanently.

To set the temperature and time
Control and are used to adjust both
the temperature and the time settings. Details
about using them according to the different
functions of the Oven Electronic Control are
given in the following chapters.
As a general rule, please note that:
> Controls and are used to increase
or decrease the temperature settings while
symbol "" flashes on the right hand of the
temperature display. When you choose a
cooking function, symbol "" keeps flashing
for 5 seconds only. This is the useful interval
to touch controls or and select
your temperature setting. Once these 5
seconds elapse, symbol "" goes out and
the thermometer symbol comes on: this
means that the current selection has been
stored in the Oven Electronic Control
memory and that the oven is currently heating
up.
> Controls and are used to increase
or decrease the time settings while the
symbol is flashing near the "Clock"
symbol , the "Minute Minder" symbol ,
the "Cooking Duration" symbol or the
"End Of Cooking Time" symbol . When
you choose a time function, symbol keeps
flashing for 5 seconds only. This is the useful
interval to touch control or and
select your time setting. Once these 5
seconds elapse, symbol stops flashing: this
means that the current selection has been
stored in the Oven Electronic Control
memory.

12
The following list displays in sequence all the
available cooking functions.
Fan cooking – This setting allows you to
roast or roast and bake simultaneously
using any shelf, without flavour
transference. Pre-set temperature: 175°C
Conventional cooking – The heat comes
from both the top and bottom element,
ensuring even heating inside the oven.
Pre-set temperature: 200°C
Grill - It can be used for grilling small
quantities. Pre-set temperature: 250°C
Thermal Grilling – This function offers an
alternative method of cooking food items,
normally associated with conventional
grilling. The grill element and the oven fan
operatetogether,circulatinghotair around
the food. Pre-set temperature: 180°C
Select a maximum temperature of 200°C.
Pizza– The bottom elementprovidesdirect
heat to the base of pizzas, quiches or pies,
while the fan ensures air is circulated to
cook the pizza toppings or pie fillings.
Pre-set temperature: 175°C
Double Grill – The full grill element will be
on.Recommendedforlargequantities.Pre-
settemperature:250°C
Bottom– The heat comes from the bottom
oftheovenonly,toallow you to finish your
dishes. Pre-set temperature: 250°C
Top – The heat comes from the top of the
oven only, to allow you to finish your
dishes. Pre-set temperature: 250°C
Defrost – The oven fan operates without
heat and circulates the air, at room tem-
perature, inside the oven. This function is
particularly suitable for defrosting deli-
cate food which could be damaged by
heat, e.g. cream filled gateaux, iced cakes,
pastries, bread and other yeast products.
1
2
3
4
5
6
7
8
9
Cooking Functions

13
Programming the Oven

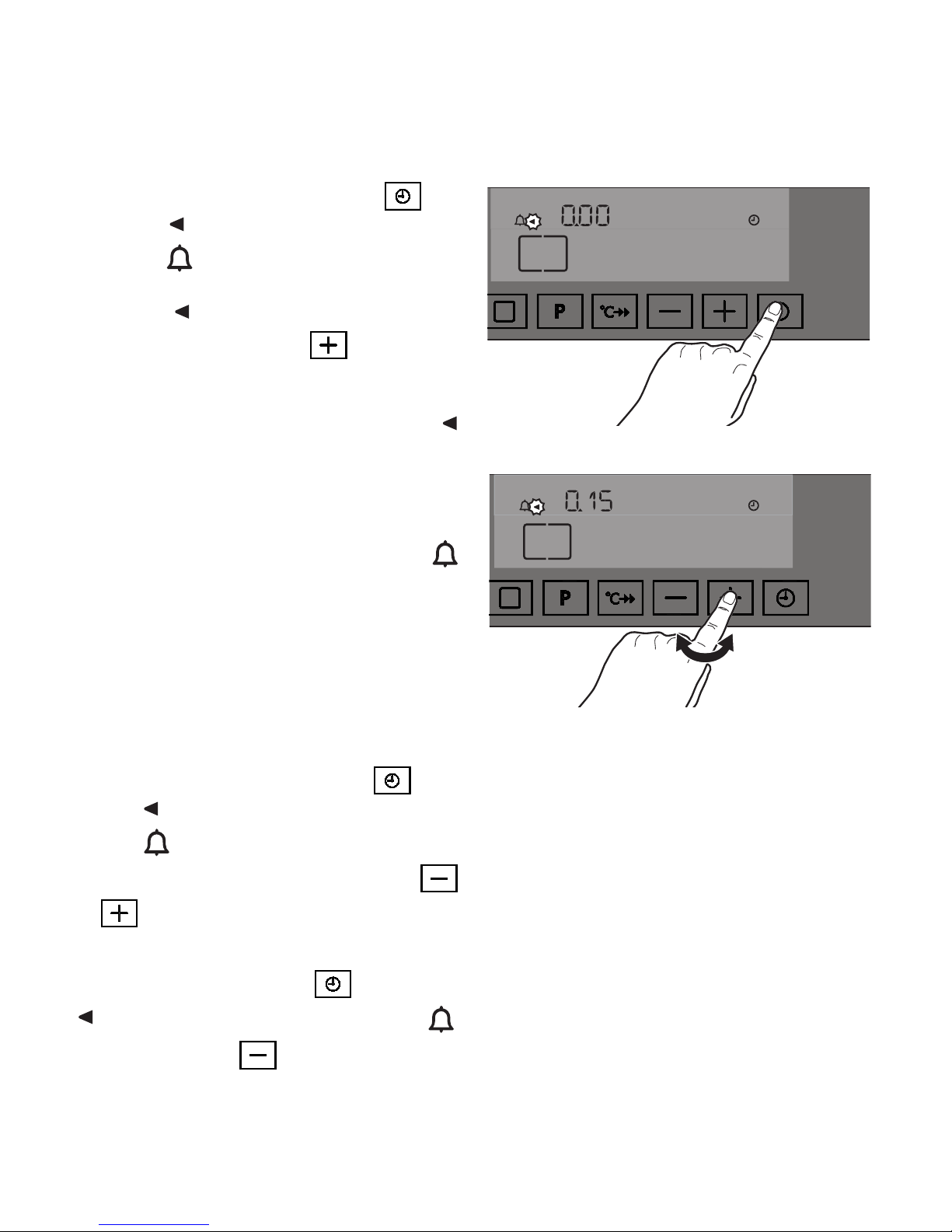

How to set the minute
minder
1. Touch the "Time Function" control . The
symbol flashes near the "Minute Minder"
symbol and the time display shows "0.00"
(Fig. 10).
2. Symbol will flash for 5 seconds. Within
this time, touch control to select the
required time (Fig. 11). Maximum time is 23
hours 59 minutes. After another 5 seconds
after you have set the time, the symbol
stops flashing. This means that the setting
has been stored in the Electronic Control
memory and that the countdown started.
3. When the programmed time has elapsed, you
hear an acoustic alarm while symbol
flashes and the time display shows "0.00".
4. To switch off the acoustic alarm, touch any
control.
The oven will NOT switch off if in use.
The Minute Minder function can also
be used when the oven is off.
To change the Minute Minder setting
Touch the "Time Function" control : the
symbol flashes near the "Minute Minder"
symbol . It is now possible to change the
Minute Minder setting by touching control
or (Fig.11).
To cancel the Minute Minder:
Touch time function control : the symbol
flashes near the "Minute Minder" symbol .
Then touch control until the time display
shows "0.00".
Fig. 10
Fig. 11

14

To programme the Oven to
switch off
1. Switch the oven on, place food in the oven,
select a cooking function and adjust the
cooking temperature, if required.
2. Touch the "Time Function" control . The
symbol flashes near the "Cooking
Duration" symbol . The time display
shows "0.00" at the left hand and the current
time of day at the right hand (Fig. 12).
3. Symbol will flash for 5 seconds. Within
this time, touch control to select the
required time. Maximum time is 23 hours 59
minutes. Note that the time indication on
the right hand will also change as you touch
control , showing at which time the
oven will automatically switch off (Fig. 13).
4. After another 5 seconds after you have set
the time, the symbol stops flashing. This
means that the setting has been stored in
the Electronic Control memory and that the
countdown started.
5. When cooking time is over, the oven
automatically switches off. You hear an
acoustic alarm while symbol flashes and
the time display shows "0.00".
6. To switch off the acoustic alarm, touch any
control.
To cancel the Cooking Duration Time:
Touch time function control : the symbol
flashes near the "Cooking Duration" symbol
. Then touch control until the time
display shows "0.00".
Please note that, if you cancel the "Cooking
Duration", the oven does not switch off.
Fig. 12
Fig. 13

15

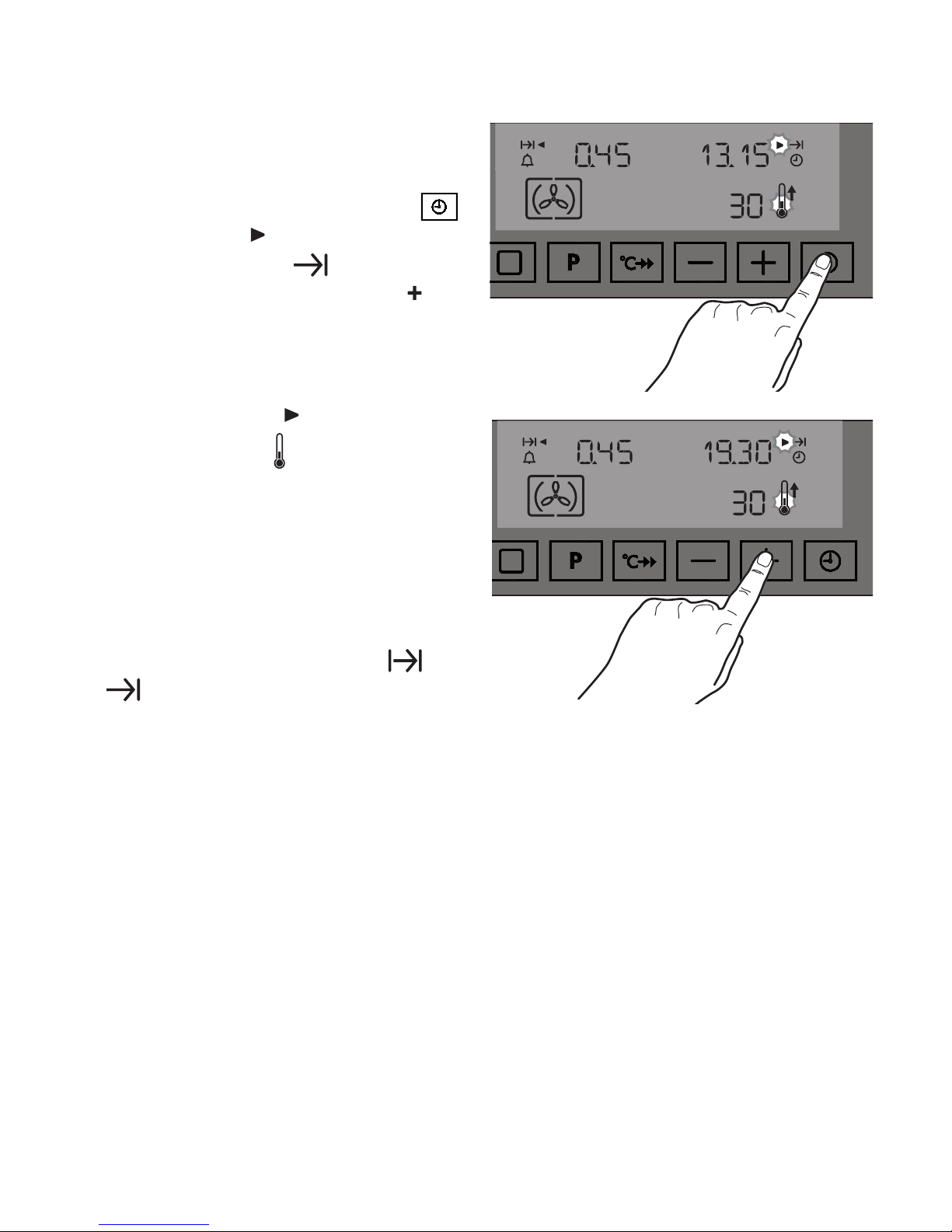

To programme the Oven to
switch on and off
1. Carry out the "Cooking Duration" setting
as described at points 1 to 4 in the previous
chapter.
2. Touch the "Time Function" control
twice: the symbol flashes near the "End of
Cooking Time" symbol (Fig. 14).
3. Within 5 seconds, touch control “ “ to
select the required end of cooking time,
which is shown at the right hand of the time
display (Fig. 15).
4. After another 5 seconds after you have set
the time, the symbol stops flashing, the
thermometer symbol comes off, the tem-
perature display shows "30" and the oven
switches off. This means that the setting has
been stored in the Electronic Control memory
and that the countdown started.
5. The oven will switch on and off
automatically according to your settings.
When cooking is completed, you hear an
acoustic alarm while both symbols and
flash. The time display shows "0.00" at
the left hand.
6. To switch off the acoustic alarm, touch any
control.
To cancel the programme, simply cancel the
Cooking Duration time as described at the
end of the previous chapter.

Fig. 14
Fig. 15

16
Safety and Energy Saving Functions
Safety Cut-Off Function
The oven will switch off automatically if any change
of setting is made, according to the table below (Fig.
16).
If temperature setting is: the oven will switch off:
250°C after 1 1/2hours
from 200 up to 245°C after 5 1/2hours
from 120 up to 195°C after 8 1/2hours
less than 120°C after 12 hours
Child Safety Function
To avoid children switching on the oven, it is
possible to lock the oven controls.
1. If the oven is on, switch if off by touching
the "ON/OFF" control .
2. Press control s and at the same
time and keep them pressed for about 3
seconds. The Electronic Control beeps once
and the message ‘SAFE’ appears in the display
(Fig. 17).
3. The oven is now locked. Neither oven
functions nor temperatures can be selected.
To unlock the oven:
Press control s and at the same time and
keep them pressed for about 3 seconds. The
Electronic Control beeps once and the message
‘SAFE’ goes off. The oven can now be operated.

Fig. 17
Fig. 16

17
"Fast Heat Up" function
(Booster)
After a cooking function has been selected and
the temperature has been adjusted, the cavity will
gradually heat up until the selected temperature
is reached. This will take from 10 to 15 minutes,
depending on selected function and temperature.
If it is necessary to reach the required temperature
in a shorter time, the fast heat up function can be
used.
1. Switch the oven on by touching the "ON/
OFF" control .
2. Set the required cooking function and
temperatureasdescribedin the previouspages.
3. Set the temperature by touching control
or .
4. Touch the "Fast Heat Up Function" control
. The temperature display shows "FHU"
(Fig. 18).
5. If you touch the "Cooking Function" control
, the temperature display reverts to the
selected temperature and symbol "" flashes
for 5 seconds (Fig. 19). During this intervel,
you can adjust the temperature setting by
touching control or .
6. When the required temperature is reached,
the Electronic Control beeps for a short time,
and the temperature display reverts to the
selected temperature.
This function can be used with any cooking
function or temperature.

Fig. 18
Fig. 19

18
Residual Heat Function
When a Cooking Duration time is set, the heating
elements of the oven will automatically go off a
few minutes before the end of the programmed
time, and the oven will use the residual heat to
finish your dishes without energy consumption.
All current settings will be displayed until the
Cooking Duration time is over.
This function will not operate when the Cooking
Duration time is less than 15 minutes.
"Demo" mode
This mode is intended to be used in the shops
to demonstrate the oven functionality with-
out any power consumption except the oven
lamp. To activate this function the appliance
should be off.
1. Press control and at the same
time for approximately 2 seconds (Fig.
20). The Electronic Control beeps once.
2. When you touch control to switch on
the oven, the message "DEMO" appears on
the upper section of the display (Fig. 21).
You can then select any cooking function,
but the oven will not heat up. The
thermometer symbol will come on , but
it will not flash nor rise.
To disable the demo mode:
Press control to switch off the oven, then
press control and at the same time for
approximately 2 seconds. The Electronic
Control beeps once and the oven is ready to
operate.

Fig. 20
Fig. 21

19
Error code
The Oven Electronic Control does a continuous
diagnostic check of the system. If some
parameters are not correct, the control unit
will stop the activated functions and the
corresponding error code will be displayed.
"Beep" Mode
You can choose to make The Electronic Control
beep each time that a control is touched.
To enable this function, the oven must be off.
1. Press controls and at the same time
for about 3 seconds. The Electronic Control
beeps once (Fig. 22).
To disable the "Beep" Function:
1. If the oven is on, touch control to switch
it off.
2. Press controls and at the same time
for about 3 seconds. The Electronic Control
beeps once

Fig. 22
Some recipes have been stored into the Oven
ElectronicControlmemorytoallowyoutocookten
different dishes using pre-set cooking functions,
temperatures and cooking times.
Theavailablerecipes are listedatthebottom ofthe
following page.
To choose a recipe:
1. Touch the ON/OFF control to switch on
the oven;
2. Touch the "Recipe Selection Function" control
: the upper section of the display will show
the name of the recipe, and symbol will
come on near the "Cooking Duration" symbol
. This means that a cooking duration is
already set in the memory. The lower section
will show the symbol of the pre-set cooking
function and the pre-set cooking temperature.
Symbol "" will flash at the right hand of the
temperature display. (Fig. 23).
The "Recipe Selection" Function
Fig. 23

20
3. Symbol "" flashing means that it is possible
to adjust the pre-set temperature by touching
control or . Temperature level is
adjusted in 5 degree steps. Please note that
symbol "" will flash for 5 seconds.
4. When 5 seconds elapse, symbol "" will go
out showing that the temperature level has
been stored in the Electronic Control memory.
The thermometer symbol rises slowly  ,
indicating the degree to which the oven is
currently heated. The upper section of the
display will now show the cooking duration at
the left hand and the end of cooking time at
the right hand (Fig. 24).
5. If you want, you can adjust both the cooking
duration and the end of cooking time. Follow
the instructions given in the previous pages.
6. When cooking time is over, the oven
automatically switches off. You hear an
acoustic alarm while symbol flashes and
the time display shows "0.00".
7. To switch off the acoustic alarm, touch any
control.
You can interrupt the execution of the
recipeatanytimebytouchingcontrol .
Youcannot usethe"FastHeatUp"function
onceyouselected arecipewiththe "Recipe
Selection" function.

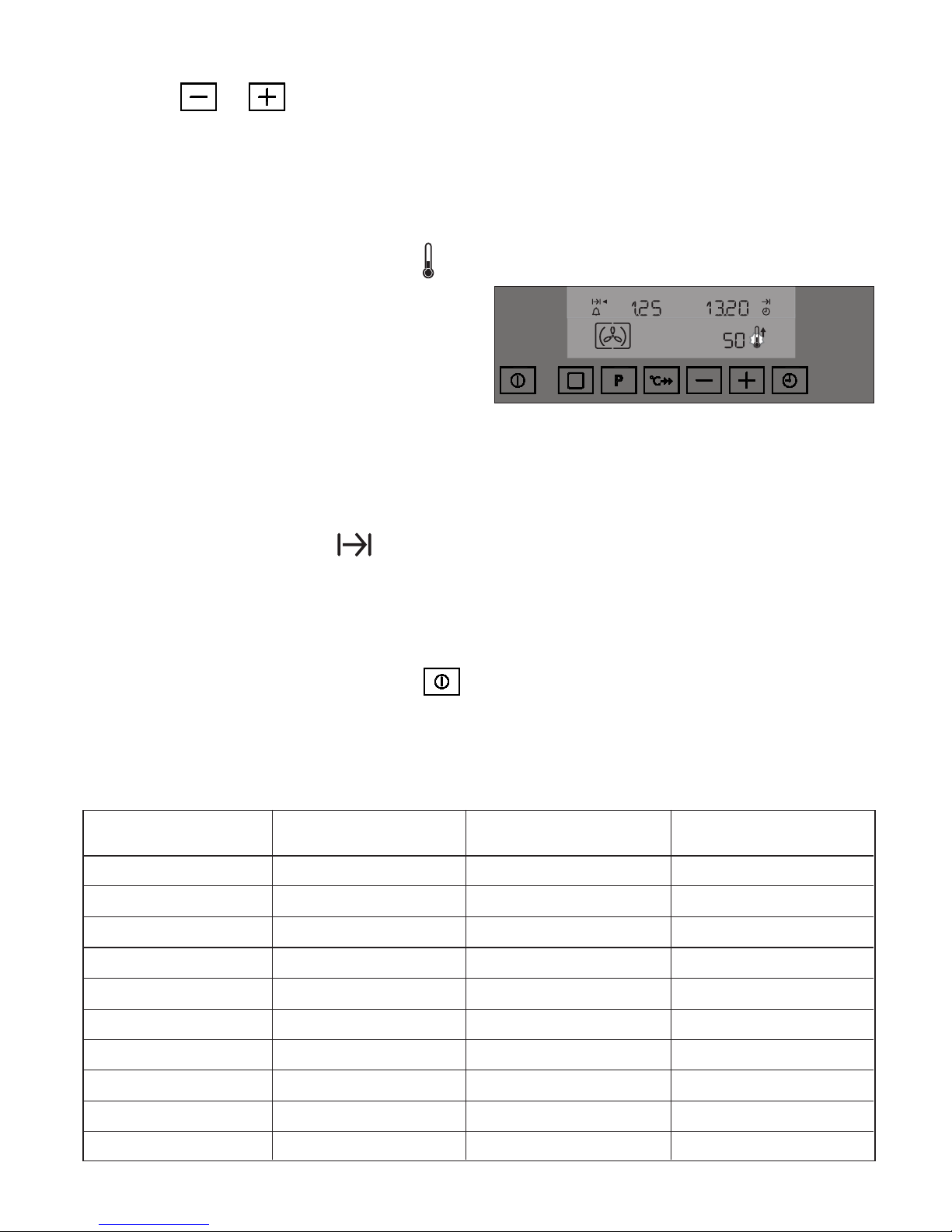

Fig. 24
Dish Cooking Function Pre-set temperature Pre-set cooking time
Pork (2 kg) Fan Oven 175°C 1 hour 25 minutes
Roastbeef (1 kg) Fan Oven 200°C 50 minutes
Lamb Fan Oven 175°C 1 hour 45 minutes
Duck Fan Oven 160°C 2 hours
Turkey Fan Oven 160°C 3 hours 5 minutes
Quiches Conventional Oven 190°C 50 minutes
Potato Gratin Conventional Oven 180°C 55 minutes
Pizza Pizza Oven 190°C 25 minutes
Apple Pie Fan Oven 175°C 40 minutes
Sponge Cake Fan Oven 160°C 40 minutes
