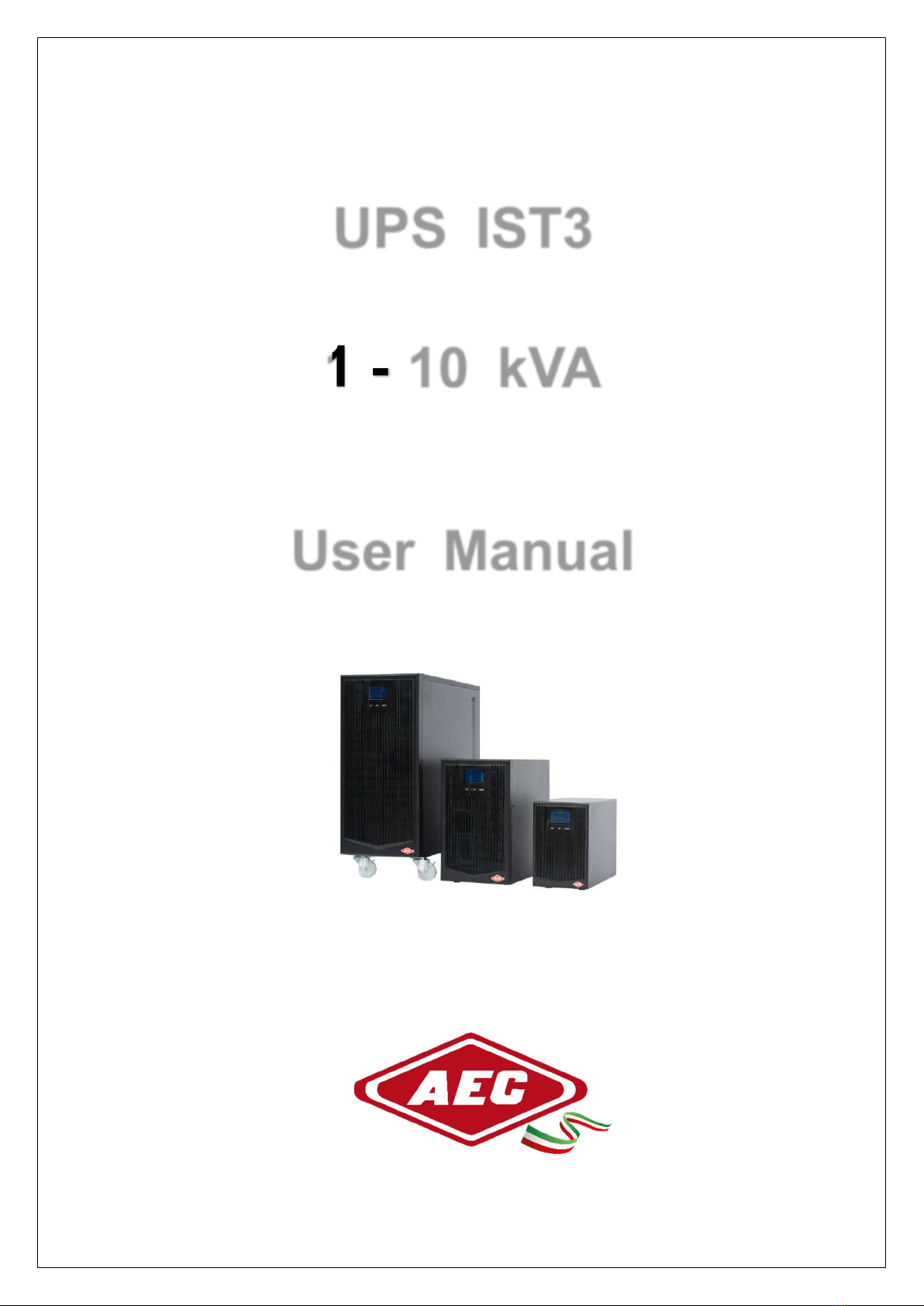

AEG UPS IST3 1-10kVA User manual

i
UPS IST3
1 - 10 kVA
User Manual

iii

Foreword
(1-10kVA) UPS IST3
User Manual
iv
Foreword
Summaries
Thank you for choosing AEC UPS IST3!
This document gives a description of the (1-10kVA) UPS IST3.
Please save the manual after reading, in order to consult in the future.
The figures in this manual are just for reference, for details please see the actual product.
Symbol Conventions
The manual quotes the safety symbols, these symbols used to prompt users to comply with
safety matters during installation, operation and maintenance. Safety symbol meaning as
follows.
Symbol Description
Alerts you to a high risk hazard that could, if not avoided, result
in serious injury or death.
Alerts you to a medium or low risk hazard that could, if not
avoided, result in moderate or minor injury.
Alerts you to a potentially hazardous situation that could, if not
avoided, result in equipment damage, data loss, performance
deterioration, or unanticipated results.
Anti-static prompting.
Be care electric shock prompting.
Provides a tip that may help you solve a problem or save time.
Provides additional information to emphasize or supplement
important points in the main text.

(1-10kVA) UPS IST3
User Manual Contents
v
Contents
1 Safety Description......................................................................................................................... 7
1.1 Safety Announcements ..................................................................................................................................... 7
1.1.1 Use Announcements ................................................................................................................................ 7
1.1.2 Battery Announcements .......................................................................................................................... 8
1.1.3 ESD Protection ........................................................................................................................................ 9
1.2 Working Environment Requirements ............................................................................................................... 9
2 Overview ....................................................................................................................................... 11
2.1 Product Intro................................................................................................................................................... 11
2.1.1 Features ................................................................................................................................................. 11
2.2 Appearance ..................................................................................................................................................... 12
2.2.1 Operation Panel ..................................................................................................................................... 13
2.2.2 Rear Panel View .................................................................................................................................... 16
2.2.3 Intelligent Slot ....................................................................................................................................... 18
2.2.4 EPO Connector ..................................................................................................................................... 19
2.2.5 RS232 Communication ......................................................................................................................... 19
2.3 Working Principles ......................................................................................................................................... 20
2.3.1 Working Mode ...................................................................................................................................... 20
2.3.2 UPS Parameters Setting ........................................................................................................................ 23
3 Installation.................................................................................................................................... 25
3.1 Unpacking and Checking ............................................................................................................................... 25
3.1.1 1kVA/ 2kVA/ 3kVA UPS and 6kVA/ 10kVA UPS Long Backup Model .............................................. 25
3.1.2 6 kVA/ 10kVA UPS Standard Model .................................................................................................... 25
3.2 Installation Preparation .................................................................................................................................. 27
3.2.1 Input Breaker Selection ......................................................................................................................... 27
3.2.2 Selection of the Cross-sectional Area of Wire....................................................................................... 28
3.3 Electrical Connection ..................................................................................................................................... 28
3.3.1 1kVA UPS ............................................................................................................................................. 29
3.3.2 2kVA/ 3kVA UPS .................................................................................................................................. 30

Contents
(1-10kVA) UPS IST3
User Manual
vi
3.3.3 6kVA/ 10kVA UPS ................................................................................................................................ 31
3.3.4 Intelligent Slot Installation .................................................................................................................... 33
4 Operation and Maintenance ..................................................................................................... 35
4.1 Check Before Startup ..................................................................................................................................... 35
4.2 Startup Operation ........................................................................................................................................... 35
4.3 Shutdown Operation ....................................................................................................................................... 35
4.4 Parallel System Operation .............................................................................................................................. 36
4.4.1 Start Parallel System ............................................................................................................................. 36
4.4.2 Close Parallel System............................................................................................................................ 36
4.4.3 Remove Faulty UPS from Parallel System ........................................................................................... 37
4.4.4 Add New UPS into Parallel System ...................................................................................................... 37
4.4.5 Redundancy Funciton of Parallel System ............................................................................................. 37
4.5 Periodic Preventative Maintenance ................................................................................................................ 37
4.6 Battery Maintenance ...................................................................................................................................... 38
4.7 Maintenance Byass Mode (Only for UPS with Maintenance Bypass) ........................................................... 38
4.8 Troubleshooting .............................................................................................................................................. 38
5 Package, Transportation, Storage ............................................................................................. 42
5.1 Package .......................................................................................................................................................... 42
5.2 Transportation ................................................................................................................................................ 42
5.3 Storage ........................................................................................................................................................... 42

(1-10kVA) UPS IST3
User Manual
7
1. Safety Description
This chapter mainly describes the safety announcements. Prior to performing any work on
the device, please read the user manual carefully, follow the operation and installation
instructions and observe all danger, warning and safety information, which is to avoid human
injury and device damage by irregular operations.
Safety Announcements
This section mainly describes the safety announcements when operation and maintenance.
For details, please refer to safety description in the relevant chapters.
Before using UPS, please read the announcements and operation instructions in this section
carefully to avoid accident.
Any device damage caused by violating the general safety operation requirements or safety
standards of design, production, and usage will be out of warranty range.
Use Announcements
There exists high temperature and high voltage inside UPS. When using UPS, please strictly
comply with all warnings and operation instruments on the UPS and in the user manual.

(1-10kVA) UPS IST3
User Manual
8
Only authorized professionals are allowed to open the UPS chassis to avoid electric shock.
Otherwise, if it causes UPS failure, it is out of the guarantee range.
UPS is a class A product. When it is applied to residential building, additional measures should
be taken to prevent harassment.
 Ensure that no liquid or other foreign objects can enter into UPS.
 UPS must be grounded well.
 If UPS has to be moved, rewired or maintained, it must disconnect all electrical
connection, such as AC power, battery power, etc. to isolate power. It can't perform any
work on the UPS until UPS is powered off completely(≥10min). Otherwise, the output
may have electricity, which may cause electric shock.
 When dismantling fan, do not put fingers or tools into the rotating fan until it has stopped
working to avoid device damage or human injury.
 Don’t connect unbalance load, half-wave rectification load or inductive load in the output
of UPS, such as air-condition, blower, starter, electric drill, motor, daylight lamp, etc.
 In case of fire, use dry powder extinguisher to put out the fire. If you use liquid fire
extinguisher, it may cause electric shock.
Battery Announcements
Please use specified model battery！Non-specified model battery will lead to UPS damage.
 Only authorized professional can replace battery. When operation, take off conductive
objects, such as watch, bracelet, bangle, ring, etc., wear rubber shoes and gloves and
use tools with insulated handle.

(1-10kVA) UPS IST3
User Manual
9
 Don't put tools or other conductive objects on the battery.
 It's prohibited to connect the anode of battery with the cathode of battery or connect
them reversely, which is to avoid fire or electric shock.
 Before connecting or disconnecting the battery terminals, disconnect charger first.
 The battery must be with the same type, model, and manufacturer.
 Battery should be kept away from fire source or all electrical equipments that may easily
cause spark avoid human injury.
 Don't open or destroy battery. The electrolyte in the battery includes some dangerous
objects, such as strong acid, which will be harmful to skin and eyes. If it is careless to
touch the electrolyte, clean it by a lot of water immediately and then check it in the
hospital.
 The waste battery should be disposed according to the local regulations.
ESD Protection
To prevent human electrostatic damaging sensitive components(such as circuit board), make
sure that to wear a anti-static wrist strap before touching sensitive components, and the other
end of wrist strap is well grounded.
Working Environment Requirements
 Don't install UPS where it would be exposed to direct sunlight, in rain or in moist
environments.
 Don't install UPS where it is with conductive metal dust or nearby heater.
 Generally, the working temperature is -5℃～+40℃ and the relative humidity is 0%RH～
95%RH that is with no condensation(The recommended working temperature is
20℃~25℃ and the recommended relative humidity is about 50%).
 Put UPS in the flat floor without vibration and the vertical gradient is less than 5°. Keep
good ventilation around UPS. The clearance between the rear or the side of UPS and
adjacent devices or wall should be at least 300mm～500mm. Poor ventilation will rise

(1-10kVA) UPS IST3
User Manual
10
temperature inside UPS, which will reduce the working life of inner components and
then affect the working life of UPS.
 The recommended altitude is lower than 1000m. If exceeding 1000m, it needs to
decrease the rated power according to GB3859.2-93.

(1-10kVA) UPS IST3
User Manual
11
2. Overview
This chapter mainly describes the features, structure and working principle, etc.
2.1 Product Intro
(1-10kVA)UPS are with all high frequency, pure online, double-conversion, intelligent features. They are
the perfect power security for file server, enterprise server, center server, micro-computer, concentrator,
telecom system, data center and others that require high quality power protection. They are widely applied
to the many key business areas, such as post, finance, network, stock, railway, etc.
Features
Intelligent RS232 communication
Through the RS232 standard data port and UPS power management software, it can realize
the three remote function between the computer and UPS, monitor the running and electrical
data of UPS on the computer, perform ON/OFF operation remotely and support SNMP
network adaptor, which makes UPS be a network new member.
High input power factor
Adopt the advanced active PFC technology, which eases load in the power grid. It is the new
generation green power.
High cost performance
Adopt many kinds of power conversations and high frequency PWM technologies, which is
with high efficiency, small volume, light weight, improves the running reliability and reduces
cost.
Perfect protection
Equipped with the functions, such as output over-voltage protection, battery under-voltage
protection, input over-voltage protection, triple over-current protection, etc. and solve the
problems of the high frequency UPS, such as poor adaptability in the power grid and weak
anti-impact ability.

(1-10kVA) UPS IST3
User Manual
12
Low mains input voltage
Adopt the independent rapid detection technology. When the mains input voltage is 120V,
which is the lower limit, the battery still doesn't discharge. Therefore, in the mains mode, all
output power gets from the power grid, which is to ensure the battery is still in the 100%
energy storage status, reduce the battery discharge times and prolong the working life.
2.2 Appearance

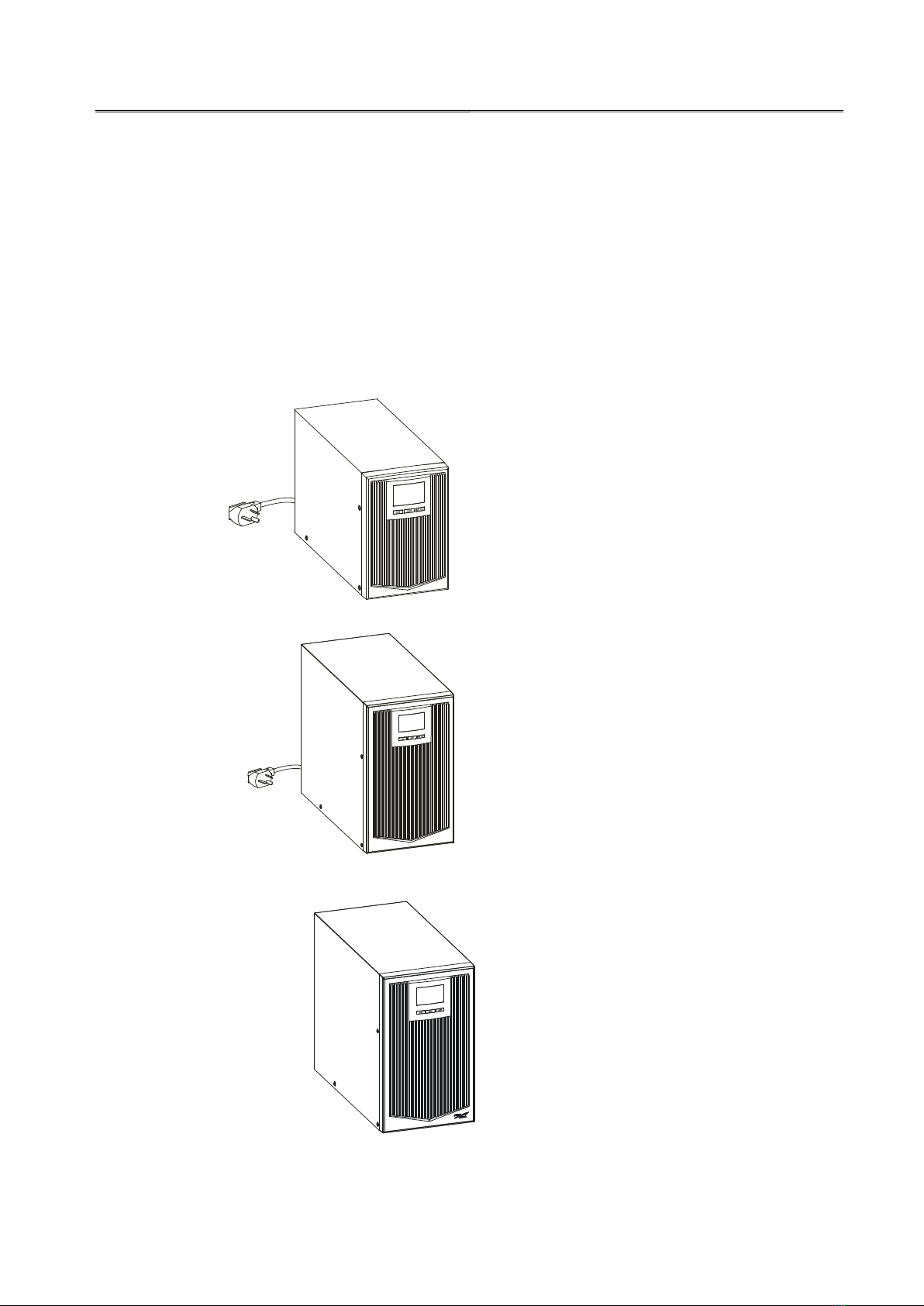

Appearance of 1kVA UPS
Appearance of 2kVA/ 3kVA UPS
Appearance of 6kVA/ 10kVA UPS long backup model

(1-10kVA) UPS IST3
User Manual
13
Appearance of 6kVA/ 10kVA UPS standard model

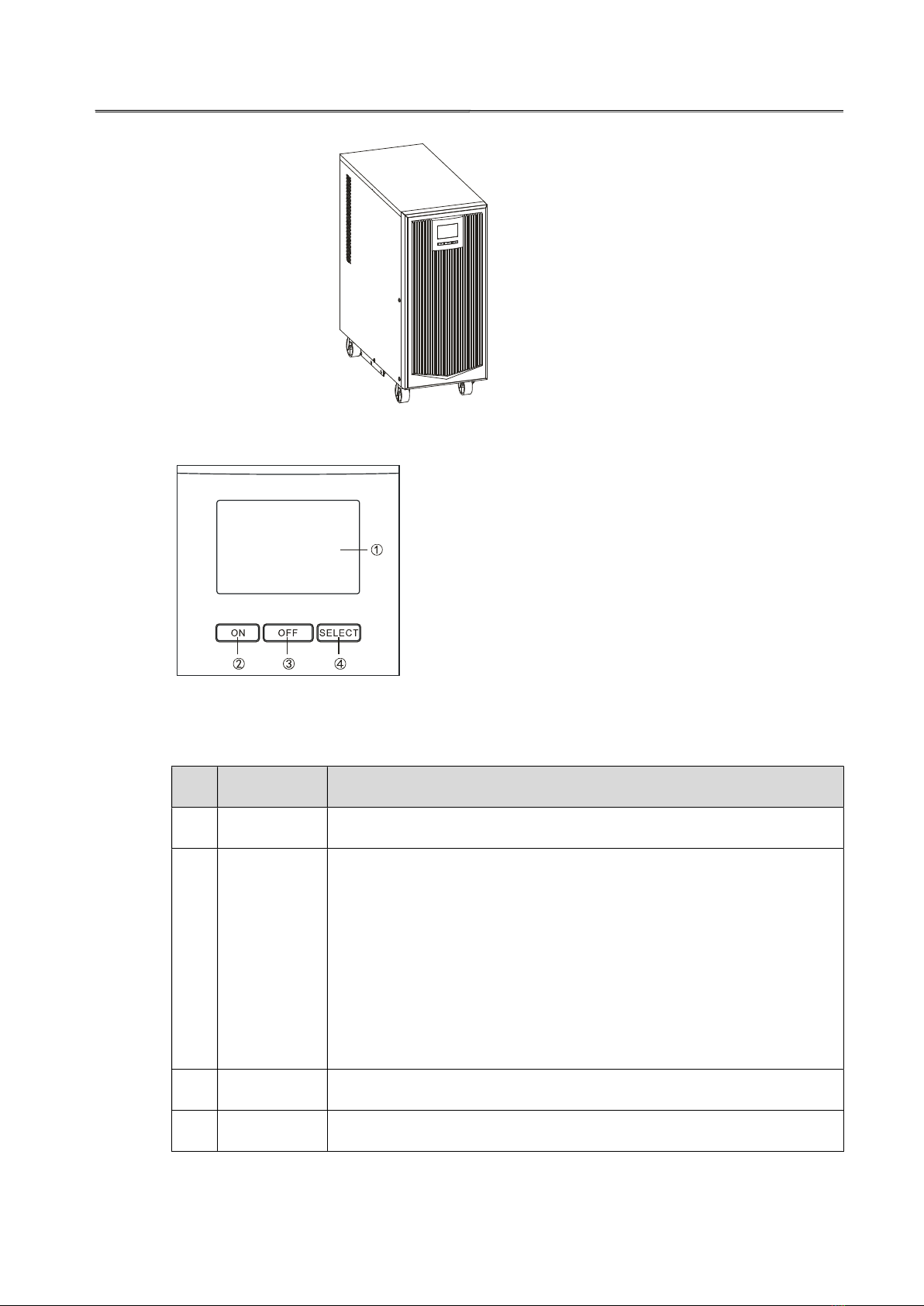

2.2.1 Operation Panel
Operation panel

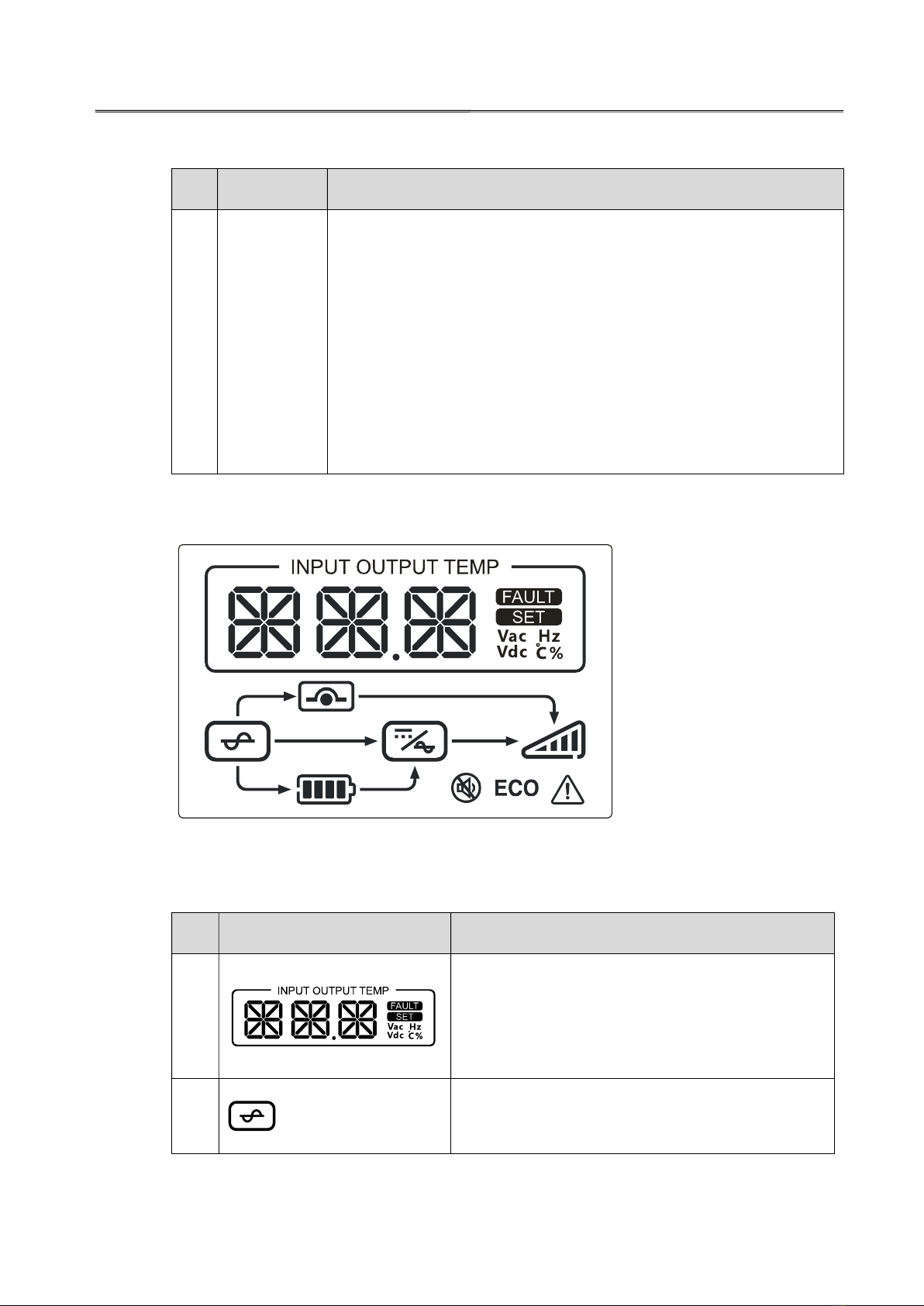

The illustration of operation panel
No. Name Illustration
○,1 LCD Display the working status and setting of UPS.
○,2 "ON" button
 When UPS is off, press and hold "ON" button for 1s to turn on UPS.
 When UPS is on and works in the mains mode, press and hold
"ON" button for 3s to do the battery test. When UPS works in the
battery mode, press and hold "ON" button for 3s to silence the
buzzer (cancel the mains abnormal alarm).
 In the set page, press and hold "ON" button for 1s to confirm the
setting.
○,3 "OFF" button
When UPS is on, press and hold "OFF" button for 1s to turn off UPS.

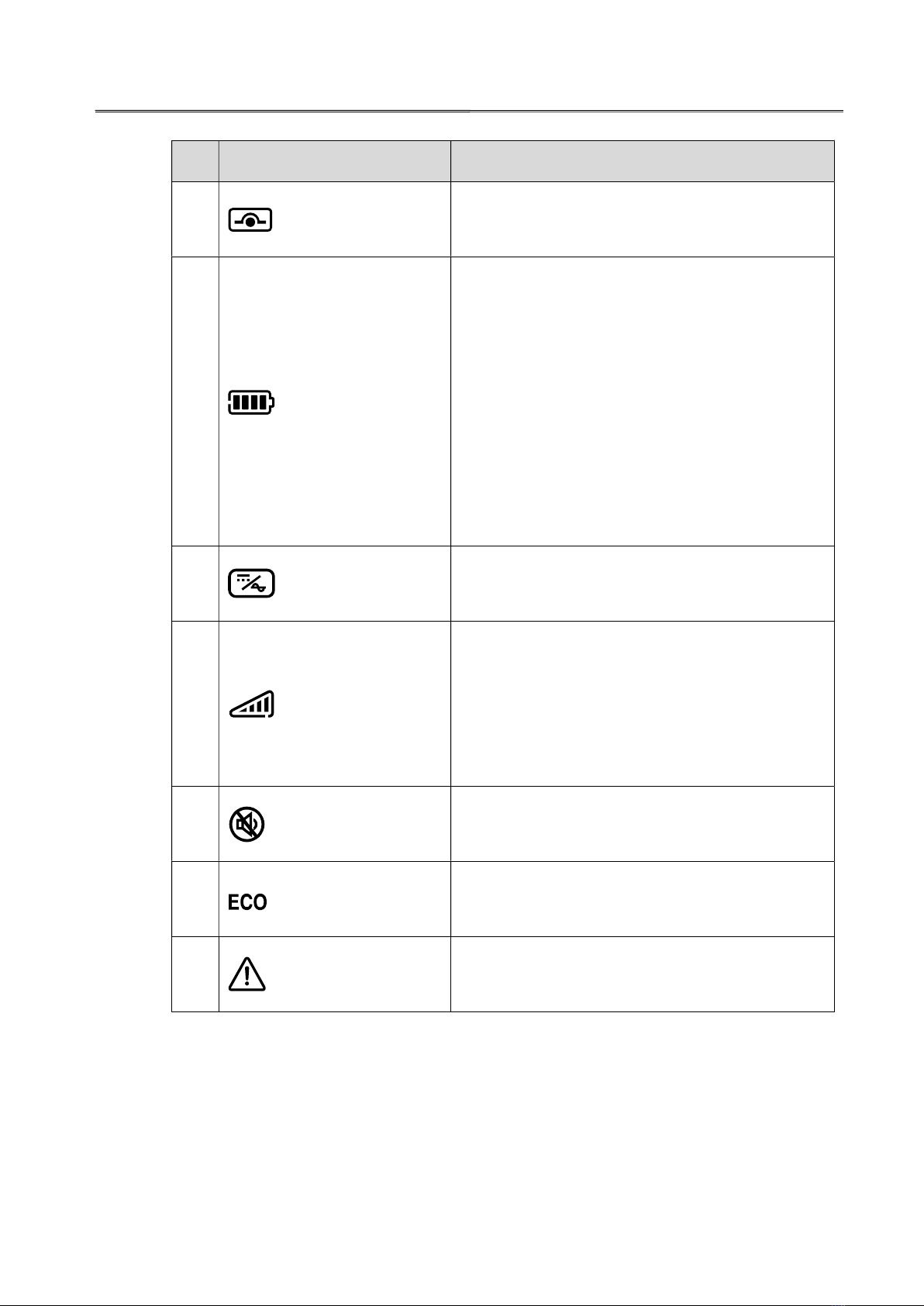

○,4 "SELECT"  Press "SELECT" button to transfer the display information, such

(1-10kVA) UPS IST3
User Manual
14
No. Name Illustration
button as output voltage, output frequency, input voltage, input frequency,
battery voltage, inner temperature, load percentage, fault
information, etc.
 Press and hold "SELECT" button for 5s to enter the set page. Then
press "SELECT" button to transfer the setting information, such as
PAR/SGL mode (only available for parallel system), ECO/INV
mode or the inverting output voltage that is
208V/220V/230V/240V, and press "ON" button to confirm the
setting.
LCD panel
LCD panel
The illustration of LCD panel
No. Icon Illustration
1
It shows input voltage, input frequency, output
voltage, output frequency, load percent,
temperature, fault code, parameters or working
mode, etc.
2
Mains icon
ON: Mains input is normal.

(1-10kVA) UPS IST3
User Manual
15
No. Icon Illustration
3
Bypass icon
ON: UPS works in the bypass mode.
4
Battery icon: four energy bars
1. When the energy bars light on from left to right
again and again, it indicates battery is in charge.
2. When all energy bars are on, it indicates battery
is fully charged.
3. When all energy bars flicker, it indicates battery
is over-voltage.
4. When all energy bars are off and the frame
flickers, it indicates battery is about to run out.
5
Inverting icon
ON: Inverter is working.
6
Load icon: four energy bars
1. The energy bars from left to right indicates the
load level.
2. When all energy bars flicker, it indicates load is
too large.
7
Silence icon
ON: Buzzer is in the silence status.
8
ECO mode icon
ON: UPS works in the ECO mode.
9
Alarm icon
ON: UPS failure.

(1-10kVA) UPS IST3
User Manual
16
2.2.2 Rear Panel View

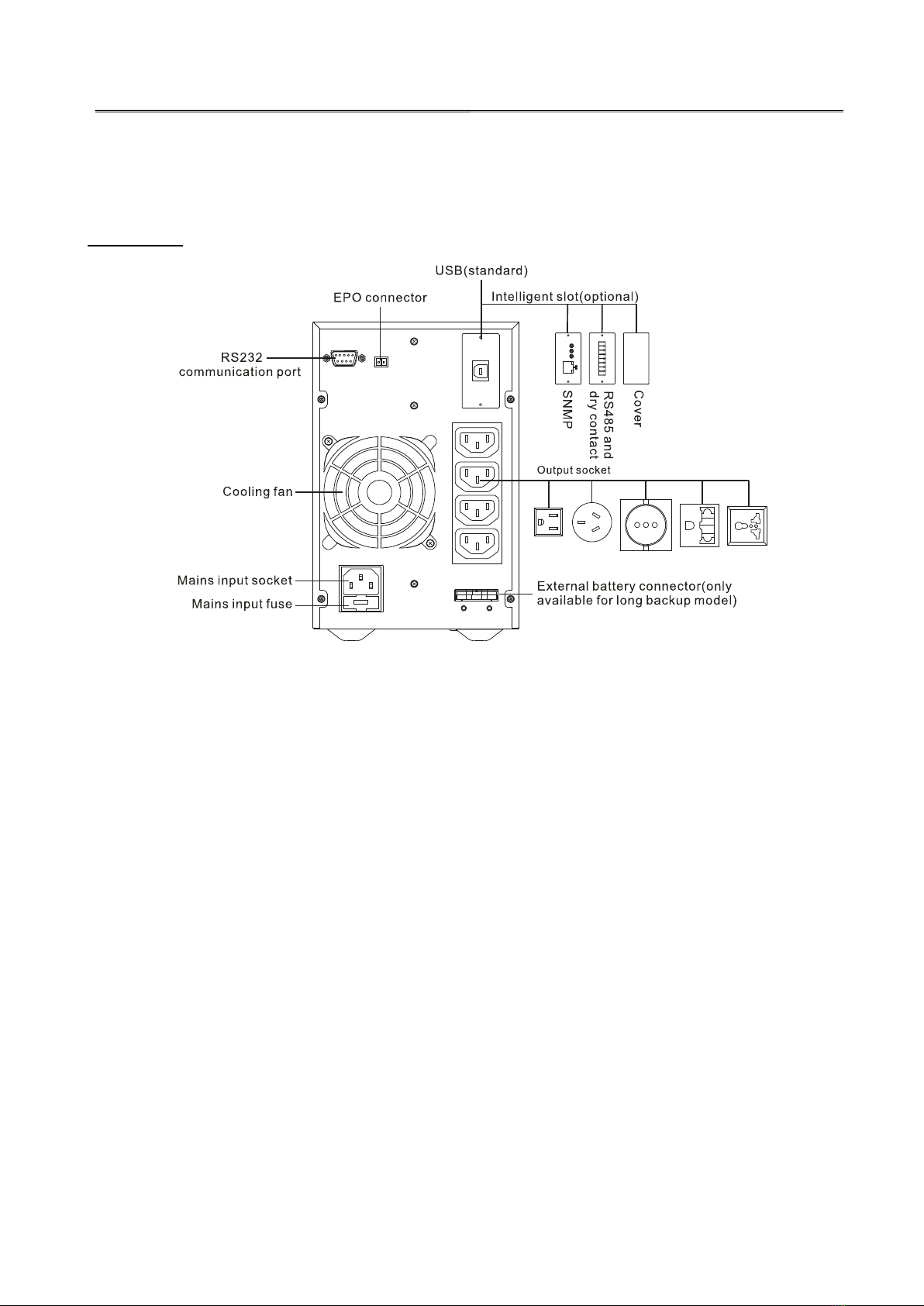

1kVA UPS
Rear panel of 1kVA UPS

(1-10kVA) UPS IST3
User Manual
17

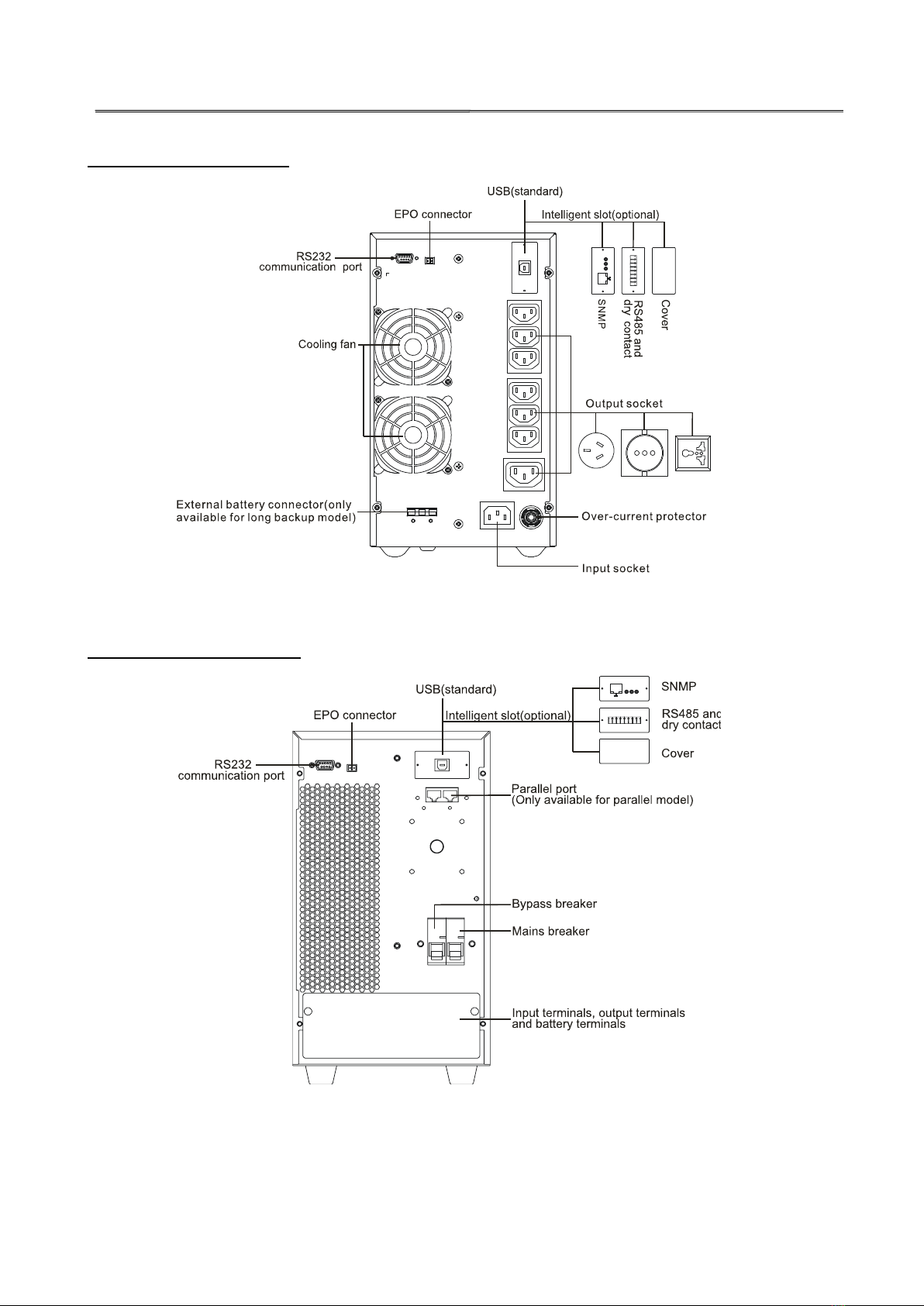

2kVA UPS/ 3kVA UPS
Rear panel of 2kVA/ 3kVA UPS 1

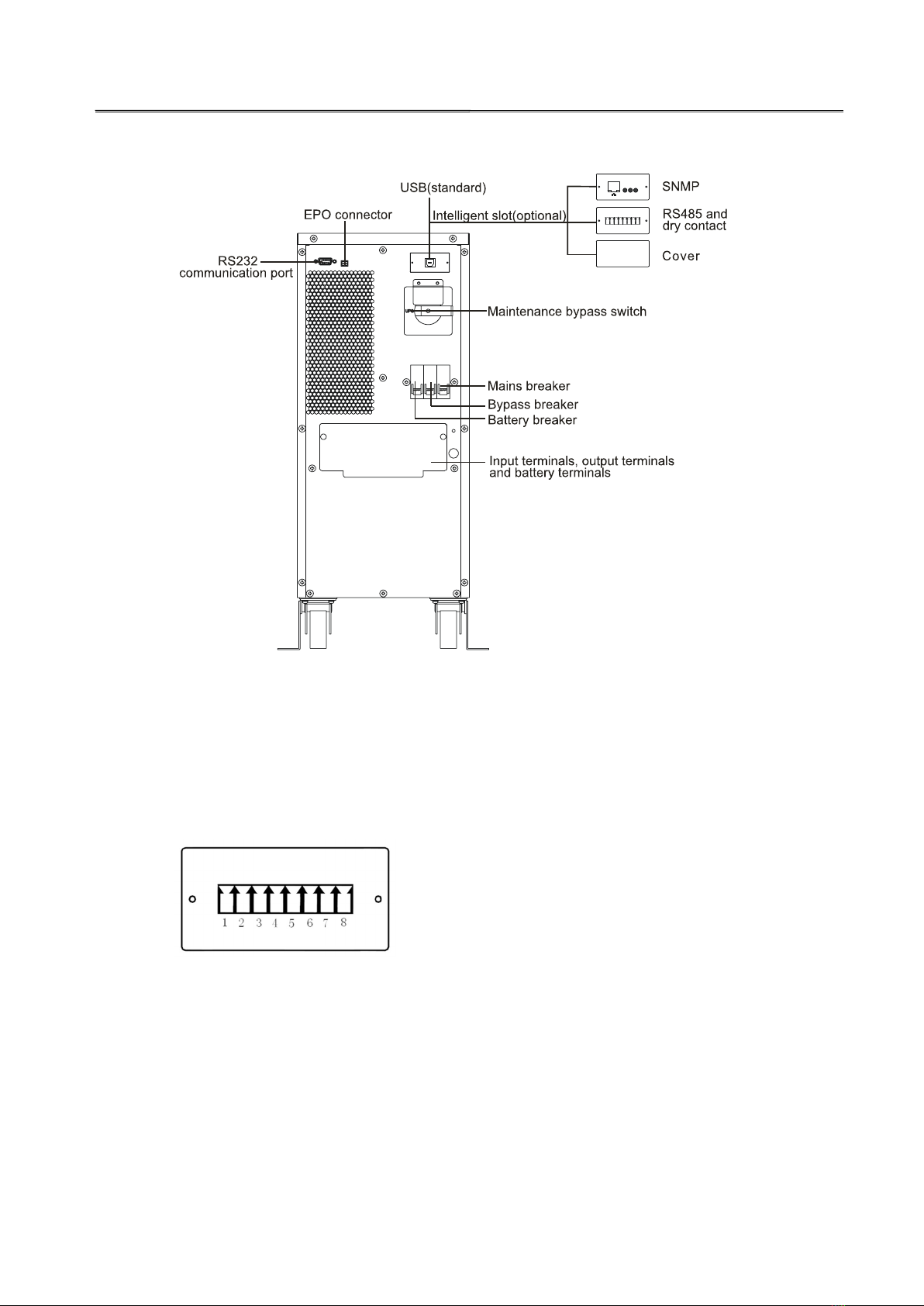

6kVA UPS/ 10kVA UPS
Rear panel of 6kVA/ 10kVA UPS long back model

(1-10kVA) UPS IST3
User Manual
18
Rear panel of 6kVA/ 10kVA UPS standard model
2.2.3 Intelligent Slot
RS485 and dry contact(optional)
The pin sequence and pin definition of RS485 and dry contact is as follows.
RS485 and dry contact

(1-10kVA) UPS IST3
User Manual
19
Pin definition of RS485 and dry contact

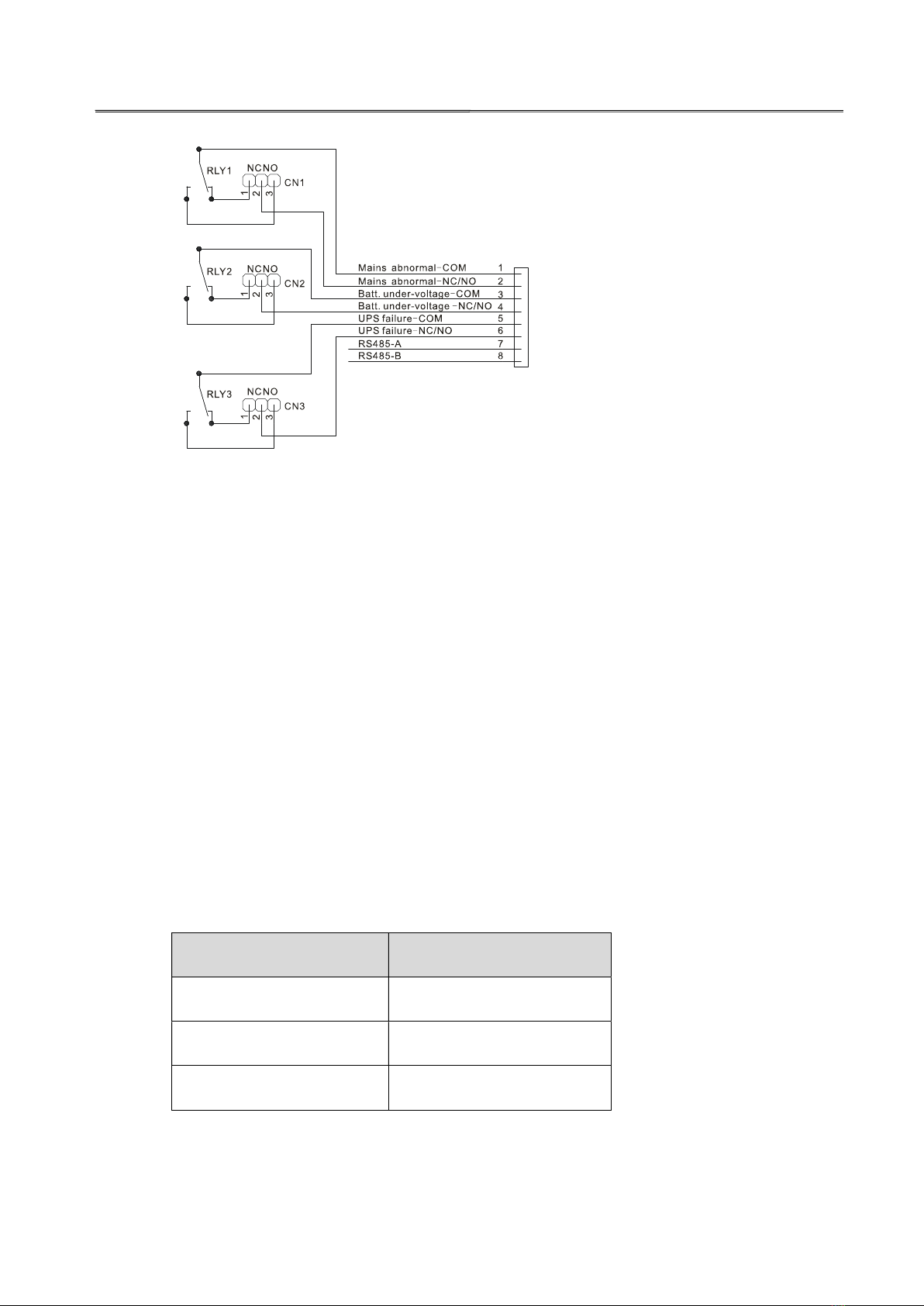

The illustration of dry contact is as below:
1. CN1, CN2, CN3 determine that dry contact output signal is normal open or normal close.
In default, dry contact output signal is normal close, that is PIN1 connects with PIN2. If
one route signal needs to set to normal open, connect PIN2 with PIN3.
2. The requirements for input signal of dry contact: the voltage should be less than 60Vdc
or 42Vac RMS and the current should be less than 1.25A.
2.2.4 EPO Connector
When connecting two ports in the EPO connector together, UPS will close output. If it needs
to recover output, disconnect two ports in the EPO connector and power UPS off, and then
restart UPS.
2.2.5 RS232 Communication
The corresponding pin relationship between RS232 port of UPS and RS232 port of PC.
RS232 port of UPS RS232 port of PC
9 (3) 2 (receiving end)
6 (2) 3 (transmitting end)
7 (5) 5 (grounding end)

(1-10kVA) UPS IST3
User Manual
20
2.3 Working Principles
When the mains is normal, the input of (1-10kVA)UPS converts into the ±360V steady DC
voltage through PFC, which supplies power for DC/AC inverter to output steady 220V AC and
charges battery at the same time. When the mains is abnormal, the battery will boost into the
±360V DC voltage for DC/AC inverter through DC/DC.
The working principles of (1-10kVA) UPS is as follows. The DC/AC inverter adopts half bridge
structure and the DC/DC boost adopts the push-pull circuit or boost circuit. PFC is the
correction circuit for active power factor.
The working principle of (1-10kVA) UPS

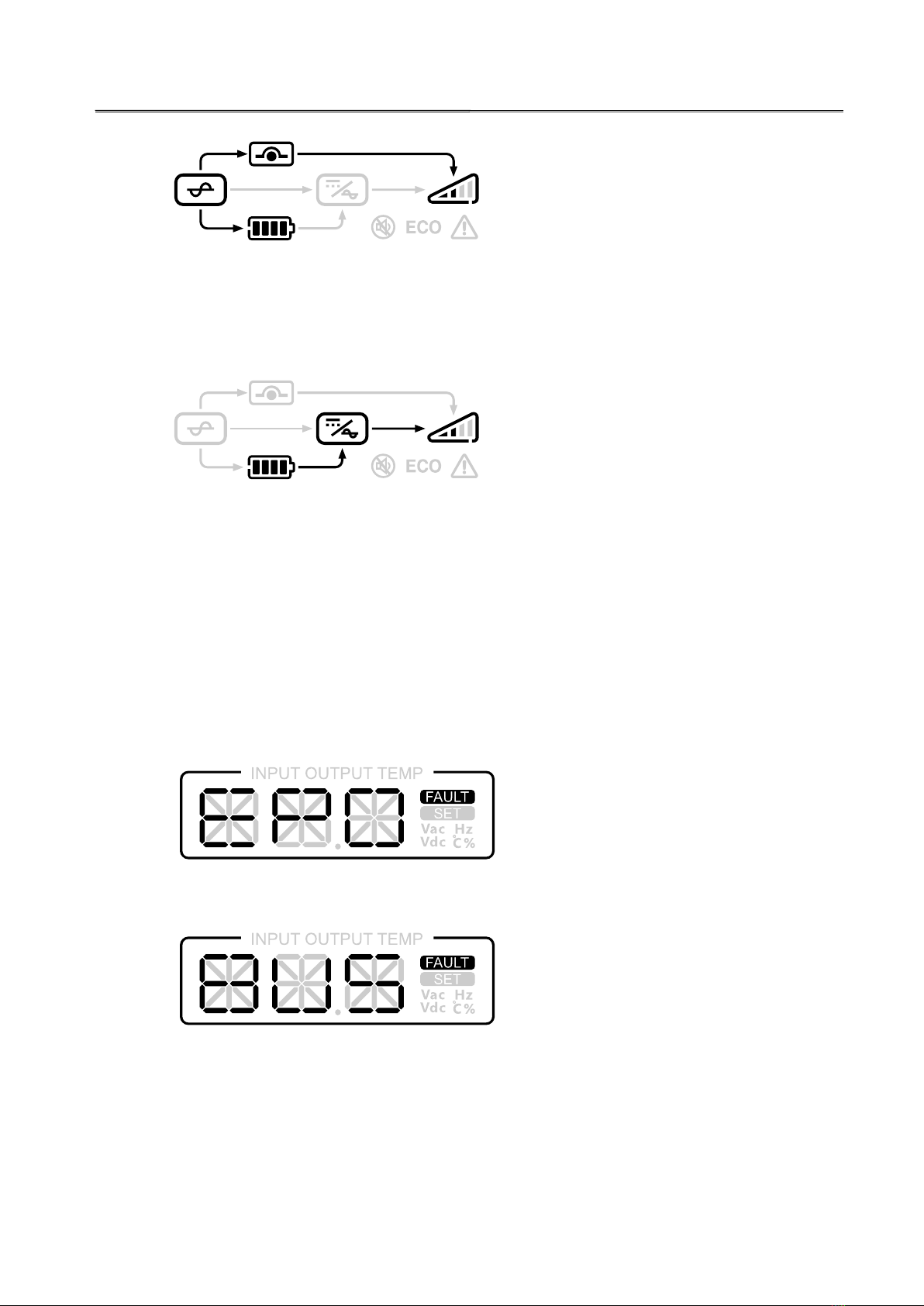

2.3.1 Working Mode
Mains mode
When the mains works, UPS will work in the mains mode and charge battery.
Mains mode
Bypass mode
UPS works in the bypass mode and charges battery.

(1-10kVA) UPS IST3
User Manual
21
Bypass mode
Battery mode
When the mains is abnormal, it will work in the battery mode.
Battery mode
Fault status
UPS faults include: EPO protection, busbar voltage fault, IGBT over-temperature fault, fan
fault (including fan blocked, fan damage, etc.), output fault (including output overload
protection, output short-circuit, etc.), battery fault (including battery over-voltage protection,
battery under-voltage protection, etc.), parallel wire disconnected fault, parameter error,
charger fault (including charger over-temperature, charger short-circuit, etc.), bypass fault,
inner power fault, etc.
EPO protection
Busbar voltage fault
