AEG OKO-LAVAMAT 72330 Operation manual

ÖKO-LAVAMAT 72330 update
The Environmentally-Friendly Washing
Machine
User Information

2
Dear customer,
Please read this user information carefully.
In particular, pay attention to the section ”Safety”on the first pages.
Keep this user information in a safe place for later reference. Pass it on
to any subsequent owners of the unit.
1 Points which are necessary for your safety or which are important for
the unit's functional capability are highlighted by a warning triangle
and/or signal words (Warning!, Caution!, Attention!). Always remem-
ber.
0 1. This symbol guides you step by step in operating the unit.
2. ...
3 After this symbol you will find detailed information on operation and
practical use of the unit.
2 The clover leaf indicates tips and information on the economical and
environmentally-responsible use of the unit.
This user information contains information on remedying any faults
which may occur, see the section ”What to do if ...”.
If these instructions are not sufficient, our After-Sales Service is at your
disposal at any time:
ELGROEP & AEG SERVICE
Bergensesteenweg 719
1502 Lembeek
Tel.: [phone]
Here you will receive an answer to any question concerning the fea-
tures and use of your unit. Of course, we are also pleased to receive any
requests, suggestions and criticism. Our aim is to further improve our
products and services for the benefit of our customers.
In the event of technical problems, our factory customer service in your
area is at your disposal at all times. Also refer to the section ”Service”.
Printed on recycled paper.
Those who think ecologically act ecologically ...

Contents
3
CONTENTS
Instructions for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Environment Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Unit Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Drawer for Washing Powder and Care Agent . . . . . . . . . . . . . . . . . . . . . . . 9
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

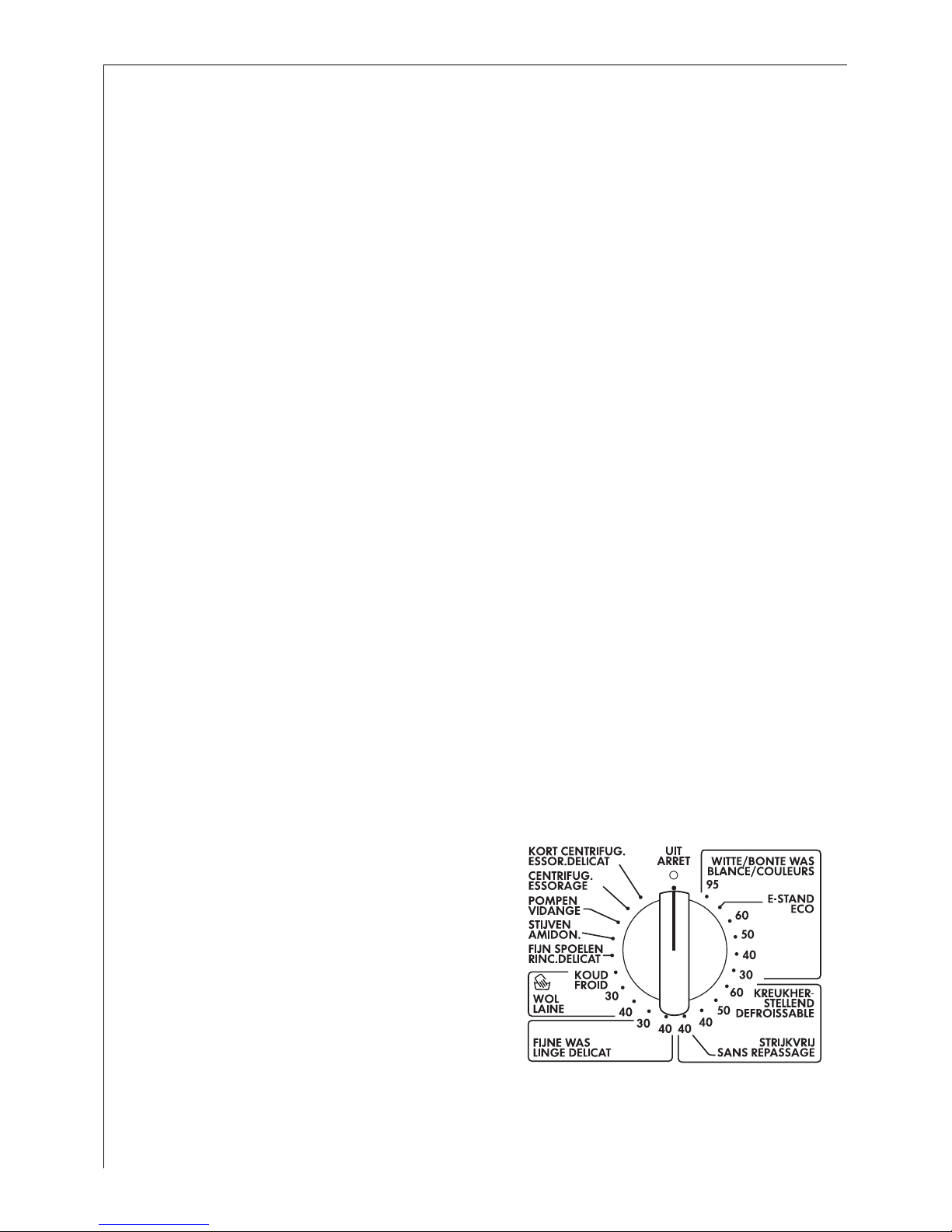

Program Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Additional Program Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Consumption Values and Time Requirements . . . . . . . . . . . . . . . . . . . . . 13
What Does ”Update” Mean? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Before the First Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Prepare the Washing Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Sort and Prepare the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Washing Types and Care Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Washing Detergents and Care Agents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Which washing detergent and care agent? . . . . . . . . . . . . . . . . . . . . . . 17
How much washing detergent and care agent? . . . . . . . . . . . . . . . . . . . 17
Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Run a Washing Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Brief Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Set the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Change Spin Speed / Select Rinse Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Opening and Closing the Filling Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Add the Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Add Washing Detergent/Care Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Start the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Completion of the Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Changing a Washing Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Washing Cycle Ended/Remove Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Contents
4
Program Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Separate Conditioning/Starching/Impregnating . . . . . . . . . . . . . . . . . . . . 27
Separate Rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Separate Spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Washing Detergent Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Washing Drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Filling Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Remedying Faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
If the washing result is not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Carry Out an Emergency Emptying Operation . . . . . . . . . . . . . . . . . . . . . . . 35
Clean the Solution Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Emergency Unlocking of the Filling Door . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Additional Rinse (RINSE+/SPOELEN+/RINCAGE+) . . . . . . . . . . . . . . . . . . . . 38
Child Safety Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Setting up and connection instructions . . . . . . . . . . . . . . . . . 40
Safety Instructions for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Setting Up the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Transporting the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Remove the Transport Safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Prepare the Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Setting Up on a Concrete Pedestal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Setting Up on a Vibrating floor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Compensate for Floor Unevenness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Contents
5
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Permissible Water Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Water Inflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Delivery Heads over 1m . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Instructions for use
6
INSTRUCTIONS FOR USE
1 Safety
The safety of AEG electrical appliances conforms to the recognised
technical regulations and the legislation covering the safety of appli-
ances. However, as manufacturers, we still regard it as our responsibility
to inform you of the following safety information.
Before Putting into Operation for the First Time
•Refer to the ”Installation and Connection Instructions”later in this
user information.
•When the unit is delivered in winter months with minus tempera-
tures: Store the washing machine for 24 hours at room temperature
before putting it into operation.
Correct Use
•The washing machine is only designed for normal domestic washing.
If the unit is used for purposes other than that for which it is
designed, the manufacturer can accept no liability for any resulting
damages.
•For safety reasons, conversions or modifications to the washing
machine are not permissible.
•Use only detergents which are suitable for washing machines. Follow
the washing detergent manufacturer's instructions.
•The washing must not contain any flammable solvents. Also remem-
ber this when washing pre-cleaned washing.
•Do not use the washing machine for chemical cleaning.
•Dyes/dye removers may only be used in washing machines if the
manufacturer expressly allows these products. We cannot be held lia-
ble for any resulting damage.
•Use only water from the water mains. Use rainwater or service water
only if it meets the requirements outlined in DIN1986 and DIN1988.
•Frost damage is not covered by the warranty! If the washing machine
is in a room which is at risk from frost, an emergency emptying oper-
ation must be carried out when there is a frost risk (see the section
”Carry Out Emergency Emptying”).

Instructions for use
7
Child Safety
•Packaging components (e.g. films, polystyrene) can be hazardous to
children. Risk of suffocation! Keep packaging away from children.
•Children often cannot recognise the hazards associated with handling
electrical appliances. Therefore, ensure the necessary supervision dur-
ing operation and do not allow children to play with the washing
machine –there is a risk that children can get trapped inside.
•Ensure that children or small animals cannot climb into the washing
machine's drum.
•When disposing of the washing machine: Pull out the mains plug,
destroy the door lock, cut off the electrical supply lead and throw
away the plug and the left-over cable. This means that children at
play cannot shut themselves inside and in so doing be in danger.
General Safety
•Repairs to the washing machine may only be carried out by skilled
persons. Incorrect repairs can cause significant hazards. If repairs are
necessary, consult our Customer Service or your specialist dealer.
•Never put the washing machine into operation if the mains cable is
damaged or if the control panel, work top or base area are damaged
in such a way that the inside of the unit is open and accessible.
•Switch off the washing machine before carrying out cleaning, care
and maintenance work. Also pull the mains plug out of the socket or,
–if it is permanently connected, –switch off the LS switch in the
fuse box or completely unscrew the screw-in fuse.
•Never pull the cable to remove the plug from the socket. Always pull
the plug itself.
•Multiple connectors, couplings and extension cables must not be
used. There is a fire risk with overheating!
•Do not spray down the washing machine with a water jet. Electric
shock risk!
•The glass in the filling door becomes hot in the case of washing pro-
grams with high temperatures. Do not touch!
•Allow the washing solution to cool down before emergency emptying
of the unit, before cleaning or before emergency opening of the fill-
ing door.
•Small animals can chew the power cables and water hoses. Risk of
electric shock and danger of water damage! Keep small animals away
from the washing machine.

Instructions for use
8
2 Disposal
Dispose the packing material!
Dispose of your washing machine's packaging correctly. All packaging
materials are environmentally compatible and can be disposed of with-
out risk or incinerated at a refuse combustion plant.
The plastics can also be reused:
•The outer sleeve and the bags are made of polyethylene (code >PE<).
•The cushioned parts are made of foamed, CFC-free polystyrene
(code >PS<).
The card parts were made from recylced paper and should also be
returned in the waste paper collection.
Dispose the old appliance!
When you finally put your appliance out of operation,
please bring it to your nearest recycling centre or to your dealer.
2 Environment Tips
•The pre-wash cycle is not required for averagely dirty washing. This
saves washing powder/liquid, water and time (and does not harm the
environment).
•The washing machine is especially economical when you fully utilise
the stated filling quantities.
•For small amounts of washing, use only half to two thirds the recom-
mended amount of washing powder/liquid.
•Suitable pretreatment enables stains and small amounts of dirt to be
removed. You can then wash at a lower temperature.
•Use the energy-saving program to wash garments which are lightly to
moderately dirty.
•There is often no need for conditioner. Try it once! If you use a dryer,
your washing will become soft and velvety even without conditioner.
•In the case of medium to high water hardness, (hardness range II or
higher, see ”Washing and Care Agents”), you should use water sof-
tener.
The washing powder/liquid can then always be metered for hardness
range I (= soft).

Instructions for use
9
Unit Description
Front View
Drawer for Washing Powder and Care Agent
Drawer for
washing
powder and
care agent
Filling door
Screw feet
(height-adjustable)
Control panel
Flap in front of
solution pump
Rating plate
(behind filling
door)
Pre-wash
detergent/
soaking agent
or water-softener
Main detergent
(powder) and
water-softener if
required
In-wash stain treatment
Liquid care agent
(conditioner, fin-
isher, starch)

Instructions for use
10
Control Panel
Program Selector
The program selector determines
the type of washing cycle (e.g.
water level, drum movement,
number of rinses, spin speed)
according to the type of gar-
ments being washed, and also the
washing solution.
OFF (UIT, ARRET)
Switches off the washing
machine. All other positions are
"switched on".
COTTONS/LINEN
(WITTE/BONTE WAS, BLANC/COULEURS)
Main washing cycle Cottons/Linen at 30 °C to 95 °C.
2 ENERGY SAVING position (E-STAND, ECO): Energy-saving program at
approx. 67 °C for slightly to normally dirty cottons, extended washing
time (cannot be combined with QUICK WASH/KORT/COURT).
Spin button / RINSE HOLD
Additional program
buttons
OVER DOSING display
Program sequence display
DOOR display Program selector
Button START/PAUSE

Instructions for use
11
EASY-CARES (KREUKHERSTELLEND, DEFROISSABLE)
Main washing cycle for easy-care textiles (mixed fabrics) at 40 °C to
60 °C.
EASY IRON position (STRIJKVRIJ, SANS REPASSAGE): Main washing
cycle at 40 °C for easy-care textiles which, with the aid of this program,
only have to be either gently ironed or not ironed at all.
DELICATES (FIJNE WAS, LINGE DELICAT)
Main washing cycle for delicates at 30 °C or 40 °C.
WOOLLENS (WOL, LAINE)/P(Handwash)
Main washing cycle (cold up to 40 °C) for machine-washable woollens
and for hand-washable wool textile and silk with the care symbol
ï(handwash).
GENTLE RINSE (FIJN SPOELEN, RINC. DELICAT)
Separate gentle rinse e.g. for rinsing hand-washed textiles (2 rinses, liq-
uid care agent from rinsing compartment wis added, short spin).
STARCHING (STIJVEN, AMIDON.)
Separate starching, separate conditioner, separate impregnation of
damp washing (1 rinse, liquid care agent from the rinsing compartment
wis added, spin).
PUMP OUT (POMPEN, VIDANGE)
Pumping off the water after a rinse hold (without spin).
3 Rinse hold means: The washing remains lying in the last rinsing water.
It is not spun.
SPIN (CENTRIFUG., ESSORAGE)
Pumping off the water after a rinse hold and spin, or separate spin of
hand-washed cottons/linen.
SHORT SPIN (KORT CENTRIFUG., ESSOR. DELICAT)
Pumping off the water after a rinse hold and short spin or separate
short spin of sensitive textiles (easy-care washing, delicates, woollens).

Instructions for use
12
Additional Program Buttons
The additional program buttons are for adapting
the washing program to the dirtiness of the wash-
ing. Additional programs are not required for
washing which is not excessively dirty.
Various functions can be combined with each
other, depending on the program.
PRE WASH (VOORWAS, PRELAV.)
Warm pre wash before the main washing cycle
which follows on automatically; with intermediate
spin for COTTONS/LINEN (WITTE/BONTE WAS,
BLANC/COULEURS), without intermediate spin for EASY-CARES
(KREUKHERSTELLEND, DEFROISSABLE) and DELICATES (FIJNE WAS,
LINGE DELICAT).
SOAKING (INWEKEN, TREMPAGE)
Approximately 50 minutes at 30°C water temperature. This is followed
by the main washing cycle.
QUICK WASH (KORT, COURT)
Shorter washing cycle for slightly dirty washing.
STAIN (VLEKKEN, TACHES)
For treating very dirty washing or stained washing. (In-wash stain
treatment is added during the program on a time-optimized basis.)
3 With the WOOLLENS (WOL, LAINE) program/P(Handwash), it is not
possible to select the additional programs (any pressed buttons have no
effect).
VOORWAS
PRELAV.
INWEKEN
TREMPAGE
KORT
COURT
VLEKKEN
TACHES

Instructions for use
13
Consumption Values and Time Requirements
The values for selected programs in the following tables were deter-
mined under normal conditions. However, there is a helpful orientation
aid for domestic operation.
Program Selector/
Temperature
Filling Quantity
in kg
Water
in Litres
Energy
in kWh
Time
in Minutes
COTTONS/LINEN 95
(WITTE/BONTE WAS,
BLANC/COULEURS)
549 1,80 138
COTTONS/LINEN 601)
(WITTE/BONTE WAS,
BLANC COULEURS)
1) Note: Program setting for a test in accordance with EN 60 456. The consumption
values can deviate from the stated values depending on the water pressure,
hardness, inlet temperature, room temperature, type and quantity of washing,
the washing powder/liquid used, fluctuations in the mains voltage and selected
additional functions.
549 0,94 127
COTTONS/LINEN 40
(WITTE/BONTE WAS,
BLANC/COULEURS)
554 0,60 119
EASY-CARES 40
(KREUKHERSTELLEND, DEFR-
OISSABLE)
2,5 45 0,50 78
DELICATES 30
(FIJNE WAS, LINGE DELICAT) 2,5 45 0,25 55
WOOLLENS/P(Handwash) 30
(WOL, LAINE) 247 0,25 55

Instructions for use
14
What Does ”Update”Mean?
The washing programs of your washing machine are controlled by soft-
ware.
New types of textiles or new washing powders/liquids could, in the
future, require new washing programs. The software can be adapted to
these in most cases.
When new washing programs are available, you can also use them in
your washing machine by having the software updated.
For further information on the ”Update”, consult the Customer Service.
You can also ask the Customer Service about the costs of an ”Update”.
Before the First Wash
0 1. Pull out the washing powder drawer slightly.
2. Pour about 1 litre of water through the washing powder drawer into
the washing machine. With the next program start, this will close the
solution container and the eco-sluice can function correctly.
3. Run the washing cycle without washing (COTTONS/WITTE WAS, BLANC
95 °C, with half the amount of washing detergent). This removes resi-
dues left over from production on the drum and solution container.

Instructions for use
15
Prepare the Washing Cycle
Sort and Prepare the Washing
•Sort the washing according to care codes and type (see ”Washing
Types and Care Codes”).
•Empty pockets.
•Remove metal parts (paper clips, safety pins etc.).
•To prevent washing damage and washing snags: Close zip fasteners,
button closed bed covers and pillow cases, and tie together ribbons,
e.g. on aprons.
•Use clothing made of double-layer fabric (sleeping bag, anorak etc.).
•On knitted, coloured textiles and on wool and textiles with fitted
decorations: Turn inside out.
•Wash small and sensitive items (baby socks, stockings, tights, bras
etc.) in a washing net, a cushion with a zip fastener or in larger socks.
•Treat curtains with particular care. Remove small metal rollers or
small, burred rollers or tie them in a net or in a bag. We cannot
accept any liability for damage.
•Do not wash coloureds and whites together in one washing cycle.
Otherwise, whites will discolour or turn grey.
•New coloureds often contain surplus dye. It is best to wash such
items separately the first time.
•Mix small and large items of washing! This speeds up theeffect of
washing and the washing is more favourably distributed during spin-
ning.
•Loosen up the washing before loading it into the washing machine.
•Put the washing into the drum folded out.
•Pay attention to the care instructions ”Wash separately”and ”Wash
separately several times”!

Instructions for use
16
Washing Types and Care Codes
The care codes help you choose the correct washing program. The
washing should be sorted according to type and care code. The temper-
atures stated in the care codes are all maximum values.
Cottons ç
Textiles made of cotton and linen with this care code are insensitive to
mechanical stress and high temperatures. The program COTTONS/LINEN
(WITTE/BONTE WAS, BLANC/COULEURS) is suitable for this type of
washing.
Linen èë
Textiles made of cotton and linen with this care code are insensitive to
mechanical stresses. The program COTTONS/LINEN (WITTE/BONTE WAS,
BLANC/COULEURS) is suitable for this type of washing.
Easy-Care Garments êí
Textiles such as finished cottons, cotton mixtures, viscose and synthet-
ics with this care code require mechanically more mild treatment. The
program EASY-CARES/EASY IRON (KREUKHERSTELLEND, DEFROISSA-
BLE/STRIJKVRIJ, SANS REPASSAGE) is suitable for this type of washing.
Delicates ì
Textiles such as layered fibres, microfibres, viscose, synthetics and cur-
tains with this care code require very gentle treatment. The program
DELICATES (FIJNE WAS, LINGE DELICAT) is suitable for this type of
washing.
Wool and Very Sensitive Washing 9ìï
Textiles such as wool, wool mixtures and silk with this care code are
especially sensitive to mechanical stresses. The program WOOLLENS
(WOL, LAINE)/P(handwash) is suitable for this type of textiles.
Attention! Textiles with the care codeñ(Do not wash!) must not be
washed in the washing machine!

Instructions for use
17
Washing Detergents and Care Agents
Which washing detergent and care agent?
Use only washing detergents and care agents which are suitable for use
in washing machines. Always follow the manufacturer's instructions.
How much washing detergent and care agent?
The amount to be used depends on:
•the dirtiness of the washing
•the hardness category of the mains water supply
•the filling quantity
2 If the detergent manufacturer gives no details of the dosing quantities
for minimum loads, add one third less for half loads and, in the case of
very small loads and for EASY IRON (STRIJKVRIJ, SANS REPASSAGE),
only half the amount of detergent recommended for a full load.
Refer to the detergent/care agent manufacturer's instructions on use
and dosage.
Water Softener
For medium to high water hardness (hardness category II or higher) you
should use water softener. Pay attention to the manufacturer's instruc-
tions. Always then meter detergent for hardness category I (= soft). The
responsible water works can provide information on the local water
hardness.
2 Since the water softener is added before the main washing detergent,
(water pre-softening), eighty percent of the softener quantity stated on
the package is sufficient.
Water Hardness Details
Hardness Category
Water Hardness °dH
(degrees German
hardness)
Water Hardness in mmol/l
(millimol per litre)
I –soft 0 - 7 up to 1.3
II –medium hard 7 - 14 1.3 - 2.5
III –hard 14 - 21 2.5 - 3.8
IV –very hard over 21 over 3.8

Instructions for use
18
Run a Washing Cycle
Brief Instructions
A washing cycle is run in the following steps:
0 1. Set the correct washing program:
–Set the program and temperature with the program selector
–Set any additional program(s)
2. If necessary, change the spin speed/select RINSE HOLD (GEEN CENTR.,
SANS ESSOR.).
3. Open the filling door and fill with washing.
4. Close the filling door.
5. Add washing detergent/care agent.
6. Start the washing program.
After the Washing Program Ends:
Attention! If the washing cycle ended with Rinse Hold, before opening
the filling door carry out PUMP (POMPEN, VIDANGE),
SPIN (CENTRIFUG., ESSORAGE) or SHORT SPIN (KORT CENTRIFUG.,
ESSOR. DELICAT).
7. Open the filling door and remove the washing.
8. Switch off the washing machine: Set the program selector to OFF
(UIT, ARRET).
Set the Washing Program
3 For a suitable program, the right temperature and possible additional
programs for the relevant washing type, refer to the ”Program Tables”.
0 1. Set the program selector to the
required washing program with
the required temperature.

Instructions for use
19
2. Select any additional programs:
The indicator for the selected additional program
lights up.
–Press another button to make different selection.
–Press the button again to deselect.
Change Spin Speed / Select Rinse Hold
0 If necessary, change the spin speed for the final
spin / select RINSE HOLD (GEEN CENTR., SANS
ESSOR.):
Press the button Spin speed/RINSE HOLD (GEEN
CENTR., SANS ESSOR.) as often as necessary until
the display for the required spin speed (or of RINSE
HOLD/GEEN CENTR., SANS ESSOR.) lights up.
If RINSE HOLD (GEEN CENTR., SANS ESSOR.) is
selected, the washing remains in the last rinsing water and is not spun.
3 If you do not change the spin speed, the final spin is automatically
adapted depending on the washing program:
The speed of the intermediate spin depends on the selected program
and cannot be changed.
–COTTONS/LINEN
(WITTE/BONTE WAS, BLANC/COULEURS)
1200 revolutions
per minute
–EASY-CARES/EASY IRON
(KREUKHERSTELLEND/STRIJKVRIJ,
DEFROISSABLE/SANS REPASSAGE)
900 revolutions
per minute
–DELICATES
(FIJNE WAS, LINGE DELICAT)
700 revolutions
per minute
–WOOLLENS (WOL, LAINE)/P(Handwash) 900 revolutions
per minute
VOORWAS
PRELAV.
INWEKEN
TREMPAGE
KORT
COURT
VLEKKEN
TACHES

Instructions for use
20
Opening and Closing the Filling Door
0 Open: Pull on the handle of the filling door.
0 Close: Press the filling door firmly closed.
The displays DOOR (DEUR/PORTE) and START/
PAUSE (START/PAUZE, MARCHE/PAUSE) show
whether the door can be opened while the
appliance is switched on:
3 If
–the display DOOR (DEUR, PORTE) flashes red
–and the display MAIN WASH (HOOFDWAS, LAVAGE) flashes
you tried to start a washing program without first closing the main
door properly. In this case push the door shut firmly and restart the
washing program.
Add the Washing
3 For the maximum filling quantities, refer to the ”Program Tables”.
For information on the correct preparation of the washing, see ”Sort
and Prepare the Washing”.
0 1. Sort and prepare the washing according to type.
2. Open the filling door: Pull on the handle of the filling door.
3. Fill with washing.
Attention! When closing the door, make sure no items of washing get
stuck! This could damage textiles and the unit.
4. Close the filling door securely.
Display DOOR
(DEUR, PORTE)
Display START/PAUSE
(START/PAUZE, MARCHE/PAUSE)
Opening door
possible?
Glows green Flashes red Yes
Glows green Glows red
Yes, after pressing button
START/PAUSE (START/
PAUZE, MARCHE/PAUSE)
Is off Flashes or glows red No1)
1) The main door is locked because of a high water level or a high temperature.
